Delta-q RC Series User manual

© 2021 Delta-Q Technologies Corp. All Rights Reserved.
(PN: 710-0232 Rev 2 Date: March 2021)
RC SERIES BATTERY CHARGERS
USER MANUAL

RC Series Battery Chargers User Manual
www.delta-q.com
Page 2 of 11
Copyright © 2021 Delta-Q Technologies Corp
TABLE OF CONTENTS
Original Safety and Operating Instructions .............................................................................................. 3
Warning............................................................................................................................................................... 3
Danger ................................................................................................................................................................ 3
Attention ............................................................................................................................................................. 4
Danger ................................................................................................................................................................ 4
Safe Operating Instructions ..................................................................................................................... 5
EMC Declaration....................................................................................................................................... 6
Charger Interface...................................................................................................................................... 7
Charging Algorithms ................................................................................................................................ 8
Displaying the Active Algorithm ............................................................................................................... 8
Selecting a Charge Algorithm................................................................................................................... 9
Fault and Error Codes............................................................................................................................... 9
Identifying the Charger Serial Number..................................................................................................... 9
Acronyms ............................................................................................................................................... 10

RC Series Battery Chargers User Manual
www.delta-q.com
Page 3 of 11
Copyright © 2021 Delta-Q Technologies Corp
ORIGINAL SAFETY AND OPERATING INSTRUCTIONS
This manual is for the Delta-Q Technologies RC Series (900, 1000, & 1200) Industrial Battery Chargers.
Read and comprehend this document fully before handling or working with any RC Series battery
chargers. Important safety, operating, and installation instructions are included. As well, this manual
includes a link to a list of fault codes and error codes that help engineers take steps quickly to resolve
issues.
Read this information in its entirety before using your Delta-Q Technologies charger. Save these
instructions.
For technical support, contact the manufacturer or distributor of your vehicle or machine, as their version
of this charger may require unique operating instructions. For additional product documentation, see
www.delta-q.com/resources.
Warning
Use the charger only with a charging algorithm that is appropriate to the specific battery type
and capacity. Other usage may cause personal injury and damage. Lead acid batteries may generate
explosive hydrogen gas during normal charging. Keep sparks, flames, and smoking materials away from
batteries. If this charger is used with lithium-ion type batteries, an integrated battery management
system (BMS) must be used. The BMS must ensure that, in all operating modes, the battery cells are
protected from inappropriate levels of voltage, current, temperature, and state of charge. Do not operate
the charger in a closed-in area or restrict ventilation. Never charge a frozen or non-rechargeable battery.
Observe all battery manufacturers’ precautions (e.g., maximum charge rates and if cell caps should be
removed while charging).
Danger
Risk of electric shock. Connect charger power cord to an AC outlet that has been properly
installed and grounded in accordance with all local codes and ordinances. A grounded AC outlet is
required to reduce the risk of electric shock—do not use ground adapters or modify the plug. Do not
touch uninsulated portions of the output connector or uninsulated battery terminals. Disconnect the AC
supply before making or breaking the connections to the battery. Do not open or disassemble the
charger. Do not operate this charger if the AC supply cord or DC output cord is damaged or if the charger
has received a sharp blow, been dropped, or is damaged in any way. Refer all repair work to the
manufacturer or qualified personnel. This charger is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of experience and knowledge on electrical
systems and battery charging, unless they have been given supervision or instruction concerning use of
the charger by a person responsible for their safety. Children should be supervised to ensure they do not
play with the charger.

RC Series Battery Chargers User Manual
www.delta-q.com
Page 4 of 11
Copyright © 2021 Delta-Q Technologies Corp
Instructions importantes concernant la sécurité
Conserver ces instructions. Ce manuel contient des instructions importantes concernant la
sécurité et le fonctionnement.
Attention
Utiliser le chargeur seulement avec un algorithme approprié au type et capacitie spécifique de
batterie. D´autres types de batteries pourraient éclater et causer des blessures ou dommages.
Les batteries au plomb peuvent produire des gaz explosifs en service normal. Ne jamais fumer près de
la batterie et éviter toute étincelle ou flamme nue à proximité des batteries. Si ce chargeur est utilisé
avec des batteries au lithium-ion, un système de gestion des batteries intégrés doit être utilisé. Le
système de gestion des batteries doit assurer que dans tous les modes de fonctionnement, les cellules
de la batterie sont protégées contre les niveaux inappropriés de tension, de courant, de température et
d'état de charge. Fournissez une ventilation adéquate du chargement. Ne chargez jamais une batterie
gelée ou non rechargeable. Prendre connaissance des mesures de précaution spécifiées par le fabricant
de la batterie, p. ex., vérifier s´il faut enlever les bouchons des cellules lors du chargement, et les taux de
chargement.
Danger
Risque de décharge électrique. Ne pas toucher les parties non isolées du connecteur de
sortie ou les bornes non isolées de la batterie. Toujours connecter le chargeur à une prise de courant
mise à la terre. Déconnectez la source CA avant de faire ou défaire les connections à la batterie en
chargement. Ne pas utiliser le chargeur si le cordon d’alimentation CA est endommagé ou si le chargeur
est abîmé suite à une chute ou autre incident. Ne pas ouvrir ni désassembler le chargeur –référer toute
reparation aux personnes qualifiées. Cet appareil n’est pas destiné à un usage par des personnes (dont
les enfants) avec des facultés motrices, sensorielles ou mentales réduites, ou ayant une expérience et
des connaissances insuffisantes, à moins qu’elles sont sous la supervision ou reçoivent les instructions
sur l’utilisation de l’appareil d’un répondant garant de leur sécurité. Les enfants devraient être surveillés
afin qu’il ne jouent en aucun temps avec l’appareil.

RC Series Battery Chargers User Manual
www.delta-q.com
Page 5 of 11
Copyright © 2021 Delta-Q Technologies Corp
SAFE OPERATING INSTRUCTIONS
•The charger contains up to 25 selectable charging algorithms stored in its internal memory to charge batteries.
These algorithms are specific to each manufacturer and model of battery. Your equipment supplier or charger
distributor is responsible for ensuring the active charge algorithm matches the battery pack charging
requirements. Contact them withanyquestionsaboutwhichalgorithmtoselect foreachbattery pack.
• The charger may become hot during charging. Use hand protection to safely handle the charger when charging.
• Tomaintain safe operations, the unit automatically reduces its output powerif the temperature rises above set
thresholds, or ifthe ACinput voltage is too low.
• Ifpower is interrupted, and then returns, the charger restarts and continues to operate without hazard to the user,
ordamagetothebatteries.
• Unplug the charger from both AC and DC sources when cleaning, moving, or conducting any maintenance or
repairon thecharger.No userserviceable parts are inside. Donot removethe coverdue tothe riskofelectrical
shock.
• Do not expose the charger to oil, dirt, mud, or direct heavy water spray when cleaning the vehicle or
machine.
• All connectors between the battery charger and the battery should be regularly inspected for corrosion and
contamination as these can cause overheating and can be a fire hazard.
• If the detachable AC input power cord set or DC output cord is damaged, do not use the charger until they are
replaced with cord sets appropriate to your region andapplication.
• When mated with a Delta-Q Technologies sealed AC cord, the charger meets IP66 specifications, making it
dust-tight and protected againstpowerful waterjets.Ifacord setwithan unsealed connectoris used,theplug
andconnector mustbeperiodicallyinspectedtoensurethecontactsarecleananddry.
o If this charger is provided with an AC cord set and the power plug does not match the power outlet,
contact the equipment manufacturer, distributor, or Delta-Q Technologies for thecorrect ACcordset
terminatingwitha3-prong plug suitable for your region’s grounded power outlet.
o In North America (and other 120V AC regions), the
AC cord must be a 3-conductor ULListed/ CSA
approved detachable cord set atleast1.8min length
(≥ 6 feet), minimum 16 AWG and rated SJT; rated
105˚C min, and terminated with 125V, 13A, or greater
connector.
o In Japan, the AC cord must be a 3-conductor PSE
approved detachable AC cord set, rated 105˚C, and
terminated with 100V, 15A, or greater connector.
o In 220-240VAC regions, the AC cord must be a
3-conductor safety-approved cord set, with 1.5mm² conductors (min.), rated appropriately forindustrial
use.The cordmust be terminated on oneend with a groundingtypeinputplugappropriateforuseinthe
countryofdestination; both plugandconnector should berated250V,10A,orgreater.
• Extension cords must be 3-wire cords no longer than 30m (100’) at 10 AWG or 7.5m (25’) at 16 AWG, per UL
guidelines.

RC Series Battery Chargers User Manual
www.delta-q.com
Page 6 of 11
Copyright © 2021 Delta-Q Technologies Corp
EMC DECLARATION
The RC Series 900, 1000, and 1200 models have been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules for the United States and the ICES Regulations for Canada.
These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.

RC Series Battery Chargers User Manual
www.delta-q.com
Page 7 of 11
Copyright © 2021 Delta-Q Technologies Corp

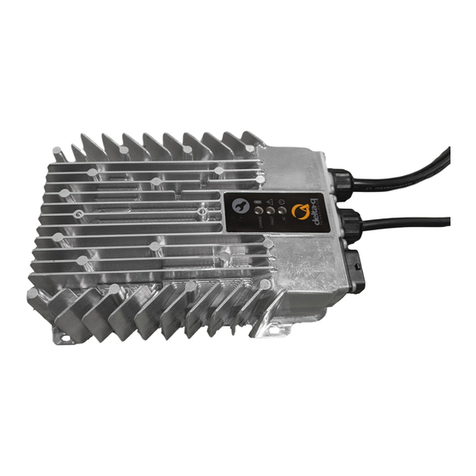

CHARGER INTERFACE
Not all RC Series chargers have the same user interface (UI). The following is an example:
The Charge Status/Error/Fault Indicator behavior is described as follows:
Status
LED Operation
No AC
OFF
Charging: battery at low state of charge
Slow GREEN breathing
Charging: battery at high state of charge
Fast GREEN breathing
Charge Complete
Solid GREEN
Error
Rapid AMBER flashing
Fault
Solid RED
Charger Button
Charge Status/Error/Fault Indicator

RC Series Battery Chargers User Manual
www.delta-q.com
Page 8 of 11
Copyright © 2021 Delta-Q Technologies Corp
CHARGING ALGORITHMS
Almost every model of battery has different charging requirements and each application may add to those
requirements. Delta-Q Technologies has established over 200 charge algorithms for the most common
motive deep cycle batteries. These algorithms are designed to get the longest battery life and meet a variety
of application environments.
All RC chargers have charging algorithms even if the charger does not have a UI. The algorithms are specific
to each manufacturer and model of battery. Your equipment supplier or charger distributor is responsible for
ensuring the active charge algorithm matches the battery pack charging requirements. Contact them for
information on selecting and/or changing the charging algorithm or any questions regarding the default
algorithm, the other algorithms on the charger, and which algorithm to select for each battery pack.
DISPLAYING THE ACTIVE ALGORITHM
There are up to 25 charge algorithms stored in the charger. Use the Charger button to display and/or change the
active charge algorithm.
Follow these steps to identify the default algorithm on a charger with a user interface:
1. Press and release the Charger button to display the current charging algorithm. The charger
displays its default algorithm. Algorithms are indicated by the number of consecutive flashes.
This is repeated twice.
Algorithm 7 =
Algorithm 7 = RED flashes Green Green Green Green Green Green Green
2. Algorithms in the double digits display in the same way: by one or more flashes, a pause, then
one or more flashes. This is repeated twice.
Algorithm 33 = ||
Algorithm 33 = RED Flashes Green Green Green || Green Green Green).

RC Series Battery Chargers User Manual
www.delta-q.com
Page 9 of 11
Copyright © 2021 Delta-Q Technologies Corp
SELECTING A CHARGE ALGORITHM
Follow these steps to select a charge algorithm on a charger with a user interface:
1. Press and hold the Charger button for five (5) seconds to enter the algorithm select mode. Fast
red flashes at the end of five (5) seconds confirm this.
2. The LED displays red flashes. Then, the current charge algorithm displays in amber. This is
repeated four times.
Algorithm 33 = ||
Algorithm 33 = RED flashes Yellow Yellow Yellow || Yellow Yellow Yellow)
3. To display the next algorithm, press the Charger button anytime during the four cycles. Where
the above pattern commences with the new algorithm. If there is only one algorithm on the
charger, the old algorithm is still indicated.
4. When your desired algorithm is flashing, press the Charger button for seven (7) seconds to
select the new algorithm. The new algorithm selected is displayed in green. This will be repeated
for two cycles with red flashes in the middle to indicate end of a cycle.
Algorithm 7 =
Algorithm 7 = Green Green Green Green Green Green Green
If the Charger button press is dropped before seven (7) seconds, the LED reverts to displaying the
last algorithm in amber to signify the button was released and the algorithm was not programmed.
5. Press the Charger button to check the desired algorithm has been selected.
FAULT AND ERROR CODES
Visit the Delta-Q Technologies support website at https://support.delta-q.com and search for fault and error
codes to review recommended actions.
IDENTIFYING THE CHARGER SERIAL NUMBER
The serial number is printed on the front of the charger. Use this number when requesting technical support.

RC Series Battery Chargers User Manual
www.delta-q.com
Page 10 of 11
Copyright © 2021 Delta-Q Technologies Corp
ACRONYMS
The following table provides acronym definitions used within this guide.
Term
Definition
AC
Alternating Current
AWG
American Wire Gauge
BMS
Battery Management System
CFM
Cubic Feet Per Minute
DC
Direct Current
EMC
Electromagnetic Compliance
FCC
Federal Communications Commission
HV
High Voltage
HW
Hardware
ICES
Interference-Causing Equipment Standard
ID
Identification
kW
Kilowatt
LED
Light Emitting Diode
LIN
Local Interconnect Network
LV
Low Voltage
MB
Megabyte
MCU
Microcontroller - also abbreviated uC or µC
NMT
Network Management
SJTW
Hard Service Cord
SW
Software
TBD
To Be Determined
UL
Underwriters Laboratories
USB
Universal Serial Bus
V
Volt
VAC
Volts Alternating Current

Delta-Q Technologies Corp.
3755 Willingdon Avenue
Burnaby, BC V5G 3H3 CANADA
Web: www.delta-q.com
Phone: [phone]
Delta-Q Technologies Corp.
3755 Willingdon Avenue
Burnaby, BC V5G 3H3 CANADA
