Delta ShopMaster TS300 User manual

INSTRUCTION MANUAL
PART NO. A06547 - 12-31-04
Copyright © 2004 Delta Machinery
ESPAÑOL: PÁGINA 27
To learn more about DELTA MACHINERY
visit our website at: www.deltamachinery.com.
For Parts, Service, Warranty or other Assistance,
please call 1-800-223-7278 (In Canada call 1-800-463-3582).
10" Table Saw
(Model TS300)

2
TABLE OF CONTENTS
Read and understand all warnings and operating instructions before using any tool or equipment. When
using tools or equipment, basic safety precautions should always be followed to reduce the risk of personal injury.
Improper operation, maintenance or modification of tools or equipment could result in serious injury and property
damage. There are certain applications for which tools and equipment are designed. Delta Machinery strongly
recommends that this product NOT be modified and/or used for any application other than for which it was designed.
If you have any questions relative to its application DO NOT use the product until you have written Delta Machinery
and we have advised you.
Online contact form at www.deltamachinery.com
Postal Mail: Technical Service Manager
Delta Machinery
4825 Highway 45 North
Jackson, TN 38305
Information regarding the safe and proper operation of this tool is available from the following sources:
Power Tool Institute
1300 Sumner Avenue, Cleveland, OH 44115-2851
www.powertoolinstitute.org
National Safety Council
1121 Spring Lake Drive, Itasca, IL 60143-3201
American National Standards Institute, 25 West 43rd Street, 4 floor, New York, NY 10036 www.ansi.org
ANSI 01.1Safety Requirements for Woodworking Machines, and
the U.S. Department of Labor regulations www.osha.gov
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS!
IMPORTANT SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
SAFETY GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
GENERAL SAFETY RULES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
ADDITIONAL SPECIFIC SAFETY RULES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
FUNCTIONAL DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
CARTON CONTENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
SERVICE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
ACCESSORIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
ESPAÑOL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
SERVICE CENTER LOCATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .back cover

3
Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.
Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.
Used without the safety alert symbol indicates potentially hazardous situation which, if not avoided, may
result in property damage.
It is important for you to read and understand this manual. The information it contains relates to protecting YOUR
SAFETY and PREVENTING PROBLEMS. The symbols below are used to help you recognize this information.
SAFETY GUIDELINES - DEFINITIONS
SOME DUST CREATED BY POWER SANDING, SAWING, GRINDING, DRILLING, AND OTHER
CONSTRUCTION ACTIVITIES contains chemicals known to cause cancer, birth defects or other reproductive harm.
Some examples of these chemicals are:
· lead from lead-based paints,
· crystalline silica from bricks and cement and other masonry products, and
· arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to
these chemicals: work in a well ventilated area, and work with approved safety equipment, always wear NIOSH/OSHA
approved, properly fitting face mask or respirator when using such tools.
CALIFORNIA PROPOSITION 65

4
GENERAL SAFETY RULES
READ AND UNDERSTAND ALL WARNINGS AND OPERATING INSTRUCTIONS BEFORE
USING THIS EQUIPMENT. Failure to follow all instructions listed below, may result in electric shock,
fire, and/or serious personal injury or property damage.
IMPORTANT SAFETY INSTRUCTIONS
1. FOR YOUR OWN SAFETY, READ THE INSTRUCTION
MANUAL BEFORE OPERATING THE MACHINE. Learning
the machine’s application, limitations, and specific
hazards will greatly minimize the possibility of accidents
and injury.
2. WEAR EYE AND HEARING PROTECTION. ALWAYS
USE SAFETY GLASSES. Everyday eyeglasses are NOT
safety glasses. USE CERTIFIED SAFETY EQUIPMENT.
Eye protection equipment should comply with ANSI Z87.1
standards. Hearing equipment should comply with ANSI
S3.19 standards.
3. WEAR PROPER APPAREL. Do not wear loose clothing,
gloves, neckties, rings, bracelets, or other jewelry which
may get caught in moving parts. Nonslip footwear is
recommended. Wear protective hair covering to contain
long hair.
4. DO NOT USE THE MACHINE IN A DANGEROUS
ENVIRONMENT. The use of power tools in damp or wet
locations or in rain can cause shock or electrocution. Keep
your work area well-lit to prevent tripping or placing arms,
hands, and fingers in danger.
5. MAINTAIN ALL TOOLS AND MACHINES IN PEAK
CONDITION. Keep tools sharp and clean for best and safest
performance. Follow instructions for lubricating and changing
accessories. Poorly maintained tools and machines can further
damage the tool or machine and/or cause injury.
6. CHECK FOR DAMAGED PARTS. Before using the machine,
check for any damaged parts. Check for alignment of
moving parts, binding of moving parts, breakage of parts,
and any other conditions that may affect its operation. A
guard or any other part that is damaged should be
properly repaired or replaced. Damaged parts can cause
further damage to the machine and/or injury.
7. KEEP THE WORK AREA CLEAN. Cluttered areas and benches
invite accidents.
8. KEEP CHILDREN AND VISITORS AWAY. Your shop is a
potentially dangerous environment. Children and visitors can be
injured.
9. REDUCE THE RISK OF UNINTENTIONAL STARTING. Make
sure that the switch is in the “OFF” position before
plugging in the power cord. In the event of a power failure,
move the switch to the “OFF” position. An accidental
start-up can cause injury.
10. USE THE GUARDS. Check to see that all guards are in
place, secured, and working correctly to reduce the risk of
injury.
11. REMOVE ADJUSTING KEYS AND WRENCHES
BEFORE STARTING THE MACHINE. Tools, scrap pieces,
and other debris can be thrown at high speed, causing
injury.
12. USE THE RIGHT MACHINE. Don’t force a machine or an
attachment to do a job for which it was not designed.
Damage to the machine and/or injury may result.
13. USE RECOMMENDED ACCESSORIES. The use of
accessories and attachments not recommended by Delta
may cause damage to the machine or injury to the user.
14. USE THE PROPER EXTENSION CORD. Make sure your
extension cord is in good condition. When using an
extension cord, be sure to use one heavy enough to carry
the current your product will draw. An undersized cord will
cause a drop in line voltage, resulting in loss of power and
overheating. See the Extension Cord Chart for the correct
size depending on the cord length and nameplate ampere
rating. If in doubt, use the next heavier gauge. The smaller
the gauge number, the heavier the cord.
15. SECURE THE WORKPIECE. Use clamps or a vise to hold
the workpiece when practical. Loss of control of a
workpiece can cause injury.
16. FEED THE WORKPIECE AGAINST THE DIRECTION OF THE
ROTATION OF THE BLADE, CUTTER, OR ABRASIVE
SURFACE. Feeding it from the other direction will cause
the workpiece to be thrown out at high speed.
17. DON’T FORCE THE WORKPIECE ON THE MACHINE.
Damage to the machine and/or injury may result.
18. DON’T OVERREACH. Loss of balance can make you fall
into a working machine, causing injury.
19. NEVER STAND ON THE MACHINE. Injury could occur if the tool
tips, or if you accidentally contact the cutting tool.
20. NEVER LEAVE THE MACHINE RUNNING UNATTENDED.
TURN THE POWER OFF. Don’t leave the machine until it comes
to a complete stop. A child or visitor could be injured.
21. TURN THE MACHINE “OFF”, AND DISCONNECT THE
MACHINE FROM THE POWER SOURCE before installing or
removing accessories, before adjusting or changing set-
ups, or when making repairs. An accidental start-up can
cause injury.
22. MAKE YOUR WORKSHOP CHILDPROOF WITH
PADLOCKS, MASTER SWITCHES, OR BY REMOVING
STARTER KEYS. The accidental start-up of a machine by
a child or visitor could cause injury.
23. STAY ALERT, WATCH WHAT YOU ARE DOING, AND
USE COMMON SENSE. DO NOT USE THE MACHINE
WHEN YOU ARE TIRED OR UNDER THE INFLUENCE
OF DRUGS, ALCOHOL, OR MEDICAT-ION. A moment of
inattention while operating power tools may result in injury.
24. USE OF THIS TOOL CAN GENERATE AND
DISBURSE DUST OR OTHER AIRBORNE
PARTICLES, INCLUDING WOOD DUST, CRYSTALLINE
SILICA DUST AND ASBESTOS DUST. Direct particles away
from face and body. Always operate tool in well ventilated
area and provide for proper dust removal. Use dust collection
system wherever possible. Exposure to the dust may cause
serious and permanent respiratory or other injury, including
silicosis (a serious lung disease), cancer, and death. Avoid
breathing the dust, and avoid prolonged contact with dust.
Allowing dust to get into your mouth or eyes, or lay on your
skin may promote absorption of harmful material. Always use
properly fitting NIOSH/OSHA approved respiratory protection
appropriate for the dust exposure, and wash exposed areas
with soap and water.
SAVE THESE INSTRUCTIONS.
Refer to them often and use them to instruct others.

5
FAILURE TO FOLLOW THESE RULES MAY RESULT IN SERIOUS PERSONAL INJURY.
ADDITIONAL SAFETY RULES
FOR TABLE SAWS
SAVE THESE INSTRUCTIONS.
Refer to them often and use them to instruct others.
1. DO NOT OPERATE THIS MACHINE until it is assembled
and installed according to the instructions.
2. OBTAIN ADVICE FROM YOUR SUPERVISOR,
instructor, or another qualified person if you are not
familiar with the operation of this machine.
3. FOLLOW ALL WIRING CODES and recommended
electrical connections.
4. USE THE GUARDS WHENEVER POSSIBLE. Check to
see that they are in place, secured, and working correctly.
5. KICKBACK IS THE NATURAL TENDENCY OF THE
WORKPIECE TO BE THROWN BACK AT THE
OPERATOR when the workpiece initially contacts the
blade or if the workpiece pinches the blade. Kickback is
dangerous and can result in serious injury.
AVOID KICKBACK by:
A. keeping blade sharp and free of rust and pitch.
B. keeping rip fence parallel to the saw blade.
C. using saw blade guard and spreader for every
possible operation, including all through sawing.
D. pushing the workpiece past the saw blade prior to
release.
E. never ripping a workpiece that is twisted or warped,
or does not have a straight edge to guide along the
fence.
F. using featherboards when the anti-kickback device
cannot be used.
G. never sawing a large workpiece that cannot be
controlled.
H. never using the fence as a guide when crosscutting.
I. never sawing a workpiece with loose knots or other
flaws.
6. ALWAYS USE GUARDS, SPLITTER, AND ANTI-
KICKBACK FINGERS whenever possible.
7. REMOVE CUT-OFF PIECES AND SCRAPS from the
table before starting the saw. The vibration of the machine
may cause them to move into the saw blade and be
thrown out. After cutting, turn the machine off. After the
blade has come to a complete stop, remove all debris.
8. NEVER START THE MACHINE with the workpiece
against the blade.
9. NEVER run the workpiece between the fence and a
moulding cutterhead.
10. CUTTING THE WORKPIECE WITHOUT THE USE OF A
FENCE OR MITER GAUGE IS KNOWN AS
“FREEHAND” CUTTING. NEVER perform “free-hand”
operations. Use either the fence or miter gauge to position
and guide the workpiece.
11. HOLD THE WORKPIECE FIRMLY against the miter
gauge or fence.
12. CUTTING COMPLETELY THROUGH THE WORK-
PIECE IS KNOWN AS “THROUGH-SAWING”. Ripping
and cross-cutting are through-sawing operations. Cutting
with the grain (or down the length of the workpiece) is
ripping. Cutting across the grain (or across the workpiece)
is cross-cutting. Use a fence or fence system for ripping.
DO NOT use a fence or fence system for cross-cutting.
Instead, use a miter gauge. USE PUSH STICK(S) for
ripping a narrow workpiece.
13. AVOID AWKWARD OPERATIONS AND HAND
POSITIONS where a sudden slip could cause a hand to
move into the blade.
14. KEEP ARMS, HANDS, AND FINGERS away from the
blade.
15. NEVER have any part of your body in line with the path of
the saw blade.
16. NEVER REACH AROUND or over the saw blade.
17. NEVER attempt to free a stalled saw blade without first
turning the machine “OFF”.
18. PROPERLY SUPPORT LONG OR WIDE workpieces.
19. NEVER PERFORM LAYOUT, assembly or set-up work on
the table/work area when the machine is running.
20. TURN THE MACHINE “OFF” AND DISCONNECT THE
MACHINE from the power source before installing or
removing accessories, before adjusting or changing set-
ups, or when making repairs.
21. TURN THE MACHINE “OFF”, disconnect the machine
from the power source, and clean the table/work area
before leaving the machine. LOCK THE SWITCH IN THE
“OFF” POSITION to prevent unauthorized use.
22. ADDITIONAL INFORMATION regarding the safe and
proper operation of power tools (i.e. a safety video) is
available from the Power Tool Institute, 1300 Sumner Avenue,
Cleveland, OH 44115-2851 (www.powertoolinstitute.com).
Information is also available from the National Safety Council,
1121 Spring Lake Drive, Itasca, IL 60143-3201. Please refer to
the American National Standards Institute ANSI 01.1 Safety
Requirements for Woodworking Machines and the U.S.
Department of Labor OSHA 1910.213 Regulations.

6
A separate electrical circuit should be used for your machines. This circuit should not be less than #12 wire and should
be protected with a 20 Amp time lag fuse. If an extension cord is used, use only 3-wire extension cords which have 3-
prong grounding type plugs and matching receptacle which will accept the machine’s plug. Before connecting the
machine to the power line, make sure the switch (s) is in the “OFF” position and be sure that the electric current is of
the same characteristics as indicated on the machine. All line connections should make good contact. Running on low
voltage will damage the machine.
DO NOT EXPOSE THE MACHINE TO RAIN OR OPERATE THE MACHINE IN DAMP LOCATIONS.
Fig. A Fig. B
GROUNDED OUTLET BOX
CURRENT
CARRYING
PRONGS
GROUNDING BLADE
IS LONGEST OF THE 3 BLADES
GROUNDED OUTLET BOX
GROUNDING
MEANS
ADAPTER
2. Grounded, cord-connected machines intended for
use on a supply circuit having a nominal rating less
than 150 volts:
If the machine is intended for use on a circuit that has an
outlet that looks like the one illustrated in Fig. A,the
machine will have a grounding plug that looks like the plug
illustrated in Fig. A. A temporary adapter, which looks like
the adapter illustrated in Fig. B, may be used to connect
this plug to a matching 2-conductor receptacle as shown
in Fig. B if a properly grounded outlet is not available. The
temporary adapter should be used only until a properly
grounded outlet can be installed by a qualified electrician.
The green-colored rigid ear, lug, and the like, extending
from the adapter must be connected to a permanent
ground such as a properly grounded outlet box. Whenever
the adapter is used, it must be held in place with a metal
screw.
NOTE: In Canada, the use of a temporary adapter is not
permitted by the Canadian Electric Code.
IN ALL CASES, MAKE CERTAIN THAT
THE RECEPTACLE IN QUESTION IS PROPERLY
GROUNDED. IF YOU ARE NOT SURE, HAVE A QUALI-
FIED ELECTRICIAN CHECK THE RECEPTACLE.
1. All grounded, cord-connected machines:
In the event of a malfunction or breakdown, grounding
provides a path of least resistance for electric current to
reduce the risk of electric shock. This machine is
equipped with an electric cord having an equipment-
grounding conductor and a grounding plug. The plug must
be plugged into a matching outlet that is properly installed
and grounded in accordance with all local codes and
ordinances.
Do not modify the plug provided - if it will not fit the outlet,
have the proper outlet installed by a qualified electrician.
Improper connection of the equipment-grounding
conductor can result in risk of electric shock. The
conductor with insulation having an outer surface that is
green with or without yellow stripes is the equipment-
grounding conductor. If repair or replacement of the
electric cord or plug is necessary, do not connect the
equipment-grounding conductor to a live terminal.
Check with a qualified electrician or service personnel if
the grounding instructions are not completely
understood, or if in doubt as to whether the machine is
properly grounded.
Use only 3-wire extension cords that have 3-prong
grounding type plugs and matching 3-conductor
receptacles that accept the machine’s plug, as shown in
Fig. A.
Repair or replace damaged or worn cord immediately.
POWER CONNECTIONS
MOTOR SPECIFICATIONS
Your machine is wired for (see SPEC. PLATE VOLTAGE), 60 HZ alternating current. Before connecting the machine to
the power source, make sure the switch is in the “OFF” position.
GROUNDING INSTRUCTIONS
THIS MACHINE MUST BE GROUNDED WHILE IN USE TO PROTECT THE OPERATOR FROM
ELECTRIC SHOCK.

7
EXTENSION CORDS
Use proper extension cords. Make sure
your extension cord is in good condition and is a 3-wire
extension cord which has a 3-prong grounding type
plug and matching receptacle which will accept the
machine’s plug. When using an extension cord, be sure
to use one heavy enough to carry the current of the
machine. An undersized cord will cause a drop in line
voltage, resulting in loss of power and overheating. Fig.
D-1 shows the correct gauge to use depending on the
cord length. If in doubt, use the next heavier gauge. The
smaller the gauge number, the heavier the cord.
Fig. D-1
MINIMUM GAUGE EXTENSION CORD
RECOMMENDED SIZES FOR USE WITH STATIONARY ELECTRIC MACHINES
Ampere Total Length Gauge of
Rating Volts of Cord in Feet Extension Cord
0-6 120 up to 25 18 AWG
0-6 120 25-50 16 AWG
0-6 120 50-100 16 AWG
0-6 120 100-150 14 AWG
6-10 120
up to 25 18 AWG
6-10 120 25-50 16 AWG
6-10 120 50-100 14 AWG
6-10 120 100-150 12 AWG
10-12 120
up to 25 16 AWG
10-12 120 25-50 16 AWG
10-12 120 50-100 14 AWG
10-12 120 100-150 12 AWG
12-16 120
up to 25 14 AWG
12-16 120 25-50 12 AWG
12-16 120 GREATER THAN 50 FEET NOT RECOMMENDED
FOREWORD
FUNCTIONAL DESCRIPTION
NOTICE: The photo on the manual cover illustrates the current production model. All other illustrations contained in
the manual re representative only and may not depict the actual color, labeling, or accessories and are intended to
illustrate technique only.
Delta ShopMaster Model TS300 is a 10" Table Saw designed to give high quality performance with depth of cut
capacity up to 3-1/8" (79mm) at 90° and 2-1/8" (54mm) at 45° for clean cutting of standard stock sizes. Delta
ShopMaster Model TS300 includes the basic machine, a sturdy steel stand, a T-Square fence system, a T-Slot miter
gauge, a 15 amp. motor, a cast iron table with extension wings (22-1/4" x 38-3/8"), a see-thru blade guard with anti-
kickback fingers, convenient up-front blade-raising/tilting controls, and a 10" carbide blade.
UNPACKING AND CLEANING
Carefully unpack the machine and all loose items from the shipping container(s). Remove the protective coating from
all unpainted surfaces. This coating may be removed with a soft cloth moistened with kerosene (do not use acetone,
gasoline or lacquer thinner for this purpose). After cleaning, cover the unpainted surfaces with a good quality household
floor paste wax.
CARTON CONTENTS

8
1. Table Saw
2. Extension Wing (2)
3. Rip Fence
4. Miter Gage
5. Rip Fence Handle
6. Handwheel (2)
7. M10 Flat Washer (2), Used to mount
handwheel lock knob
8. Handwheel Lock Knob (2)
9. Right Front Rail
10. Left Front Rail
11. Rail Extension Connector
12. Right Rear Rail
13. Left Rear Rail
14. Saw Blade
15. Blade Guard and Splitter Assembly
For Blade Guard and Splitter Assembly
1. Splitter Bracket
2. 5/8" Flat Washer (2)
3. M12x1.75 Hex Nut (2)
4. M6x1x20mm Hex Head Screw
5. 1/4" External. Tooth Lockwasher (2)
6. 5/16" Flat Washer (2)
7. M6x1 Wing Nut
8. 7/8" Box-End Wrench (2)
9. 7/8" Open-End Wrench
For Front Guide Rail
10. M6x1x20mm Carriage Head Screw (5)
11. M6.4 Flat Washer (5)
12. M6.1 Lockwasher (5)
13. M6x1 Hex Nut (5)
For Fastening Saw to Stand
14. M8x1.25x16mm Hex Head Screws (4)
15. 3/8" Flat Washer (8)
16. M8x1.25 Hex Nut (4)
For Rear Guide Rail
17. M8x1.25x16mm Hex Head Screw (5)
18. M8.4 Flat Washer (7)
19. M8.1 Lockwasher (7)
20. M8x1.25 Hex Nut (2)
For Extension Wings
21. M8x1.25x16mm Hex Head Screw (6)
22. 5/16" Lockwasher (6)
23. 3/8" Flat Washer (6)
1
2
2
3
4
10
9
5
6
7
8
14
12
13
15 11
1
2
3
4 5 6
5
67
10
13 12
11
16
1415
19 20
18 17
23 22
21
98

9
For Saw Stand
1. Top Front and Rear Braces - 19" in length
(2)
2. Bottom Front and Rear Braces - 22-1/2"
in length (2)
3. Stand Legs (4)
4. Feet (4)
5. 3/8" Flat Washer (32)
6. M8x1.25x16mm Carriage Head Screw
(32)
7. M8x1.25 Hex Nut (32)
8. Bottom Side Braces - 20" in length (2)
9. Top Side Braces - 16-1/2" in length (2)
ASSEMBLY
ASSEMBLY TOOLS REQUIRED
ASSEMBLY TIME ESTIMATE
STAND ASSEMBLY
Assemble the stand as shown in Figs. 4 and 5, using the parts shown in Fig. 3. Insert the M8 x 1.25 x 16mm carriage
head screws through the legs and braces, then place the 3/8" flat washers on the screws. Secure with the M8 x 1.25
hex nuts. Install a rubber foot (4) Fig. 5 on each leg (3).
NOTE: Loosely tighten the hardware for further adjustment.
NOTE: The top lips of the two top side braces (9) Fig. 4 fit over the top lips of the front and rear braces (1). The side
braces (9) have holes on top for mounting the saw to the stand.
1
2
9
9
8
8
Fig. 4
3
4
Fig. 5
1
2
3
4
5
6
7
8
9
7/8" Open End Wrench (Supplied)
7/8" Box End Wrench (Supplied
10 mm Open-End Wrench
13 mm Open-End Wrench
19 mm Open-End Wrench
Flat-head Screwdriver
The assembly time for this unit is approximately 2 to 3 hours.

10

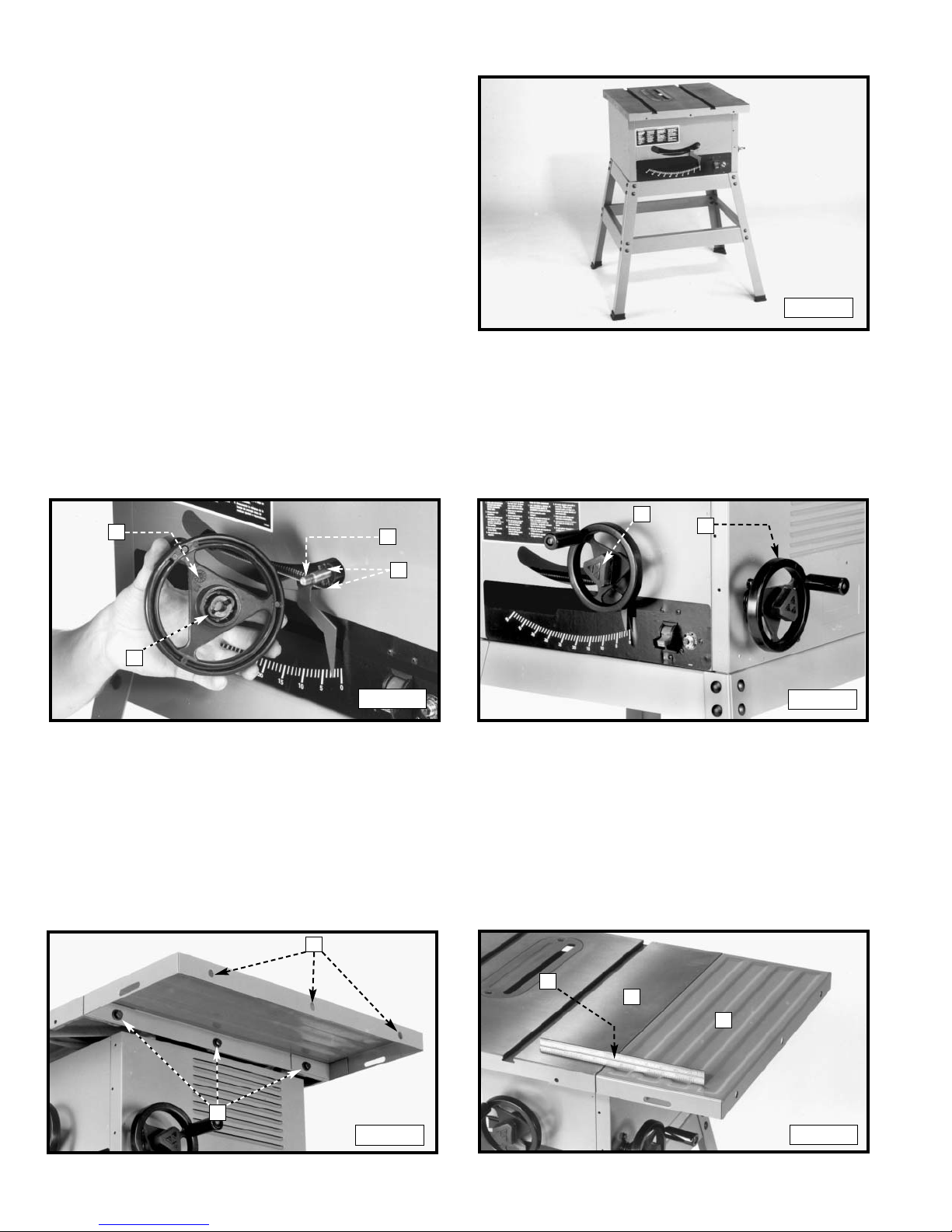

ATTACHING THE SAW TO THE STAND
1. Invert the saw table face down on a piece of cardboard
to protect the table surface. Align the four holes in the
saw cabinet with the four holes in the stand.
2. Place a 3/8" flat washer on an M8 x 1.25 x 16mm hex
head screw. Insert the screw through the hole in the
stand and the hole in the saw. Place another 3/8" flat
washer and an M8 x 1.25 hex nut on the screw. Tighten
securely. Repeat this process for the three remaining
holes.
3. Invert the saw table face up (Fig. 6).
4. Push down on the top of the saw so that the legs of the
stand adjust to the surface of the floor.
5. Tighten all of the stand hardware.
INSTALLING THE HANDWHEELS
1. Attach the blade-raising handwheel (A) Fig. 7 to the blade-raising shaft (B). Check to see that the slots (C) in the hub of
the handwheel are engaged with the roll pin (D) on the shaft.
2. Place a flat washer on the end of the shaft. Thread the lock knob (E) Fig. 8 on the shaft.
3. Attach the blade-tilting handwheel (F) Fig. 8 to the blade-tilting shaft in the same manner.
A
C
B
D
EF
1. Align the three holes in the extension wing (A) Fig. 9 with the three holes in the side of the saw table.
2. Place a 5/16" lockwasher and a 3/8" flat washer on an M8 x 1.25 x 16mm hex head screw. Insert the screw through the
hole in the extension wing and into the tapped hole in the side of the saw table. Hand tighten. Repeat this process for
the two remaining holes in the extension wing and the saw table.
3. Use a straight edge (C) Fig. 10 to ensure that the extension wing (A) is level with the saw table (D).
4. Securely tighten the three screws (B) Fig. 9.
5. Install the other extension wing to the opposite side of the table in the same manner.
Fig. 6
Fig. 7 Fig. 8
Fig. 10
Fig. 9
INSTALLING THE EXTENSION WINGS
A
B
A
C
D

11
CHANGING THE BLADE
Use only 10" diameter saw blades, rated for 6000 rpm or higher with 5/8" arbor holes.
DISCONNECT THE MACHINE FROM THE POWER SOURCE.
1. Remove the two table insert screws (K) Fig. 13 and the table insert (A).
IMPORTANT: Save the two rubber washers located under table insert for further use.
2. Turn the blade-raising handwheel counter-clockwise to raise the arbor (F) Fig. 11 to its maximum height.
TO REMOVE THE BLADE
3. Place the open-end wrench (A) Figs. 11 and 12 on the flats of the saw arbor to keep the arbor from turning.
4. Use the box-end wrench (B) Figs. 11 and 12 to turn the arbor nut (C) Fig. 12 toward the front of the machine.
5. Remove the arbor nut (C) Fig. 12, the outside blade flange (D), and the saw blade (E).
TO INSTALL THE BLADE
6. Install the blade (E) Fig. 12 on the arbor with the teeth pointing down and toward the front of the machine.
NOTE: Push the blade against the inner blade flange.
7. Place the flange (D) Fig. 12 on the arbor and thread the arbor nut (C) toward the rear of the machine. Tighten it HAND-
TIGHT.
8. Use the open-end wrench (A) Fig. 12 on the flats of the arbor to keep it from turning.
9. Tighten the arbor nut by turning the the wrench (B) toward the rear of the machine.
NOTE: Do not over-tighten the nut (C). One quarter turn with the wrench beyond hand-tight is sufficient.
Avoid awkward operations and hand positions where a sudden slip could cause your hand to move
into the blade.
Avoid awkward operations and hand positions where a sudden slip could cause your hand to
move into the blade.
10. Replace the table insert (A) Fig. 13 using the rubber
washers removed in STEP 1.
11. Place a straight edge or square (H) Fig. 13 on the saw
table and the table insert (A). Check to see that inset is
flush or just below surface of table. To adjust, tighten
or loosen the two adjustment screws (K).
C
D
E
Fig. 12
H
K
AK
Fig. 13
NOTE: Two 7/8" wrenches are supplied with the saw for changing the saw blade - a box-end wrench and an open-
end wrench.
Fig. 11
AB
A
B
F

12

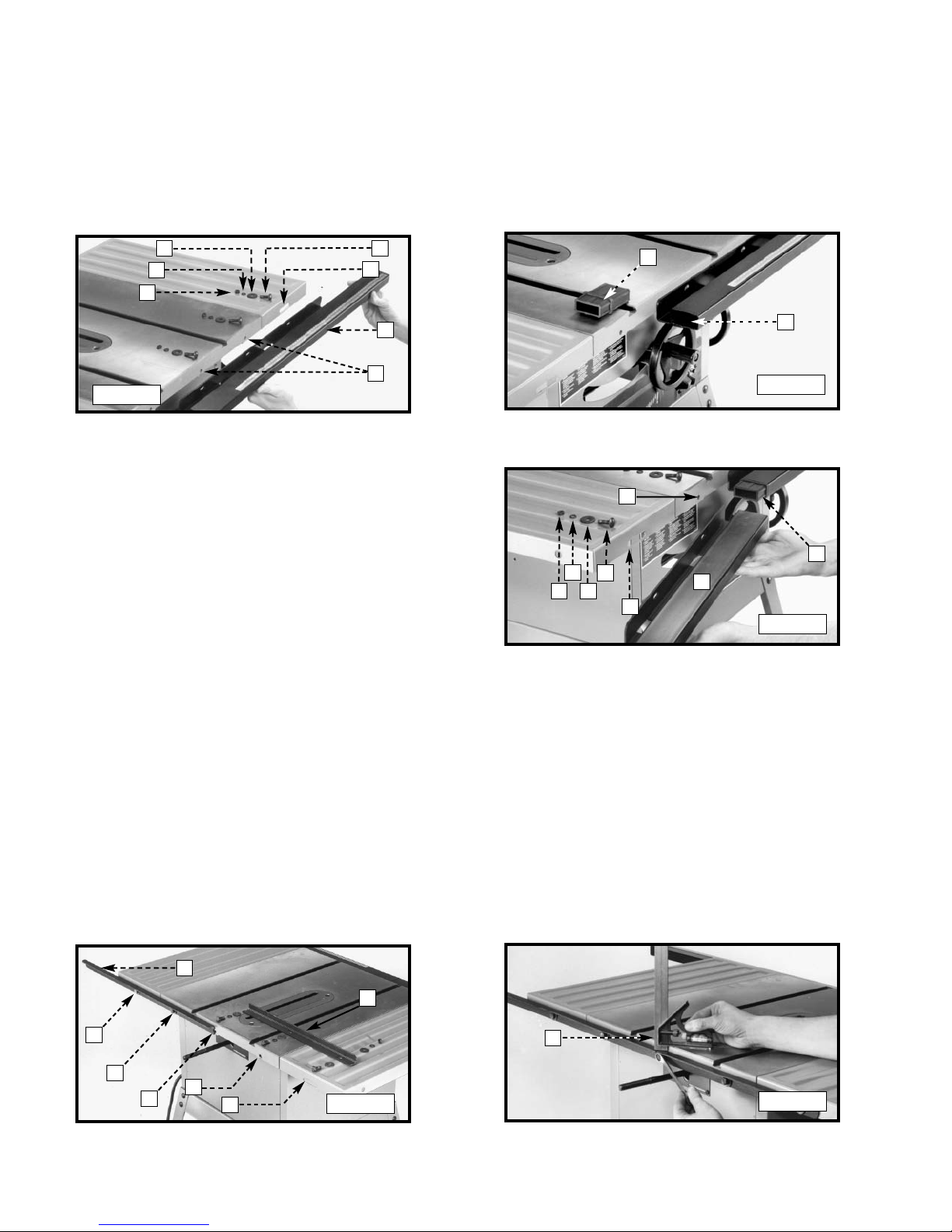

1. Align the three slotted holes in the front right guide rail (A) Fig. 14 with the two holes (B) in the saw table and the slotted
hole (C) in the extension wing.
2. Insert an M6 x 1 x 20mm carriage head screw (D) Fig. 14 through the three holes in the front right guide rail and the
saw table.
3. Place an M6.4 flat washer (E) and a 6.1 lockwasher (F) on the carriage head screw (D) Thread and M6 x 1 hex nut (G)
on the carriage head screw (D) and HAND TIGHTEN ONLY.
4. Insert the longer end of the front guide rail extension connector (H) into the end of the guide rail.
GUIDE RAILS
G
F
ED
C
A
B
H
D
5. Attach the front left guide rail (J) Fig. 16 to the
extension connector (H).
6. Align the two slotted holes in the guide rail extension (J)
Fig. 16 with the holes in the table (K) and the extension
wing (L).
7. Insert an M6 x 1 x 20mm carriage head screw (D) Fig.
16 through the two holes in the front left guide rail and
the saw table.
8. Place a M6.4 flat washer (E) and a 6.1 lockwasher (F)
on the carriage head screw (D). Thread a M6x1 hex nut
(G) onto the carriage head screw (D) and HAND
TIGHTEN ONLY.
G
F
E
D
K
H
J
L
9. Align the holes in the longer section of rear guide rail (P) Fig. 17 with the holes (A, B, and C) in the saw table. Place an
M8.1 lockwasher and an M8.4 flat washer on a M8 x 1.25 x 16mm hex head screw. Insert the screw through the hole (A)
Fig. 17 in the rear guide rail. Place an M8.4 flat washer and an M8.1 lockwasher on the hex head screw. Thread an
M8x1.25 hex nut on the hex head screw. HAND TIGHTEN ONLY.
10. Place an M8.1 lockwasher and an M8.4 flat washer on an M8 x 1.25 x 16mm hex head screw. Insert the screw through
the holes (B) and (C) Fig. 17 in the rear guide rail. Thread it into the tapped hole in the saw table. HAND TIGHTEN ONLY.
11. Align the holes in the shorter section of rear guide rail (R) Fig. 17 with the holes (D) and (E) in the in the saw table. Place
an M8.1 lockwasher and an M8.4 flat washer on a M8 x 1.25 x 16mm hex head screw. Insert the screw through the hole
(E) Fig. 17 in the rear guide rail. Place an M8.4 flat washer and an M8.1 lockwasher on the hex head screw. Thread an
M8 x 1.25 hex nut on the hex head screw. HAND TIGHTEN ONLY.
12. Place an M8.1 lockwasher and an M8.4 flat washer on a M8 x 1.25 x 16mm hex head screw. Insert the screw through
the hole (D) Fig. 17 in the rear guide rail. Thread it into the tapped hole in the saw table. HAND TIGHTEN ONLY.
13. Use a square (X) Fig. 18 or a ruler to adjust the rail so that it is 7/16" from the top of the table along the entire length.
14. Tighten all mounting hardware.
P
A
B
CD
E
R
X
Fig. 14 Fig. 15
Fig. 16
Fig. 17 Fig. 18

13
1. Insert the handle (A) Fig. 19 into the threaded hole (B) in the rip fence (C).
2. Insert a flat-head screwdriver into the rip fence handle (A) Fig. 20 and tighten the screw.
3. Tighten the hex nut (D) Fig. 20 against the fence body.
RIP FENCE
CB
A
DA
Fig. 19 Fig. 20
LEVELING AND ADJUSTING THE FRONT GUIDE RAIL
DISCONNECT THE MACHINE FROM THE POWER SOURCE.
Fig. 21
Fig. 22
Fig. 23
Fig. 24
1. Turn the blade-raising handwheel (counter-clockwise)
to raise the saw blade to its maximum height.
2. With the handle (A) Fig. 21 in the raised position,
place the rip fence (B) on the saw table.
NOTE: Be certain that the rip fence (B) is engaged on
the rear guide rail (C). Move the rip fence (B) against
saw blade (Fig. 22).
3. Carefully move the front guide rail (D) Fig. 22 either
left or right until the line on the cursor (E) aligns with
the zero (“0”) on guide-rail scale (F). Push the handle
(A) down to lock the rip fence in position. Tighten the
front guide rail mounting hardware. You can make
minor adjustments to the cursor (E) Fig. 23 by loos-
ening the two screws (G), moving the cursor left or
right, then tightening the screws (G). Remove the rip
fence and lower the saw blade.
4. Use a square (H) Fig. 24 or a ruler to adjust the guide
rail (D) 13/16" from the top of the table along the
entire length of the rail.
5. Check to see that the rip fence is aligned with the
guide rail scale. Firmly tighten front guide rail
mounting hardware.
A
B
C
A
EF
D
G
E
D
H
K
K

14
BLADE GUARD AND SPLITTER ASSEMBLY
DISCONNECT THE MACHINE FROM THE POWER SOURCE.
1. Thread an M12 x 1.75 hex nut (A) Fig. 26 on the splitter
support rod (R), as far as it will go.
2. Place a 5/8" flat washer (B) Fig. 26 on the splitter
support rod (R). Add the splitter bracket (C), then a 5/8"
flat washer (B).
3. Thread an M12 x 1.75 hex nut (D) on the splitter
support rod (R) Fig. 26 and tighten the nut to secure the
splitter bracket (C) in place.
4. Align the hole in the blade guard and splitter assembly
(E) Fig. 27 with the hole in the splitter bracket (C).
NOTE: Check to see that the two protrusions (pins) (G) Fig.
28 are engaged in the channel of the splitter assembly.
5. Place a 1/4" external tooth lockwasher and a 5/16"
lockwasher on an M6 x 1 x 20mm hex head screw.
Insert that screw (D) Fig. 27 through the hole in the
support bracket, and through the slot in the blade
guard/splitter assembly.
6. Place a 1/4" external tooth lockwasher and a 5/16"
lockwasher on an M6 x 1 x 20mm hex head screw (D)
Fig. 27. Thread an M6 x 1 wing nut (F) Fig. 28 on the
end of the hex head screw.
NOTE: Before tightening the wing nut (F) Fig. 28, check to
see that a gap of at least 1/8" between the bottom edge of
splitter (N) and top surface of table (P) exists.
10. Use a straight edge to ensure that the splitter (E) Fig.
29 is aligned with the saw blade (R). If an adjustment is
necessary, loosen the nut (A) and move the splitter (E),
then tighten the nut.
Fig. 26
Fig. 27
Fig. 28
Fig. 29
R
A
C
BD
E
C
D
N
G
F
P
A
R
E

15

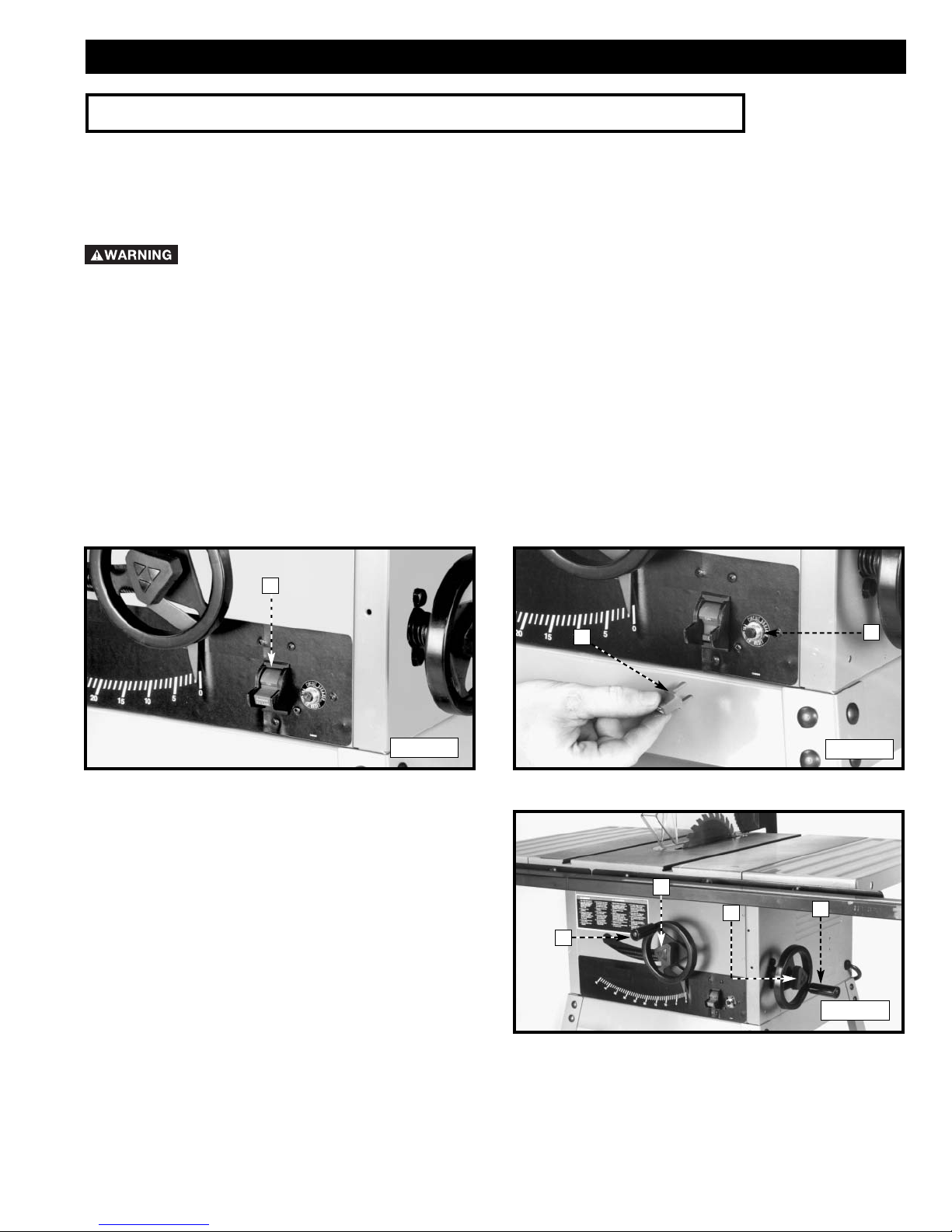

OPERATION
STARTING AND STOPPING THE SAW
1. The on/off switch (A) Fig. 30 is located on the front of panel of the saw. To turn the machine “ON”, move the
switch up to the “ON” position.
2. To turn the machine “OFF”, move the switch (A) down to the “OFF” position.
Make sure that the switch is in the “OFF” position before plugging in the power cord. In the event of
a power failure, move the switch to the “OFF” position. An accidental start-up can cause injury.
LOCKING SWITCH IN THE “OFF” POSITION
IMPORTANT: When the tool is not in use, the switch should be locked in the “OFF” position to prevent
unauthorized use. To lock the machine, grasp the switch toggle (B) and pull it out of the switch (Fig. 31). With the
switch toggle (B) removed, the switch will not operate. However, should the switch toggle be removed while the saw
is running, the machine can be turned “OFF,” but cannot be restarted without re-inserting the switch toggle (B).
OPERATIONAL CONTROLS AND ADJUSTMENTS
OVERLOAD PROTECTION
Your saw is equipped with a resettable overload. If the motor shuts off or fails to start because of over-loading (cutting stock
too fast, using a dull blade, using the saw beyond its capacity, etc.) or low voltage, turn the switch to the “OFF” position, let
the motor cool for three to five minutes, then push the reset button (C) Fig. 31.
A
BC
BLADE RAISING MECHANISM
To raise or lower the saw blade, loosen the lock knob (A)
Fig. 32 and turn the blade raising handwheel (B). When the
desired blade height is obtained, tighten the lock knob (A).
BLADE TILTING MECHANISM
To tilt the saw blade for bevel cutting, loosen the lock knob
(C) Fig. 32 and turn the tilting handwheel (D). When the
desired blade angle is obtained, tighten the lock knob (C).
Fig. 30 Fig. 31
Fig. 32
B
A
CD

16

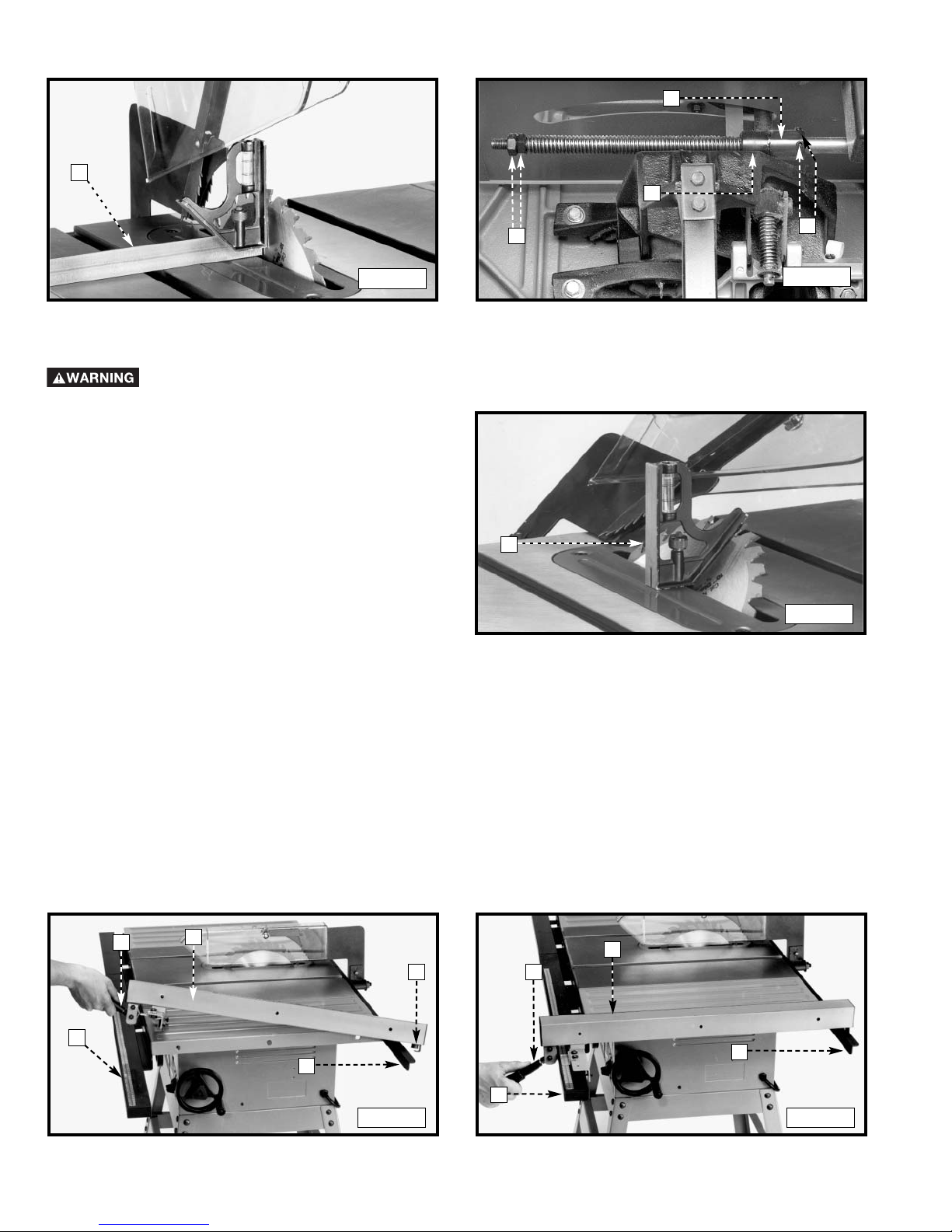

ADJUSTING 90°AND 45°POSITIVE STOPS
Your saw is equipped with positive stops that will position the saw blade at 90° and 45° to the table. To check and adjust the
positive stops:
DISCONNECT THE MACHINE FROM THE POWER SOURCE.
1. Turn the blade-tilting handwheel clockwise as far as it
will go.
2. Place a square (A) on the table and against the blade
(Fig. 33).
3. If the blade is not 90° to the table, loosen the two set
screws (B) Fig. 34, move the collar (C) to the right and
turn the blade-tilting handwheel until the blade is 90° to
the table.
4. Adjust the collar (C) Fig. 34 so that it contacts the
bracket (D).
5. Tighten the two set screws (B).
6. Turn the blade-tilting handwheel counter-clockwise as
far as it will go.
7. Place a combination square (E) on the table against the
blade (Fig. 35).
8. If the blade is not 45° to the table, loosen the two locknuts (F) Fig. 34, and turn the blade-tilting handwheel until the blade
is 45° to the table.
9. Adjust the locknuts (F) Fig. 34 so that the inside nut contacts the bracket (D).
NOTE: After the positive stops are set, check the pointer position for possible adjustment.
Fig. 33 Fig. 34
Fig. 36
ATTACHING RIP FENCE TO GUIDE RAILS
1. Raise the lock handle (A) Fig. 36 of the rip fence assembly (B) to the “up” position.
2. Attach the rip fence assembly (B) to both the front and rear guide rails (C) (Fig. 37).
NOTE: Be certain that the rear clamp (D) FIG. 36 is engaged with the rear rail (C).
3. Push down on the lock handle to lock the rip fence (B) Fig. 37 on the guide rails.
Fig. 37
A
F
D
C
B
Fig. 35
E
AB
C
D
C
B
A
C
C

17

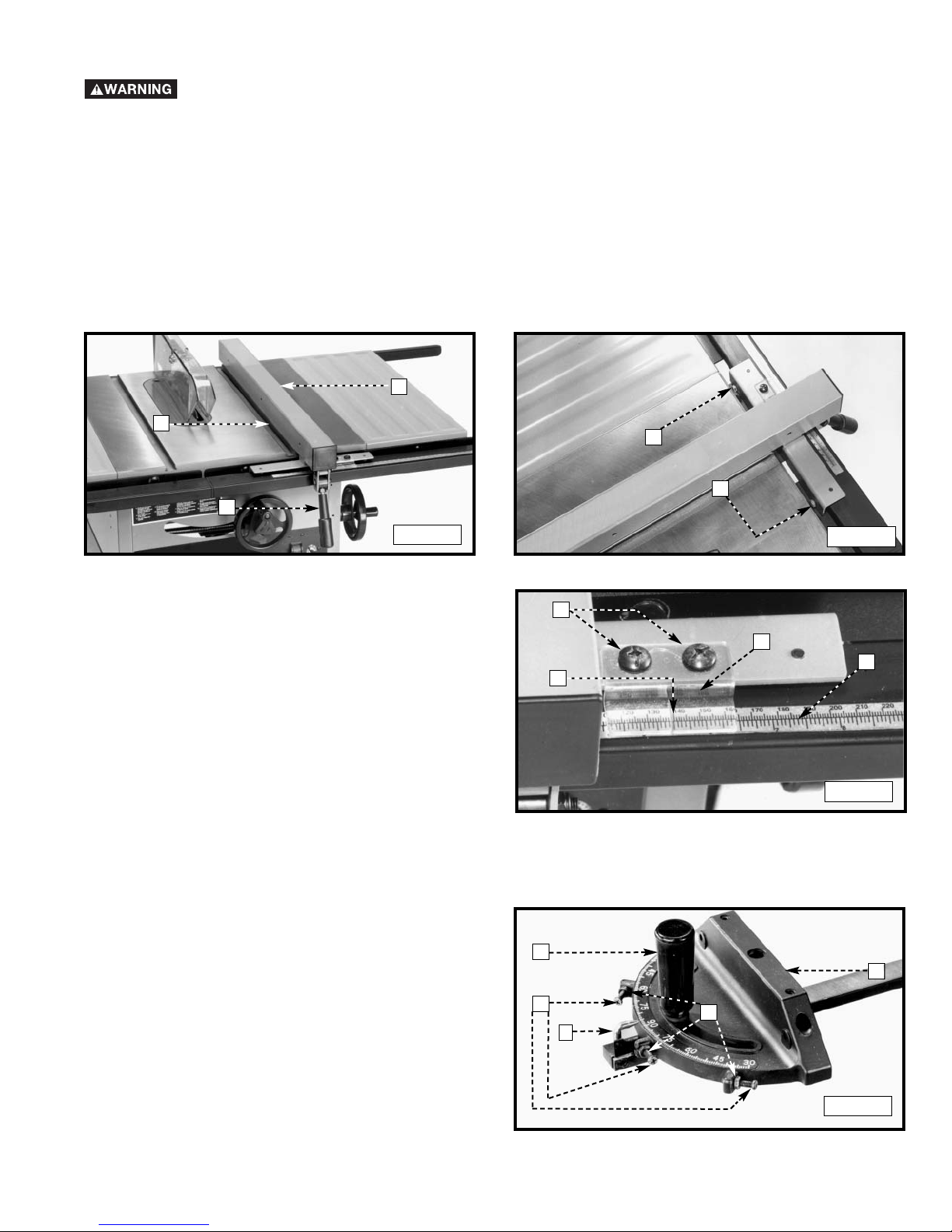

1. To move the fence (A) Fig. 38 along the guide rails, lift up on the fence locking lever (B), slide the fence to the desired
location, and push down on the locking lever (B).
2. Adjust the fence (A) Fig. 38 so that it is parallel to the miter gauge slots (C) and the saw blade. To check and adjust, move
the fence (A) until the bottom edge of the fence is aligned with the edge of one of the miter gauge slots, and push down
on the fence locking lever (B). Check to see if the fence (A) is parallel to the edge of the miter gauge slot (C) the entire
length of the table. To adjust, slightly tighten or loosen one of the two adjusting screws (D or E) Fig. 39. Repeat this
check/adjustment procedure until the fence is parallel to the miter gauge slot.
IMPORTANT: Do not remove the rip fence from the guide rail to make this adjustment. Very little movement of screws (D)
and (E) Fig. 39 is necessary.
RIP FENCE OPERATION AND ADJUSTMENTS
Properly align the rip fence to the miter gauge slot and the saw blade to prevent kickback.
A
C
B
D
E
3. The witness line (F) Fig. 40 (located on the cursor)
shows how far the fence is from the blade. To adjust
the cursor (G), make a test cut with the fence locked in
position. Measure the finished cut and adjust the
cursor (G) by loosening the two screws (H), adjusting
witness line to align the scale with the length of the
board.Tighten the two screws (H).
H
F
G
K
Fig. 38 Fig. 39
Fig. 40
MITER GAUGE OPERATION AND ADJUSTMENTS
1. Your miter gauge is equipped with individually adjust-
able index stops at 90° and 45°, right and left. You can
adjust the index stops by loosening the lock nuts (A)
Fig. 41, and tightening or loosening the three adjusting
screws (B) against the stop link (C).
2. To operate the miter gauge, turn the lock handle
(D) Fig. 41 counter-clockwise, and move the body of
the miter gauge (E) to the desired angle. The miter
gauge body will stop at 90° and 45°, both right and left.
To rotate the miter gauge body past these points,
move the stop link (C) out of the way.
A
B
C
D
E
Fig. 41

18
MACHINE USE
3. The miter gauge is equipped with a special washer (F) Fig. 42, and a flat head screw (G) which are attached to the bottom
end of the miter gauge bar (H). The special washer (F) rides in the T-slotted miter gauge slot (J) and prevents the miter
gauge from falling when it is extended past the saw table (Fig. 43).
H
J
G
F
Fig. 42 Fig. 43
Adjust the table insert (A) Fig. 44 so that it is flush with the
saw table surface. Place a straight edge or square (B) on
the saw table and the insert. To adjust, tighten or loosen the
two adjusting screws (C).
ADJUSTING THE TABLE INSERT
CB
A
Fig. 44
Operating any power tool involves a certain amount of risk. Using the machine with respect and caution will considerably
lessen the possibility of personal injury. However, if you overlook or ignore normal safety precautions, personal injury can result.
The following information describes the safe and proper method of performing the most common sawing operations.
The use of attachments and accessories not recommended by Delta may result in the risk of injury.
CROSS-CUTTING
Cross-cutting requires the use of the miter gauge to position
and guide the work. Place the work against the miter gauge and
advance both the gauge and the work toward the saw blade
(Fig. 45). You can use the miter gauge in either table slot. When
you bevel cut (blade tilted), use the right miter gauge slot so that
the blade tilts away from the miter gauge and your hands.
Start the cut slowly and hold the work firmly against the miter
gauge. DO NOT HOLD or touch the free piece. Hold the
supported piece. Continue the feed in cross-cutting until the
work is completely cut, then pull the miter gauge and workpiece
back to the starting point. Before pulling the workpiece back,
move the workpiece slightly away from the saw blade. Never
pick up any short length of free work from the table while the
saw blade is turning.
For added safety and convenience, fit the miter gauge with an auxiliary wood facing that is at least 1" higher than the maximum
depth of cut, and extend it out 12" or more to one side or the other depending on the miter gauge slot used. This auxiliary
wood facing can be fastened to the front of the miter gauge by using two screws through the holes provided in the front of the
miter gauge body and into the wood facing.
Never use the fence as a cut-off gauge when cross-cutting.
Fig. 45

19
RIPPING
Ripping is the operation of making a lengthwise cut through
a board (Fig. 46), and the rip fence (A) is used to position
and guide the work. One edge of the work rides against the
rip fence while the flat side of the board rests on the table.
Since the work is pushed along the fence, it must have a
straight edge and make solid contact with the table. Use the
guard. The guard has anti-kickback fingers to prevent wood
kickback, and a splitter to prevent the wood kerf from
closing and binding the blade.
Start the motor and advance the work, holding it down and
against the fence.
Never stand in the line of the saw cut when
ripping.
Hold the work with both hands and push it along the fence
and into the saw blade (Fig. 46). You can then feed the
workpiece through the saw blade with one or two hands.
After the workpiece is beyond the saw blade and anti-
kickback fingers, remove your hand from the workpiece.The
workpiece will either stay on the table, tilt up slightly and be
caught by the rear end of the guard, or slide off the table to
the floor. Continue the feed to the end of the table, then lift
the workpiece and bring it back along the outside edge of
the fence. Leave the cut-off stock on the table and do not
touch it until the blade stops, unless the workpiece is large,
allowing safe removal. When ripping boards longer than
three feet, use a work support at the rear of the saw to keep
the workpiece from falling off the saw table.
If the ripped work is less than 4 inches
wide, always use a push stick to
complete the feed (Fig. 47). You can
easily make a push stick from scrap
material as explained in the section
“CONSTRUCTING A PUSH STICK.”
When ripping material under 2" wide, use a flat pushboard ,
since ordinary type sticks may interfere with the blade
guard. That flat pushboard can be made using the
dimensions shown in Fig. 48.
Moulding is cutting a shape on the edge or face of the work.
Cutting mouldings with a moulding cutterhead is a fast,
safe, and clean operation. The many different knife shapes
available make it possible for you to produce almost any
kind of mouldings, such as corner moulds, picture frames,
table edges, etc.
The moulding head consists of a cutterhead in which can
be mounted various shapes of steel knives (Fig. 49). Each
of the three knives in a set is fitted into a groove in the
cutterhead and securely clamped with a screw. Keep the
knife grooves free of sawdust to allow the cutter to seat
properly.
USING AN ACCESSORY MOULDING CUTTERHEAD
Fig. 49
Fig. 48
Fig. 47
Fig. 46

20

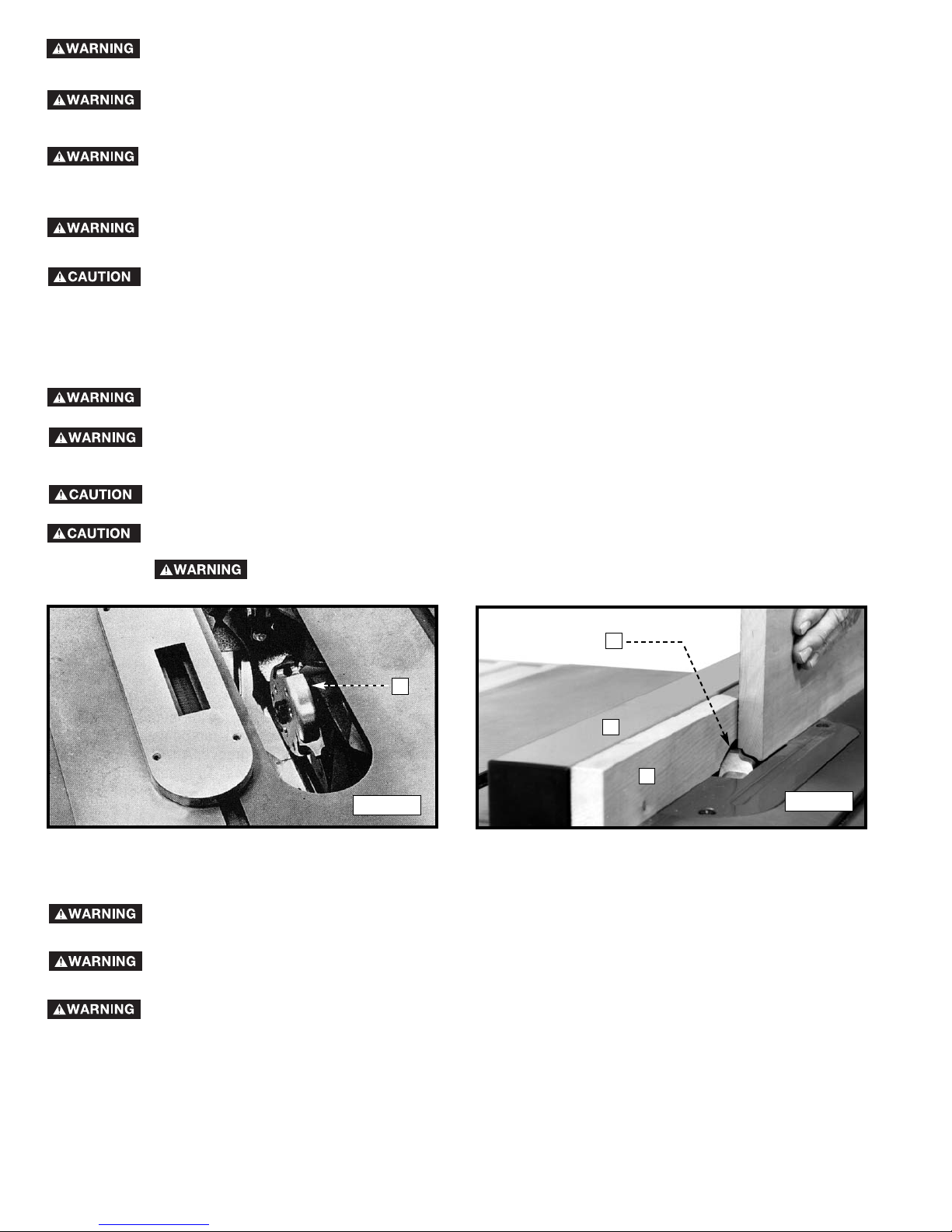

For certain cutting operations such as dadoing and moulding where you are not cutting completely
through the workpiece, DO NOT USE the blade guard and splitter assembly.
Always return and fasten the blade guard and splitter assembly to its proper operating position for
normal through-sawing operations.
DO NOT USE the outside arbor flange with the moulding cutterhead. Tighten the arbor nut against the
cutterhead body. Keep the arbor flange handy because you will need it when you re-attach a blade to
the saw arbor.
DO NOT USE the standard table insert with the moulding cutterhead. USE ONLY the accessory
moulding cutterhead table insert (B) Fig. 50.
When using the moulding cutterhead, add wood-facing (C) to the face of the rip fence (Fig. 51). Attach the
wood-facing to the fence with wood screws through the holes provided in the fence. Stock that is 3/4" is suitable for most
work, although an occasional job may require 1" facing.
Position the wood-facing over the cutterhead with the cutterhead below the surface of the table. Turn the saw
“ON” and raise the cutterhead. The cutterhead will cut its own groove in the wood-facing (E) Fig. 51.
Never us the moulding cutterhead in a bevel position.
Never run the workpiece between the fence and the moulding cutterhead. Irregular shaped wood will
cause feedback.
When moulding the end grain, use the miter gauge. Slow the feed at the end of the cut to prevent splintering.
In all cuts, pay attention to the grain. Make your the cut in the same direction as the grain ,whenever possible.
Always install the blade guard after the operation is complete.
For certain cutting operations such as dadoing and moulding where you are not cutting
completely through the workpiece, DO NOT USE the blade guard and splitter assembly.
Always return and fasten the blade guard and splitter assembly to its proper operating position for
normal thru-sawing operations.
The maximum diameter for a dado head is 6" (152.4mm).
USING THE ACCESSORY DADO HEAD
Fig. 50 Fig. 51
B
E
D
C
