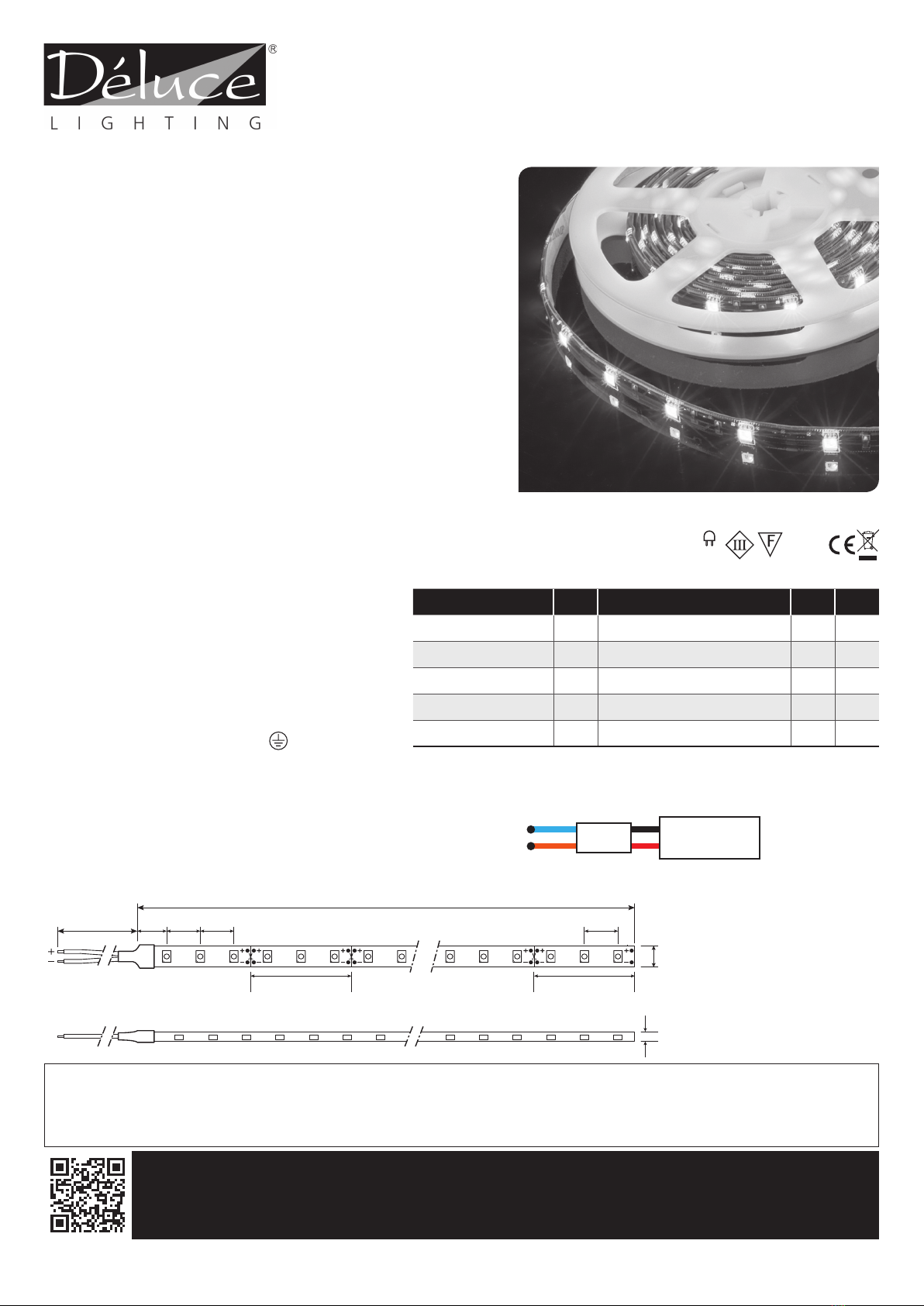

Deluce Lighting LEDSTRIPKIT/WH User manual

These instructions are for the Déluce Lighting LED Strip Kit - IP65 single colour :
LEDSTRIPKIT/WH, LEDSTRIPKIT/WW, LEDSTRIPKIT/RED, LEDSTRIPKIT/GR &
LEDSTRIPKIT/BLUE
LED STRIP KIT
FITTING INSTRUCTIONS
(SINGLE COLOUR - IP65)
DEL0670g/Feb_2017/issue_1 page 1 of 2
www.delucelighting.com
IMPORTANT INSTALLATION INFORMATION
• Installation should be carried out in accordance with the latest edition of
the IEE Wiring Regulations (BS7671) and taking into consideration the latest
Building Regulations. If in doubt, consult a qualified electrician.
• Before commencing any installation or maintenance work, ensure
electricity is switched off at the mains.
• Please take note of the maximum rated voltage for your LED Strip Light.
• Please take note of the IP (Ingress Protection) rating of LED Strip Light when
deciding location.
GENERAL INSTALLATION - SAFETY
• Please make sure you are safe when working at height.
• Employ the latest safety regulations and procedures to ensure the safe
installation of the LED Strip Light.
INSTALLATION INSTRUCTIONS
• To achieve the best results from your LED Strip Light we suggest you take
into account the following points before you fit the unit.
1. Ensure the mounting surface is clean and free of dust, grease or flaking
material
2. Peel back the protective film away from the strip exposing the glue and
apply to the mounting surface in the required location.
3. When the desired length as been mounted, cut the length
at the designated cutting line; marked with a ✂
4. Connect the LED Strip cable to the driver via a suitable
terminal block as follows:
RED (Positive +) to BROWN
BLACK (Negative –) to BLUE
5. Connect the supply cable to the Driver via a suitable
terminal block and make the electrical connections as
follows:
LIVE - (Red or Brown)
NEUTRAL - (Black or Blue)
EARTH - (Green/Yellow) marked E
6. Ensure that the LED strip load does not exceed that of
the driver, the driver supplied can power a maximum
continuous run of LED strip lights of 8 Metres.
7. Switch on the power supply for testing and adjustment.
8. Over the tailing end of the LED strip light fit an End Cap
(apply a small amount of glue to the inside of the end cap
and then slide over the tailing end area).
Ref no. Watts Description Length No. of
LED’s
LEDSTRIPKIT/WH 24W Cool White LED strip light 5m 300
LEDSTRIPKIT/WW 24W Warm White LED strip light 5m 300
LEDSTRIPKIT/RED 24W Red LED strip light 5m 300
LEDSTRIPKIT/GR 24W Green LED strip light 5m 300
LEDSTRIPKIT/BLUE 24W Blue LED strip light 5m 300
150 8.3
5 metres
50
16.6 16.6 16.6
10
3.3
All dimensions in millimetres unless stated
50
Dimensions and Schematic Diagram
Note: A maximum of up to 20 RGB kits can be used in one installation.
MAINS POWER
SUPPLY 240V
DRIVER DRIVER
WIRELESS
RECEIVER AMPLIFIER
RGB LED
STRIP LIGHT
RGB LED
STRIP LIGHT
RGB LED
STRIP LIGHT
REMOTE CONTROL
RGB LED Strip wiring diagram
N
L
AMPLIFIER
MAINS POWER
SUPPLY 240V
KEY
Single Colour LED Strip wiring diagram
4 core cable (RGB +)
Live mains 240V
Neutral mains 240V
N
L
Maximum of 8 METRES
DRIVER ONE Colour
LED STRIP LIGHT
DRIVER
PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE INSTALLATION
LEAVE A COPY FOR THE USER/MAINTENANCE ENGINEER FOR FUTURE REFERENCE
We recommend this fitting is installed by a qualified Electrician.
GUARANTEE
This product is guaranteed in the EU for a period of 1 year from the date of purchase. The guarantee is invalid in the case of improper use, installation, tampering, removal of the
QC date label, installation in an improper working environment or installation not according to the current edition of the IEE Wiring Regulations (BS 7671). Should this product
fail during the guarantee period it will be replaced free of charge, subject to correct installation and return of the faulty unit. Déluce Lighting does not accept responsibility for any
installation costs associated with the replacement of this product. Your statutory rights are not affected. Déluce Lighting reserves the right to alter specifications without prior notice.
IP65
220-240V
LED

LED STRIP KIT
FITTING INSTRUCTIONS
(SINGLE COLOUR - IP65)
DEL0670g/Feb_2017/issue_1 page 2 of 2
www.delucelighting.com
Cutting the LED Strip Light
The LED Strip can be cut at 50mm intervals and can be relinked using either a connect clip, a double ended connector cable c/w
150mm of cable, single ended connector clip c/w 150mm of cable or by soldering a cable between the LED Strip Light's copper
connectors (all connectors supplied with kit).
Cut the LED strip at the designated cutting line, marked with a ✂ its is recommended that a suitable craft knife is used to cut the
LED Strip Light.
Once cut; use the craft knife to remove the outer plastic sleeve, as close to the nearest LED light, near the cut as possible to expose
the copper connectors ( marked + & – ).
Slide a piece of heat shrink over the end of the LED strip - open a flap on a connector clip / connector cable - slide the now cleaned
end piece into one side of a connector clip / connector cable and then using a soldering iron, YOU MUST solder the connector
clip's terminals to the LED strips copper connectors in turn.
Or solder a piece of cable between the LED Strip Light's copper connectors as follows :
RED (Positive + to Positive +)
BLACK (Negative – to Negative –)
Using the supplied glue, glue down the flap(s) of the connector clip; then slide the heat shrink sleeve over the now finished connection
(using a Hair Dryer) heat the heat shrink until it contracts sufficiently.
Over the tailing end of the LED strip light fit an End Cap ( apply a small amount of glue to the inside of the end cap and then slide
over the tailing end area ).
Then follow the steps 1 - 7 for installation.
LED Strip Accessories Ref no. Qty Description
LEDSTRIPDRI40* 1LED driver - Output 40W
LEDSTRIPACC003
POLARITIES MUST BE MAINTAINED
LEDSTRIPACC002
PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE INSTALLATION
LEAVE A COPY FOR THE USER/MAINTENANCE ENGINEER FOR FUTURE REFERENCE
We recommend this fitting is installed by a qualified Electrician.
1m ADD-ON LED STRIPS 3m ADD-ON LED STRIPS
*Note: Runs up to 8m static only
Product Code Description
LEDSTRIPACC001 10mm Single colour strip connector c/w 15cm of wire
(5pcs)
LEDSTRIPACC002 10mm Single colour strip connector (5pcs)
LEDSTRIPACC003 10mm Single colour strip link c/w 15cm of wire -
connector at each end (5pcs)
Product Code LED Colour Length No. of LED’s
LEDSTRIPACC/W/1 Cool White 1M 60
LEDSTRIPACC/WW/1 Warm White 1M 60
LEDSTRIPACC/R/1 Red 1M 60
LEDSTRIPACC/G/1 Green 1M 60
LEDSTRIPACC/B/1 Blue 1M 60
Product Code LED Colour Length No. of LED’s
LEDSTRIPACC/W/3 Cool White 3M 180
LEDSTRIPACC/WW/3 Warm White 3M 180
LEDSTRIPACC/R/3 Red 3M 180
LEDSTRIPACC/G/3 Green 3M 180
LEDSTRIPACC/B/3 Blue 3M 180
Product Code Description
LEDSTRIPACC004 10mm RGB colour strip connector c/w 15cm of wire
(5pcs)
LEDSTRIPACC005 10mm RGB colour strip connector (5pcs)
LEDSTRIPACC006 10mm RGB colour strip link c/w 15cm of wire -
connector at each end (5pcs)
