BARRON TRACE LITE FXA 350W Series User manual

IMPORTANT SAFEGUARDS
READ AND FOLLOW ALL SAFETY INSTRUCTIONS.
When using electrical equipment, basic safety precautions should always be followed including the following:
•DISCONNECT AC POWER SUPPLY BEFORE SERVICING.
• Installation and servicing of this equipment should be performed by qualified service personnel only.
• Ensure that the electrical wiring conforms to the National Electrical Code NEC® and local regulations
if applicable.
• Do not mount near gas or electrical heaters.
• Equipment should be mounted in locations and at heights where it will not be readily subjected to tampering
by unauthorized personnel.
• The use of accessory equipment not recommended by the manufacturer may cause an unsafe condition.
• Any modification or use of non-original components will void the warranty and product liability.
• Do not use this equipment for other than intended use.
SAVE THESE INSTRUCTIONS!
Technical Support ■ [phone] ■ [email protected]
FXA 350W Series
Installation Instructions
20070167 REV 07/20 1 800-533-3948 www.barronltg.com

Yoke Mount
1. Mount fixture’s bracket to surface using expansion bolts or appropriate hardware (provided by others) (Figures 1 & 2).
Note: Allow for proper line cord slack for adjusting the angle.
2. Make electrical connections, refer to Wiring section (Figure 3).
3. Set the desired fixture angle by loosening the positioning bolt and rotating the Yoke to the desired angle, then re-
tighten to secure (Figure 2).
FXA 350W Series
Installation Instructions
20070167 REV 1 - 07/20 2800-533-3948 www.barronltg.com
M10 Screw
Yoke Mount
Pole/ Arm by others
2.28"
6.14"
0.62"
7.95"
15.75"
Ø0.78"
Figure 1 (Mounting Dimensions)
Figure 2

NEUTRAL
NEUTRAL
LINE
FXA 350W Series
Installation Instructions
20070167 REV 1 - 07/20 3800-533-3948 www.barronltg.com
Wiring
Electrical connections should be made inside J-box.
Cap all unused leads to prevent shorting.
Make electrical connections as follows:
Black - Line
White - Neutral
Green/Yellow Green - Ground
Purple - Dim +
Gray - Dim -
Note: This fixture auto adjusts for voltages from
120VAC-277VAC
Important: Weatherproof your outdoor installation, be sure to seal
all holes in the housing such as the mounting, conduit, plugs,
sensors, photocontrols, etc. with silicone sealant.
1. Check incoming voltage to the LED driver. Must be at least a minimum
of 120VAC and no greater than 277VAC.
2. Are all the LEDs on the light engine “OFF”? If so, LED driver may be defective. Using a voltmeter, check to see if
voltage is present at the output of the power supply. If low or no voltage, then replace the power supply.
3. If any individual LEDs are “OFF” the LED light engine is defective. Please have the serial number off the light engine
available when you contact technical support.
4. If the unit is equipped with a photocell, check the photocell to make sure it’s functioning properly.

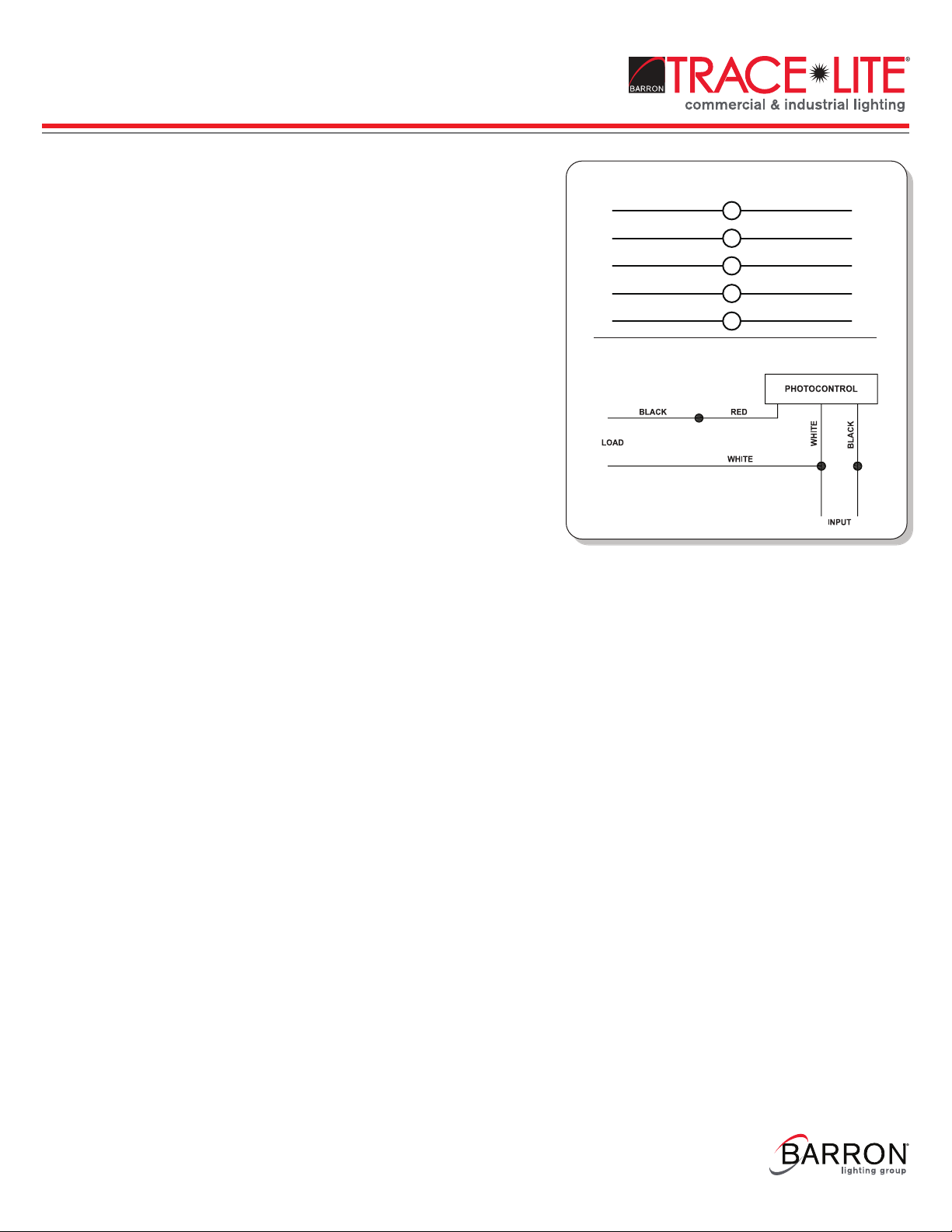

Wire Connection - Dimming
Photocontrol
Troubleshooting
If unit does not turn “ON”
Green/Yellow Green
Purple
DIM+
Gray
DIM-
%ODFN Line
White Neutral
Ground
Figure 3
