SAFETY
Follow the Electrical Codes of the Country where this fixture will be installed. For Canada follow the Canadian Electrical
Code (CE) and for the United States follow the National Electrical Code (NEC). Failure to follow these instructions could
result in electric shock or damage property. All wiring should also be performed by a qualified electrician. Check with
local electrical authority for installation compliance regulations. Due to variations in roofing materials use these installation
instructions as a guideline only.
NOTE:
WARNINGS
Risk of Fire or electric shock. This luminaire installation requires knowledge of luminaires electrical
systems. If not qualified, do not attempt installation. Contact a qualified electrician.
Risk of Fire or electric shock. Disconnect power at the electrical panel before installing or servicing
the luminaire.
Based on maximum voltage restrictions for class 2 recruits in Canadian Electrical Code, the output
cannot be accessible. This product has accessible output terminals. This product complies with the
requirements since the installation instruction requires installation in Restricted Access Area.
To prevent wiring damage or abrasion, do not expose wiring to edges of sheet metal or other sharp
objects.
GENERAL INSTRUCTIONS
Please read all instructions before installation.•
Always connect the grounding lead to fixture, where applicable.•
Wiring of this product should be performed by a qualified electrician and must adhere to national and local building
and electrical codes.
•
Ensure power source conforms with the fixture requirements.•
LED lamp replacement Marking - identifying the replacement LED lamp type/model to be used along with the
manufacturer and ordering information.
•
This device is not intended for use with emergency exits.•

2
[e-mail] | 1.877.502.343494 Brockport Drive, Toronto, Ontario M9W 7J8 www.delviro.com
delviro energy 1
INSTALLATION
1. Disconnect the electrical power on the electrical panel prior to installing the zip cloud fixture.
2. Remove the existing light fixture (if existing). The only thing left on the ceiling should be the junction box with existing
AC wire conductors and ground wire (Fig. 1).
3. Remove the Zip Cloud from its shipping box and place on flat surface (Fig. 2).
4. The LED panels are supported by aluminum material shaped in half circles. There is an upper part and lower part so when
the led panels are removed then there is no confusion how to put the half circles back into place after mounting the fixture
to the ceiling.
Zip Cloud Flush Mount
Installation Instructions
Steps
Fig. 1
Fig. 2
Middle holes
Upper part
Lower part

3
Fig. 3 & Fig. 4
Fig. 6 Fig. 7 Fig. 8
Fig. 5
[e-mail] | 1.877.502.343494 Brockport Drive, Toronto, Ontario M9W 7J8 www.delviro.com
delviro energy 1
UPPER
LOWER
LOWER

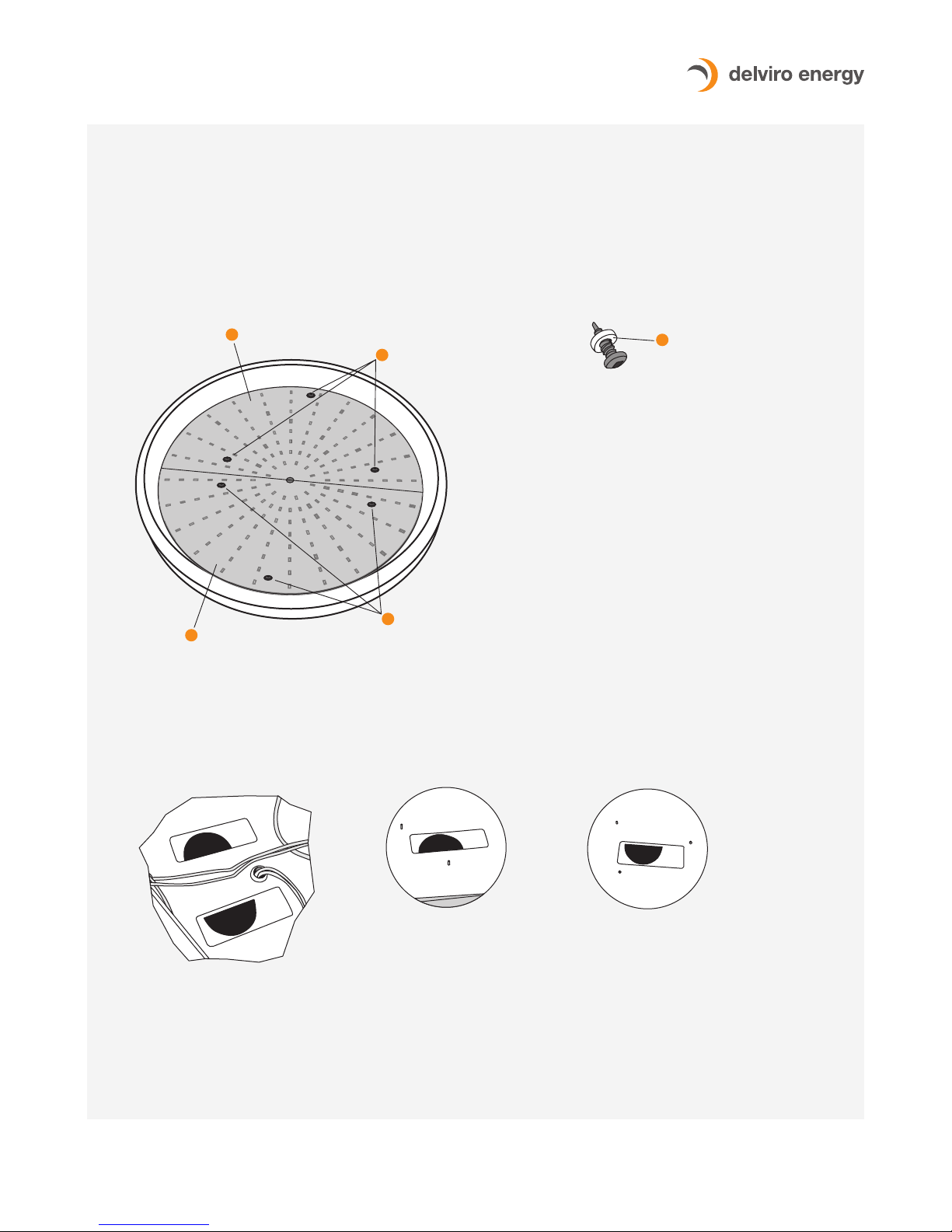

5. Remove the 3 black head screws in the upper part (Fig. 3) and also in the lower part (Fig. 4). There are nylon washers
which help to prevent electrical shorting of the metal screw head with the metal board. Ensure one has removed 6 black
head screws and nylon washers in Fig. 5.
6. There is a label on the fixture inside body showing UPPER and LOWER (Fig. 6) and corresponding labels on the back of
the LED panels (Fig. 7 and Fig. 8). The labels are on the fixture and on the back of the panels to ensure no confusion
when disassembling and assembling the fixture.
Zip Cloud Flush Mount
Installation Instructions
Mounting screws
Upper part (Fig. 3)
Lower part (Fig. 4)
Mounting screws
Screws with washers (x 5)
INSTALLATION
UPPER

4
[e-mail] | 1.877.502.343494 Brockport Drive, Toronto, Ontario M9W 7J8 www.delviro.com
delviro energy 1
7. Find the orange luminaire disconnect (Fig. 9) and remove (disconnect) the male portion. Now set the LED panel upside
down on a piece of cardboard and ensure the board does not get scratched by anything. The female portion should be
left in the fixture.
8. Pull the existing 18-3 AWG wire from the top of the Zip Cloud into the junction box. Connect the appropriate wires
using wire nuts (Black to Black, White to White and Green to Ground wire). Ensure the ground wire is also grounded to
junction box using a ground screw.
9. There are four holes pre drilled on the Zip Cloud housing for screws to go through for flush mounting to ceiling (Fig. 10).
10. Use a #10 or #12 screw (wood screw for wood, tapcon screw for concrete or self drilling screws for metal, etc.) Ensure
the pre drilled holes do not interfere with anything existing in the ceiling. If that is the case the installer should drill new
holes and ensure that no mounting angles gets damaged. Wipe any debris left from drilling/screw from inside the sides
of the fixture and the bottom lip.
Zip Cloud Flush Mount
Installation Instructions
Fig. 9
Fig. 10
Orange luminaire disconnect
Mounting angle
INSTALLATION
LOWER
UPPER
Surface mounting
screw locations
Surface mounting
screw locations

5
[e-mail] | 1.877.502.343494 Brockport Drive, Toronto, Ontario M9W 7J8 www.delviro.com
delviro energy

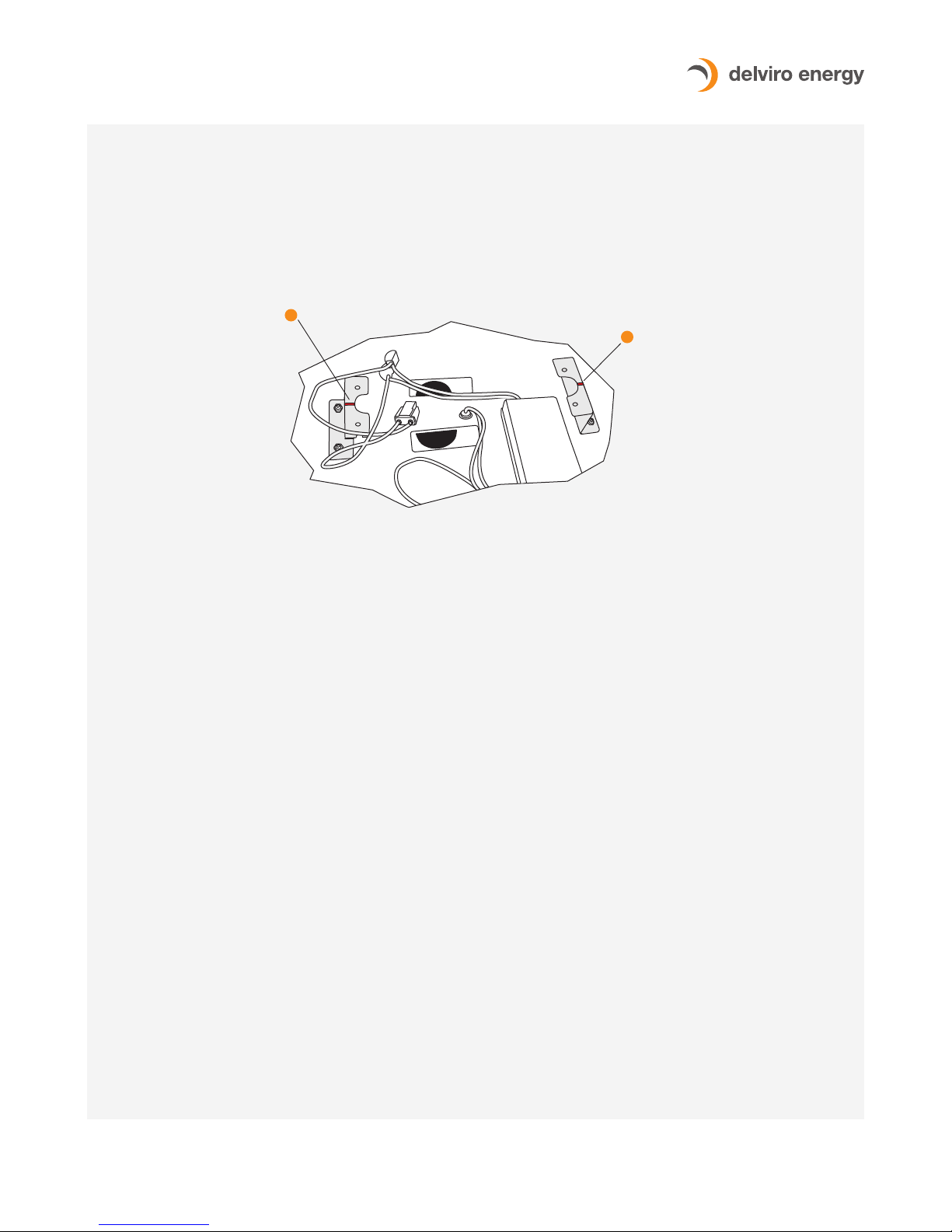

11. Take note of the red lines on the mounting angles (Fig. 11). Use the lines as a guide when placing the LED half moon
plates back into the fixture. First connect the orange luminaire disconnect together - should like like Fig. 9.
12. Orient the LED panels in such a manner that the UPPER LED plate lines up with the UPPER area on the fixture body -
Fig. 7. and the LOWER LED plate lines up with the LOWER area - Fig. 8. One should see that 3 holes will become visible
that will be used to fasten the LED plates to the fixture body on each half. Check by hand and make sure that the plates
are snug in place.
13. Use the black head screws with nylon washer and fasten the 6 screws respectively into place - see Fig. 3, 4, and 5.
It might be easier to first fasten the 4 middle holes then the 2 remaining further holes after.
14. Check for loose wire or connections and turn on the power to ensure the light functions prior to placing the lens in
the fixture.
15. Turn off the power and slide the provided lens through the front opening. The lens might have to be held in a curved
position to get through the opening. Ensure the plastic removable side stays towards the fixture opening (outside).
16. Once the lens is in place remove the plastic from the front side plastic - the lens should be shiny.
17. Turn on the power to test the light and proceed with the next light installation.
LOWER
UPPER
Zip Cloud Flush Mount
Installation Instructions
INSTALLATION
Red lines to help installer line
up panels for assembly
Red lines to help installer line
up panels for assembly
Fig. 11
