ASSEMBLY
REPLACEMENT PARTS
2-15
AC20108,rev0
BOLT TORQUE SPECIFICATIONS
Size Grade Torque
3/4” 5 290 ft/lbs.
Size Torque
20mm 515 ft/lbs.
22mm 702 ft/lbs.
STANDARD BOLTS: METRIC BOLTS:
READ complete manual CAREFULLY
BEFORE attempting operation.
DEMCO •4010 320th Street •P.O. Box 189 •Boyden, IA 51234
PH: [phone] •Toll Free: 1-800-543-3626 •FAX: [phone] or 1-800-845-6420
www.demco-products.com
Front of Tractor
Rear of Tractor
CASE IH
MAGNUM TEIR 4B
250, 280, 310,
340, 380

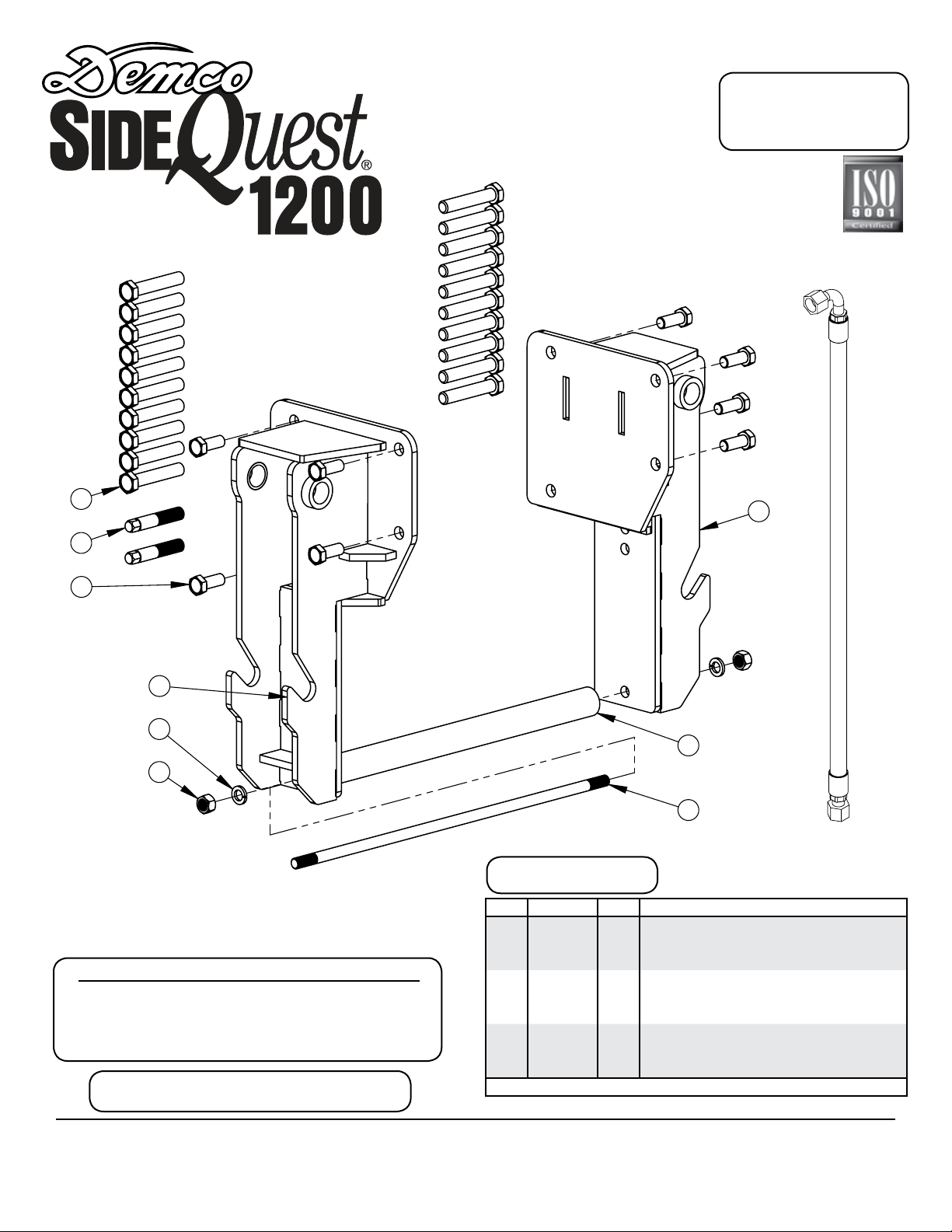

REF PART # QTY. DESCRIPTION
100253 2 3/4” NC Hex Nut
200254 2 3/4” Lockwasher
303840 8 Bolt, 20MM-2.50 x 50MM Gr10.9
413222 20 Bolt, 22MM-2.50 x 120MM Gr10.9
513919-95 2 Starter Stud
614061-76 1 Cross Shaft
714062-76 1 Underbelly Tube
815166-76 1 Right Baseplate Magnum T4B 1200
915167-76 1 Left Baseplate Magnum T4B 1200
Please order replacement parts by PART NO. and DESCRIPTION.
OPTIONAL
HYDRAULIC HOSE
#14063

Baseplate Install Instructions
1. Remove bolts and plastic slide plate (A). Loosen/
remove hose keepers if equipped (B) or install
hose in Fig 1 & 2.
2. Install baseplate with hardware on one side.
Tighten bolts.
3. Install other baseplate with hardware. Leave bolts
loose. Install underbelly tube and cross shaft.
Tighten baseplate bolts then install and tighten
nuts and washers on cross shaft.
4. Reattach hose keepers (B).
(A)
(B) (B)
90° Tee
Straight Connector
Fig. 1
Fig. 2
