Warehouse On Wheels
Quick Reference Guide

WARNING
An improperly secured body
that falls off a trailer can result in
injury or death
It is the driver’s responsibility
to make sure all bodies are
properly locked onto the trailer
before each trip
Be sure all people are clear
of bodies when mounting and
demounting
Never drive on road with trailer in the fully raised or lowered position
Review the Trailer and Body Inspection Procedure at the back of this
manual before every operation and report any defect or problem on
your daily driver inspection report
Read and understand all safety labels on the equipment
Failure to check that trailer is centered and straight when backing
under or pulling out is the primary cause of damage
When demounting bodies:
Be sure all legs are in proper position with leg pins locked
Light plugs must be disconnected -- Center stops must be lowered
Bodies must be unlocked
When transporting bodies on trailer:
Bodies must be locked in place -- Visually conrm by checking
locking hooks and levers before each trip
All legs must be stored inside body and locked in place
Light plugs must be connected -- Center stops must be raised

!
Training videos available online at demount.com/videos

2. Raise tractor
air suspension
SUSPENSION
UP DOWN
ON OFF
UP
Demounting
Bodies
1.
3. Check
that tractor
suspension
is fully raised
1. Set tractor
brakes, put
truck in neutral,
release trailer
brakes,
increase idle
Demounting Bodies
ON

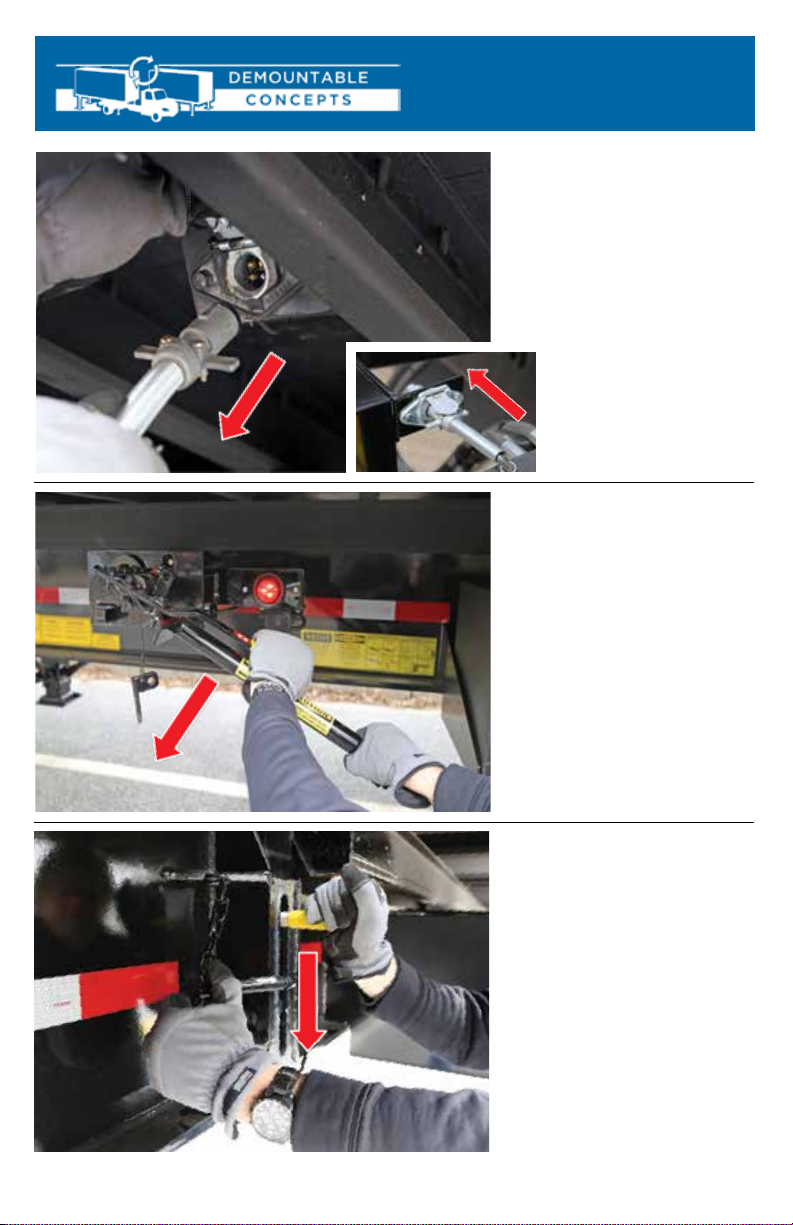

5. Unlock front
body
A. Remove key
B. Push
handle in
C. Lower
locking bar
handle
6. Lower
road-side (R/S)
center stop
2.
4. Unplug front
light plug and
insert into
holder on trailer
Demounting Bodies

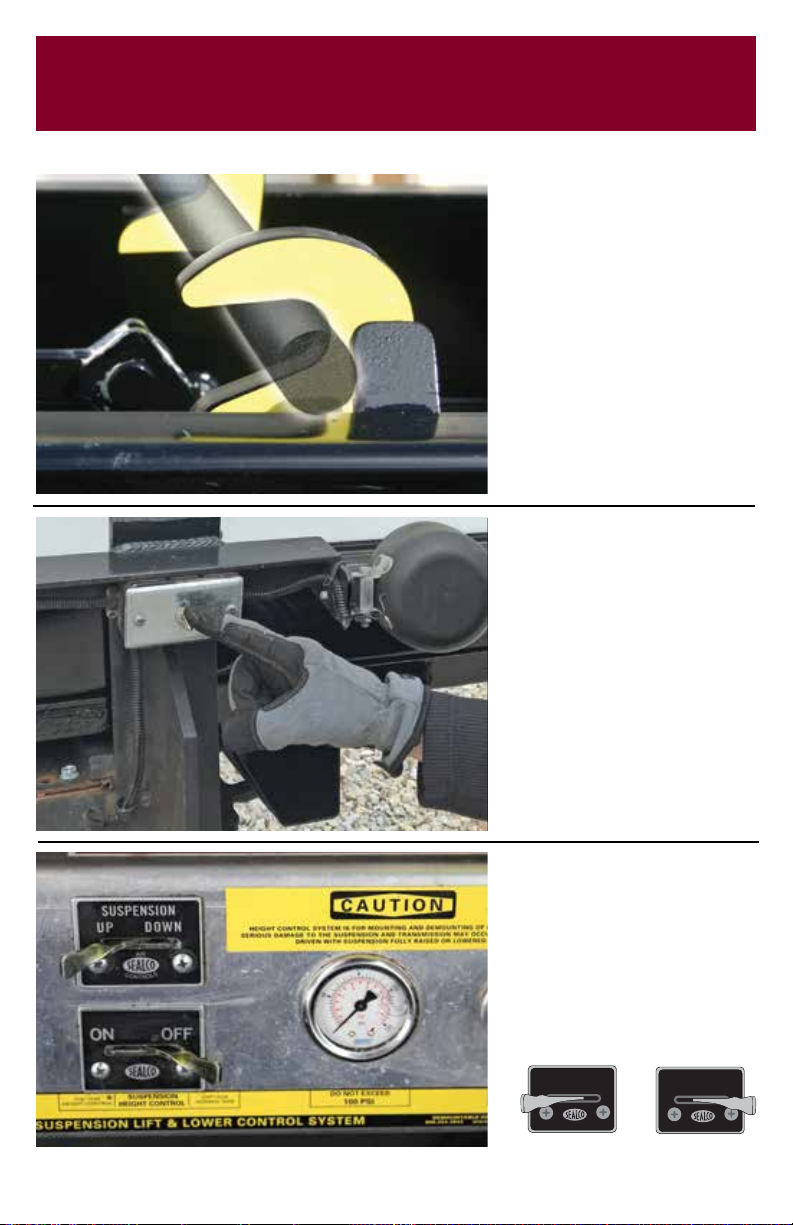

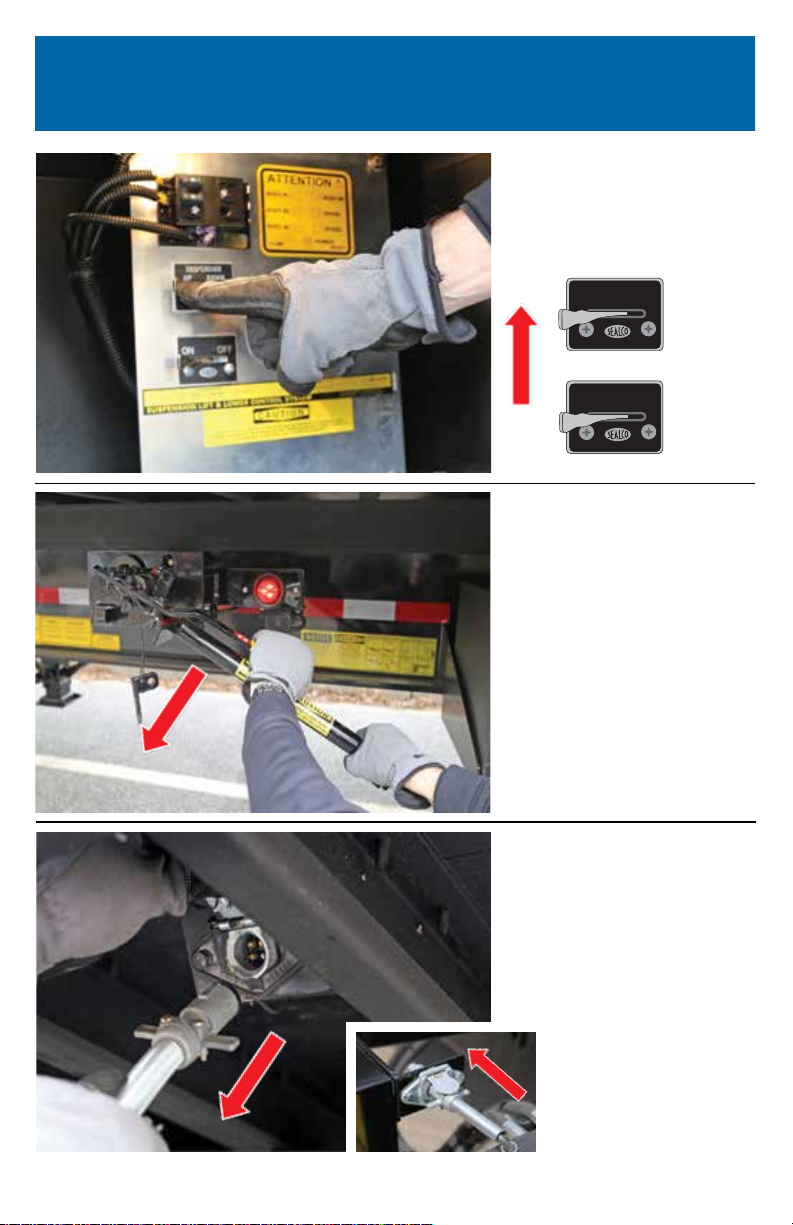

7. Raise trailer
suspension
SUSPENSION
UP DOWN
ON OFF
Questions? Call 1-800-254-3643
3.
UP
ON
8. Unlock rear
body
A. Remove key
B. Push
handle in
C. Lower
locking bar
handle
9. Unplug front
light plug and
insert into
holder on trailer

10. Check trailer
suspension
fully raised
11. Lower
curb-side
(C/S) center
stop
12. Set all legs
from C/S front
to R/S front -
Unlock and
remove
chained pin
from pin
retainer
4.
Demounting Bodies

13. Grab footpad
ring and pull
partially out
14. Adjust lower
leg height -
Remove pin,
slide leg out,
insert pin into
correct hole
15. Pull leg the
rest of the
way out and
lower to
vertical
position
5.
Questions? Call 1-800-254-3643

16. Push leg
assembly into
housing
until the brace
touches the
body side rail
17. Put chained
pin through
upper brace
and leg
18. Check to be
sure all leg
pins are
secure and
in the locked
position
6.
Demounting Bodies

19. Lower trailer
suspension
20. Lower tractor
suspension
21. Check
clearance -
Pull straight
out
SUSPENSION
UP DOWN
ON OFF
SUSPENSION
UP DOWN
ON OFF
7.
Questions? Call 1-800-254-3643
DOWN
ON
DOWN
ON

Mounting
Bodies
1. Be sure locking
hooks are
down and
center stops
are lowered
2.
Be sure tractor
and trailer
suspension is
lowered
3. Turn on ood
lights - Switch
located near
glad-hand
connections
SUSPENSION
UP DOWN
ON OFF
8.
Mounting Bodies
DOWN ON
SUSPENSION
UP DOWN
ON OFF

5. Set tractor and
trailer brakes -
Do not raise
suspension at
this time
4. Back straight
under bodies
● Get out and check
alignment 2-3 times
before backing all the
way underneath
● Reposition trailer as
needed
● Do not over steer
● Front stops must
contact body
9.
Questions? Call 1-800-254-3643
6. Release trailer
brake and
increase idle
Do not
raise tractor
suspension at
this time!

9. Raise trailer
suspension
fully - Conrm
visually
8. Raise both
C/S and R/S
center stops
10.
Mounting Bodies
UP ON
SUSPENSION
UP DOWN
ON OFF
SUSPENSION
UP DOWN
ON OFF
7. Check that
trailer is
centered
under bodies

10. Apply
trailer brake,
release
tractor brake
11. Raise tractor
suspension
fully
SUSPENSION
UP DOWN
ON OFF
11.
Questions? Call 1-800-254-3643
UP
ON
12. Lock rear
body
A. Raise
locking bar
B. Insert
safety key

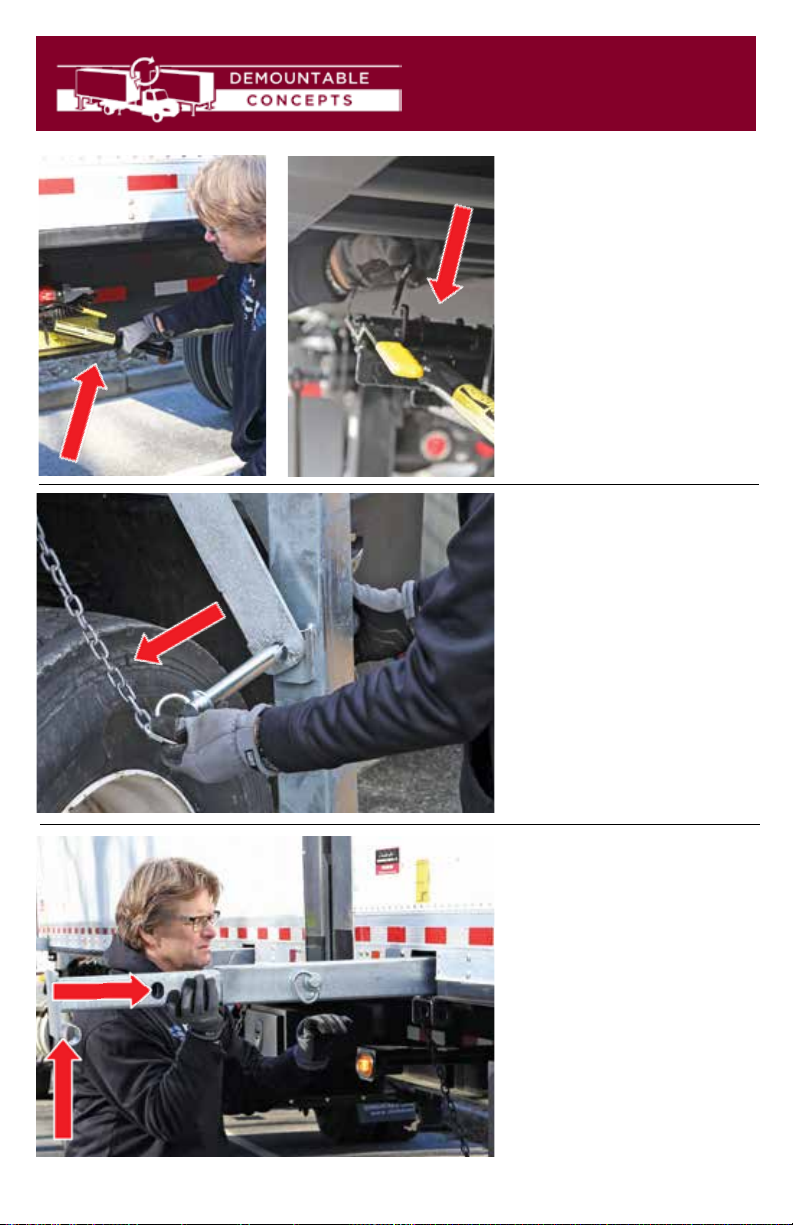

15. Lift entire leg
to horizontal
position and
slide partially
into the leg
housing
12.
Mounting Bodies
14. Store all legs
from C/S
front to R/S
front -
Remove
chained pin
from stabilizer
brace
13. Lock front
body
A. Raise
locking bar
B. Insert
safety key

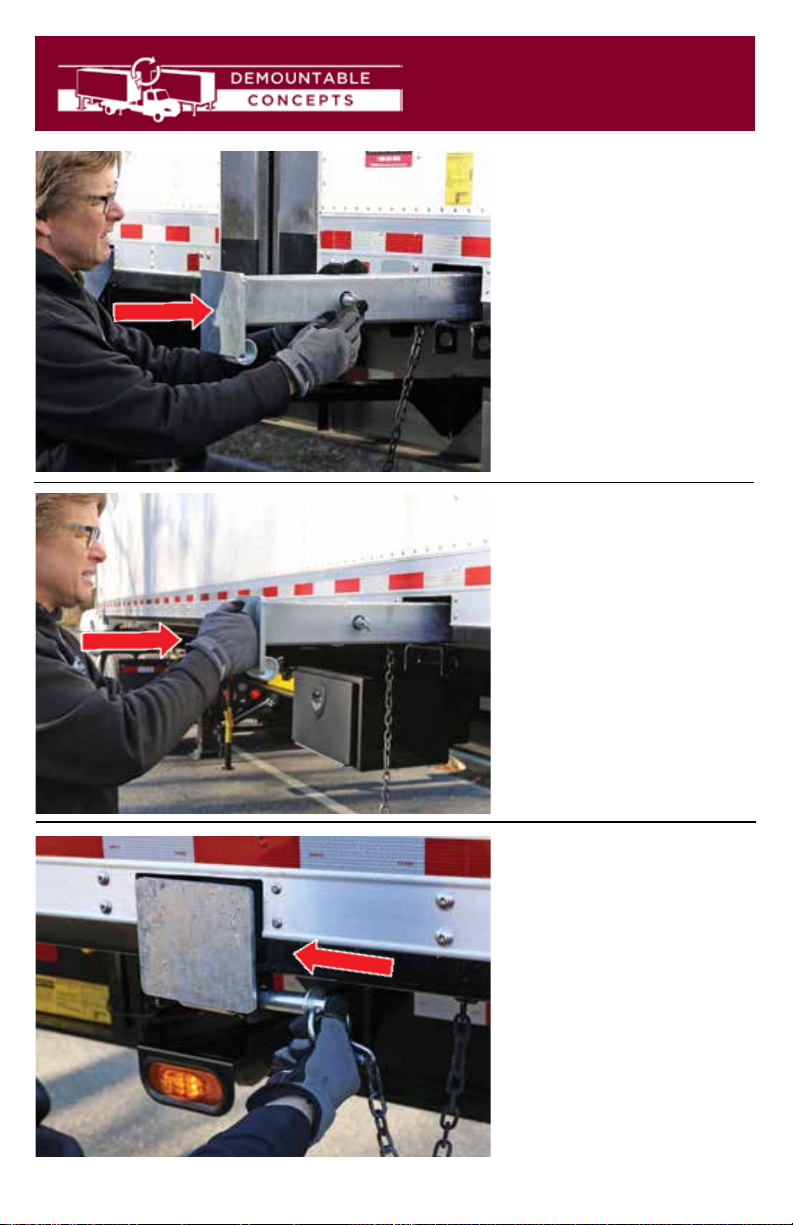

18. Insert pin
through leg
retainers on
body and loop
on foot pad
13.
17. Push leg
completely
into housing –
Keep ngers
clear
16. Remove lower
leg pin, slide
in inner leg
and insert pin
through inner
and outer leg
at last hole
Mounting Bodies

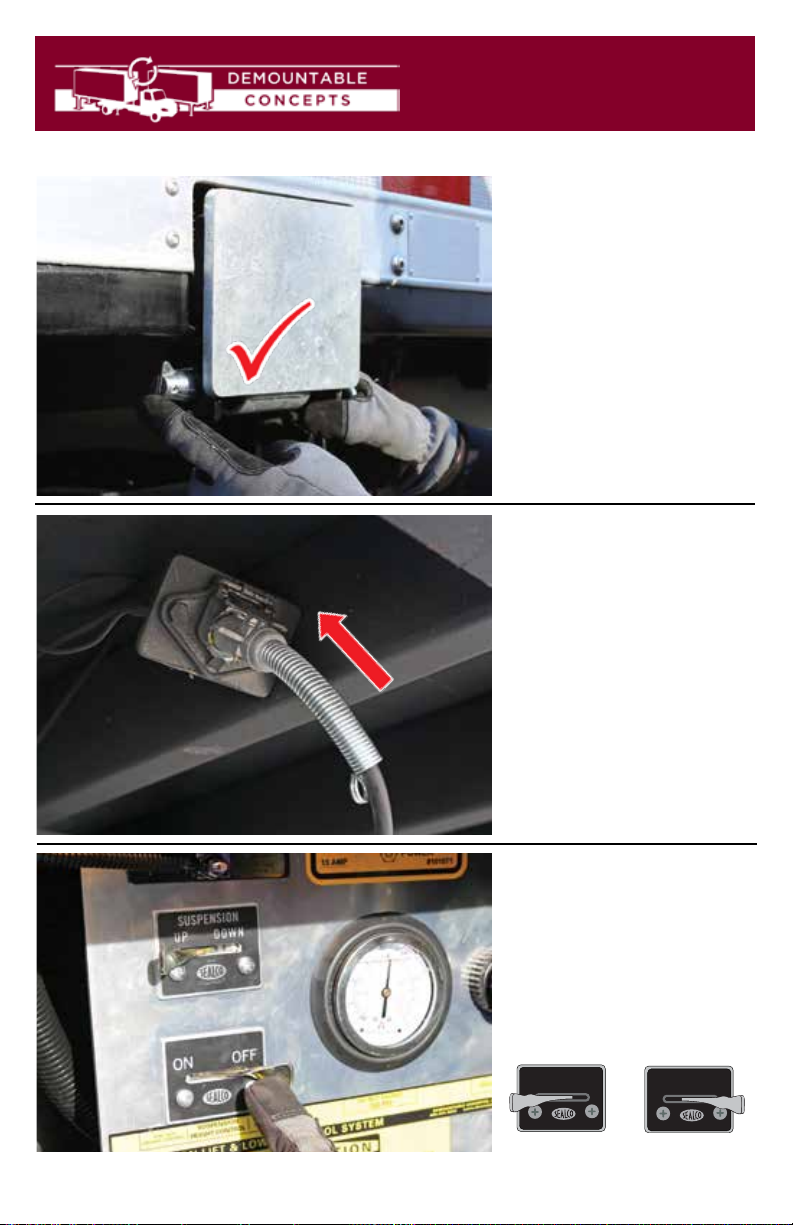

20. Plug in
front AND rear
light plug
14.
Mounting Bodies
19. Flip lock on
pin into place
Check to be
sure all legs
are locked
into place
21. Set trailer
to ride height
SUSPENSION
UP DOWN
ON OFF
SUSPENSION
UP DOWN
ON OFF
UP OFF

22. Visually
conrm all
bodies
are properly
locked on
24. Set tractor to
ride height
15.
Questions? Call 1-800-254-3643
23. Turn off
ood
lights
SUSPENSION
UP DOWN
ON OFF
SUSPENSION
UP DOWN
ON OFF
UP OFF

Daily Trailer and Body Inspection
In Addition to the Federal Pre-Trip Inspection Report
1. BE SURE that all center stops are fully raised and
pinned securely at the upper setting
Pin in upper setting secured with snap lock and chain
2. Visually inspect each set of hooks
to conrm that bodies are properly
locked on
Hooks fully engaged around locking bar
on bodies, two bars per body
Check these items every shift.
Report any defects on your Daily Vehicle Inspection Report
and turn into your supervisor
16.
3. BE SURE that all legs
are properly stowed
with leg pins in place
and locked with tab
Leg pin inserted through pin
retainer and leg foot loop with
locking pin engaged

See demount.com/support-center
for periodic maintenance details
Questions?
Call 1-800-254-3643
17.

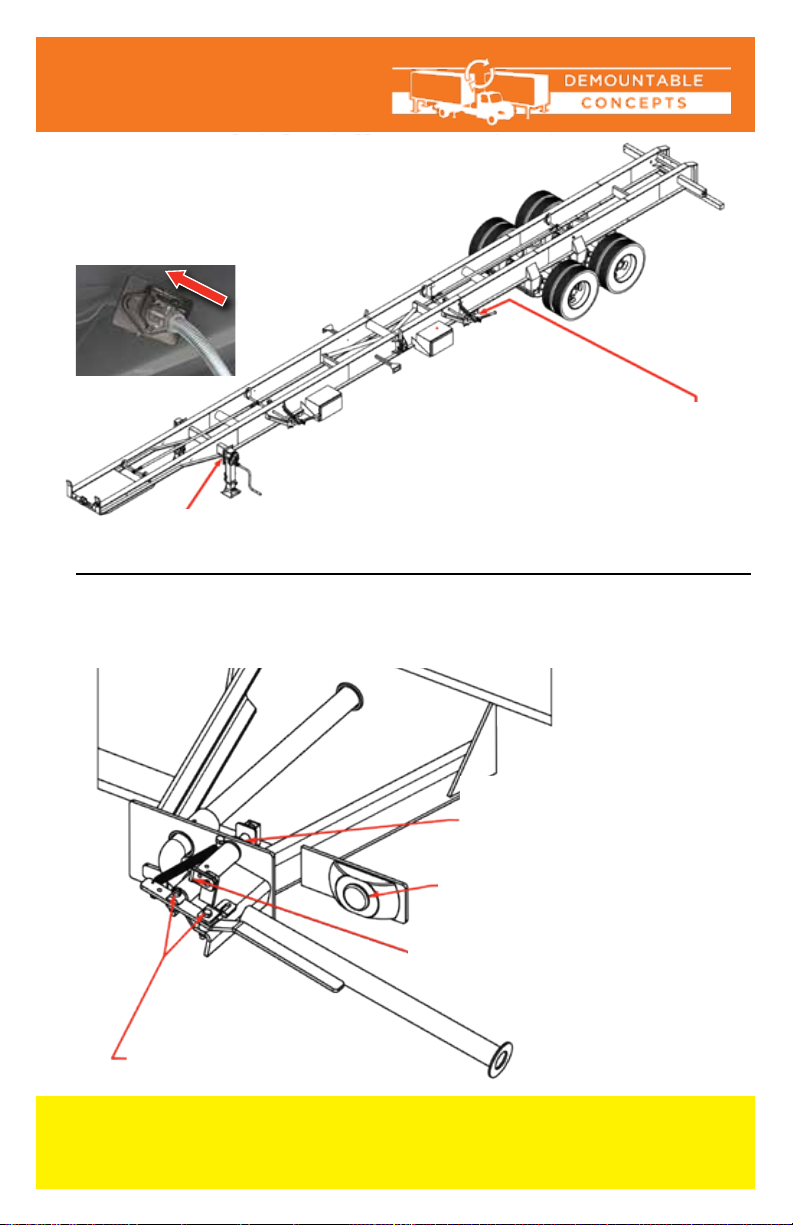

4. BE SURE that all light plugs
are plugged into each
body’s receptacle
Detach light plug from holder and connect
to rear body receptacle
Detach light plug from holder and connect
to front body receptacle
5. BE SURE locking pin is fully inserted and locking
handle and alarm switch are intact and secure
Locking handle hardware
intact and secure
Locking pin fully engaged to
alarm switch - Ensures locking
mechanism stays locked
Alarm activated only when
unlocked
Locking ag pin w/cable fully inserted -
Ensures mechanism is fully closed
