DENALI
///////////////////////////////////////////////
HMT.01.10300
Instruction Rev00
Kit Contents Tools Required
(a) Bracket..............................Qty 1
(b) M6 Washer DIN 125............Qty 2
(c) M6x35 ISO 7380.......................Qty 2
• 5mm Allen Key
• 4mm Allen Key
0mm 10 20 30 40 50 60 70 80 90
Thank you for choosing DENALI
We know you would rather be riding your bike than wrenching on it, so we go the extra
mile to make sure our instructions are clear and as easy to understand as possible. If
you have any questions, comments, or suggestions don’t hesitate to give our gear
experts a call at 401.360.2550 or visit DenaliElectronics.com
Please Read Before Installing
DENALI products should always be installed by a qualified motorcycle technician. If
you are unsure of your ability to properly install a product, please have the product
installed by your local motorcycle dealer. DENALI takes no responsibility for damages
caused by improper installation. Caution: When installing electronics is it extremely
important to pay close attention to how wires are routed, especially when mounting
products to the front fender, front forks, or fairing of your motorcycle. Always be sure
to turn the handlebars fully left, fully right, and fully compress the suspension to
ensure the wires will not bind and have enough slack for your motorcycle to operate
properly.
Installation Tips
We strongly recommend using medium strength liquid thread locker on all screws,
nuts, and bolts. It is also important to ensure that all hardware is tightened to the
proper torque specifications as listed in your owner’s manual. For included accessory
hardware please refer to the default torque specifications provided below. Inspect all
hardware after the first 30 miles to ensure proper torque specifications are
maintained.
Hardware Sizing Guide
Not sure what size bolt you have? Use this ruler to measure screws, bolts, spacers, etc.
Remember, the length of a screw or bolt is measured from the start of the “mounting
surface” to the end of the screw, so only include the screw head when measuring
countersunk screws.
M3 10.0 in-lbs - 1.0 Nm
M4 23.0 in-lbs - 2.5 Nm
M5 44.5 in-lbs 3.5 ft-lbs 5.0 Nm
M6 78.0 in-lbs 6.5 ft-lbs 9.0 Nm
M8 - 13.5 ft-lbs 18.0 Nm
M10 - 30.0 ft-lbs 41.0 Nm
M12 - 52.0 ft-lbs 71.0 Nm
in-lbs
ft-lbs NmBolt Size
Honda
Horn Mounting Bracket
CB500X
2013 - 2016

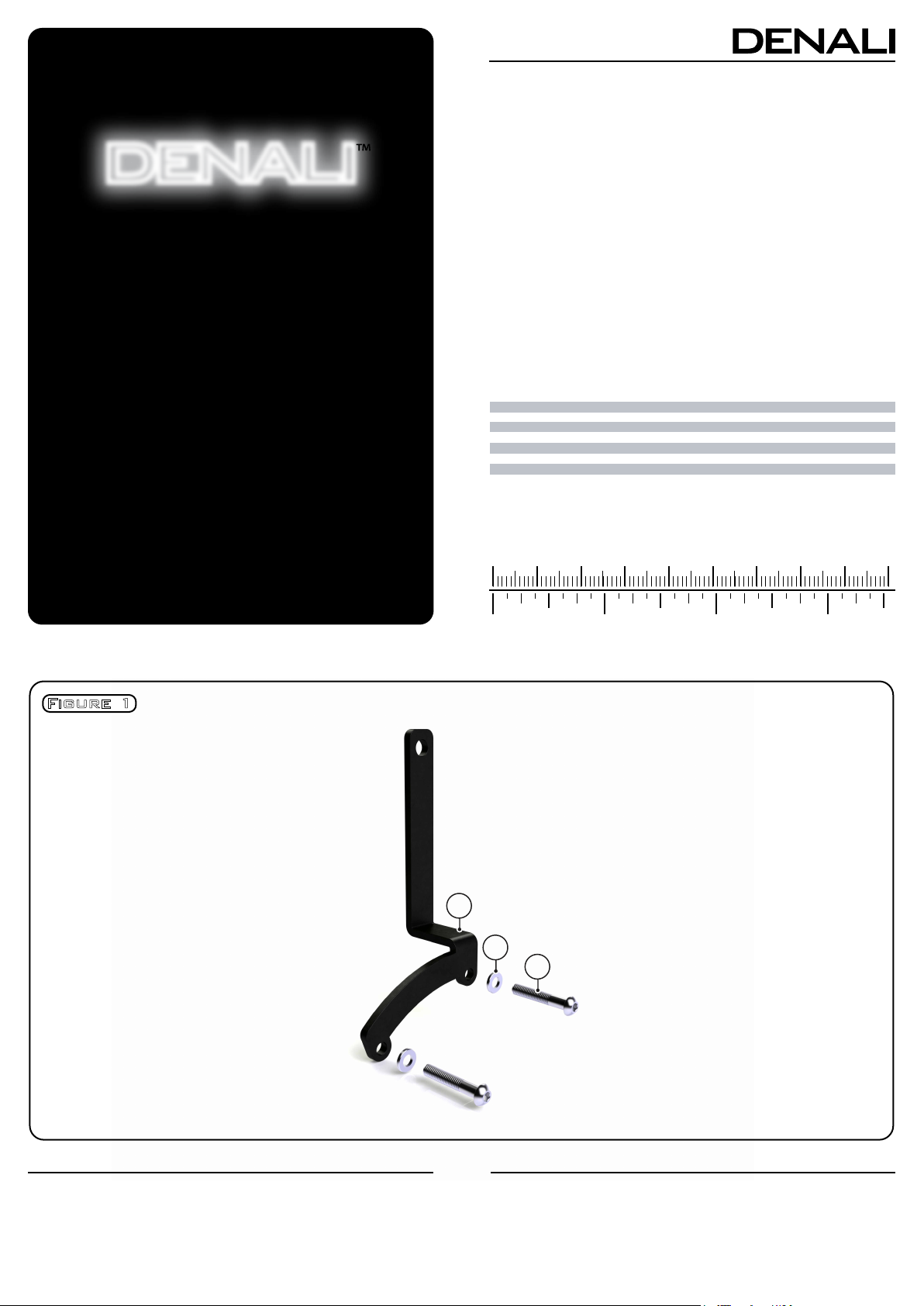

Figure 1
Illustration not to scale
0in 1 2 3
bc
a

Step Seven: Before operating the motorcycle,
turn the handlebars fully left, right and fully
compress the suspension. Confirm that the
wires do not interfere with operation and that
the they have enough slack to account for all
suspension and steering movement.
Removing Your OEM Bolts Mounting The Horn To The Bracket
Mounting The Brackets
Figure 3
Step Five: Mount the assembled horn and
bracket to the motorcycle using bolts (b) and
washers (c).
Step Six: Refer to the SoundBomb Compact
Horn instruction manual for step by step
wiring instructions.
Step One: Identify the two OEM M6x28 bolts
in the alternator cover on the left hand side
of the motorcycle and remove.
Step Three: Use the bolt and nut supplied
with the SoundBomb Compact Horn to bolt
the horn to the bracket (a). Torque to 13.5
ft-lbs.
Note: The horn is to be bolted so that
its parallel to the front edge of bracket (a).
Figure 4
Figure 2
!
!
a
a
c
b
