Denon AVR-X8500H User manual
Accessories 8
Inserting the batteries 9
Operating range of the remote control unit 9
Features 10
High quality sound 10
High performance 13
Easy operation 17
Part names and functions 18
Front panel 18
Display 22
Rear panel 24
Remote control unit 28
Connections
Speaker installation 33
Connecting speakers 42
Before connecting speakers 42
Speaker configuration and “Amp Assign” settings 46
Connecting 5.1-channel speakers 48
Connecting 7.1-channel speakers 49
Connecting 9.1-channel speakers 54
Connecting 13.1-channel speakers 63
Connecting 15.1-channel speakers 68
Bi-amp connection 74
Connecting 11.1-channel speakers: Second pair of front speakers 76
Connecting multi-zone speakers 77
Connecting a TV 82
Connection 1 : TV equipped with an HDMI connector and
compatible with the ARC (Audio Return Channel) 83
Connection 2 : TV equipped with an HDMI connector and
incompatible with the ARC (Audio Return Channel) 84
Connection 3 : TV equipped without an HDMI connector 85
Connecting a playback device 86
Connecting a set-top box (Satellite tuner/cable TV) 87
Connecting a DVD player or Blu-ray Disc player 88
Connecting a Blu-ray Disc player compatible with the Denon Link
HD function 89
Connecting a video camcorder or game console 90
Connecting a turntable 91
Connecting a device with a multi-channel output connector 92
Connecting a USB memory device to the USB port 93
Connecting an FM/AM antenna 94
Connecting to a home network (LAN) 96
Wired LAN 96
Wireless LAN 97
Connecting an external control device 98
REMOTE CONTROL jacks 98
TRIGGER OUT jacks 99
Connecting the power cord 100
Contents Connections Playback Settings Tips Appendix
2
Front panel Display Rear panel Remote Index
Playback
Basic operation 102
Turning the power on 102
Selecting the input source 102
Adjusting the volume 103
Turning off the sound temporarily (Muting) 103
Playback a DVD player/Blu-ray Disc player 103
Playing a USB memory device 104
Playing files stored on USB memory devices 105
Listening to music on a Bluetooth device 108
Playing music from Bluetooth device 109
Pairing with other Bluetooth devices 111
Reconnecting to this unit from a Bluetooth device 112
Listening to FM/AM broadcasts 113
Listening to FM/AM broadcasts 114
Tuning in by entering the frequency (Direct Tune) 115
Changing the tune mode (Tune Mode) 116
Tuning in to stations and presetting them automatically (Auto
Preset Memory) 116
Presetting the current broadcast station (Preset Memory) 117
Listening to preset stations 117
Specify a name for the preset broadcast station (Preset Name) 118
Skipping preset broadcast stations (Preset Skip) 119
Cancelling Preset Skip 120
Listening to Internet Radio 121
Listening to Internet Radio 122
Playing back files stored on a PC or NAS 123
Playing back files stored on a PC or NAS 124
Contents Connections Playback Settings Tips Appendix
3
Front panel Display Rear panel Remote Index
Getting the HEOS App 127
HEOS Account 128
Playing from streaming music services 129
Listening to the same music in multiple rooms 132
AirPlay function 136
Playing songs from your iPhone, iPod touch or iPad 137
Playing iTunes music with this unit 137
Perform iTunes playback operations with the remote control unit
of this unit 138
Spotify Connect function 139
Playing Spotify music with this unit 139
Convenience functions 140
Adding to HEOS Favorites 141
Playing back HEOS Favorites 141
Deleting a HEOS Favorites 142
Adjusting the audibility of dialog and vocals (Dialog Enhancer) 142
Adjusting the volume of each channel to match the input source
(Channel Level Adjust) 143
Adjusting the tone (Tone) 144
Displaying your desired video during audio playback (Video
Select) 145
Adjusting the picture quality for your viewing environment (Picture
Mode) 146
Playing the same music in all zones (All Zone Stereo) 147
Selecting a sound mode 148
Selecting a sound mode 149
Direct playback 150
Pure Direct playback 151
Auto surround playback 151
Description of sound mode types 152
Sound mode that can be selected for each input signal 156
HDMI Control function 160
Setting procedure 160
Smart Menu function 161
Sleep timer function 163
Using the sleep timer 164
Quick select plus function 165
Calling up the settings 166
Changing the settings 167
Playback in ZONE2/ZONE3 (Separate room) 168
Connecting ZONE 168
Playback in ZONE2/ZONE3 173
Settings
Menu map 175
Menu operations 179
Contents Connections Playback Settings Tips Appendix
4
Front panel Display Rear panel Remote Index
Audio 180
Subwoofer Level Adjust 180
Bass Sync 180
Surround Parameter 181
Restorer 186
Audio Delay 187
Volume 188
Audyssey®189
Graphic EQ 192
Video 194
Picture Adjust 194
HDMI Setup 196
Output Settings 201
Analog Video Out 204
On Screen Display 205
4K Signal Format 206
TV Format 207
Inputs 208
Input Assign 208
Source Rename 210
Hide Sources 211
Source Level 211
Input Select 212
Speakers 213
Audyssey® Setup 213
Procedure for speaker settings (Audyssey® Setup) 215
Error messages 221
Retrieving Audyssey® Setup settings 223
Manual Setup 224
Amp Assign 224
Speaker Config. 234
Distances 240
Levels 241
Crossovers 242
Bass 243
Front Speaker 244
2ch Playback 244
Network 247
Information 247
Connection 247
Wi-Fi Setup 248
Settings 250
Network Control 252
Friendly Name 252
Diagnostics 253
Contents Connections Playback Settings Tips Appendix
5
Front panel Display Rear panel Remote Index
HEOS Account 254
You have not signed in 254
You have already signed in 254
General 255
Language 255
ECO 255
ZONE2 Setup / ZONE3 Setup 258
Zone Rename 260
Quick Select Names 260
Trigger Out 1 / Trigger Out 2 261
Front Display 261
Firmware 262
Information 265
Remote ID 266
Usage Data 267
Save & Load 267
Setup Lock 268
Operating external devices with the remote control unit 269
Registering preset codes 270
Operating devices 273
Operating learning function 276
Operating macro function 279
Specifying the zone used with the remote control unit 283
Setting the Remote ID 284
Setting the display time length of the remote control unit display 284
Setting the back light 285
Restoring all settings of the remote control unit to default 285
Contents Connections Playback Settings Tips Appendix
6
Front panel Display Rear panel Remote Index
Tips
Tips 287
Troubleshooting 289
Power does not turn on / Power is turned off 290
Operations cannot be performed through the remote control unit 291
Display on this unit shows nothing 291
No sound comes out 292
Desired sound does not come out 293
Sound is interrupted or noise occurs 295
No video is shown on the TV 296
The menu screen is not displayed on the TV 298
AirPlay cannot be played back 299
USB memory devices cannot be played back 300
Bluetooth cannot be played back 301
The Internet radio cannot be played back 302
Music files on PC or NAS cannot be played back 303
Various online services cannot be played 304
The HDMI Control function does not work 304
Cannot connect to a wireless LAN network 305
When using HDMI ZONE2, the devices does not function properly 306
Update/upgrade error messages 307
Resetting factory settings 308
Resetting network settings 309
Appendix
About HDMI 310
Video conversion function 313
Playing back a USB memory devices 315
Playing back a Bluetooth device 316
Playing back a file saved on a PC or NAS 317
Playing back Internet Radio 318
Personal memory plus function 318
Last function memory 318
Sound modes and channel output 319
Sound modes and surround parameters 321
Types of input signals, and corresponding sound modes 324
Explanation of terms 327
Trademark information 337
Specifications 340
Index 346
License 349
Contents Connections Playback Settings Tips Appendix
7
Front panel Display Rear panel Remote Index
Thank you for purchasing this Denon product.
To ensure proper operation, please read this owner’s manual carefully before using the product.
After reading this manual, be sure to keep it for future reference.
Accessories
Check that the following parts are supplied with the product.
Quick Start Guide Safety Instructions Notes on radio Warranty
(for North America
model only)
Cable labels
Power cord FM indoor antenna AM loop antenna
External antennas for
Bluetooth/wireless
connectivity
Sound calibration
microphone
Sound calibration
microphone stand
Remote control unit
(RC-1221)
LR6/AA batteries
Contents Connections Playback Settings Tips Appendix
8
Front panel Display Rear panel Remote Index
Inserting the batteries
1Slide the rear cover off the remote control unit in the
arrow direction.
2Insert two batteries correctly into the battery
compartment as indicated.
Batteries
3Put the rear cover back on.
NOTE
0To prevent damage or leakage of battery fluid:
0Do not use a new battery together with an old one.
0Do not use two different types of batteries.
0Remove the batteries from the remote control unit if it will not be in use for long
periods.
0If the battery fluid should leak, carefully wipe the fluid off the inside of the battery
compartment and insert new batteries.
Operating range of the remote control
unit
Point the remote control unit at the remote sensor when operating it.
30°
Approx. 23 ft/7 m
30°
Contents Connections Playback Settings Tips Appendix
9
Front panel Display Rear panel Remote Index
Features
High quality sound
0With discrete circuit technology, the power amplifier provides
identical quality for all 13-channels (190 Watts x 13-channels)
For optimum realism and stunning dynamic range, the power amplifier
section features discrete power devices (not integrated circuitry).
By using high current, high power discrete power devices, the amplifier
is able to easily drive high quality speakers.
0Dolby Atmos (v p. 328)
This unit is equipped with a decoder that supports Dolby Atmos audio
format. The placement or movement of sound is accurately reproduced
by the addition of overhead speakers, enabling you to experience an
incredibly natural and realistic surround sound field.
0DTS:X (v p. 331)
This unit is equipped with the DTS:X decoder technology. DTS:X
brings the home theater experience to new heights with its immersive
object based audio technology which removes the bounds of channels.
The flexibility of objects allows for sound to be scaled large or small
and moved around the room with greater accuracy than ever before
leading to a richer immersive audio experience.
0DTS Virtual:X (v p. 331)
DTS Virtual:X technology features DTS’s proprietary virtual height and
virtual surround processing to deliver an immersive sound experience
from any type of input source (stereo to 7.1.4 channel) and speaker
configuration.
0Audyssey LFC™ (Low Frequency Containment) (v p. 191)
Audyssey LFC™ solves the problem of low frequency sounds
disturbing people in neighboring rooms or apartments. Audyssey
LFC™ dynamically monitors the audio content and removes the low
frequencies that pass through walls, floors and ceilings. It then applies
psychoacoustic processing to restore the perception of low bass for
listeners in the room. The result is great sound that no longer disturbs
the neighbors.
0Discrete subwoofers and Audyssey Sub EQ HT™ (v p. 214)
The unit has two subwoofer output capability and can adjust the level
and delay for each subwoofer individually.
Audyssey Sub EQ HT™ makes the integration seamless by first
compensating for any level and delay differences between the two
subwoofers and then applying Audyssey MultEQ® XT32 to both
subwoofers together for improved deep bass response and detail.
Contents Connections Playback Settings Tips Appendix
10
Front panel Display Rear panel Remote Index
0Denon’s unique high quality playback technology “Denon Link
HD” (v p. 336)
This unit is equipped with our exclusive “Denon Link HD” technology.
When connected to a Denon disc player that has Denon Link HD, the
sound localization becomes more precise, with increased detail and
definition. The system works by carrying the critical clock timing signals
via the dedicated Denon Link HD connection, minimizing the jitter
caused by conventional digital connections. This effect can be applied
to an audio source of any media from a Blu-ray Disc player.
This technology enables the playback of 2-channel source audio or
7.1/5.1 multi-channel source audio through a maximum 11.1-channel
speakers, achieving an even broader soundstage.
Contents Connections Playback Settings Tips Appendix
11
Front panel Display Rear panel Remote Index
0Auro-3D
This unit is equipped with an Auro-3D decoder.
With Auro-3D, Front Height (FHL + FHR), Surround Height (SHL + SHR), Center Height (CH/optional) and Top Surround (TS/optional) are added to a
conventional 5.1-channel system to achieve a natural and realistic sound field that is three-dimensional and fully immersive.
You will be able to fully enjoy Auro-3D playback if you properly place the speakers for Auro-3D.
2 Auro-3D playback
FHL FHR
SHL SHR
TS
CH
FL FR
SW
SL SR
C
2 Dolby Atmos playback
FHL FHR
SHL SHR
TS
FL FR
SW
SL SR
C
CH
0Auro-3D does not support a Dolby Atmos configuration using Top Front, Top Middle or Top Rear speakers.
But it is possible to support both an Auro-3D and Dolby Atmos by adding Front Height and Rear Height speakers* to a 5.1 configuration.
zFor an optimum Auro-3D experience Surround Height speakers are strongly recommended.
Contents Connections Playback Settings Tips Appendix
12
Front panel Display Rear panel Remote Index
High performance
04K 60Hz input/output supported
When 4K Ultra HD (High Definition) is used, an input/output speed of 60
frames per second (60p) is achieved for video signals. When connected
to 4K Ultra HD and 60p video signal input compatible TV, you can enjoy
the sense of realism only available from high-definition images, even
when viewing fast-moving video.
This unit also supports image processing for 4K 60p, 4:4:4 and 24-bit
videos. By processing the video at the original resolution, this unit lets
you enjoy flawless, high-definition picture quality.
This unit also supports HDR (High Dynamic Range) and BT.2020 wide
color gamut.
0HDCP 2.2
This unit is compatible with HDCP 2.2 copyright protection standard.
0Digital video processor upscales analog video signals (SD
resolution) to HD (720p/1080p) and 4K (v p. 203)
4K
Up scaling
Up to 1080p
This unit is equipped with a 4K video upscaling function that allows
analog video or SD (Standard Definition) video to be output via HDMI at
4K (3840 × 2160 pixels) resolution. This function enables the device to
be connected to a TV using a single HDMI cable, and produces high
definition images for any video source.
0Equipped with HDMI ZONE2 output (v p. 168)
The ZONE2 multi-room output includes an HDMI output that lets you
enjoy a different A/V source in that room, with another program playing
in the main room.
Contents Connections Playback Settings Tips Appendix
13
Front panel Display Rear panel Remote Index

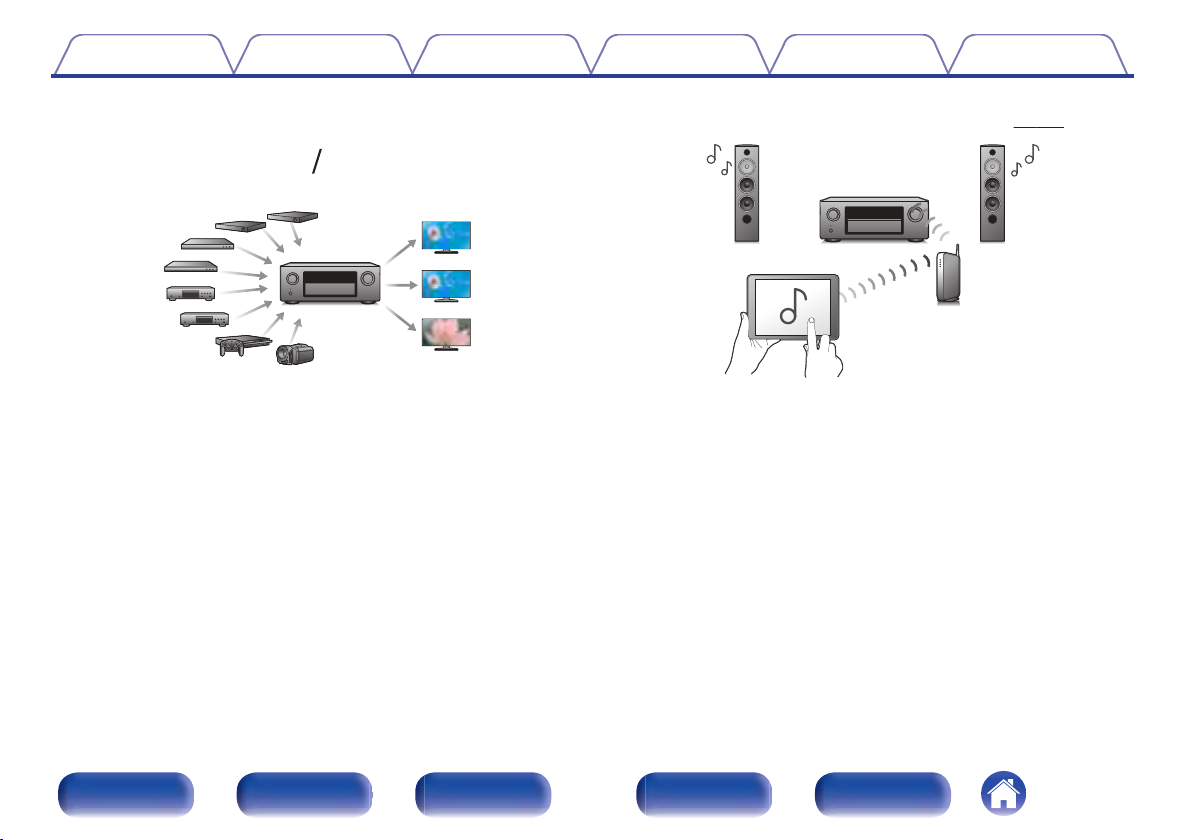

0HDMI connections enable connection to various digital AV
devices (8 inputs, 3 outputs)
83
OutIn
For connection to a broad range of digital sources, this unit features 8
HDMI inputs, including 1 on the front panel that lets you quickly and
conveniently connect a camcorder, game console or other HDMI-
equipped device. There are dual HDMI outputs for the main room, and a
third HDMI output for another room.
0The device is equipped with a AirPlay® function in addition to
network functions such as Internet radio etc. (v p. 136)
You can enjoy a wide variety of content, including listening to Internet
Radio, playing audio files stored on your PC.
This unit also supports Apple AirPlay which lets you stream your music
library from an iPhone®, iPad®, iPod touch® or iTunes®.
0Playback of DSD and FLAC files via USB and networks
This unit supports the playback of high resolution audio formats such as
DSD (5.6 MHz) and FLAC 192 kHz files. It provides high quality
playback of high resolution files.
Contents Connections Playback Settings Tips Appendix
14
Front panel Display Rear panel Remote Index
0Wireless connection with Bluetooth devices can be carried out
easily (v p. 108)
You can enjoy music simply by connecting wirelessly with your
smartphone, tablet, PC, etc.
0Multi-Room audio (v p. 147)
【MAIN ZONE】【ZONE2】/【ZONE3】
You can select and play back the respective inputs in MAIN ZONE,
ZONE2 and ZONE3.
In addition, when the All Zone Stereo function is used, the music being
played back in MAIN ZONE can be enjoyed in all the zones at the same
time. This is useful when you want to let the BGM propagate throughout
the whole house.
0Energy-saving design
This unit is equipped with an ECO Mode function that allows you to
enjoy music and movies while reducing the power consumption during
use, and also an auto-standby function that automatically turns off the
power supply when the unit is not in use. This helps reduce
unnecessary power use.
Contents Connections Playback Settings Tips Appendix
15
Front panel Display Rear panel Remote Index
0Compatible with the “Denon 2016 AVR Remote” Appz for
performing basic operations of the unit with an iPad, iPhone or
Android™ devices (Google, Amazon Kindle Fire)
Along with many new features, the graphics and user interface have
been completely overhauled. The new app gives you full control of the
AVR as well as access to its setup menu for detailed adjustments from
your phones or tablets. “Denon 2016 AVR Remote” App also gives you
quick access to the receiver's status display, option menus, Denon Blu-
ray Disc player control, and online owner's manual for your
convenience.
zDownload the appropriate “Denon 2016 AVR Remote” App for your iOS or
Android devices. This unit needs to be connected to the same LAN or Wi-Fi
(wireless LAN) network that the iPhone or iPod touch is connected to.
0HEOS provides streaming music from your favorite online music
sources
HEOS wireless multi-room sound system that enables you to enjoy your
favorite music anywhere and everywhere around your home. By utilizing
your existing home network and the HEOS App (available for iOS,
Android and Amazon devices), you can explore, browse, and play
music from your own music library or from many online streaming music
services.
When multiple HEOS devices are connected to the same network,
HEOS devices can be grouped to play back the same music on all
devices simultaneously, or different music can be played on each
separate HEOS device.
Contents Connections Playback Settings Tips Appendix
16
Front panel Display Rear panel Remote Index
Easy operation
0“Setup Assistant” provides easy-to-follow setup instructions
First select the language when prompted. Then simply follow the
instructions displayed on the TV screen to set up the speakers, network,
etc.
0Easy to use Graphical User Interface
This unit is equipped with a Graphical User Interface for improved
operability.
Contents Connections Playback Settings Tips Appendix
17
Front panel Display Rear panel Remote Index
u
wqret y
APower operation button (X)
Used to turn the power of the MAIN ZONE (room where this unit is
located) on/off (standby). (v p. 102)
BPower indicator
This is lit as follows according to the power status:
0White: Power on
0Off: Normal standby
0Red:
0When “HDMI Pass Through” is set to “On” (v p. 196)
0When “HDMI Control” is set to “On” (v p. 198)
0When “Network Control” is set to “Always On” (v p. 252)
CSOURCE SELECT knob
This selects the input source. (v p. 102)
DRemote control sensor
This receives signals from the remote control unit. (v p. 9)
EDisplay
This displays various pieces of information. (v p. 22)
FMASTER VOLUME knob
This adjusts the volume level. (v p. 103)
GDoor
When you are using buttons and/or connectors behind the door, press
the bottom of the door to open it. Be careful not to catch your fingers
when closing the door.
Contents Connections Playback Settings Tips Appendix
19
Front panel Display Rear panel Remote Index
With the door open
io Q0qw r t y ue
AZONE2 ON/OFF button
This turns the power of ZONE2 (another room) on/off. (v p. 173)
BZONE2 SOURCE button
This selects the input source for ZONE2. (v p. 173)
CZONE3 ON/OFF button
This turns the power of ZONE3 (another room) on/off. (v p. 173)
DZONE3 SOURCE button
This selects the input source for ZONE3. (v p. 173)
ESTATUS button
Each press of this switches the status information that is shown on the
display.
FInformation button (INFO)
This displays the status information on the TV screen. (v p. 266)
GCursor buttons (uio p)
These select items.
HOPTION button
This displays the option menu on the TV screen.
IDIMMER button
Each press of this switches the brightness of the display. (v p. 261)
JQUICK SELECT buttons
With a single press of any of these buttons, you can call up various
settings you’ve registered to each button such as the input source,
volume level and sound mode settings. (v p. 165)
Contents Connections Playback Settings Tips Appendix
20
Front panel Display Rear panel Remote Index
Other manuals for AVR-X8500H
4
Other Denon AV Receiver manuals
Denon
Denon AVR-S730H User manual
Denon
Denon AVR-X2300W User manual
Denon
Denon AVR-S710W User manual
Denon
Denon AVR-X3100W User manual
Denon
Denon AVR-1708 User manual
Denon
Denon AVR-2113CI User manual
Denon
Denon AVR-X3200W User manual
Denon
Denon AVR-X1300W User manual
Denon
Denon AVR-2113CI User manual
Denon
Denon AVR-S710W User manual
