Thank you for purchasing this Denon product.
To ensure proper operation, please read this owner’s manual carefully before using the product.
After reading this manual, be sure to keep it for future reference.
Accessories
Check that the following parts are supplied with the product.
.
Quick Start Guide Safety Instructions Notes on radio Warranty
(for North America
model only)
Cable labels
Sound calibration
microphone stand
Sound calibration
microphone
AM loop antennaFM indoor antennaPower cord
R03/AAA batteries External antennas for
Bluetooth/wireless
connectivity
Remote control unit
(RC-1239)
Contents Connections Playback Settings Tips Appendix
8
Front panel Display Rear panel Remote Index

Inserting the batteries
1Remove the rear lid in the direction of the arrow and
remove it.
.
2Insert two batteries correctly into the battery
compartment as indicated.
.
Batteries
3Put the rear cover back on.
NOTE
0To prevent damage or leakage of battery fluid:
0Do not use a new battery together with an old one.
0Do not use two different types of batteries.
0Remove the batteries from the remote control unit if it will not be in use for long
periods.
0If the battery fluid should leak, carefully wipe the fluid off the inside of the battery
compartment and insert new batteries.
Operating range of the remote control
unit
Point the remote control unit at the remote sensor when operating it.
.
Approx. 23 ft/7 m
30° 30°
Contents Connections Playback Settings Tips Appendix
9
Front panel Display Rear panel Remote Index

Features
High quality sound
0Powerful 7-channel Amplifier with the Latest Home Cinema Specs
Featuring discrete high-current amplifiers on all channels, this unit
delivers high-power performance of 95 watts per channel (8 Ω/ohms, 20
Hz - 20 kHz, T.H.D.: 0.08 %, 2ch. driven). Low impedance drivers
provide operational stability for a wide range of speakers and create a
balanced, tonal sound.
This unit features an advanced HDMI section with HDCP 2.3 support,
and video processing with 4K and 8K pass-through and upscaling for
HDMI sources.
Upgrade your expectations in home theater entertainment.
0Dolby Atmos (v p. 264)
This unit is equipped with a decoder that supports Dolby Atmos audio
format. The placement or movement of sound is accurately reproduced
by the addition of overhead speakers, enabling you to experience an
incredibly natural and realistic surround sound field.
0Speaker Virtualizer (v p. 155)
Speaker Virtualizer enables you to access a more immersive
entertainment experience from traditional channel based speaker
layouts through digital signal processing including Dolby Atmos height
virtualization and surround virtualization.
0Speaker Virtualizer is not for use when both height speakers and surround
speakers are connected.
0Height Virtualization may be applied when surround speakers are connected.
0DTS:X (v p. 267)
This unit is equipped with the DTS:X decoder technology. DTS:X brings
the home theater experience to new heights with its immersive object
based audio technology which removes the bounds of channels. The
flexibility of objects allows for sound to be scaled large or small and
moved around the room with greater accuracy than ever before leading
to a richer immersive audio experience.
0DTS Virtual:X (v p. 267)
DTS Virtual:X technology features DTS’s proprietary virtual height and
virtual surround processing to deliver an immersive sound experience
from any type of input source (stereo to 7.1.4 channel) and speaker
configuration.
0DTS Virtual:X is not for use when Height speakers are connected.
Contents Connections Playback Settings Tips Appendix
10
Front panel Display Rear panel Remote Index

High performance
0Ultimate Home Theater Experience – 8K Ready
This unit delivers the ultimate home theater experience with 8K/60Hz
pass-through, 4K/120Hz pass-through, as well as support for the latest
HDMI specifications. This unit allows you to build the best 4K home
theater today and gives you the comfort of knowing that your AV
receiver is 8K ready when you are.
Enjoy the highest quality 3D audio and video for even the most
demanding entertainment needs.
0HDCP 2.3
This unit is compatible with HDCP 2.3 copyright protection standard.
0Digital video processor upscales SD (resolution) or HD (720p/
1080p) / 4K to 8K
.
8K Ultra HD
8K 8K
Up to
1080p/4K 60Hz
8K
up scaling
This unit is equipped with a 8K video upscaling function that allows SD
(Standard Definition) or HD (High Definition)/4K 60Hz video to be output
via HDMI at 8K (7680 × 4320 pixels) resolution. This function enables
the device to be connected to a TV using a single HDMI cable, and
produces high definition images for any video source.
0eARC (Enhanced Audio Return Channel) function compatibility
The eARC function is compatible with conventional ARC function-
compatible audio formats in addition to multichannel linear PCM, Dolby
TrueHD, Dolby Atmos, DTS-HD Master Audio, DTS:X and other audio
formats a conventional ARC function cannot transmit.
Additionally, connecting to an eARC function-compatible television
enables enjoyment of higher-quality surround playback of the audio
content played from your television.
Contents Connections Playback Settings Tips Appendix
11
Front panel Display Rear panel Remote Index

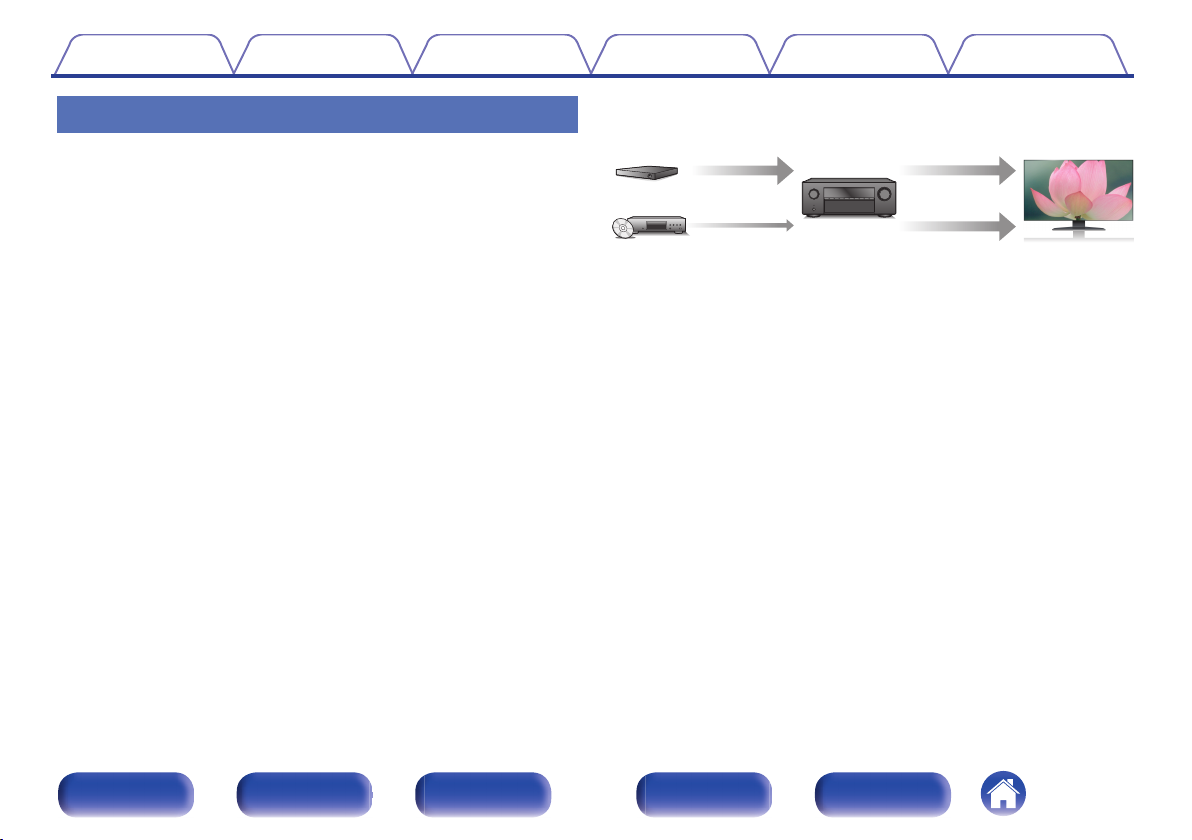

0HDMI connections enable connection to various digital AV
devices (6 inputs, 2 outputs)
.
62
OutIn
This unit is equipped with 6 HDMI inputs and 2 HDMI outputs enabling
connection to various HDMI compatible devices such as Blu-ray Disc
players, game consoles and HD video camcorders. This unit is
equipped with 2 monitor outputs, enabling you to project the same
image at the same time using this unit.
0The device is equipped with a AirPlay® function in addition to
network functions such as Internet radio etc. (v p. 105)
.
You can enjoy a wide variety of content, including listening to Internet
Radio, playing audio files stored on your PC.
This unit also supports Apple AirPlay which lets you stream your music
library from an iPhone®, iPad®, iPod touch® or iTunes®.
0Supports AirPlay 2® wireless audio
Sync multiple AirPlay 2 compatible devices/speakers for simultaneous
playback.
This unit supports AirPlay 2 and requires iOS 11.4 or later.
Contents Connections Playback Settings Tips Appendix
12
Front panel Display Rear panel Remote Index

0Playback of DSD and FLAC files via USB and networks
This unit supports the playback of high resolution audio formats such as
DSD (5.6 MHz) and FLAC 192 kHz files. It provides high quality
playback of high resolution files.
0Wireless connection with Bluetooth devices can be carried out
easily (v p. 75)
.
You can enjoy music simply by connecting wirelessly with your
smartphone, tablet, PC, etc.
0Connect Bluetooth headphones
This unit can transmit Bluetooth so you can enjoy audio wirelessly
through your Bluetooth headphones.
Playback can be performed using connected speakers and Bluetooth
headphones simultaneously, or only using Bluetooth headphones.
.
Contents Connections Playback Settings Tips Appendix
13
Front panel Display Rear panel Remote Index

0Multi-Room audio (v p. 116)
.
GMAIN ZONEHGZONE2H
You can select and play back the respective inputs in MAIN ZONE and
ZONE2.
In addition, when the All Zone Stereo function is used, the music being
played back in MAIN ZONE can be enjoyed in all the zones at the same
time. This is useful when you want to let the background music
propagate throughout the whole house.
0Energy-saving design
This unit is equipped with an ECO Mode function that allows you to
enjoy music and movies while reducing the power consumption during
use, and also an auto-standby function that automatically turns off the
power supply when the unit is not in use. This helps reduce
unnecessary power use.
0Compatible with the “Denon 2016 AVR Remote” Appz for
performing basic operations of the unit with an iPad, iPhone or
Android™ devices (Google, Amazon Kindle Fire)
.
Along with many new features, the graphics and user interface have
been completely overhauled. The new app gives you full control of this
unit as well as access to its setup menu for detailed adjustments from
your phones or tablets. “Denon 2016 AVR Remote” App also gives you
quick access to the receiver's status display, option menus, Denon Blu-
ray Disc player control, and online owner's manual for your
convenience.
zDownload the appropriate “Denon 2016 AVR Remote” App for your iOS or
Android devices. This unit needs to be connected to the same LAN or Wi-Fi
(wireless LAN) network that the iPad, iPhone or Android™ is connected to.
Contents Connections Playback Settings Tips Appendix
14
Front panel Display Rear panel Remote Index

0HEOS provides streaming music from your favorite online music
sources
.
HEOS wireless multi-room sound system that enables you to enjoy your
favorite music anywhere and everywhere around your home. By utilizing
your existing home network and the HEOS App (available for iOS,
Android and Amazon devices), you can explore, browse, and play
music from your own music library or from many online streaming music
services.
When multiple products with HEOS Built-in are connected to the same
network, they can be grouped to play the same music on all products
simultaneously, or different music can be played on each one.
Easy operation
0“Setup Assistant” provides easy-to-follow setup instructions
First select the language when prompted. Then simply follow the
instructions displayed on the TV screen to set up the speakers, network,
etc.
0Easy to use Graphical User Interface
This unit is equipped with a Graphical User Interface for improved
operability.
Contents Connections Playback Settings Tips Appendix
15
Front panel Display Rear panel Remote Index

Part names and functions
Front panel
.
Q3 Q4 Q5
uioQ0 Q1 Q2
er t yqw
For details, see the next page.
Contents Connections Playback Settings Tips Appendix
16
Front panel Display Rear panel Remote Index

.
er t yqw
uioQ0 Q1
APower operation button (X)
Used to turn the power of the MAIN ZONE (room where this unit is
located) on/off (standby). (v p. 69)
BPower indicator
This is lit as follows according to the power status:
0White: Power on
0Off: Normal standby
0Red:
0When “HDMI Pass Through” is set to “On” (v p. 166)
0When “HDMI Control” is set to “On” (v p. 168)
0When “Network Control” is set to “Always On” (v p. 209)
CSOURCE SELECT knob
This selects the input source. (v p. 69)
DRemote control sensor
This receives signals from the remote control unit. (v p. 9)
EDisplay
This displays various pieces of information. (v p. 19)
FMASTER VOLUME knob
This adjusts the volume level. (v p. 70)
GTuner preset channel buttons
(TUNER PRESET CH +, –)
These select preset broadcast stations. (v p. 86)
HZONE2 ON/OFF button
This turns the power of ZONE2 (another room) on/off. (v p. 145)
IZONE2 SOURCE button
This selects the input source for ZONE2. (v p. 145)
JDIMMER button
Each press of this switches the brightness of the display. (v p. 219)
KSTATUS button
Each press of this switches the status information that is shown on the
display.
Contents Connections Playback Settings Tips Appendix
17
Front panel Display Rear panel Remote Index

.
Q3 Q4 Q5
Q2

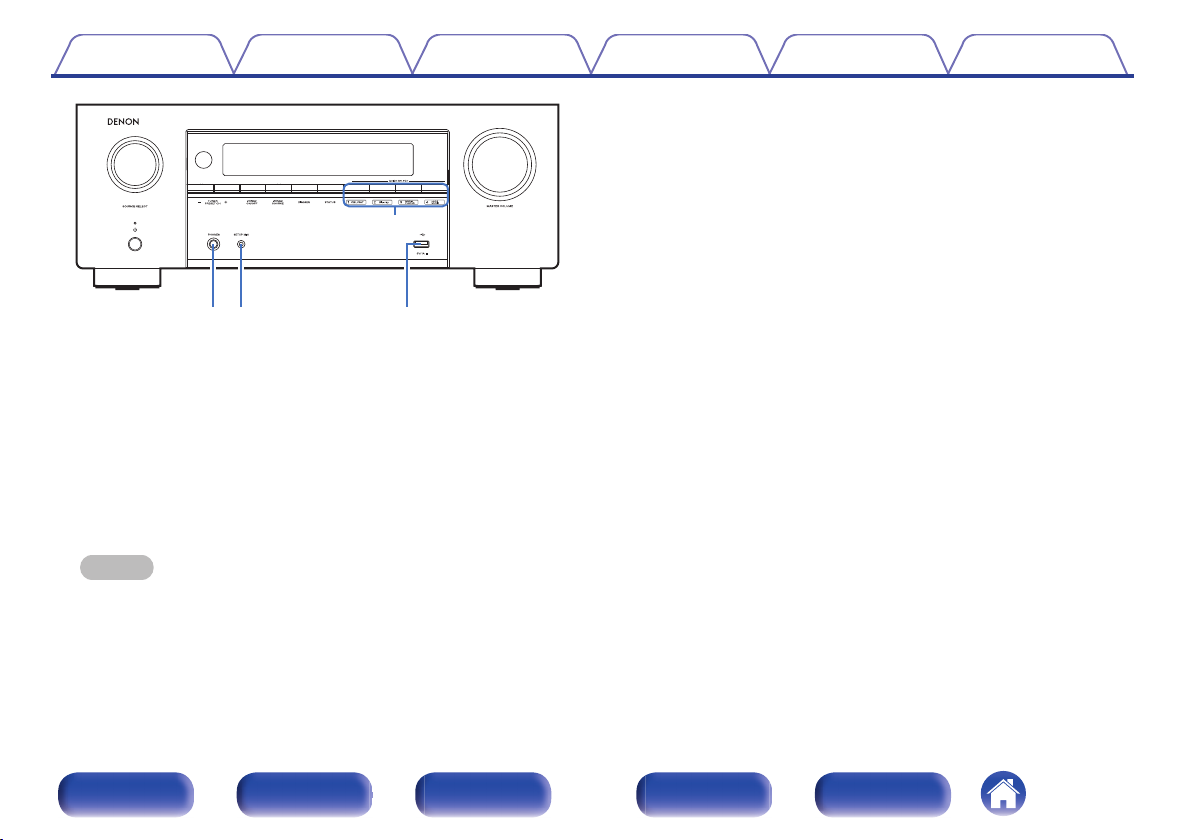

LQUICK SELECT buttons
With a single press of any of these buttons, you can call up various
settings you’ve registered to each button such as the input source,
volume level and sound mode settings. (v p. 135)
MHeadphones jack (PHONES)
This is used to connect headphones.
When the headphones are plugged into this jack, audio will no longer
be output from the connected speakers or from the PRE OUT
connectors.
NOTE
0To prevent hearing loss, do not raise the volume level excessively when using
headphones.
NSETUP MIC jack
This is used to connect the supplied Sound calibration microphone.
(v p. 186)
OUSB port (T)
This is used to connect USB storages (such as USB memory devices).
(v p. 61)
Contents Connections Playback Settings Tips Appendix
18
Front panel Display Rear panel Remote Index

Display
.
uiytrewq
oQ
0
Q
1
AInput mode indicators
These light according to the audio input mode settings of each input
source. (v p. 181)
BSurround back indicator
This lights when audio signals are being output from the surround back
speakers. (v p. 196)
CDecoder indicators
These light when Dolby or DTS signals are input or when the Dolby or
DTS decoder is running.
DAudyssey® indicator
This lights when “MultEQ® XT”, “Dynamic EQ” or “Dynamic Volume”
has been set up. (v p. 160)
ETuner reception mode indicators
These light up according to the reception conditions when the input
source is set to “Tuner”.
TUNED: Lights up when the broadcast is properly tuned in.
STEREO: Lights up when receiving FM stereo broadcasts.
FSleep timer indicator
This lights when the sleep mode is selected. (v p. 133)
Contents Connections Playback Settings Tips Appendix
19
Front panel Display Rear panel Remote Index

.
ui
Q
1
Q
0
o
GVolume indicator
HMUTE indicator
This blinks while the sound is muted. (v p. 70)
IInformation display
The input source name, sound mode, setting values and other
information are displayed here.
JInput signal indicators
The respective indicator will light corresponding to the input signal.
(v p. 181)
KZONE2 indicator
This lights up when ZONE2 (another room) power is turned on.
(v p. 145)
Contents Connections Playback Settings Tips Appendix
20
Front panel Display Rear panel Remote Index
