SERVICE MANUAL
e
e
MODEL JP E3 E2 EK EA E1 E1K E1C
AVR-1611
s33 3
AVR-1621
s3
AVR-591
33
AV SURROUND RECEIVER
Ver. 3
•Some illustrations using in this service manual are slightly different from the actual set.
•Please use this service manual with referring to the operating instructions without fail.
•For purposes of improvement, specifications and design are subject to change without notice.
s
Please refer to the
MODIFICATION NOTICE.

2
SAFETY PRECAUTIONS
The following check should be performed for the continued protection of the customer and service technician.
LEAKAGE CURRENT CHECK
Before returning the unit to the customer, make sure you make either (1) a leakage current check or (2) a line to chassis
resistance check. if the leakage current exceeds 0.5 milliamps, or if the resistance from chassis to either side of the
power cord is less than 460 kohms, the unit is defective.
Be sure to test for leakage current with the AC plug in both polarities, in addition, in each power ON, OFF and STANDBY
mode, if applicable.
CAUTION Please heed the points listed below during servicing and inspection.
◎Heed the cautions!
Spots requiring particular attention when servicing, such
as the cabinet, parts, chassis,etc., have cautions indicated
on labels. be sure to heed these causions and the
cautions indicated in the handling instructions.
◎Caution concerning electric shock!
(1) An AC voltage is impressed on this set, so touching
internal metal parts when the set is energized could
cause electric shock. Take care to avoid electric
shock, by for example using an isolating transformer
and gloves when servicing while the set is energized,
unplugging the power cord when replacing parts, etc.
(2) Tere are high voltage parts inside. Handle with extra
care when the set is energized.
◎Caution concerning disassembly and
assembly!
Through great care is taken when manufacturing parts
from sheet metal, there may in some rare cases be burrs
on the edges of parts which could cause injury if fingers
are moved across them. Use gloves to protect your hands.
◎Only use designated parts!
The set's parts have specific safety properties (fire
resistance, voltage resistance, etc.). For replacement
parts, be sure to use parts which have the same
poroperties. In particular, for the important safety parts
that are marked z on wiring diagrams and parts lists, be
sure to use the designated parts.
◎Be sure to mount parts and arrange the wires
as they were originally!
For safety seasons, some parts use tape, tubes or other
insulating materials, and some parts are mounted away
from the surface of printed circuit boards. Care is also
taken with the positions of the wores omsode amd clamps
are used to keep wires away from heating and high
voltage parts, so be sure to set everything back as it was
originally.
◎Inspect for safety after servicing!
Check that all screws, parts and wires removed or
disconnected for servicing have been put back in their
original positions, inspect that no parts around the area
that has been serviced have been negatively affected,
conduct an inslation check on the external metal
connectors and between the blades of the power plug,
and otherwise check that safety is ensured.
(Insulation check procedure)
Unplug the power cord from the power outlet, disconnect
the antenna, plugs, etc., and turn the power switch on.
Using a 500V insulation resistance tester, check that the
inplug and the externally exposed metal parts (antenna
terminal, headphones terminal, input terminal, etc.) is
1MΩor greater. If it is less, the set must be inspected and
repaired.
Many of the electric and structural parts used in the set
have special safety properties. In most cases these
properties are difficult to distinguish by sight, and using
replacement parts with higher ratings (rated power and
withstand voltage) does not necessarily guarantee that
safety performance will be poreserved. Parts with safety
properties are indicated as shown below on the wiring
diagrams and parts lists is this service manual. Be sure to
replace them with parts with the designated part number.
(1) Schematic diagrams......Indicated by the z mark.
(2) Parts lists......Indicated by the zmark.
Using parts other than the designated
parts could result in electric shock, fires
or other dangerous situations.
CAUTION Concerning important safety
parts

3
NOTE FOR SCHEMATIC DIAGRAM
WARNING:
Parts marked with this symbol zhave critical characteristics. Use ONLY replacement parts recommended by the manufacturer.
CAUTION:
Before returning the unit to the customer, make sure you make either (1) a leakage current check or (2) a line to chassis resistance check. If the
leakage current exceeds 0.5 milliamps, or if the resistance from chassis to either side of the power cord is less than 460 kohms, the unit is defective.
WARNING:
DO NOT return the unit to the customer until the problem is located and corrected.
NOTICE:
ALL RESISTANCE VALUES IN OHM. k=1,000 OHM / M=1,000,000 OHM
ALL CAPACITANCE VALUES IN MICRO FARAD. P=MICRO-MICRO FARAD EACH VOLTAGE AND CURRENTARE MEASURED AT NO SIGNAL
INPUT CONDITION. CIRCUITAND PARTS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE.
Parts for which "nsp" is indicated on this table cannot be supplied.
When ordering of part, clearly indicate "1" and "I" (i) to avoid mis-supplying.
Ordering part without stating its part number can not be supplied.
Not including General-purpose Carbon Chip Resistor in the P.W.Board parts list. (Refer to the Schematic Diagram for those parts.)
Parts marked with this symbol zhave critical characteristics. Use ONLY replacement parts recommended by the manufacturer.
Not including General-purpose Carbon Film Resistor in the P.W.Board parts list. (Refer to the Schematic Diagram for those parts.)
Part indicated with the mark "★" is not illustrated in the exploded view.
WARNING:
1.
2.
3.
4.
5.
6.
●Resistors
RD: Carbon
RC: Composition
RS : Metal oxide film
RW: winding
RN: Metal film
RK : Metal mixture
P : Pulse-resistant type
NL : Low noise type
NB : Non-burning type
FR : Fuse-resistor
F : Lead wire forming
2B : 1/8 W
2E : 1/4 W
2H : 1/2 W
3A : 1 W
3D : 2 W
3F : 3 W
3H : 5 W
F:±1%
G:±2%
J:±5%
K:±10%
M:±20%
Ex.: RN
Type
14K
Shape
and per-
formance
2E
Power
182
Resist-
ance
G
Allowable
error
FR
Others
*Resistance 1800ohm=1.8kohm1 8 2Indicates number of zeros after effective number.
2-digit effective number.
1.2ohm1 R 2
2-digit effective number, decimal point indicated by R.
1-digit effective number.
: Units: ohm
●Capacitors
CE : Aluminum foil
electrolytic
CA : Aluminium solid
electrolytic
CS : Tantalum electrolytic
CQ: Film
CK : Ceramic
CC: Ceramic
CP : Oil
CM: Mica
CF : Metallized
CH: Metallized
HS : High stability type
BP : Non-polar type
HR: Ripple-resistant type
DL : For change and discharge
HF : For assuring high requency
U : UL part
C : CSA part
W : UL-CSA part
F : Lead wire forming
0J : 6.3 V
1A : 10 V
1C : 16 V
1E : 25 V
1V : 35 V
1H : 50 V
2A : 100 V
2B : 125 V
2C : 160 V
2D : 200 V
2E : 250 V
2H : 500 V
2J : 630 V
F:±1%
G:±2%
J:±5%
K:±10%
M:±20%
Z:±80%
: - 20%
P : +100%
C:±0.25pF
D:±0.5pF
= : Others
Ex.: CE
Type
04W
Shape
and per-
formance
1H
Dielectric
strength
3R2
Capacity
M
Allowable
error
BP
Others
・Units:μF.
2200μF2 2 2Indicates number of zeros after effective number.
2-digit effective number. ・Units:μF.
2.2μF2 R 2
2-digit effective number, decimal point indicated by R
1-digit effective number.
*Capacity (electrolyte only)
・When the dielectric strength is indicated in AC,"AC" is included after the dieelectric strength value.
*Capacity (except electrolyte)
・Units:pF
2200pF=0.0022μF2 2 2
Indicates number of zeros after efective number. (More than 2)
2-digit effective number. ・Units:pF
220pF2 2 1
2-digit effective number.
Indicates number of zeros after effective numver. (0 or 1)
NOTE FOR PARTS LIST

4
266
44.2
16 155
171
20.7 21.4
54.7 214.5
338.9
381
34.5 102
344
434
18.5
TECHNICAL SPECIFICATIONS s
nAudio Section
• Power amplifier
Rated output :
Front : (for 1611E3,1611E2,1611E1C,1621E1C)
75 W + 75 W (8 Ω, 20 Hz - 20 kHz with 0.08 % T.H.D.)
110 W + 110 W (6 Ω, 1 kHz with 0.7 % T.H.D.)
130W+130W(6 Ω, JEITA)
Front : (for 591E3,591EA)
75 W + 75 W (8 Ω, 20 Hz - 20 kHz with 0.08 % T.H.D.)
120 W + 120 W (6 Ω, 1 kHz with 0.7 % T.H.D.)
Center : (for 1611E3,1611E2,1611E1C,1621E1C)
75 W (8 Ω, 20 Hz - 20 kHz with 0.08 % T.H.D.)
110 W (6 Ω, 1 kHz with 0.7 % T.H.D.)
130W(6 Ω, JEITA)
Center : (for 591E3,591EA)
75 W (8 Ω, 20 Hz - 20 kHz with 0.08 % T.H.D.)
120 W (6 Ω, 1 kHz with 0.7 % T.H.D.)
Surround : (for 1611E3,1611E2,1611E1C,1621E1C)
75 W + 75 W (8 Ω, 20 Hz - 20 kHz with 0.08 % T.H.D.)
110 W + 110 W (6 Ω, 1 kHz with 0.7 % T.H.D.)
130W+130W(6 Ω, JEITA)
Surround : (for 591E3,591EA)
75 W + 75 W (8 Ω, 20 Hz - 20 kHz with 0.08 % T.H.D.)
120 W + 120 W (6 Ω, 1 kHz with 0.7 % T.H.D.)
Surround Back : (for 1611E3)
75 W + 75 W (8 Ω, 20 Hz - 20 kHz with 0.08 % T.H.D.)
110 W + 110 W (6 Ω, 1 kHz with 0.7 % T.H.D.)
Output connectors : 6 – 16 Ω
• Analog
Input sensitivity/Input impedance : 200 mV/47 kΩ
Frequency response: 10 Hz – 100 kHz — +1, –3 dB (DIRECT mode)
S/N : 98 dB (IHF–A weighted, DIRECT mode)
nVideo Section
• Standard video connectors
Input/output level and impedance : 1 Vp-p, 75 Ω
Frequency response : 5 Hz – 10 MHz — +1, –3 dB
nTuner section
[FM](Note: μV at 75 Ω, 0 dBf = 1 x 10–15 W)
Receiving Range (for 1611E3,591E3) :
[FM] 87.5 MHz – 107.9 MHz [AM]520 kHz – 1710 kHz
Receiving Range (for 1611E2,1611E1C,1621E1C,591EA) :
[FM] 87.5 MHz – 108.0 MHz [AM]522 kHz – 1611 kHz
Usable Sensitivity :
[FM]1.2 μV (12.8 dBf) [AM]18 μV
50 dB Quieting Sensitivity (for 1611E3,591E3) :
[FM]MONO 2.8 μV (20.2 dBf)
50 dB Quieting Sensitivity (for 1611E2,1611E1C,1621E1C,591EA) :
[FM]MONO 2.0 μV (17.3 dBf)
STEREO 42 μV (34.5 dBf)
S/N (IHF-A) (for 1611E3,591E3) :
[FM]MONO 70 dB
STEREO 67 dB
S/N (IHF-A) (for 1611E2,1611E1C,1621E1C,591EA) :
[FM]MONO 72 dB
STEREO 67 dB
Total harmonic Distortion (at 1 kHz) (for 1611E3,591E3) :
[FM]MONO 0.7 %
STEREO 1.0 %
Total harmonic Distortion (at 1 kHz) (for 1611E2,1611E1C,1621E1C,591EA) :
[FM]MONO 0.3 dB
STEREO 0.7 dB
nGeneral
Power supply : AC 120 V, 60 Hz (for 1611E3,591E3)
AC 230 V, 50 Hz (for 1611E2,591EA)
AC 220 V, 50 Hz (for 1611E1C,1621E1C)
Power consumption :
450 W (for 1611E3)
360 W (for 1611E2,1611E1C,1621E1C,591E3,591EA)
0.1 W (Standby)
3 W (CEC standby)
Maximum external dimensions :
434 (W) x 171 (H) x 381 (D) mm
Weight : 9.2 kg
nRemote Control Unit
RC-1146 (for 1611E3)
RC-1147 (for 1611E2,1611E1C,1621E1C,591E3,591EA)
Batteries : R6/AA Type (two batteries)
Maximum external dimensions : 53 (W) x 224 (H) x 28 (D) mm
Weight : 160 g (including batteries)
DIMENSION
The illustration is AVR-591 E3 model.

5
CAUTION IN SERVICING
Initializing AV SURROUND RECEIVER
AV SURROUND RECEIVER initialization should be performed when the μcom, peripheral parts of μcom, and Digital
P.W.B. are replaced.
1. Turn off the power using ON/STANDBY button.
2. Press ON/STANDBY button while simultaneously pressing SURROUND MODE 0and SURROUND MODE 1
buttons.
3. Check that the entire display is flashing with an interval of about 1 second, and release your fingers from the 2
buttons and the microprocessor will be initialized.
Service Jigs
When you repair the printing board, you can use the following JIG (Extension cable kit).
Please order to Denon Official Service Distributor in your region if necessary.
8U-110084S : EXTENSION UNIT KIT : 1 Set s
(Refer to 20 page)
When you update the firmware, you can use the following
JIG (RS232C to internal connector conversion adapter with 4P FFC cable kit ). s
Please order to Denon Official Service Distributor in your region if necessary.
8U-210100S : WRITING KIT : 1 Set
(Refer to 22 page)
Note: •If step 3 does not work, start over from step 1.
•All user settings will be lost and this factory setting will be recovered when this initialization mode.
So make sure to memorize your setting for restoring after the initialization.
SURROUND MODE 0
SURROUND MODE 1
ON/STANDBY

6
DISASSEMBLY
• Disassemble in order of the arrow of the figure of following flow.
• In the case of the re-assembling, assemble it in order of the reverse of the following flow.
• In the case of the re-assembling, observe "attention of assembling" it.
• If wire bundles are untied or moved to perform adjustment or parts replacement etc., be sure to rearrange them neatly
as they were originally bundled or placed afterward.
Otherwise, incorrect arrangement can be a cause of noise generation.
About the photos used for descriptions in the DISASSEMBLY" section.
• The direction from which the photographs used herein were photographed is indicated at "Direction of photograph: ***"
at the left of the respective photographs.
• Refer to the table below for a description of the direction in which the photos were taken.
• Photographs for which no direction is indicated were taken from above the product.
• The Photographs is AVR-591 E3 model.
The viewpoint of each photograph
(Photografy direction)
[View from above]
Front side
Direction of photograph: B
Direction of photograph: D
Direction of photograph: C
Direction of photograph: A
FRONT PANEL ASSY
Refer to "DISASSEMBLY
1. FRONT PANEL ASSY"
and "EXPLODED VIEW"
PCB FUNCTION
(Ref. No. of EXPLODED VIEW : 11)
PCB H/P
(Ref. No. of EXPLODED VIEW : 14)
PCB FRONT
(Ref. No. of EXPLODED VIEW : 22)
PCB FUNCTION_CNT
(Ref. No. of EXPLODED VIEW : 23)
TRANS MAIN
Refer to "DISASSEMBLY
6. TRANS MAIN"
and "EXPLODED VIEW"
TRANS MAIN
(Ref. No. of EXPLODED VIEW : 46)
RADIATOR ASSY
Refer to "DISASSEMBLY
2. RADIATOR ASSY"
and "EXPLODED VIEW"
PCB GUIDE_L
(Ref. No. of EXPLODED VIEW : 26)
PCB TOP_GUIDE
(Ref. No. of EXPLODED VIEW : 29)
PCB 5CH(7CH)_AMPASSY
(Ref. No. of EXPLODED VIEW : 33)
PCB REG CNT/PCB REG
Refer to "DISASSEMBLY
3. PCB REG CNT/PCB REG"
and "EXPLODED VIEW"
PCB REG
(Ref. No. of EXPLODED VIEW : 52)
PCB REG_CNT
(Ref. No. of EXPLODED VIEW : 53)
CABINET TOP
HDMI UNIT ASSY
Refer to "DISASSEMBLY
4. HDMI UNIT ASSY"
and "EXPLODED VIEW"
PCB AUDIO_VIDEO ASSY
(Ref. No. of EXPLODED VIEW : 50)
PCB SIDE_CNT
(Ref. No. of EXPLODED VIEW : 51)
PCB HDMI ASSY
(Ref. No. of EXPLODED VIEW : 56)
PCB FRONT_CNT
(Ref. No. of EXPLODED VIEW : 57)
PCB SPK/PCB SMPS
Refer to "DISASSEMBLY
5. PCB SPK/PCB SMPS"
and "EXPLODED VIEW"
PCB SPK
(Ref. No. of EXPLODED VIEW : 54)
PCB SMPS
(Ref. No. of EXPLODED VIEW : 55)

7
1. FRONT PANEL ASSY
(1) Remove the screws.
(2) Disconnect the connector wires and FFC cable, then remove the screws.
CABINET TOP FRONT PANEL ASSY
→
Proceeding :
View from bottom
STYLEPIN : Loose
STYLEPIN : Loose CP100
FFC cable
Please refer to "EXPLODED VIEW" for the disassembly method of each PCB included in FRONT PANELASSY.

8
2. RADIATOR ASSY
(1) Remove the screws.
(2) Remove the screws.
CABINET TOP RADIATOR ASSY
→
Proceeding :
View from bottom
Direction of
photograph: D
Direction of
photograph: C
STYLEPIN : Loose

9
(3) Cut the wire clamp bands, then disconnect the connector wires and FFC cable.
(4) Disconnect the connector wires.
STYLEPIN : Loose
N2706
CP100
FFC cable
cut
RADIATOR ASSY
CP401 CP402
CP403
PCB 5CH AMP (with outAVR-1611 E3 model)
PCB 7CH AMP (AVR-11611 E3 model)
Please refer to "EXPLODED VIEW" for the disassembly method of each P.W.B included in RADIATORASSY.

10
3. PCB REG CNT/PCB REG
(1) Remove the screws.
(2) Disconnect the connector wires and connector board.
CABINET TOP RADIATOR ASSY
→PCB REG CNT/PCB REG
→
Proceeding :
PCB REG
Direction of photograph: C
CP13BCP104
PCB REG CNT
Board to board
CP102
CP13A
PCB REG

11
4. HDMI UNIT ASSY
(1) Disconnect the connector wire and FFC cable.
(2) Remove the screws, then remove the BACK PANEL.
(3) Cut the wire clamp band, then disconnect the and connector wires. Remove the screw.
CABINET TOP HDMI UNIT ASSY
→
Proceeding :
BACK PANEL
HDMI UNITASSY
CX100
FFC cable
Direction of photograph: A
CP401
N2501
N2706
HDMI UNITASSY
cut
CP13B
CP13A

12
(4) Disconnect the connector, then remove the HDMI UNIT ASSY from the main unit.
(5) Disconnect the connector board.
(6) Disconnect the connector board.
Direction of photograph: D
CP12
PCB HDMI
Board to board
Board to board
Board to board
PCB AUDIO VIDEO
PCB FRONT CNTPCB SIDE CNT
Board to board
Board to board

13
5. PCB SPK/PCB SMPS
(1) Remove the Sheet, then remove the screws and SUPPORTER P.C.
(2) Disconnect the connector wire, then remove the screws.
CABINET TOP HDMI UNIT ASSY
→PCB SPK/PCB SMPS
→
Proceeding :
View from bottom
SUPPORTER P.C. Sheet
PCB SPK/PCB SMPS
CX102

14
(3) Disconnect the connector wire, then remove the screws. Remove the PCB SPK/PCB SMPS from the main unit.
(4) Disconnect the connector board.
CP1
PCB SMPSPCB SPK
Board to board

15
6. TRANS MAIN
(1) Disconnect the connector wires, then remove the screws.
(2) Disconnect the connector wires.
CABINET TOP TRANS MAIN
→
Proceeding :
STYLEPIN : Loose
CP100
CX102
CP1
CP102, CP104

16
SPECIAL MODE
Special mode setting button
bPress the ON/STANDBY button to turn on while pressing both buttonsA and B at the same time.
Mode Button A Button B Contents
com/DSP Version display mode STATUS DIMMER Firmware versions such as Main, Sub, DSP are displayed in
the FL manager. Errors are displayed when they occur. (Refer
to 17 page.)
Errors checking mode
(Displaying the protection history) STATUS MULT EQ Displaying the protection history
(Refer to 18 page.)
Initialization mode SURROUND
MODE 0
SURROUND
MODE 1
Backup data initialization is carried out.
(Refer to 5 page.)
Mode for switching tuner frequency step DINAMIC EQ DINAMIC
VOLUME
---E2 model only---
Select with the SOURCE 0d1fbutton.
Change tuner frequency step to AM9k/FM50kHz STEP or
AM:10k/FM:200kHz.
Mode for preventing remote control
acceptance DINAMIC
VOLUME RETURN Operations using remote control are rejected.
(Mode cancellation: Turn off power and execute the same
button operations as when performing setup.)
Panel lock mode DINAMIC EQ ENTER Operations using main unit panel buttons or master volume are
rejected.
Panel lock mode
(Remove Master volume) DINAMIC EQ CURSOR 1Operations using main unit panel buttons are rejected.
Cancellation of panel lock mode DINAMIC EQ RETURN Panel lock mode is cancelled.
ON/STANDBY CURSOR 1 SURROUND MODE 0 1
ENTER
DINAMIC EQ MULT EQ
DINAMIC VOLUME DIMMERSTATUS
RETURN

17
1. μcom/DSP Version display mode
1.1. Operation specifications
μcom/DSP version display mode:
When started up, the version information is displayed.
Starting up:
With the "DIMMER" and "STATUS" buttons pressed, press the "ON/STANDBY" button to turn the power on.
Now, press the "STATUS" button to the display the 2nd item information on the FL Display.
1.2. Display Order
Destination information Main-com version Main 1st Boot version Sub-com version
Sub 1st Boot Loader Version DSP version APLD version
1.3. Error display
See the following table for each "Error information" display and its contents (status).
Display order is q,w,e,r,t.
Condition State State
qSub-com NG No response from Sub-com
SUB ERROR 01
wDIR NG No response from DIR
DIR ERROR 01
eDSP1 NG
When DSP boot, executing DSP reset makes no change to DSP1 FLAG0
port "H".
DSP ERROR 01
No change to DSP FLAG0 port "H" before issuing DSP command.
DSP ERROR 02
When DSP data read, executing WRITE="L" makes no change toACK="H".
DSP ERROR 03
When DSP data read, executing REQ="L" makes no change toACK="L".
DSP ERROR 04
When DSP data write, executing WRITE="H" makes no change toACK="H".
DSP ERROR 05
When DSP data write, executing REQ="L" makes no change toACK="L".
DSP ERROR 06
When DSP special code boot, executing DSP reset makes no change to
DSP FLAG0 port "H".
DSP ERROR 11
No change to DSP FLAG0 port "H" before issuing DSP special read
command.
DSP ERROR 12
No change to DSP FLAG0 port "H" before DSP version read.
DSP ERROR 13
rEEPROM NG Error appeared in EEPROM checksum.(*** is a block address number.)
E2PROM ERR***
tBoth SUB/DSP
/EEPROM OK (No error display, version display only)

18
2. Errors checking mode (Displaying the protection history)
2.1. Operation specifications
Error mode (Displaying the protection history):
When started up, the error information is displayed.
Starting up:
●All model commonness
With the "STATUS" and "MULT EQ" buttons pressed, press the "ON/STANDBY" button to turn the power on. The error
(protection history display) mode is set.
Now, press the "STATUS" button to turn on the FL display.
2.2. About the display on the FL display
When the "STATUS" button is pressed after setting the error (protection history display) mode, a history like the one
shown below is displayed, depending on the conditions.
(1) Normally (when there has been no protection incident)
FLD NO PROTECT
(2) For ASO (when the last protection incident was ASO protection)
FLD PRT:ASO
Cause: The line between speaker terminals is shorted, or use speakers having impedance less than that specified.
Supplementary information: As the excess current is detected after operation of the speaker relay, the shorted
speaker terminal and the connected speaker can be identified.
Turning on the power without correcting the abnormality will cause the protection function to work about 5 seconds
later and the power supply will be shut off.
(3) For DC (when the last protection incident was DC protection)
FLD PRT:DC
Cause: DC output of the power amplifier is abnormal.
Turning on the power without correcting the abnormality will cause the protection function to work about 5 seconds
later and the power supply will be shut off.
(4) For THERMAL (when the last protection incident was THERMALprotection)
FLD PRT:THERMAL
Cause: The temperature of the heat sink is excessive.
Turning on the power without correcting the abnormality will cause the protection function to work about 5 seconds
later and the power supply will be shut off.
zAdditional causes of protection can be due to loose connections, associated components, Microprocessor, etc.
When the "STATUS" button is pressed again after the above protection history is displayed, the normal display reappears.

19
2.3. Clearing the protection history
There are two ways to clear the protection history, as described below.
(1)
Start up the error (protection display) mode, display the error, then press and hold in the "ENTER" button for 3 seconds.
FLD :THERMALTHE
Press and hold in the "ENTER" button for 3 seconds.
FLD PRT:CLEAR
The above is displayed and the protection history is cleared.
FLD NO PROTECT
(2) Initialize. (Refer to "Initializing AV SURROUND RECEIVER" 5 page.)
b If you want to save a backup, use the method in 2.3.(1) above.
Warning indication by the POWER LED
If the power is turned off when a protection incident has been detected, the POWER LED (red) flashes as a warning
according to the conditions in which the protection incident occurred.
(1) ASO/DC PROTECTION : Flashes in cycles of 0.5 seconds (0.25 seconds lit, 0.25 seconds off)
(2) THERMAL PROTECTION : Flashes in cycles of 2 seconds (1 second lit, 1 second off)

20
JIG FOR SERVICING
When you repair the printing board, you can use the following JIG (Extension cable kit).
Please order to DENON Official Service. Distributor in your region if necessary.
Note: When the connection which is wrong in the JIG (EXTENSION UNIT KIT) is done it becomes cause of damage.
8U-110084S : EXTENSION UNIT KIT : 1 Set s
• Connection of PCB HDMI JIG
-Preparation-
8U-110084S : EXTENSION UNIT KIT : 1 Set s
Insulation sheet (Do not supply it) : 1 sheet
Ground lead (Do not supply it) : 1 pc
-Procedures-
(1) Remove the screws.
(2) Disconnect the connector board.
(3) PCB HDMI is detached from the chassis, and it puts it into the state turned inside out.
Please pave an insulation sheet that is larger than PCB HDMI under PCB.
bConnect the ground point of PCB to the chassis with a ground lead or the like.
PCB HDMI
Board to board
Board to board
Board to board
PCB HDMI
Insulation sheet
Ground lead
Other manuals for AVR-1611
5
This manual suits for next models
2
Table of contents
Other Denon Stereo Receiver manuals

Denon
Denon AVR-550SD User manual

Denon
Denon DRR-201SA User manual

Denon
Denon AVR-X550BT User manual

Denon
Denon DRA-700AEDAB User manual

Denon
Denon AVR-1712 User manual

Denon
Denon AVR-888 User manual

Denon

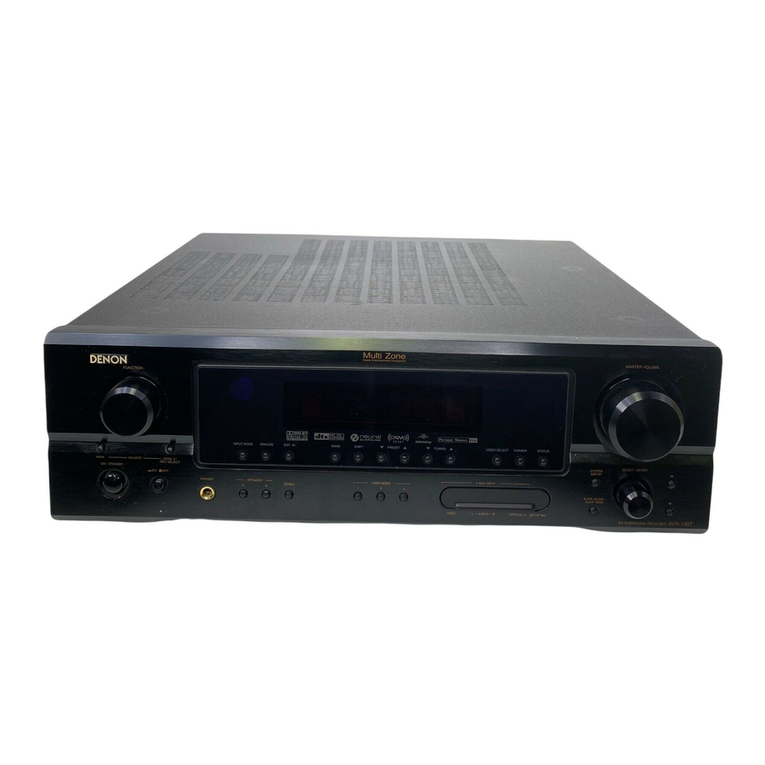

Denon AVR-1907 User manual

Denon
Denon DRA-395 User manual

Denon

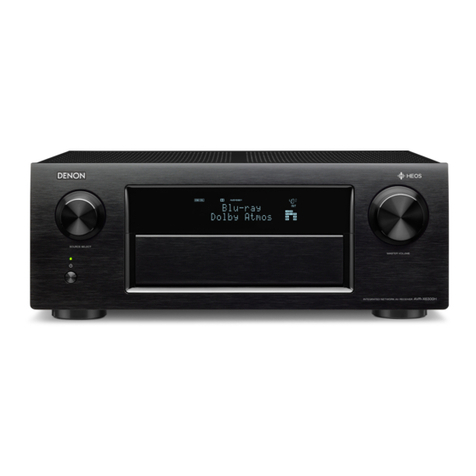

Denon AVR-X6300H User manual

Denon
Denon AVR-S930H User manual

Denon
Denon AVR-2802 User manual

Denon
Denon DRA-565RD User manual

Denon
Denon AVR-3310CI User manual

Denon
Denon AVR-2309CI User manual

Denon
Denon AVR-1312 User manual

Denon
Denon AVR-990 User manual

Denon
Denon AVR-1907 User manual

Denon
Denon AVR-786 User manual

Denon
Denon AVR-786 User manual

Denon
Denon AVR-4308 User manual
