Denon AVR-889 User manual

A/V Surround Receiver featuring Dolby TrueHD, DTS-HD Master Audio
and 1080p HD Video that enhances your level of entertainment enjoyment.
Features
AVR-889
AV Surround Receiver
New model information
The AVR-889 monitors the structural elements of sound sources and uses Audyssey Dynamic Volume to adjust volume without sacricing
dynamic range. This A/V receiver masterfully controls a variety of media for optimum playback of high-quality audio and video content.
New Features
• Dolby TrueHD and DTS-HD Master Audio decoders
• Audyssey Dynamic Volume and Dynamic EQ
• 4 HDMI inputs (Audio and Video)
• Sirius and XM Satellite Radio ready
• State-of-the-art Denon Solutions for Maximizing Content Quality
- Reproduce as perfect as a content producer intend to express
(Denon Circuitry and Construction for Hi-Fi Sound Quality / Compressed Audio Restorer)
- Easy to use (QUICK SELECT / Audyssey DYNAMIC EQ + DYNAMIC VOLUME)
- Connectivity (HDMI / Dock control terminal (Network ready)
High quality Sound
• Identical quality and power for all 7 channels, 100W x 7ch
• Discrete devices for ultimate performance in each block
• New 32-bit oating point high precision DSP
• Minimum signal path design
• Direct Mechanical Ground for stable drive
• Dual power transformers
• Denon customized block capacitors
• Compressed Audio Restorer
High quality Video
• Discrete devices for ultimate HD video performance in each block
• Denon’s High Picture Quality Circuitry, to enhance enjoyment of existing DVDs
- Faroudja DCDi Video Processing
• Analog video to HDMI scaling up to 1080p
• 1080p video pass through
Connectivity & Future-ready Expandability
Digital Media Connectivity
• Optional Network Streaming iPod Dock (ASD-3N - wired, ASD-3W - wireless)
• Optional iPod Audio/Photo and Video Playback Dock (ASD-1R)
• Optional iPod/iPhone Audio/Photo and Video Playback Dock (ASD-11R)
Multi-Zone Capability
• 2 source / 2 zone capability
Ease-of-Use
• Audyssey Dynamic Volume and Dynamic EQ
• Audyssey MultEQ Auto setup and Room EQ

1736 0608 A
Denon Brand Company
D&M Building, 2-1 Nisshin-cho, Kawasaki-ku, Kawasaki-shi,
Kanagawa, 210-8569, Japan
www.denon.com
Denon Electronics (USA), LLC.
100 Corporate Drive, Mahwah, New Jersey 07430 USA
TEL: [phone] usa.denon.com
Denon Canada Inc.
505 Apple Creek Blvd, Unit 5, Markham, Ontario, Canada L3R 5B1
TEL: [phone] ca.denon.com

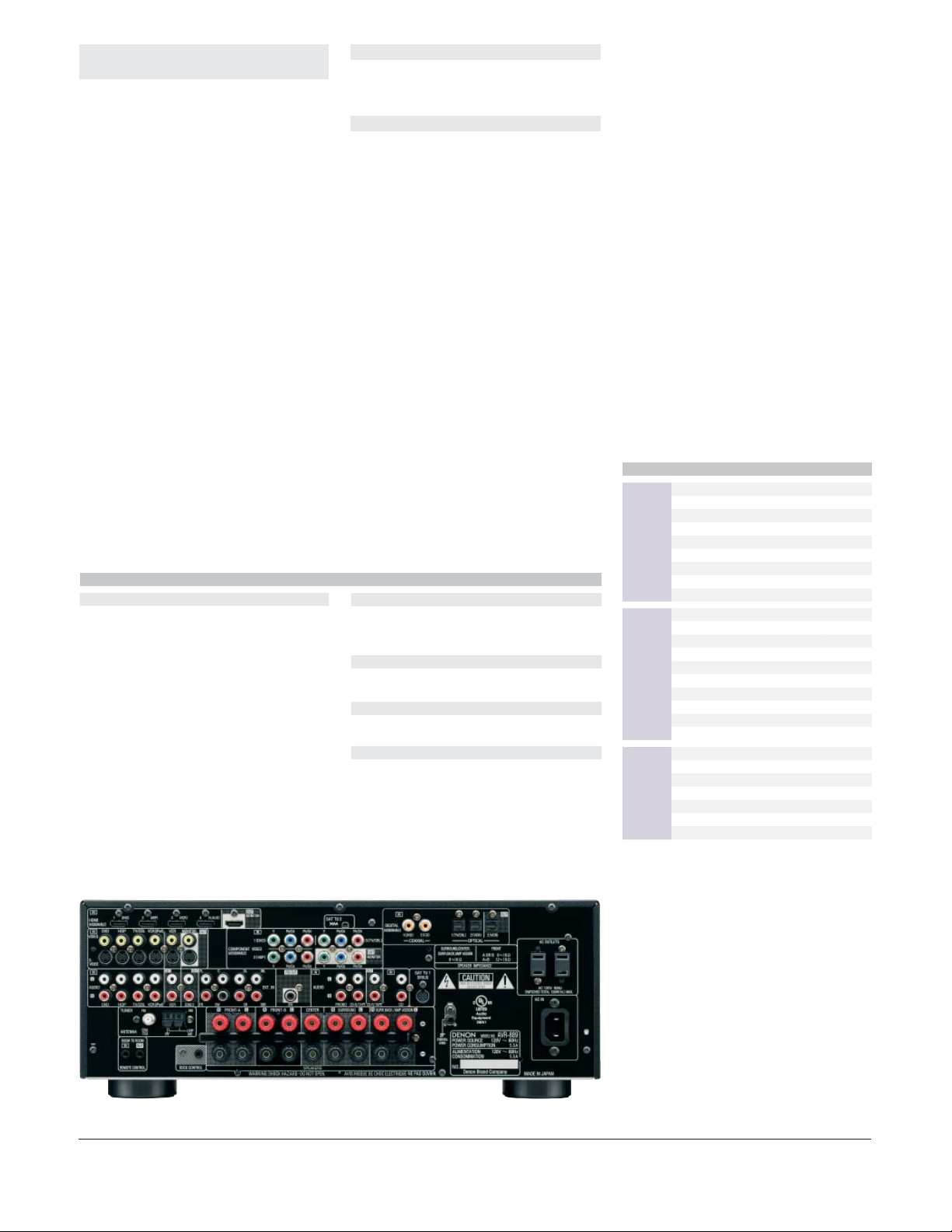

Input / Output Terminals:
IN HDMI 4
Component 3
S-Video 5
Composite 5
Analog Audio (Tuner included) 9
Analog EXT. Input 7.1ch
Digital OPTICAL 3
Digital COAXIAL 2
OUT HDMI Monitor 1
Component Monitor 1
S-Video Monitor 1
REC 1
Composite Monitor 1
REC 1
Analog Audio REC 2
Zone 2 1
Audio PRE out (Sub woofer) 1
Others Dock Control Port 1
Sirius Connector 1
XM Connector 1
FM Tuner Antenna 1
AM Tuner Antenna 1
Remote In/Out 1
Main Specications:
Power amplier section
Rated output
*THD gures are power amp stage values.
Front L/R 100 W + 100 W
(8 ohms, 20Hz - 20kHz, THD 0.08 %)
135 W + 135 W
(6 ohms, 1 kHz, THD 0.7%)
Center 100 W
(8 ohms, 20Hz - 20kHz, THD 0.08 %)
135 W
(6 ohms, 1 kHz, THD 0.7%)
Surround L/R 100 W + 100 W
(8 ohms, 20Hz - 20kHz, THD 0.08 %)
135 W + 135 W
(6 ohms, 1 kHz, THD 0.7%)
Surround Back L/R 100 W + 100 W
(8 ohms, 20Hz - 20kHz, THD 0.08 %)
135 W + 135 W
(6 ohms, 1 kHz, THD 0.7%)
Preamplier section
Input sensitivity/impedance 200 mV / 47 k/kohms
Frequency response
10 Hz ~ 100 kHz — +1, –3 dB (DIRECT mode)
S/N Ratio 100 dB (IHF-A weighted, DIRECT mode)
FM section
Tuning frequency range 87.5 - 107.9 MHz
Usable sensitivity 1.0 µV (11.2 dBf)
AM section
Tuning frequency range 520 - 1710 kHz
Usable sensitivity 18 µV
General
Power supply AC 120 V, 60 Hz
Power consumption 5.5 A (Standby 0.1W)
Dimensions (W x H x D) 434 x 171 x 414 mm
17-3/32” x 6-47/64” x 16-19/64”
Weight 12.3 kg
27 lbs 12.5 oz
*Design and specications are subject to change without notice.
*“Dolby”, “Pro Logic” and the double-D symbol are trademarks of Dolby
Laboratories.
*DTS is a registered trademark and the DTS logos, Symbol, DTS-HD and
DTS-HD Master Audio are trademarks of DTS, Inc.
*“Neural” and “Neural Audio” and “Neural Surround” are trademarks of
Neural Audio Corporation.
*Audyssey MultEQ®is a registered trademark of Audyssey Laboratories.
Audyssey Dynamic EQ™ is a trademark of Audyssey Laboratories. Audyssey
Dynamic Volume™is a trademark of Audyssey Laboratories.
*“HDMI”, “HDMI logo” and “High-Definition Multimedia Interface” are
trademarks or registered trademarks of HDMI Licensing LLC.
*iPod®is a trademark of Apple Inc., registered in the U.S. and other
countries.
*”DCDi™” is a trademark of Faroudja, a division of Genesis Microchip Inc.
*The XM name and related logo are registered trademarks of XM Satellite
Radio reserved.
*XM Ready®is a registered trademark of XM Satellite Radio Inc.
State-of-the-art Denon Solutions for
Maximizing Content Quality
• Robust power source for each block, for stable supply of current
To produce a clear, stable power circuit that prevents unwanted
noise from aecting the sound, the AVR-889 has dedicated
CPU and Standby transformers that are separate from the
audio and video circuitry. The AVR-889 is endowed with a
powerful rectier circuit with 12,000F block capacitors and a
bridge diode of 8A capacity, surpassing typical models in this
price range, to supply stable current with negligible noise.
• Minimum Signal Path
The "simple and straight" design concept has been thoroughly
implemented in the signal paths to contribute to immaculately
clean audio and video playback.
Signal paths are as short as possible to keep signal degrada-
tion in the audio and video circuitry to an absolute minimum.
• Direct Mechanical Ground
Vibration-resistant construction has been reviewed to thor-
oughly suppress the adverse inuences of vibration on sound
quality. The power transformers, a source of vibration, have
been securely mounted on the highly rigid bottom chassis.
Direct mounting of cast-iron feet to the radiator in near prox-
imity to each other serves to suppress mutual vibration with
the power transformers and other sources of vibration.
• Compressed Audio Restorer
Denon’s new audio technology for MP3/WMA/AAC
compressed audio formats restores higher frequency sounds,
along with rich, deeper bass.
Connectivity & Future-ready Expandability
• Power amplier assign for zone 2
• Remote in/out
Ease-of-Use
• Audyssey Dynamic Volume, for real-time volume adjustment
Large changes in volume sometimes occur between docu-
mentaries where the sound is mainly narrative and movies
which often contain loud sound eects. Viewers often raise
the volume for documentaries to hear the narrative more easily
but then turn it down again when a commercial with loud
sound eects comes on. They do this numerous times during
a program of this type. Audyssey Dynamic Volume constantly
monitors the sound sources and adjusts the volume to the
optimum level for the particular source being heard without
sacricing dynamic range.
The AVR-889 is also equipped with Audyssey MultEQ which
measures the acoustic characteristics of the room to obtain
the optimum acoustic eects, and Dynamic EQ which
reproduces the high and low range with the optimum acoustic
eect during low volume levels. Dynamic Volume combines
these two functions to achieve maximum performance.
• Audyssey MultEQ Auto setup and Room EQ
-Tower type microphone for more accurate measuring
-Up to six measurement points
-High level resolution lters for satellite speakers and also subwoofer
• 2-line uorescent display on front panel
Current status, such as the input source or audio format, is
displayed in two lines. It is also possible to check the name of
the album or music track of the memory audio or other items
without viewing the TV screen.
The 2-line display also makes it possible to easily change
settings without the OSD (On-Screen Display) on TV monitor.
• Three Quick Select Buttons
• Auto setup, auto surround, auto signal detection
• Auto Surround Back Channels on for
auto-detection of supporting sources
• Auto Surround mode
• Audio Delay function (max. 6 frames or 200 msec)
• Night Mode for neighbor friendly listening
• Muting level settings (Full/-40dB/-20dB)
• Audio Level Memory, capable of correcting
dierent signal levels for each input device
• Volume Level Limiter, for setting maximum volume levels
• Power-ON Volume Level Memory
• Variable subwoofer crossover switching
