Derrik ACD-1500 User manual

Pan, Tilt and Zoom Dome Camera / ACD-1500
INSTRUCTION MANUAL Ver 1.0.2d

○
1Introduction
Features 3
Components 4
System Configuration 5
○
2Installation
Wall Mount 6
Ceiling Mount 7
Final Assembly 8
○
3Camera Addressing
Camera Address Setting 9
Protocol and Baud Rate Settings 11
○
4Advanced Features
Auto Scan 12
Camera Power 12
Back Light Compensation 12
ICR 12
Digital Zoom 13
Focus Mode 13
Iris Mode 13
White Balance Mode 13
Auto Cruise 13
○
5On Screen Display
Main Menu 14
Focus Set 15
Auto White Balance 15
Auto Exposure 16
Special Functions 16
Motion Detection 17
Function On Screen Display 17
○
6Parts Description and Function
18
○
7Product Specifications 19
2
P
an, Tilt and Zoom Dome Camera / ACD-1500

1
Introduction
Features
Camera Specification
•Sony Module 480 Lines
•.01 Lux (Night Operation)
•27X Optical Zoom
•10X Digital Zoom
•Total Zoom 270X
•3.6mm – 88mm Zoom
•Day & Night Function
•24v AC
Complete View
•360 Degree Pan, 90 Degree Tilt. For No Blind Spots
Housing
•Indoor / Outdoor use, Weather Proof Housing.
•Multiple Mounting Configurations.
•Operating Temperatures: 0 Deg. C ~ 40 Deg. C
PTZ Control
•RS-485 Communication, MAX 256 Multi-drop
•Versatile Pelco-D and Pelco P Protocol
•Variable Pan and Tilt Speed
•64 Programmable Presets
•OSD Setup
•1 Programmable Cruise Sequence
3
P
an, Tilt and Zoom Dome Camera / ACD-1500

1
Introduction
Components
Parts Information
Item Part No. Description
Dome Camera and Housing ACD-1500 NTSC Dome Camera, Weather Proof Housing, Including Transparent Dome
Wall Mount Bracket Bracket for mounting PTZ to Wall
Ceiling Mount Bracket Bracket for mounting PTZ to Ceiling
Mounting Screws & Wrench Allen Screws for mounting PTZ to Mount
Power Supply 24v AC Power Supply
Manual Manual for ACD-1500
Default Components
Dome Camera and Housing Wall Mount Bracket
Ceiling Mounting Bracket Accessories
ACD-1500 Manual
Screws, Wrench and Power Supply
Manual
4
P
an, Tilt and Zoom Dome Camera / ACD-1500

1
11
INTRODUCTION
INTRODUCTIONIntroduction
System Configuration
Configuration
RS-485 Input
Monitor
DVR
BlueNet Video server BlueNet Video server Video Output
PTZ Controller
DVR
Part Description
Wiring Access
Mount
Housing
Acrylic Dome
(Camera inside)
•Mount Used to install Camera Housing
•Housing Protects Internal Components From the Elements
•Acrylic Dome Protects PTZ Camera
•Wiring Access Allows access to internal wiring
•Built in Heaters Keeps lens clear in cold weather
5
P
an, Tilt and Zoom Dome Camera / ACD-1500

2
2
2
INSTALLATION
INSTALLATION
INSTALLATIONInstallation
System Installation
Wall Mount Installation using Outdoor Housing Assembly
1) Attach the Wall Mount Bracket to the wall.
Make sure the wall can support the weight and
vibration of the camera and housing.
2) Remove thumb screw holding access cover in
place on Mounting Arm.
3) Route the wiring through the inside of the arm
and out the access hole.
4) Assemble and screw the Outdoor Housing
Assembly on the Mount Bracket while routing
the wiring from the camera through the neck of
the bracket and out the access hole.
Continue to page 8
6
P
an, Tilt and Zoom Dome Camera / ACD-1500

2
2
INSTALLATION
INSTALLATIONInstallation
Ceiling Mount Installation using Outdoor Housing Assembly
1) Mount the Top Ceiling Mount Bracket to the
Ceiling. Make sure the Ceiling can support the
weight and vibration of the camera and
housing.
2) Route the wiring through the bottom Ceiling
Mount Bracket and Extension.
3) Attach assembly to the PTZ camera using the
included Allen Screws. Tighten setscrews.
4) Align the PTZ Assembly into the top of the
ceiling mount. Turn clockwise to thread
extension into mount. Tighten setscrews.
Continue to Next Page
7
P
an, Tilt and Zoom Dome Camera / ACD-1500

2
Installation
5) Unscrew Polycarbonate dome cover counter-
clockwise.
6) Remove BLACK camera cover inside of
housing.
7) Set DIP switches according to Protocol and
Baud rate desired. (See page 9 for details)
8) Replace BLACK camera cover and
Polycarbonate dome cover.
8
P
an, Tilt and Zoom Dome Camera / ACD-1500

3
Camera Addressing
Camera Addressing
RS-485 communication
RS-485 communication is used to control the camera. Protocol, Baud rate and Camera Address are
set using 2 Dip Switch sets under the BLACK camera cover inside the PTZ housing. Each camera
connected to the PTZ controller must have a unique address.
•Specification Standard RS-485 with MAX. 256 Camera Control
•Number of wire 2 Wire (D+, D-)
•Protocol Pelco-D, Pelco-P, A01, B01, Santachi, Longcomity and HUNDA600
SW 1 : Camera Address Settings
12345678
ON
SW1
SW1:Address Setting (1~255)
NO.
Value. 12345678 1 2 8 16 32 64 128
4
• Camera address is set to 1 as the factor
y
default.
• When a dip switch is ON, its bit logic is 1
• Dip Switch 9 and 10 are always set to OFF
Dipswitch
SW2
Dipswitch
SW1
9
P
an, Tilt and Zoom Dome Camera / ACD-1500

3
Camera Addressing
SW 1 : Camera Address Settings (continued)
When using more than 1 RS-485 device each unit must be given a unique address. Refer to the
chart on the previous page for the value of each dip switch. For each dip switch that is ON the
value/values are added together, the total is the address of that unit.
For Example:
For an address of 1:
Dip switch #1 (value = 1) will be ON all others OFF
For an address of 5:
Dip switch #1 (value = 1) & #3 (value = 4) will be ON all others OFF
For an address of 157:
Dip Switch #1 (value = 1), #3 (value = 4), #4 (value = 8), #5 (value = 16), #8 (value =
128) will be ON all others OFF
10
P
an, Tilt and Zoom Dome Camera / ACD-1500

3
Camera Addressing
SW 2 : Camera Protocol and Baud Rate Settings
This camera supports multiple RS-485 Protocols and Baud Rates. The Baud rate is set separately
from the Protocol on the SW2 Dip switch located under the BLACK camera cover. The table below
contains a list of protocols supported by the camera and the default baud rate for the protocol.
Selection Of Protocols Default Baud
Rates
Supported
Protocol 1st 2nd 3rd 4th 5th 6th
Pelco D /2400 ON ON OFF OFF OFF OFF
Pelco P /4800 OFF OFF ON OFF ON OFF
Pelco P /9600 OFF OFF ON OFF OFF ON
A01 OFF OFF OFF OFF ON OFF
B01 ON OFF OFF OFF OFF ON
Santachi OFF ON OFF OFF OFF ON
Longcomity OFF ON ON OFF OFF ON
Hunda600 ON ON ON OFF OFF ON
Dip Switch settings for configuring the camera to use Pelco D Protocol at 2400 Baud:
Below is a table showing the proper settings of the 5th and 6th dip switch on SW2 for setting
preferred baud rate.
Selection Of Protocols Baud Rates
Baud Rate 1st 2nd 3rd 4th 5th 6th
2400 OFF OFF
4800 ON OFF
9600 OFF ON
19200 ON ON
11
P
an, Tilt and Zoom Dome Camera / ACD-1500

4
Advanced Functions
All of the Advanced Functions of this camera are controlled by calling and setting specific presets to
enable and disable the functions. This includes the OSD (On Screen Display) Setup. Your PTZ controller
must be able to call and set presets 51 through 63 to be able to access the Advanced Functions of this
camera.
Auto Scan:
This camera is equipped with an AUTO SCAN function that allows you to pan between 2
programmable points. You are able to select between 3 different pan speeds while in AUTO SCAN mode.
To use the AUTO SCAN you must first program the START POINT and END POINT. Once the START
POINT and END POINT are programmed you can activate the AUTO SCAN feature while selecting the
SCAN SPEED.
Function Action on Controller
Set START POINT Set preset 52
Set END POINT Set preset 53
Enable AUTO SCAN (Low Speed) Call preset 51
Enable AUTO SCAN (Medium Speed) Call preset 52
Enable AUTO SCAN (High Speed) Call preset 53
Camera Power:
The CAMERA POWER feature allows you to power the camera ON or OFF remotely.
Function Action on Controller
Camera POWER ON Call preset 54
Camera POWER OFF Set preset 54
Back Light Compensation:
Back Light Compensation allows the camera to compensate for bright lights in the picture. You can
set the BLC ON or OFF manually by using the method below or by setting the BLC to AUTO in the OSD
(On Screen Display).
Function Action on Controller
BLC ON Call preset 55
BLC OFF Set preset 55
ICR Shor:
Function Action on Controller
ICR ON Call preset 56
ICR OFF Set preset 56
Advanced Functions
12
P
an, Tilt and Zoom Dome Camera / ACD-1500

4
Advanced Functions
Advanced Functions (continued)
Digital Zoom:
Digital Zoom allows the camera to zoom further than the optical limit of the camera by digitally
enhancing the image. The digital zoom function turns this feature on and off.
Function Action on Controller
DIGITAL ZOOM ON Call preset 58
DIGITAL ZOOM OFF Set preset 58
Focus Mode:
The Focus Mode can be set using this function or in the OSD.
Function Action on Controller
FOCUS MODE – AUTO Call preset 59
FOCUS MODE - MANUAL Set preset 59
Iris Mode:
The Iris Mode can be set using this function or in the OSD.
Function Action on Controller
IRIS MODE – AUTO Call preset 60
IRIS MODE - MANUAL Set preset 60
White Balance Mode:
The White Balance Mode can be set using this function or in the OSD.
Function Action on Controller
WHITE BALANCE MODE - AUTO Call preset 61
WHITE BALANCE MODE – MANUAL Set preset 61
WHITE BALANCE MODE – INDOOR Call preset 62
WHITE BALANCE MODE – OUTDOOR Set preset 62
WHITE BALANCE MODE – ATW Call preset 63
WHITE BALANCE MODE – ONE PUSH WHITE BALANCE Set preset 63
Auto Cruise:
Auto Cruise allows you to scan from a selection of presets. Program the presets into the camera that
you would like to scan between. Presets must be in the sequence you would like them to scan starting
with preset 1. To activate the Auto Cruise SET preset 51
Function Action on Controller
ACTIVATE AUTO CRUISE Set preset 51
13
P
an, Tilt and Zoom Dome Camera / ACD-1500

5
On Screen Display
al
On Screen Display

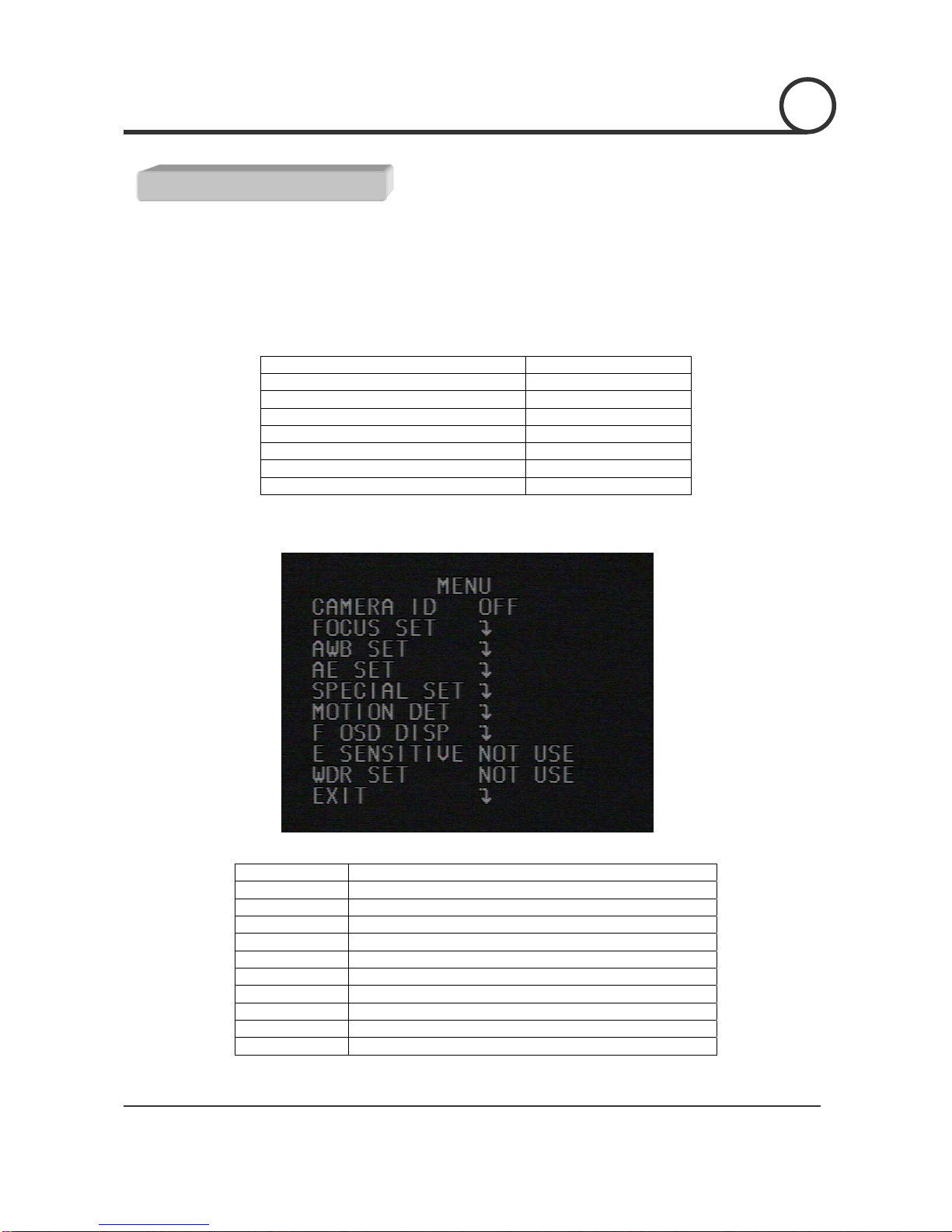

On Screen Display (OSD):
There are 2 modes in the OSD function. The first enables the On Screen Alerts (Zoom, Motion
Detection, etc). The second opens the OSD menu. In the OSD you maneuver using the ZOOM IN, ZOOM
OUT, FOCUS NEAR and FOCUS FAR functions on your controller.
Function Action on Controller
ON SCREEN ALERTS ON Call preset 57
OSD Menu OPEN Call preset 57 Twice
ON SCREEN ALERTS or OSD CLOSE Set preset 57
MOVE CURSOR DOWN ZOOM OUT
MOVE CURSOR UP ZOOM IN
MOVE CURSOR RIGTH or <ENTER> FOCUS NEAR
MOVE CURSOR LEFT FOCUS FAR
OSD Main Menu
Menu Option Description
CAMERA ID
FOCUS SET Opens the Focus Menu (see page )
AWB SET Opens the Auto White Balance Menu (see page )
AE SET Opens the Auto Exposure Menu (see page )
SPECIAL SET Opens the Special Menu (see page )
MOTION DET Opens the Motion Detection Menu (see page )
F OSD DISP Opens the Function Display Menu (see page )
E SENSITIVE Not Used
WDR SET Not Used
EXIT Exits OSD
14
P
an, Tilt and Zoom Dome Camera / ACD-1500

5
On Screen Display
On Screen Display (continued)
Focus Set Menu:
Focus Menu
Auto White Balance (AWB) Menu:
Auto White Balance Menu
15
P
an, Tilt and Zoom Dome Camera / ACD-1500

5
On Screen Display
On Screen Display (continued)
Auto Exposure (AE) Menu:
Auto Exposure Menu
Special Functions (SPECIAL) Menu:
Special Functions Menu
16
P
an, Tilt and Zoom Dome Camera / ACD-1500

5
On Screen Display
On Screen Display (continued)
Motion Detection (MOTION DET) Menu:
Motion Detection Menu
Function On Screen Display (F OSD) Menu:
Function On Screen Display Menu
17
P
an, Tilt and Zoom Dome Camera / ACD-1500

Wiring:
24v AC Terminal
BNC Connector for Video Out
RS-485 Communication Terminal
• Screw Terminal Power connector:
24v AC wired directly to this plug.
• Video out BNC connector
Connect to units such as monitor, VCR and etc.
• RS-485 Communication Screw Terminal
Connector Signal
A + Input
B - Input
BNC Video Out
B (-) Input
A (+) Input
RS-485 Input
24v AC
6
PART DESCRIPTION AND FUNCTIONParts Descri
p
tion and Function
18
P
an, Tilt and Zoom Dome Camera / ACD-1500

7
Product S
p
ecification
Model ACD-1500
Video Format NTSC
Device 1/4'' Color CCD
Pixel 410K pixels
752(H) ×582(V)
H. Resolution More then 480 TV Lines
Min. Illuminance 0.01 Lux (Day / Night Operation)
Focus Auto/Manual
Camera
Iris Auto/Manual
Zoom 27x Optical Zoom, 10x Digital Zoom, Total 270x Zoom
Aperture F1.6
Lens
Focal Length f=3.9 ~ 85.8mm
Angle Pan 360°(Endless) / Tilt : 0~90°
Pan Speed Variable 0.2°to 15°/sec (Zoom Proportional)
Tilt Speed Variable 0.2°to 15°/sec (Zoom Proportional)
Presets 64 Programmable Presets
Auto Cruise 1 Programmable Cruise Sequence
Pan/Tilt
Auto Pan Programmable Start, Stop and Speed
Control RS-485
Communication Pelco-D, Pelco-P, A01, B01, Santachi, Longcomity,
Hunda600
Power AC 24V / 1.25A
Dimension 219∅×262(H) mm
Weight Approx. 4Kg
General
Operating Temp. 0°C ~ 40°C
* Specification & design are subject to change without notice
A
CD-1500 Specification
Dimensions
Ceiling Mount
Dimensions
Wall Mount
Dimensions
19
P
an, Tilt and Zoom Dome Camera / ACD-1500

Memo
MEMO
20
P
an, Tilt and Zoom Dome Camera / ACD-1500
