Desa VRL24NR User manual
UNVENTED (VENT-FREE) GAS LOG HEATER
OWNER’S OPERATION AND INSTALLATION MANUAL
24" AND 30" REMOTE-READy MODELS:
VRL24NR, VRL24PR, VRL30NR, VRL30PR,
CSG3924NR, CSG3924PR
24" AND 30" THERMOSTAT MODELS:
VRL24NT, VRL24PT, VRL30NT, VRL30PT, CSG3924NT, CSG3924PT
For more information, visit www.desatech.com
WARNING: If the information in this manual is not
— WHAT TO DO IF YOU SMELL GAS
-
www.desatech.com 110021-01S2
SAFETy
-
-
additional information
-
WARNING: This is an
-
Air
for Combustion and Ven-
tilation
-
-
for these installations in
-
-
-
TABLE OF CONTENTS
Safety .................................................................. 2
Product Identication........................................... 5
Optional Remote Control Accessories................. 5
Local Codes......................................................... 5
Unpacking............................................................ 6
Product Features................................................. 6
Air For Combustion and Ventilation..................... 6
Installation ........................................................... 8
Operation........................................................... 20
Inspecting Burners............................................. 25
Cleaning and Maintenance................................ 26
Troubleshooting................................................. 28
Optional Positioning of Thermostat Sensing Bulb. . 32
Wiring Diagram.................................................. 33
Specications .................................................... 34
Parts .................................................................. 35
Replacement Parts............................................ 40
Service Hints ..................................................... 40
Technical Service............................................... 40
Accessories ....................................................... 41
www.desatech.com
110021-01S 3
-
known to the State of California
-
-
Early signs of
carbon monoxide poisoning resemble the u,
with headaches, dizziness or nausea. If you
have these signs, the replace may not be
working properly. Have
replace serviced. Some people are more af-
fected by carbon monoxide than others. These
include pregnant women, people with heart or
lung disease or anemia, those under the inu-
ence of alcohol and those at high altitudes.
Natural and
propane/LP gases are odorless. An odor-
making agent is added to these gases. The
odor helps you detect a gas leak. However,
the odor added to the gas can fade. Gas may
be present even though no odor exists.
Make certain you read and understand all
warnings. Keep this manual for reference. It
is your guide to safe and proper operation of
this replace.
WARNING: Do not use a
-
SAFETy
Continued
for installation only in a solid-fu-
WARNING: Do not allow fans
will remain hot for a time after
-
dren when they are in the room
www.desatech.com 110021-01S4
SAFETy
Continued
8. To prevent the creation of soot, follow the
instructions in Cleaning and Maintenance,
page 26.
9. Before using furniture polish, wax, carpet
cleaner or similar products, turn heater off. If
heated, the vapors from these products may
create a white powder residue within burner
box or on adjacent walls or furniture.
10. This heater needs fresh, outside air ven-
tilation to run properly. This heater has an
Oxygen Depletion Sensing (ODS) safety
shutoff system. The ODS shuts down the
heater if not enough fresh air is available.
See Air for Combustion and Ventilation,
page 6. If heater keeps shutting off, see
Troubleshooting, page 28.
11. Do not run heater
• where ammable liquids or vapors are
used or stored
• under dusty conditions
12. Do not use this heater to cook food or burn
paper or other objects.
13. Do not use heater if any part has been ex-
posed to or under water. Immediately call
a qualied service technician to inspect
the room heater and to replace any part
of the control system and any gas control
which has been under water.
14. Do not operate heater if any log is broken.
Do not operate heater if a log is chipped
(dime-sized or larger).
15. Turn heater off and let cool before ser-
vicing, installing or repairing. Make sure
the selector switch is in the OFF position
(Remote-Ready Models Only). Only a
qualied service person should install,
service or repair heater.
16. Make sure the selector switch is in the
OFF position when you are away from
home for long periods of time (Remote-
Ready Models Only).
17. Remote-ready heaters do not need to
be connected to any external electrical
source.
18. Operating heater above elevations of
4,500 feet could cause pilot outage.
19. To prevent performance problems with
propane/LP models, do not use propane/
LP fuel tank of less than 100 lb. capacity.
20. Provide adequate clearances around air
openings.
-
-
1. This appliance is only for use with the type
of gas indicated on the rating plate. This
appliance is not convertible for use with
other gases.
2. Do not place propane/LP supply tank(s)
inside any structure. Locate propane/LP
supply tank(s) outdoors (propane/LP units
only).
3. If you smell gas
• shut off gas supply
• do not try to light any appliance
• do not touch any electrical switch; do not
use any phone in your building
• immediately call your gas supplier from
a neighbor’s phone. Follow the gas sup-
plier’s instructions
• if you cannot reach your gas supplier,
call the re department
4. This heater shall not be installed in a bed-
room or bathroom unless installed as a
vented appliance. See Installing Damper
Clamp Accessory for Vented Operation,
page 13 (Remote-Ready Models only).
This gas log set may not be installed
as a vented appliance in a bedroom or
bathroom in the Commonwealth of Mas-
sachusetts.
5. Before installing in a solid fuel burning re-
place, the chimney ue and rebox must
be cleaned of soot, creosote, ashes and
loose paint by a qualied chimney cleaner.
Creosote will ignite if highly heated. A dirty
chimney ue may create and distribute
soot within the house. Inspect chimney
ue and rebox for damage. If damaged,
repair ue before operating heater.
6. Do not burn solid-fuel in a masonry or
UL127 factory-built replace in which a
vent-free room heater is installed.
7. If replace has glass doors, never operate
this heater with glass doors closed. If you
operate heater with doors closed, heat
buildup inside replace will cause glass to
burst. Make sure there are no obstructions
across openings of replace.
www.desatech.com
110021-01S 5
OPTIONAL REMOTE CONTROL ACCESSORIES
PRODUCT IDENTIFICATION
Base
Assembly
Piezo
Ignitor
Front and Rear
Burner Control
Knob
Selector Switch (Optional)
ON/OFF/
PILOT Knob
Remote Control
(Optional)
Grate
Front
Burner
Remote-Ready Models
Rear
Burner
Figure 1 - Product Identication
Log Set (Varies
According to Model)
Base
Assembly
Front and Rear
Burner Control Knob
Piezo
Ignitor
Burner
Control
Knob
Thermostat Models
Grate
Pilot
Assembly
Middle
Burner
There are four optional remote controls that
can be purchased separately for Remote-
Ready Models Only:
• wall switch
• wall thermostat
• hand-held ON/OFF remote
• hand-held thermostat remote
See Accessories, page 41.
The wall thermostat or hand-held thermostat
may not be used where vented decorative
listing is required.
LOCAL CODES
Install and use heater with care. Follow all
local codes. In the absence of local codes,
use the latest edition of The National Fuel
Gas Code ANSI Z223/NFPA 54*.
*Available from:
American National Standards Institute, Inc.
1430 Broadway
New York, NY 10018
National Fire Protection Association, Inc.
Batterymarch Park
Quincy, MA 02269
Note: Where listed vented decorative logs
are required, thermostat models are not
permitted.
The installa-
tion must be made by a licensed plumber
or gas fitter in the Commonwealth of
Massachusetts.
Sellers of unvented propane or natural
gas-red supplemental room heaters shall
provide to each purchaser a copy of 527
CMR 30 upon sale of the unit.
Vent-free gas products are prohibited for
bedroom and bathroom installation in the
Commonwealth of Massachusetts.
www.desatech.com 110021-01S6
UNPACkING
WARNING: This heater shall
-
National Fuel Gas Code, ANSI
Z223.1/NFPA54, the International
Fuel Gas Code,-
-
Today’s homes are built more energy efcient
than ever. New materials, increased insulation
and new construction methods help reduce
heat loss in homes. Home owners weather
strip and caulk around windows and doors
to keep the cold air out and the warm air in.
During heating months, home owners want
their homes as airtight as possible.
While it is good to make your home energy ef-
cient, your home needs to breathe. Fresh air must
enter your home. All fuel-burning appliances need
fresh air for proper combustion and ventilation.
-
1. Remove logs and heater base assembly
from carton.
Note: Do not pick up heater base as-
sembly by burners. This could damage
heater. Always handle base assembly by
the sides of assembly.
2. Remove all protective packaging applied
to logs and heater for shipment.
3. Check all items for any shipping damage.
If damaged, promptly inform dealer where
you bought heater.
PRODUCT FEATURES
This heater is clean burning. It requires no
outside venting. There is no heat loss out a
vent or up a chimney. Heat is generated by
both realistic ames and glowing coals. This
heater is designed for vent-free operation
with ue damper closed. It has been tested
and approved to ANSI Z21.11.2 standard
for unvented heaters. State and local codes
in some areas prohibit the use of vent-free
heaters. This heater may also be operated
as a vented decorative (ANSI Z21.60) product
by opening the ue damper (Remote-Ready
Models Only).
This heater has a pilot with an Oxygen Deple-
tion Sensing (ODS) safety shutoff system. The
ODS/pilot is a required feature for vent-free
room heaters. The ODS/pilot shuts off the
heater if there is not enough fresh air.
This heater has a piezo ignitor. This system re-
quires no matches, batteries or other sources
to light heater.

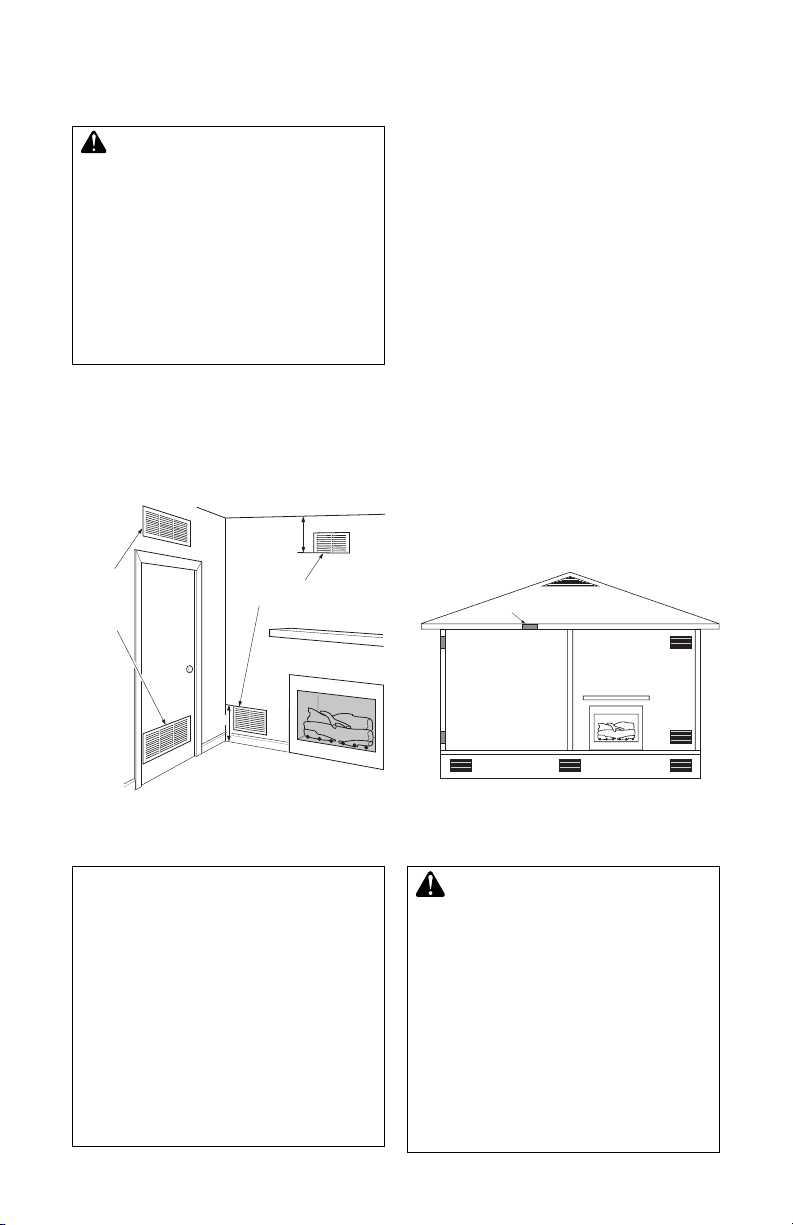

AIR FOR COMBUSTION AND VENTILATION
Exhaust fans, replaces, clothes dryers and
fuel burning appliances draw air from the house
to operate. You must provide adequate fresh
air for these appliances. This will insure proper
venting of vented fuel-burning appliances.
The following are excerpts from National Fuel
Gas Code. ANSI Z223.1/NFPA 54, Air for
Combustion and Ventilation.
All spaces in homes fall into one of the three
following ventilation classications:
1. Unusually Tight Construction
2. Unconned Space
3. Conned Space
The information on pages 6 through 8 will help
you classify your space and provide adequate
ventilation.
The air that leaks around doors and windows
may provide enough fresh air for combustion
and ventilation. However, in buildings of un-
usually tight construction, you must provide
additional fresh air.
www.desatech.com
110021-01S 7
AIR FOR COMBUSTION AND VENTILATION
Continued
40,000
31,500
71,500
-
-112
and
and
Ventilation Air From Outdoors
If your home does not meet all of the three
Determining
Fresh-Air Flow For Heater Location
The National Fuel Gas Code ANSI Z223.1/
NFPA 54 denes a conned space as a space
whose volume is less than 50 cubic feet per
1,000 Btu/hr (4.8 m3per kw) of the aggregate
input rating of all appliances installed in that
space and an unconned space as a space
whose volume is not less than 50 cubic feet per
1,000 Btu/hr (4.8 m3per kw) of the aggregate
input rating of all appliances installed in that
space. Rooms communicating directly with the
space in which the appliances are installed*,
through openings not furnished with doors, are
considered a part of the unconned space.
* Adjoining rooms are communicating only if
there are doorless passageways or ventilation
grills between them.
DETERMINING FRESH-AIR FLOW
Use this work sheet to determine if you have
a conned or unconned space.
Includes the room in which you will install
replace plus any adjoining rooms with doorless pas-
sageways or ventilation grills between the rooms.
1. Determine the volume of the space (length
x width x height).
Length x Width x Height =__________cu. ft.
(volume of space)
Example: Space size 20 ft. (length) x 16 ft.
(width) x 8 ft. (ceiling height) = 2,560 cu. ft.
(volume of space)
If additional ventilation to adjoining room
is supplied with grills or openings, add the
volume of these rooms to the total volume
of the space.
2. Multiply the space volume by 20 to determine
the maximum Btu/Hr the space can support.
________ (volume of space) x 20 = (Maxi-
mum Btu/Hr the space can support)
Example: 2,560 cu. ft. (volume of space) x 20 =
51,200 (maximum Btu/Hr the space can support)
3. Add the Btu/Hr of all fuel burning appliances
in the space.
Vent-free replace __________ Btu/Hr
Gas water heater* __________ Btu/Hr
Gas furnace __________ Btu/Hr
Vented gas heater __________ Btu/Hr
Gas replace logs __________ Btu/Hr
Other gas appliances* + _________ Btu/Hr
Total = _________ Btu/Hr
* Do not include direct-vent gas appliances.
Direct-vent draws combustion air from the
outdoors and vents to the outdoors.
Example:
Gas water heater __________ Btu/Hr
Vent-free replace + _________ Btu/Hr
Total = _________ Btu/Hr
4.
Compare the maximum Btu/Hr the space can
support with the actual amount of Btu/Hr used.
______ Btu/Hr (maximum space can support)
_____ Btu/Hr (actual amount used)
Example: 51,200 Btu/Hr (maximum the
space can support)
79,000 Btu/Hr (actual amount of
Btu/Hr used)
The space in the example is a conned space
because the actual Btu/Hr used is more than the
maximum Btu/Hr the space can support. You
must provide additional fresh air. Your options are
as follows:
A.
Rework worksheet, adding the space of an
adjoining room. If the extra space provides an
unconned space, remove door to adjoining
room or add ventilation grills between rooms. See
Ventilation Air From Inside Building, page 8.
B. Vent room directly to the outdoors. See
Ventilation Air From Outdoors, page 8.
C.
Install a lower Btu/Hr replace, if lower
Btu/Hr size makes room unconned.
If the actual Btu/Hr used is less than the maxi-
mum Btu/Hr the space can support, the space is
an unconned space. You will need no additional
fresh air ventilation.
www.desatech.com 110021-01S8
INSTALLATION
AIR FOR COMBUSTION AND VENTILATION
Continued
Figure 2 - Ventilation Air from Inside
Building Figure 3 - Ventilation Air from Outdoors
Outlet
Air
V e ntilated
Attic
Outlet
A
ir
Inlet
Air
Inlet Air V e ntilated
Crawl Space
T o
Crawl
Space
T o Attic
Or
Remove
Door into
Adjoining
Room,
Option
3
Ve ntilation Grills
Into Adjoining Room,
Option 2
Ve ntilation
Grills Into
Adjoining
Room,
Option 1
12"
12"
-
National Fuel
Gas Code,ANSI Z223.1/NFPA 54,
the International Fuel Gas Code,
This fresh air would come from an adjoining
unconfined space. When ventilating to an
adjoining unconned space, you must provide
two permanent openings: one within 12" of the
ceiling and one within 12" of the oor on the
wall connecting the two spaces (see options 1
and 2, Figure 2). You can also remove door into
adjoining room (see option 3, Figure 2). Fol-
low the National Fuel Gas Code ANSI Z223.1/
NFPA 54, Air for Combustion and Ventilation for
required size of ventilation grills or ducts.
Provide extra fresh air by using ventilation
grills or ducts. You must provide two perma-
nent openings: one within 12" of the ceiling
and one within 12" of the oor. Connect these
items directly to the outdoors or spaces open
to the outdoors. These spaces include attics
and crawl spaces. Follow the National Fuel
Gas Code ANSI Z223.1/NFPA 54, Air for
Combustion and Ventilation for required size
of ventilation grills or ducts.
IMPORTANT: Do not provide openings for
inlet or outlet air into attic if attic has a thermo-
stat-controlled power vent. Heated air entering
the attic will activate the power vent.
NOTICE: This heater is intended
WARNING: Installation and
-
-
www.desatech.com
110021-01S 9
-
WARNING: Make sure the
-
Creosote will ignite if highly
-
-
WARNING: Seal any fresh
-
INSTALLATION
Continued
heater
-
-
-
-
-
-
IMPORTANT:Vent-free heaters add moisture
to the air. Although this is benecial, installing
heater in rooms without enough ventilation
air may cause mildew to form from too much
moisture. See Air for Combustion and Ventila-
tion, page 6.
Use only the correct gas type (natural or pro-
pane/LP) for your unit. If your gas supply is not
correct, do not install heater. Call dealer where
you bought heater for proper type heater.
www.desatech.com 110021-01S10
Figure 4 - Minimum Clearance for
Combustible to Wall
*Minimum 16" from Side Wall
*
Example
Installing Damper
Clamp Accessory for Vented
Operation
If Not Using Mantel
Note: If using a mantel, proceed to If Using
Mantel below. If not using a mantel, follow the
information below.
You must have noncombustible material(s)
above the replace opening. Noncombustible
materials (such as slate, marble, tile, etc.)
must be at least 1/2" thick. With sheet metal,
you must have noncombustible material be-
hind it. Noncombustible material must extend
at least 8" up. If noncombustible material is
less than 12", you must install the replace
hood accessory. See Figure 5, page 11, for
minimum clearances.
IMPORTANT: If you cannot meet these mini-
mum clearances, you must operate heater
with chimney ue damper open. Go to Install-
ing Damper Clamp Accessory for Vented
Operation, page 13.
If Using Mantel
You must have noncombustible material(s)
above the replace opening. Noncombustible
materials (such as slate, marble, tile, etc.) must
be at least 1/2" thick. With sheet metal, you
must have noncombustible material behind it.
Noncombustible material must extend at least 8"
up (for all models). If noncombustible material is
less than 12", you must install the replace hood
accessory (24" model only). Even if noncombus-
tible material is more than 12", you may need the
hood accessory to deect heat away from your
mantel shelf. See Figures 5 and 6, page 11 and
Figure 7 page 12, for minimum clearances.
IMPORTANT: If you cannot meet these mini-
mum clearances, you must operate heater
with chimney ue damper open. Go to Install-
ing Damper Clamp Accessory for Vented
Operation, page 13.
INSTALLATION AND CLEARANCES
WARNING: Maintain the
INSTALLATION
Continued
Log
Height
Front
Width
Rear
24" 17" 14" 28" 20 1/4"
30" 17" 14" 34" 22 3/8"
*Measured at 14" Depth
Carefully follow the instructions below. This
will ensure safe installation into a masonry,
UL127-listed manufactured replace or certi-
ed vent-free rebox.
-
A. Clearances from the side of the replace
cabinet to any combustible material and
wall should follow diagram in Figure 4.
Example: The face of a mantel, bookshelf,
etc. is made of combustible material and
protrudes 3 1/2" from the wall. This com-
bustible material must be 4" from the side
of the replace cabinet (see Figure 4).
Note: When installing your gas logs into
a manufactured rebox, follow rebox
manufacturer’s instructions for minimum
clearances to combustible materials.
B. Clearances from the top of the replace
opening to the ceiling should not be less
than 42".
www.desatech.com
110021-01S 11
INSTALLATION
Continued
MANTEL CLEARANCES
In addition to meeting noncombustible mate-
rial clearances, you must also meet required
clearances between replace opening and
mantel shelf. If you do not meet the clearances
listed below, you will need a hood.
If you meet minimum clearance between
mantel shelf and top of replace opening, a
hood is not required (see Figure 6).
Figure 5 - Heat Resistant Material (Slate, Marble, Tile, etc.) Above Fireplace
Figure 6 - Minimum Mantel Clearances Without Using Hood
Minimum
Noncombustible
Material
Minimum
Noncombustible
Material Height
Distances to
Underside of
Mantel
To p of
Fireplace
Opening
Underside
of Mantel
Shelf
Mantel Shelf
12"
(A)
18" 20" 22" 24"
All minimum
distances are
in inches
Log Set
All
Models
2
1/2
"
6"
8"
10"
12" or more Noncombustible material okay.
Between 8" Install replace hood and 12" accessory
(GA6050, GA6052 or GA6053, see
Accessories, page 30).
Less than 8" Noncombustible material must be
extended to at least 8". See Between
8" and 12", above. If you cannot extend
material, you must operate heater with
ue damper open.
www.desatech.com 110021-01S12
Minimum
Noncombustible
Material
8"
Min.
12" 15" 18" 20"
2½"
6"
8"
10"
12"
Distances to
Underside of
Mantel
Hood
(GA6050,
GA6052 or
GA6053)
To p of
Fireplace
Opening
Underside
of Mantel
Shelf
Mantel Shelf
INSTALLATION
Continued

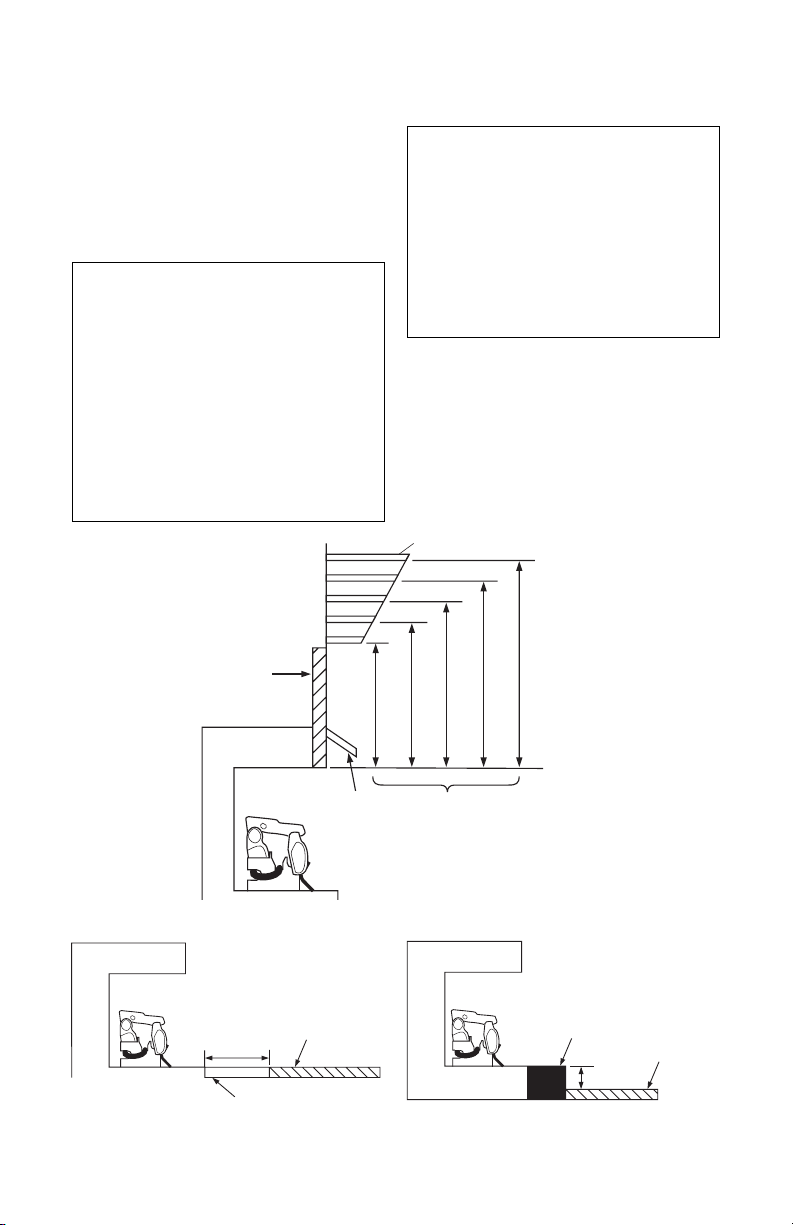

when Using a Hood
If minimum clearances in Figure 6 (see page 11)
are not met, you must have a hood. When using
a hood there are still certain minimum mantel
clearances required. Follow minimum clear-
ances shown in Figure 7 when using a hood.
NOTICE: If your installation does
-
of the following:
-
FLOOR CLEARANCES
A. If installing appliance on the oor level,
you must maintain the minimum distance
of 14" to combustibles (see Figure 8).
B. If combustible materials are less than 14"
to the replace, you must install appliance
at least 5" above the combustible ooring
(see Figure 9).
Hearth
5"
Min.
Combustible
Material
14"
Min.
Combustible
Material
Noncombustible Material
Figure 8 - Minimum Fireplace Clearances
If Installed at Floor Level
Figure 9 - Minimum Fireplace Clearances
Above Combustible Flooring
Figure 7 - Minimum Mantel Clearances When Using Hood
www.desatech.com
110021-01S 13
Diameter Area
5" 20 sq. inches
6" 29 sq. inches
7" 39 sq. inches
8" 51 sq. inches
6' to 15' 39 sq. inches
15' to 30' 29 sq. inches
Figure 10 - Attaching Damper Clamp
Damper
Damper
Clamp
Damper
Damper
Note: When used as a vented heater, ap-
pliance must be installed only in a solid-fuel
burning replace with a working ue and con-
structed of noncombustible material.
Instal-
lation of this vented gas log set in the Com-
monwealth of Massachusetts requires the
damper be permanently removed or welded
in the fully open position.
If your heater is a manually-controlled model,
you may use this heater as a vented product.
There are three reasons for operating your
heater in the vented mode.
1. The replace does not meet the clearance
to combustibles requirements for vent-
free operation.
2. State or local codes do not permit vent-
free operation.
3. You prefer vented operation.
If reasons number 1 or 2 above apply to you,
you must permanently open chimney ue
damper. You must install the damper clamp
accessory (to order, see Accessories, page
41). This will insure vented operation (see Fig-
ure 10). The damper clamp will keep damper
open. Installation instructions are included
with clamp accessory.
See chart below for minimum permanent ue
opening you must provide. Attach damper
clamp so the minimum permanent ue open-
ing will be maintained at all times.
INSTALLATION
Continued
WARNING: If installing in a
and guard against sooting and
-
-
www.desatech.com 110021-01S14
INSTALLATION
Continued
IMPORTANT: Make sure the heater burners
are level. If heater is not level, heater will not
work properly. For thermostat models, avoid
damage to thermostat bulb. Avoid nicks or
sharp bends in thermostat bulb wire. Keep ther-
mostat bulb in mounting bracket until ready to
mount base to oor. See Optional Positioning
Of Thermostat Sensing Bulb, page 32.
Installation Items Needed
• hardware package (provided with heater)
• approved exible gas hose (provided with
VRL Models Only) (if allowed by local
codes)
•
sealant (resistant to propane/LP gas, not
provided)
• electric drill with 3/16" drill bit
• athead screwdriver
1. Apply pipe joint sealant lightly to male
threads of gas tting (provided with VRL
models only). Connect approved exible
gas hose to tting in base (see Figure 11).
IMPORTANT: Hold gas tting with wrench
when connecting exible gas hose.
2. Locate two masonry screws in hardware
package.
3. Place heater base in replace.
4. Place logs in their proper position on heater
base (see Installing Logs, page 17).
5. Center heater base and logs front-to-back
and side-to-side in replace.
6. Carefully remove logs without moving
heater base.
7. Mark screw locations through one hole on
each side of the mounting bracket (see
Figure 12). If installing in a brick-bottom
replace, mark screw locations in mortar
joint of bricks.
8. Remove heater base from replace. If
installing optional control accessories,
do so at this time. Follow all directions
provided with accessory.
-
-
WARNING: For natural gas
Figure 11 - Attaching Flexible Gas Hose
to Heater
Fitting
Flexible Gas Hose
(if allowed by local
codes)

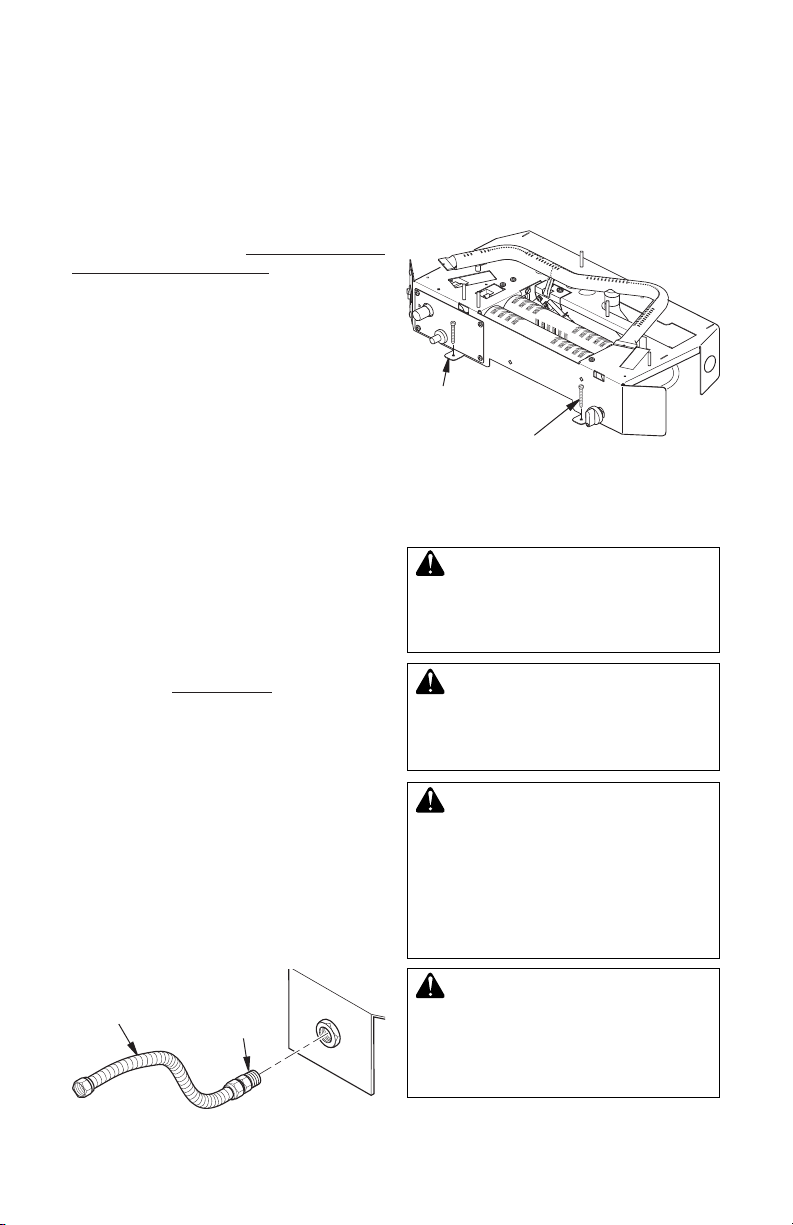

Figure 12 - Attaching Base Assembly to
Fireplace Floor (30" Model Shown)
Masonry Screw
Mounting
Flange
9. Drill holes at marked locations using 3/16"
drill bit.
10. Attach base assembly to replace oor
using two masonry screws (in hardware
package).
www.desatech.com
110021-01S 15
Installation Items Needed
Before installing heater, make sure you have
the items listed below.
• external regulator (supplied by installer)
• piping (check local codes)
• sealant (resistant to propane/LP gas)
• equipment shutoff valve *
• test gauge connection *
• sediment trap
• tee joint
• pipe wrench
* A CSA design-certied equipment shutoff
valve with 1/8" NPT tap is an acceptable al-
ternative to test gauge connection. Purchase
the optional CSA design-certied equipment
shutoff valve from your dealer. See Acces-
sories, page 41.
For propane/LP gas, the installer must supply
an external regulator. The external regulator
will reduce incoming gas pressure. You must
reduce incoming gas pressure to between 11"
and 14" of water. If you do not reduce incom-
ing gas pressure, heater regulator damage
could occur. Install external regulator with
the vent pointing down as shown in Figure
13. Pointing the vent down protects it from
freezing rain or sleet.
-
INSTALLATION
Continued
Figure 13 - External Regulator With Vent
Pointing Down
Installation must include a equipment shutoff
valve, union and plugged 1/8" NPT tap. Locate
NPT tap within reach for test gauge hook up.
NPT tap must be upstream from heater (see
Figure 14 or 15, page 16, depending on your
model).
IMPORTANT: Install equipment shutoff valve
in an accessible location. The main gas valve
is for turning on or shutting off the gas to the
appliance.
Check your building codes for any special
requirements for locating equipment shutoff
valve to replaces.
Apply pipe joint sealant lightly to male NPT
threads. This will prevent excess sealant from
going into pipe. Excess sealant in pipe could
result in clogged heater valves.
We recommend that you install sediment trap
in supply line as shown in Figure 14 or 15,
page 16, depending on your model. Locate
sediment trap where it is within reach for
cleaning. Install in piping system between
fuel supply and heater. Locate sediment trap
where trapped matter is not likely to freeze.
A sediment trap traps moisture and contami-
nants. This keeps them from going into heater
controls. If sediment trap is not installed or is
installed wrong, heater may not run properly.
Propane/LP
Supply Tank External
Regulator
with Vent
Pointing
Down
www.desatech.com 110021-01S16
INSTALLATION
Continued
CHECKING GAS CONNECTIONS
-
-
See guidelines under Connect-
ing to Gas Supply
1. Disconnect appliance with its appliance
main gas valve (control valve) and equip-
ment shutoff valve from gas supply piping.
Pressures in excess of 1/2 psig will dam-
age heater regulator.
2. Cap off open end of gas pipe where equip-
ment shutoff valve was connected.
3. Pressurize supply piping system by either
opening propane/LP supply tank valve
for propane/LP gas or opening main gas
valve located on or near gas meter for
natural gas or using compressed air.
4. Check all joints of gas supply piping sys-
tem. Apply a commercial leak detection
solution to all joints. Bubbles forming show
a leak.
5. Correct all leaks at once.
6. Reconnect heater and equipment shutoff
valve to gas supply. Check reconnected
ttings for leaks.
1. Close equipment shutoff valve (see Figure
16, page 17).
2. Pressurize supply piping system by either
opening propane/LP supply tank valve
for propane/LP gas or opening main gas
valve located on or near gas meter for
natural gas or using compressed air.
* Purchase the optional CSA design-certied
equipment shutoff valve from your dealer. See
Accessories, page 41.
** Minimum inlet pressure for purpose of input
adjustment.

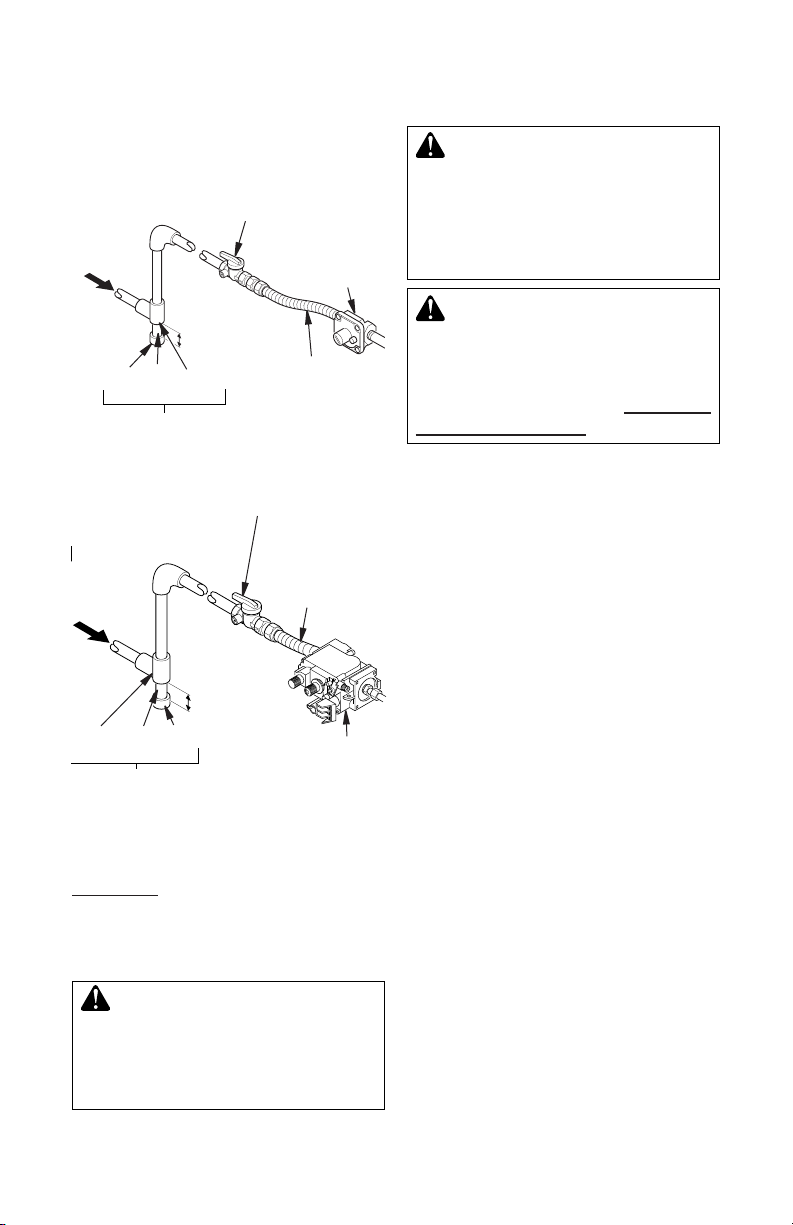

Figure 15 - Gas Connection (Remote-
Ready Models Only)
Gas Control Valve
Tee Pipe Cap
Joint Nipple
3" Minimum
Sediment Trap
From
External Regulator
(11" W.C.** to
14" W.C. Pressure)
NATURAL From Gas
Meter (5" W.C.**
to 10.5" W.C.
Pressure)
CSA Design-Certied
Equipment Shutoff Valve
With 1/8" NPT Tap*
Approved
Flexible Gas
Hose (if allowed
by local codes)
Figure 14 - Gas Connection
Cap Pipe Tee
Nipple Joint
3" Min.
Sediment Trap
Gas
Regulator
CSA Design-
Certied Equipment
Shutoff Valve With
1/8" NPT Tap*
Approved Flexible Gas
Hose (if allowed by
local codes)
Natural From Gas Meter
(5" W.C.** to 10.5" W.C.
Pressure)
From External
Regulator (11" W.C.**
to 14" W.C.
Pressure
www.desatech.com
110021-01S 17
Figure 16 - Equipment Shutoff Valve
Equipment
Shutoff Valve
Propane/LP
Supply
Tank
Thermostat Gas
Valve or Control
Valve Location
Figure 18 - Checking Gas Joints
(Natural Gas Only)
Gas Meter
Equipment
Shutoff Valve
Figure 17 - Checking Gas Joints
(Propane/LP Gas Only)
Open
Closed
Equipment
Shutoff Valve
INSTALLATION
Continued
Thermostat Gas
Valve or Control
Valve Location
3. Check all joints from gas meter for natural
gas or propane/LP supply to equipment
shutoff valve (see Figure 17 or 18). Apply
a commercial leak detection solution to all
joints. Bubbles forming show a leak.
4. Correct all leaks at once.
CONNECTIONS
1. Open equipment shutoff valve (see Fig-
ure 16).
2. Open main gas valve located on or near
gas meter for natural gas or open pro-
pane/LP supply tank valve.
3. Make sure control knob of heater is in the
OFF position.
4. Check all joints from equipment shutoff
valve to thermostat gas valve (Thermo-
stat-Controlled Models) or control valve
(Remote-Ready Models) (see Figure 17 or
18). Apply a noncorrosive leak detection
uid to all joints. Bubbles forming show a
leak.
5. Correct all leaks at once.
6. Light heater (see Operation, page 20).
Check all other internal joints for leaks.
7. Turn off heater (see To Turn Off Gas to
Appliance, page 21 [thermostatically-
controlled models] or page 24 [remote-
ready models]).
INSTALLING LOGS
-
with these diagrams or failure
CAUTION: After installa-
-
It is very important to install the logs exactly
as instructed. Do not modify logs. Only use
logs supplied with heater. Before installing
logs, make sure log alignment screws are in
place and straight.
www.desatech.com 110021-01S18
INSTALLATION
Continued
1. Place log #1 (ember bed) onto base over
alignment screws to left of front burner
and behind middle burner. Log #1 will sit
on top of front and middle burners (see
Figure 19).
2. Place log #2 to the right of log #1. Log #2
will wrap around right end of rear burner
and sit on log alignment screw (see Figure
20).
3. Place log #3 on left side of base and onto
alignment screw to right of rear burner
(see Figure 20). Log #3 will wrap around
left end of rear burner.
4. Place log #4 onto two alignment screws
to the rear of base (see Figure 21).
5. Place back of log #5 on notch in log #4 (as
shown in Figure 22), across back part of
log #1 and onto pin on log #2 (see Figure
20, page 18 and Figure 22).
6. Place log #6 onto two pins on log #1
(ember bed) and rest back of log #6 on
back log #4 (see Figure 22).

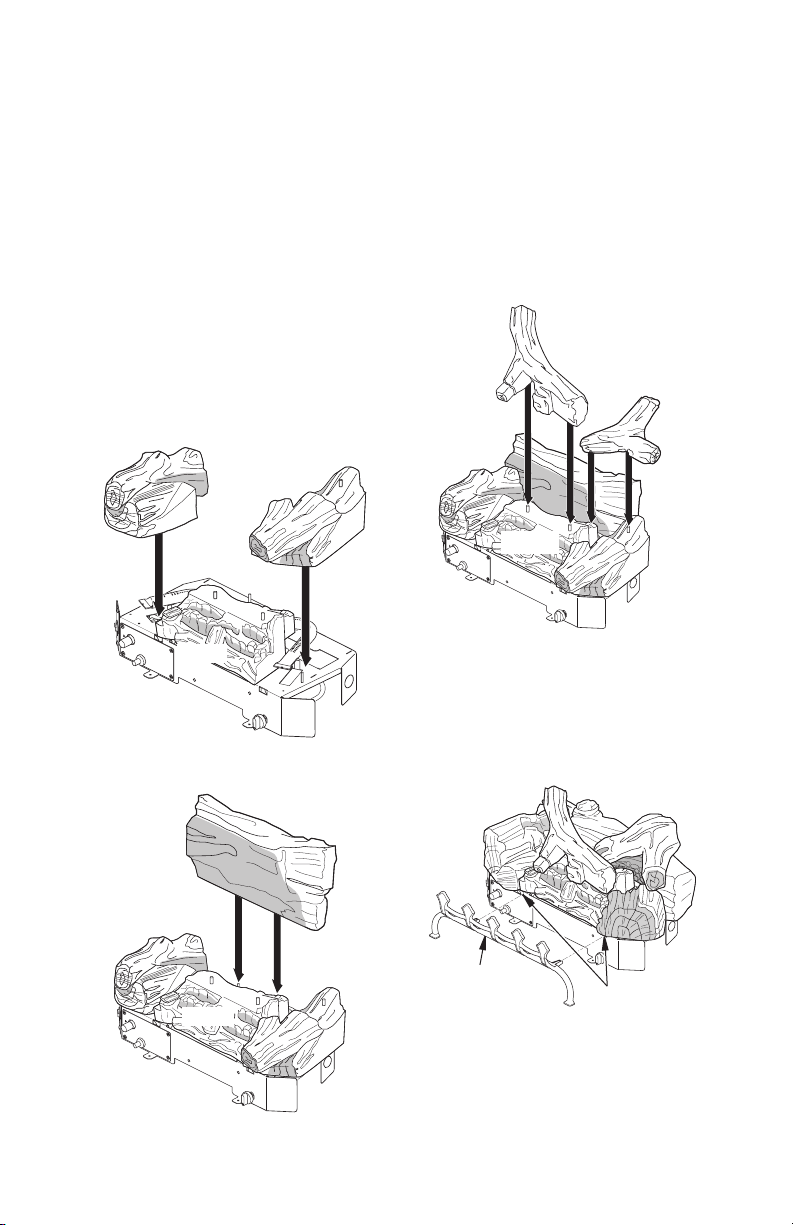

Figure 19 - Installing Log #1 (Ember Bed)
(Model CSG3924NR Shown)
Log #1
Log #5 will seat
in this location
Figure 20 - Installing Log #2 (Right) and
Log #3 (Left) (Model CSG3924NR Shown)
Figure 21 - Installing Log #4 (Model
CSG3924NR Shown)
Figure 22 - Installing Log #5 (Right) and
Log #6 (Left) (Model CSG3924NR Shown)
Log #5
Log #6
Log #4
Log #3
Log #1
Log #2
Log #4
Log #3
Log #1
Log #2
Log #3
Log #1
Log #2
www.desatech.com
110021-01S 19
INSTALLATION
Continued
1. Place log #1 (ember bed) onto base over
log alignment screws to the left of front
burner and behind middle burner. Log #1
will sit on top of front and middle burners
(see Figure 19, page 18).
2. Place log #2 to right of log #1 and onto
log alignment screw as shown in Figure
23. Log #2 will wrap around right end of
rear burner (see Figure 23).
3. Place log #3 on left side of base and onto
alignment screw to right of rear burner
(see Figure 23). Log #3 will wrap around
left end of rear burner.
Figure 23 - Installing Log #2 (Right) and
Log #3 (Left) (Model VRL30NR Shown)
Figure 24 - Installing Log #4 (Model
VRL30NR Shown)
Figure 25 - Installing Log #5 and Log #6
(Model VRL30NR Shown)
Log #6
Log #5
Log #2
Log #4
Log #3
Log #1
Log #2
Log #3
Log #1
Log #4
Log #2
Log #3
Log #1
Figure 26 - Attaching Grate to Base
Assembly (Logs and Base Will Vary
According to Model)
Grate
Slots in Base
Locate the two slots in the front of the base
assembly. Carefully slide the decorative grate
into these slots (see Figure 26).
4. Place log #4 onto two alignment screws
to rear of base (see Figure 24).
5. Locate hole on bottom of log #5 and place
over pin on log #2. Log #5 will rest on
back of log #1 (ember bed). See Figure
19, page 18 and Figure 25.
6. Place log #6 onto two pins on log #1
(ember bed) and rest back of log #6 on
back log #4 (see Figure 25).
Place lava rock around base of heater if de-
sired. Be sure not to cover the control knobs or
air inlet openings on the front of heater.
www.desatech.com 110021-01S20
LIGHTING
INSTRUCTIONS
WARNING:
-
-
-
Note: Home owners generally prefer to oper-
ate their heater with the chimney damper
closed. This will put all the heat into the room.
However, there may be times you will desire
the full ames of the HI heat setting but will
nd the heat output excessive. You can open
the chimney damper (if you have one) fully or
partially to release some of the heat.
1. STOP! Read the safety information in
column 1.
2. Make sure equipment shutoff valve is fully
open.
3. Turn control knob clockwise to the
OFF position.
4. Wait ve (5) minutes to clear out any gas.
Then smell for gas, including near the
oor. If you smell gas, STOP! Follow “B”
in the safety information in column 1. If
you don’t smell gas, go to the next step.
OPERATION
THERMOSTAT-CONTROLLED MODELS
FOR YOUR SAFETY
WARNING: If you do not fol-
-
WHAT TO DO IF YOU SMELL GAS
-
Other manuals for VRL24NR
2
This manual suits for next models
12
Table of contents
Other Desa Gas Heater manuals
Desa
Desa GWP10 GWN10T User manual
Desa
Desa 125-R User manual
Desa
Desa 35-R User manual
Desa
Desa Comfort Glow CGN10RL Quick start guide
Desa
Desa RCLP155B User manual
Desa
Desa Comfort Glow RFN30TA Quick start guide
Desa
Desa Comfort Glow SL30PT Quick start guide
Desa
Desa 125-R User manual
Desa
Desa Glo-Warm FGHS30NGB Quick start guide
Desa
Desa CDR3924PT Quick start guide
Desa
Desa Comfort Glow CGN18R Quick start guide
Desa
Desa Comfort Glow CGG3324N Quick start guide
Desa
Desa ROPANE CONSTRUCTION CONVECTION HEATER User manual
Desa
Desa 40 User manual
Desa
Desa FLAME-MAX VML27NR Quick start guide
Desa
Desa Amity Quick start guide
Desa
Desa VN10TA Quick start guide
Desa
Desa CGS2718PA Quick start guide
Desa
Desa HDVSR78 Quick start guide
Desa
Desa CGN18C Quick start guide
Popular Gas Heater manuals by other brands
DCG
DCG GH05 instruction manual
Quadra-Fire
Quadra-Fire Garnet instructions
american flame
american flame AFVK-SP-SPLIT Installation and operating instruction
Powrmatic
Powrmatic VPC Series User, Installation & Servicing Manual
Orbegozo
Orbegozo HCE 60 instruction manual
Clarke
Clarke DEVIL 4000 Operation & maintenance instructions
Vinco
Vinco 71406 instruction manual
Hastings
Hastings COUNTERFLO CF SERIES Installation and service manual
USSC
USSC Cavalier A9740L Installation and operation instructions
scandia
scandia 240 Installation instructions & user manual
Greenheck
Greenheck VSU Installation, operation and maintenance manual
Frost Fighter
Frost Fighter IHS 1500 Installation - Operation/Maintenance Instructions and Parts List
Comfort Glow
Comfort Glow Comfort Glow RGA 2-72 OWNER'S OPERATION AND INSTALLATION MANUAL
Lasko
Lasko 5622 Important instructions & operating manual
Napoleon
Napoleon GVF42P Installation and operating instructions
Bryant
Bryant DURAPAC 579F Installation, Start-Up and Service Instructions
Firegear
Firegear B360 SERIES Placement instructions
Design Dynamics
Design Dynamics VF-18P-PDG OWNER'S OPERATION AND INSTALLATION MANUAL
