Desa VGC30NR/PR Quick start guide
For more information, visit www.desatech.com
WARNING: If the information in this manual is not fol-
— WHAT TO DO IF YOU SMELL GAS
• Do not touch any electrical switch; do not use any
-
UNVENTED (VENT-FREE) GAS LOG HEATER
OWNER’S OPERATION AND INSTALLATION MANUAL
REMOTE-READy MODELS VGC18NR/PR,
VGC24NR/PR AND VGC30NR/PR
www.desatech.com 119162-01B2
SAFETy INFORMATION
TAbLE OF CONTENTS
Safety Information ............................................... 2
Product Identication........................................... 5
Local Codes......................................................... 5
Unpacking............................................................ 5
Product Features................................................. 5
Air For Combustion and Ventilation ..................... 6
Installation ........................................................... 8
Operating Heater............................................... 19
Inspecting Burners............................................. 23
Wiring Diagram.................................................. 23
Cleaning and Maintenance................................ 23
Troubleshooting................................................. 25
Specications .................................................... 29
Service Hints ..................................................... 29
Technical Service............................................... 29
Replacement Parts............................................ 29
Illustrated Parts Breakdown and Parts List........ 30
Accessories ....................................................... 33
Warranty Information ...........................Back Cover
-
-
teration, service or main-
to this manual for correct
-
-
tance or additional infor-
is for installation only in a
-
-
installationsinaccordance
-
tion: Do not install this
WARNING: This is an
-
from the room in which
and ventilation air must
Air
for Combustion and Ven-
tilation
-
stalled in an aftermarket,*
-
www.desatech.com
119162-01B 3
WARNING: Do not allow fans
will remain hot for a time after
-
dren when they are in the room
-
-
-
-
-
known to the state of California
-
-
Early signs of carbon
monoxide poisoning resemble the u, with head-
aches, dizziness or nausea. If you have these signs,
the replace may not be working properly. Get
fresh air at once! Have replace serviced. Some
people are more affected by carbon monoxide than
others. These include pregnant women, people with
heart or lung disease or anemia, those under the
inuence of alcohol and those at high altitudes.
Natural and Propane/LP
gases are odorless. An
odor-making agent is added to these gases. The
odor helps you detect a gas leak. However, the odor
added to the gas can fade. Gas may be present even
though no odor exists.
Make certain you read and understand all warnings.
Keep this manual for reference. It is your guide to
safe and proper operation of this replace.
this heater or its controls can
WARNING: Do not use a
-
SAFETy INFORMATION
Continued
www.desatech.com 119162-01B4
SAFETy INFORMATION
Continued
1. This appliance is only for use with the type
of gas indicated on the rating plate. This ap-
pliance is not convertible for use with other
gases.
2. Do not place propane/LP supply tank(s) in-
side any structure. Locate propane/LP supply
tank(s) outdoors (propane/LP units only).
3. If you smell gas
• shut off gas supply
• do not try to light any appliance
• do not touch any electrical switch; do not use
any phone in your building
• immediately call your gas supplier from a
neighbor’s phone. Follow the gas supplier’s
instructions
• if you cannot reach your gas supplier, call
the re department
4. This heater shall not be installed in a bedroom
or bathroom, unless installed as a vented appli-

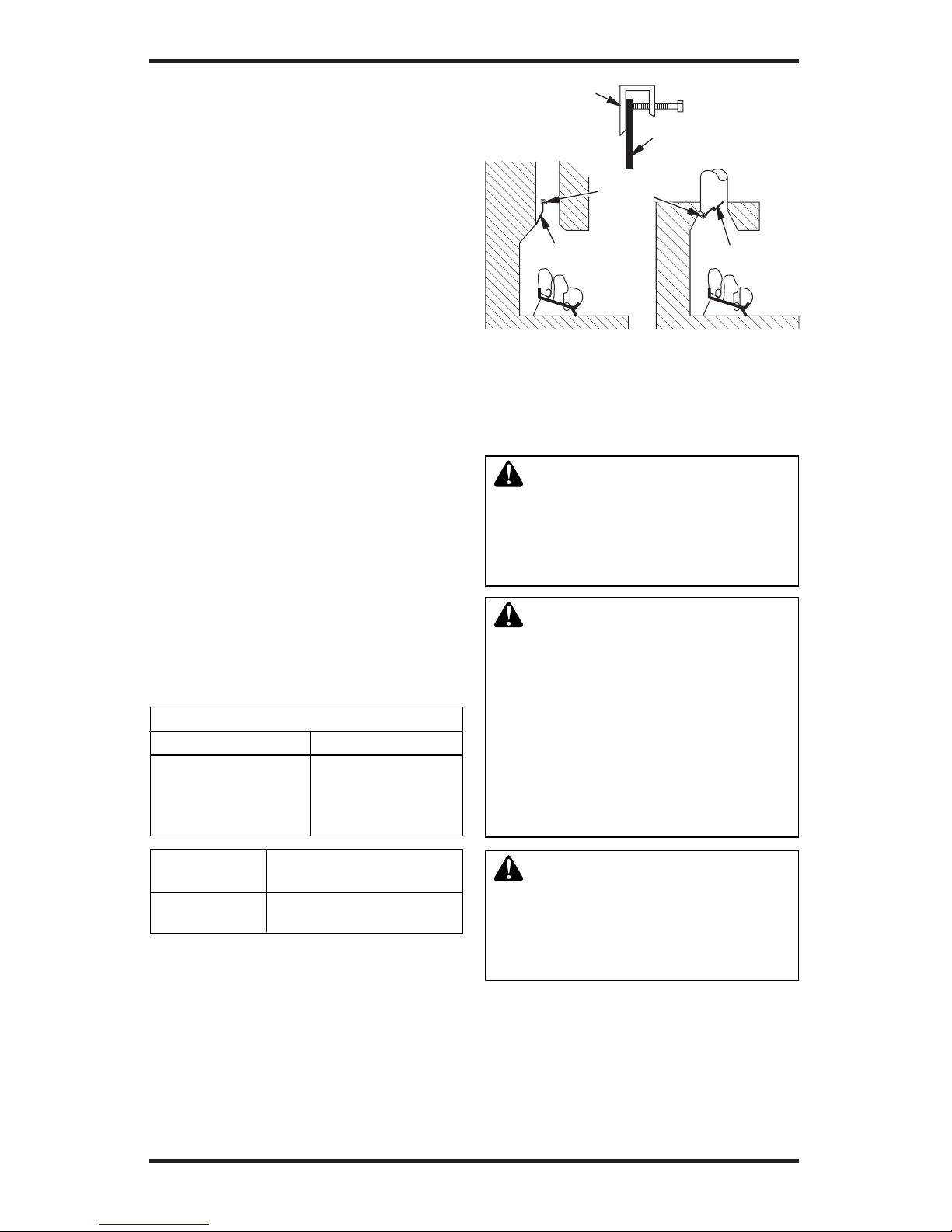

ance. See Installing Damper Clamp Accessory
for Vented Operation, page 12.
5. Before installing in a solid fuel burning
replace, the chimney ue and rebox must
be cleaned of soot, creosote, ashes and loose
paint by a qualied chimney cleaner. Creosote
will ignite if highly heated. A dirty chimney
ue may create and distribute soot within
the house. Inspect chimney ue for damage.
If damaged, repair ue and rebox before
operating heater.
6. Do not burn solid-fuel in a masonry or UL127
factory-built replace in which a vent-free
room heater is installed.
7. If replace has glass doors, never operate this
heater with glass doors closed. If you operate
heater with doors closed, heat buildup inside
replace will cause glass to burst. Make sure
there are no obstructions across openings of
replace.
8. To prevent the creation of soot, follow the
instructions in Cleaning and Maintenance,
page 23.
9. Before using furniture polish, wax, carpet
cleaner or similar products, turn heater off. If
heated, the vapors from these products may
create a white powder residue within burner
box or on adjacent walls and furniture.
10. This heater needs fresh, outside air ventilation
to run properly. This heater has an Oxygen
Depletion Sensing (ODS) safety shutoff sys-
tem. The ODS shuts down the heater if enough
fresh air is not available. See Air for Combus-
tion and Ventilation, page 6. If heater keeps
shutting off, see Troubleshooting, page 25.
11. Do not run heater
• where ammable liquids or vapors are used
or stored
• under dusty conditions
12. Do not use this heater to cook food or burn
paper or other objects.
13.
Do not use heater if any part has been exposed
to or under water. Immediately call a qualied
service technician to inspect the room heater
and to replace any part of the control system and
any gas control which has been under water.
14. Do not operate heater if any log is broken. Do
not operate heater if a log is chipped (dime-
sized or larger).
15. Turn heater off and let cool before servicing,
installing or repairing. Make sure the selector
switch is in the OFF position. Only a qualied
service person should install, service or repair
heater.
16. Make sure the selector switch is in the OFF
position when you are away from home for
long periods of time.
17. Remote-ready heaters must not be connected
to any external electrical source.
18. Operating heater above elevations of 4,500
feet may cause pilot outage.
19. To prevent performance problems, do not
use propane/LP fuel tank of less than 100 lb.
capacity (propane/LP units only).
20. Provide adequate clearances around air
openings.
www.desatech.com
119162-01B 5
PRODUCT
IDENTIFICATION
Figure 1 - Product Identication
AUTO/
OFF/ON
Switch
Chassis
UNPACkING
CAUTION: Do not remove the
-
1. Remove logs and heater base assembly from
carton. Note: Do not pick up heater base as-
sembly by burners. This could damage heater.
Always handle base assembly by grate.
2. Remove all protective packaging applied to
logs and heater for shipment.
3. Check all items for any shipping damage. If
damaged, promptly inform dealer where you
bought heater.
PRODUCT FEATURES
OpERATION
This heater is clean burning. It requires no outside
venting. There is no heat loss out a vent or up a
chimney. Heat is generated by both realistic ames
and glowing coals. This heater is designed for vent-
free operation with ue damper closed. It has been
tested and approved to ANSI Z21.11.2 standard for
unvented heaters. State and local codes in some ar-
eas prohibit the use of vent-free heaters. This heater
may also be operated as a vented decorative (ANSI
Z21.60) product by opening the ue damper.
This heater has a pilot with an Oxygen Deple-
tion Sensing (ODS) safety shutoff system. The
ODS/pilot is a required feature for vent-free room
heaters. The ODS/pilot shuts off the heater if there
is not enough fresh air.
ELECTRONIC IGNITION SYSTEM
This heater has an electronic ignitor to light heater
fuel supply.
LOCAL CODES
Install and use heater with care. Follow all local
codes. In the absence of local codes, use the lat-
est edition of The National Fuel Gas Code, ANSI
Z223.1/NFPA 54*.
*Available from:
American National Standards Institute, Inc.
1430 Broadway
New York, NY 10018
National Fire Protection Association, Inc.
Batterymarch Park
Quincy, MA 02269Optional Remote Control
Accessories
There are four optional remote controls that
can be purchased separately for Remote-Ready
Models Only:
• wall switch • hand-held ON/OFF remote
• wall thermostat • hand-held thermostat remote
See Accessories, page 33.
The wall thermostat or hand-held thermostat may not
be used where vented decorative listing is required.
State of Massachusetts: The installa-
tion must be made by a licensed plumber
or gas fitter in the Commonwealth of
Massachusetts.
Sellers of unvented propane or natural
gas-red supplemental room heaters shall
provide to each purchaser a copy of 527
CMR 30 upon sale of the unit.
Vent-free gas products are prohibited for
bedroom and bathroom installation in the
Commonwealth of Massachusetts.
Glowing
Embers
Electronic
Ignitor
Control
Knob
Remote
Control
(Optional)
Flame
Adjustment
Knob
www.desatech.com 119162-01B6
AIR FOR COMbUSTION
AND VENTILATION
WARNING: This heater shall
-
-
Today’s homes are built more energy efcient
than ever. New materials, increased insulation and
new construction methods help reduce heat loss
in homes. Home owners weather strip and caulk
around windows and doors to keep the cold air out
and the warm air in. During heating months, home
owners want their homes as airtight as possible.
While it is good to make your home energy ef-
cient, your home needs to breathe. Fresh air must
enter your home. All fuel-burning appliances need
fresh air for proper combustion and ventilation.
Exhaust fans, replaces, clothes dryers and fuel
burning appliances draw air from the house to
operate. You must provide adequate fresh air for
these appliances. This will insure proper venting
of vented fuel-burning appliances.
The following are excerpts from National Fuel
Gas Code, ANSI Z223.1/NFPA 54, Section 5.3,
Air for Combustion and Ventilation.
All spaces in homes fall into one of the three fol-
lowing ventilation classications:
1. Unusually Tight Construction
2. Unconned Space
3. Conned Space
The information on pages 6 through 8 will help
you classify your space and provide adequate
ventilation.
The air that leaks around doors and windows
may provide enough fresh air for combustion and
ventilation. However, in buildings of unusually
tight construction, you must provide additional
fresh air.
construction where:
-
-112
and
and
If your home meets all of the three criteria

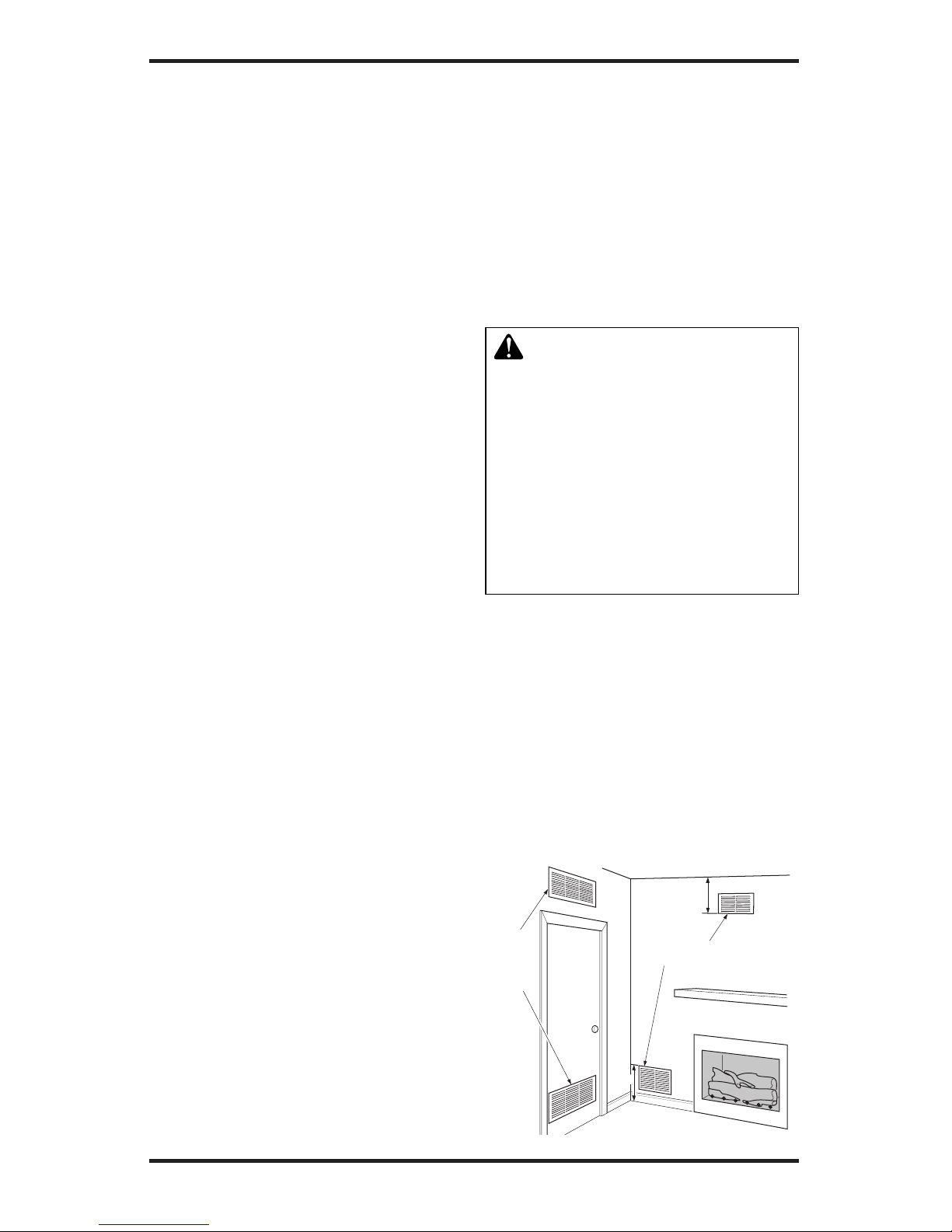

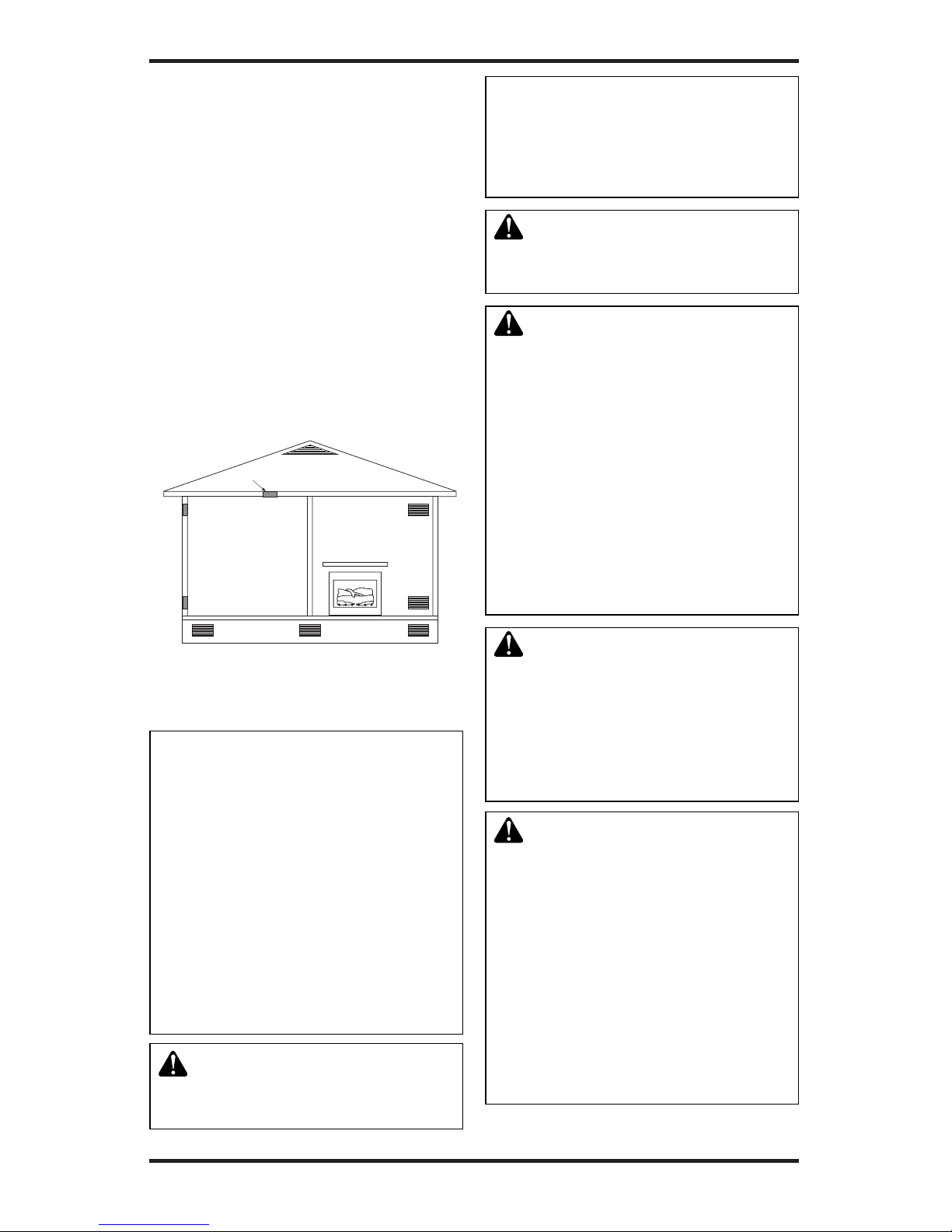

Ventilation Air From Outdoors,
If your home does not meet all of the
-
Fresh-Air Flow For Heater Location,
The National Fuel Gas Code, ANSI Z223.1/NFPA
54 denes a conned space as a space whose
volume is less than 50 cubic feet per 1,000 Btu
per hour (4.8 m3 per kw) of the aggregate input
rating of all appliances installed in that space and
an unconned space as a space whose volume is
not less than 50 cubic feet per 1,000 Btu per hour
(4.8 m3 per kw) of the aggregate input rating of
all appliances installed in that space. Rooms com-
municating directly with the space in which the
appliances are installed*, through openings not
furnished with doors, are considered a part of the
unconned space.
* Adjoining rooms are communicating only if
there are doorless passageways or ventilation grills
between them.
DETERMINING FRESH-AIR FLOW
FOR HEATER LOCATION
Use this work sheet to determine if you have a
conned or unconned space.
www.desatech.com
119162-01B 7
AIR FOR COMbUSTION
AND VENTILATION
Continued
Includes the room in which you will install
replace plus any adjoining rooms with doorless pas-
sageways or ventilation grills between the rooms.
1. Determine the volume of the space (length x
width x height).
Length x Width x Height =__________cu. ft.
(volume of space)
Example: Space size 20 ft. (length) x 16 ft.
(width) x 8 ft. (ceiling height) = 2560 cu. ft.
(volume of space)
If additional ventilation to adjoining room is
supplied with grills or openings, add the volume
of these rooms to the total volume of the space.
2. Multiply the space volume by 20 to determine
the maximum Btu/Hr the space can support.
__________ (volume of space) x 20 = (Maxi-
mum Btu/Hr the space can support)
Example: 2560 cu. ft. (volume of space) x 20 =
51,200 (maximum Btu/Hr the space can support)
3. Add the Btu/Hr of all fuel burning appliances in
the space.
Vent-free replace ___________ Btu/Hr
Gas water heater* ___________ Btu/Hr
Gas furnace ___________ Btu/Hr
Vented gas heater ___________ Btu/Hr
Gas replace logs ___________ Btu/Hr
Other gas appliances* + __________ Btu/Hr
Total = __________ Btu/Hr
* Do not include direct-vent gas appliances. Di-
rect-vent draws combustion air from the outdoors
and vents to the outdoors.
Example:
Gas water heater ___________ Btu/Hr
Vent-free replace + __________ Btu/Hr
Total = __________ Btu/Hr
4. Compare the maximum Btu/Hr the space can
support with the actual amount of Btu/Hr used.
__________ Btu/Hr (maximum the space can support)
__________Btu/Hr (actual amount of Btu/Hr used)
Example: 51,200 Btu/Hr (maximum the space
can support)
73,000 Btu/Hr (actual amount of
Btu/Hr used)
The space in the above example is a conned space
because the actual Btu/Hr used is more than the maxi-
mum Btu/Hr the space can support. You must provide
additional fresh air. Your options are as follows:
A. Rework worksheet, adding the space of an adjoin-
ing room. If the extra space provides an unconned
space, remove door to adjoining room or add
ventilation grills between rooms. See Ventilation
Air From Inside Building.
B. Vent room directly to the outdoors. See Ventila-
tion Air From Outdoors, page 8.
C. Install a lower Btu/Hr replace, if lower Btu/Hr
size makes room unconned.
If the actual Btu/Hr used is less than the maximum
Btu/Hr the space can support, the space is an un-
conned space. You will need no additional fresh
air ventilation.
WARNING: If the area in
-
in the National Fuel Gas Code,
ANSI Z223.1/NFPA54 Section 5.3
This fresh air would come from an adjoining un-
conned space. When ventilating to an adjoining
unconned space, you must provide two perma-
nent openings: one within 12" of the ceiling and
one within 12" of the oor on the wall connecting
the two spaces (see options 1 and 2, Figure 2). You
can also remove door into adjoining room (see
option 3, Figure 2). Follow the National Fuel Gas
Code, ANSI Z223.1/NFPA 54, Section 5.3, Air for
Combustion and Ventilation for required size of
ventilation grills or ducts.
40,000
33,000
73,000
Figure 2 - Ventilation Air from Inside Building
Or
Remove
Door into
Adjoining
Room,
Option
3
Ventilation Grills
Into Adjoining Room,
Option 2
Ventilation
Grills Into
Adjoining
Room,
Option 1
12"
12"
www.desatech.com 119162-01B8
AIR FOR COMbUSTION
AND VENTILATION
Continued
Provide extra fresh air by using ventilation grills or
ducts. You must provide two permanent openings:
one within 12" of the ceiling and one within 12"
of the oor. Connect these items directly to the
outdoors or spaces open to the outdoors. These
spaces include attics and crawl spaces. Follow the
National Fuel Gas Code, ANSI Z223.1/NFPA 54,
Section 5.3, Air for Combustion and Ventilation for
required size of ventilation grills or ducts.
IMPORTANT: Do not provide openings for inlet
or outlet air into attic if attic has a thermostat-
controlled power vent. Heated air entering the attic
will activate the power vent.
Figure 3 - Ventilation Air from Outdoors
Outlet
Air
Ventilated
Attic
Outlet
A
ir
Inlet
Air
Inlet Air Ventilated
Crawl Space
To
Crawl
Space
To Attic
INSTALLATION
NOTICE: This heater is intended
-
-
NOTICE: State or local codes
-
WARNING: Make sure the
-
-
-
WARNING: Seal any fresh
air vents or ash clean-out doors
-
WARNING: Never install the
heater
unless installed as a vented
• in a recreational vehicle
•
where curtains, furniture, cloth-
are less than 42" from the front,
• in windy or drafty areas
www.desatech.com
119162-01B 9
MINIMUM FIREpLACE CLEARANCE TO
18", 24", 30"
Side Wall 16"
42"
Floor 5"
18" 19" 14" 28" 20"
24" 19" 14" 32" 22"
30" 19" 14" 40" 30"
*Measured at 14" depth
CAUTION: This heater cre-
currents move heat to wall sur-
heater next to vinyl or cloth wall
-
the air exist, may discolor walls
IMPORTANT: Vent-free heaters add moisture to
the air. Although this is benecial, installing heater
in rooms without enough ventilation air may cause
mildew to form from too much moisture. See Air
for Combustion and Ventilation, page 6.
CHECK GAS TYpE
Use the correct type of gas (natural or propane/LP).
If your gas supply is not the correct gas type, do
not install heater. Call dealer where you bought
heater for proper type heater.
-
INSTALLATION AND CLEARANCES
WARNING: Maintain the
INSTALLATION
Continued
Carefully follow the instructions below. This will
ensure safe installation into a masonry, UL127-
listed manufactured replace or listed vent-free
rebox.
Minimum Clearances For Side
A. Clearances from the side of the fireplace
cabinet to any combustible material and wall
should follow diagram in Figure 4.
Example: The face of a mantel, bookshelf,
etc. is made of combustible material and
protrudes 3 1/2" from the wall. This combus-
tible material must be 4" from the side of the
replace cabinet (see Figure 4).
Note: When installing your gas logs into
a manufactured firebox, follow firebox
manufacturer’s instructions for minimum
clearances to combustible materials.
B. Clearances from the top of the replace open-
ing to the ceiling should not be less than 42
inches.
Figure 4 - Minimum Clearance for
Combustible to Wall
*Minimum 16" from Side Wall
*
Example
www.desatech.com 119162-01B10
INSTALLATION
Continued
NOTICE: Manual control heaters
If so, you must always run heater
Installing Damper
Clamp Accessory for Vented
Operation
Clearances
Note: If using a mantel proceed to If Using Mantel.
If not using a mantel, follow these instructions.
You must have noncombustible material(s) above
the replace opening. Noncombustible materials
(such as slate, marble, tile, etc.) must be at least
1/2" thick. With sheet metal, you must have non-
combustible material behind it. Noncombustible
material must extend at least 8" up (for all models).
If noncombustible material is less than 12", you
must install the replace hood accessory (24" and
30" Models Only). See Figure 5 for minimum
clearances.
You must have noncombustible material(s) above
the replace opening. Noncombustible materials
(such as slate, marble, tile, etc.) must be at least
1/2" thick. With sheet metal, you must have non-
combustible material behind it. Noncombustible
material must extend at least 8" up (for all models).
If noncombustible material is less than 12", you
must install the replace hood accessory (24"
and 30" Models Only). Even if noncombustible
material is more than 12", you may need the hood
accessory to deect heat away from your mantel
shelf. See Figure 5 and Figures 6 and 7, page 11,
for minimum clearances.
IMPORTANT: If you cannot meet these minimum
clearances, you must operate heater with chimney
ue damper open. Go to Installing Damper Clamp
Accessory for Vented Operation, page 12.
Heat Resistant
Material
(A)
Figure 5 - Heat Resistant Material (Slate,
Marble, Tile, etc.) Above Fireplace
1
2" or more Noncombustible mate-
rial OK.
Between 8" and 12"
24" or 30" Models:
Install fireplace hood
accessory (GA6050,
GA6052 or GA6053 see
Accessories, page 33).
18" Model: Noncombus-
tible material OK.
Less than 8"
Noncombustible mate-
rial must be extended to
at least 8". See Between
8" and 12", above. If you
cannot extend material,
you must operate heater
with ue damper open.
MANTEL CLEARANCES
In addition to meeting noncombustible material
clearances, you must also meet required clearances
between replace opening and mantel shelf. If
you do not meet the clearances listed below, you
will need a hood.
If you meet minimum clearance between mantel
shelf and top of replace opening, a hood is not
required (see Figure 6, page 11).
If minimum clearances in Figure 6, page 11, are
not met, you must have a hood. When using a hood
there are still certain minimum mantel clearances
required. Follow minimum clearances shown in
Figure 7, page 11, when using hood.
www.desatech.com
119162-01B 11
INSTALLATION
Continued
-
-
Follow all minimum clearances
NOTICE: If your installation does
not meet the minimum clear-
ances shown, you must do one
-
• remove the mantel

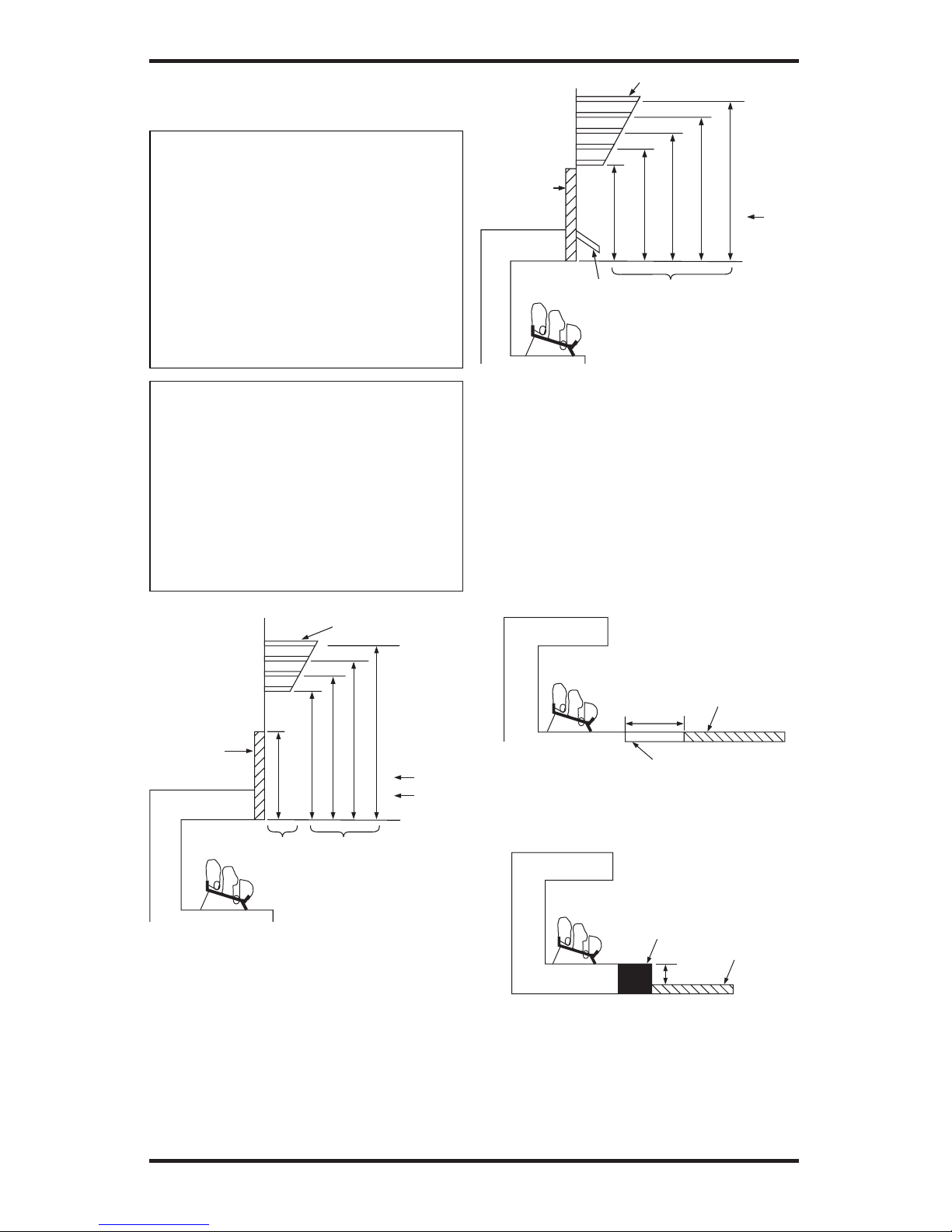

Figure 6 - Minimum Mantel Clearances
Without Using Hood
14"
Min.
Combustible
Material
Noncombustible Material
Figure 8 - Minimum Fireplace Clearances
If Installed at Floor Level
Figure 7 - Minimum Mantel Clearances
When Using Hood
Minimum Non-
Combustible
Material
Minimum Non-
Combustible
Material Height
Distances to
Underside of
Mantel
Top of
Fireplace
Opening
Underside of
Mantel Shelf
12"
8"
(A)
18"
14"
20"
17"
22"
19"
24"
20"
All minimum
distances are
in inches
Log Set
24"/30"/36"
Models
18" Model
2
1/2
"
6"
8"
10"
Mantel Shelf
Minimum
Noncombustible
Material
8"
Min.
12" 15" 18"
All minimum
distances are
in inches
Log Sets
18", 24",
& 30"
Models
20"
2
1/2
"
6"
8"
10"
12"
Distances to
Underside of
Mantel
Hood
(GA6050,
GA6052,
or GA6053)
Top of
Fireplace
Opening
Underside of
Mantel Shelf
Mantel Shelf
FLOOR CLEARANCES
A. If installing appliance on the oor level, you
must maintain the minimum distance of 14"
to combustibles (see Figure 8).
B. If combustible materials are less than 14" to
the replace, you must install appliance at
least 5" above the combustible ooring (see
Figure 9).
Hearth
5"
Min.
Combustible
Material
Figure 9 - Minimum Fireplace Clearances
Above Combustible Flooring
www.desatech.com 119162-01B12
INSTALLATION
Continued
INSTALLING DAMpER CLAMp
OpERATION
Note: When used as a vented heater, appliance
must be installed only in a solid-fuel burning
replace with a working ue and constructed of
noncombustible material.
If your heater is a manually-controlled model, you
may use this heater as a vented product. There
are three reasons for operating your heater in the
vented mode.
1. The replace does not meet the clearance
to combustibles requirements for vent-free
operation.
2. State or local codes do not permit vent-free
operation.
3. You prefer vented operation.
If reasons number 1 or 2 above apply to you, you
must permanently open chimney ue damper. You
must install the damper clamp accessory (to order,
see Accessories, page 33). This will insure vented
operation (see Figure 10). The damper clamp will
keep damper open. Installation instructions are
included with clamp accessory.
See chart below for minimum permanent ue
opening you must provide. Attach damper clamp
so the minimum permanent ue opening will be
maintained at all times.
Diameter Area
5" 20 sq. inches
6" 29 sq. inches
7" 39 sq. inches
8" 51 sq. inches
Chimney Minimum permanent
6' to 15' 39 sq. inches
15' to 30' 29 sq. inches
Damper
Damper
Clamp
Damper
Damper
Clamp
Damper
Figure 10 - Attaching Damper Clamp
WARNING: You must secure
not, heater will move when you
-
-
-
IMPORTANT: Make sure the heater burners
are level.
www.desatech.com
119162-01B 13
INSTALLATION
Continued
Installation Items Needed
• hardware package (provided with heater)
• approved exible gas hose and ttings (not
provided) (if allowed by local codes)
• sealant (resistant to propane/LP gas, not pro-
vided)
• electric drill with 3/16” masonry drill bit
Note: Install optional HRC Series receiver and
hand-held remote control kit (see Accessories,
page 33) before installing gas log heater. See in-
stallation instructions included with the kit.
1. Apply pipe joint sealant lightly to male
threads of gas tting (not provided). Connect
approved exible gas hose to inlet side of gas
control (see Figure 11).
2. Position heater base assembly in replace.
3. Mark screw locations through holes in front
panel of base (see Figure 12). If installing in a
brick-bottom replace, mark screw locations
in mortar joint of bricks.
4. Remove heater base from replace.
5. Drill holes at marked locations using 3/16"
drill bit.
6. Attach base, through holes in front panel of
base, to replace oor using masonry screws
provided in hardware package (see Figure
12).
7. Connect to gas supply. See Connecting To Gas
Supply.
Figure 11 - Attaching Flexible Gas Hose
to Heater Gas Regulator
Gas Control
Flexible Gas Hose
(if allowed by local
codes)
Figure 13 - Attaching Base to Fireplace
Floor
Masonry Screw
CONNECTING TO GAS SUppLY
-
CAUTION: Never connect
-
WARNING: Never connect
www.desatech.com 119162-01B14
Pipe Cap Tee
Nipple Joint
Installation Items Needed
Before installing heater, make sure you have the
items listed below.
• external regulator (supplied by installer)
• piping (check local codes)
• sealant (resistant to propane/LP gas)
• equipment shutoff valve *
• test gauge connection *
• sediment trap
• tee joint
• pipe wrench
• approved exible gas line with gas connector
(if allowed by local codes) (not provided)
* A CSA design-certied equipment shutoff valve
with 1/8" NPT tap is an acceptable alternative to
test gauge connection. Purchase the optional CSA
design-certied equipment shutoff valve from your
dealer. See Accessories, page 33.
For propane/LP units, the installer must supply
an external regulator. The external regulator will
reduce incoming gas pressure. You must reduce
incoming gas pressure to between 11" and 14" of
water. If you do not reduce incoming gas pres-
sure, heater regulator damage could occur. Install
external regulator with the vent pointing down
as shown in Figure 13. Pointing the vent down
protects it from freezing rain or sleet.
CAUTION: Use only new,
-
Installation must include an equipment shutoff
valve, union and plugged 1/8" NPT tap. Locate
NPT tap within reach for test gauge hook up.
NPT tap must be upstream from heater (see
Figure 14).
IMPORTANT: Install equipment shutoff valve
in an accessible location. The equipment shutoff
valve is for turning on or shutting off the gas to
the appliance.
Propane/LP
Supply Tank External
Regulator

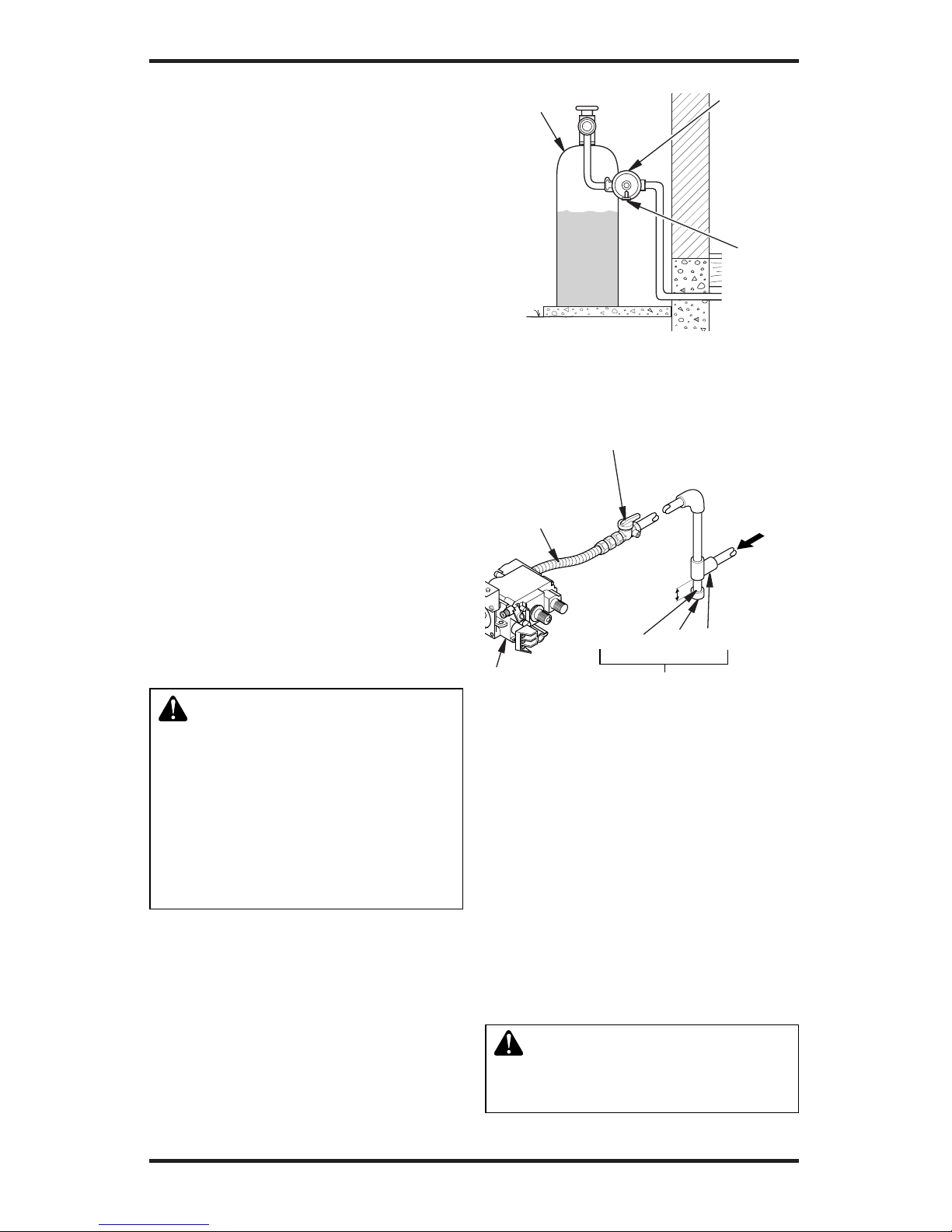

Figure 13 - External Regulator With Vent
Pointing Down
Vent
Pointing
Down
INSTALLATION
Continued
Check your building codes for any special re-
quirements for locating equipment shutoff valve
to replaces.
Apply pipe joint sealant lightly to male NPT
threads. This will prevent excess sealant from
going into pipe. Excess sealant in pipe could result
in clogged heater valves.
* Purchase the optional CSA design-certied
equipment shutoff valve from your dealer. See
Accessories, page 33.
**Minimum inlet pressure for purpose of input
adjustment.
Figure 14 - Gas Connection (Remote-
Ready Models Only)
Gas
Control
3" Minimum
Sediment Trap
CSA Design-Certied
Equipment Shutoff Valve
With 1/8" NPT Tap*
Approved Flexible
Gas Hose (if
allowed by local
codes)
pROpANE/Lp
From External
Regulator
(11" W.C.**
to 14" W.C.
Pressure)
NATURAL
From Gas
Meter
(5" W.C.**
to 10.5"
W.C.
Pressure)
www.desatech.com
119162-01B 15
INSTALLATION
Continued
We recommend that you install a sediment trap in
supply line as shown in Figure 14. Locate sediment
trap where it is within reach for cleaning. Install
in piping system between fuel supply and heater.
Locate sediment trap where trapped matter is not
likely to freeze. A sediment trap traps moisture and
contaminants. This keeps them from going into
heater controls. If sediment trap is not installed or
is installed wrong, heater may not run properly.
CHECKING GAS CONNECTIONS
and connections, internal and
external to unit, for leaks after
WARNING: Never use an
-
CAUTION: Make sure exter-
-
der Connecting to Gas Supply,
pRESSURE TESTING GAS SUppLY
pIpING SYSTEM
Test pressures In Excess Of 1/2 pSIG
1. Disconnect appliance with its appliance main
gas valve (control valve) and equipment
shutoff valve from gas supply piping system.
Pressures in excess of 1/2 psig will damage
heater regulator.
2. Cap off open end of gas pipe where equipment
shutoff valve was connected.
3. Pressurize supply piping system by either
opening propane/LP supply tank valve for
propane/LP gas or opening main gas valve
located on or near gas meter for natural gas
or using compressed air.
4. Check all joints of gas supply piping system.
Apply noncorrosive leak detection uid to all
joints. Bubbles forming show a leak.
5. Correct all leaks at once.
6. Reconnect heater and equipment shutoff valve
to gas supply. Check reconnected ttings for
leaks.
1.
Close equipment shutoff valve (see Figure 15).
2. Pressurize supply piping system by either
opening propane/LP supply tank valve for
propane/LP gas or opening main gas valve
located on or near gas meter for natural gas
or using compressed air.
3. Check all joints from gas meter to equipment
shutoff valve for natural gas or propane/LP
supply to equipment shutoff valve for pro-
pane/LP (see Figure 16 or Figure 17, page
16). Apply noncorrosive leak detection uid
to all joints. Bubbles forming show a leak.
4. Correct all leaks at once.
Figure 15 - Equipment Shutoff Valve
Open
Closed
Equipment
Shutoff
Valve
Figure 16 - Checking Gas Joints
(Propane/LP Only)
Control Valve
Location
Propane/LP
Supply Tank
Equipment
Shutoff Valve
www.desatech.com 119162-01B16
pRESSURE TESTING HEATER GAS
CONNECTIONS
1.
Open equipment shutoff valve (see Figure 15,
page 15).
2. Open main gas valve located on or near gas
meter for natural gas or open propane/LP
supply tank valve.
3. Make sure control knob of heater is in the OFF
position.
4. Check all joints from gas meter to equipment
shutoff valve for natural gas or propane/LP sup-
ply to equipment shutoff valve for propane/LP
(see Figure 16, page 16 or Figure 17). Apply
noncorrosive leak detection uid to all joints.
Bubbles forming show a leak.
5. Correct all leaks at once.
6. Light heater (see Operating Heater, page 19).
Check all other internal joints for leaks.
7.
Turn off heater (see To Turn Off Gas to Appli-
ance, page 21.
INSTALLING OpTIONAL REMOTE
ACCESSORIES
Remote control accessories are available sepa-
rately (see Accessories, page 33).
1. If unit is already installed in replace, continue
with these instructions. If unit has not been
installed in replace, go to step 6 and continue
installation of remote accessory.
WARNING: Turn off heater
Gas Meter
Figure 17 - Checking Gas Joints (Natural
Gas Only)
Control Valve
Location
Equipment
Shutoff Valve
INSTALLATION
Continued
2. Carefully remove logs and set aside.
3. Locate mounting screws on sides of heater
base assembly and remove screws. Set screws
aside for reinstallation.
4. Disconnect gas line from heater base as shown
in Figure 11, page 13.
-
5. Remove heater base from replace.
6. Install receiver bracket to base with phillips
screws provided in hardware kit as shown in
Figure 18.
7. If installed, disconnect AUTO/OFF/ON
switch wire from control valve at TPTH and
TH locations (see Figure 19).
8. Install remote receiver into receiver bracket
using pads and push button clips provided
with receiver (see Figure 18).
Figure 18 - Installing Remote Receiver
Bracket
Figure 19 - Disconnecting Switch from
Control Valve
Remote
Receiver
Bracket
Electronic Ignitor
(On Base Assembly)
Push
Button
Clips
Pads
9-Volt
Battery
Battery
Clip
Terminal
Wires
Switch
Control
Valve
www.desatech.com
119162-01B 17
INSTALLATION
Continued
9. Connect wires from hardware pack (with re-
mote receiver bracket) to control valve at the
TPTH and TH locations as shown in Figure 20.
Connect other ends of these wires to remote
receiver wires. Note: Make sure excess wire
does not interfere with burner or pilot.
10.
If heater was removed from replace before
installation of remote accessory, see Installing
Heater Base Assembly on page 12 to reinstall
heater into replace. Test gas connection for leaks
(see Checking Gas Connections, page 15).
11. If logs were removed from heater for install
remote accessory, replace logs (see Installing
Logs,Embers and Lava Rock).
Figure 20 - Connecting Wires
Control Valve
White Wire to
White Wire on
Receiver
Red Wire to
Red Wire on
Receiver
INSTALLING SWITCH
The AUTO/OFF/ON switch for this log set will
need to be installed into the small single log
accompanying this log set. This switch needs to
be installed only if remote or wall switch is not
being used.
1. Slip wires of switch assembly through hole in
center of log (see Figure 22).
2. Snap switch assembly into place.
3. Attach wires to control valve as shown in
Figure 20.
Figure 21 - Installing Battery in Hand-Held
Remote Control Unit
9-Volt Battery
Battery
Housing
Battery Cover
Terminal
Wires
Remote
Control
Unit
and Hand Held Remote Control
Two 9-volt alkaline batteries (not included) are
required to operate this heater with the wireless
hand-held remote control set. One battery must be
installed in the receiver and one in the hand-held
remote control unit. Note: Only use alkaline
batteries.
1. Locate back of receiver behind receiver
bracket mounted on base assembly.
2. Locate the battery clip mounted on the back
of the receiver (see Figure 18, page 16).
3. Slide a 9-volt battery through the clip.
4. Attach the terminal wires to the battery.
Held Remote Control Unit
1. Remove battery cover on back of remote
control unit.
2. Attach terminal wires to the battery. Place
battery into the battery housing.
3. Replace battery cover onto remote control
unit.
-
Figure 22 - Installing AUTO/OFF/ON
Switch
Switch
www.desatech.com 119162-01B18
INSTALLATION
Continued
CAUTION: After installa-
With heater set to Hi, check to
It is very important to install these logs exactly
as instructed. Do not modify logs. Only use logs
supplied with heater.
1. Place rear log on base assembly as shown in
Figure 23. The log will t over right end of
burner and rest in the middle of U-burner.
2.
Place middle log in front of U-burner and against
the edges of plate as shown in Figure 24.
3. Place front left log (#3) onto pan burner be-
tween log #2 and grate. Back of log #3 should
t against front of log #2. Place front right
log (#4) onto pan burner between log #2 and
grate. Logs #3 and #4 have notched ends to
t over end of pan burner as shown in Figure
25. Back of log #4 should t against front
of log #2.
4. Place log #5 as shown in Figure 26. Top will
t onto right pin on back log (#1). Front of log
will t onto right pin on log #2.
5. Place left crossover log (#6) over left pins
on logs #1 and #2 as shown in Figure 26.
2
34
5
6
Figure 24 - Installing Log #2
Figure 25 - Installing Logs #3 and #4
Figure 26 - Installing Logs #5 and #6
1
Figure 23 - Installing Log #1
www.desatech.com
119162-01B 19
INSTALLATION
Continued
Figure 28 - Installing Log #7
OPERATING HEATER
FOR YOUR SAFETY
WARNING: If you do not fol-
low these instructions exactly,
-
A. This appliance has a pilot which must be
lighted by hand. When lighting the pilot,
follow these instructions exactly.
B. BEFORE LIGHTING smell all around the
appliance area for gas. Be sure to smell next
to the oor because some gas is heavier than
air and will settle on the oor.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electric switch; do not
use any phone in your building.
• Immediately call your gas supplier from
a neighbor’s phone. Follow the gas
supplier’s instructions.
• If you cannot reach your gas supplier, call
the re department.
C. Use only your hand to push in or turn the
gas control knob. Never use tools. If the
knob will not push in or turn by hand, don’t
try to repair it, call a qualied service tech-
nician or gas supplier. Force or attempted
repair may result in a re or explosion.
D. Do not use this appliance if any part has
been under water. Immediately call a
qualied service technician to inspect the
appliance and to replace any part of the
control system and any gas control which
has been under water.
Figure 27 - Placement of Embers
7
Ember
Material
6. Add embers to front at burner. Gently remove
embers from the bag using gloves or tweezers.
(This material is a skin irritant. Gloves
or tweezers are recommended to prevent
skin irritation). Separate pieces of ember
material and place over surface of at burner
(see Figure 27). Spread ember material evenly
over surface for greatest glowing effect. Do
NOT place ember material anywhere else
on the unit. Use only ember material sup-
plied with unit. Excessive ember material
may produce carbon monoxide or soot.
WARNING: Do not use rock
7. Place center crossover log (#7) onto pin on log
#5 and resting on grate as shown in Figure 28.
Log #7 must overlap grate and rest against grate
nger. Log must not rest on burner.
8. Add lava rock and small decorative logs
around base of heater if desired. DO NOT
place rock or additional logs on front
burner or on logs. Placing any material on
unit other than ember material on front burner
may result in production of carbon monoxide
or soot. Use lava rock to hide wires from
switch/log to control valve. Place switch/log
so the switch is easy to access.
Flat Front
Burner
www.desatech.com 119162-01B20
6. Press in and turn control knob counter-
clockwise to the PILOT position.
Press in control knob for ve (5) seconds
(see Figure 29).
Note: You may be running this heater for
the rst time after hooking up to gas sup-
ply. If so, the control knob may need to be
pressed in for 30 seconds or more. This will
allow air to bleed from the gas system.
7. With control knob pressed in, press and
release ignitor button on left side of log set.
This will light pilot. The pilot is attached
to the front of U-shaped burner. If needed,
keep pressing ignitor button until pilot
lights.
Note: If pilot does not stay lit, contact a
qualied service person or gas supplier for
repairs. Until repairs are made, light pilot
with match. To light pilot with match, see
Manual Lighting Procedure, page 21.
8. Keep control knob pressed in for 30 seconds
after lighting pilot. After 30 seconds, release
control knob.
• If control knob does not pop out when
released, contact a qualied service person
or gas supplier for repairs.
Note: If pilot goes out, repeat steps 4
through 8, page 20 and above.
9. Slightly push in and turn control knob coun-
terclockwise to the ON position. If
using a hand-held remote control accessory,
go to Optional Hand-Held Remote Operation
on page 21.
OPERATING HEATER
Continued
AUTO
OFF
ON
Figure 29 - Control Knob, Ignitor Button
and AUTO/OFF/ON Switch
Selector Switch
Control
Knob in OFF
Position
Flame
Adjustment
Knob
Ignitor
LIGHTING
INSTRUCTIONS
WARNING:
-
erate heater with doors closed,
•
Note: Home owners generally prefer to op-
erate their heater with the chimney damper
closed. This will put all the heat into the room.
However, there may be times you will desire
the full ames of the HI heat setting but will
nd the heat output excessive. You can open
the chimney damper (if you have one) fully or
partially to release some of the heat.
1. STOP! Read the safety information on
page 19.
2. Make sure equipment shutoff valve is fully
open.
3. Set switch to OFF position.
4. Press in and turn control knob clockwise
to the OFF position (see Figure 29).
5. Wait ve (5) minutes to clear out any gas.
Then smell for gas, including near the oor.
If you smell gas, STOP! Follow “B” in the
safety information, page 19. If you don’t
smell gas, go to the next step.
This manual suits for next models
7
Table of contents
Other Desa Gas Heater manuals
Desa
Desa LCB20PT Original instructions
Desa
Desa FLAME-MAX FVFM27PR Quick start guide
Desa
Desa BNG150T User manual
Desa
Desa Comfort Glow CGR2N Quick start guide
Desa
Desa Glo-Warm FA-20BB Quick start guide
Desa
Desa CBT30NT User manual
Desa
Desa VP10A Quick start guide
Desa
Desa CFN2800BTB Quick start guide
Desa
Desa PROPANE CONSTRUCTION CONVECTION HEATER User manual
Desa
Desa TC100VR User manual
Desa
Desa FLAME-MAX VML27NR Quick start guide
Desa
Desa VUL18NV User manual
Desa
Desa LSL3124N Quick start guide
Desa
Desa FLAME-MAX VML27NR Specification sheet
Desa
Desa Amity Quick start guide
Desa
Desa Firewerks MPF18VNA Quick start guide
Desa
Desa 6000 BTU/HR Quick start guide
Desa
Desa E18N User manual
Desa
Desa VGC18NR/PR Quick start guide
Desa
Desa RCLP50V User manual
Popular Gas Heater manuals by other brands
Bryant
Bryant 585B Installation, operation and maintenance instructions
PERFECTION-SCHWANK
PERFECTION-SCHWANK GM280TLP OWNER'S OPERATION AND INSTALLATION MANUAL
Sealey
Sealey LP13.V2 instructions
Avalon
Avalon 700 B-Vent owner's manual
Empire Heating Systems
Empire Heating Systems SR-10T-3 Installation instructions and owner's manual
Buderus
Buderus Logamax plus GB142-24 Installation and servicing instructions
Design Dynamics
Design Dynamics VF-18N-EMU OWNER'S OPERATION AND INSTALLATION MANUAL
Comfort Glow
Comfort Glow CGP10LA OWNER'S OPERATION AND INSTALLATION MANUAL
Empire Comfort Systems
Empire Comfort Systems VFCM-25-3 Installation instructions and owner's manual
Powrmatic
Powrmatic ErP NVS 30 User, Installation & Servicing Manual
Breckwell
Breckwell G2100CDV installation instructions
Breckwell
Breckwell G2500DV Installation and service manual
Williams
Williams 4003532 OWNER'S OPERATION AND INSTALLATION MANUAL
Century Hearth
Century Hearth JDVBRN Homeowner's installation and operating manual
Reznor
Reznor VPS Series PROPANE CONVERSION INSTRUCTIONS
Verine
Verine Fontana HE NPHL**RN Installation, maintenance & user instructions
Coleman
Coleman 5085A751 Instructions for use
Qlima
Qlima GH 8034 Directions for use
