Desa 3612ST User manual

For more information, visit www.desatech.com
SAVE THIS BOOK
This book is valuable. In addition to instructing you
on how to install and maintain your appliance, it also
contains information that will enable you to obtain re-
placement parts or accessory items when needed. Keep
it with your other important papers.
-
place or for use with a vented gas log approved to ANS
Z21.60 or Z21.84 standards or for use with a vent-free
gas log heater approved to ANS Z21.11.2 standard.
      
     



etc.) should be contacted before installation to deter-
mine the need to obtain a permit.


SEE-THRU WOOD BURNING
FIREPLACE
OWNER’S OPERATION AND
INSTALLATION MANUAL


www.desatech.com 115603-01C2
    -

-
      
installer or local distributor.
TABLE OF CONTENTS
Safety Information ............................................... 2
Product Dimensions ............................................ 3
Fireplace Installation............................................ 4
Venting Installation .............................................. 6
Optional Gas Line Installation............................ 12
Operation and Maintenance Guidelines ............ 13
Technical Service............................................... 14
Replacement and Accessory Parts.................... 15
SAFETY
This replace is intended for installation in ac-
cordance with the National Fire Protection As-
sociation Standard for Chimneys, Fireplaces,
Vents and Solid-Fuel Burning Fireplaces,
NFPA 211, and in accordance with codes
such as the BOCA Basic/National Code, the
Standard Mechanical Code, and the Uniform
Building Code.

-
less the manufacturer's instruc-

    
tested for use with the insert.

be used as a substitute for a fur-

for supplemental heat only.

 

or liquids in the vicinity of this
or any other appliance.
 
appliance should be located
     
furniture and draperies.
 

the appliance.
    -




Models (V)3612ST series is a wood burning
replace intended and approved for installa-
tion in either residential homes or buildings of
standard construction. This replace system
requires the utilization of DESA Heating, LLC
12" double wall, snap-lock ue pipe system.
Glass doors are optional with this replace
and come in different styles. For more infor-
mation see Glass Doors, page 13).
Before beginning the installation of the
fireplace, read these instructions through
completely.
• This DESA Heating, LLC fireplace and
its components are safe when installed
according to this installation manual. Use
only DESA Heating, LLC components,
which have been designed and tested for
the replace system. Failure to do this may
cause a re hazard.
• The DESA Heating, LLC warranty will be
voided by and DESAHeating, LLC disclaims
any responsibility for the following actions.
a. Modification of the fireplace, com-
ponents, doors, air inlet system and
damper control.
b. Use of any component part not manu-
factured or approved by DESA Heating,
LLC in combination with a DESA Heat-
ing, LLC replace system.
Proper installation is the most important step
in ensuring safe and continuous operation of
the replace. Although grounding may not be
required by code in your area, it must be electri-
cally grounded in accordance with local codes
or, in the absence of local codes, with the Na-
tional Electrical Code, ANSI/NFPA 70-1990.

www.desatech.com
115603-01C 3

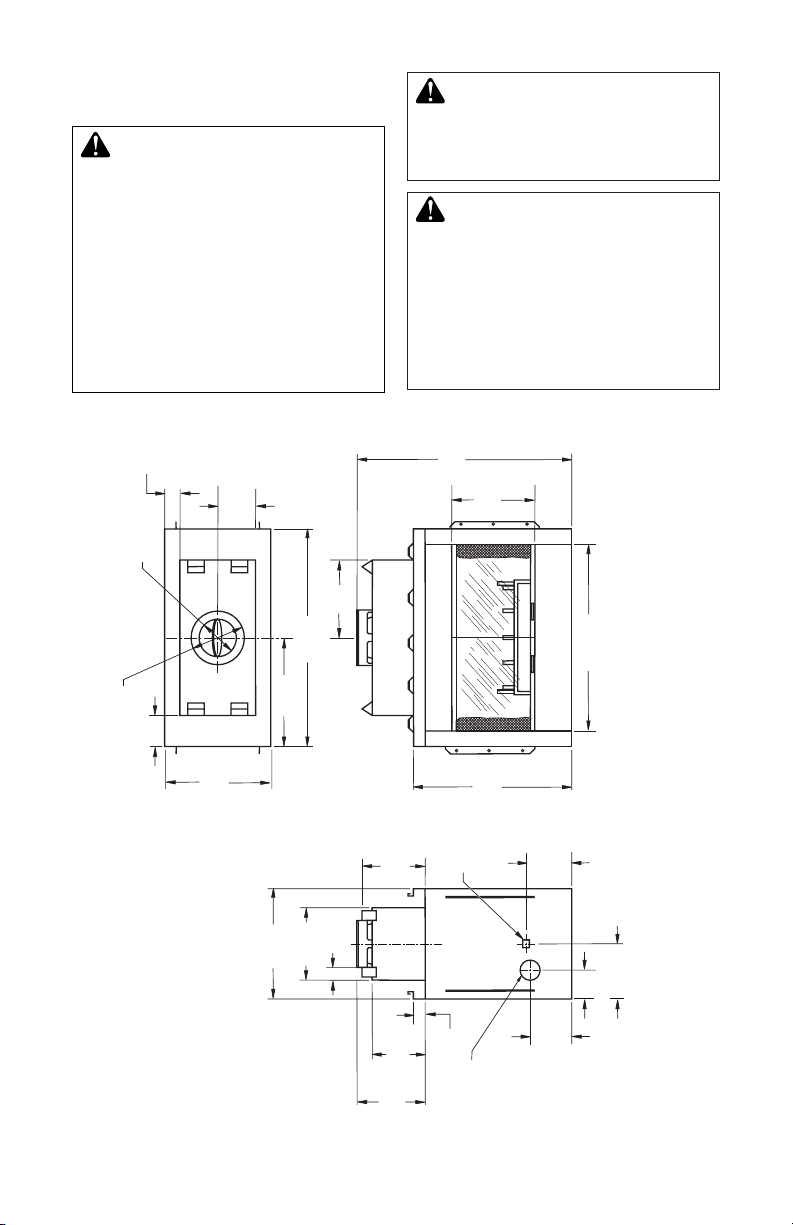

PRODUCT DIMENSIONS
12 3/8" Dia. I.D.
(31.4cm)
91/2"
(24.1cm)
21/2"
(6.3cm)
15" Dia. O.D.
(38.1cm) TOP VIEW
6"
(15/2cm)
Outside Air
371/2"
(95.2cm)
361/2"
(92.7cm)
151/2"
(39.3cm)
215/16"
(54.1cm)
41/2"
(11.4cm)
173/16"
(43.6cm)
11/2"
(3.8cm)
7"
(17.7cm)
101/4"
(26cm)
11 1/4"
(28.5cm)
12"
(30.4cm)
24"
(60.9cm)
19"
(48.2cm)
12"
(30.4cm)
17"
(40.6cm)
425/8"
(108.2cm)
523/4"
(134cm)
FRONT VIEW
201/2"
(52cm)
24"
(60.9cm)
Gas Line
Conduit
LEFT SIDE VIEW
SAFETY
Continued


only. When processed wood
      
poke or stir the logs while they

that have been evaluated for

     
caution markings on packaging
prior to use.
   
glass doors fully opened or
fully closed when operating

   
adults should be alerted to the
hazards of high surface tempera-
tures and to stay away to avoid

children should be carefully su-
pervised when in the same room

Figure 1 - (V)3612ST Dimensions

www.desatech.com 115603-01C4

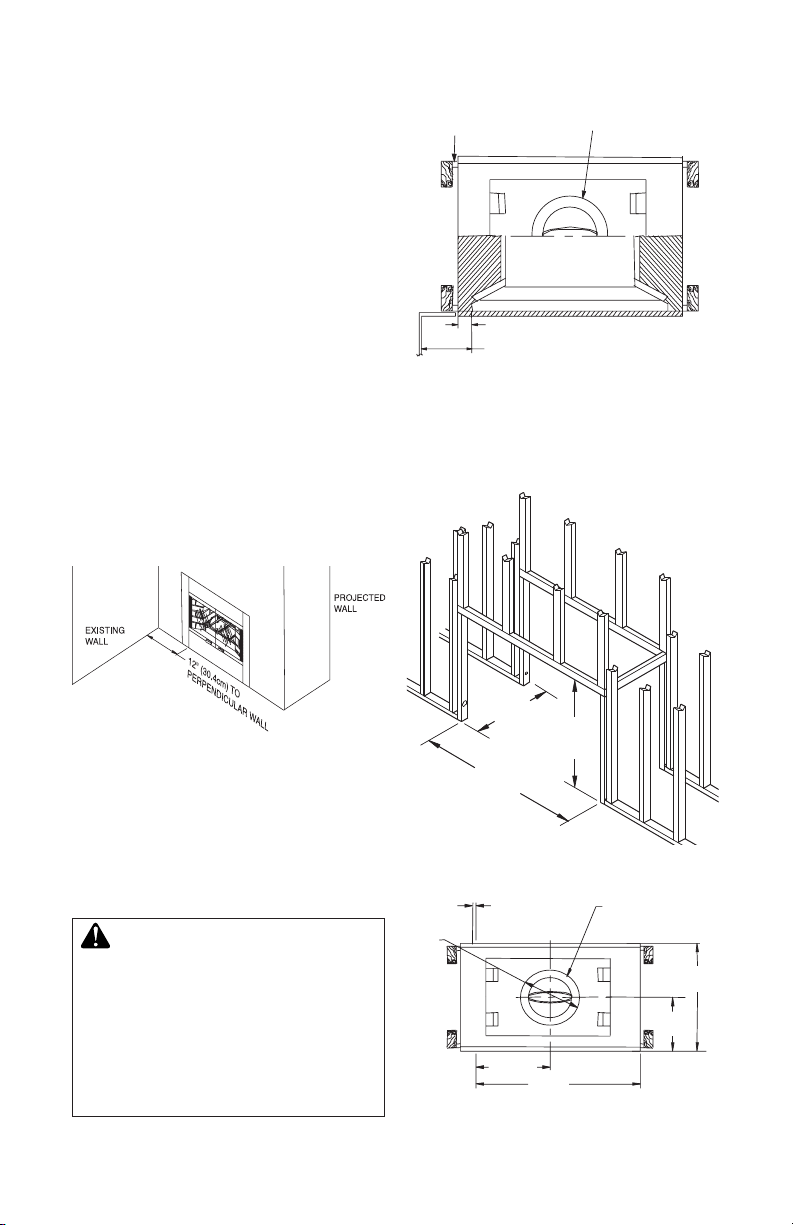

FIREPLACE INSTALLATION


Back and sides of replace 1/2" min.
Adjacent wall 12" min.
Chimney outer pipe surfaces 2" min.
Bottom of replace to oor 0" min.
    
required air spaces with insu-

not obstruct effective opening of

material. Combustible material
must not be in contact with black

Figure 2 - Common Location of Fireplace

1. Frame the opening for the replace using
the dimensions shown in Figures 4 and 5
and Figure 6 on page 5.
39 3/4"
(101cm)
Min.
43
1
/4"
(109.8cm)
23
5
/
8
"
(60cm)
Figure 4 - Framing Firebox
1" MIN (2.5cm) TO
COMBUSTIBLES
15" DIA.
O.D.
(38.1cm)
OUTER
PIPE
21
5
/
16
"
(54.1cm) 42
5/8
"
(108.2cm)
12"
(30.4cm)
24"
(60.9cm)
2" (5cm) MIN.
CLEARANCE
FROM OUTER PIPE
TO COMBUSTIBLES
Figure 5 - Framing Clearances
Spacers on Sides of Fireplace
Provide Required 1" (2.5 cm)
Clearance
2" (5 cm) Min. Clearance
From Pipe to Combustibles
3" (7.6 cm)
12" (30.4 cm) Min. From Perpendicular
Side Wall to Fireplace Opening (Typ.)
Figure 3 - Fireplace Clearances

To determine the safest and most efcient
location for the replace, you must take into
consideration the following guidelines:
1. The location must allow for proper clear-
ances (see Figure 2).
2. Consider a location where the heat output
will not be affected by drafts, air condition-
ing ducts, windows or doors.
3. A location that avoids the cutting of
joists or roof rafters will make installation
easier.
4. If an outside air kit is to be installed, ac-
cessibility to outside combustion air must
be considered. This can also be achieved
through a vented crawl space in some
cases (see Optional Outside Air Kit on
page 6).
The typical installation for a (V)3612ST is a
projected installation which allows you to ex-
tend the replace any distance into the room.
A projection may be ideal for a new addition
on an existing, nished wall.

www.desatech.com
115603-01C 5
22 3
/
4"
(57.7cm)
PLATFORM MUST BE
SOLID, FLAT, AND
FULLY SUPPORTED
"Z" TYPE EMBER PROTECTOR
(NOT SUPPLIED)
AS REQUIRED BY DESIGN
AS LONG AS CEILING
CLEARANCE IS MAINTAINED
44
5
/
8
"
(113.3cm)
53
7
/
16
"
(135.7cm)
MIN.
Figure 6 - Framing Firebox with “Z” Type
Ember Protectors
2. If replace is to be installed directly on
carpeting, tile (other than ceramic) or any
combustible material other than wood
ooring, replace must be installed upon
a metal or wood panel extending full width
and depth of replace.
3. Set replace directly in front of opening
and slide unit back until nailing anges
touch side framing.
4. Check the level of replace and shim with
sheet metal if necessary.
5. Before securing fireplace to prepared
framing, ember protector (provided) must
be placed between hearth extension (not
supplied) and under bottom front edge of
replace to protect against glowing embers
falling through (see Figure 7). If replace
is to be installed on a raised platform, a Z-
type ember protector (not supplied) must
be fabricated to t your required platform
height (see Figure 6). The ember protector
should extend under replace a minimum
of 1 1/2". The ember protector should be
made of galvanized sheet metal (28 gauge
minimum) to prevent corrosion.
6. Using screws or nails, secure replace to
the framing through anges located on
sides of the replace (see Figure 8).
FIREPLACE INSTALLATION
Continued
Figure 7 - Ember Protectors
Ember Protector
(Typ of 2)
1/2"
(1.2 cm)
Maximum
Figure 8 - Nailing Flanges
Nailing
Flanges
Prepared
Framing
Nails or
Screws
3/4"
Clearance is
Not Required
at Nailing
Flanges

A hearth extension projecting a minimum of
16" in front of and a minimum of 8" beyond
each side of the replace opening is required
to protect combustible floor construction
in front of replace (see Figure 9, page 6).
Fabricate a hearth extension using a material
which meets the following specications: a
layer of noncombustible, inorganic material
having a thermal conductivity of K=0.84 BTU
IN/FT, HR. F (or less) at 1" thick. For example,
if the material selected has a K factor of 0.25,
such as glass ber, the following formula
would apply:
0.25 x 1.0" = 0.30" thickness required
0.84
Thermal conductivity "K" of materials can be
obtained from manufacturer or supplier of
noncombustible material.
If hearth extension is to be raised, a “Z” type
ember protector must be used (see Figure 6
and Figure 10, page 6)

www.desatech.com 115603-01C6
FIREPLACE INSTALLATION
Continued

Woodwork such as wood trims, mantels or
any other combustible material projecting from
Figure 12 - Mantel Clearances to Metal
Face
VENTING INSTALLATION
8" Max.
“K” Facto
r
.84
1 1/2" Typ.
1 1/2" Typ.
Noncombustible
Hearth
Extension
“Z” Type Ember
Protector
Noncombustible
Hearth Extension
Ember Protector
Figure 10 - Raised Hearth Extension
Front
Face
Fireplace Front View
Fireplace Side View
3" Nom.
(7.6 cm)
9" Min.
(22.8 cm)
12" Min.
(30.4 cm)
33°
6" Nom.
(15.2 cm)
1 1/2" Max.
(3.8 cm)
Drywall
2" X 4" Stud
Combustible
Materials
Figure 11 - Mantel Clearances to
Combustible Materials
Seal Gaps with
Noncombustible
Mortar or Adhesive
T o p View of Fireplace
Drywall
4"
(Approx.)
(10.1 cm) 33°
Nom.
6" Nom.
(15.2 cm)
4 3/8"
Min.
(11.1 cm)
Combustible
Material Must
Not Overlap
Black Metal
Front Face
2 3/4" Max.
(6.98 cm)
NONCOMBUSTIBLE
HEARTH EXTENSION
52
1
/
2
" MIN.
(133.3cm)
36
1
/
2
" MIN.
(92.7cm)
8" MIN.
(20.3cm)
16" MIN.
(40.6cm)
Figure 9 - Hearth Extensions
the front face must not be placed within 9" of
replace opening.
Combustible materials above and projecting
more than 1 1/2" from the replace front face
(see Figure 11) must not be placed less than 12"
from effective opening of the replace (NFPA
STD 211, Sec. 7-3.3.3).
Mantels or any other combustible material
may also come up to the side edge of the
black metal face of the replace only if the
projection from the front face falls within limits
shown in Figure 12.


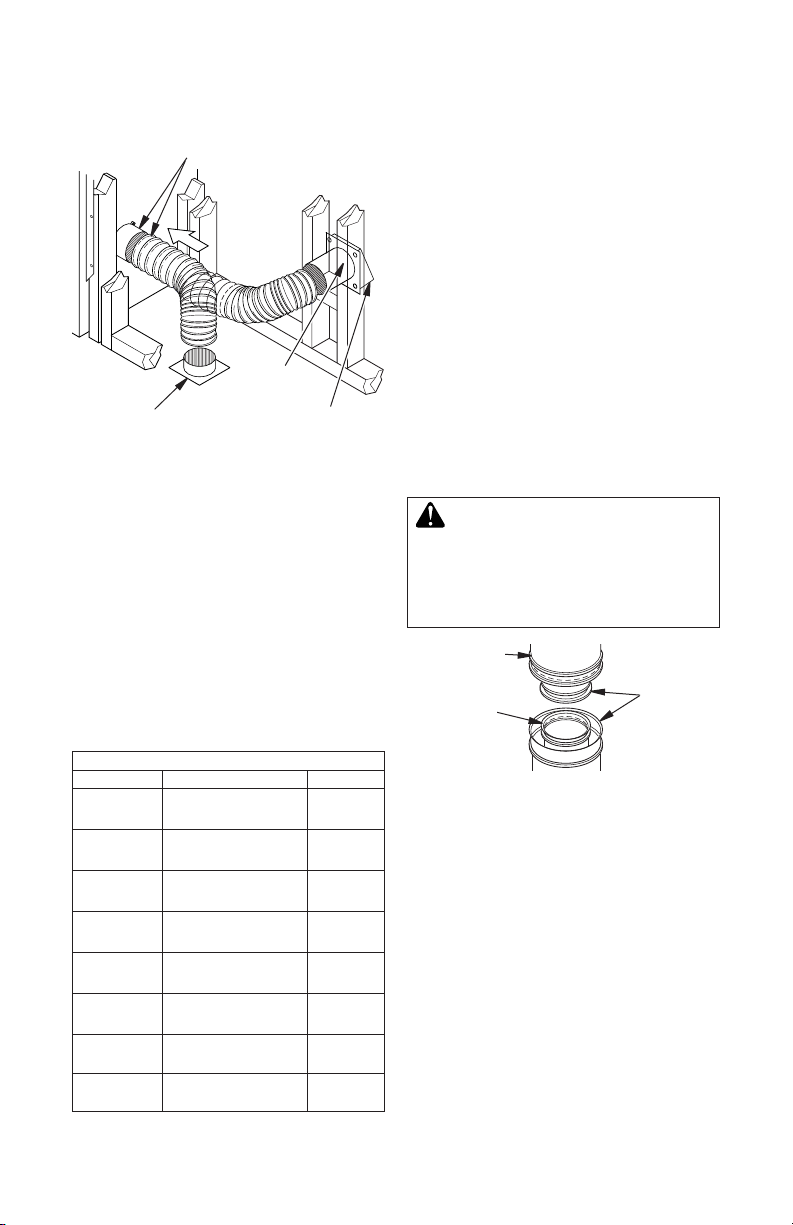

The installation of an outside air kit should
be performed during the rough framing of
the replace due to the nature of it’s location.
Outside combustion air is accessed through
and exterior wall or a vented crawl space.

not terminate in attic space.
Maximum height for air inlet above the re-
place platform must be no less than 3 feet
below chimney cap.
For further details on installation of outside
air kit, please refer to instructions included
with air kit.

www.desatech.com
115603-01C 7
Figure 14 - Pipe Connection

  
V3612ST See-Through
Fireplace 52 3/4
"
48-12DM
48-12TM Flue Pipe 46 5/8
"
36-12DM
48-12TM Flue Pipe 34 5/8
"
24-12DM
48-12TM Flue Pipe 22 5/8
"
18-12DM
48-12TM Flue Pipe 16 5/8
"
12-12DM
48-12TM Flue Pipe 10 5/8
"
STL-12D Chase Style
Termination 1" to 12"
RTL-12D Round Top
Termination 7
"
Hemmed
End
12 3/8"
Stainless
Inner Pipe
15" Galvanized
Outer Pipe

The pipe sections must be assembled inde-
pendently as the chimney is installed. When
connecting chimney directly to the replace,
the inner ue pipe section must be installed rst
with the lanced side up. The outer pipe section
can then be installed over the ue pipe section
with the hemmed end up. Press down on each
pipe section until the lances securely engage
the hem on the replace starter. The wire will
assure the proper spacing between the inner
and outer pipe sections.
Continue to assemble chimney sections as
outlined above, making sure that both the
inner and outer pipe sections are locked to-
gether. When installing double wall snap-lock
chimney together, it is important to assure the
joint between the chimney sections is locked.
Check by pulling chimney upward after lock-
ing. The chimney will not come apart if prop-
erly locked. It is not necessary to add screws
to keep the chimney together (exception, see
Figure 17, page 8).

collar around the chimney at the
      
obstructed.Never use blowninsula-


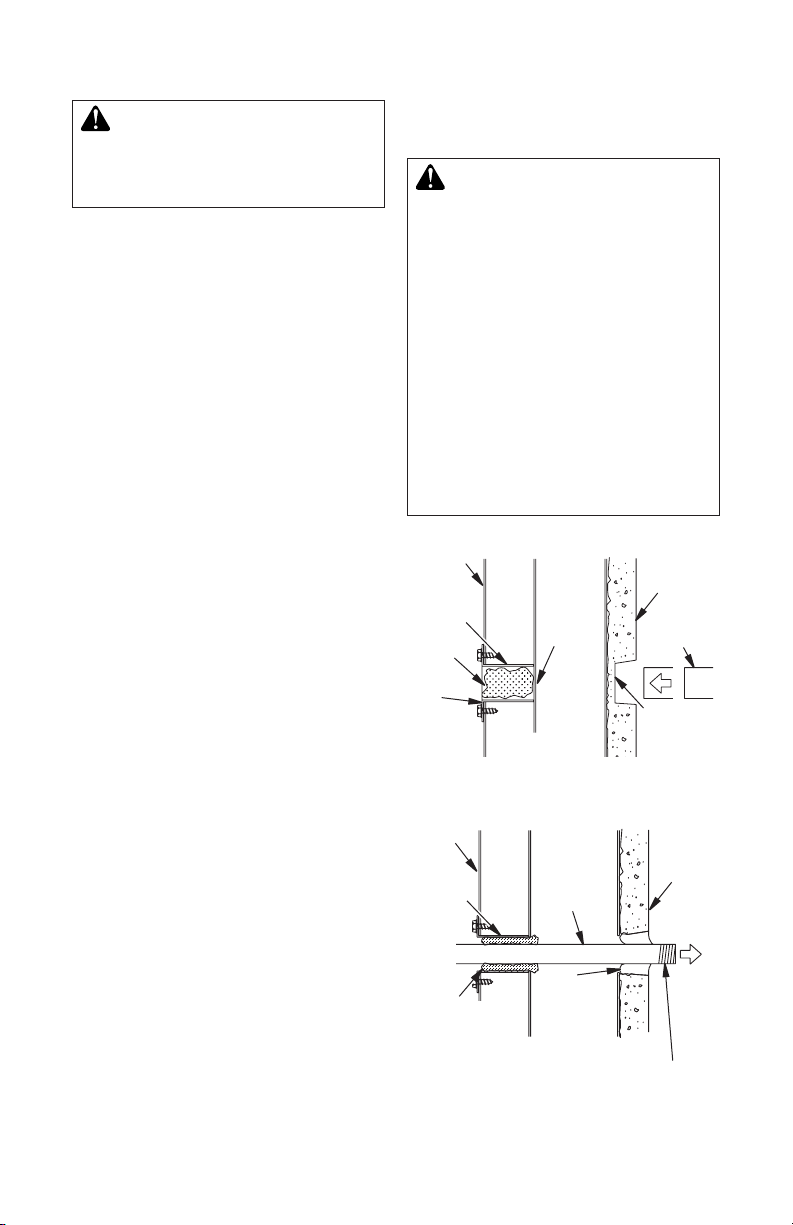

Figure 13 - Outside Air Kit Installation
Secure to Collars with
Duct Tape or Screws
Air Inlet
Location
Must Allow
For Bushes
or Snow
Vent Hood
Required for
Wall Installation
Air Inlet
Termination
Vented Crawl Space
(Check Local Codes
Before Installing in a
Vented Crawl Space)

The DESA chimney is a snap-lock, double-
wall pipe. It consists of a stainless steel inner
ue pipe(s), a galvanized outer pipe and a
wire spacer.
Each section of pipe comes in lengths of 12",
18" 36" and 48". The actual lineal gain for
each is measured after each section is fully
connected. Lineal gain is the actual measur-
able length of a part after two or more parts
are connected.
VENTING INSTALLATION
Continued


Chimney weight above offset rests on return
elbow. Straps must be securely nailed to raf-
ters or joists (see Figure 15, page 8).
To achieve desired offset, you may install
combinations of 12", 18", 36" and 48" length
of double wall pipe (see offset chart and
Figure 16, page 8).
The chimney support section is a 4" strap
and 12" length of pipe. A chimney support is
required every 30 feet above replace after a
straight chimney run or above a return elbow
after a straight chimney run (see Figure 17,
page 8). This support is designed to relieve
the extra weight load on replace and elbows
when high chimneys are installed.

www.desatech.com 115603-01C8
2" (5.1cm)
Minimum
VENTING INSTALLATION
Continued
OFFSET CHART
Figure 17 - Chimney Supports
Straps
  
A B 48"  18" 12"
4 3/8" 16 3/8" ELBOW SET ONLY
9 1/2" 25 1/4" 1
12 1/2" 30 3/8" 1
14 3/8" 34" 2
17 5/8"39 1/4" 1 1
21 1/2" 46" 1
22 3/4" 48 1/8" 1 2
26 3/8" 54 7/8" 1
26 3/8" 60" 1 1
31 3/4" 63 3/4" 1 1
34 3/4"69" 1 1
38 5/8" 75 5/8" 2
39 7/8" 77 7/8" 1 1 1
43 3/4" 84 1/2" 1 1
46 3/4" 87 3/4" 2 1
48 7/8"93 3/8" 2
Figure 16 - Rise and Offset
B
A
Screws
2" (5.1cm)
Minimum
Angled Firestop
Ceiling
Support
Return
Elbow
TYPICAL OFFSET INSTALLATIONS
OFFSET
ELBOW
OFFSET
ELBOW
RETURN
ELBOW
OFFSET
ELBOW
RETURN
ELBOW
RETURN
ELBOW
RETURN
ELBOW
CEILING
SUPPORT
PIPE
V12S-8DM
6' MAX
(15.2cm)
6' MAX
(15.2cm)
6' MAX
(15.2cm)
6' MAX
(15.2cm)
6' MAX
(15.2cm)
6' MAX
(15.2cm)
Figure 18 - Typical Offset Installations

Firestop spacers are required at each point
where the chimney penetrates a oor or ceil-
ing joist space. Their purpose is to establish
and maintain the required clearance between
the chimney and the combustible materials.
When the pipe passes through a framed
opening into a living space above, the restop
must be placed onto the ceiling from below as
shown in Figure 19, page 9.
They also provide complete separation from
one oor space to another or attic space as
required by most codes. When the double wall
pipe passes through a framed opening into an
attic space, the restop must be placed into an
attic oor as shown in Figure 20, page 9.
When penetrating a floor or ceiling at an
angle, use restop spacer number 30 FS-
10D (see Replacement and Accessory Parts,
page 15).
30 FT.
(9.14m)
30 FT.
(9.14m)
Figure 15 - Elbow Offset
Return
Elbow
12S-12DM
Support
Required
Maximum length of pipe between supports
is 6' of angle run. Maximum of two 6' angle
run sections per chimney system (see Figure
9, page 8).

www.desatech.com
115603-01C 9
VENTING INSTALLATION
Continued

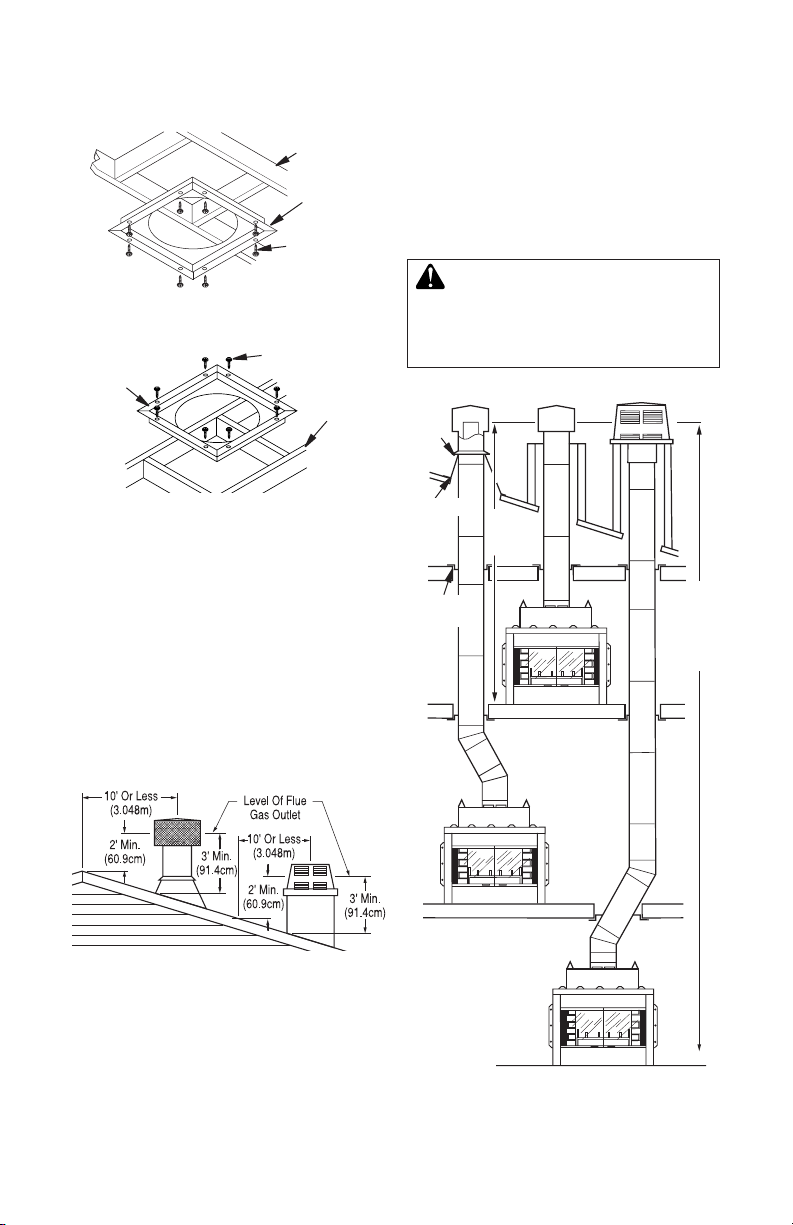

Figure 19 - Firestop Spacer with Living
Space Above Ceiling
Figure 20 - Firestop Spacer with Attic
Space Above Ceiling
Existing
Ceiling
Frame
Firestop
Spacer
Screws or
Staples
(Min. of 8)
Firestop
Spacer
Screws or Staples
(Min. of 8)
Existing
Ceiling
Frame
Figure 21 - 10 Foot Rule

All chimney terminations must extend a mini-
mum of 3 feet above the highest point where it
passes through the roof and must be at least 2
feet above roof with a 10 foot horizontal span
(see Figure 21).
IMPORTANT: If an exposed portion of chim-
ney is greater than 4 feet above the rooine,
use support wires to keep chimney secure.
Support wires may be attached to outer pipe
of chimney with screws, if screws do not
penetrate inner ue pipe.
MINIMUM
HEIGHT
15 FT.
(4.5m)
MAXIMUM
HEIGHT
CHASE
TERMINATION
40 FT.
(12m)
Figure 22 - Maximum Chimney Height
Storm
Collar
Flashing
Firestop
Spacer
RTL-12D RTL-12D STL-12D


The minimum height of the chimney (mea-
sured from the base of the replace to the ue
gas outlet-end of pipe) is 16 feet for a straight
run, 16 feet minimum for a run with 1 elbow set
and 25 feet minimum for a run with 2 elbow
sets. (A set consists of one starter elbow and
one return elbow.)
Uncommon circumstances such as neigh-
boring hills, tall trees, or strong wind areas
can cause down drafts in chimney system.
In such cases, going beyond the minimum
recommended height would be preferable to
provide a better draw.
The replace height approved for any chim-
ney run with this replace system is 40 feet
measured from bottom of replace to ue
outlet-end of pipe (see Figure 22).
    -
ate an unvented gas log set in

removed.

www.desatech.com 115603-01C10
VENTING INSTALLATION
Continued
Nail Only
Outer
Perimeter
of Flashing
Storm
Collar
Flashing
Cone
Underlap
Shingles
at Bottom
Overlap
Shingles Top
and Sides Only
Figure 24 - Flashing Installation

To maintain a 1" clearance to pipe on a roof with
a pitch, a rectangular opening must be cut.
1. Determine the center point through which
pipe will penetrate roof.
2. Determine center point of roof. Pitch is the
distance the roof drops over a given span,
usually 12". A 6/12 pitch means that the
roof drops 6" for each 12" one measure
horizontally down from roof rafters.
3. Use roof opening chart (Figure 23) to
determine correct opening length and
ashing required.
4. Remove shingles around opening mea-
sured. Cut out this section.
5. Add next sections of pipe until end
penetrates roof line. Check to see that
proper clearances are maintained. Extend
chimney by adding sections of double wall
pipe until pipe is minimum of 30" above
highest point of roof cutout. Termination
and chimney must extend a minimum of
36" above highest point where it passes
through the roof.
Figure 25 - Storm Collar
Chimney
Pipe
Waterproof
Caulk
Storm
Collar Flashing

Determine ashing to be used with roof open-
ing chart. Slide ashing over pipe until base is
at against roof. Replace as many shingles as
needed to cover exposed area and ashing
base. Secure in position by nailing through
shingles (see Figure 24). DO NOT NAIL
THROUGH FLASHING CONE.


Place storm collar over pipe and slide down
until it is snug against the open edge of the
ashing (see Figures 24 and 25). Apply wa-
terproof caulking to all seams and notches
around storm and also at base around
shingles.
Pitch Slope Opening



Flat 0° 19" V6F-10DM
0-6/12 26.6° 23.25" V6F-10DM
6/12-
12/12 56.3° 30.75" V12F-10DM
Figure 23 - Roof Opening Measurements
Opening
“A”
19" Min.
(48.26cm)
30" Min.
(76.2cm)
2" Min.
(5.08cm)
2" Min.
(5.08cm)
2" Min.
(5.08cm)

The replace system must be terminated with
the listed round top or chase terminations. In
any case, refer to the installation instructions
supplied with the termination.
Terminations approved for this replace are
RTL-12D, which can be used for ashing or
chase and STL-12D for chase style termina-
tion only. Figure 26, page 11, shows an RTL-
12D round top termination.
-
-
low the installation instructions
provided with the termination
being used.

www.desatech.com
115603-01C 11
Secure
Termination
to Outer
Pipe with 3
Screws
RTL-12D
Stainless
Inner Flue
Pipe
Apply
Waterproof
Caulking
Storm
Collar
Flashing
Underlap
Shingles

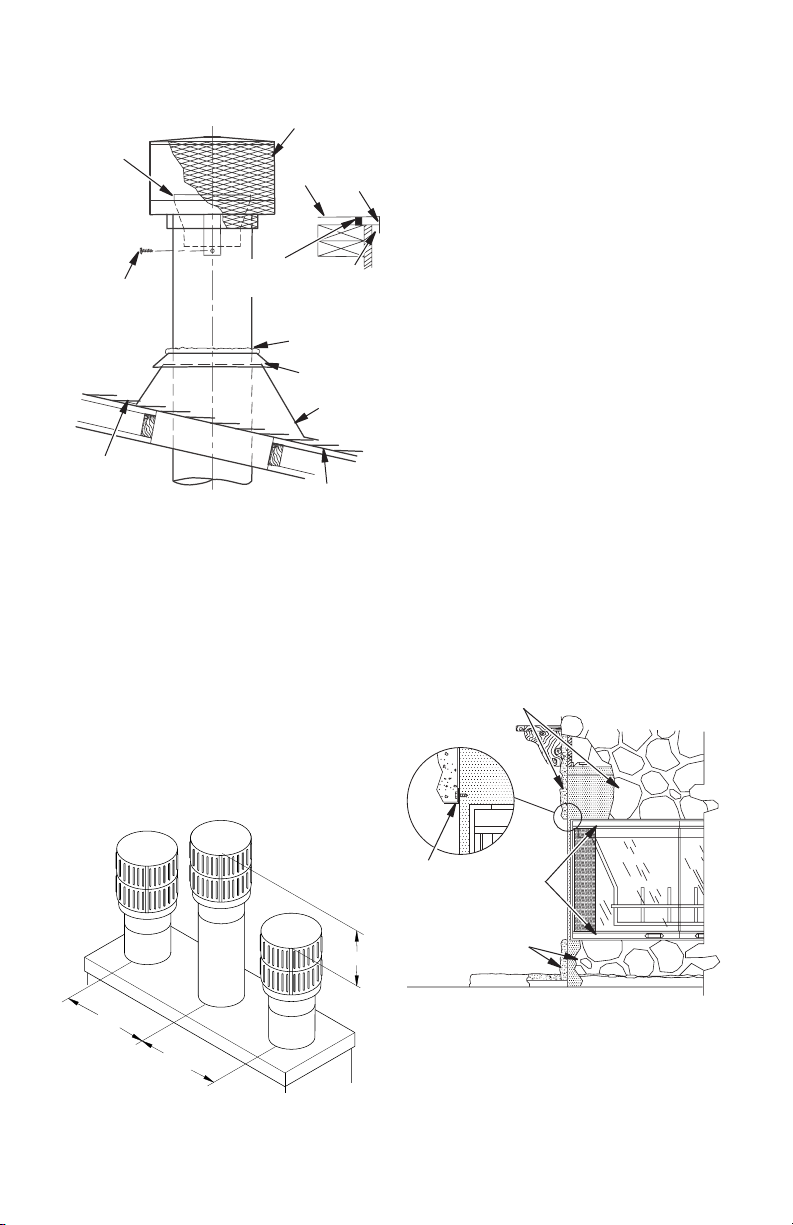

Figure 26 - Terminations
Overlap
Shingles (Top
and Sides of
Flashing Base)
VENTING INSTALLATION
Continued

Instructions for chase installations are
included with the chase style termination
chosen. In a multiple chase installation, be
sure to provide adequate distance between
terminations to prevent smoke spillage from
one termination to another. Terminations must
be separated a minimum of 30" center to cen-
ter and stacked at a minimum vertical height
difference of 18" (see Figure 27).
Note: If a decorative shroud is to be installed,
contact the manufacturer for specications.

Combustible materials, such as wallboard,
gypsum board, sheet rock, drywall, plywood,
etc. may make direct contact with sides and
top around the replace face. It is important
that combustible materials do not overlap the
face itself. Brick, glass, tile or other noncom-
bustible materials may overlap the front face
provided they do not obstruct essential open-
ings like louvered slots or any other opening.
When overlapping with a noncombustible
facing material, use only noncombustible
mortar or adhesive.

Any noncombustible material may be used for
facing (glass, tile, brick, etc.) as long as proper
clearances are adhered to and fireplace
openings are not obstructed in any way (see
Minimum Clearance to Combustibles, page
4 and Figure 28).
Use only heat resistant, noncombustible mor-
tar or adhesive when securing facing material
to front of replace. When placing facing at
upper edge of effective opening of replace,
provide “L” shaped piece of metal extending
full width of opening (see Figure 28).
Secure with sheet metal screws at a distance
high enough from edge so it doesn't interfere
with operation of doors. This assures that fac-
ing material will not block openings.
24" Min.
24" Min.
18"
Min.
Typ.
Figure 27 - Multiple Chase Installation
1"
Space
Screen
Chase
Top
“L” Shaped
Metal
Support
Noncombustible
Facing Material
Noncombustible
Facing Material
Do Not
Block
Opening
Figure 28 - Fireplace Facing (Your
Fireplace May Vary from Illustration)
1"
Noncombustible
Spacer

www.desatech.com 115603-01C12
refractory cement or commercial furnace
cement, Install the gas appliance or cap
off gas line if desired.
    
and connections must be tested
for leaks after the installation
is completed. After ensuring
that the gas valve is on, apply
soap and water solution to all

forming show a leak. Correct

    
 -


-

Figure 29 - Gas Line Knockout
Side
Firebrick
Finished
Side
Refractory
Knockout
Plug
Outside of
Fireplace
Gas Line
Conduit
Insulation
Gas
Conduit
Cover
1/2" Dowel
Remove
Knockout
OPTIONAL GAS LINE INSTALLATION
Seal
Opening
with
Refractory
Cement
Outside of
Fireplace
Gas
Line
Conduit
Repack
Insulation
Incoming
1/2" Black
Iron Pipe
Side
Firebrick
Finished
Side
Provide Enough Threaded
End for Fitting Connection
Figure 30 - Gas Line Installation
   
service person must connect

all local codes.
NOTICE: Before you proceed, make sure your
gas supply is turned off.
A gas line may be installed for the purpose
of installing a vented or vent-free decorative
gas appliance available through your local
distributor. Use only gas piping approved
by local codes. When installing a gas line, a
shutoff valve designed for installation outside
the appliance is recommended.
The gas pipe is intended for connection to
a decorative gas appliance that operates
using natural or propane/LP gas only. This
appliance must have an automatic shutoff
device and must comply with the Standard
for Decorative Gas Appliances for Installa-
tion in Vented Fireplace, ANSI Z21.60-1990.
ONLY UNVENTED GAS LOG SETS WHICH
HAVE BEEN FOUND TO COMPLY WITH
THE STANDARD FOR UNVENTED ROOM
HEATERS, ANSI/IAS/AGA Z21.11.2, ARE TO
BE INSTALLED IN THIS FIREPLACE.
Use only a 1/2" black iron pipe and appropri-
ate ttings.
1. Remove knockout indentation on refrac-
tory or rebrick wall located approximately
2" above the refractory hearth oor. The
knockout indentation must be rmly tapped
with any solid object such as a 1/2" dowel
until it is released. Remove fragmented
portions of refractory (see Figure 29).
2. Remove gas line cover plate located on
rear of replace and pull out insulation from
gas line conduit sleeve. Save insulation for
reuse.
3. Run gas line into the replace through
the rear at 11 1/4" from oor and through
gas line conduit sleeve (if using a raised
platform, add height). Provide sufcient
gas line into replace chamber for tting
connection (see Figure 30).
Note: Secure incoming gas line to
wood framing to provide rigidity for
threaded end.
4. Repack insulation around gas line and into
sleeve opening. Seal any gaps between
gas line and refractory knockout hole with

www.desatech.com
115603-01C 13
Figure 31 - Bi-Fold Glass Doors
Doors Fully Closed
Fireplace Front
Fireplace Front
Doors
Fully Opened
  
equipped with glass doors
should be operated only with
doors fully opened or doors fully


   

    -
ate an unvented gas log set in

removed.
    
has been used for wood burning,

cleaned of soot, creosote and
    
cleaner. Creosote will ignite if
heavily heated.
OPTIONAL GAS LINE INSTALLATION
Continued

Clean glass with any commercial glass
cleaner or soap and water. Do not use any
abrasive material to clean glass. Do not clean
glass with any cool water if glass is still hot
from the re. To remove doors, refer to instruc-
tions included with glass door kit.
    
decorative vented gas log, the
damper must be removed or per-
manently locked in the fully open
positionandtheglass doors must
be in the fully open position.
Note: An appropriate DESA Heating, LLC
hood (see Replacement and Accessory Parts,
page 15) must be installed when using an
unvented gas log set.
OPERATION AND MAINTENANCE GUIDELINES

Bi-fold glass doors are optional with this
replace. Check with your local distributor
for availability.
To install glass doors, refer to installation
instructions that are included with kit. When
replace is in operation, doors must be fully
open or fully closed position only or a re haz-
ard may be created (see Figure 31).
A replace equipped with glass doors oper-
ates much differently than a replace with an
open front. A replace with glass doors has a
limited amount of air for combustion. Excessive
heat within the replace can result if too large
a re is built or if combustion air gate is not
completely open.
The following tips should be followed to as-
sure that both the replace and glass door
retain their beauty and function properly.
• Both the ue damper and glass doors must
be fully opened before starting re. This
will provide sufcient combustion air and
maintain safe temperatures in rebox.
• The glass must be allowed to warm slowly
and evenly. The tempered glass will with-
stand a gradual temperature rise to 550° F,
which is more than a normal re will gener-
ate. Such materials as pitch/wax laden logs,
very dry mill end lumber and large amounts
of paper or cardboard boxes. Always keep
the re well back from the doors and never
allow ames to contact the glass.

www.desatech.com 115603-01C14
OPERATION AND MAINTENANCE GUIDELINES
Continued
ways open mechanism when starting a re.
This provides adequate outside combustion
air. Close mechanism when not in use to
prevent cold air from entering room. Periodi-
cally check your outside air intake vent hood
for any possible obstructions such as snow,
bushes, etc.

The grate is designed to provide you with the
maximum solid fuel capacity. Do not overload
grate or obstruct required air space beneath
it. Doing so may cause smoke spillage and
a re hazard.
     -
  

grate has been designed to keep
    

Never obstruct ow of combustion and ven-
tilation air. Keep front of replace clear of all
obstacles and materials.

Have your chimney system cleaned and in-
spected regularly to ensure safe and efcient
operation.

The damper control lever is located inside the
re chamber (see Figure 32). Make sure lever
is cool before handling. Pull down to close and
push up to open. Damper must be open when
lighting a re. Not doing so will cause smoke
spillage into the room. When replace is not
in use, close damper to prevent down drafts
to enter room.
GRATE
OUTSIDE AIR
HANDLE
PULL TO CLOSE
PUSH TO OPEN
DAMPER CONTROL LEVER
PULL DOWN TO CLOSE
PUSH UP TO OPEN
Figure 32 - Damper Operation

The outside air handle is located at the right
hand side of replace rear refractory (see
Figure 32). Pull to close, push to open. Al-
TECHNICAL SERVICE
You may have further questions about installa-
tion, operation, or troubleshooting. If so, con-
tact DESA Heating, LLC at 1-866-672-6040.
When calling please have your model and
serial numbers of your heater ready.
You can also visit DESA Heating, LLC’s web
site at www.desatech.com.

www.desatech.com
115603-01C 15

Black - 01244
Brass - 01245
Chrome - 01246





and inner pipes and comes with wire
spacer. Also available in triple wall.)





in triple wall.)

Vent Plaster
Collar
Vent Hood
Connector
Duct - 4" x 3'


for Straight Pipe



V
Pitch

12/12 Pitch


Econo Top Termination



Brass

Brass

Brass Trim




REPLACEMENT AND ACCESSORY PARTS

NOT A UPC
115603-01
Rev. C
12/08
115603 01
DESA Heating, LLC
2701 Industrial Drive
Bowling Green, KY 42101
www.desatech.com
1-866-672-6040
