Desa (v)3612st User manual

SEE-THRU WOOD

BURNING FIREPLACE

INSTALLATION AND OPERATING

INSTRUCTIONS

Save this manual for future reference.

For more information, visit www.desatech.com

Model (V)3612ST

WARNING:Thisfireplaceisintendedforuse

withwood,orifadecorativegasapplianceis

installed, burn propane or natural gas only.

WARNING: Always leave glass doors fully

opened or fully closed when operating the

appliance.

FOR YOUR SAFETY

Do not store or use gasoline or other

flammable vapors and liquids in the vicinity

of this or any other appliance.

WARNING: Improper installation, adjust-

ment, alteration, service, or maintenance

cancauseinjuryorpropertydamage,orloss

oflife.Refertothismanualforcorrectinstal-

lation and operational procedures. For as-

sistance or additional information consult a

qualified installer, service agency, or the

gas supplier.

SAVE THIS BOOK

This book is valuable. In addition to instruct-

ing you on how to install and maintain your

fireplace,italsocontainsinformationthatwill

enable you to obtain replacement parts or

optionalaccessoryitemswhen needed. Keep

it with your other important papers.

Check local codes before installing this

fireplace.

OMNI Test Laboratories

115603-01A

For more information, visit www.desatech.com

TABLE OF CONTENTS

PRODUCT DIMENSIONS

Figure 1 - Product Dimensions

PRODUCT DIMENSIONS

24"

(60.9cm)

19"

(48.2cm)

(11.4cm)

(3.8cm)

(95.2cm)

(92.7cm)

(52cm)

(39.3cm)

(24.1cm)

(6.3cm)

(108.2cm)

(54.1cm)

15" Dia.

(38.1cm)

O.D. 12 Dia. I.D.

(31.4cm)

24"

(60.9cm)

(15.2cm)

(134cm)

17"

(40.6cm)

(26cm)

(28.5cm)

(177mm)

Outside Air

Left Side View

Front View

Top View

Gas Line

Conduit

(43.6cm) 12"

(30.4cm)

12"

(304mm)

TABLE OF CONTENTS

PRODUCT DIMENSIONS........................................................... 2

INTRODUCTION......................................................................... 3

SAFETY INFORMATION ............................................................ 3

BEFORE YOU BEGIN ................................................................ 3

FIREPLACE INSTALLATION ...................................................... 4

OUTSIDE AIR KIT INSTALLATION ............................................. 7

GAS LINE INSTALLATION ......................................................... 7

VENTING INSTALLTION ............................................................ 8

OPERATING GUIDELINES AND MAINTENANCE

INSTRUCTIONS ................................................................. 14

TECHNICAL SERVICE ............................................................. 15

REPLACEMENT AND ACCESSORY PARTS ........................... 16

OWNER'S REGISTRATION FORM .......................................... 17

115603-01A

For more information, visit www.desatech.com

INTRODUCTION

SAFETY INFORMATION

BEFORE YOU BEGIN

INTRODUCTION

Model (V)3612ST series is a wood-burning fireplace intended and

approved for installation in either residential homes or buildings of

standard construction. This fireplace system requires the utilization

of a DESA 12" double wall, snap-lock flue pipe system.

GLASS DOORS are optional with this fireplace and come in

different styles. For further details (see page 14).

BE SURE TO CHECK WITH YOUR LOCAL BUILDING

CODES FOR AREA REQUIREMENTS BEFORE IN-

STALLING THIS FIREPLACE.

SAFETY INFORMATION

1. This fireplace reaches high temperatures. Keep children and

adults away from hot surfaces to avoid burns or clothing igni-

tion. Fireplace will remain hot for a time after shutdown. Al-

low surfaces to cool before touching.

2. Carefully supervise young children when they are in the room

with fireplace.

3. Do not modify this fireplace under any circumstances. Any

parts removed for servicing must be replaced prior to operat-

ing fireplace.

4. Let fireplace cool before servicing, repairing, or installing ac-

cessories. Only a qualified service person should install, ser-

vice, or repair this fireplace. Have fireplace inspected annu-

ally by a qualified service person.

5. Keep the area around your fireplace clear of combustible mate-

rials, gasoline, and other flammable vapor and liquids. Do not

operate fireplace where these are used or stored. Do not place

items such as clothing or decorations on or around fireplace.

6. Do not connect this fireplace to a chimney system other than a

DESA chimney system.

7. Due to high temperatures, do not locate this fireplace in high

traffic areas or near furniture and draperies.

8. Provide adequate clearances around air openings into the com-

bustion chamber. NEVER obstruct the front openings of the

fireplace or the flow of combustion and ventilation air. Install

in an area providing ventilation and adequate combustion air.

IMPORTANT: Read this owner’s manual carefully and

completelybeforetryingtoassemble,operate,orservice

this fireplace. Improper use of this fireplace can cause

serious injury or death from burns, and fire.

BEFORE YOU BEGIN

Before beginning the installation of your fireplace, read these

instructions thoroughly. This DESA fireplace and its approved

components are safe when installed according to this installation

manual, and operated as recommended by DESA. Unless you use

DESA approved components tested for this fireplace, YOU MAY

CAUSE A FIRE HAZARD!

The DESA warranty will be voided by, and DESA disclaims any

responsibility for the following actions:

A) Modification of the fireplace or any of the components manufac-

tured by DESA unless otherwise permitted in writing by DESA.

B) The use of a fireplace insert or any component part not ap-

proved by DESA in combination with DESA fireplace.

C) Installation and/or operation in a manner other than instructed

in this manual.

D) The burning of any other fuel not tested or approved by DESA

in this wood burning fireplace.

PROPER INSTALLATION is the most important step in ensuring

a safe and continuous operation of this fireplace. Although ground-

ing may not be required by code in your area, it must be electrically

grounded in accordance with local codes or, in the absence of local

codes, with the National Electrical Code, ANSI/NFPA 70-1990.

This fireplace is intended for installation in accordance with the

NationalFireProtectionAssociationStandardforChimneys,Fire-

places,VentsandSolid-FuelBurningFireplaces,NFPA211, and in

accordance with codes such as the BOCABasic/NationalCode, the

Standard Mechanical Code, and the Uniform Building Code.

THISFIREPLACEISNOTINTENDEDTO BEUSEDAS

A PRIMARY SOURCE OF HEAT.

NOTE:

Installation and repair should be done by a qualified

installer familiar with the fireplace. The fireplace and chimney

system should be inspected and cleaned before use and periodically

thereafter especially during heating season to prevent the excessive

buildup of soot and creosote and to ensure a safe operating system.

115603-01A

For more information, visit www.desatech.com

SELECTING LOCATION

To determine the safest and most efficient location for your fire-

place, you must take into consideration the following guidelines:

1. The location must allow for all the proper clearances (see Fig-

ure 2).

2. Consider a location where the heat output would not be af-

fected by drafts, air conditioning ducts, windows or doors.

3. A location that avoids the cutting of joists or roof rafters will

make installation easier.

4. If an outside air kit is to be installed, accessibility to outside

combustion air must be considered. This can also be achieved

through a vented crawl space in some cases, for more details

refer to the section on outside air kit installation.

The typical installation for a (V)3612ST is a projected installation, which

allows you to extend the fireplace any distance into the room. A

projection may be ideal for a new addition on an existing, finished wall.

Figure 2 - Plan View of Common Location

CLEARANCES

MINIMUM CLEARANCES TO COMBUSTIBLES

Back .............................................1/2" Min.

Adjacent Wall ............................. 12" Min.

Chimney Outer Pipe Surfaces...... 2" Min.

Bottom Of Fireplaces To Floor ..... 0" Min.

CAUTION: Do not block required air spaces with

insulation or any other material. Do not obstruct

effective opening of fireplace with any type of facing

material. Combustible material must not be in con-

tact with the black front face of the fireplace.

Figure 3 - Fireplace Clearances

MANTEL CLEARANCES

Woodwork, such as wood trims, mantles, and other combustible

materials, should not be placed within 9 inches of the effective

opening of this fireplace.

Combustible material above and projecting more than 1 1/2inches

from the fireplace’s front face (see Figure 4, page 5), should not be

placed less than 12 inches from the effective opening of the fireplace

(Ref: NFPA std.7-3.3.3.).

Mantles or any other combustible material may also come up to the

side edge of the black metal face of the fireplace, but only if the

projection from the front face falls within the limits shown in Figure

5, page 5.

FIREPLACE INSTALLATION

Selecting Location

Clearances

Mantle Clearances

FIREPLACE INSTALLATION

115603-01A

For more information, visit www.desatech.com

FRAMING

If the fireplace is to be installed directly on carpeting, tile (other than

ceramic), or any combustible material other than wood flooring, the

fireplace must be installed upon a metal or wood panel extending the

full width and depth of the fireplace.

Construct framing using dimensions shown in Figures 6, 7, and 8,

depending on your particular installation.

Before securing fireplace to prepared framing, the ember protector

(provided) must be placed between hearth extensions (not sup-

plied), and bottom front edge of the fireplace to protect against

glowing embers (see Figure 9, page 6). If the fireplace is to be

installed on a raised platform, a “Z”-type ember protector (not

supplied) must be fabricated to fit your required platform height (see

Figure 8). The ember protector should be made of 28 gauge

minimum, galvanized sheet metal to prevent corrosion.

Figure 4 - Mantel Clearances

Figure 5 - Mantel Clearances

FIREPLACE INSTALLATION

Continued

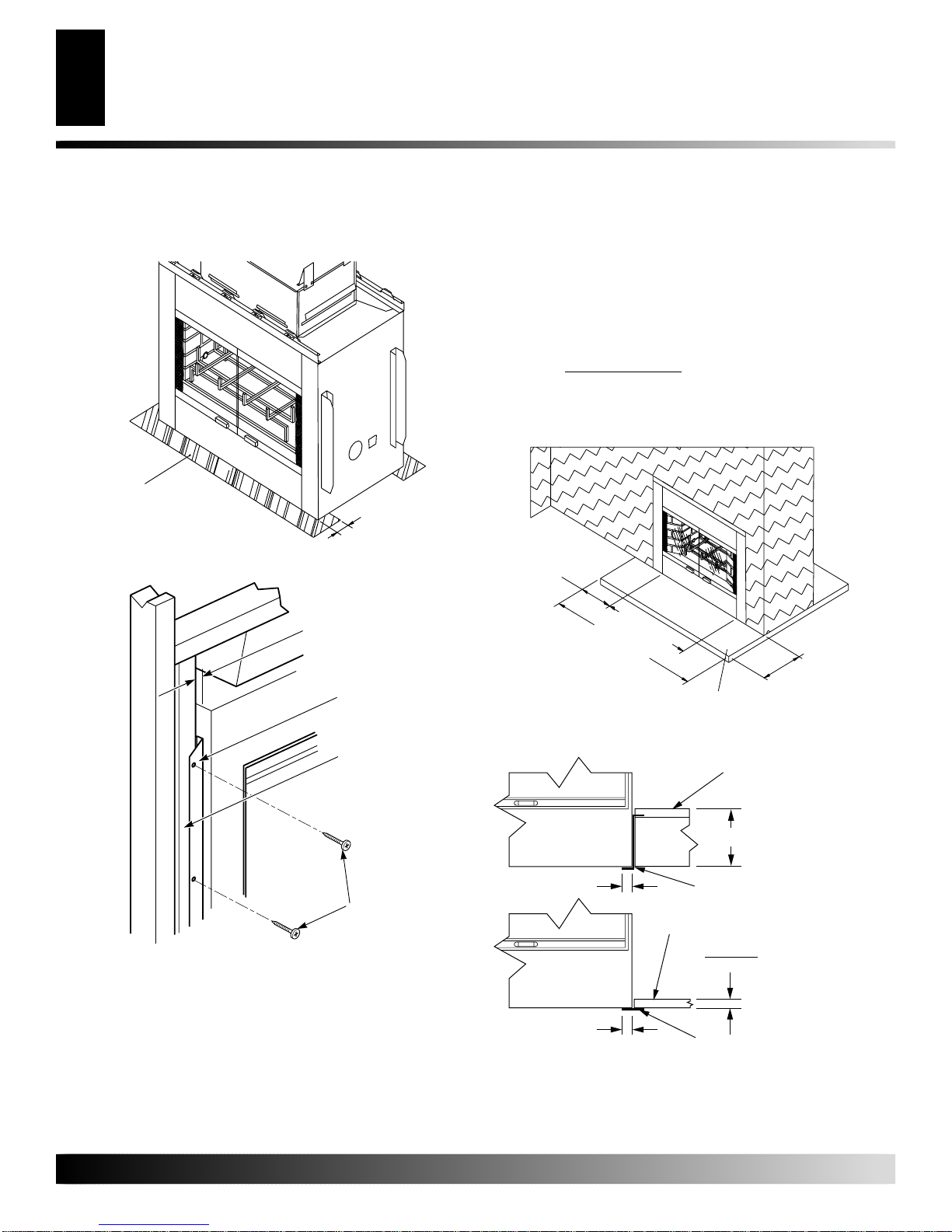

Figure 6 - Framing Firebox

Figure 8 - Framing Firebox With “Z” Type Ember Protectors

FIREPLACE INSTALLATION

Mantel Clearances (Cont.)

Framing

FRONT FACE

FIREPLACE FRONT

VIEW

FIREPLACE SIDE

VIEW

3" NOM.

(7.6cm)

(22.8cm)

MIN.

12" MIN.

(30.4cm)

33¡

6" NOM.

(15.2cm)

" MAX.

(3.8cm)

DRYWALL

2" X 4" STUD

COMBUSTIBLE

MATERIALS

(101cm)

Min.

/4"

(109.8cm)

(60cm)

(57.7cm)

PLATFORM MUST BE

SOLID, FLAT, AND

FULLY SUPPORTED

"Z" TYPE EMBER

PROTECTOR

(NOT SUPPLIED)

ASREQUIREDBYDESIGN

ASLONGASCEILING

CLEARANCEIS MAINTAINED

(113.3cm)

(135.7cm)

MIN.

Figure 7 - Framing Clearances

1" MIN

(2.5cm)

TO COMBUSTIBLES

" DIA.

O.D. (38.1cm)

OUTER PIPE

(54.1cm) 42

(108.2cm)

12"

(30.4cm)

24"

(60.9cm)

2" (5cm) MIN.

CLEARANCE

FROM OUTER PIPE

TO COMBUSTIBLES

15" DIA.

For more information, visit www.desatech.com

Figure 10 - Nailing Flanges

FIREPLACE INSTALLATION

Continued

HEARTH EXTENSIONS

A hearth extension is required to protect the combustible floor

surrounding your fireplace. You may obtain kit No. HE-3612ST or

you may fabricate your own per the dimensions shown on Figure 10.

The hearth extension must project a minimum of 16 inches from the

front of the fireplace and a minimum of 8 inches beyond each side

of the fireplace opening (see Figure 11).

If a hearth extensions is to be field constructed, it must be made of

noncombustible inorganic material having and effective thermal

conductivity “K” of 0.84 BTU In/Ft2 Hr.F or least at 1.0 inch

thickness.

Thermal conductivity “K” of materials can be obtained from the

manufacturer or supplier or the noncombustible material.

The minimum required thickness for any material could be obtained

by the following formula:

K factor x 1.0 inch = Thickness required

0.84

If the hearth extension is to be raised, a “Z” type ember protector

must be used (see Figure 8, page 5, and Figure 12).

Figure 11 - Hearth Extension

Figure 12 - Raised Hearth Extension

FIREPLACE INSTALLATION

Framing (Cont.)

Hearth Extensions

1/2" (1.27cm)

Minimum To

Combustibles

Nailing

Flanges

Prepared

Framing

Nails or

Screws

NONCOMBUSTIBLE

HEARTH EXTENSION

" MIN.

(133.3cm)

" MIN.

(92.7cm)

8" MIN.

(20.3cm)

16" MIN.

(40.6cm)

8" Max.

K Factor

.84

" Typ.

Noncombustible

Hearth Extension

Noncombustible

Hearth Extension

“Z”Type Ember Protector

Ember Protector

For raised

fireplace, see

section on

framing with a

raised platform.

Figure 9 - Ember Protectors

EMBER

PROTECTOR (TYP. OF 2)

*EMBER PROTECTOR

STRIPS SUPPLIED

1/2" MAX.

(1.2cm)

Secure fireplace to prepared framing at nailing flanges located at the

sides of fireplace as shown in Figure 10.

115603-01A

For more information, visit www.desatech.com

OUTSIDE AIR KIT

INSTALLATION

The installation of the outside air kit must be installed during the

rough framing of the fireplace due to the nature of its location.

Outside combustion air can be accessed through an exterior wall or

a vented crawl space (see Figure 13).

CAUTION: Air inlet ducts must not terminate in

attic space.

The maximum height for the air inlet above the platform of fireplace

is a minimum of 3 feet below the chimney cap.

For further details on the installation of the outside air kit, please

refer to the instructions included with the air kit.

Figure 13 - Air Kit Installation

Figure 14 - Removing Knockout for Gas Line Installation

FOR UNVENTED ROOM HEATERS, ANSI\IAS\AGA Z21.11.2,

ARE TO BE INSTALLED IN THIS FIREPLACE.

1. To install, remove the knockout indentation on the refractor

(or firebrick) wall located approximately 2 inches above the

refractory hearth floor. The knockout indentation must be firmly

tapped with any solid object until it is released. Remove frag-

mented portion of refractory (see Figure 14).

2. Remove gas line cover plate on rear of fireplace and pull out insu-

lation from gas line conduit sleeve, save insulation for reuse.

3. Run gas line into the fireplace through the rear at 111/4" from

the floor and through gas line conduit sleeve (if using a raised

platform, add height). Provide sufficient gas line into fireplace

chamber for fitting connection (see Figure 15).

Note:

Secure incoming gas line to wood framing to provide rigidity

for threaded end.

4. Repack insulation around gas line and into sleeves openings.

Seal any gaps between gas line and refractory knockout hole

with refractory cement or commercial furnace cement. Install

the decorative gas appliance or cap off gas line if desired.

OUTSIDE AIR KIT INSTALLATION

GAS LINE INSTALLATION

Air Inlet

Location

Must Allow

For Bushes

Or Snow

Air Inlet

Termination

GAS LINE INSTALLATION

WARNING: A qualified service person must con-

nect fireplace to gas supply. Follow all local codes.

NOTICE: BEFORE YOU PROCEED, MAKE SURE

YOUR GAS SUPPLY IS OFF!

A gas line may be installed for the purpose of installing a vented or

vent-free decorative gas appliance available through your local

distributor. Use only gas piping approved by local codes. When

installing a gas line, a shutoff valve designed for installation outside

the appliance is recommended.

The gas pipe is intended for connection to a decorative gas appliances

that operate from natural or propane/LP fuel only: (1), incorporating

an automatic shutoff device and, (2), complying with the Standardfor

Decorative Gas Appliances for Installation in Vented Fireplace,

ANSIZ21.60-1990. ONLY UNVENTED GAS LOG SETS WHICH

HAVE BEEN FOUND TO COMPLY WITH THE STANDARD

Secure Two Collars With

Duct Tape or Screws

Figure 15 - Running Gas Line

Outside of

Fireplace Gas Line

Conduit

Remove

Insulation

Temporarily

(Do Not

Discard)

Remove

Knockout

Replace Screws After

Removing Gas Line

Cover Plate

Side Firebrick

Finished Side

Refractory

Knockout Plug,

Remove by

Tapping Lightly

With A 1/2" Dowel

Outside of

Fireplace

Side Firebrick

Finished Side

Incoming

1/2" Black

Iron Pipe

Gas Line

Conduit

Repack

Insulation Seal Opening

With Refractory

Cement

Provide Enough

Threaded End For

Fitting Connection

115603-01A

For more information, vi si t www.desatech.com

GAS LINE INSTALLATION

Continued

VENTING INSTALLATION

CHIMNEY PIPE INSTALLATION

The DESA chimney system is a snap-lock, double wall pipe. It

consists of a stainless steel inner flue pipe(s), a galvanized outer

pipe, and a wire spacer.

Each section of pipe comes in lengths of 12, 18, 36, and 48 inches,

but the actual lineal gain for each is measured after each section is

fully connected. Lineal gain is the actual measurable length of a part

after two or more parts are connected.

MODEL NO. DESCRIPTION GAIN

V3612ST See-Through" 52 3/4"

Fireplace

48-12DM/48-12TM Flue Pipe 46 5/8"

36-12DM/48-12TM Flue Pipe 34 5/8"

STL-12D Chase Style 1" to 12"

Termination

RTL-12D Round Top Termination 7"

PIPE INSTALLATION

Place pipe assembly (inner and outer with wire spacer) over starter

collar. Inner pipe(s) fit inside inner pipe(s). Outer pipe fits outside

outer pipe.

Begin by aligning hemmed end of inner flue pipe into the inner starting

flue pipe of fireplace. Push down until hem “snap-locks” with lances. The

outer pipe is just the opposite, the female end has the lances. Continue the

same procedure for the outer pipe (see Figure 16). It is important to assure

the joints between the chimney sections are fully locked. Check by pulling

chimney upward after locking pipe hem(s). The chimney should not

come apart if properly locked. It is not necessary to add screws to keep

vertical or angled chimney runs together.

Figure 16 - Pipe Connection

WARNING: The opening around the starter collar on

top of the fireplace must never be obstructed. Never use

blown insulation to fill the chimney enclosure.

FIRESTOP SPACERS

Firestop spacers are required at each point where the chimney

penetrates a floor or ceiling joist space. Their purpose is twofold.

They establish and maintain the required clearance between the

outer pipe and combustible materials, they also serve as a shield

between floors as required by most codes.

When penetrating a floor or ceiling at an angle, use firestop spacer

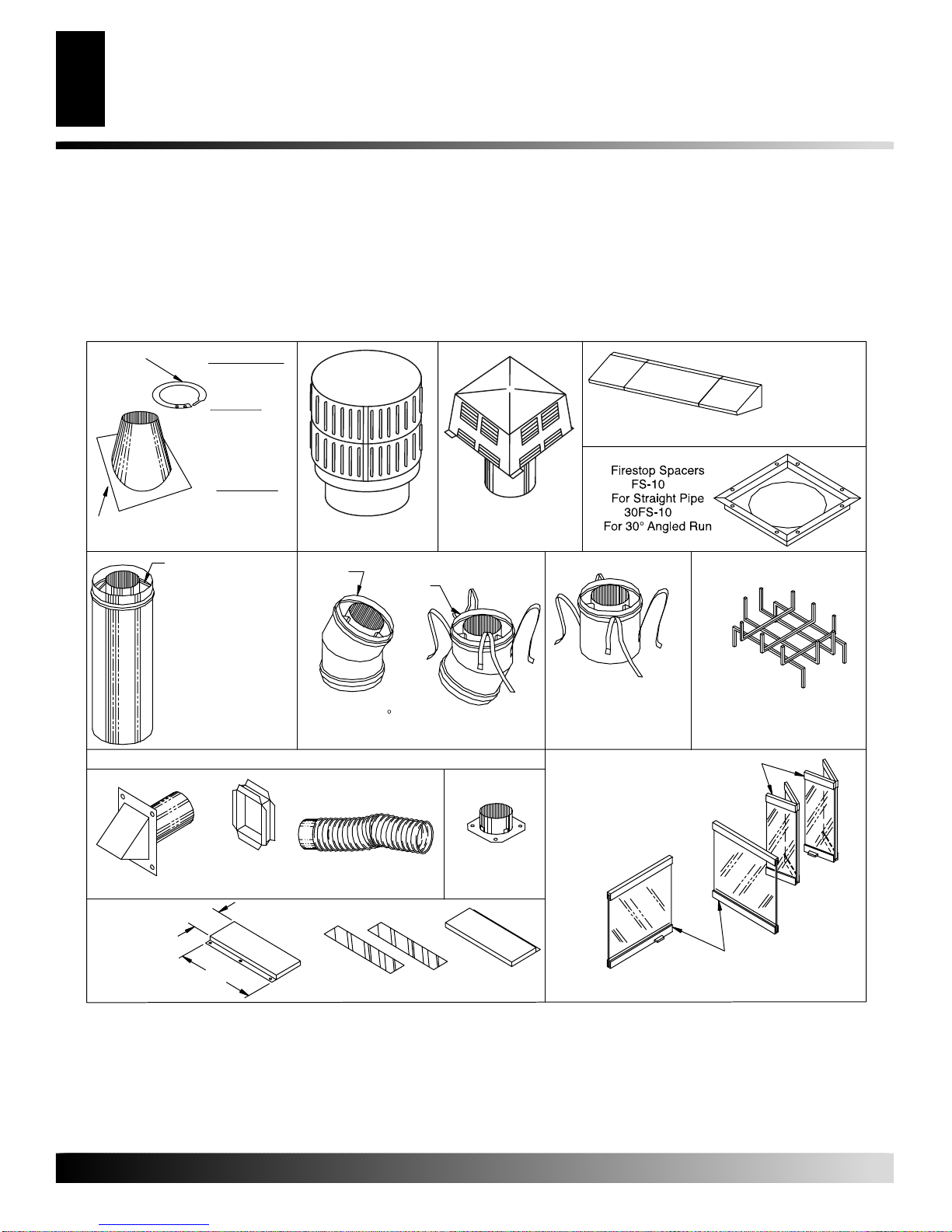

number 30 FS-10D (see Replacement and Accessory Parts,

back page).

When the pipe passes through a framed opening into a living space

above, a firestop must be placed on the ceiling below (see Figure 17,

page 9). When the pipe passes through a framed opening into an attic

space above, a firestop must be placed on the attic floor above (see

Figure 18, page 9).

CAUTION: When using a decorative appliance,

the damper must be removed or permanently locked

in the open position.

WARNING: After ensuring that the gas valve is ON,

test all gas piping and connections for leaks after

installing or servicing. Correct all leaks at once.

WARNING: Never use an open flame to check for

a leak. Apply a noncorrosive leak detection fluid to

all joints. Bubbles forming show a leak. Correct all

leaks at once.

GASLINE INSTALLATION

CHIMNEY PIPE INSTALLATION

PIPE INSTALLATION

FIREST OP SPACERS

15" (381mm)

Galvanized

Outer Pipe

12 3/8" (314mm)

Stainless Inner

Pipe Lanced

Side Up

Hemmed

Ends

Note:

An appropriate DESA hood (see Replacement and Accessory

Parts, page 16) must be installed when using an unvented gas log set.

24-12DM/48-12TM Flue Pipe 225/8"

18-12DM/48-12TM Flue Pipe 16 5/8"

12-12DM/48-12TM Flue Pipe 10 5/8"

115603-01A

For more information, visit www.desatech.com

SUPPORT SECTIONS

The chimney support section is a 4-inch strap and 12 inch length of pipe.

A chimney support is required every 30 feet above the fireplace after a

straight chimney run, or above a return elbow after a straight chimney

run (see Figure 20). This support is designed to relieve the extra weight

load on the fireplace and elbows when high chimneys are installed.

To achieve desired offset, you may install combinations of 12, 18,

36, and 48 inch lengths of double wall pipe. See Figure 21 and Rise

and Offset Chart below.

VENTING INSTALLTION

Continued

Figure 17 - Firestop Spacer For Living Space

Figure 18 - Firestop Spacer for Attic Space

ELBOW OFFSET INSTALLATION

Chimney weight above offset rests on return elbow. Straps must be

secured with nails to rafters or joists (see Figure 19).

Figure 19 - Elbow Offset

Figure 20 - Chimney Supports Figure 21 - Rise and Offset

FIRESTOP SPACERS

ELBOW OFFSET INSTALLATION

SUPPORT SECTIONS

Existing Ceiling

Frame

Living Space Above Ceiling

Firestop Spacer

Screw (8)

Firestop Spacer

Existing Ceiling

Frame

Attic Space

Above Ceiling

Screw (8)

30 FT.

(9.14m) 30 FT.

(9.14m)

Return

Elbow

12S-12DM

Support

Required

2" (5.1cm)

Minimum

Angled Firestop

Ceiling Support

StrapsReturn

Elbow

RISE AND OFFSET CHART

A B Length of Pipe

(Offset) (Rise) 48 36 18 12

Elbow Set Only

34 2

46 1

60 1 1

69 1 1

111

Strap

115603-01A

For more information, visit www.desatech.com

FINISHING YOUR CHIMNEY SYSTEM

10 Foot Rule

All chimney terminations must extend a minimum of 3 feet above

the highest point where it passes through the roof, and must be at

least 2 feet above the roof within a 10 foot horizontal span (see

Figure 23).

IMPORTANT:

If an exposed portion of chimney is greater than 4 feet

above the roof line, use support wires to keep chimney secure. The

support wires may be attached to the outer pipe of the chimney with

screws, provided the screws do not penetrate the inner flue pipe.

Figure 23 - 10 Foot Rule

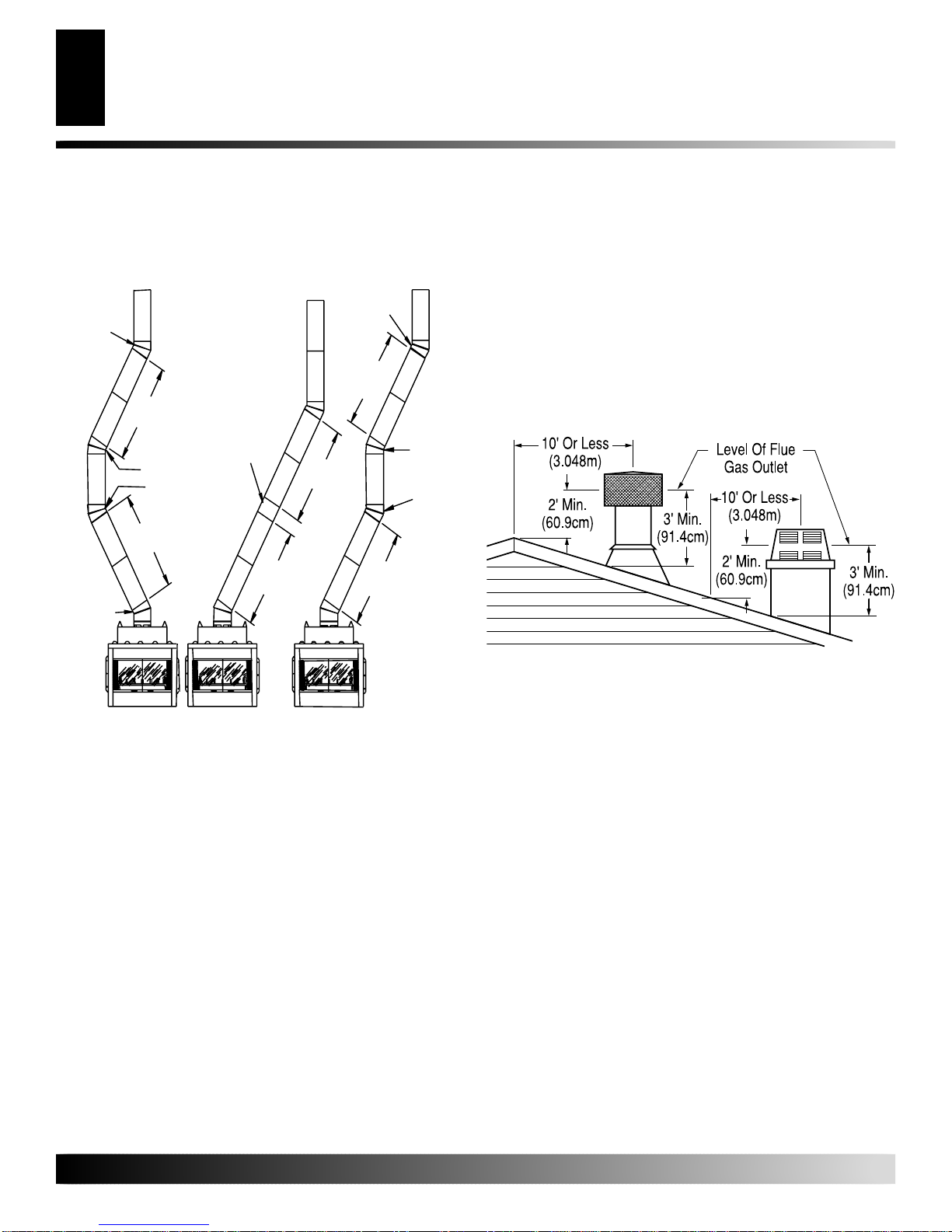

Figure 22 - Typical Offset Installations

Minimum Chimney Height

The minimum chimney height (measured from bottom of fireplace to

flue gas outlet-end of pipe) is 16 feet for a straight run, 16 feet minimum

for a run with 1 elbow set, and 25 feet minimum for a run with 2 elbow

sets. (A set consists of one starter elbow and one return elbow.)

Uncommon circumstances such as neighboring hills, tall trees, or

strong wind areas can cause down drafts in the chimney system. In

such cases going beyond the minimum recommended height would

be preferable to provide a better draw.

Maximum Chimney Height

The fireplace height approved for any chimney run with this

fireplace system is 40 feet measured from bottom of fireplace to flue

outlet-end of pipe. See Figure 24, page 11

Maximum length of pipe between supports is 6 feet of angled run.

A maximum of two 6 foot angled run sections per chimney system

(See Figure 22).

VENTING INSTALLTION

Continued

OFFSET

ELBOW

OFFSET

ELBOW

RETURN

ELBOW

OFFSET

ELBOW

RETURN

ELBOW

RETURN

ELBOW

RETURN

ELBOW

CEILING

SUPPORT

PIPE

V12S-8DM

6’MAX

(15.2cm)

6’MAX

(15.2cm) 6’MAX

(15.2cm)

6’MAX

(15.2cm)

6’MAX

(15.2cm)

6’MAX

(15.2cm)

SUPPORT SECTIONS

FINISHING YOUR CHIMNEY SYSTEM

10 Foot Rule

Minimum Chimney Height

Maximum Chimney Height

115603-01A

For more information, visit www.desatech.com

Roof Opening Chart

PITCH Opening “A” Use Flashing

(degrees) Max. (inches) Model Number

FLAT 19

0-6/12 23 1/4V6F-10DM

(26.6 deg. Slope)

6/12-12/12 30 3/4V12F-10DM

(56.3 deg. Slope)

WARNING: Do not operate an unvented gas log

set in this fireplace with the chimney removed.

Chimney Maintenance

Have your chimney system cleaned and inspected regularly to

ensure safe and efficient operation.

Using Figure 24 and the roof opening chart below, determine the

opening that will be required for the pitch of your particular roof.

Figure 25 - Roof Opening

FINISHING YOUR CHIMNEY SYSTEM

Maximum Chimney Height (Cont.)

Chimney Maintenance

MINIMUM

HEIGHT

15 FT.

(4.5m)

MAXIMUM

HEIGHT

CHASE

TERMINATION

40 FT.

(12m)

VENTING INSTALLTION

Continued

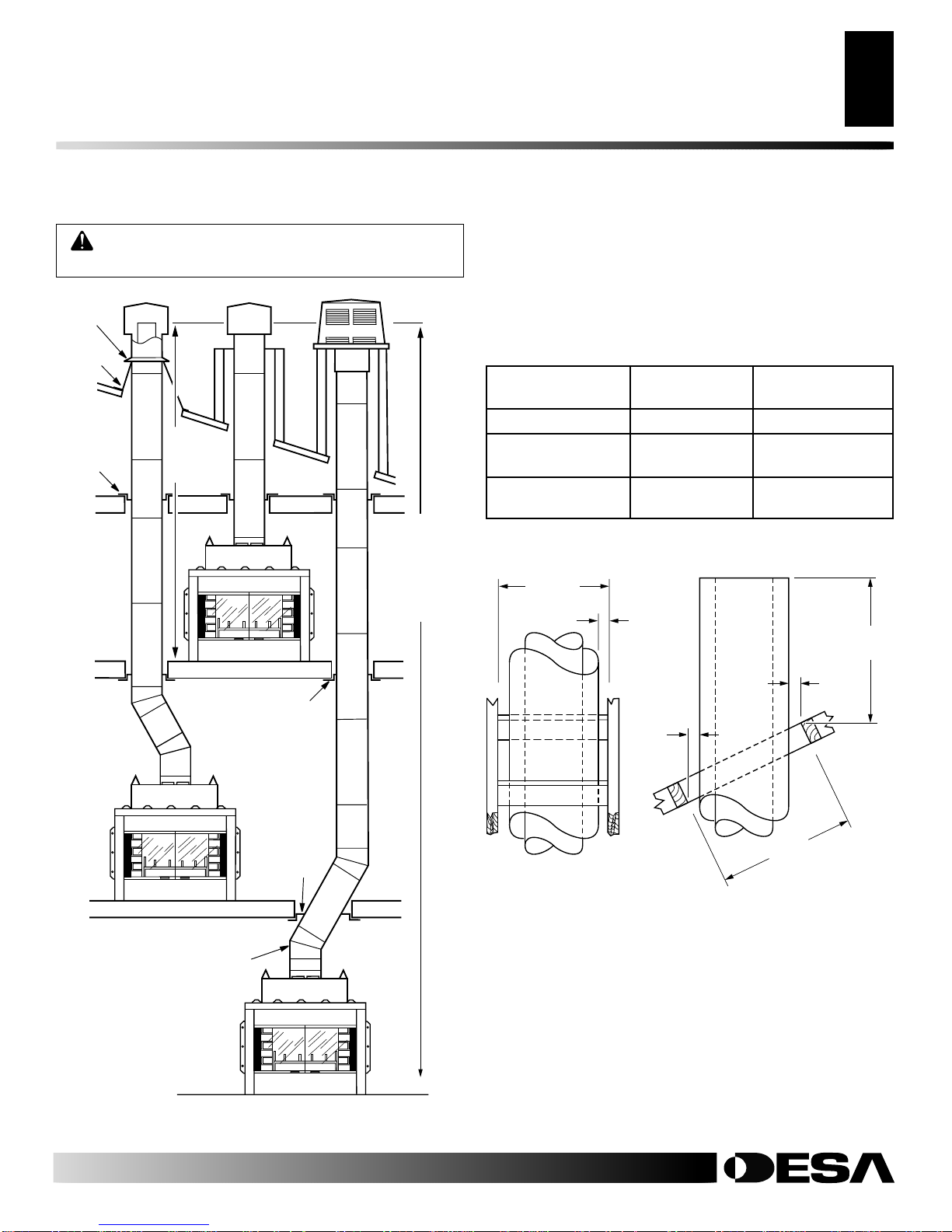

Figure 24 - Maximum Chimney Height

Firestop

Spacer

Flashing

Storm

Collar

RTL-12D RTL-12D STL-12D

Firestop

Spacer

30°

Firestop

Spacer

30° Offset/

Return

Before cutting hole, temporarily remove shingles around area to be

opened. After preparing the opening on the roof, continue to add

sections of pipe until it extends a minimum of 30 inches above

highest point of roof cutout (see Figure 25).

With the termination, the minimum height should add up to 3 feet

(see 10-Foot Rule and Figure 22, page 10).

Opening

19" Min.

(48.26cm)

30" Min.

(76.2cm)

2" Min.

(5.08cm)

2" Min.

(5.08cm)

2" Min.

(5.08cm)

V6F-10DM

115603-01A

For more information, visit www.desatech.com

Terminations

The fireplace system must be terminated with the listed round top or

chase terminations. In any case, refer to the installation instructions

supplied with the terminations.

The terminations approved for this fireplace are RTL-12D,

which can be used for flashing, or chase and STL-12D for

chase style termination only. Figure 28 shows an RTL-12D

round top termination.

CAUTION: Do not seal openings on the rooftop

flashing. Follow the installation instructions pro-

vided with the termination being used.

Figure 28 - Terminations

Flashing Installation

Determine the flashing to be used with the roof opening chart, page

11. Slide flashing over pipe until base is flat against roof. Replace

as many shingles as needed to cover exposed area and flashing base.

Secure in position by nailing through shingles. DO NOT NAIL

THROUGH FLASHING CONE.

Figure 26 - Flashing Installation

Storm Collar Installation

Place storm collar over pipe and slide down until snug against the

open edge of the flashing (see Figures 26 and 27). Apply waterproof

caulking to all seams and notches around storm collar and also at

base around shingles.

Figure 27 - Storm Collar

VENTING INSTALLTION

Continued

FINISHING YOUR CHIMNEY SYSTEM

Flashing Installation

Storm Collar Installation

Terminations

Storm Collar

Nail Only Outer

Perimeter of

Flashing

Flashing Chimney Pipe

Overlap

Shingles

Top and

Sides

Only

Underlap Shingles

At Bottom

Chimney Pipe

Caulk

Flashing

Storm Collar

Stainless

Inner Flue

Pipe

RTL-12D

Chase Top

1" Noncombustible

Spacer

Screen

1" Space

Apply Waterproof

Caulking

Storm Collar

Flashing

Underlap

Shingles

Secure

Termination

To Outer

Pipe With

3 Screws

Overlap Shingles

(Top and Sides)

of Flashing Base

115603-01A

For more information, visit www.desatech.com

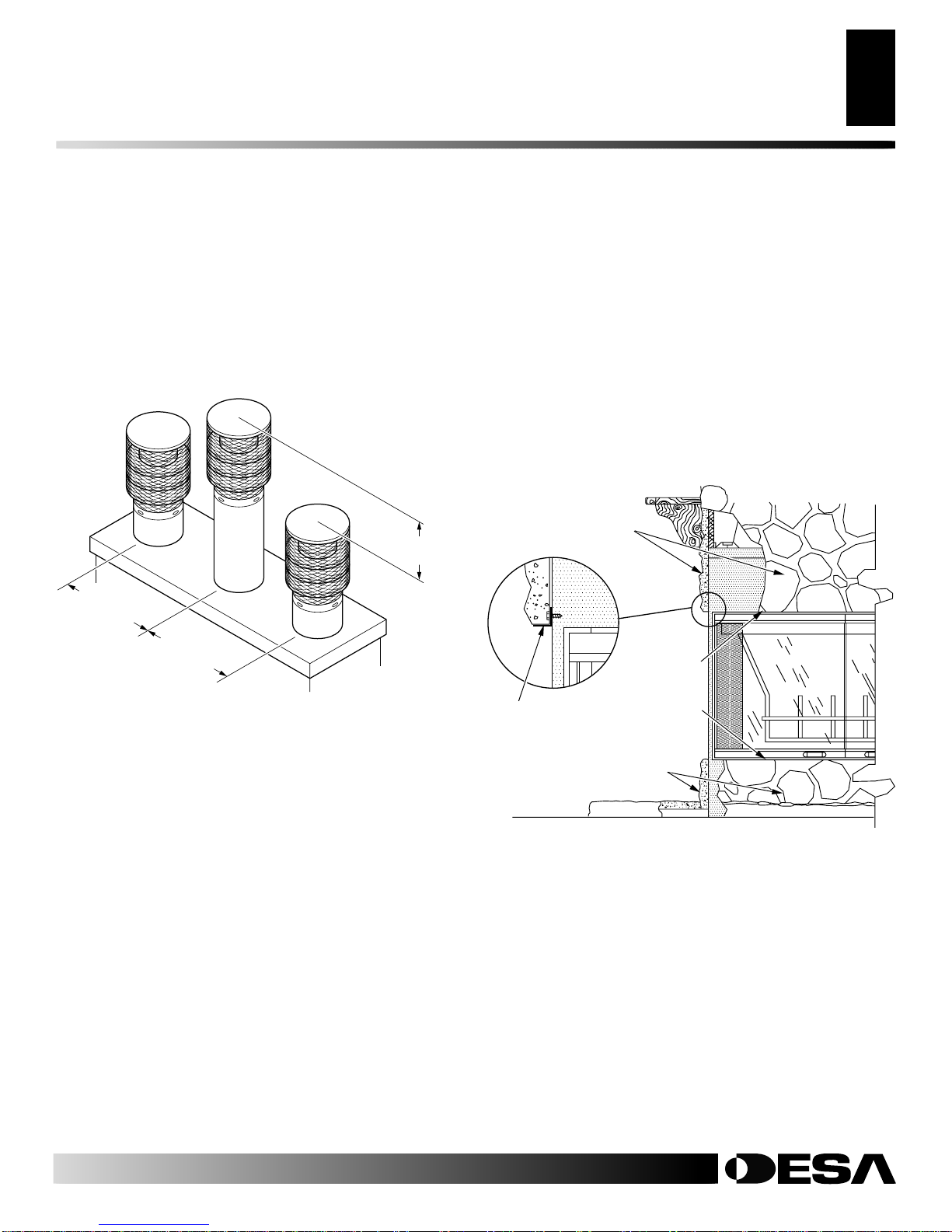

Chase Installation

Instructions for chase installations are included with the chase style

termination chosen. However, it is worthy to mention here that in a

multiple chase installation, provide adequate distance between

terminations, or smoke spillage from one termination to another

may occur. We suggest terminations be separated at least 30 inches

center to center, and stacked at a vertical height difference of 18

inches vertically from one termination to the other (see Figure 29).

Figure 29 - Chase Clearances

INSTALLING FIREPLACE FACING

Any noncombustible material may be used for facing (glass, tile,

brick, etc.) as long as the proper clearances are adhered to and the

fireplace openings are not obstructed in any way. Refer to Clearances,

page 5, and Figure 30).

Use only heat resistant, noncombustible mortar or adhesive when

securing facing material to the front of the fireplace. When placing

facingat the upper edgeof the effectiveopening of thefireplace, provide

an “L” shaped piece of metal, extending the full width of the opening.

Secure with sheet metal screws at a distance high enough from the

edge as to not interfere with the operation of doors. This assures that

the facing material, in time, should not block the opening if it where

to lose cohesion.

Figure 30 - Fireplace Facing (your fireplace may vary from

illustration)

FINISHING YOUR CHIMNEY SYSTEM

Chase Installation

Installing Fireplace Facing

VENTING INSTALLTION

Continued

18" MIN.TYP.

30" MIN. 30" MIN.

Noncombustible

Facing Material

Noncombustible

Facing Material

Do Not

Block

Effective

Opening

“L”Shaped

Metal Support

115603-01A

For more information, visit www.desatech.com

OPERATING GUIDELINES

AND MAINTENANCE

INSTRUCTIONS

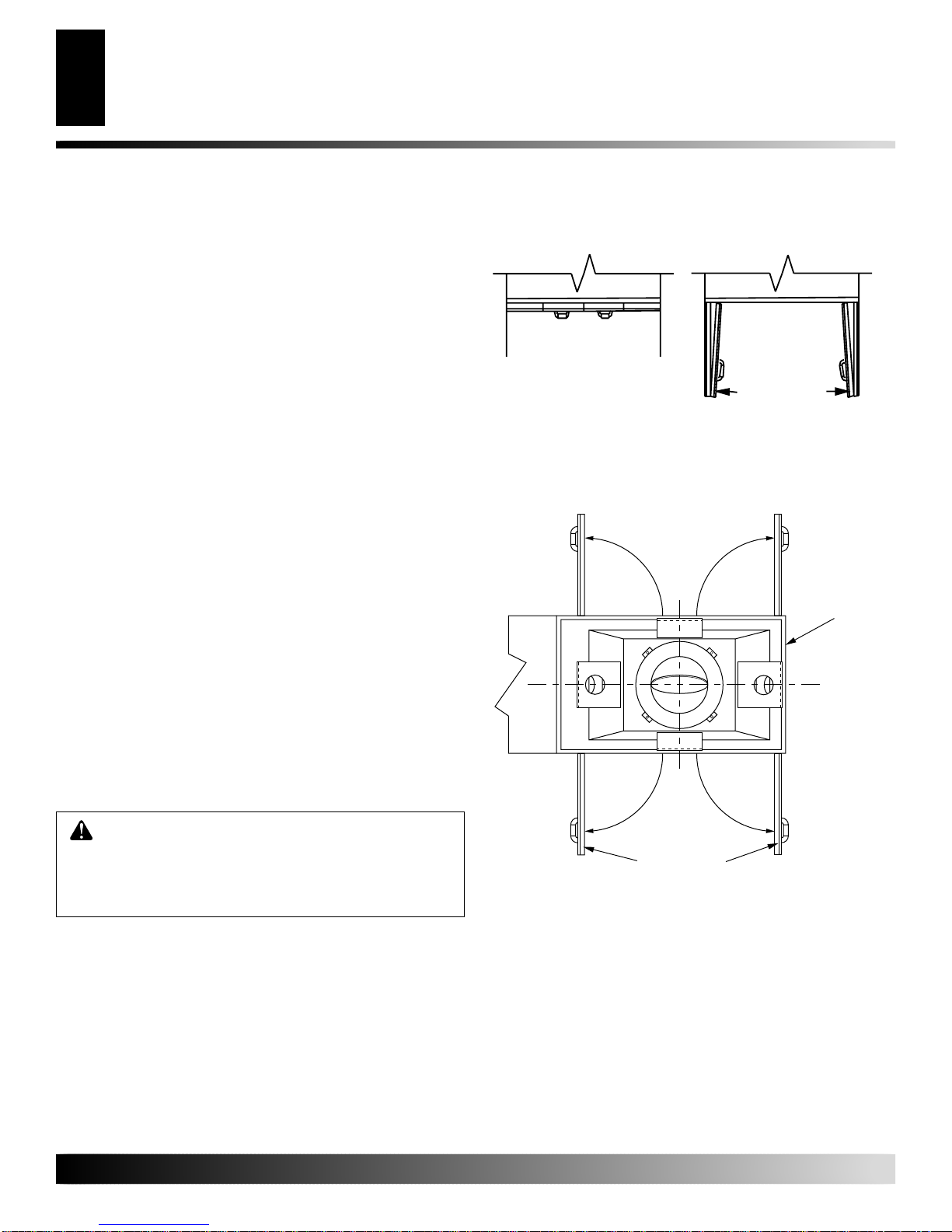

GLASS DOORS

Glass doors are optional with the (V)3612ST fireplace. Glass doors

come in cabinet type and BI-fold type. Check with your local

distributor for availability and options.

To install glass doors, refer to the installation instructions that are

included with the glass door kit.

When the fireplace is in operation, all doors must be in the FULLY

OPEN or FULLY CLOSED position only or a fire hazard may be

created (see Figure 31 and 32).

A fireplace equipped with glass doors operates much differently

than a fireplace with an open front. A fireplace with glass doors has

a limited amount of air for combustion. Excessive heat within the

fireplace can result if too large a fire is built or if the combustion air

gate is not completely open.

The following tips should be followed to assure that both the fireplace

and the glass door retain their beauty and function properly.

• Both flue damper and the glass doors must be fully open before

starting the fire. This will provide sufficient combustion air and

maintain safe temperatures in the firebox. If operating with glass

doors closed, do so at this time. Do not operate with doors par-

tially open. Doors must be fully open or fully closed.

• The glass must be allowed to warm slowly and evenly. The tem-

pered glass will withstand a gradual temperature rise to 550 de-

grees Fahrenheit, which is more than other such materials as

pitch laden logs, very dry mill end lumber, large amounts of

paper or cardboard boxes.

• Always keep the fire well back from the doors and never allow

flames to contact the glass.

Cleaning the Glass

Clean glass with any commercial glass cleaner or soap and water.

DO NOT use any abrasive material to clean glass. DO NOT clean

glass with cool water if the glass is still too hot from the fire. To

remove doors, refer to instructions included with glass door kit.

Figure 31 - Bi-Fold Glass Doors (Top View)

Figure 32 - Cabinet Door Operation

FULLY CLOSED

FIREPLACE FRONT

FULLY OPEN

FIREPLACE FRONT

Side

Panel Is

Stationary

Glass Cabinet Doors

Operate Fully Open, or Fully

Closed ONLY

OPERATING GUIDELINE AND MAINTENANCE INSTRUCTIONS

Glass Doors

WARNING: Fireplacesequippedwith glassdoors

should be operated only with the doors fully open or

fully closed. Doors left partly open may draw gas (if

used)andflameoutofthefireplaceopening,creating

risk of both fire and smoke.

115603-01A

For more information, visit www.desatech.com

OUTSIDE AIR MECHANISM

The outside air handle is located at the right hand side of the fireplace

rear refractory (see Figure 33). Pull to close, push to open. Always

open the mechanism when starting a fire. This provides adequate

outside combustion air. Close the mechanism when not in use to

prevent cold air from entering the room. Periodically check you’re

outside air intake vent hood for any possible obstructions such as

snow, bushes, etc.

DAMPER MECHANISM

The damper control lever is located inside the fire chamber (see

Figure 33). Make sure lever is cool before handling. Pull down to

CLOSE, push up to OPEN. The damper must be open when lighting

a fire. Not doing so will cause smoke spillage into the room. When

the fireplace is not in use, close the damper to prevent down drafts

to enter the room.

Figure 33 - Damper Operation

GRATE

The grate is designed to provide you with the maximum solid fuel

capacity. Do not attempt to defeat its purpose. Doing so may cause

smoke spillage and a fire hazard. Do not overload the grate or

obstruct the required air space beneath it. Always keep ashes from

building up under the grate.

WARNING: RISK OF FIRE! Replace grate with

DESA model 3610ST-GR grate only.

Never obstruct the flow of combustion and ventilation air. Keep the

front of the fireplace clear of all obstacles and materials.

For further operating guidelines, instructions, and warranty infor-

mation not contained in this owner’s manual, contact your autho-

rized dealer.

WARNING: Childrenandadultsshouldbe alerted

to the hazards of high surface temperatures, and to

stay away to avoid burns or clothing ignition. Young

children should be carefully supervised when they

are in the same room as the fireplace.

OPERATING GUIDELINE AND MAINTENANCE INSTRUCTIONS

Damper Mechanism

Outside Air Mechanism

Grate

TECHNICAL SERVICE

OPERATING GUIDELINES

AND MAINTENANCE

INSTRUCTIONS

Continued

GRATE

OUTSIDE AIR

HANDLE

PULL TO CLOSE

PUSH TO OPEN

DAMPER CONTROL LEVER

PULL DOWNTO CLOSE

PUSH UP TO OPEN

TECHNICAL SERVICE

You may have further questions about installation, operation, or

troubleshooting. If so, contact DESA’s Technical Service Depart-

ment at 1-866-672-6040. When calling please have your model and

serial numbers of your heater ready.

You can also visit DESA’s technical services web site at

www.desatech.com.

115603-01A

For more information, visit www.desatech.com

REPLACEMENT AND ACCESSORY PARTS

When ordering replacement or accessory items, please have your fireplace’s model name and number and the part number of the item(s)

you are ordering ready. The model name or number of your fireplace may be found on the rating plate located inside the fireplace.

Refer to the parts list and diagrams when ordering replacement parts for your fireplace.

Repair parts or accessory items may be bought from your distributor/dealer or directly from DESA. You can call 1-866-672-6040.

All product specifications are subject to change without notice.

IMPORTANT:

Use of any other glass door assembly not tested with this fireplace may constitute a fire hazard and will void the DESA warranty.

Storm

Collar

Storm

Collar

Comes With

Wire Spacer Starter

Elbow Return

Elbow

Vent

Hood Vent

Plaster

Collar

HEARTH

EXTENSION

KIT

HE-3610ST

Ember

Protectors (2)

Hearth

Extensions

(2)

Connector Duct - 4"x 3’

Bi-Fold Door Set

Cabinet Door Set

GLASS DOORS

OUTSIDE AIR KIT

AK-4

Double Wall

PIpe Support Assembly

12S-12D

Hood Assembly

AK-V

10" Grate

11169

Double Wall

Chimney Pipe

12-12DM (12" Long)

18-12DM (18" Long)

36-12DM (36" Long)

48-12DM (48" Long)

Chimney pipe assy.

(includes outer and

inner pipes)

Double Wall Chimney Pipe(s) And Accessories Are Also Available In Triple Wall

Storm Collar

SC-10

Round Top Termination

RTL-12D

Econo Top Termination

STL-12D

Adjustable Hood

Black - 01244

Brass - 01245

Chrome - 01246

6F-10DM

12F-10DM

18F-10DM

24F-10DM

Roof Pitch

0 to 6/12

6/12 to 12/12

12/12 to 18/12

18/12 to 24/12

Flashing

16"

REPLACEMENT AND ACCESSORY PARTS

Double Wall

30 ELBOW/OFFSET

30E-12D

24-12DM (24" Long)

55253C

For more information, visit www.desatech.com

1. Where will the product be used?

❍ Living/Family Room ❍ Office/Warehouse ❍ Utility Shed/Outbuilding ❍ Garage ❍ Bedroom ❍ Bathroom ❍ Other

2. If you bought this product yourself, did you plan to purchase this type of product before going into the store? ❍ Yes ❍ No

3. Who selected the product? ❍Male ❍Female ❍Both

4. What is the population of your area? ❍ Under 10,000 ❍ 10,000 to 25,000 ❍25,000 to 50,000 ❍ 50,000 to 100,000

❍ 100,000 to 250,000 ❍ Over 250,000

5. What is your primary source of heat? ❍ Propane (LP Gas) ❍ Fuel Oil ❍ Wood ❍ Natural Gas ❍ Electric ❍ Other

6. How was the product installed? ❍ Professional Installer ❍ Self ❍ Other

7. Cost of product excluding sales tax? $___________________

8. Cost to install product? $____________________

9. Type of store where product was purchased? ❍ Hardware ❍ Propane Dealer ❍ Natural Gas/Utility Co. ❍ Home Center/Builder’s Supply

❍ Fireplace or Hearth Shop ❍ Farm Store ❍ Other

10. What motivated you to buy this product? ❍ Sudden Cold Weather ❍ Replace Older Model ❍ D.I.Y. Home Project

❍ Emergency Back-Up Heat ❍ Heater was on Sale ❍ Energy Savings/High Efficiency ❍ Construction Project ❍ Other

11. How did you learn about this product brand? ❍ Advertising ❍ Relative or Friend ❍ Store Display ❍ Other ________________________

12. Level of Education of Purchaser: ❍ Some High School ❍ Completed High School ❍ Completed College ❍ Completed Graduate School

13. Age of Purchaser: ❍ Under 20 ❍ 20 - 29 ❍ 30 - 39 ❍ 40 - 49 ❍ 50 - 59 ❍ 60 or Over

14. Buyer’s total annual household income: ❍ Under $15,000 ❍ $15,000 to $19,999 ❍ $20,000 to $34,999 ❍ $35,000 to $49,999

❍ $50,000 to $74,999 ❍ $75,000 to $99,999 ❍ $100,000 and Over

15. Store where product was purchased:

Name: ______________________________________

City: _______________________ State: __________

16. In choosing this product, how important were the following:

Availability

Price

Brand Name

Overall Quality

Heat Output

Made in USA

Warranty

Local Service

Value for Price

Prior Brand Experience

Controls Location

Thermostat, Remote, or Manual Operation

Ease of Operation

Special Features

Salesperson’s Recommendation

Friend/Relative’s Recommendation

Portability

Quiet Operation

OWNER'S REGISTRATION FORM

Please answer the following questions to register your product with DESA:

In order to provide better customer service for this and future purchases, we recommend that you register your product with us.

You can register online at www.desatech.com.If access to our website is not available to you, please complete this Owner’s

Registration Form and mail to the address on the back of this owner’s manual.Please provide the following product information:

Not Important Somewhat Important Very Important

❍

Brand:

(Comfort Glow, Vanguard, etc.)

Model:

(EFP33PR, VTGH33NR, etc.)

Date Purchased:

Note:

Keep receipt for warranty verification.

Serial Number:

7 or 9 digit number located on product or identification tag.

First Name: Last Name:

Address:

City: State: Zip: Country:

Home Phone: ( ) -

E-Mail:

55253C

For more information, visit www.desatech.com

2701 Industrial Drive

P.O. Box 90004

Bowling Green, KY 42102-9004

Postage

Required

TAPE

115603-01A

For more information, visit www.desatech.com

NOTES

_______________________________________________________________________________________________

55253C

For more information, visit www.desatech.com

115603-01

Rev. A

08/05

NOT A UPC

2701 Industrial Drive

P.O. Box 90004

Bowling Green, KY 42102-9004

115603-01

This manual suits for next models

Table of contents

Other Desa Indoor Fireplace manuals

Desa

Desa Vanguard VVSA18R Operation manual

Desa

Desa (V)G36 Quick start guide

Desa

Desa Vanguard VMH10TP Quick start guide

Desa

Desa V50S Quick start guide

Desa

Desa VVC42NE Series Quick start guide

Desa

Desa FVMR18 Quick start guide

Desa

Desa VI33NR Quick start guide

Desa

Desa The Aspen GL36ST Quick start guide

Desa

Desa HEARTH CDCFTN Quick start guide

Desa

Desa Comfort Glow LFP33NRA Quick start guide

Desa

Desa "TUDOR" VT32N-A Series Quick start guide

Desa

Desa VKC42N Series Quick start guide

Desa

Desa KC42N Series Quick start guide

Desa

Desa M36E(B Quick start guide

Desa

Desa VSGF36NRB Quick start guide

Desa

Desa VT32EP Series Quick start guide

Desa

Desa Vanguard VI33PR Quick start guide

Desa

Desa VK42P SERIES Quick start guide

Desa

Desa Tudor CGDV32PR Quick start guide

Desa

Desa TC36N Series Quick start guide

Desa

Desa Comfort Glow CGCF26TPA Quick start guide

Desa

Desa Vanguard VMH26PR Quick start guide

Desa

Desa Wood Burning Fireplace User manual

Desa

Desa CGEF26B Original instructions

Popular Indoor Fireplace manuals by other brands

Montigo

Montigo HW38DF Installation & maintenance manual

Heatiator

Heatiator CB4236IR owner's manual

Valor

Valor 417 Installation and servicing guide

BOSQ

BOSQ Aere 70S Freestanding instruction manual

Heatilator

Heatilator FireBrick Gas Insert ADI-ZCFB-S Specifications

Continental Fireplaces

Continental Fireplaces CDVS 280-N Installation and operation instructions

Regency Fireplace Products

Regency Fireplace Products PG33-NG Owners & installation manual

CHAD-O-CHEF

CHAD-O-CHEF VFG 700 Installation & operating instruction manual

Mendip Stoves

Mendip Stoves Loxton 8 Operation and installation manual

Charnwood

Charnwood LA 50iB Operating & installation instructions

Empire Comfort Systems

Empire Comfort Systems VFP32BP20LN-1 Installation instructions and owner's manual

Escea

Escea SMART HEAT user guide

Burley

Burley 160 Installation and operating instructions

Mendota

Mendota FV33i-PF2-0113 Installation & operating instructions

Element4

Element4 CLUB Series installation manual

Superior

Superior MHW36R Installation and operation instructions

Dimplex

Dimplex Revillusion RBF24DLX Service manual

Regency Fireplace Products

Regency Fireplace Products Liberty LRI4E-NG Owners & installation manual

Desa (V)3612ST User manual

Popular Indoor Fireplace manuals by other brands
