Desa VANGUARD LOGMATE FB32CB User manual

For more information, visit www.desatech.com
WARNING: If the information in this manual is not
followed exactly, a re or explosion may result causing
property damage, personal injury or loss of life.
For use only with a listed gas-red unvented decorative
room heater. Not to exceed 40,000 Btu/Hr. Do not build
a wood re.
Carefully review the instructions supplied with the
decorative type unvented room heater for the minimum
replace size requirement.
Do not install an appliance in this rebox unless this
rebox meets the minimum dimensions required for
the installation.
This rebox has been tested and approved by CSA
under ANSI Z21.91 for use with any ANSI Z21.11.2 ap-
proved gas logs.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
UNVENTED (VENT-FREE) 32" LOGMATE®UNIVERSAL FIREBOX
OWNER’S MANUAL
®
Shown with optional
accessories.
MODEL FB32CB WITH CIRCULATING LOUVERS AND
MODEL FB32NCB WITH NONCIRCULATING SMOOTH FACE
fire-parts.com

www.desatech.com 116662-01G2
SAFETY
WARNING: Improper instal-
lation, adjustment, alteration,
service or maintenance can
cause injury or property damage.
Refer to this manual for correct
installation and operational
procedures. For assistance or
additional information consult
a qualified installer, service
agency or the gas supplier.
This appliance may be installed
in an aftermarket,* permanently
located, manufactured (mobile)
home, where not prohibited by
local codes.
* Aftermarket: Completion of sale, not for
purpose of resale, from the manufacturer
WARNING: This product
contains and/or generates
chemicals known to the State
of California to cause cancer or
birth defects or other reproduc-
tive harm.
IMPORTANT: Read this owner’s
manual carefully and completely
before trying to assemble, op-
erate or service this rebox.
Improper use of this rebox can
cause serious injury or deatah
from burns, re, explosion, elec-
trical shock or carbon monoxide
poisoning.
WARNING: Any change to
this rebox or its controls can
be dangerous.
WARNING: Do not allow fans
to blow directly into the rebox.
Avoid any drafts that alter burner
ame patterns. Ceiling fans can
create drafts that alter burner
ame patterns. Altered burner
patterns can cause sooting.
WARNING: Do not use a blow-
er insert, hood, heat exchanger
insert or other accessory not ap-
proved for use with this heater.
Use only the provided hood or
GA6096 polished brass hood
accessory (see Accessories on
page 19).
Due to high temperatures, the
rebox should be located out of
trafc and away from furniture
and draperies.
Do not place clothing or other
ammable material on or near
rebox. Never place any objects
on the rebox or logs.
Carefully supervise young chil-
dren when they are in the room
with rebox.
TABLE OF CONTENTS
Safety .................................................................. 2
Local Codes......................................................... 3
Unpacking............................................................ 4
Product Specications......................................... 4
Product Features................................................. 5
Locating Firebox.................................................. 5
Air for Combustion and Ventilation ...................... 5
Installation ........................................................... 7
Parts .................................................................. 14
Replacement Parts............................................ 18
Technical Service............................................... 18
Accessories ....................................................... 19
Warranty ..............................................Back Cover
fire-parts.com

www.desatech.com
116662-01G 3
Firebox front and screen become
very hot when running rebox.
Keep children and adults away
from hot surfaces to avoid burns
or clothing ignition. Firebox will
remain hot for a time after shut-
down. Allow surfaces to cool
before touching.
You must operate this replace
with the provided replace screen
(closed) and hood in place. Make
sure these parts are in place before
running rebox. This rebox has
been tested and approved with and
without the brick liner. If the liner
is removed, the model number re-
verts to the NL (non-lined) series.
Keep the rebox area clear and
free from combustible materials,
gasoline and other ammable
vapors and liquids.
1. This rebox shall not be installed in a
bedroom or bathroom.
2. Never install the rebox
• in a recreational vehicle
• where curtains, furniture, clothing or
other ammable objects are less than
36" from the front and 42" from the top of
rebox. For side clearances see Figure
6, page 8
• in high trafc areas
• in windy or drafty areas
3. Do not use this rebox as a wood-burning
replace. Use only decorative unvented
room heaters (log sets).
4. Do not add extra logs or ornaments such
as pine cones, vermiculite or rock wool.
Using these added items can cause
sooting.
5. Vent-free gas log heaters installed in these
reboxes require fresh air ventilation to
run properly. See Air for Combustion and
Ventilation, page 5.
6. Do not run rebox
• where ammable liquids or vapors are
used or stored
• under dusty conditions
7. Do not use this rebox to cook food or
burn paper or other objects.
8. Turn rebox off and let cool before servic-
ing. Only a qualied service person should
service and repair rebox.
9. Operating vent-free log sets in a rebox
above elevations of 4,500 feet could
cause pilot outage.
10. Do not use the rebox if it has been un-
der water due to the shock hazard that
could result with the blower accessary (if
installed) in place.
11. Provide adequate clearances around air
openings.
SAFETY
Continued
LOCAL CODES
Install and use replace with care. Follow all
local codes. In the absence of local codes, use
the latest edition of The National Fuel Gas Code
ANSI Z223.1/NFPA 54*. Firebox must be electri-
cally grounded in accordance with the National
Electrical Code, ANSI/NFPA70 (latest edition).
*Available from:
American National Standards Institute, Inc.
1430 Broadway
New York, NY 10018
National Fire Protection Association, Inc.
Batterymarch Park
Quincy, MA 02269
State of Massachusetts: The installation
must be made by a licensed plumber or
gas tter in the Commonwealth of Mas-
sachusetts.
Sellers of unvented propane or natural
gas-red supplemental room heaters shall
provide to each purchaser a copy of 527
CMR 30 upon sale of the unit.
Vent-free gas products are prohibited for
bedroom and bathroom installation in the
Commonwealth of Massachusetts.
fire-parts.com

www.desatech.com 116662-01G4
12
1
/
2
"
1
1
/
2
"
9
3
/
4
"
4
5
/
8
"
2
1
/
2
"
6"
32
3
/
16
"
33
1 1
/
16
"
2
1
/
4
"
UNPACKING

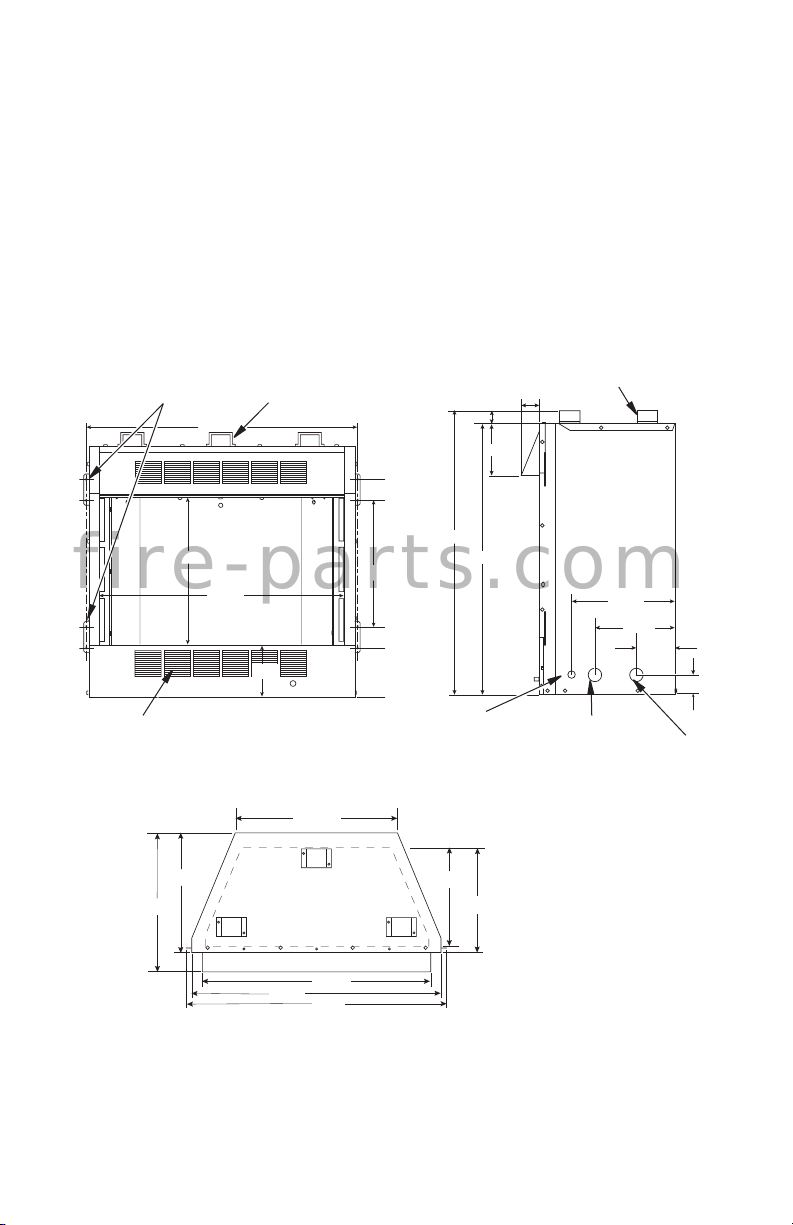

Figure 2 - Firebox Side View
Gas Line
Access
Figure 1 - Firebox Front View
Electrical
Access Hole
Electrical
Access Hole
with Bushing
22
1
/
2
"
16
1 1
/
16
"13
1
/
4
"*
14
1
/
4
"*
31
5
/
8
"
34
3
/
8
"
35
5
/
8
"
19
1
/
4
"
35 1/16"
31 3/4"
16 1/4"
2 3/4"
2 3/4"
19 3/8"
6 3/8"
Built-in Nailing
Flanges
Louvers (Model
FB32CB Only)
Figure 3 - Firebox Top View
*Note: 14 1/4" is total rebox
cavity depth including brick
liner. 13 1/4" is depth of at
oor including brick liner.
Standoffs (Model
FB32NCB Only) Standoffs (Models FB32NCB Only)
1. With utility knife, cut the carton all the way
around above the staples on the bottom
tray. Lift the carton off the rebox. Remove
packing. Note: The hood is located in the
packing on the right hand side of the heater
front. Lift the heater off the bottom tray.
2. Check carton contents for the following:
• Screen assembly (2)
• Screen support rod (2)
• Hood
• Hardware and parts bag containing the
following:
• Owner’s Manual
• Black #10 x 3/8" Phillips screws (2)
• Zinc #10 x 1/2" shouldered hex screws (3)
• Black #10 x 5/8" shouldered hex
screws (2)
If any items are missing, inform dealer
where you bought the rebox.
3. Check heater for any shipping damage.
If heater is damaged call DESA Heat-
ing, LLC at 1-866-672-6040 for replace-
ment parts before returning to dealer.
PRODUCT SPECIFICATIONS
fire-parts.com

www.desatech.com
116662-01G 5
PRODUCT FEATURES
2. Everything needed to complete installation.
3. These models CANNOT be installed in a
bedroom or bathroom.
4. Proper air for combustion and ventilation
(see Air for Combustion and Ventilation).
LOCATING FIREBOX
Plan where you will install the rebox. This will
save time and money later when you install
the rebox. Before installation, consider the
following:
1. Where rebox will be located. Allow for
wall and ceiling clearances (see Installa-
tion Clearances, page 8).
AIR FOR COMBUSTION AND VENTILATION
WARNING: This heater shall
not be installed in a room or space
unless the required volume of in-
door combustion air is provided
by the method described in the
National Fuel Gas Code, ANSI
Z223.1/NFPA54, the International
Fuel Gas Code, or applicable lo-
cal codes. Read the following in-
structions to insure proper fresh
air for this and other fuel-burning
appliances in your home.
Today’s homes are built more energy efcient
than ever. New materials, increased insulation and
new construction methods help reduce heat loss
in homes. Home owners weather strip and caulk
around windows and doors to keep the cold air out
and the warm air in. During heating months, home
owners want their homes as airtight as possible.
While it is good to make your home energy ef-
cient, your home needs to breathe. Fresh air must
enter your home. All fuel-burning appliances need
fresh air for proper combustion and ventilation.
Exhaust fans, reboxes, clothes dryers and fuel
burning appliances draw air from the house to
operate. You must provide adequate fresh air
for these appliances. This will insure proper
venting of vented fuel-burning appliances.
PROVIDING ADEQUATE VENTILATION
The following are excerpts from National
Fuel Gas Code ANSI Z223.1/NFPA 54, Air
for Combustion and Ventilation.
All spaces in homes fall into one of the three
following ventilation classications:
1. Unusually Tight Construction
2. Unconned Space
3. Conned Space
The information on pages 5 through 7 will help
you classify your space and provide adequate
ventilation.
Unusually Tight Construction
The air that leaks around doors and windows
may provide enough fresh air for combustion
and ventilation. However, in buildings of un-
usually tight construction, you must provide
additional fresh air.
Unusually tight construction is dened as
construction where:
a. walls and ceilings exposed to the out-
side atmosphere have a continuous
water vapor retarder with a rating of one
perm (6x10-11 kg per pa-sec-m2) or less
with openings gasketed or sealed and
b. weather stripping has been added on
openable windows and doors and
c. caulking or sealants are applied to
areas such as joints around window
and door frames, between sole plates
and oors, between wall-ceiling joints,
between wall panels, at penetrations
for plumbing, electrical and gas lines
and at other openings.
If your home meets all of the three criteria
above, you must provide additional fresh air.
See Ventilation Air From Outdoors, page 7.
OPERATION
This rebox is designed for use with approved
ANSI Z21.1.2 decorative type unvented room
heaters. (Physical size limitations apply. Refer
to minimum rebox requirements supplied
with log heater.) It requires no outside vent-
ing or chimney making installation easy and
inexpensive. When used without the blower,
the rebox requires no electricity making it
ideal for emergency backup heat.
BLOWER ACCESSORY
The FB32CB rebox will accept the GA3750A
accessory. The variable blower allows you to
select the fan speed you desire. The blower
circulates heated air from the rebox into the
room. Use of blower is optional.
fire-parts.com

www.desatech.com 116662-01G6
If your home does not meet all of the three pre-
vious criteria, proceed to Determining Fresh-
Air Flow For Firebox Location, page 6.
Conned Space and Unconned Space
The National Fuel Gas Code ANSI Z223.1/
NFPA 54 denes a conned space as a space
whose volume is less than 50 cubic feet per
1,000 Btu/hr (4.8 m3 per kw) of the aggregate
input rating of all appliances installed in that
space and an unconned space as a space
whose volume is not less than 50 cubic feet per
1,000 Btu/hr (4.8 m3 per kw) of the aggregate
input rating of all appliances installed in that
space. Rooms communicating directly with the
space in which the appliances are installed*,
through openings not furnished with doors, are
considered a part of the unconned space.
* Adjoining rooms are communicating only if
there are doorless passageways or ventilation
grills between them.
DETERMINING FRESH-AIR FLOW
FOR HEATER LOCATION
Determining if You Have a Conned or
Unconned Space
Use this work sheet to determine if you have
a conned or unconned space.
Space: Includes the room in which you will
install heater plus any adjoining rooms with
doorless passageways or ventilation grills
between the rooms.
1. Determine the volume of the space (length
x width x height).
Length x Width x Height =__________ cu.
ft. (volume of space)
Example: Space size 20 ft. (length) x 16
ft. (width) x 8 ft. (ceiling height) = 2560 cu.
ft. (volume of space)
If additional ventilation to adjoining room
is supplied with grills or openings, add the
volume of these rooms to the total volume
of the space.
2. Multiply the space volume by 20 to deter-
mine the maximum Btu/Hr the space can
support.
_________(volume of space) x 20 = (Maxi-
mum Btu/Hr the space can support)
Example: 2560 cu. ft. (volume of space) x
20 = 51,200 (maximum Btu/Hr the space
can support)
3. Add the Btu/Hr of all fuel burning appli-
ances in the space.
Vent-free heater ________ Btu/Hr
Gas water heater* ________ Btu/Hr
Gas furnace ________ Btu/Hr
Vented gas heater ________ Btu/Hr
Gas replace logs ________ Btu/Hr
Other gas appliances* + _______ Btu/Hr
Total = _______ Btu/Hr
* Do not include direct-vent gas appli-
ances. Direct-vent draws combustion
air from the outdoors and vents to the
outdoors.
Example:
Gas water heater ________ Btu/Hr
Vent-free heater + _______ Btu/Hr
Total = _______ Btu/Hr
4. Compare the maximum Btu/Hr the space
can support with the actual amount of Btu/
Hr used.
_______Btu/Hr (maximum the space
can support)
_______Btu/Hr (actual amount of
Btu/Hr used)
Example: 51,200 Btu/Hr (maximum the
space can support)
79,000 Btu/Hr (actual amount of
Btu/Hr used)
The space in the above example is a conned
space because the actual Btu/Hr used is more
than the maximum Btu/Hr the space can sup-
port. You must provide additional fresh air.
Your options are as follows:
A. Rework worksheet, adding the space
of an adjoining room. If the extra space
provides an unconned space, remove
door to adjoining room or add ventilation
grills between rooms. See Ventilation Air
From Inside Building, page 7.
B. Vent room directly to the outdoors. See
Ventilation Air From Outdoors, page 7.
C. Install a lower Btu/Hr heater, if lower Btu/
Hr size makes room unconned.
If the actual Btu/Hr used is less than the
maximum Btu/Hr the space can support, the
space is an unconned space. You will need
no additional fresh air ventilation.
AIR FOR COMBUSTION AND VENTILATION
Continued
40,000
39,000
79,000
fire-parts.com

www.desatech.com
116662-01G 7
WARNING:If theareainwhich
the heater may be operated does
not meet the required volume for
indoor combustion air, combus-
tion and ventilation air shall be
provided by one of the methods
described in the National Fuel
Gas Code,ANSI Z223.1/NFPA54,
the International Fuel Gas Code,
or applicable local codes.
VENTILATION AIR
Ventilation Air From Inside Building
This fresh air would come from an adjoining
unconfined space. When ventilating to an
adjoining unconned space, you must provide
two permanent openings: one within 12" of the
AIR FOR COMBUSTION AND VENTILATION
Continued
Figure 4 - Ventilation Air from Inside Building
Or
Remove
Door into
Adjoining
Room,
Option
3
Ventilation Grills
Into Adjoining Room,
Option 2
Ventilation
Grills Into
Adjoining
Room,
Option 1
12"
12"
Outlet
Air
V e ntilated
Attic
Outlet
A
ir
Inlet
Air
Inlet Air V e ntilated
Crawl Space
T o
Crawl
Space
T o Attic
Figure 5 - Ventilation Air from Outdoors
ceiling and one within 12" of the oor on the
wall connecting the two spaces (see options 1
and 2, Figure 4). You can also remove door into
adjoining room (see option 3, Figure 4). Fol-
low the National Fuel Gas Code ANSI Z223.1/
NFPA 54, Air for Combustion and Ventilation for
required size of ventilation grills or ducts.
Ventilation Air From Outdoors
Provide extra fresh air by using ventilation grills or
ducts. You must provide two permanent openings:
one within 12" of the ceiling and one within 12"
of the oor. Connect these items directly to the
outdoors or spaces open to the outdoors. These
spaces include attics and crawl spaces. Follow the
National Fuel Gas Code ANSI Z223.1/NFPA 54,
Section 5.3, Air for Combustion and Ventilation for
required size of ventilation grills or ducts.
IMPORTANT: Do not provide openings for
inlet or outlet air into attic if attic has a thermo-
stat-controlled power vent. Heated air entering
the attic will activate the power vent.
INSTALLATION
NOTICE: This heater is intended
for use as supplemental heat.
Use this heater along with your
primary heating system. Do not
install this heater as your pri-
mary heat source. If you have a
central heating system, you may
run system’s circulating blower
while using heater. This will help
circulate the heat throughout the
house. In the event of a power
outage, you can use this heater
as your primary heat source.
WARNING: A qualied ser-
vice person must install rebox.
Follow all local codes.
WARNING: Never install rebox
• in a bedroom or bathroom
• in a recreational vehicle
• where curtains, furniture, clothing
or other ammable objects are less
than 36" from the front and 42"
from the top of rebox. For side
clearances see Figure 6, page 8
• in high trafc areas
• in windy or drafty areas
fire-parts.com

www.desatech.com 116662-01G8
IMPORTANT: Vent-free gas log heaters add
moisture to the air. Although this is benecial,
installing rebox in rooms without enough
ventilation air may cause mildew to form from
too much moisture. See Air for Combustion
and Ventilation, page 5.
IMPORTANT: Make sure the rebox is level. If
rebox is not level, log set will not work properly.
Note: Your Vanguard rebox is designed to
be used in zero clearance installations. Wall
or framing material can be placed directly
against any exterior surface on the rear, sides
or top of your rebox, except where standoff
spacers are integrally attached. If standoff
spacers are attached to your rebox, these
spacers can be placed directly against wall
or framing materials.
Use the dimensions shown for rough openings
to create the easiest installation (see Built-In
Firebox Installation, page 12).
INSTALLATION CLEARANCES
WARNING: Maintain the
minimum clearances. If you can,
provide greater clearances from
oor, ceiling and adjoining wall.
Carefully follow the instructions below. This
will ensure safe installation.
Minimum Clearances For Side Combus-
tible Material, Side Wall and Ceiling
A. Clearances from the side of the replace
cabinet to any combustible material and
wall should follow diagram in Figure 6.
Example: The face of a mantel, bookshelf,
etc. is made of combustible material and
protrudes 3 1/2" from the wall. This com-
bustible material must be 4" from the side
of the replace opening (see Figure 6).
Figure 6 - Minimum Clearance for
Combustible to Wall
*Minimum 16" from Side Wall
Example
*
Figure 7 - Minimum Mantel Clearances
for Built-In Installation
Supplied
Firebox Hood
Must Be Used
at All Times
Wire-mesh
Screen
Firebox
Mantel Shelf
13" 16" 19" 21"
19" 20" 21" 22"
For
FB32NCB
Series
noncirculating
smooth face
models
2 1/2"
6"
8"
10"
For FB32CB
Series
circulating
louvered
models
Note:
A
ll vertical measurements
are from top of fireplace
opening to bottom of mantel
shelf. All measurements
are in inches.
Facing material (above
firebox) may be of
combustible material,
including decorative
mantel ornaments.
INSTALLATION
Continued
B. Clearances from the top of the replace
opening to the ceiling should not be less
than 42".
MINIMUM CLEARANCE TO
COMBUSTIBLE MATERIALS
Top 42", Left and Right Sides 16",
Bottom and Rear 0", Front 36"
Mantel Clearances for Built-In
Installation
If placing custom mantel above built-in re-
box, you must meet the minimum allowable
clearance between mantel shelf and top of
rebox opening shown in Figure 7. These are
the minimum allowable mantel clearances
for a safe installation. Use larger clearances
wherever possible to minimize the heating of
objects and materials placed on the mantel.
CAUTION: Close screens
before operation of vent-free
gas log heater. Do not allow the
heater to touch or extend beyond
the replace screen.
If your installation does not meet the minimum
clearances in Figure 7, you must:
• raise mantel to an acceptable height,
OR
• remove mantel.
fire-parts.com

www.desatech.com
116662-01G 9
INSTALLATION
Continued

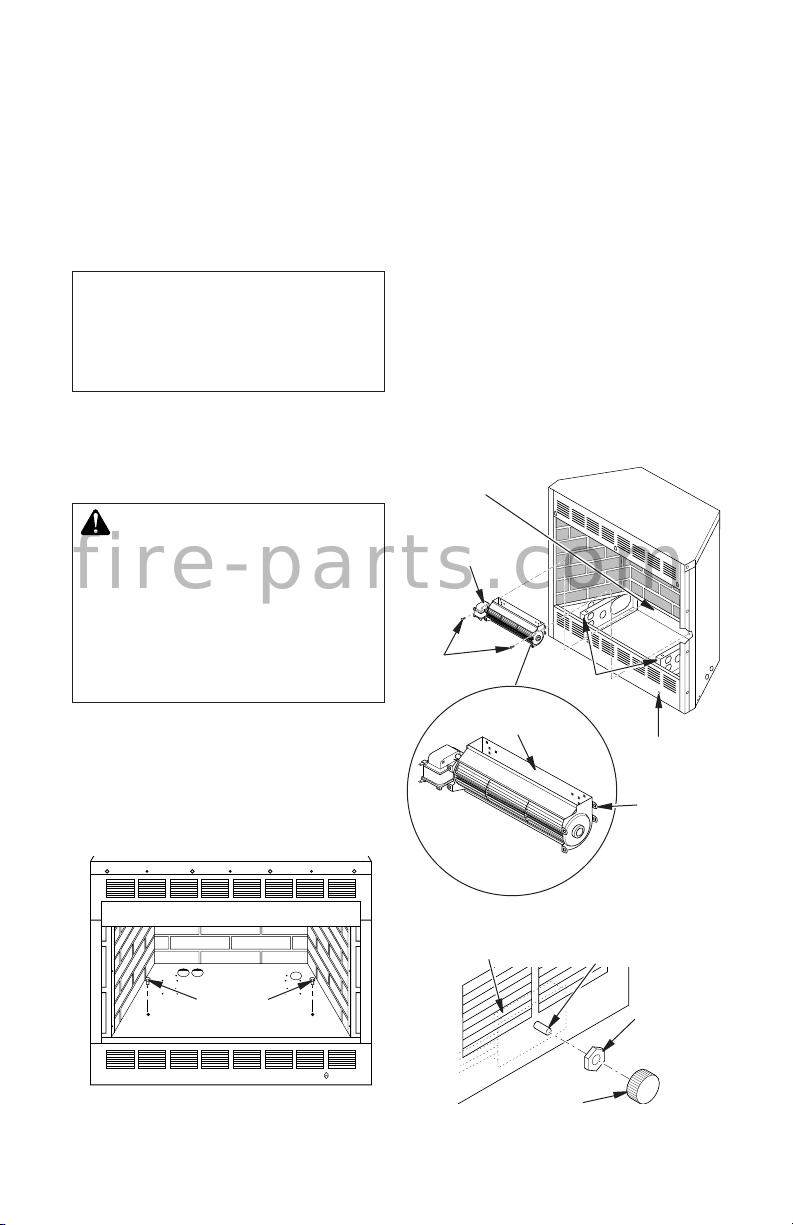

INSTALLING BLOWER ACCESSORY
(Model FB32CB Only)
You may install blower accessory GA3750A
with conventional installation (below) or with
built-in installation (page 11).
Conventional Installation of Blower
Accessory
NOTICE: If a log set is currently
installed in the rebox, disconnect
log set from gas supply and remove
from rebox. Contact a qualied
service person to do this.
1. Remove rebox bottom:
a. Remove 4 screws that secure bottom
of rebox (see Figure 8).
b. Carefully raise and remove rebox bot-
tom from rebox.
WARNING: If there is a duplex
electrical outlet installed in the
right side of the bottom of the
replace base area, be sure that
the electrical power to the outlet is
turned off before proceeding with
blower installation. Failure to do
this may result in serious injury.
2. Place blower against lower rear wall of
rebox wrapper with exhaust port directed
upward. Align holes in top mounting tabs
of blower with holes in wall of wrapper
(see Figure 9). Using 2 screws provided,
mount blower and tighten screws se-
curely.
Figure 8 - Removing Screws from
Firebox Bottom
Screws
3. Be certain that all wire terminals are
securely attached to terminals on blower
motor and that the screw retaining green
ground wire is tight.
4. Locate plastic hole plug installed in the
3/8" diameter opening in the lower right
side of rebox front panel (see Figure 9).
Remove plastic plug and discard.
5. Place speed control against inner wall of
front panel, pushing plastic control shaft
forward through opening (see Figure 10).
6. While supporting speed control, secure
control shaft with lock nut by pushing and
turning lock nut with pliers clockwise until
it is tight against front panel. Place control
knob provided on shaft (see Figure 10).
Screws
Blower
Lower Rear
Wall of Firebox
Wrapper
Floor
Supports
Top
Mounting
Tab
Exhaust
Port
Plastic
Hole Plug
Figure 9 - Mounting Blower to Firebox
Figure 10 - Attaching Speed Control
Speed Control
Control Knob
Lock Nut
Control Shaft
fire-parts.com

www.desatech.com 116662-01G10
7. Plug in blower power cord.
a. If your rebox is installed as a freestand-
ing unit, determine whether power cord
will exit left side or right side of rebox.
Install 1 plastic bushing provided into
the 1 1/2" hole in the oor support on the
exit side. Install second plastic bushing
(provided) into the 1 1/2" hole in outer
casing through which power cord will
exit (see Figure 11). Route power cord
through both plastic bushings and plug
power cord into a 3-prong grounded
wall receptacle near rebox.
b. If your rebox installation is recessed
and/or pre-wired, see Built-In Installa-
tion of Blower Accessory, page 11.
8. Turn on power to duplex outlet if previ-
ously turned off per warning in step 1.
9. Check to make sure that power cord is
completely clear of blower wheel and
that there are no other foreign objects in
blower wheel. Turn blower on and check
for operation.
WARNING: Never touch the
blower wheel while in operation.
10. Peel off backing paper and stick supplied
wiring diagram decal on rebox bottom
approximately 12" in front of blower.
11. Replace bottom of rebox. Note: Make sure
back of rebox bottom slides under rear of
rebrick (lift rebrick up if necessary.)
12. Reattach rebox bottom using 4 screws
removed in step 1. Note: Discard remain-
ing hardware items.
13. Install log set heater according to instal-
lation instructions supplied with heater.
INSTALLATION
Continued
NOTICE: A qualied electrician
must connect electrical wiring to
duplex outlet for built-in instal-
lation. Follow all local codes. In
absence of local codes follow
The National Electrical Code
ANSI/NFPA 70.
Built-In Installation of Blower Accessory
1. Before replacing bottom of rebox, re-
move screw holding duplex outlet to sup-
port bracket in bottom of rebox. Remove
duplex outlet.
2. Clamp electrical cable into rebox through
smallest hole in outer casing using strain
relief provided.
3. Route wires from electrical box through
hole in side of heater and hole in support
bracket (see Figure 12).
4. Connect wires from the electrical box to
duplex outlet. Match wire colors to those
indicated on duplex outlet. Be sure to
connect ground wire.
5. Replace duplex outlet with screw.
6. Plug blower power cord into duplex outlet.
7. Replace bottom of rebox.
Figure 11 - Installing Plastic Bushing for
Power Cord
Plastic
Bushing
Figure 12 - Routing Blower Accessory
Power Cord for Built-In Installation
Screw
Blower
Power Cord
Support
Bracket
Cables From
Electrical Source
Duplex
Outlet
Blower
fire-parts.com

www.desatech.com
116662-01G 11
INSTALLATION
Continued

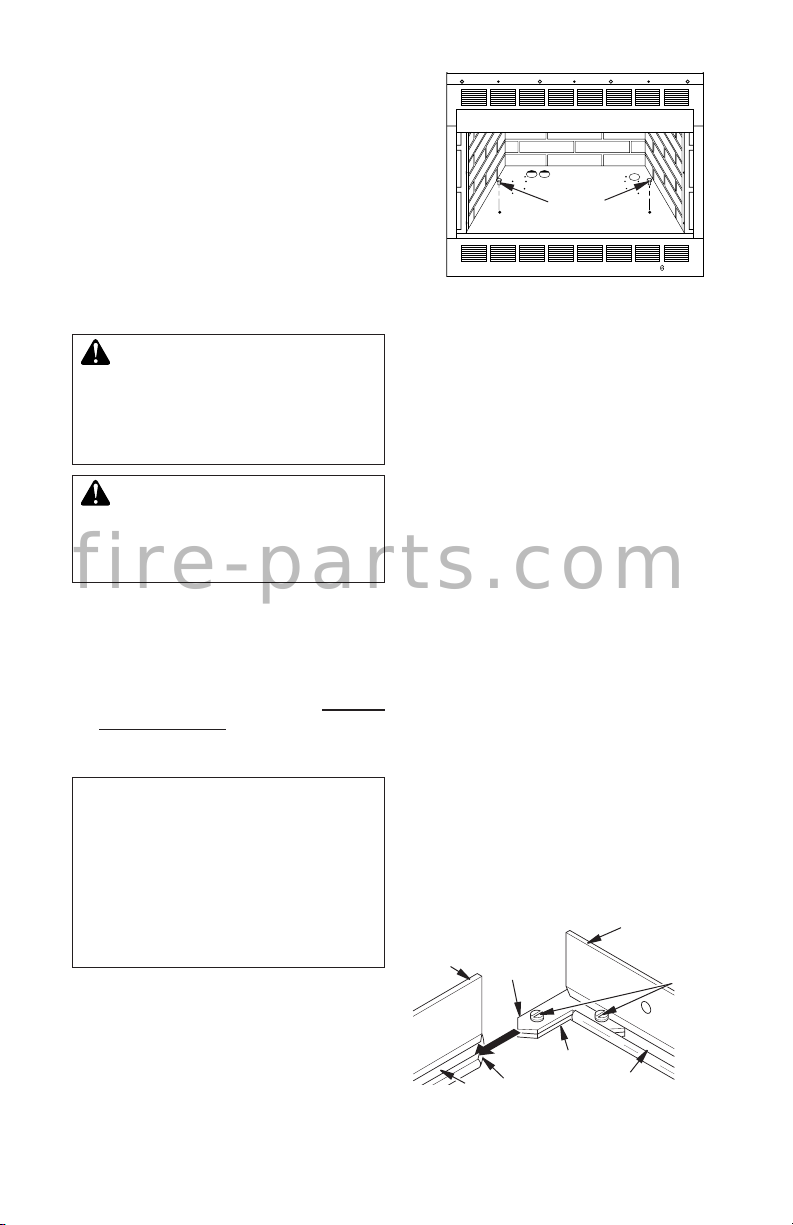

Figure 13 - Removing Firebox Bottom
Screws
Operating Blower
Light your gas appliance with the blower off.
After about 15 minutes, turn blower on to de-
liver heated air at the top louvers. The blower
features a variable control which allows you
to select the speed you desire.
Note: Periodically check louvers of the
rebox and remove any dust, dirt or other
obstructions.
INSTALLING LOG HEATER IN FIREBOX
CAUTION: Do not remove the
data plates attached to the heater
base assembly. The data plates
contain important warranty and
safety information.
CAUTION: Do not pick up log
base assembly by burners. This
could damage burners. Only
handle base by grates.
1. Remove four screws holding rebox bot-
tom in place.
2. Lift and remove firebox bottom (see
Figure 13).
3. If installing GA3750A blower acces-
sory (Model FB32CB only), see Installing
Blower Accessory, page 9.
4. Route exible gas line from manual shutoff
valve into rebox through side.
NOTICE: Most building codes
do not permit concealed gas
connections. A exible gas line
is recommended to allow ac-
cessibility from the rebox. The
exible gas supply line connec-
tion to the manual shutoff valve
should be accessible.
5. Install and properly test gas log heater.
Follow installation instructions included
with the vent-free gas log heater that is
being installed.
6. Replace rebox bottom and secure with
screws.
ASSEMBLING AND ATTACHING
OPTIONAL BRASS TRIM
Note: The instructions below show assem-
bling and attaching brass trim to replace.
1. Remove packaging from 3 pieces of
brass trim.
2. Locate 4 brass screws, 2 adjusting plates
with set screws and 2 shims in the hard-
ware packet.
3. Align shim under adjusting plate as shown
in Figure 14.
4. Slide one end of adjusting plate/shim in
slot on mitered edge of top brass trim (see
Figure 14).
5. Slide other end of adjusting plate/shim
in slot on mitered edge of side brass trim
(see Figure 14).
6. While rmly holding edges of brass trim
together, tighten both set screws on the
adjusting plate with slotted screwdriver.
7. Repeat steps 1 through 6 for the other
side.
8. Tighten trim hanging screws (#10 x 6.25
shoulder) into holes in cabinets. Place
the assembled trim onto replace cabinet.
Align hanging notches on trim with hang-
ing screws on side of replace (see Figure
15, page 12). Push trim rmly into place,
sliding hanging notches over hanging
screws.
Figure 14 - Assembling Brass Trim
Slot
Mitered Edge
Shim
Set
Screws
Adjusting
Plate
Side
Brass
Trim
Top Brass
Trim
Slot
fire-parts.com

www.desatech.com 116662-01G12
INSTALLATION
Continued
Figure 16 - Installing Fireplace Hood
Hood
Hood
Mounting
Slot
Screw
Shoulder
Screw
INSTALLING FIREPLACE SCREEN
1. Insert each rod through nine rings located
at top of screen.
2. Insert rst rod into rear hole in left side
of rebox. Fasten rod to rear hole near
center of rebox using black shoulder
screw.
3. Insert other rod into front hole on right
side of rebox and fasten using remain-
ing shoulder screw.
Figure 17 - Installing Fireplace Screen
(Shown Without Fireplace Hood for Clarity)
Rod
Front and
Rear Hole
Ring
Screen
Screw
FIREBOX INSTALLATION USING
OPTIONAL ACCESSORY MANTELS
This rebox may be installed using the corner
or cabinet mantel with hearth base against
a wall in your home. A perimeter trim kit is
included with the mantel accessories (see
Accessories, page 19). Follow the instructions
included with mantel for installation.
BUILT-IN FIREBOX INSTALLATION
Built-in installation of this rebox involves
installing rebox into a framed-in enclosure.
This makes the front of rebox ush with wall.
If installing a mantel above the rebox, but you
must follow the clearances shown in Figure 7,
page 8. Follow the instructions below to install
the rebox in this manner.
1. Frame in rough opening. Use dimensions
shown in Figure 18, page 13 for the rough
opening. If installing in a corner, use
dimensions shown in Figure 19, page 13
for the rough opening. The height is 33"
(FB32CB) or 34 1/4" (FB32NCB), which is
the same as the wall opening in Figure
18, page 13.
INSTALLING FIREPLACE HOOD
NOTICE: The firebox canopy
(hood) must not be modied or
replaced with a canopy (hood) that
may be provided with the unvented
decorative room heater.
1. Attach three zinc-colored shoulder screws
to back of hood.
2. Insert hood into hood-mounting slots on
rebox.
3. Hold hood in place. Insert two black Phil-
lips screws through bottom of hood and
tighten.
Figure 15 - Attaching Brass Trim to
Fireplace
Trim
Hanging
Screws
Assembled
Brass Trim
Hanging
Notches
on Trim
fire-parts.com

www.desatech.com
116662-01G 13
INSTALLATION
Continued
34 1/2"
17 3/4"
33" (FB32CB)
34 1/4" (FB32NCB)
Figure 18 - Rough Opening for Installing
in Wall
39
3
/ 8 "
27
7
/ 8 "
55
5
/ 8 "
34
3
/ 4 "
Figure 19 - Rough Opening for Installing
in Corner
Nailing
Flanges
Nails or
Wood
Screws
Figure 20 - Attaching Firebox to Wall
Studs
2. Install gas piping to rebox location. This
installation includes an approved exible
gas line (if allowed by local codes) after
the manual shutoff valve. The exible gas
line must be the last item installed on the
gas piping. See Connecting to Gas Supply
in log set owner’s manual.
3. Carefully set firebox in front of rough
opening with back of rebox inside wall
opening. IMPORTANT: If installing pe-
rimeter trim kit, see instructions included
with brass trim accessory. You must install
shoulder screws now.
4. If using GA3750A blower accessory
(Model FB32CB only), see Built-In Instal-
lation of Blower Accessory, page 11.
5. Attach exible gas line to log set. See
Connecting to Gas Supply in log set
owner’s manual.
6. Carefully insert rebox into rough opening.
7. Attach rebox to wall studs using nails
or wood screws through holes in nailing
ange (see Figure 20).
8. Check all gas connections for leaks. See
Checking Gas Connections in log set
owner’s manual.
9. If using optional perimeter trim kit, install
the trim after nal nishing and/or painting
of wall. See instructions included with brass
trim accessory for attaching brass trim.
IMPORTANT: When nishing your rebox,
combustible materials such as wall board,
gypsum board, sheet rock, drywall, plywood,
etc. may be butted up next to the sides and top
of the rebox. Combustible materials should
never overlap the rebox front facing.
WARNING: Do not allow any
combustible materials to overlap
the rebox front facing.
IMPORTANT: Noncombustible materials such
as brick, tile, etc. may overlap the front facing,
but should never cover any necessary open-
ings like louvered slots.
WARNING: Do not allow
noncombustible materials to
cover any necessary openings
like louvered slots.
WARNING: Use only non-
combustible mortar or adhe-
sives when overlapping the front
facing with noncombustible
facing material.
fire-parts.com

www.desatech.com 116662-01G14

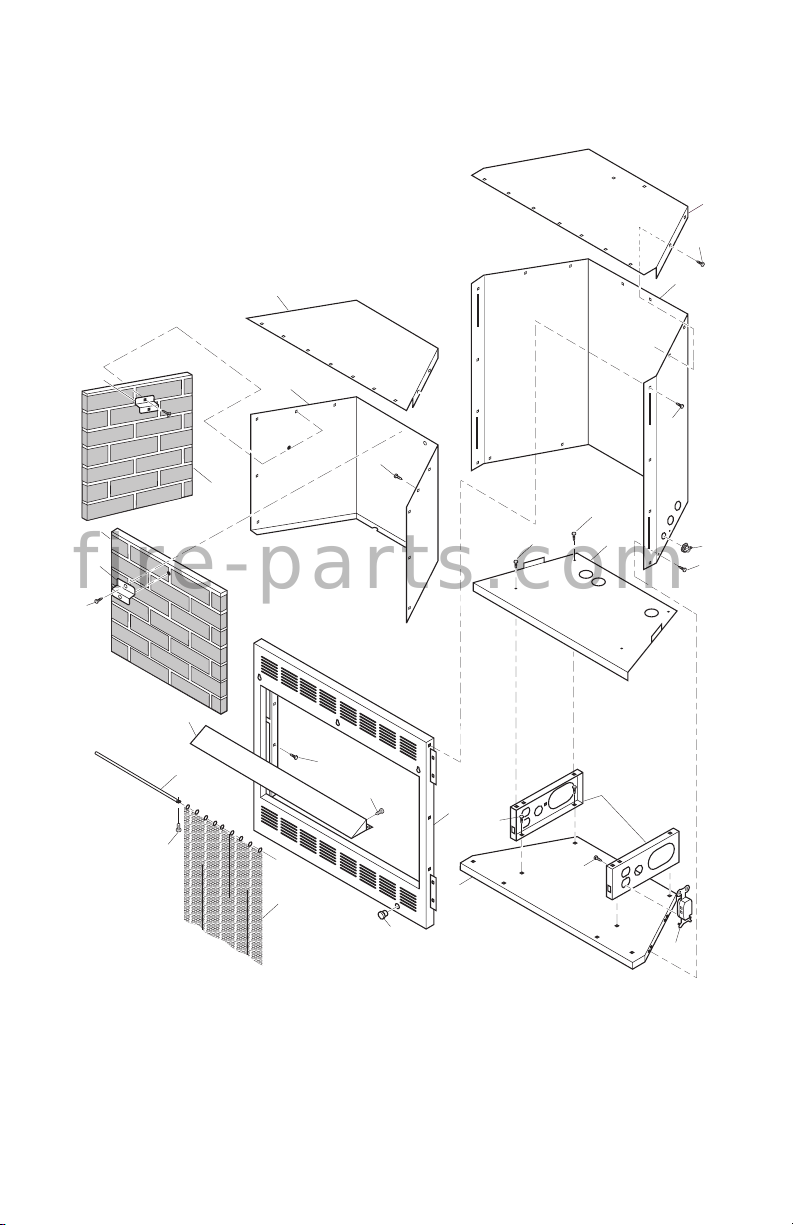

PARTS
MODEL FB32CB
5
16
16
15
16
17
4
6
1
16
7
16
14
21
13
18
10
8
20
12
19
9
3
2
3
2
16
11
18
18
fire-parts.com

www.desatech.com
116662-01G 15
PARTS
MODEL FB32CB
This list contains replaceable parts used in your rebox. When ordering parts, follow the
instructions listed under Replacement Parts on page 18 of this manual.
KEY
NO. PART NO. DESCRIPTION QTY.
1 101872-03 Firebox Top 1
2 101889-01 Firebrick Retainer 3
3 117538-01 Firebrick Kit 1
4 103457-01 Button Plug 1
5 103207-01 Outer Casing 1
6 ** Outer Shell Base 1
7 ** Firebox Wrapper 1
8 103297-01 Assembly Screen 2
9 103217-01CK Hood 1
10 103773-01 Front Assembly 1
11 ** Firebox Bottom 1
12 103809-01 Screen Rod 2
13 M12461-2 Screw, Outlet Mounting 1
14 ** Firebox Support 2
15 101357-03 Outer Casing Top 1
16 M11084-26 Hex Head Screw, #10-16 49
17 103771-01 Strain Relief Fitting 1
18 098304-01 Phillips Pan Head Screw, #10 13
19 099230-01 Hex Head Screw 3
20 099230-02 Shoulder Screw 2
21 GA3555 Duplex Outlet 1
** Not a eld replaceable part.
fire-parts.com

www.desatech.com 116662-01G16
PARTS
MODEL FB32NCB
5
14
16
16
16
13
15
17
17
17
16
6
1
7
16
18
10
8
4
12
19
9
3
2
3
2
16
11
18
fire-parts.com

www.desatech.com
116662-01G 17
KEY
NO. PART NO. DESCRIPTION QTY.
1 101872-03 Firebox Top 1
2 101889-01 Firebrick Retainer 3
3 117538-01 Firebrick Kit 1
4 099230-02 Shoulder Screw 2
5 103207-01 Outer Casing 1
6 ** Outer Shell Base 1
7 ** Firebox Wrapper 1
8 103297-01 Assembly Screen 2
9 103217-01CK Hood 1
10 103773-02 Front Assembly 1
11 ** Firebox Bottom 1
12 103809-01 Screen Rod 2
13 103816-01 Firebox Insulation 1
14 ** Firebox Support 2
15 101357-03 Outer Casing Top 1
16 M11084-26 Hex Head Screw, #10-16 49
17 098194-02 Stand Off 3
18 098304-01 Phillips Pan Head Screw, #10 11
19 099230-01 Hex Head Screw 3
** Not a eld replaceable part.
PARTS
MODEL FB32NCB
This list contains replaceable parts used in your rebox. When ordering parts, follow the
instructions listed under Replacement Parts on page 18 of this manual.
fire-parts.com

www.desatech.com 116662-01G18
REPLACEMENT PARTS
Note: Use only original replacement parts.
This will protect your warranty coverage for
parts replaced under warranty.
PARTS UNDER WARRANTY
Contact authorized dealers of this product. If
they can’t supply original replacement part(s),
call DESA Heating, LLC at 1-866-672-6040.
When calling DESA Heating, LLC, have
ready:
• your name
• your address
• model and serial numbers of your heater
• how heater was malfunctioning
• purchase date
Usually, we will ask you to return the part to
the factory.
PARTS NOT UNDER WARRANTY
Contact authorized dealers of this product. If
they can’t supply original replacement part(s),
call DESA Heating, LLC at 1-866-672-6040 for
referral information. A list of authorized dealers
can be found by visiting www.desatech.com.
When calling DESA Heating, LLC, have
ready:
• model and serial numbers of your heater
• the replacement part number
TECHNICAL SERVICE
You may have further questions about installa-
tion, operation, or troubleshooting. If so, con-
tact DESA Heating, LLC at 1-866-672-6040.
When calling please have your model and
serial numbers of your heater ready.
You can also visit DESA Heating, LLC’s web
site at www.desatech.com.
fire-parts.com

www.desatech.com
116662-01G 19
ACCESSORIES

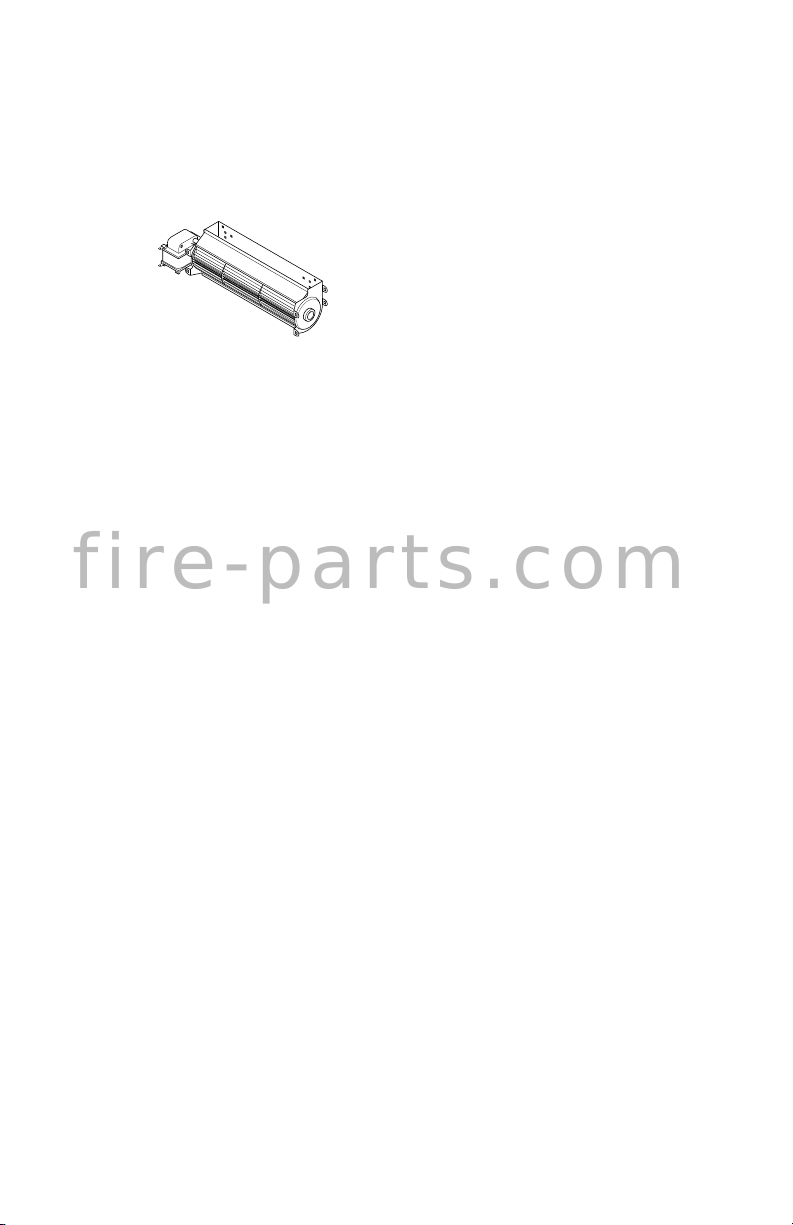

BLOWER ACCESSORY - GA3750A
For use with Model FB32CB only. The vari-
able speed blower allows you to select the
desired speed. The blower circulates heated
air from the replace into the room.
WALL CABINET MANTEL AND
BASE ACCESSORY WITH BLACK
PERIMETER TRIM
W32AU - Unnished, Traditional Design
W32AOS - Light Oak Finish, Traditional
Design
CMA311W - Painted White, Traditional
Design with Dentil Molding
CMA306FA - Light Oak Finish, Traditional
Design with Dentil Molding
CMA312FB - Red Oak Finish, Classic
Design
W32KPA - Painted White, Neo-Classical
Design
CMA305UA - Unnished, Georgian Design
with Columns
GMC90FA - Light Oak Finish, Georgian
Design with Columns
W32DS - Red Oak Finish, Keystone Design
W32GOSA - Dark Oak Finish, Mission
Design
W32IP - Painted White, Ultra/Click-n-Brick
Surround
CORNER CABINET MANTEL WITH
BASE AND BLACK PERIMETER
TRIM
C32AU - Unnished, Traditional Design
C32AOS - Light Oak Finish, Traditional
Design
C32HS - Dark Oak Finish, Classic Design
Ideal for space saving installations.
PERIMETER TRIM ACCESSORY
PT32 - Black
PT32B - Brushed Brass
PT32PB - Polished Brass
PT32P - Platinum
Perimeter trim kit included with all mantel ac-
cessories. Optional with built-in installation.
Provides a finished appearance covering
rough and/or unnished mantel edges.
BRASS HOOD ACCESSORY -
GA6096
Decorative polished brass hood enhances the
appearance of the rebox.
BRICK LINER ACCESSORY
HFL301 - Aged Red Standard Brick
HFL310 - Aged Almond Herringbone Brick
HFL311 - Aged Red Herringbone Brick
Purchase these accessories from your
local dealer. If they can not supply these
accessories call DESA Heating, LLC at
1-866-672-6040 for information. You can also
write to the address listed on the back page
of this manual.
fire-parts.com

116662 01
116662-01
Rev. G
09/08
NOT A UPC
DESA Heating, LLC
2701 Industrial Drive
Bowling Green, KY 42101
www.desatech.com
1-866-672-6040
WARRANTY
KEEP THIS WARRANTY
DESA HEATING, LLC LIMITED WARRANTIES
New Products
Standard Warranty: DESA Heating, LLC warrants this new product and any parts thereof to be free from
defects in material and workmanship for a period of four (4) years from the date of rst purchase from an
authorized dealer provided the product has been installed, maintained and operated in accordance with
DESA Heating, LLC’s warnings and instructions.
For products purchased for commercial, industrial or rental usage, this warranty is limited to 90 days from
the date of rst purchase.
Factory Reconditioned Products
Limited Warranty: DESA Heating, LLC warrants factory reconditioned products and any parts thereof
to be free from defects in material and workmanship for 30 days from the date of rst purchase from an
authorized dealer provided the product has been installed, maintained and operated in accordance with
DESA Heating, LLC’s warnings and instructions.
Terms Common to All Warranties
The following terms apply to all of the above warranties:
Always specify model number and serial number when contacting the manufacturer. To make a claim under
this warranty the bill of sale or other proof of purchase must be presented.
This warranty is extended only to the original retail purchaser when purchased from an authorized dealer,
and only when installed by a qualied installer in accordance with all local codes and instructions furnished
with this product.
This warranty covers the cost of part(s) required to restore this product to proper operating condition and
an allowance for labor when provided by a DESA Heating, LLC Authorized Service Center or a provider
approved by DESA Heating, LLC. Warranty parts must be obtained through authorized dealers of this prod-
uct and/or DESA Heating, LLC who will provide original factory replacement parts. Failure to use original
factory replacement parts voids this warranty.
Travel, handling, transportation, diagnostic, material, labor and incidental costs associated with warranty
repairs, unless expressly covered by this warranty, are not reimbursable under this warranty and are the
responsibility of the owner.
Excluded from this warranty are products or parts that fail or become damaged due to misuse, accidents,
improper installation, lack of proper maintenance, tampering, or alteration(s).
This is DESA Heating, LLC’s exclusive warranty, and to the full extent allowed by law; this express warranty
excludes any and all other warranties, express or implied, written or verbal and limits the duration of any
and all implied warranties, including warranties of merchantability and tness for a particular purpose to four
(4) years on new products and 30 days on factory reconditioned products from the date of rst purchase.
DESA Heating, LLC makes no other warranties regarding this product.
DESA Heating, LLC’s liability is limited to the purchase price of the product, and DESA Heating, LLC shall
not be liable for any other damages whatsoever under any circumstances including indirect, incidental, or
consequential damages.
Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of
incidental or consequential damages, so the above limitation or exclusion may not apply to you.
This warranty gives you specic legal rights, and you may also have other rights which vary from state to state.
For information about this warranty contact:
Model ( located on product or identication tag ) _____________________________
Serial No. ( located on product or identication tag ) __________________________
Date Purchased __________________________
Keep receipt for warranty verication.
fire-parts.com
