Desa CD32M Quick start guide

CD32M (-1)(-2), CD36M (-A1)(-A2), CD42M-A
FOR YOUR SAFETY
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch
• Do not use any phone in your building.
• Immediately call your gas supplier from a
neighbor’s phone. Follow the gas supplier’s
instructions.
• If you cannot reach your gas supplier, call the fire
department.
SAVE THIS BOOK
This book is valuable. In addition to instructing you on
how to install and maintain your appliance, it also con-
tains information that will enable you to obtain replace-
ment parts or optional accessory items when needed.
Keep it with your other important papers.
WARNING: If the information in this manual is not
followedexactly,afireorexplosionmayresultcaus-
ing property damage, personal injury, or loss of life.
FOR YOUR SAFETY
Do not store or use gasoline or other flammable
vaporsandliquidsinthevicinityofthisoranyother
appliance.
Save this manual for future reference.
Save this manual for future reference.
For more information, visit www.desatech.com
For more information, visit www.desatech.com
DIRECT-VENT FIREPLACE
OWNER’S OPERATION AND
INSTALLATION MANUAL
WARNING: This direct-vent gas fire-
place is intended for use with natural
or propane/LP gas only. Do not at-
tempt to burn any solid fuels in this
appliance.
WARNING: Improper installation, ad-
justment,alteration,service,ormainte-
nance can cause injury or property
damage. Refer to this manual for cor-
rectinstallationandoperationalproce-
dures. For assistance or additional in-
formation consult a qualified installer,
service agency, or the gas supplier.
This fireplace is manufactured for Stylecrest Inc. under the Coleman brand name by DESA.
This fireplace may be installed as an OEM installation in a manufactured (mobile) home and
must be installed in accordance with the manufacturers instructions and the Manufactured
Home Construction and Safety Standard, Title 24 CFR, Part 3280 in the United States or the
MobileHomeStandard,CAN/CSAZ240MHSeries ,inCanada.Thisfireplaceisonlyforusewith
the type(s) of gas indicated on the rating plate. A conversion kit is supplied with the fireplace.

111916-01A
For more information, visit www.desatech.com
For more information, visit www.desatech.com
2
Models CD32M sereies, CD36M-A series and CD42M-A are heat
circulating gravity direct-vent fireplaces with sealed combustion
chamber. These fireplaces use millivolt gas control valve and
millivolt ignition system.
These fireplaces are convertible with the standard setup as natural
gas. Conversion may be performed by the O.E.M. mobile home
builder or by a qualified service person on-site. If you are uncertain
astowhatgasyourunitisequippedfor,pleasechecktheratingplate
locatedinsideoftheapplianceopeningorconsultyourmobilehome
supplier or your local distributor of DESA/Coleman products.
INTRODUCTION
WARNING:Thisproductcontainsand/orgenerates
chemicals known to the State of California to cause
cancer or birth defects, or other reproductive harm.
BEFORE YOU BEGIN
Before beginning the installation of your appliance, read these
instructions through completely.
This DESA/Coleman fireplace and its components are safe when
installed according to this installation manual and operated as recom-
mended. Unless you use DESA/Coleman components designed and
tested for this fireplace system, YOU MAY CAUSE A SAFETY
HAZARD!
NOTICE:Checklocalbuildingcodesforarearequire-
ments before installing this appliance.
The DESA/Coleman warranty will be voided by, and DESA/
Coleman disclaims any responsibility for the following actions:
A) Modification to the fireplace, components, doors, blower, fans
or vent system.
B) Use of any component part not manufactured or approved by
DESA/Coleman in combination with a DESA/Coleman fire-
place system.
Proper installation is the most important step in ensuring safe and
continuous operation of the fireplace. Consult the local building
codes as to the particular requirements concerned with the installa-
tion of all factory built fireplaces. This fireplace, when installed,
must be electrically grounded in accordance with local codes, or in
theabsenceoflocalcodes,withtheNationalElectricalCode,ANSI/
NFPA 70 or the Canadian Electrical Code, CSA C22.1.
Theinstallationmust conformwithlocal codesor, in theabsence of
local codes, with the National Fuel Gas Code, ANSI Z223.1 or the
Canadian Installation Code, CAN/CGA B149. Thisappliance com-
plies with ANSI Z21.88-1998 and CSA 2.33-M98 as a VENTED
GAS FIREPLACE HEATER.
TABLE OF CONTENTS
INTRODUCTION......................................................................... 2
SELECTING LOCATION............................................................. 3
PRE-INSTALLATION PREPARATION ........................................ 3
INSTALLATION ........................................................................... 6
BURNER FLAME ADJUSTMENT ..............................................11
OPERATING FIREPLACE ........................................................ 12
CONVERTING FIREPLACE FROM NATURAL GAS
TO PROPANE/LP GAS ........................................................ 13
TROUBLESHOOTING .............................................................. 15
ILLUSTRATED PARTS BREAKDOWN AND PARTS LIST....... 16
SPECIFICATIONS .................................................................... 20
WIRING DIAGRAM ................................................................... 20
OWNER’S REGISTRATION FORM.......................................... 21
ACCESSORYAND REPLACEMENT PARTS........................... 23
TABLE OF CONTENTS
INTRODUCTION
Before You Begin

111916-01A
For more information, visit www.desatech.com
For more information, visit www.desatech.com
3
3
SELECTING LOCATION
To determine the safest and most efficient location for your fire-
place, consider the following guidelines:
1. The location must allow for proper clearances (see Figure 1).
2. Consider a location where the firepace would not be affected
by drafts, air conditioning ducts, windows or doors.
3. A location that avoids the cutting of joists or roof rafters makes
ventilation installation easier.
In selecting a location, the following precautions must be observed:
• Do not connect this appliance to a chimney system used for solid
fuel burning fireplace.
• Due to high temperatures, do not locate this appliance in high
traffic areas or near furniture and draperies.
• Never obstruct the openings of the appliance or flow of ventila-
tion air. Keep the control compartments accessible.
• Do not locate appliance close to where gasoline or other flam-
mable liquids may be stored. The appliance must be kept clear
and free from combustible materials.
• Do not use this appliance if any part has been under water. Imme-
diately contact a local service technician to examine the appli-
ance and to replace any part(s) of the control ignition system and
other related components that have been submerged under water.

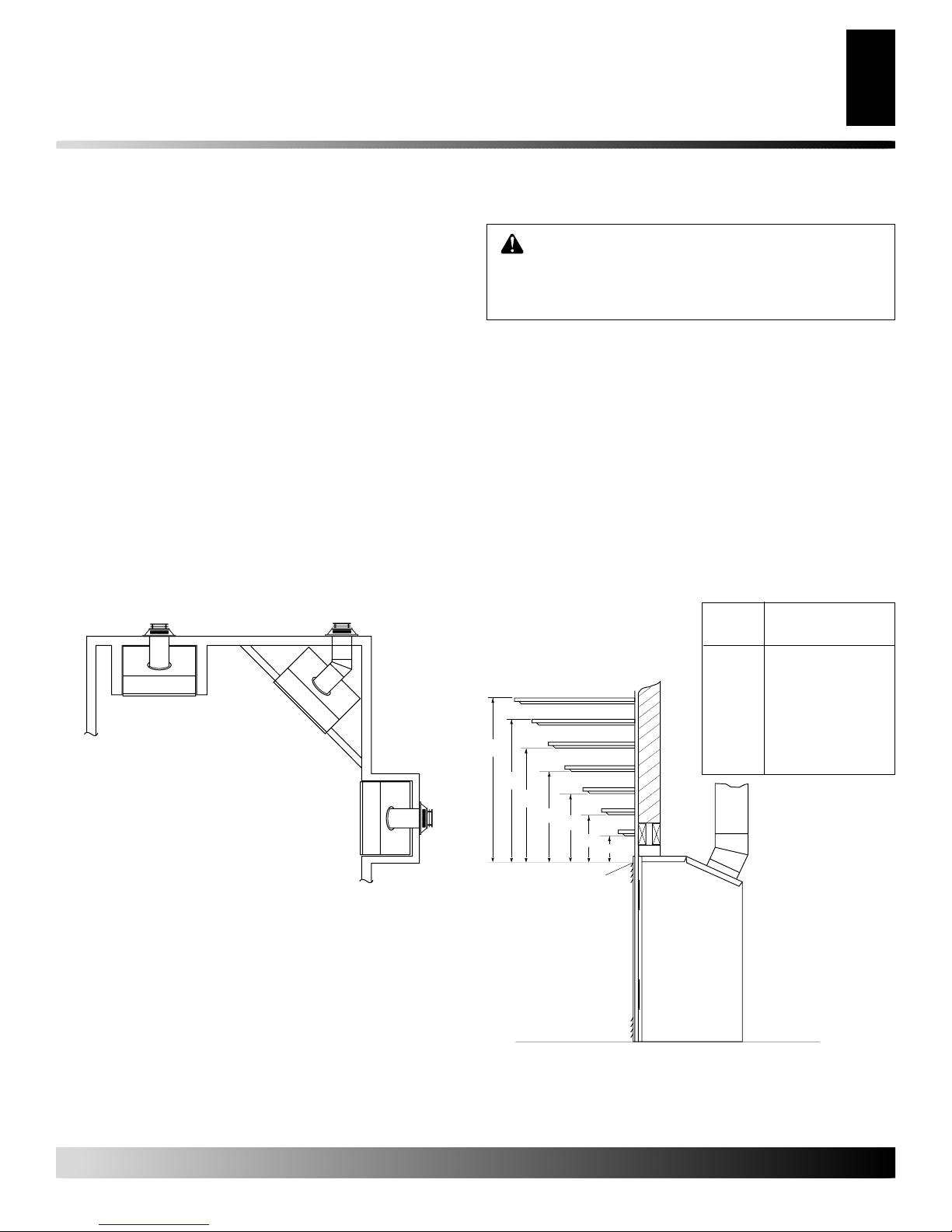

Figure 1 - Common Fireplace Locations
Flush installation is recommended where living space is limited.
Projected installation may be ideal for a new addition to an
existing finished wall.
Cornerinstallationmakesuse of a space thatmay not normally be
used and provides a wider and more efficient range for radiant heat
transfer.
CLEARANCES TO COMBUSTIBLES
Minimum clearances to combustibles for the fireplace are:
• Back and Sides of Fireplace.................................................. 0"
• Floor ......................................................................................0"
• Perpendicular Wall ................................................................ 6"
• Front ....................................................................................36"
• Top of Standoffs ....................................................................0"
CAUTION: Do not block required air spaces with
insulation or any other material. Do not obstruct the
effective opening of the appliance with any type of
facing material.
PRE-INSTALLATION
PREPARATION
MANTEL CLEARANCES
Woodwork, such as wood trims, mantles, and other combustible
materials should be placed within the required clearance specified
in Figure 2.
Figure 2 - Mantel Clearances
FULL
PROJECTION CORNER
INSTALLATION
FLUSH
INSTALLATION
C
B
A
DE
FG
Top of Louver Opening
3
2
1
4
5
6
7
Wall
Mantel Mantel From Top
Depth of Opening
(1) 14" (A) 16"
(2) 12" (B) 14"
(3) 10" (C) 12"
(4) 8" (D) 10"
(5) 6" (E) 8"
(6) 4" (F) 6"
(7) 2" (G) 4"
SELECTING LOCATION
PRE-INSTALLATION PREPARATION
Clearances to Combustibles
Mantel Clearances

111916-01A
For more information, visit www.desatech.com
For more information, visit www.desatech.com
4
PRE-INSTALLATION
PREPARATION
Continued

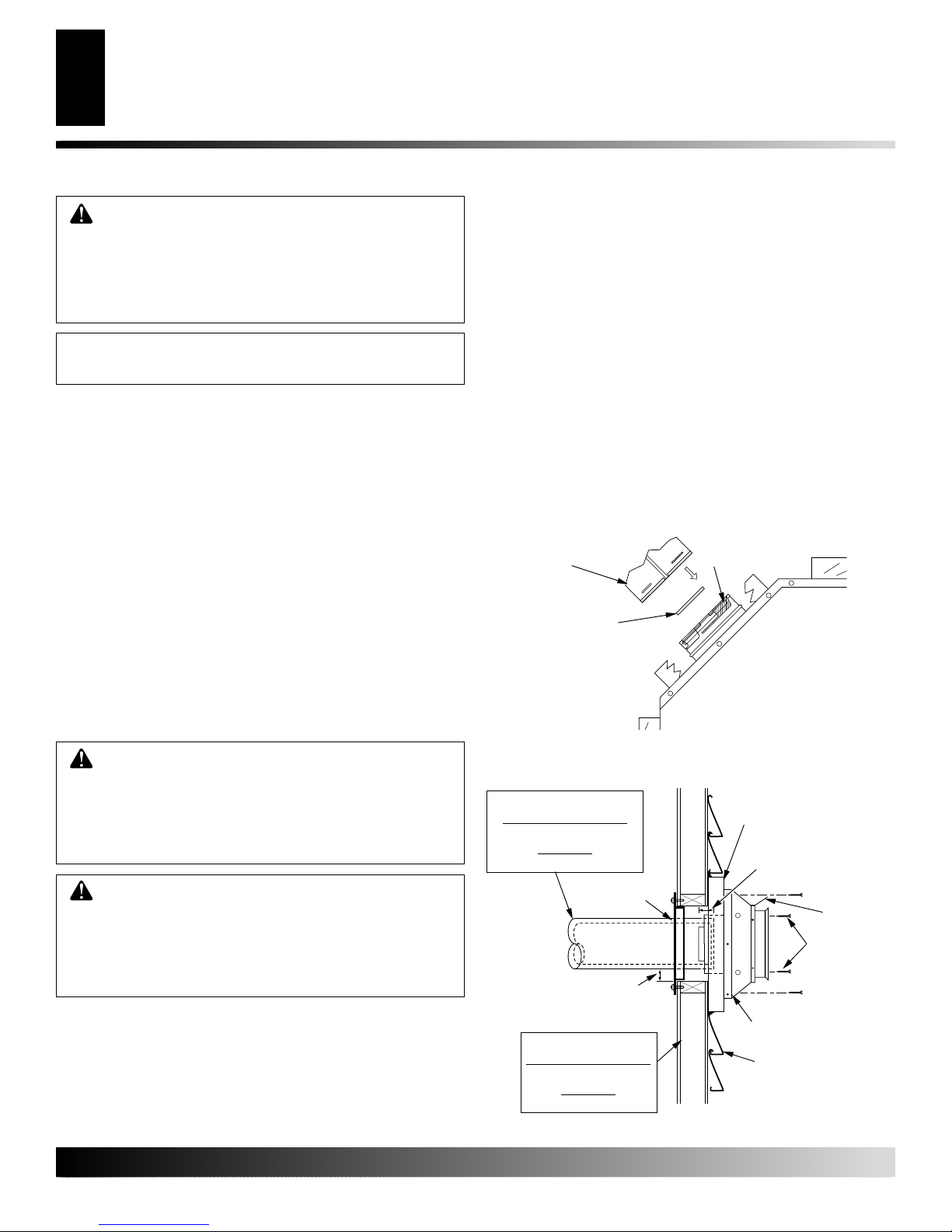

VENT TERMINATION CLEARANCES
The final position of your fireplace depends on the location of the
vent termination in relation to the clearances that must be observed
as shown in Figure 5 on page 5.
The vent system serves as the “chimney” as well as the combustion
air supply (air intake). The horizontal run must have a rise of 1/4"
(.6 cm) for every 12" (30.48 cm) of horizontal run towards the
termination. The maximum horizontal run depends on the vertical
rise from the fireplace adapter collar to the vent termination (see
table below).
WARNING: Horizontal sections of this vent sys-
tem require a minimum clearance of 2" from the top
ofthepipeand1"minimum to the sides and bottom.
Vertical sections of this system require a minimum
of1"clearancetocombustiblematerialsonallsides
of the pipe.
VERTICAL HORIZONTAL
0 to 1 ft (30.48 cm)
1 ft (30.48 cm) to 4 ft (121.92 cm)
2 ft (60.96 cm) to 8 ft (243.84 cm)
3 ft (91.44 cm) to 12 ft (365.76 cm)
4 ft (121.92 cm) to 16 ft (487.68 cm)
5 ft (152.40 cm) to 15 ft (457.20 cm)
6 ft (182.88 cm) to 14 ft (426.72 cm)
7 ft (213.36 cm) to 13 ft (396.24 cm)
8 ft (243.84 cm) to 12 ft (365.76 cm)
WARNING: Never allowtheventtorun downward
as this may cause excessive temperatures which
could cause a fire.
CD32M CD36M-A CD42M-A
A 32 3/8" 36 1/8" 40 1/8"
B 34 5/8" 41 1/4" 48 1/4"
C 19" 23 1/2" 25 5/8"

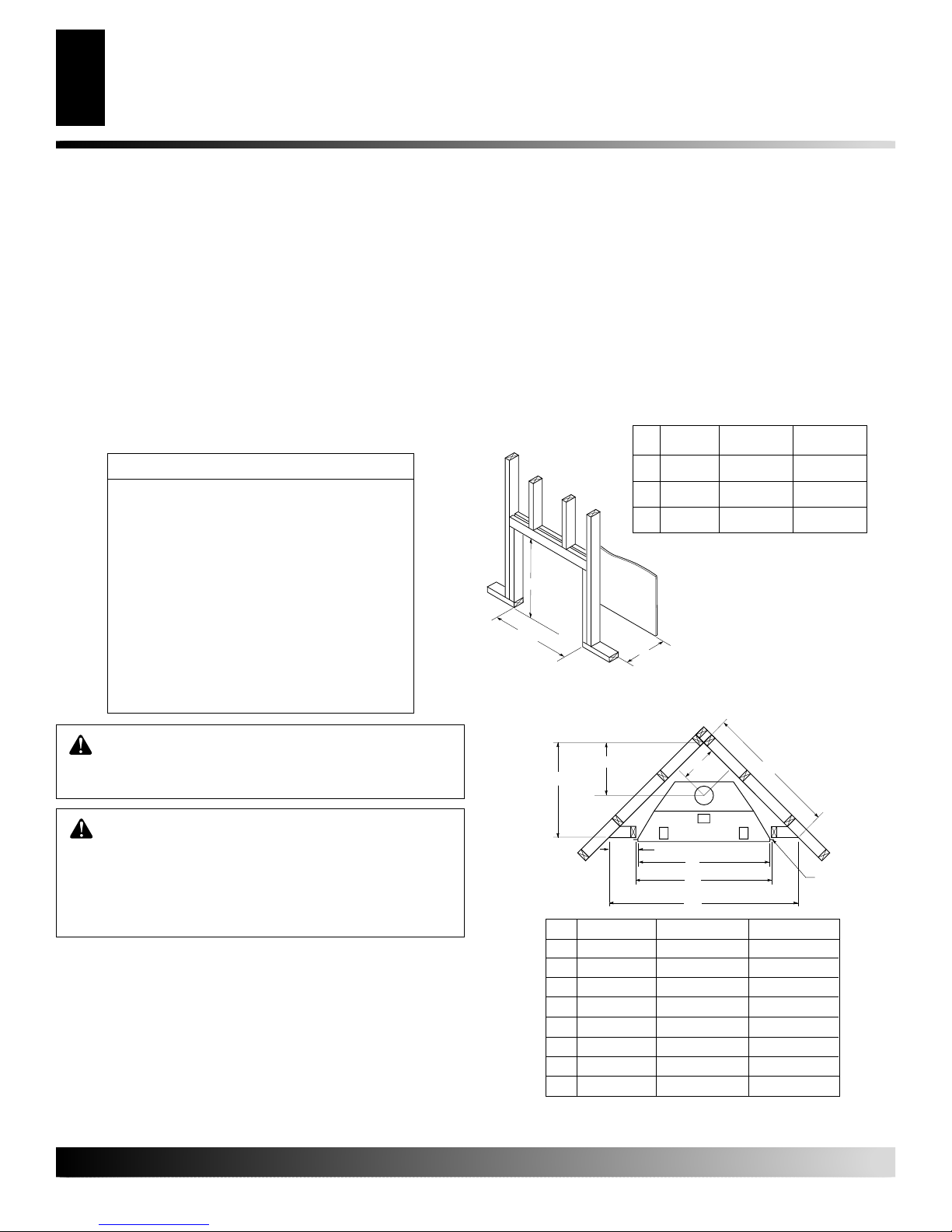

Figure 3 - Framing Dimension
Figure 4 - Corner Installation
A
B
EF
G
H
DC
Nailing Tabs
B
A
C
CD32M CD36M-A CD42M-A
A 28 1/2" 35 3/4" 41 5/8"
B 13 5/8" 15" 21 5/8"
C 39 3/8" 49 5/8" 58 1/2"
D9
1/2" 10 3/8" 13 1/2"
E9
7/8" 13 3/4" 16 3/4"
F 34 1/2" 41 1/8" 48"
G 35 1/2" 42 1/8" 48 1/4"
H 54 3/8" 68 1/4" 81 1/2"
FRAMING
Once the final location has been determined, observing height clear-
ances for vent termination, you may construct framing using dimen-
sions shown in Figures 3 and 4, depending on your installation.
If the appliance is to be installed directly on carpeting, tile (other
than ceramic), or any combustible material other than wood floor-
ing, the appliance must be installed on a metal or wood panel
extending the full width and depth of the appliance.
PRE-INSTALLATION PREPARATION
Vent Termination Clearances
Framing

111916-01A
For more information, visit www.desatech.com
For more information, visit www.desatech.com
5
5
Fixed
Closed Openable Fixed
Closed
Openable
V
V
V
V
VV
V
V
X
X
VX
G
G
J
F
B
B
K
N
H
I
A
N
E
L
D
B
M
A
C
B
V
V
A
G
G
B
TERMINATION CAP AIR SUPPLY INLET GAS METER RESTRICTED AREA
(TERMINATION PROHIBITED)
A = clearance above grade, veranda, porch, deck, or balcony
[*12 inches (30.5cm) minimum]
B = clearance to window or door that may be opened
[12 inches (30.5cm) minimum]
C = clearance to permanently closed window [minimum 12 inches
(30.5cm) recommended to prevent condensation on window]
D = vertical clearance to ventilated soffit located above the terminal
within a horizontal distance of 24 inches (61cm) from the
center-line of the terminal [18 inches (45.7cm) minimum]
E = clearance to unventilated soffit [12 inches (30.5cm) minimum]
F = clearance to outside corner (see below)
G = clearance to inside corner (see below)
H = *not to be installed above a meter/regulator assembly within
36 inches (91.4cm) horizontally from the center-line of the regulator
I = clearance to service regulator vent outlet [*72 inches (182.9cm)
minimum]
J = clearance to non-mechanical air supply inlet to building or the
combustion air inlet to any other fireplace [*12 inches (30.5cm)
minimum]
K = clearance to a mechanical air supply inlet [*72 inches (182.9cm)
minimum]
L = clearance above paved side-walk or a paved driveway located on
public property [*84 inches (213.4cm) minimum]
M = clearance under veranda, porch, deck [*12 inches (30.5cm) minimum ]
N = clearance above a roof shall extend a minimum of 24 inches (61cm)
above the highest point when it passes through the roof surface and
any other obstruction within a horizontal distance of 18 inches (45.7cm)
vent shall not terminate directly above a side-walk or paved driveway which is located between two
single family dwellings and serves both dwellings*
only permitted if veranda, porch, deck or balconey is fully open on a minimum of 2 sides beneath the floor*
* as specified in CAN/SGA B149 (.1 or .2) Installation Codes (1991) for Canada or for U.S.A. installation follow
the current
National Fuel Gas Code, ANSI Z223.1
Note: Local codes or regulations may require different clearances
A = 6" (15.2cm)
Inside Corner
V
B
E
V
B = 6" (15.2cm)
C = Maximum depth of 48" (121.9cm) for
recessed location
D = Minimum width for back wall of
recessed location -
Combustible - 38" (96.5cm)
Noncombustible - 24" (61cm)
E = Clearance from corner in
recessed location-
Combustible - 6" (15.2cm)
Noncombustible - 2" (5.1cm)
Outside Corner Recessed Location
G
H
G = Combustible 24" (61cm)
Noncombustible 18" (45.7cm)
Balcony with No SideWall
V
J
Combustible &
Noncombustible
H = 24" (61cm)
J = 20" (50.8cm)
Balcony with Perpendicular Side Wall
CDC
Termination Clearances for Buildings with Combustible and Noncombustible Exteriors
Figure 5 - Minimum Clearances for Vent Terminations
PRE-INSTALLATION PREPARATION
Continued
PRE-INSTALLATION PREPARATION

111916-01A
For more information, visit www.desatech.com
For more information, visit www.desatech.com
6
VENTING INSTALLATION
1. Install elbow to fireplace collar adapter located on back of the
unit at a 45° angle. Slide elbow over collar and twist to lock.
Check to insure proper connection (see Figure 6).
2. Continue to install remainder of pipe for desired installation.
Make sure each section is twist-locked securely.
Figure 6 - Venting Installation
Figure 7 - Vent Termination (Horizontal)
Direct-Vent Pipe
CD32M and CD36M-A
4 1/4" Inner and 7 1/4" Outer
CD42M-A
5" Inner and 8" Outer
Wall
Firestop
Maintain 1" Minimum Air
Space Around Outer Pipe
when Penetrating a Wall Horizontal
Termination
(Vent Cap)
Screws
Exterior Wall with
Vinyl Siding
Deflector
Shield
Minimum Pipe
Overlap 1 1/4"
Siding Standoff
(Optional)
Framed Openings
CD32M and CD36M-A
10" x 10"
CD42M-A
10 3/4" x 10 3/4"
WARNING: Read all instructions completely and
thoroughly before attempting installation. Failure to
dosocouldresultinseriousinjury, propertydamage
or loss of life. Operation of improperly installed and
maintained venting system could result in serious
injury, property damage or loss of life.
NOTICE: Failure to follow these instructions will void
the warranty.
INSTALLATION
Female Locking Lugs
Vertical Flue Restrictor
(For Vertical Venting
Application)
Male Locking
Lugs
3. When installation of vent pipe is complete, in stall vent termi-
nation. Depending on the location of your fireplace, you will
vent vertically or horizontally.
4. Allow 1" of pipe to protrude from internal wall, depending on
wall thickness. See Figure 7.
5. For horizontal installation, an optional siding standoff may be
installed between the vent cap and the exterior wall. Secure
horizontal vent cap to standoff. Secure standoff/vent cap as-
sembly to wall (see Figure 7). Do not seal termination to vent
pipe. The vent termination must be removable for service pipe
inspection.
6. For verticalinstallation, a verticaltermination is available.Also
for vertical venting application, install vertical flue restrictor
into inner collar of fireplace as shown in Figure 6.
When installing a length of pipe for vertical termination that is
over 3 ft., support the pipe every 3 ft. using metal wall straps.
Vertical to horizontal pipe must be kept at a 1 ft. to 4 ft. ratio
with a maximum run of no more than 20 ft.
VENTING INSTALLATION PRECAUTIONS
Consult local building codes before beginning the installation. The
installer must make sure to select the proper vent system for installa-
tion. Before installing vent kit, the installer must read this fireplace
manual and vent kit instructions.
Only a qualified service person should install venting system. The
installer must follow these safety rules:
• Wear gloves and safety glasses for protection
• Use extreme caution when using ladders or when on roof tops
• Be aware of electrical wiring locations in walls and ceilings
Thefollowingactionswillvoidthe warrantyonyourventingsystem:
• Installation of any damaged venting component
• Unauthorized modification of the venting system
• Installationof any componentpart not manufacturedor approved
by DESA
• Installation other than as instructed by these instructions
WARNING: Horizontal sections of this vent sys-
tem require a minimum clearance of 2" from the top
ofthepipeand1"minimumtothesidesandbottom.
Vertical sections of this system require a minimum
of 1" clearance to combustible materials on all
sides of the pipe.
WARNING: This gas fireplace and vent assembly
must be vented directly to the outside. The venting
system must NEVER be attached to a chimney serv-
ingaseparatesolidfuelburning appliance.Eachgas
appliance must use a separate vent system. Do not
use common vent systems.
INSTALLATION
Venting Installation Precautions
Venting Installation

111916-01A
For more information, visit www.desatech.com
For more information, visit www.desatech.com
7
7
Figure 8 - Vertical Termination with Offset and Wall Strap
Wall Strap
Roof Flashing
45°Elbows
Ceiling Firestop
Roof Pitch Minimum Height Above Roof
Flat - 7/12 1 ft. (30.48 cm)
7/12 - 8/12 1 1/2ft. (45.72 cm)
8/12 - 9/12 2 ft (60.96 cm)
9/12 - 10/12 2 1/2ft (76.20 cm)
10/12 - 11/12 4 ft (121.92 cm)
11/12 - 14/12 5 ft (152.40 cm)
14/12 - 16/12 6 ft (182.88 cm)
16/12 - 18/12 7 ft (213.36 cm)
18/12 - 20/12 7 1/2ft (228.60 cm)
20/12 - 21/12 8 ft (243.84 cm)
INSTALLATION
Continued

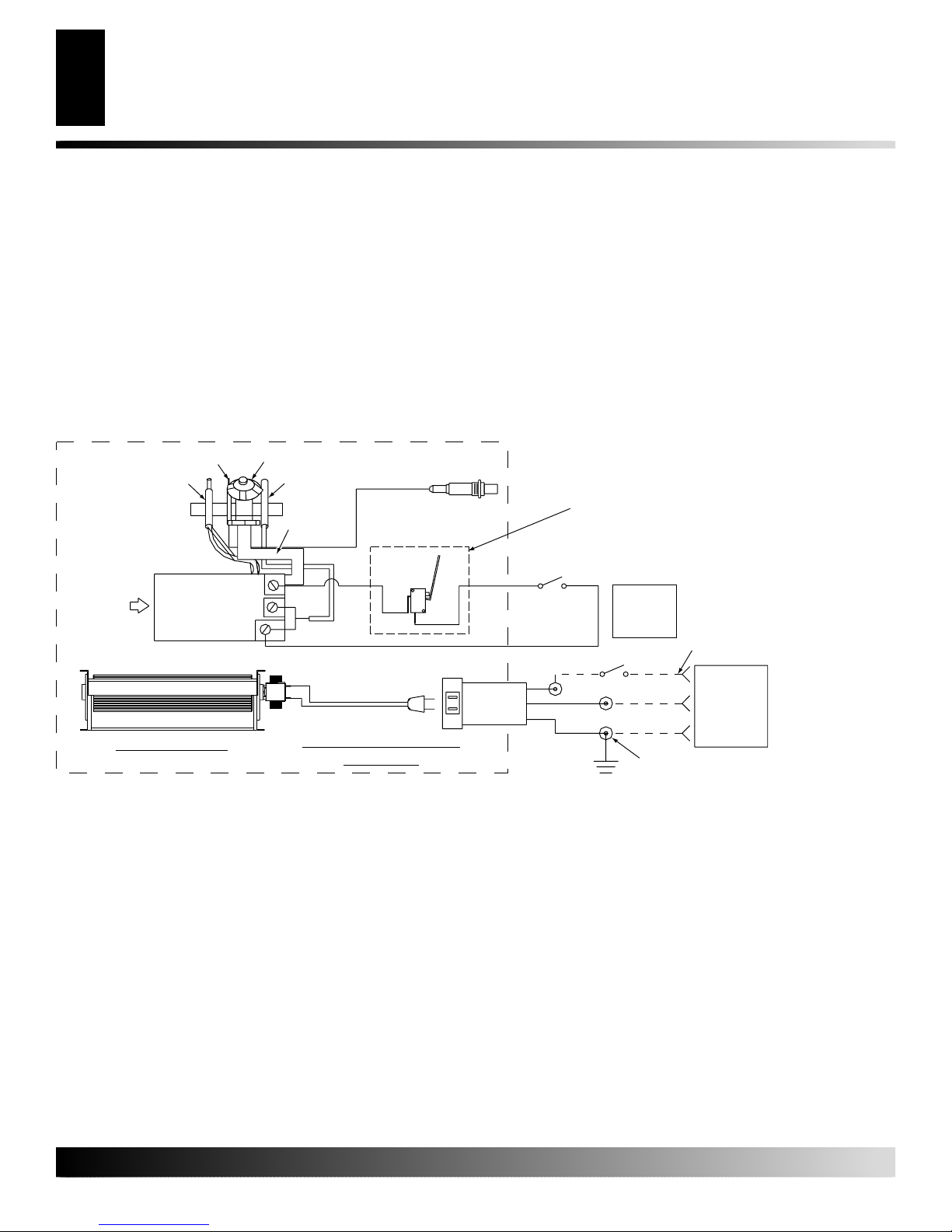

ELECTRICAL HOOKUP AND REMOTE
RECEIVER DIAGRAM
Anoutlet boxwithtwo receptacles(see Figure9) hasbeensupplied
foryour convenienceandis locatedinside onthelower rightside of
the fireplace.
The remote control receiver is factory wired and connected to the
convertible gas valve as shown in Figure 10.
Figure 9 - Duplex Outlet
Three-prong Plug
GAS SUPPLY TESTING
NOTICE: This section is intended as a guide for
qualified technicians installing gas to the appliance.
WARNING: Do not connect appliance before pres-
sure testing gas piping. Damage to gas valve may
result and an unsafe condition may be created.
Theapplianceanditsindividualshutoffvalvemustbedisconnected
fromthegassupplypipingsystemduringanypressuretestingofthat
system at test pressures in excess of 1/2 psig (3.5 kPa).
The appliance must be isolated from the gas supply piping system
byclosingitsindividualshutoffvalveduringanypressuretestingof
the gas supply piping system at test pressures equal to or less than
1/2 psig (3.5 kPa).
The gas control valve is secured underneath the firebox. Two 1/8"
ports are provided on the gas control valve for pressure test gauge
connections (see Figure 11).
Figure 10 - Remote Control Receiver
Figure 11 - Gas Control Valve
O
F
F
P
I
L
O
T
O
N
L
O
H
I
P
I
L
O
T
EA
16AI
7
TPTH TP TH
ON/OFF
Knob
Pilot Adjustment
Inlet
Pressure Outlet Pressure
Flame Adjustment Knob
Pilot Gas
Line Do
Not Kink
To Pilot Burner
To Main
Burner
Outlet Box
OFF
TH
TP
TPTH
REMOTEOFFON
ON
T
P
I
L
O
O
T
L
I
P
TPTHTPTH
Remote Control
Receiver
Convertible
Gas Valve
If an offset is necessary in the attic to avoid obstruction, it
is important to support the vent pipe every 3 ft. to avoid
excessive stress on the elbows and possible separation (see
Figure 8, page 7).
Clearances must be maintained between the roof and the ter-
mination. Refer to chart below.
INSTALLATION
Venting Installation (Con.)
Electrical Gookup and Remote Reeiver Diagram
Gas Supply Testing

111916-01A
For more information, visit www.desatech.com
For more information, visit www.desatech.com
8
INSTALLATION
Continued

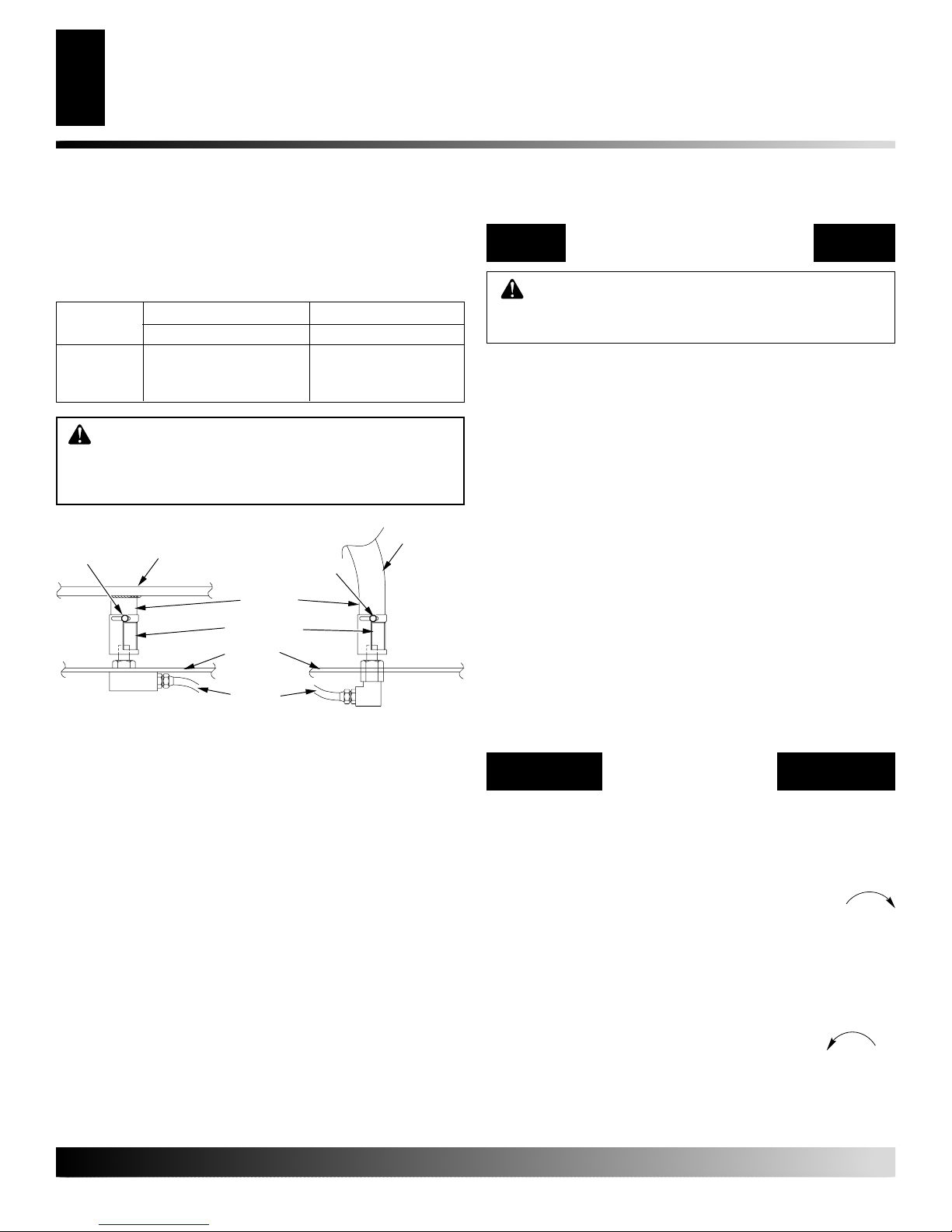

GAS LINE HOOK-UP
WARNING: Gas line hook-up should be done by
your gas supplier or a qualified service person.
WARNING: Before you proceed, make sure your
gas supply is OFF.
Anequipment shutoff valve has beenincluded inthe fireplace's gas
supply system. However, consider installing an extra shutoff valve
outside the appliance’s enclosure (check local codes), where it can
be accessed more conveniently with a key through a wall as shown
in Figure 12.
Inconformance withlocal codes, routea 1/2"NPT gasline towards
the appliance coming in from either the left or right side of the
fireplace (see Figure 13).
Install a sediment trap between the incoming gas line and the gas
controlbox.(seeFigure14).Thesedimenttrapshould extend down
a minimum of 3" (7.62 cm) beyond the center of the pipe.
When routing gas line through conduit sleeve, make sure to repack
insulation to fill gaps between gas line and conduit sleeve. Com-
poundsusedon threaded jointsofgas piping shallberesistant to the
action of propane or natural gas. Compounds should be applied
lightly to ensure excess sealant does not enter the gas line.
WARNING: All gas piping and connections must
betestedfor leaks aftertheinstallationiscompleted.
Never use an open flame to check for a leak. After
ensuring that the gasvalve is open apply commercial
leak detection fluid to all gas joints. Bubbles forming
show a leak. Correct all leaks at once.
Do not operate any appliance if a leak is detected.
Figure 12- Typical Exterior Wall Gas Shutoff Installation
Key
Extension
Shutoff Valve
Figure 13 - Gas Line Routing
Figure 14 - Sediment Trap

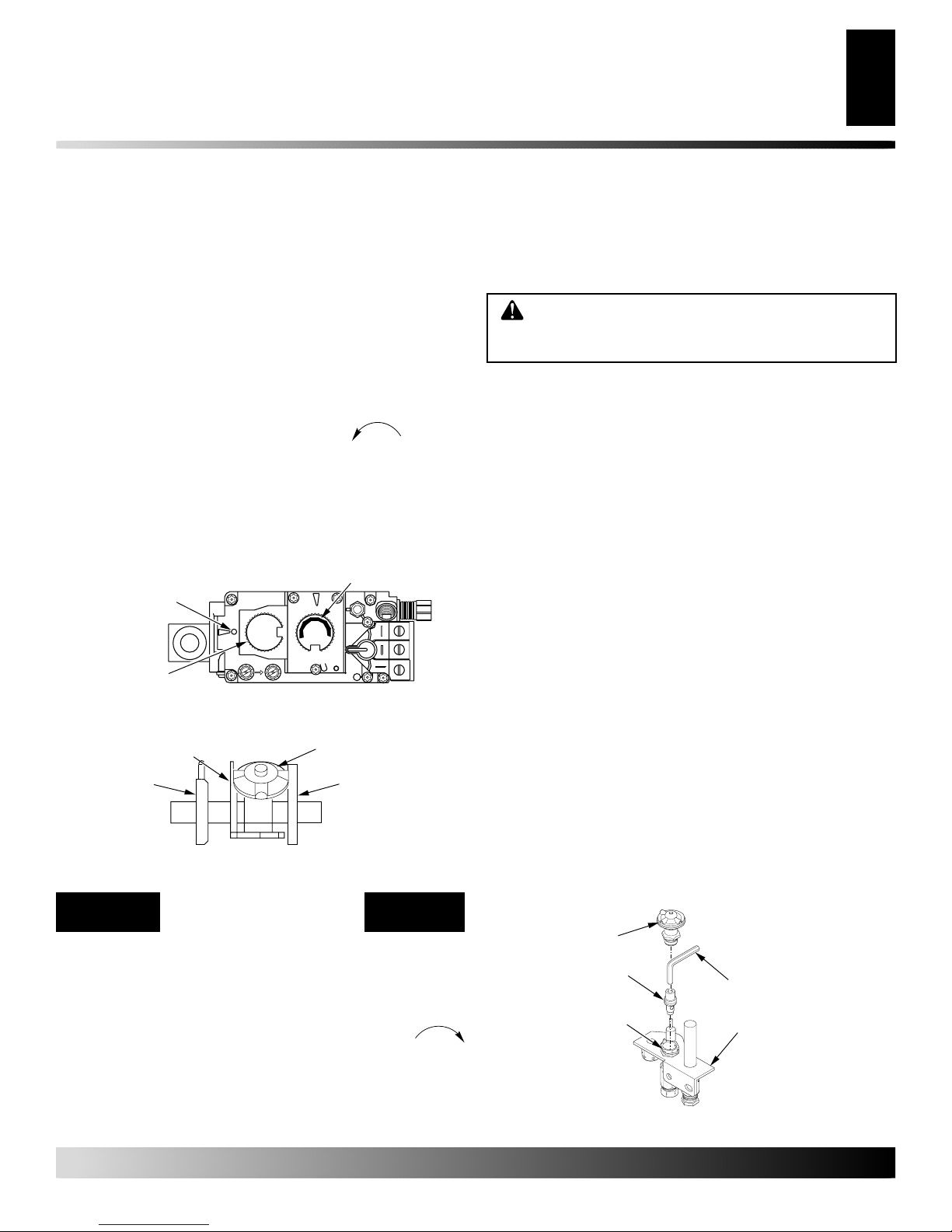

PILOT ADJUSTMENT
Thepilotorelectrodeassemblyisfactorypresetfortheproperflame
height. Alterations to these settings may have occurred during
shippingandhandling.Ifthisisthecase,someminor readjustments
may be necessary and should be done by a qualified service
technician. The proper settings for the thermopile height should be
at a distance of 3/8" (.95 cm) to 1/2" (1.27 cm) from the pilot flame
as shown in Figure 15.
Figure 15 - Pilot Assembly
3" Min.
Sediment Trap
(Not Supplied)
Incoming 1/2" Gas
Line Permitted By
Local Codes
3" Min.
(7.6 cm)
1/8"
(0.3cm) 3/8" - 1/2"
(.95cm-1.3cm)
Complete your gas line installation by connecting the incoming
gas line to the flexible gas line. Secure tightly with a wrench but
do not over-tighten.
T
I
P
OFF
T
O
L
ON
P
I
L
O
TPTHTPTH
Gas Routing
(Right Side Not Shown)
Side of
Fireplace
Front Face
INSTALLATION
Gas Line Hook-Up
Pilot Adjustment

111916-01A
For more information, visit www.desatech.com
For more information, visit www.desatech.com
9
9
INSTALLATION
Continued
REMOVING GLASS PANEL
CAUTION: Before you proceed, make sure your
gas control valve is in the OFF position.
1. To remove louvers, pull both spring latches (located in each
end of louver) toward center of appliance at the same time
until disengaged from locating holes. Repeat for bottom end
spring latches (see Figure 16).
2. Remove screen rod by removing rod loop from glass door center
bracket.Slidescreen rodeitherto theleftor rightoffireplace until
one end is free to completely remove screen from fireplace.
3. Undo latches located on top and bottom of firebox (see Figure
17). Carefully swing door to the left. The glass door is se-
curely mounted to the firebox with 5 screws.
Figure 16 - Removing Louvers
Figure 17 - Spring Latches
INSTALLING LOG SET
Each log is marked with a number in the following diagram. These
numbers will help in identifying the logs when installed. It is very
important to install these logs exactly as instructed. Do not modify
logs. Only use logs supplied with fireplace.
Models CD32M and CD36M-A Series
1. Place log #1 (back log) on top of grate as shown in Figure 18.
Make sure notches in bottom of log fit over grate.
2. Place log #2 (large front log) over pins on grate (see Figure 19).
Figure 18 - Installing Log #1,
Models CD32M/CD36M-A
Series
Figure 19 - Installing Log #2,
ModelsCD32M/CD36M-ASeries
Glass Locating
Holes
Spring
Latch
Bottom
Louver
Open Close
1
2
3. Place log #3 (c-shaped crossover log) onto rear and front logs
as shown in Figure 20. Make sure it is seated properly on the
smooth surface on front log and on the pin on back log.
4. Place log #4 (small round log) on pin on right side of front log
(see Figure 21).
5. Place log #5 (small front log) onto the front left part of grate
making sure notches fit over prongs of grate (see Figure 22).
6. Place log #6 onto two pins on left side of back and front logs
(see Figure 22).
3
Figure 20 - Installing Log #3,
Models CD32M/CD36M-A
Series
4
Figure 21 - Installing Log #4,
Models CD32M/CD36M-A
Series
5
6
Figure 22 - Installing Logs #5 and #6, Models CD32M/CD36M-A
Series
INSTALLATION
Removing Glass Panel
Installin Log Set

111916-01A
For more information, visit www.desatech.com
For more information, visit www.desatech.com
10
INSTALLATION
Continued
Figure 23 - Installing Log #1, Model CD42M-A
Figure 24 - Installing Log #2, Model CD42M-A
Figure 25 - Installing Log #3, Model CD42M-A
Figure 26 - Installing Log #4, Model CD42M-A
Figure 27 - Installing Log #5, Model CD42M-A
Figure 28 - Installing Logs #6 and #7, Model CD42M-A
Model CD42M-A
1. Place log #1 (small base log) onto pin on left side of grate
extension (see Figure 23).
2. Rest left side of log #2 (front log) on top of log #1 and right
side onto pin located on right side of grate extension (see Fig-
ure 24).
3. Place log #3 (rear log) onto pins on rear of grate (see Figure 25).
4. Place log #4 (crossover log) onto pins from both logs #2 and
#3 (see Figure 26).
5. Place log#5 (toplog) onto right pin offront log(#2) and smooth
surface of rear log (#3). Make sure it is seated properly (see
Figure 27).
1
1
2
3
6. Place log #6 (left log) on left pin of front log (#2) and smooth
surface of rear log (#3). Make sure it is seated properly (see
Figure 28).
7. Place log #7 (right log) on right pin of top log (#5). Make sure
it is seated properly (see Figure 28).
5
67
4
INSTALLATION
Installing Log Set (Cont.)

111916-01A
For more information, visit www.desatech.com
For more information, visit www.desatech.com
11
11
INSTALLATION
Continued
Lava Rock and Ember Material
1. For all models, place lava rock along sides and front of firebox
bottom in areas that are visible. It is not necessary to use all
lava rock provided.
NOTICE: Do not put lava rock on or under burner.
Placing lava rock on burner could cause perfor-
mance problems.
2. Pull embermaterial apartintopieces nolargerthana dime.Place
loosely and directly onto exposed section of front burner and
along space between burner and grate prongs. These will create
glowing ember appearance as flame touches ember material.
Do not block air slots by using too much ember material in one
area. It is not necessary to use all ember material provided.
3. When lava rock and ember material are in place, close and
latch glass door and secure louvers in place.
WARNING: The glass door must be securely in
place before operating fireplace. Do not operate fire-
place if glass is missing or broken.
DECORATIVE FACING
Any noncombustible material may be used as facing (glass, tile,
brick, etc.) as long as the proper clearances are observed (see
Clearances to Combustibles, page 3). Louvered openings must not
be obstructed and upper and lower panels must remain accessible
for service. Use only heat-resistant, noncombustible mortar or
adhesive when securing decorative facing materials.
FACE EXTENSION FOR MODEL CD32M ONLY
Model CD32M comes equipped with a front face extension. The
front face extension would add 3 1/2" to the width and 3/4" to the
height of the fireplace face.
To install face extension:
1. Remove existing screws from front face assembly as shown in
Figure 29.
2. Align holes on top face extension with holes on top side of
frontface assembly andsecure withscrews previously removed
(see Figure 29).
3. Align holes on right face extension with holes on right side of
frontface assembly andsecure withscrews previously removed
(see Figure 29). Do the same for left side.
4. Secure top face extension with left and right face extensions
with two sheet metal screws (see Figure 29).
Figure 29 - Front Face Extension, Model CD32M Only
BURNER FLAME ADJUSTMENT
The burner flame adjustment (shutter opening) has been factory
preset(fornaturalgas)totheproperair-to-gasratio.Thisratioresults
in an even, clean burning flame across the burner (see Figure 30).
Figure 30 - Burner Flame Patterns
CORRECT
INCORRECT
CLOSE SHUTTER
INCORRECT
OPEN SHUTTER
Short, Sharp, Blowing Flame
Long, Blue Flame with Yellow Tips
Long, Uneven, Yellow Flame
INSTALLATION
Installing Log Set (Cont.)
Decorative Facing
Face Extension for Model DC32M Only
BURNER FLAME ADJUSTMENT

111916-01A
For more information, visit www.desatech.com
For more information, visit www.desatech.com
12
OPERATION GUIDELINES
• When used for the first time, the fireplace may emit a slight
odor for about 16 to 24 hours. This is normal and is due to the
“curing” of the logs and the “burn-in” of internal paint and lu-
bricant used in the manufacturing process.
• Keep compartments, logs, burners and area surrounding logs
clean by vacuuming and brushing at least twice a year or as
necessary.
• Turn off gas and remote switch before servicing appliance.Any
safety screen or guard removed for servicing the fireplace must
be replaced prior to operation.
• Have a qualified agency periodically inspect vent system at the
startof each heating seasonfor any obstruction which will hinder
its normal operation. Never obstruct the flow of combustion and
ventilation air. Keep the front of the fireplace clear of all ob-
stacles and materials
OPERATING FIREPLACE
FOR YOUR SAFETY
READ BEFORE LIGHTING
WARNING:Ifyou donotfollowtheseinstructions
exactly, a fire or explosion may result causing prop-
erty damage, personal injury or loss of life.
A. This appliance has a pilot which must be lighted by hand.
When lighting the pilot, follow these instructions exactly.
B. BEFORE LIGHTING smell all around the appliance area
for gas. Be sure to smell next to the floor because some gas
is heavier than air and will settle on the floor.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electric switch; do not use any phone in
your building.
• Immediately call your gas supplier from a neighbor’s
phone. Follow the gas supplier’s instructions.
• If you cannot reach your gas supplier, call the fire
department.
C. Useonlyyourhand to pushin controlknob.Neverusetools.
If the knob will not push in or slide by hand, don’t try to
repair it, call a qualified service technician. Force or at-
tempted repair may result in a fire or explosion.
D. Do not use this appliance if any part has been under water.
Immediately call a qualified service technician to inspect
the appliance and to replace any part of the control system
and any gas control which has been under water.
LIGHTING
INSTRUCTIONS
1. STOP!Readthesafetyinformation abovebefore proceeding.
2. Set the “HI-LO” knob to the lowest setting.
3. Turn off all electrical power to the appliance.
4. Open control access panel.
5. Pushingascontrolknobslightlyandturnclockwise
to “OFF”.
6. Wait five (5) minutes to clear out any gas. Then smell for
gas, including near the floor. If you smell gas, STOP! Fol-
low“B” in the safety informationabove.If youdon’tsmell
gas, go to the next step.
7. The pilot is located by the main burner.
8. Turn knob on gas control counterclockwise to
“PILOT”.
Tube Burner Pan Burner
Model Natural Propane/LP Natural Propane/LP
CD32M 0.188" Max. ——
CD36M-A 0.188" Max ——
CD42M-A 0.188" 0.313" 0.188" 0.500"
Figure 31 - Air Shutter Adjustments
WARNING: Improper installation, adjustment, al-
teration, service or maintenance can cause injury or
property damage. Refer to this manual for assistance.
Consultaqualifiedinstallerforadditionalinformation.
If adjustment is necessary, you can restore the proper flame setting
by loosening the air shutter screw and rotating the air shutter until
proper setting is achieved (see Figure 31). The correct shutter
openings are as follows:
BURNER FLAME ADJUSTMENT
Continued
Manifold
Air Shutter
Opening
Firebox
Bottom
Burner
Gas Line
Burner Pan Burner Tube
Adjustment Screw
Adjustment
Screw
BURNER FLAME ADJUSTMENT
OPERATING FIREPLACE
Operation Guidelines
For Your Safety Read Before Lighting
Lighting Instructions

111916-01A
For more information, visit www.desatech.com
For more information, visit www.desatech.com
13
13
Figure 32 - Control Knob in Pilot Position
Figure 33 - Pilot
Thermocouple
Pilot Burner
Piezo Ignitor
Thermopile
O
F
F
P
I
L
O
T
O
N
L
O
H
I
P
I
L
O
T
EA
16AI
7
TPTH TP TH
Position Indicator
Gas Control Knob
HI/LO Knob
TO TURN OFF GAS
TO APPLIANCE
1. Turn off the wall switch.
2. Turn off all electric power to the appliance if service is to
be performed.
3. Remove control access panel.
4. Pushingascontrolknobslightlyandturnclockwise
to “OFF”. Do not force.
5. Replace control access panel.
OPERATING FIREPLACE
Continued
CONVERTING FIREPLACE
FROM NATURAL GAS TO
PROPANE/LP GAS
The conversion kit is packaged with the unit. Please check the
contents before beginning this conversion.
WARNING:Beforeproceeding,makesurethegas
control valve is in the OFF position and all electrical
power to the appliance is turned off.
CONVERTING PILOT
1. Wait five (5) minutes to clear out any gas. Smell for any gas
odor, especiallynear the floor. Ifany gasodor is present,STOP!
See For Your Safety Read Before Lighting on page 12.
2. Locate the latch on the louver assembly. Remove top and
bottom louvers by pulling the spring latches toward the cen-
ter of the fireplace simultaneously until they are diengaged
from the locating holes.
3. Undo latches located on top and bottom of firebox and swing
door to the fully open position.
4. Carefully remove log set and ember material from burner and
place them aside in a safe place.
5. Replace main burner orifice with burner orifice included in
conversionkit (Model CD42M-A contains twoburner orifices).
6. Remove pilot hood by pulling up until it disengages from bar-
rel. Do not remove the retainer clip (see Figure 34).
7. Remove pilot orifice from inside barrel using a 5/32" allen
wrench to unscrew the orifice.
8. Replace pilot orifice with LPorifice supplied with this kit. The
number 30 is stamped on the sleeve for identification. Insert
small end of new pilot orifice into barrel and thread until tight
with the allen wrench.
9. Line up notch on pilot hood to the positioning tab on barrel
receiver and snap back into position.
IMPORTANT: Becareful notto bend or kink thealuminum tubing
duringconversion.Makesurethepilothoodandorificeareproperly
mated and aligned after finishing this conversion.
Figure 34 - Converting Pilot
Pilot Hood
Pilot Orifice
Barrel Clip
5/32" Allen
Wrench
Pilot Bracket
9. Push in the control knob all the way and hold in. Immedi-
ately light the pilot by pressing the red ignitor button until
a flame appears. Continue to hold the control knob in for
about one (1) minute after the pilot is lit. Release knob
and it will pop back up. Pilot should remain lit. If it goes
out, repeat steps 5 through 9.
• If knob does not pop out when released, stop and call
service technician or gas supplier.
• If the pilot will not stay lit after several tries, turn gas
control knob to “OFF” and call your service technician
or gas supplier.
10. Turn gas control knob counterclockwise to “ON”.
Knob can be turned to “ON” only if the control knob is
popped out.
11. Set “HI-LO” knob to desired setting.
12. Turn on all electric power to the appliance.
Note: It is recommendedthat you maintainthegas controlknobin
thefull OFF positionduringlengthy periodsofseasonal non-usage.
OPERATING FIREPLACE
Lighting Instructions (Con.)
To Turn Off Gas To Appliance
CONVERTING FIREPLACE FROM NATURAL GAS TO PROPANE/LP GAS

111916-01A
For more information, visit www.desatech.com
For more information, visit www.desatech.com
14
WARNING: The conversion kit must be installed
by a qualified service technician in accordance with
the manufacturers instructions and all applicable
codesandrequirementsoftheauthorityhavingjuris-
diction. If any information is these instructions is not
followed correctly, a fire, explosion or production of
carbon monoxide may result causing property dam-
age, personal injury or loss of life. The qualified
service technician is responsible for the proper in-
stallation of this conversion kit.
Figure36-InstallingNewPartsforGasControlValveConversion
CONVERTING FIREPLACE
FROM NATURAL GAS TO
PROPANE/LP GAS
Continued
HI
LO
O
F
F
P
I
L
O
T
O
N
Mounting
Screws
Rubber
Gasket
Identification Label
CONVERTING CONTROL VALVE
Convert the gas control valve by swapping out the valve regulator
portion of the gas valve.
1. Using a TORX T20 or a slotted screwdriver, remove and dis-
card the three mounting screws, pressure regulator tower, and
diaphragm/spring components (see Figure 35).
2. Insure that the rubber gasket is properly positioned on the new
pressure regulator assembly. Install new pressure regulator as-
sembly to valve using new mounting screws supplied with kit.
Tighten screws securely (approximately 25 in/lb). See Figure 36.
Figure 35 - Removing Parts for Gas Control Valve Conversion
HI
LO
O
F
F
P
I
L
O
T
O
N
Pressure
Regulator
Tower
Mounting
Screws
Diaphragm/
Spring
Components
3. Install the identification label enclosed with gas valve regulator
to the valve body where it can easily be seen (see Figure 36).
CONVERTING FIREPLACE FROM NATURAL GAS TO PROPANE/LP GAS
Converting Control Valve

111916-01A
For more information, visit www.desatech.com
For more information, visit www.desatech.com
15
15
TROUBLESHOOTING
OBSERVED PROBLEM
Pilot will not stay lit
Pilot lit but no flame on burner
Frequent pilot outage
POSSIBLE CAUSE
1. Defective thermocouple
1. Remote or wires defective
2. Thermopile not generating sufficient
milivoltage
3. Plugged burner orifice
1. Pilot flame may be too low or blowing
(high) causing safety pilot to “drop out”
REMEDY
1. Check pilot flame. It must impinge on
thermocouple
2. Clean oradjust pilot formaximum flame
impingement on thermocouple
3. Ensure the connection between valve
and thermocouple are tight and secure
4. Check thermocouple with millivolt
meter.Takereading at thermocoupleter-
minals of gas valve with remote control
off. It should read 18 millivolts mini-
mum. Replace faulty thermocouple if
reading is below specified minimum
1. Check remote wires for proper connec-
tions. Place jumper wire across termi-
nals at remote control. If burner comes
on,replace remote. Ifokay,place jumper
wire across remote control at valve. If
burnercomes on, wiresare faultyor con-
nections are bad
2. Check thermopile with millivolt meter.
Take reading at thermopile terminals of
gas valve with remote control off. It
should read 325 millivolts minimum.
Replace thermopile if reading is below
specified minimum
3. Check burner orifice for stoppage and
remove
1. Clean and/or adjust pilot flame for
maximum flame impingement on
thermocouple
WARNING:Turnoffheaterandletcoolbeforeservicing.Only
a qualified service person should service and repair heater.
TROUBLESHOOTING

111916-01A
For more information, visit www.desatech.com
For more information, visit www.desatech.com
16
6
7
1918
10
12
23
24 34
2
11 17
8
21-2
21-6
21-4
21-5
21-3
21-1
1
13 9
16
3
14
4
20
15
5
15
42
40
35
36 22 37
39
38
25
41 26
30
27
28
29
33
31
32
ILLUSTRATED PARTS
BREAKDOWN
MODELS CD32M
AND CD36M-A SERIES
ILLUSTRATED PARTS BREAKDOWN
Models CD32M and CD36M-A Series

111916-01A
For more information, visit www.desatech.com
For more information, visit www.desatech.com
17
17
KEY PART NUMBER
NO. CD32M CD36M-A DESCRIPTION QTY.
1 ** ** Firebox Assembly 1
2 ** ** Face Weldment 1
3 108892-01 108010-01 Door Assembly 1
4 108903-01 108011-01 Top Panel Assy Louver 1
5 108903-02 108011-02 Bottom Panel Assy Louver 1
6 ** ** Fireplace Top 1
7 ** ** Fireplace Top Insulation 1
8 ** ** Fireplace Surround 1
9 108885-01 108074-01 Burner Assembly 1
10 108890-01 108076-01 Burner Base Gasket 1
11 108897-01 110991-01 Rear Refractory†1
12 108901-01 110990-01 Right Refractory†1
13 108901-02 110989-01 Left Refractory†1
14 11418 11418 Push-On Nut 2
15 108440-01 12105 Screen 2
16 108455-02 13113 Screen Rod 1
17 ** ** Electrical Duct Assy 1
18 ** ** Gas Knock-Out Cover 2
19 ** ** Gas Conduit Assy 1
20 109082-03 109082-01 Heat Shield 1
21 109022-01 109006-01 Log Set 1
21-1 109403-01 109007-01 Front Log (Log 1) 1
21-2 109404-01 110182-01 Rear Log (Log 2) 1
21-3 109407-01 109008-01 Base Log (Log 3) 1
21-4 109406-01 107347-01 Crossover Log (Log 4) 1
21-5 109405-01 103010-03 Left Top Log (Log 5) 1
21-6 109408-01 107348-01 Right Top Log (Log 6) 1
PARTS LIST
MODELS CD32M
AND CD36M-A SERIES
KEY PART NUMBER
NO. CD32M CD36M-A DESCRIPTION QTY.
PARTS LIST
Models CD32M and CD36M-A Series
** Not a field replaceable part.
†Optional - See page 21.
22 11102 11102 Screw #8-32 x 3/8 PPH Zinc 2
23 11105 11105 Screw #10 x 1/2 Zinc 9
24 11179 11179 Screw #10-24 x 1/4 Zinc 4
25 11237 11237 Screw Trilab M4 x 8mm 1
26 14389 14389 HI-LO Sit Valve (Nat Gas) 1
27 14492 14492 Piezo Ignitor 1
28 14500 14500 Brass Fitting 2
29 14253 14253 Flexible Connector 1
30 14511 14511 Ignitor Bracket 1
31 14528 14528 Brass Elbow Fitting 1
32 104506-25 104506-01 Orifice 1
33 104509-02 14576 Aluminum Tubing Assy 1
34 26808 26808 Valve Bracket 1
35 26827 26827 Switch Bracket 1
36 108886-01 108077-01 Grate Base 1
37 108891-01 104504-03 Burner 1
38 108084-02 108084-02 Pilot Assembly (Nat Gas) 1
39 108889-01 108075-01 Burner Base Assembly 1
40 109699-01 —Right Face Extension 1
41 109699-02 —Left Face Extension 1
42 109700-01 —Top Face Extension 1
PARTS AVAILABLE NOT SHOWN
25487 25487 Lava Rock 1
110251-01 110251-01 Micro Switch Assembly 1
27253 27253 Notice Label 1
109896-01 112033-01 Gas Conversion Kit 1

111916-01A
For more information, visit www.desatech.com
For more information, visit www.desatech.com
18
ILLUSTRATED PARTS
BREAKDOWN
MODEL CD42M-A
37
23
41
42
38
22
39
32
31
33
28
26
25
29
2434
35
40
36
30
27
28
6
7
19 18
10
12
2
11 17
8
20
1
4
13
16
3
14
15
5
15
9
212
21-3
21-6 21-7
21-5
21-4
21-1
ILLUSTRATED PARTS BREAKDOWN
Model CD42M-A

111916-01A
For more information, visit www.desatech.com
For more information, visit www.desatech.com
19
19
KEY PART
NO. NUMBER DESCRIPTION QTY.
1 ** Firebox Assembly 1
2 ** Face Weldment 1
3 108328-01 Door Assembly 1
4 108331-01 Top Panel Assembly Louver 1
5 108331-03 Bottom Panel Assembly Louver 1
6 ** Fireplace Top 1
7 ** Fireplace Top Insulation 1
8 ** Fireplace Surround 1
9 108329-05 Burner Assembly 1
10 108374-01 Burner Base Gasket 1
11 111300-01 Rear Refractory†1
12 111301-01 Right Refractory†1
13 111302-01 Left Refractory†1
14 11418 Push-On Nut 2
15 107840-01 Screen 2
16 108455-01 Screen Rod 1
17 110037-01 Electrical Duct Assembly 1
18 ** Gas Knock-Out Cover 2
19 ** Gas Conduit Assembly 1
20 ** Heat Shield 1
21 108778-01 Log Set 1
21-1 109401-01 Small Base Log (Log 1) 1
21-2 109396-01 Front Log (Log 2) 1
21-3 109397-01 Rear Log (Log 3) 1
21-4 109398-01 Crossover Log (Log 4) 1
21-5 109399-01 Top Log (Log 5) 1
21-6 109400-01 Left Top Log (Log 6) 1
PARTS LIST
MODEL CD42M-A
KEY PART
NO. NUMBER DESCRIPTION QTY.
21-7 109401-02 Right Top Log (Log 7) 1
22 11102 Screw #8-32 x 3/8 PPH Zinc 2
23 11105 Screw #10 x 1/2 Zinc 9
24 11179 Screw #10-24 x 1/4 Zinc 4
25 11237 Screw Trilab M4 x 8mm 1
26 14389 HI-LO Sit Valve (Natural Gas) 1
27 14492 Piezo Ignitor 1
28 14500 Brass Fitting 2
29 14253 Flexible Connector 1
30 14511 Ignitor Bracket 1
31 14528 Brass Elbow Fitting 1
32 104506-25 Orifice 1
33 14544 Aluminum Tubing Assembly 1
34 26808 Valve Bracket 1
35 26827 Switch Bracket 1
36 108346-01 Grate Base 1
37 108376-01 Burner 1
38 108084-02 Pilot Assembly (Natural Gas) 1
39 108755-01 Pilot Bracket 1
40 108373-01 Burner Base Assembly 1
41 108330-01 Burner Pan Assembly 1
42 104506-24 Orifice 1
PARTS AVAILABLE NOT SHOWN
25487 Lava Rock 1
110251-01 Micro Switch Assembly 1
27253 Notice Label 1
111007-01 Gas Conversion Kit 1
** Not a field replaceable part.
†Optional - See page 21.
PARTS LIST
Model CD42M-A

111916-01A
For more information, visit www.desatech.com
For more information, visit www.desatech.com
20
SPECIFICATIONS
CD32M CD36M-A CD42M-A
Gas Rate (Natural) 16,000/23,000 Btu/hr 15,000/22,000 Btu/hr 25,000/35,000 Btu/hr
Gas Rate (Propane/LP) 15,000/21,000 Btu/hr 14,000/20,000 Btu/hr 23,000/33,000 Btu/hr
Ignition Piezo Piezo Piezo
Manifold Pressure 3.5" w.c. 3.5" w.c. 3.5"w.c.
Minimum Inlet Supply Pressure 4.5" w.c. 4.5" w.c. 4.5" w.c.
WIRING DIAGRAM
Thermocouple
Incoming
Main
Gas
Supply
Piezo Ignitor
Control
Valve
Electrical Rating:
120v, 60Hz, 0.7A Optional Wiring Diagram
For Fan Kit
Pilot
TH
TP
TPTH
Thermopile Piezo Ignitor
Do Not
Connect
To 120V
(Remote Switch
Supplied)
Safety Microswitch
for Models CD32M-2
and CD36M-A2 Only
Pilot
Gas Line
Wireway
GND
BLK
WHT
GRN
Incoming
120V AC
(Fuse Box
or
Breaker)
Connectors
(Not Supplied)
Field Wire
N.O.SW
SPECIFICATIONS
WIRING DIAGRAM
