NATURAL GAS LOG
WARNING:Iftheinformationinthismanualisnot
followed exactly, a fire or explosion may result
causing property damage, personal injury, or
loss of life.
— Donotstoreorusegasolineorotherflammable
vaporsandliquidsinthevicinityofthisorany
other appliance.
— WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Donottouchanyelectricalswitch;donotuse
any phone in your building.
• Immediately call your gas supplier from a
neighbor’s phone. Follow the gas supplier’s
instructions.
• If you cannot reach your gas supplier, call
the fire department.
— Installationandservicemustbeperformedby
a qualified installer, service agency, or the
gas supplier.
WARNING: Improper installa-
tion,adjustment,alteration,ser-
vice,ormaintenancecancause
injuryorpropertydamage.Re-
fer to this manual for correct
installation and operational
procedures. For assistance or
additional information consult
a qualified installer, service
agency, or the gas supplier.
WARNING: This appliance is
for installation only in a solid-
fuelburningmasonryorUL127
factory-built fireplace, con-
structed of noncombustible
material, and connected to a
working flue. (See page 7 for
minimum flue opening.)
WARNING: This is a gas-fired appliance. It uses air (oxygen) from the room in which
it is installed. Provisions for adequate combustion and ventilation air must be
provided.Referto AirforCombustionandVentilation sectiononpage4ofthismanual.
This appliance may be installed in an aftermarket* manufactured (mobile) home, where not prohibited by
state or local codes.
* Aftermarket: Completion of sale, not for purpose of resale, from the manufacturer
®
VENTED DECORATIVE APPLIANCES
OWNER’S OPERATION AND INSTALLATION MANUAL
Save this manual for future reference.
Burner Models VVSR18,
VVSR24, VVDR18,
VVDR24, and VVDR30
For Use with Log Sets
Hanover Round Oak Log
Models VSLR18 and
VSLR24
Kingston Split Oak Log
Models VDLCR18, VDLCR24
(Shown), and VDLCR30
RGA 2-72
APPROVED
TESTED AND
LISTED BY

2
901265
VENTED NATURAL GAS LOGS
®
SAFETY
INFORMATION
Carbon Monoxide Poisoning: Early
signs of carbon monoxide poisoning re-
semble the flu, with headaches, dizziness,
ornausea.Ifyouhavethesesigns,thelogset
maynot beworking properly.Getfreshair
atonce!Havelogsetserviced.Somepeople
are more affected by carbon monoxide than
others. These include pregnant women,
peoplewithheartorlungdiseaseoranemia,
those under the influence of alcohol, and
those at high altitudes.
Natural Gas: Natural gas is odorless. An
odor-making agent is added to the gas. The
odor helps you detect a gas leak. However,
theodoraddedtothegascanfade.Gasmay
be present even though no odor exists.
Make certain you read and understand all
Warnings. Keep this manual for reference.
It is your guide to safe and proper operation
of this log set.
WARNING ICON G 001
WARNINGS
IMPORTANT: Read this Owner’s
Manual carefully and completely
before trying to assemble, oper-
ate, or service this log set. Im-
properuseofthislogsetcancause
seriousinjuryordeathfromburns,
fire, explosion, electrical shock,
and carbon monoxide poisoning.
DANGER: Carbon monoxide
poisoning may lead to death!
WARNING:Anychangetothis
log set or its controls can be
dangerous.
1. This appliance, as supplied, is only for
use with the type of gas indicated on
the rating plate. This appliance is con-
vertible for use with propane/LP, using
the GA9000 or GA9100 pilot kit.
2. If you smell gas
• shut off gas supply
• do not try to light any appliance
• do not touch any electrical switch; do
not use any phone in your building
• immediately call your gas supplier
from a neighbor’s phone. Follow the
gas supplier’s instructions
• ifyoucannot reach your gas supplier,
call the fire department
3. Never install the log set
• in a recreational vehicle
• wherecurtains,furniture, clothing, or
otherflammable objects are less than
42inchesfromthefront,top,orsides
of the log set
• in high traffic areas
• in windy or drafty areas
4. Before installing in a solid fuel burn-
ingfireplace,thechimneyflue and fire-
box must be cleaned of soot, creosote,
ashes and loose paint by a qualified
chimney cleaner. Creosote will ignite
if highly heated. Inspect chimney flue
for damage.
5. You must operate this log set with a fire-
placescreeninplace. Makesurefireplace
screen is closed before running log set.
6. This log set is designed to be smoke-
less. If logs ever appear to smoke, turn
off appliance and call a qualified ser-
vice person. Note: During initial op-
eration,slightsmokingcouldoccur due
to log curing and the burning of manu-
facturingresidues.You may wishtoadd
more ventilation by opening a window.
7. To reduce the creation of soot, follow
the instructions in Cleaning and Main-
tenance, page 20.
8. Do not allow fans to blow directly into
the fireplace. Avoid any drafts that al-
ter burner flame patterns. Ceiling fans
can create drafts that alter burner flame
patterns. Altered burner patterns can
increase sooting.
9. Do not use a blower insert, heat ex-
changer insert or other accessory not
approved for use with this log set.
10. This log set needsfresh,outside air ven-
tilation to run properly. See Air for
Combustion and Ventilation, pages 4
through 6.
11. Do not run log set
• where flammable liquids or vapors
are used or stored
• under dusty conditions
12. Do not burn solid fuel in the fireplace
after installing the log set. Do not use
this log set to cook food or burn paper
or other objects.
13. Log set becomes very hot when in use.
Keep childrenand adults awayfrom hot
surface to avoid burns or clothing igni-
tion. Log set will remain hot for a time
after shutdown. Allow surface to cool
before touching.
14. Carefully supervise young children
when they are in the room with log set.
15. Donot useappliance ifanypart hasbeen
exposedto or under water. Immediately
call a qualified service technician to in-
spect the room appliance and to replace
any part of the control system (if using
GA9000 or GA9100) and any gas con-
trol which has been under water.
16. To help prevent breakage, new logs
must be broken-in (see Curing Logs
page 12).
17. Turn log set off and let cool before ser-
vicing, installing, or repairing. Only a
qualified service person should install,
service, or repair log set.
WARNING: Keep flue open
when operating unit.

3
901265
OWNER’S MANUAL
PRODUCT
IDENTIFICATION

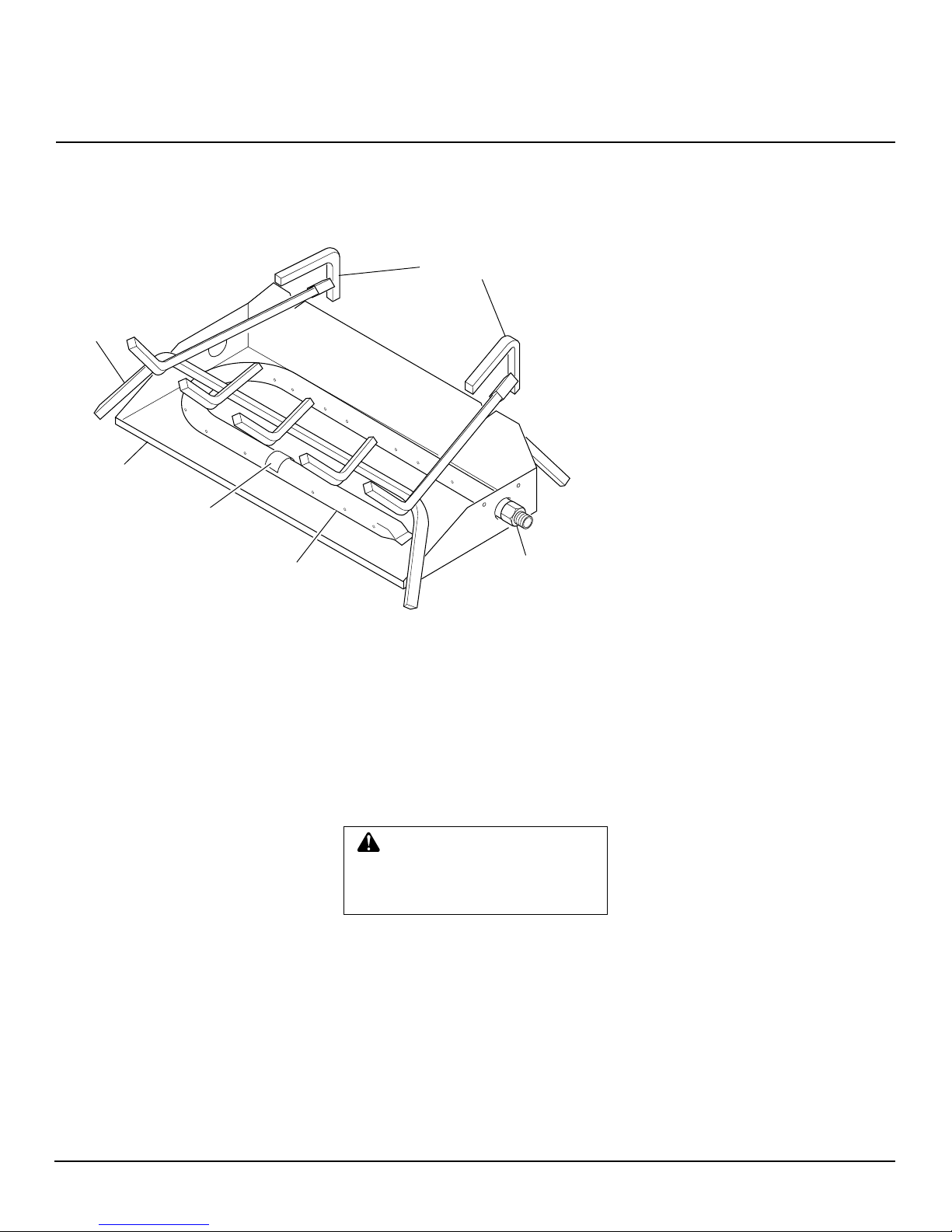

Figure 1 - Product Identification (VVDR24 Shown)
OPTIONAL
PRODUCT
FEATURES
ON/OFF SAFETY VALVE/
PILOT KIT AND PROPANE/LP
CONVERSION

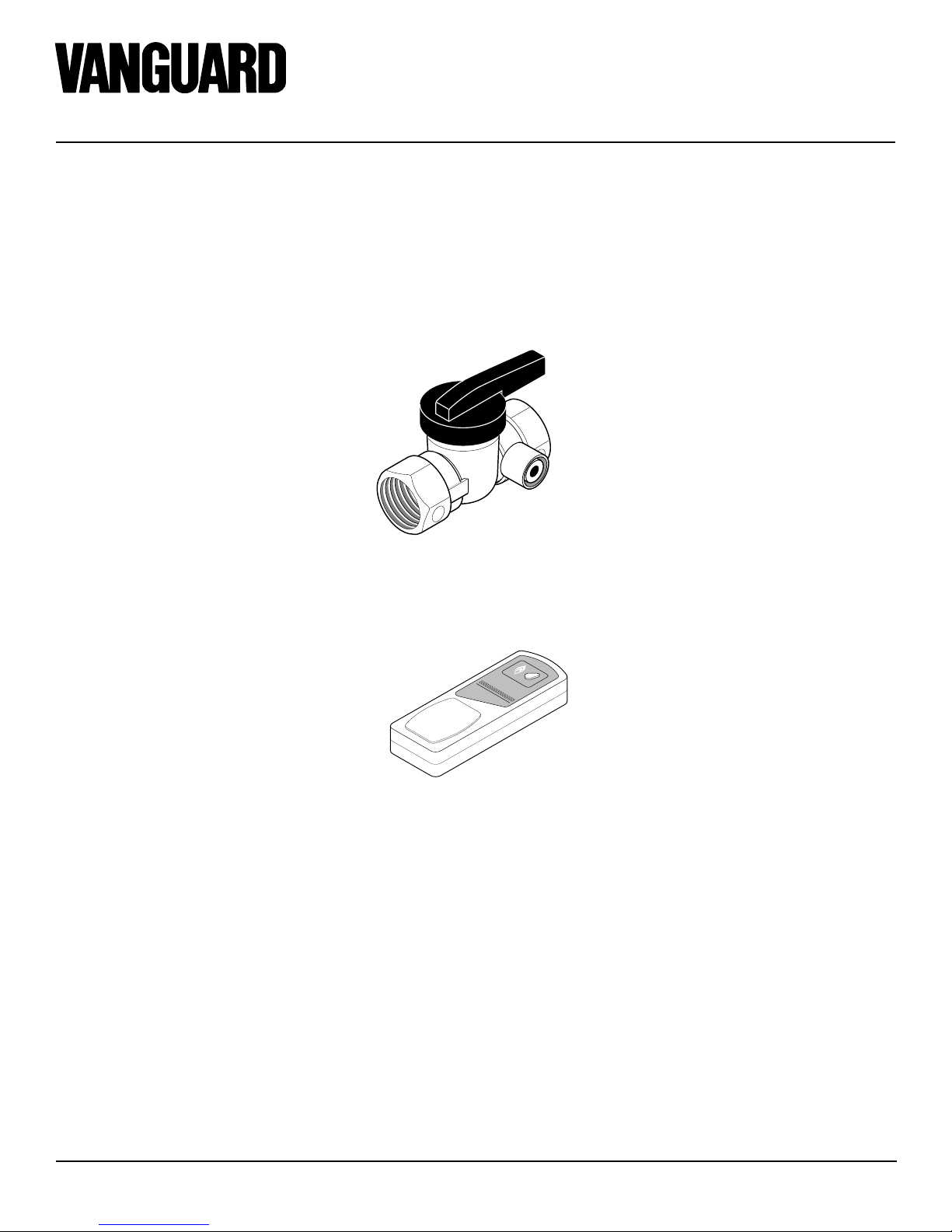

An optional valve/safety pilot kit with a
piezo ignitor is available for this appliance.
This system requires no matches, batteries,
or other sources to light. You must use this
optional system for LP conversion. See Ac-
cessories, page 20.
REMOTE CONTROL READY
(MILLIVOLT) SAFETY VALVE/
PILOT KIT
An optional millivolt valve/safety pilot kit
with a piezo ignitor is available for this
appliance.Thissystemrequiresnomatches,
batteries, or other sources to light. This
systemmaybeconnectedtoawallswitchor
hand-held wireless remote control. See Ac-
cessories, page 20.
REMOTE CONTROL
ACCESSORIES
There is an optional hand-held ON/OFF
remote control that can be purchased sepa-
rately for this log set. You must use the
millivoltvalve/safetypilotkitto useremote
accessories with this appliance. See Acces-
sories, page 20.
A wall switch is also available for this
appliance.Youmustusethemillivoltvalve/
safety pilot kit to use the wall switch with
this appliance. See Accessories, page 20.
UNPACKING
CAUTION: Do not remove the
metal data plates from the burner
pan. The data plates contain im-
portant product information.
1. Remove logs, hearth kit, pan materials,
and hardware from carton.
2. Remove all protective packaging ap-
plied to logs and base for shipment.
3. Check all items for any shipping dam-
age. If damaged, promptly inform
dealer where you bought the product.
LOCAL CODES
Install and use log set with care. Follow all
localcodes.Intheabsenceoflocalcodes,use
the latest edition of The National Fuel Gas
CodeANSZ223.1,alsoknownasNFPA54*.
*Available from:
American National Standards Institute, Inc.
1430 Broadway
New York, NY 10018
National Fire Protection Association, Inc.
Batterymarch Park
Quincy, MA 02269
Grate
Burner
Pan
Burner
Manifold
Burner Inlet
Fitting
Burner
Clamp
Grate Steps
Hearth Kit Model ______________________________________
Serial Number ________________________________________
Log Set Model ________________________________________

4
901265
VENTED NATURAL GAS LOGS
®

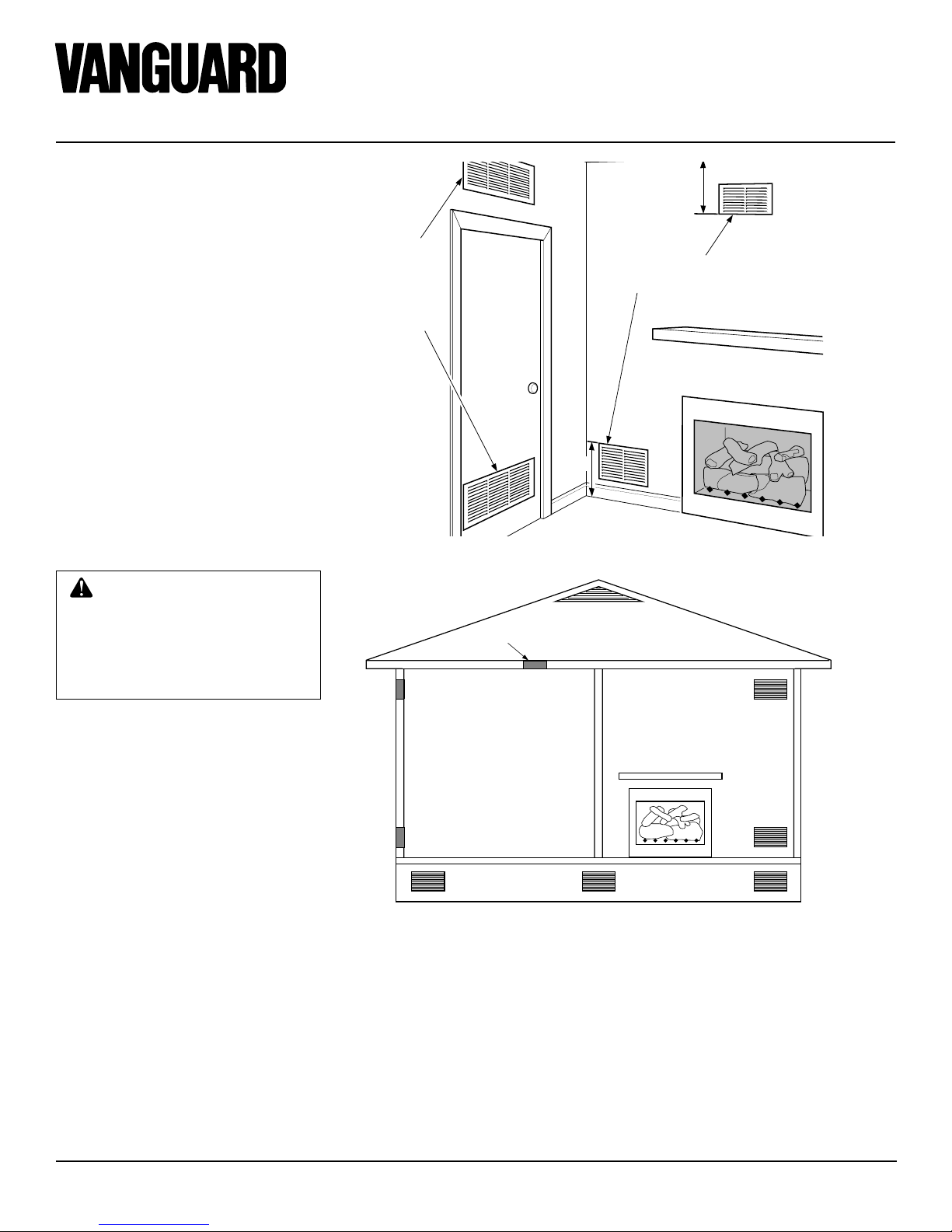

PROVIDING ADEQUATE
VENTILATION
The following are excerpts from National
Fuel Gas Code. NFPA 54/ANS Z223.1, Sec-
tion5.3,AirforCombustionandVentilation.
Allspacesinhomesfallintooneofthethree
following ventilation classifications:
1. Unusually Tight Construction
2. Unconfined Space
3. Confined Space
The information on pages 4 through 6 will
help you classify your space and provide
adequate ventilation.
Unusually Tight Construction
The air that leaks around doors and win-
dows may provide enough fresh air for
combustion and ventilation. However, in
buildings of unusually tight construction,
you must provide additional fresh air.
Unusually tight construction is de-
fined as construction where:
a. walls and ceilings exposed to the
outside atmosphere have a con-
tinuous water vapor retarder with
a rating of one perm (6x10-11 kg
per pa-sec-m2) or less with open-
ings gasketed or sealed and
b. weather stripping has been
added on openable windows and
doors and
c. caulking or sealants are applied
to areas such as joints around
window and door frames, be-
tween sole plates and floors,be-
tween wall-ceiling joints, be-
tween wall panels, at penetra-
tionsforplumbing,electrical,and
gas lines, and at other openings.
If your home meets all of the three
criteria above, you must provide ad-
ditional fresh air. See Ventilation Air
From Outdoors , page 6.
If your home does not meet all of the
three criteria above, proceed to De-
termining Fresh-Air Flow For Appli-
ance Location , page 5.
Today’s homes are built more energy effi-
cient than ever. New materials, increased
insulation, and new construction methods
helpreduceheatlossinhomes.Homeowners
weatherstrip andcaulk aroundwindows and
doorstokeepthecoldairoutandthewarmair
in. During heating months, home owners
want their homes as airtight as possible.
While it is good to make your home energy
efficient,yourhomeneedstobreathe.Fresh
air must enter your home. All fuel-burning
appliances need fresh air for proper com-
bustion and ventilation.
Exhaustfans,fireplaces,clothesdryers,and
fuel burning appliances draw air from the
house to operate. You must provide ad-
equate fresh air for these appliances. This
will insure proper venting of vented fuel-
burning appliances.
AIR FOR
COMBUSTION AND
VENTILATION
WARNING: This appliance
shall not be installed in a con-
fined space or unusually tight
construction unless provisions
are provided for adequate com-
bustion and ventilation air. Read
the following instructions to in-
sure proper fresh air for this and
other fuel-burning appliances in
your home.
Confined and Unconfined Space
The National Fuel Gas Code (ANS Z223.1,
1992 Section 5.3) defines a confined space
as a space whose volume is less than 50
cubicfeetper1,000Btuperhour(4.8m3per
kw) of the aggregate input rating of all
appliances installed in that space and an
unconfined space as a space whose volume
is not less than 50 cubic feet per 1,000 Btu
per hour (4.8 m3per kw) of the aggregate
inputratingofallappliancesinstalledinthat
space.Rooms communicatingdirectlywith
the space in which the appliances are in-
stalled*, through openings not furnished
with doors, are considered a part of the
unconfined space.
This log set shall not be installed in a con-
fined space or unusually tight construction
unlessprovisions are provided for adequate
combustion and ventilation air.
*Adjoiningroomsarecommunicatingonly
iftherearedoorlesspassagewaysorventila-
tion grills between them.

5
901265
OWNER’S MANUAL
DETERMINING FRESH-AIR FLOW FOR APPLIANCE LOCATION
Determining if You Have a Confined or Unconfined Space
Use this work sheet to determine if you have a confined or unconfined space.
Space: Includes the room in which you will install appliance plus any adjoining rooms with doorless passageways or ventilation grills
between the rooms.
1. Determine the volume of the space (length x width x height).
Length x Width x Height = _________________cu. ft. (volume of space)
Example: Space size 20 ft. (length) x 16 ft. (width) x 8 ft. (ceiling height) = 2560 cu. ft. (volume of space)
If additional ventilation to adjoining room is supplied with grills or openings, add the volume of these rooms to the total volume of
the space.
2. Divide the space volume by 50 cubic feet to determine the maximum Btu/Hr the space can support.
_____________ (volume of space) ÷ 50 cu. ft. = (maximum Btu/Hr the space can support)
Example: 2560 cu. ft. (volume of space) ÷ 50 cu. ft. = 51.2 or 51,200 (maximum Btu/Hr the space can support)
3. Add the Btu/Hr of all fuel burning appliances in the space.
Gas fireplace logs _____________ Btu/Hr
Gas water heater* _____________ Btu/Hr
Gas furnace _____________ Btu/Hr
Vented gas heater _____________ Btu/Hr
Vent-free heater _____________ Btu/Hr
Other gas appliances* + _____________ Btu/Hr
Total = _____________ Btu/Hr
* Do not include direct-vent gas appliances. Direct-vent draws combustion air from the outdoors and vents to the outdoors.
4. Compare the maximum Btu/Hr the space can support with the actual amount of Btu/Hr used.
_____________ Btu/Hr (maximum the space can support)
_____________ Btu/Hr (actual amount of Btu/Hr used)
Example: 51,200 Btu/Hr (maximum the space can support)
95,000 Btu/Hr (actual amount of Btu/Hr used)
ThespaceintheaboveexampleisaconfinedspacebecausetheactualBtu/HrusedismorethanthemaximumBtu/Hrthespacecansupport.
You must provide additional fresh air. Your options are as follows:
A. Rework worksheet, adding the space of an adjoining room. If the extra space provides an unconfined space, remove door to adjoin-
ing room or add ventilation grills between rooms. See Ventilation Air From Inside Building, page 6.
B. Vent room directly to the outdoors. See Ventilation Air From Outdoors, page 6.
C. Install a lower Btu/Hr heater, if lower Btu/Hr size makes room unconfined.
If the actual Btu/Hr used is less than the maximum Btu/Hr the space can support, the space is an unconfined space. You will need no
additional fresh air ventilation.
AIR FOR
COMBUSTION AND
VENTILATION
Continued
Example:
Gas water heater 40,000 Btu/Hr
Gas fireplace logs + 55,000 Btu/Hr
Total = 95,000 Btu/Hr
Continued
WARNING: If the area in which the appliance may be operated is smaller than that defined as an unconfined
spaceorifthebuildingisofunusuallytightconstruction,provideadequatecombustionandventilationairbyone
ofthe methods describedinthe NationalFuel GasCode,ANS Z223.1,1992,Section 5.3 or applicable localcodes.

6
901265
VENTED NATURAL GAS LOGS
®
AIR FOR
COMBUSTION AND
VENTILATION
Continued
Figure 3 - Ventilation Air from Outdoors
Figure 2 - Ventilation Air from Inside Building
Outlet
Air Ventilated
Attic
Outlet
Air
Inlet
Air
Inlet Air Ventilated
Crawl Space
To
Crawl
Space
To Attic
Or
Remove
Door into
Adjoining
Room,
Option
3
Ventilation Grills
Into Adjoining Room,
Option 2
Ventilation
Grills
Into Adjoining
Room,
Option 1
12"
12"
VENTILATION AIR
Ventilation Air From Inside
Building
Thisfreshairwouldcomefromanadjoining
unconfined space. When ventilating to an
adjoining unconfined space, you must pro-
vide two permanent openings: one within
12" of the ceiling and one within 12" of the
floor on the wall connecting the two spaces
(seeoptions1and2,Figure2).Youcanalso
remove door into adjoining room (see op-
tion 3, Figure 2). Follow the National Fuel
Gas Code NFPA 54/ANS Z223.1, Section
5.3, Air for Combustion and Ventilation for
required size of ventilation grills or ducts.
WARNING: Rework work-
sheet, adding the space of the
adjoiningunconfinedspace.The
combined spaces must have
enough fresh air to supply all
appliances in both spaces.
Ventilation Air From Outdoors
Provide extra fresh air by using ventilation
grills or ducts. You must provide two per-
manent openings: one within 12" of the
ceiling and one within 12" of the floor.
Connecttheseitemsdirectlytotheoutdoors
orspacesopentotheoutdoors.Thesespaces
include attics and crawl spaces. Follow the
National Fuel Gas Code NFPA 54/ANS
Z223.1,Section5.3,AirforCombustionand
Ventilation for required size of ventilation
grills or ducts.
IMPORTANT: Do not provideopenings for
inlet or outlet air into attic if attic has a
thermostat-controlledpowervent.Heatedair
enteringtheatticwillactivatethepowervent.

7
901265
OWNER’S MANUAL
INSTALLATION
WARNING: Before installing
in a solid fuel burning fireplace,
thechimneyflueandfireboxmust
be cleaned of soot, creosote,
ashes and loose paint by a quali-
fied chimney cleaner. Creosote
willigniteifhighlyheated.Adirty
chimneyfluemaycreateanddis-
tribute soot within the house. In-
spect chimney flue for damage.
NOTICE:Installation,service,and
repair of this appliance must be
performedbyaqualifiedinstaller,
service agency, company or gas
supplier experienced with this
type of gas appliance. Only fac-
toryauthorizedcomponentslisted
intheseinstructionsmaybeused
in accordance with the
manufacturer’s instructions and
allcodes and requirementsof the
authorityhavingjurisdiction.Any
modifications to this kit, or use of
unauthorized components or ac-
cessory items will void the
manufacturer’swarranty,andmay
result in a hazardous condition.
CHECK GAS TYPE
Useonlynaturalgas.Ifyourgassupplyisnot
naturalgas, you mustinstallON/OFF Safety
Valve/Pilot Kit (see Accessories, page 20).
Call dealer where you bought log set.
If the fireplace does not have a gas supply
shut-off valve, one must be installed.
CAUTION: Do not remove
the metal data plates attached
totheburnerpan.Thedataplates
contain important warranty in-
formation.
FLUE OPENING
SPECIFICATIONS
Note: This vented appliance must be in-
stalledonlyinasolid-fuel burningfireplace
witha working flueandconstructed of non-
combustible material.
The charts in Figure 4 indicate technical
information regarding the installation of
yourgas logset. Pleasemakesurethatall of
the specifications shown are applicable be-
fore installation is attempted.
The fireplace must include a working flue
andventingsystemwiththeminimumopen-
ings shown in the Figure 4. Continued
MODEL DESCRIPTION
VVSR18 18" Single Burner 50,000 40,000 8" dia.
VVSR24 24" Single Burner 60,000 50,000 8" dia.
VVDR18 18" Dual Burner 55,000 45,000 8" dia.
VVDR24 24" Dual Burner 65,000 55,000 8" dia.
VVDR30 30" Dual Burner 70,000 60,000 8" dia.
Btu Input
Natural Gas Btu Input Propane Gas Minimum Vent Opening
MINIMUM FIREBOX SIZES
LOG FRONT BACK
SIZE WIDTH* WIDTH** DEPTH HEIGHT
18" 28" 16" 14" 18"
24" 29 3/4" 17" 15 1/2" 18"
30" 36" 27" 18" 18"
*Add 6" if safety valve/pilot is used
**At depth indicated
FUEL INLET PRESSURE
SPECIFICATIONS (W.C.)
Min. Max.
NG 5.5" 10.5"
LP 11" 13"
Figure 4 - Technical Information Charts
VENTING SPECIFICATIONS
FOR INSTALLATION
Thefireplacechimneyflueandventmustbe
drafting properly. To check the vent for
properdrafting: Light a tightlyrolled news-
paper on one end and place it at the inside
front edge of the fireplace. Observe the
smoke and be sure the vent is properly
drawing it up the chimney. If the smoke
spillsoutintotheroom,extinguishtheflame
and remove any obstruction until proper
venting is achieved.
Thechimney flue mustremainopen a mini-
mum of 3" at all times during the operation
of this log set.
BURNER ORIFICE
LOG NATURAL PROPANE/LP
SIZE IN. NUM. IN. NUM.
18" .120 31 .073 49
24" .129 30 .086 44
30" .1405 28 .089 43

8
901265
VENTED NATURAL GAS LOGS
®
INSTALLING DAMPER
CLAMP
Secure the damper stop clamp provided to
the leading edge of the damper as shown in
Figure5.Ifforanyreasonthisclampdoesn't
work on your fireplace, another suitable
clamp or permanent stop must be installed,
orthedamperblademustbecutorremoved.
Damper Clamp
Damper
Clamp
Damper
Manufactured
Fireplace
Masonry Fireplace
Figure 5 - Attaching Damper Clamp
INSTALLATION
Continued
Damper Damper
WARNING: Test all gas pip-
ing and connections for leaks
afterinstallingorservicing.Cor-
rect all leaks at once.
WARNING: Never use an
open flame to check for a leak.
Apply a mixture of liquid soap
and water to all joints. Bubbles
forming show a leak. Correct all
leaks at once.
CHECKING GAS
CONNECTIONS
Pressure Testing Gas Supply
Piping System
TestPressuresInExcessOf1/2PSIG
1. Disconnect log set and its individual
manual shutoff valve from gas supply
piping system.
2. Cap off open end of gas pipe where
manual shutoff valve was connected.
3. Pressurizesupplypipingsystembyeither
usingcompressedairoropeningmaingas
valve located on or near gas meter.
4. Check all joints of gas supply piping
system. Apply mixture of liquid soap
and water to gas joints. Bubbles form-
ing show a leak.
5. Correct all leaks at once.
6. Reconnect log set and manual shutoff
valve to gas supply. Check reconnected
fittings for leaks.
CONNECTING TO GAS
SUPPLY
WARNING: A qualified ser-
vicepersonmustconnectlogset
to gas supply. Follow all local
codes.
Installation Items Needed
Before installing log set, make sure you
have the items listed below.
• piping (check local codes)
• sealant (resistant to Propane/LP gas)
• manual shutoff valve
• test gauge connection
• adjustable (crescent) wrench or pliers
• sediment trap
• tee joint
• pipe wrench
CAUTION: Use only new,
black iron or steel pipe. Inter-
nally-tinned copper tubing may
be used in certain areas. Check
yourlocalcodes.Usepipeof1/2"
diameter or greater to allow
proper gas volume to log set. If
pipe is too small, undue loss of
pressure will occur.
Installsedimenttrapinsupplylineasshown
inFigure 6.Locate sedimenttrapwhere itis
within reach for cleaning. Locate sediment
trap where trapped matter is not likely to
freeze. A sediment trap traps moisture and
contaminants. This keeps them from going
into log set controls. If sediment trap is not
installed or is installed wrong, log set may
not run properly.
Installation must include a manual shutoff
valve, union, and plugged 1/8" NPT tap.
Locate NPT tap within reach for test gauge
hook up. NPT tap must be upstream from
log set (see Figure 6).
Apply pipe joint sealant lightly to male
threads. This will prevent excess sealant
fromgoinginto pipe. Excess sealant inpipe
could result in a clogged burner injector.
CAUTION:Usepipejointseal-
ant that is resistant to liquid pe-
troleum (LP) gas.
Figure 9 - Gas Connection
*PurchasetheoptionalA.G.A.design-certifiedmanualshutoffvalvefromyourdealer.See
Accessories, page 20.
** Minimum inlet pressure for purpose of input adjustment.
3" Minimum
Sediment Trap
From Gas Meter (5" W.C.**
to 10.5" W.C. Pressure)
A.G.A. Design-Certified
Manual Shutoff Valve
With 1/8" NPT Tap*
Approved Flexible Gas Hose
(if allowed by local codes)
Tee Joint
Pipe Nipple
Cap

9
901265
OWNER’S MANUAL
INSTALLATION
Continued
Figure 7 - Checking Gas Joints
HEARTH KIT ASSEMBLY
AND INSTALLATION
Kit Assembly
Note: The following instructions apply to
both standard single bar burners, as well as
dualflame“U”styleburners.Besureallpipe
threaded connections are tight, and have
thread compound to prevent leaks.
1. Determine which side the gas line will
be coming into the fireplace.
2. Using a hammer and screw driver, re-
move knockout plug from the side of
the pan that corresponds to the gas line
(see Figure 8).
Continued
TestPressuresEqualToorLessThan
1/2 PSIG
1. Close manual shutoff valve (see Fig-
ure 7).
2. Pressurizesupplypipingsystembyeither
usingcompressedairoropeningmaingas
valve located on or near gas meter.
3. Checkalljointsfromgasmetertomanual
shutoff valve (see Figure 7).Apply mix-
tureofliquidsoapandwatertogasjoints.
Bubbles forming show a leak.
4. Correct all leaks at once.
Gas Meter
Manual Shutoff Valve
Installation and Gas Connection
1. Place the burner pan assembly in the
center of the fireplace floor. Make sure
the front of pan faces forward.
2. Thread the gas supply fitting to the
fireplace gas supply pipe. Use thread
sealant.
3. Install adapter fitting onto the burner
inlet fitting using thread sealant on
male threads of burner inlet fitting
(see Figure 10). Adjust to most con-
venient position.
Figure 8 - Knock-Out Plug Locations
Figure 9 - Installing Burner
Knock-Out Plugs
Nut
Burner
Clamp
Burner
Pan
Screw
Burner
Manifold
Burner Inlet
Fitting
3. Unscrew burner inlet fitting from
burner manifold (see Figure 9).
4. Place burner manifold in pan with
threaded opening facing open knock-
out plug.
5. Using thread sealant (resistant to the
action of propane/LP gas) on larger
end of fitting, screw the burner inlet
fitting through hole and into burner
manifold. Tighten using a wrench. If
using propane/LP gas, see Propane/LP
Gas Conversion, page 10.
6. Using burnerclamp,screw, and nut pro-
vided,assemble clamp to pan(“U”style
burners only).This will hold the burner
manifold in place.
7. If using optional GA9000 kit, go to Op-
tional GA9000 On/Off SafetyValve/Pi-
lot Kit section for installation instruc-
tions. If using optional GA9100 kit,
followinstructions includedwithkit for
installation and operation.
OPTIONAL GA9000 ON/OFF
SAFETY VALVE/PILOT KIT
ASSEMBLY
For additional convenience and safety, or
forpropane/LPconversion,anoptionalON/
OFF safety valve/pilot kit is available. See
Accessories, page 20.
WARNING: You must use a
ON/OFFsafety valve/pilot kit for
propane/LP conversion.
Natural Gas Installation
1. Thread the gas control valve onto the
burner inlet fitting (see Figure 11). Use
thread sealant on the male threads of
the burner inlet fitting. Hold the burner
inlet fitting with a wrench to prevent
overtightening the connection to the
burner. Make sure the control rod is
facing the front (see Figure 11).
Figure 10 - Connecting Gas to Appliance
Adapter
Fitting
Gas Connector
Tube
Burner Pan
Assembly (Facing
Front of Fireplace)
Burner Inlet
Fitting
Gas
Control
Valve
Burner Pan
Assembly
Figure 11 - Installing Gas Control Valve
Control Rod
Burner Pan
Assembly (Facing
Front of Fireplace)
4. Install the gas connector tube to the gas
supply fitting. Carefully shape tube to
attach to adapter fitting. Be careful not
to cause kinks in tube.

10
901265
VENTED NATURAL GAS LOGS
®
2. Attach the pilot gas line to the pilot out-
let of the gas control valve and tighten.
Connect the thermocouple to the rear of
the gas control valve. See Figure 12. Do
notovertighten.Ifusing propane/LPgas,
see Changing Pilot Orifice, page 11.
3. Install the inlet fitting into the inlet
opening of the gas control valve (see
Figure 13). Use thread sealant on the
male pipe threads.
4. Place the burner pan assembly in the
center of the fireplace floor. Make sure
the front of pan faces forward.
5. Thread the gas supply fittingto the fire-
place gas supply pipe. Adjust to most
convenient position.
6. Install the gas connector tube to the gas
supply fitting. Carefully shape tube to
attach to adapter fitting. Be careful not
to cause kinks in tube.
7. Test for leaks following instructions
underTesting Burner forLeaks, page 11.
8. Retighten and adjust the location of the
gas control as necessary. The gas con-
trolshouldbe level,with thecontrol rod
to the front.
9. Install cover to burner pan using screws
provided.
10. Install thermocouple, pilot, and ignitor
onto valve cover as shown in Figure 14.
Use the provided screws.
11. Push the control rod extension onto the
“D” shaped control rod through the cen-
ter hole in the cover.
12. Install the position decal and control
knob making sure to align the marks
with the correct stop positions of the
gascontrol.Pilot position will allowthe
knob to push in about 1/2". Align the
decals in the pilot position.
INSTALLATION
Continued
Figure 12 - Gas Control Valve with Ther-
mocouple and Pilot
Figure13-InstallingInletFitting andGas
Connector Tube
Piezo Ignitor
Control
Rod
Extension
Screw
Valve Cover
Control
Knob
Figure14-InstallingCover,ControlKnob,
and Piezo Ignitor
Propane/LP Gas Conversion
To convert to propane/LP gas, the burner
inlet fitting and pilot orifice must be re-
placed.Thepropane/LPburnerinletfittingis
supplied with the orifice installed for a 24"
log set. If you have an 18" or 30" set, you
must change this orifice also. See Figure 1,
page 3 for product identification.
Burner Inlet Fitting
1. Removetheburnerinletfitting fromthe
burner pan assembly. DO NOT remove
the orifice from this fitting. The pro-
pane/LP burner inlet fitting is included
in the hardware kit (see Figure 15).
Thermocouple and Line
Pilot and Line
Gas Control Valve
Figure 15 - Burner Inlet Fittings with
Injectors
NATURAL
GAS
FITTING
PROPANE/
LP GAS
FITTING
Injector for
Natural Gas Injector for
Propane/LP
Gas
Gas Control
Valve Gas Inlet
Fitting
Gas
Connector
Tube
Figure 16 - Remove Burner Inlet Fitting
Burner Inlet
Fitting for
Natural Gas
Thermocouple
Ignitor
Pilot
2. Be sureto use thecorrectorificefor your
appliance. The hardware kit included
withthis appliance containstwoorifices
with a cone-like shape. If you have an
18" set, the orifice for the burner inlet
fitting is red; for a 30" set, it is black. If
you have a 24" log set, the orifice is al-
ready installed inside the fitting.
3. For an 18" or 30" set, use a 10mm
socket or nut driver to remove the ori-
fice from the propane/LP burner inlet
fitting. Choose the correct orifice for
your log set size and install in place of
the orifice you just removed.
4. Using thread sealant (resistant to the
actionofpropane/LPgas)onlargerend
of fitting, screw the burner inlet fitting
through hole and into burner manifold.
Tighten using a wrench.
5 . Follow steps 1 through 12 under Natu-
ral Gas Installation, pages 9 and 10.
Inlet
Opening

11
901265
OWNER’S MANUAL
TESTING BURNER FOR
LEAKS
1. Generously apply soapy solution to all
connections.
WARNING: Never check for
gas leaks with open flame.
2. Light the burner with the shutoff valve
no more than half open and holding a
match slightly in front of the pan (see
Lighting Instructions, page 12).
3. Inspect all connections for bubbles, raw
gas odor, or flame from any area other
than the burner (leaks). If leaks are de-
tected, shut off the gas valve immedi-
ately. Tighten, or reassemble the loose
connection(s) using pipe joint com-
pound until burner system is leak free.
INSTALLATION
Continued

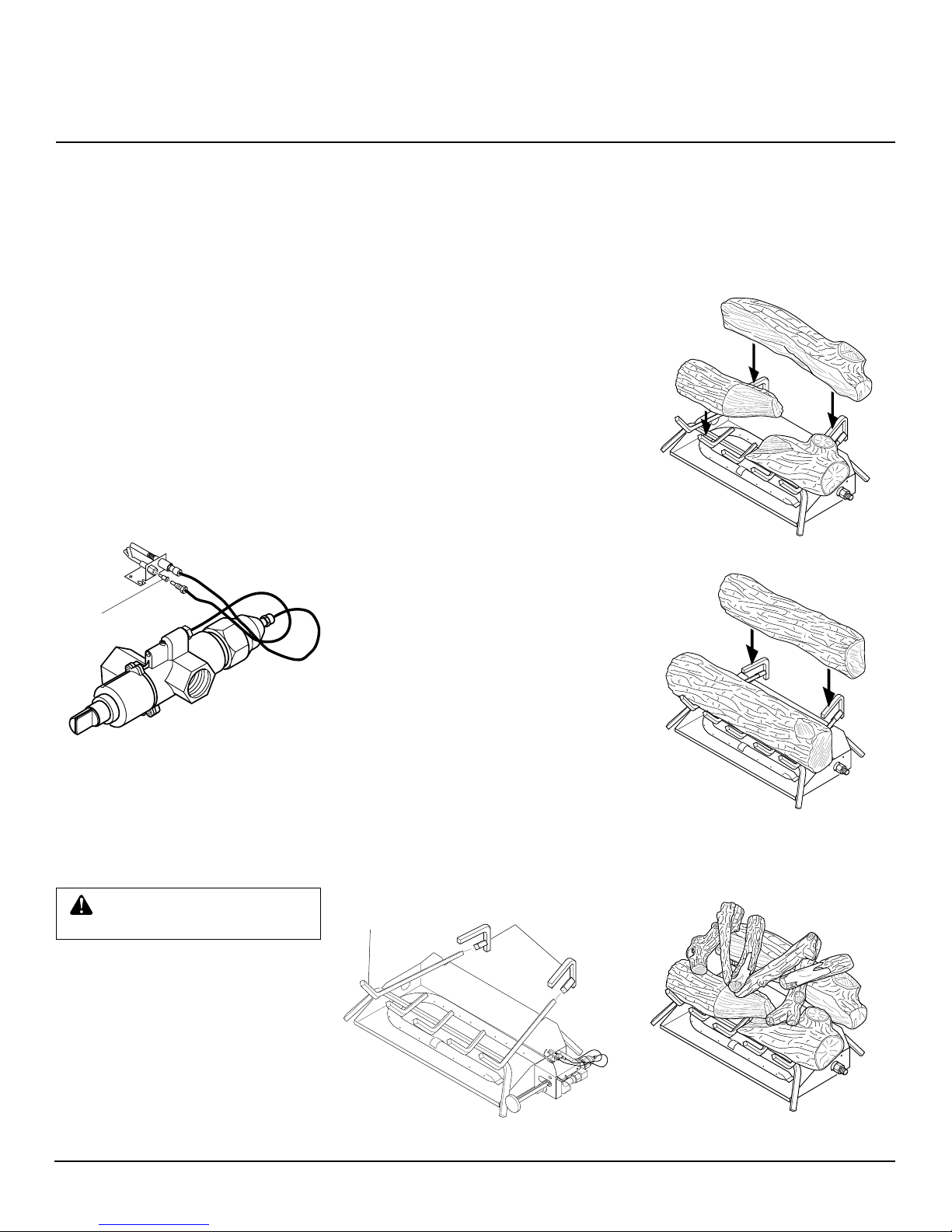

Figure 17 - Installing Propane/LP Pilot
Orifice
Pilot
Injector
Figure 18 - Installing Grate (Pan Material
Not Shown)
4. When the burner is tested and leak free,
observe the individual tongues of flame
on the burner. Note: The burner design
includesmore ports onthe outside ofthe
bar. Make sure that all ports are clear
and producing flame evenly across the
burner.Ifanyportsappearblocked,clear
them by removing the burner manifold
and reaming the ports with a modified
paper clip or other suitable tool.
5. When finished testing, turn the gas
shutoff valve OFF to extinguish all
flames.
ADDING PAN MATERIAL
1. Open the bag of ash bed material (ver-
miculite)and spread it evenlyacrossthe
burner pan to the top. You may over-
flow the front and sides of the pan to
cover the entire pan and connecting
hardware. Do not cover GA9000 or
GA9100 valve.
2. Open the glowing embers and evenly
cover the ash bed material (vermicu-
lite) in the burner pan.
INSTALLING THE GRATE
AND LOGS
1. Place the grate over the burner pan
wherethetwo outer horizontal supports
on the grate fit into the two pan posi-
tioning notches in the rear vertical edge
of the pan.
2. Slide the two rear log grate steps over
thetwoouter horizontal supports on the
grate as shown in Figure 18.
3. Place the back log on the grate onto the
grate steps (see Figure 19).
4. Place the front log(s) on the grate and
slide forward against the front bars on
the grate (see Figure 19).
5. Place the smaller top logs onto the bot-
tom logs (see Figure 20). Leave as
much open space between logs as pos-
sible to minimize flame impingement
and sooting. Note: Logs may chip if
they are handled roughly or if hit to-
gether while being placed.
Figure19 -Installing Frontand BackLogs
(Number and style of your logs may vary)
Figure 20 - Placement of Top Logs
(Kingston Split Oak Logs Shown)
Grate Grate Steps
Changing Pilot Orifice
The pilot is provided with a natural gas
orifice installed. For propane/LP gas you
must remove it and replace it with an pro-
pane/LP orifice. The hardware kit contains
an propane/LP orifice with a red stripe for
converting the pilot.
1. Gently loosen and remove the pilot
line connection from the bracket (see
Figure 17).
2. Replace the injector (see Figure 17)
with the propane/LP pilot injector with
the red stripe.
3. Replace and tighten the pilot line to the
bracket.
4. Continue with step 3 under Natural
Gas Installation, pages 9 and 10.
Hanover Round Oak Logs
Kingston Split Oak Logs

12
901265
VENTED NATURAL GAS LOGS
®
LIGHTING
INSTRUCTIONS
OPERATING
APPLIANCE
FOR YOUR SAFETY
READ BEFORE
LIGHTING
WARNING: If you do not fol-
low these instructions exactly, a
fireorexplosionmayresultcaus-
ing property damage, personal
injury or loss of life.
BEFORE LIGHTING smell all around
the appliance area for gas. Be sure to
smellnexttothefloorbecausesomegasis
heavier than air and will settle on the
floor.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electric switch; do
not use any phone in your building.
• Immediately call your gas supplier
from a neighbor’s phone. Follow the
gas supplier’s instructions.
• If you cannot reach your gas supplier,
call the fire department.
GAS SHUTOFF
VALVE OPERATION
Flame Adjustment
1. Adjust the flame ON/OFF by turn-
ing the gas shutoff valve counter-
clockwise to open or clock-
wise to close, as necessary.
Shutting Off Appliance
1. Turn gas shutoff valve clockwise
to the OFF position.
During the 2-3 hour appliance break-in
period, you may detect an odor from the
appliance as the various paints and com-
poundsused inthemanufacturingof this
log set cure. This is a normal and tempo-
rarysituationthat is notcauseforalarm.
However,you may want toprovide extra
ventilation to the room during this time.
To ensure proper curing of the logs:
• Ignite a 2" flame and maintain it for 1
hour.
• Burnthe logs in consecutive1hourpe-
riods raising the flame an additional
2" to full flame height for a total of
three hours.
CURING LOGS
1. STOP! Read the safety information,
above.
2. Turn the gas shutoff valve to OFF.
3. Wait five(5)minutestoclearoutany
gas.If youthen smell gas STOP! Fol-
low the safety information above. If
you don't smell gas, go on to the next
step.
4. Light a match and lay it on top of
the pan material about 2" from the
end of the supply side of the pan
5. Slowlyturnthegasshutoff valveON
untiltheburner ignites. If the burner
doesn’tignitewithin 10 seconds with
the match burning, turn the shutoff
valveOFFandrepeatsteps1 through
4 again.
Note: OperationinstructionsforGA9100
Remote Ready Valve/Pilot Kit will be
included with the kit.
1. STOP! Read the safety information,
column one this page.
2. Make sure manual shutoff valve is
fully open.
3. Pressin and turncontrolknob clock-
wise to the OFF position.
4. Wait five (5) minutes to clear out any
gas.Thensmellforgas aroundlog set
and near floor. If you smell gas,
STOP!SeeSafetyinformation,page 2
and Air For Combustion And Ventila-
tion, pages 4 through 6. If you don’t
smell gas, go to the next step.
5. Turncontrolknob counterclockwise
to the PILOT position and
press in. Keep control knob pressed
in for five (5) seconds.
Note: You may be running this log
setforthe firsttime afterhooking up
to gas supply. If so, the control knob
may need to be pressed in for 30 sec-
onds.Thiswill allowair to bleedfrom
the gas system.
• If control knob does not pop up
when released, contact a qualified
service person or gas supplier for
repairs.
6. With control knob pressed in, push
downandreleaseignitor button.This
will light pilot. The pilot is attached
to the rear of the front burner. If
needed,keeppressingignitor button
until pilot lights.
Note: If pilot does not stay lit, con-
tact a qualified service person or gas
supplierforrepairs.Untilrepairsare
made, light pilot with match.
7. Keep control knob pressed in for 30
seconds after lighting pilot.After 30
seconds, release control knob.
Note: If pilot goes out, repeat steps
3 through 7.
8. Turn control knob counterclockwise
to the ON position. Burner
shouldlight.If burnerdoes not light,
call a qualified service person.
OPERATING
INSTRUCTIONS FOR
GA9000 Ignitor Control Knob
Pilot
FROM "PILOT" POSITION
SLIGHT PUSH TO
TURN OFF
PULL PUSH
ON
ON
FROM "PILOT" POSITION
SLIGHT PUSH TO
TURN OFF
PULL PUSH
FROM "PILOT" POSITION
SLIGHT PUSH TO
TURN OFF
PULL PUSH
ON OFF
On Off
OFF
OFF
Pilot Thermo-
couple

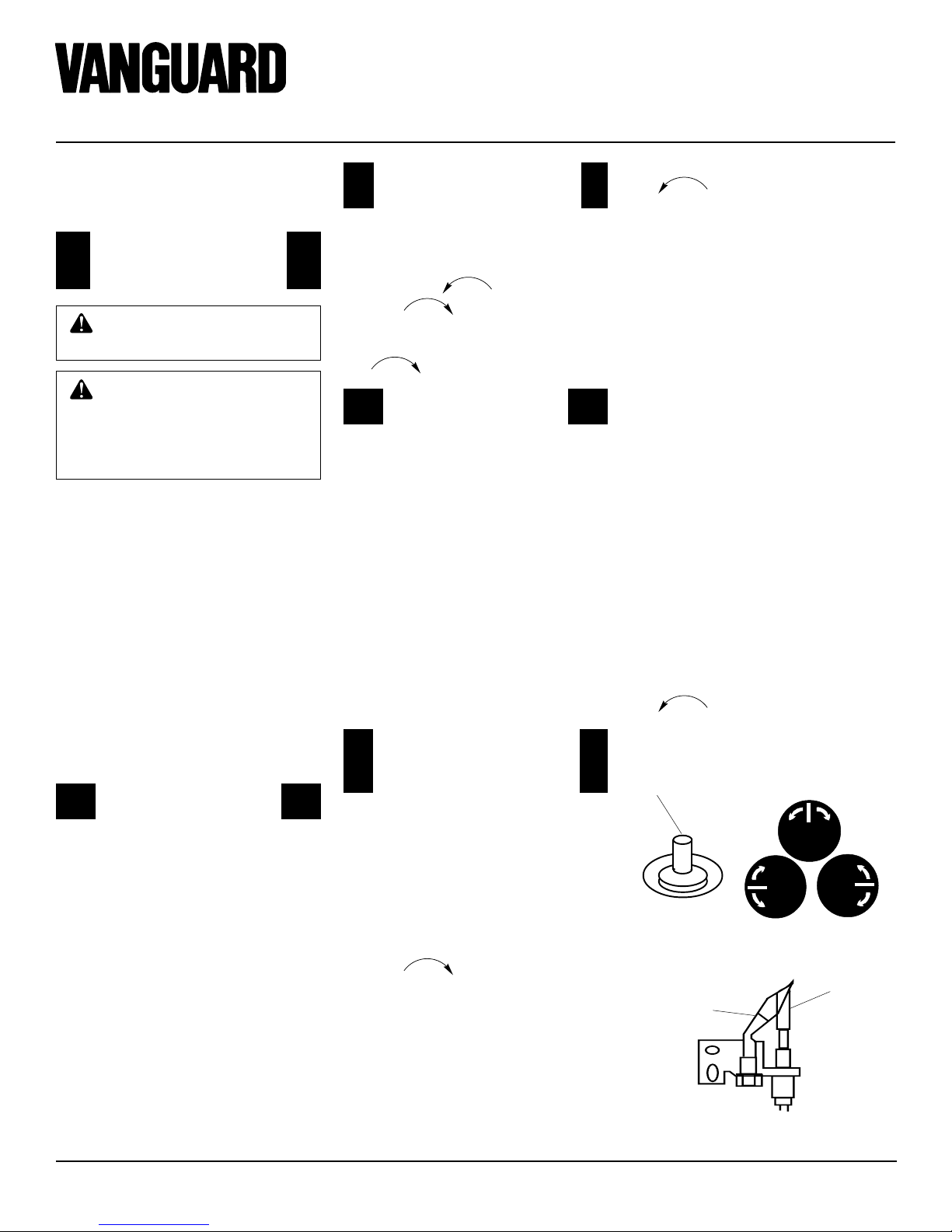

Figure 21 - Ignitor and Control Knob
Figure 22 - Thermocouple and Pilot
WARNING: Keep flue open
when operating unit.

13
901265
OWNER’S MANUAL
TROUBLESHOOTING WARNING: Turn off log set
andletcoolbeforeservicing.Only
aqualifiedservicepersonshould
service and repair log set.
POSSIBLE CAUSE REMEDY
OBSERVED PROBLEM
Continued
Note: For additional help, visit DESA
International’s Technical Service web
site at www.desatech.com.
Note: Alltroubleshootingitemsarelistedin
order of operation.
www.desatech.com
TO TURN OFF GAS
TO APPLIANCE
Shutting Off Appliance
1. Turn controlknob clockwise
to the PILOT position.
2. Press in and turn control clockwise
to the OFF position.
Shutting Off Burner Only (pilot
stays lit)
Turn control knob clockwise to
the PILOT position.
1. Poor fuel quality
2. Fireplace venting system not drafting
properly
3. Excessive flame impingement or
blockage
4. Improper fuel/air mixture
5. Excessive gas supply/pressure
1. Passage of air/gas across irregular sur-
faces
1. Incorrect gas supply or pressure
2. Blocked burner orifice or burner mani-
fold ports
3. Improper burner orifice size
Log set is smoking/sooting excessively
( Note: It is natural and unavoidable for
vented gas log sets to produce moderate
levels of carbon (soot) where flames
contact the logs. This is especially true
with propane/LP gas.)
Burner is excessively noisy
( Note: The movement and combustion of
gas will create low, unavoidable levels of
noise.)
Burner flame is too low or too high
1. Contact local natural or propane/LP gas
company
2. Adjust damper wide open and/or have
fireplace and venting professionally
cleaned and checked
3. Separate the logs to allow more flame
passage
4. Remove any foreign items from the
flame pattern and/or check for proper
orifice sizing
5. Preheat flue in very cold weather
1. Relieve any tight bends or kinks in gas
supply line
1. Check for proper gas supply pressure
2. Free burner orifice and manifold ports
of any burrs, paint, or other blockage
3. Verify proper burner orifice sizing (see
Figure 4, page 7)
OPERATING
APPLIANCE
Continued

14
901265
VENTED NATURAL GAS LOGS
®
OBSERVED PROBLEM
When ignitor button is pressed, there is no
spark at pilot (GA9000 Only)
When ignitor button is pressed, there is
sparkatpilotbutnoignition(GA9000Only)
Pilotlightsbutflamegoesoutwhencontrol
knob is released (GA9000 Only)
Burner does not light after pilot is lit
(GA9000 Only)
Delayed ignition burner (GA9000 Only)
REMEDY
1. Reconnect ignitor cable
2. Free ignitor cable if pinched by any
metal or tubing. Keep ignitor cable dry
3. Scrape away paint on bracket for better
contact with ground on piezo ignitor
4. Replace ignitor cable
5. Replace piezo ignitor
6. Replace electrode
7. Reposition electrode
1. Turn on gas supply or open manual
shutoff valve
2. Turn control knob to PILOT position
3. Press in control knob while in PILOT
position
4. Continue holding down control knob.
Repeat igniting operation until air is re-
moved
5. Adjust pilot flame for approximately
2" blue flame
6. Clean pilot (see Cleaning and Mainte-
nance,page20) or replace pilot assembly
7. Replace gas control
1. Press in control knob fully
2. After pilot lights, keep control knob
pressed in 30 seconds
3. Fully open manual shutoff valve
4. A) Contact local natural gas company
B)Cleanpilot(see Cleaning and Mainte-
nance,page20) or replace pilot assembly
5. Hand tighten until snug, then tighten
1/4 turn more
6. Replace thermocouple
7. Replace control valve
1. Clean burner orifice
2. Contact local natural or propane/LP gas
company
3. Replace burner orifice
4. Reconnect leads
1. Adjust pilot flame for approximately
2" blue flame
2. Replace pilot orifice set
POSSIBLE CAUSE
1. Ignitor electrode not connected to igni-
tor cable
2. Ignitor cable pinched or wet
3. Bad ground on piezo ignitor
4. Broken ignitor cable
5. Bad piezo ignitor
6. Ignitor electrode broken
7. Ignitor electrode positioned wrong
1. Gas supply turned off or manual shutoff
valve closed
2. Control knob not in PILOT position
3. Control knob not pressed in while in
PILOT position
4. Air in gas lines when installed
5. Pilot adjustment screw closed
6. Pilot is clogged
7. Low gas pressure
1. Control knob not fully pressed in
2. Control knob not pressed in long enough
3. Manual shutoff valve not fully open
4. Pilot flame not touching thermocouple,
which allows thermocouple to cool,
causing pilot flame to go out. This prob-
lem could be caused by one or both of
the following:
A) Low gas pressure
B) Dirty or partially clogged pilot
5. Thermocouple connection loose at con-
trol valve
6. Thermocouple damaged
7. Control valve damaged
1. Burner orifice clogged
2. Inlet gas pressure is too low
3. Burner orifice diameter is too small
4. Thermocouple leads disconnectedorim-
properly connected
1. Pilot flame needs adjusting
2. Wrong pilot orifice
TROUBLESHOOTING
Continued
www.desatech.com

15
901265
OWNER’S MANUAL
TROUBLESHOOTING
Continued
WARNING: If you smell gas
•Shut off gas supply.
•Do not try to light any appliance.
•Do not touch any electrical switch; do not use any phone in
your building.
•Immediately call your gas supplier from a neighbor’s phone.
Follow the gas supplier’s instructions.
•Ifyoucannotreachyourgassupplier,callthefiredepartment.
POSSIBLE CAUSE
1. Metal expanding while heating or con-
tracting while cooling
1. Log Set burning vapors from paint, hair
spray, glues, cleaners, chemicals, new
carpet, etc. (See IMPORTANT state-
ment above)
2. Gas leak. SeeWarning statement at
top of page
1. Gas leak. SeeWarning statement at
top of page
2. Control valve defective
1. Gas leak. SeeWarning statement at
top of page
OBSERVED PROBLEM
Log Set produces a clicking/ticking noise
just after burner is lit or shut off
Log Set produces unwanted odors
Gas odor even when control knob is in OFF
position
Gas odor during combustion
REMEDY
1. This is common with most log sets. If
noise is excessive, contact qualified ser-
vice person
1. Open flue to maximum. Stop using odor
causingproductswhilelog set is running
2. Locate and correct all leaks (see Check-
ing Gas Connections, page 8)
1. Locate and correct all leaks (see Check-
ing Gas Connections, page 8)
2. Replace control valve
2. Locate and correct all leaks (see Check-
ing Gas Connections, page 8)
IMPORTANT: Operating log set where impurities in air exist may create odors.
Cleaningsupplies,paint,paintremover,cigarettesmoke,cementsandglues,new
carpet or textiles, etc., create fumes. These fumes may mix with combustion air
and create odors. These odors will disappear over time.
www.desatech.com

16
901265
VENTED NATURAL GAS LOGS
®

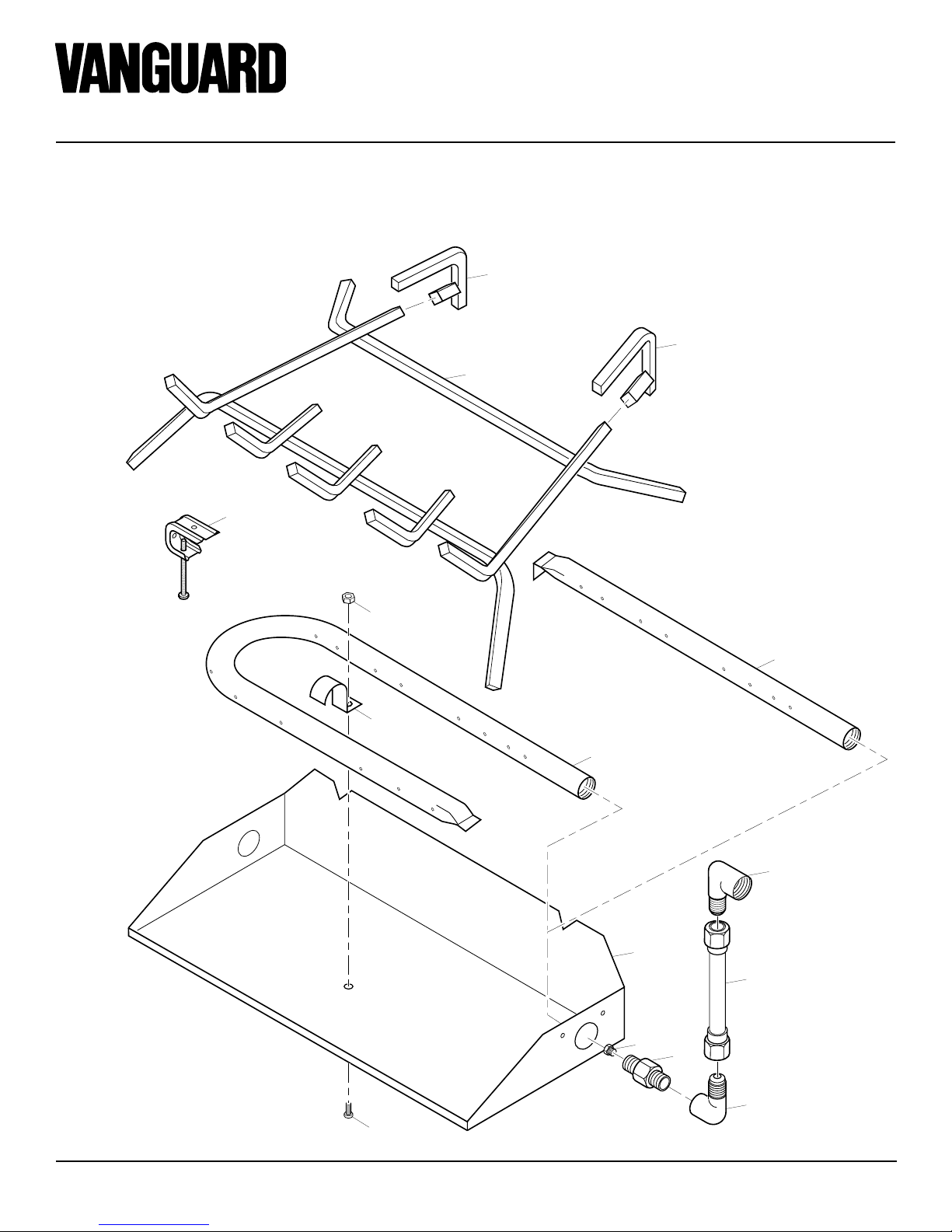

ILLUSTRATED
PARTS
BREAKDOWN
VVSR18,
VVSR24, VVDR18,
VVDR24, AND VVDR30
3
13
1
8
6
4
2
10
7
5
5
9
9
11
12

17
901265
OWNER’S MANUAL
PARTS LIST This list contains replaceable parts used in your log set. When ordering parts, follow the
instructions listed under Replacement Parts on page 20 of this manual.
VVSR18,
VVSR24, VVDR18,
VVDR24, AND VVDR30
KEY PART NUMBER FOR
NO. VVSR18 VVSR24 VVDR18 VVDR24 VVDR30 DESCRIPTION QTY.
1 901063-01 901063-01 901063-01 901063-01 901063-01 Brass 3/8 FLR x 1/2 FPT Elbow 1
2 901057-01 901057-01 901057-01 901057-01 901057-01 Brass 3/8 FLR x 3/8 FPT Elbow 1
3 901066-01 901066-01 901066-01 901066-01 901066-01 Brass Air Mixer - Natural Gas 1
4 901064-02 901064-03 901064-02 901064-03 901064-04 Natural Gas Injector 1
5 901208-01 901208-02 901209-01 901209-02 901209-03 Burner Manifold 1
6 901136-01 901136-02 901137-01 901137-02 901137-03 Burner Pan 1
7 901242-01 901242-01 901242-01 901242-01 901242-01 Damper Clamp - Std. Assembly 1
8 901232-01 901232-01 901232-01 901232-01 901232-01 Gas Line - 12" Aluminum 1
9 901430-01 901430-01 901431-01 901431-01 901431-01 Grate Steps 2
10 901243-01 901243-02 901246-01 901246-02 901246-03 Log Grate 1
11 ——901681-01 901681-01 901681-01 Burner Strap 1
12 ——901078-01 901078-01 901078-01 Nut #8/32 1
13 ——901076-01 901076-01 901076-01 Screw #8/32 x 3/8 1
PARTS AVAILABLE —NOT SHOWN
901156-01 901156-01 901156-01 901156-01 901156-01 .125# Bag Embers 1
901155-01 901155-01 901155-01 901155-01 901155-01 1.5# Bag Ash Bed Material
(Vermiculite) 1
901036-01 901036-01 901036-01 901036-01 901036-01 Aluminum Rating Plate-Generic 1
901265-01 901265-01 901265-01 901265-01 901265-01 Instruction Manual - V/G RGA 2-72 1

18
901265
VENTED NATURAL GAS LOGS
®
ILLUSTRATED
PARTS
BREAKDOWN
LOG SET MODELS VSLR18,
VSLR24, VDLCR18, VDLCR24,
AND VDLCR30
4
2
7
8
5
6
9
3
15
12
1
14 13
10
11
Kingston Split Oak Logs
Hanover Round Oak Logs

19
901265
OWNER’S MANUAL
PARTS LIST
LOG SET MODELS VSLR18,
VSLR24, VDLCR18, VDLCR24,
AND VDLCR30
This list contains replaceable parts used in your log set. When ordering parts, follow the
instructions listed under Replacement Parts on page 20 of this manual.
KEY PART NUMBER FOR
NO. VSLR18 VSLR24 VDLCR18 VDLCR24 VDLCR30 DESCRIPTION QTY.
1 ——901565-02 901566-02 901567-02 Bottom Rear 1
2 ——901603-01 901604-01 901604-04 Bottom Front 1
3 ——901593-01 901594-01 901595-01 Bottom Front 1
4 ————901580-02 VR-11\VC Top Log 1
5 ——901588-01 901588-01 901588-01 VS-12 Top Log 1
6 ———901592-01 901592-01 VCR-12 Top Log 1
7 ——901591-02 901591-02 901591-02 VCR-11\VC Top Log 1
8 ——901551-03 901551-03 901551-03 CHR-13\VC Top Log 1
9 ——901587-01 901587-01 901587-01 VCR-9 Top Log 1
10 901625-03 901626-03 ———Bottom Rear 1
11 901583-01 901584-01 ———Bottom Front 1
12 901541-02 901541-02 ———CPR-13\VR Top Log 1
13 901580-01 901580-01 ———VR-11\VR Top Log 1
14 901579-01 901579-01 ———VR-10Y Top Log 1
15 —901578-01 ———VR-10 Top Log 1

20
901265
VENTED NATURAL GAS LOGS
®
ACCESSORIES
Purchasetheselogsetaccessoriesfromyour
local dealer. If they can not supply these
accessories,callDESAInternational’sParts
Department at 1-800-972-7879 for referral
information. You can also write to the ad-
dresslisted onthe backpageofthismanual.
MANUAL SHUTOFF VALVE
GA5010
Forallmodels.Manualshutoffvalvewith1/8"
NPT tap. Fits 1/2" NPT pipe.
RECEIVER AND HAND-
HELD REMOTE CONTROL
KIT - GHRC Series
Forallmodels.Allowsthegaslogsettobe
turned on and off by using a hand-held
remote control. Valve/Pilot Kit GA9100
must be used with this remote.
WALL-MOUNT ON/OFF
SWITCH - GWMS2
(Not Shown)
Forallmodels.Allowsthegaslogsettobe
turned on and off with a wall switch.
ON/OFF SAFETY VALVE/
PILOT KIT - GA9000
(Not Shown)
For all models. Required for propane/LP
installation.
REMOTE READY VALVE/
PILOT KIT - GA9100
(Not Shown)
For all models.
INDIVIDUAL ROUND LOG
GA9400
(Not Shown)
For all models. Use when more logs are
desired. Carton of 6
INDIVIDUAL SPLIT LOG
GA9500
(Not Shown)
For all models. Carton of 6.
PINE CONES - GA9600
(Not Shown)
For all models. Use for additional decora-
tion only. Carton of 6 Boxes (3 pine cones
per box).
ASH BED MATERIAL
(Vermiculite) - GA9700
(Not Shown)
For all models. Carton of 6.
GLOWING EMBERS - GA9900
(Not Shown)
For all models. Use for firebox decoration
only.
SILICA SAND - GA9800
(Not Shown)
For all models. Use for firebox decoration
only. Carton of 6.
LAVA ROCK - GA6066
(Not Shown)
For all models. Use for firebox decoration
only.
CLEANING AND
MAINTENANCE
• Keep the area around the log set clean
and clear of debris.
• Occasionally, you may use a soft bristle
brush to clean logs.
• Once every year a qualified agency or
certified chimney sweep should exam-
ine and clean the venting system of the
fireplace.
REPLACEMENT
PARTS
Note: Use only original replacement parts.
Thiswillprotectyourwarrantycoveragefor
parts replaced under warranty.
PARTS UNDER WARRANTY
Contact authorized dealers of this product.
If they can’t supply original replacement
part(s), call DESA International’s Techni-
cal Service Department at
1-800-323-5190. When calling DESA In-
ternational, have ready
• your name and address
• model and serial numbers of your log set
• how log set was malfunctioning
• type of gas used (propane/LP or natural
gas)
• purchase date
Usually,wewillaskyoutoreturnthedefec-
tive part to the factory.
PARTS NOT UNDER
WARRANTY
Contact authorized dealers of this product.
If they can’t supply original replacement
part(s), call DESA International’s Parts
Department at 1-800-972-7879 for referral
information. When calling DESA Interna-
tional, have ready
• model number of your log set
• the replacement part number
