This fireplace is approved for use as a wood burning fireplace or fo
r
use with a vented gas log approved to ANS Z21.60, Z21.84 or RGA
2-72 standards or for use with a vent-free gas log heater approved to
ANS Z21.11.2 standard. A DESA hood must be installed when
using a vent-free gas log heater (see Accessories, p. 12).
WARNING: Always leave glass doors fully opened or fully closed when operating this fireplace.
(V)B42 42” smooth face
(V)B42I 42” smooth face with insulation
(V) (V)B42L 42” circulating
(V)B42LI 42” circulating with insulation
INSTALLATION INSTRUCTIONS
A
LL DIMENSIONS IN THIS MANUAL ARE IN
I
NCHES UNLESS OTHERWISE SPECIFIED

- 1 - For more information, visit www.desatech.com
CONTENTS
1. INTRODUCTION ------------------------------------------------------------- PG. 2
2. SELECTING LOCATION ------------------------------------------------------------- PG. 2
3. MINIMUM CLEARANCES ------------------------------------------------------------- PG. 2
4. FRAMING AND INSTALLING ------------------------------------------------------------- PG. 3
5. HEARTH EXTENSION ------------------------------------------------------------- PG. 3
6. OUTSIDE AIR KIT INSTALLATION ------------------------------------------------------------- PG. 3
7. FAN/BLOWER KIT ASSEMBLY ------------------------------------------------------------- PG. 4
8. CHIMNEY PIPE AND OFFSET INSTALLATION ------------------------------------------------------------- PG. 4-5
9. FIRESTOP SPACERS ------------------------------------------------------------- PG. 5
10. FLASHING AND TERMINATION ------------------------------------------------------------- PG. 6-7
11. FINISHING YOUR FIREPLACE ------------------------------------------------------------- PG. 7
12. MANTELS ------------------------------------------------------------- PG. 8
13. GLASS DOORS ------------------------------------------------------------- PG. 8
14. GAS LINE INSTALLATIONS ------------------------------------------------------------- PG. 9
15. DAMPER OPERATION ------------------------------------------------------------- PG. 10
16. TECHNICAL SERVICE ------------------------------------------------------------- PG. 10
17. ILLUSTRATED PARTS ------------------------------------------------------------- PG.11-11a
18. REPLACEMENT AND ACCESSORY PARTS ------------------------------------------------------------- PG.12

-2 - For more information, visit www.desatech.com
INTRODUCTION
BEFORE BEGINNING THE INSTALLATION OF THE
FIREPLACE, READ THESE INSTRUCTIONS THROUGH,
COMPLETELY.
♦ This DESA fireplace and its components are safe
when installed according to this installation manual.
Unless you use DESA components, which has been
designed and tested for the fireplace system, you may
cause a fire hazard.
♦ The DESA warranty will be voided by and DESA
disclaims any responsibility for the following actions:
a) Modification of the fireplace, components, doors,
blower, fans, air inlet system and damper control.
b) Use of any component part not manufactured or
approved by DESA in combination with a DESA
fireplace system.
PROPER INSTALLATION is the most important step in
ensuring safe and continuous operation of the fireplace.
Consult the local building codes as to the particular
requirements concerned with the installation of all factory
built fireplaces. Although grounding may not be required by
code the manufacturer recommends it.
USE SOLID WOOD OR PROCESSED SOLID FUEL
FIRELOGS ONLY.
This fireplace is not intended to be used as a substitute for
a furnace to heat an entire home. Use for supplemental
heat only.
SELECTING LOCATION
To determine the safest and most efficient location for the
fireplace, you must take into consideration the following
guidelines:
1.) The location must allow for proper clearances (see
figures 1 & 2).
2.) Consider a location were the fireplace would not be
affected by drafts, air conditioning ducts, windows or
doors.
3.) A location that avoids the cutting of joists or roof
rafters will make installation easier.
4.) An outside air kit is available with this fireplace. For
more details refer to section on outside air kit
installation on page 3.
MINIMUM CLEARANCES TO COMBUSTIBLES
• Back and side of fireplace -------------- ¾” minimum
Note: The ¾” clearance is not required at the nailing flanges
• Floor* ------------------------------------- 0” minimum
*See step 2 of “Installing the Fireplace” on page 3
• Perpendicular Wall to Opening of unit - 12” minimum
• Top Spacers ------------------------------ 0” minimum
• Mantel Clearances ---------------------- see page 8
“Mantels”
• Chimney Outer Pipe Surfaces --------- 2” minimum
MINIMUM / MAXIMUM CHIMNEY HEIGHT
The minimum height of the chimney, measured from the base
of the fireplace to the flue gas outlet of the termination, is 14.5
feet for straight flue or a flue with one elbow set. The
maximum distance between elbows is 6 feet. For systems
with two elbow sets, the minimum height is 22 feet. The
maximum height of any system is 50 feet. This measurement
includes the fireplace, chimney sections and the height of the
termination assembly at the level of the flue gas outlet (see
page 7, figure 15).
FOR YOUR SAFETY
• Do not store or use gasoline or any other flammable
vapors or liquids in the vicinity of this or any othe
r
appliance.
• Due to high temperatures, the appliance should be
located out of traffic and away from furniture an
d
draperies.
• Do not place clothing or other flammable materials o
n
or near the appliance.
• NEVER leave children unattended when a fire is
burning in the fireplace.
WARNING: Improper installation, adjustment,
alteration, service or maintenance can cause injury,
p
roperty damage, or loss of life. Refer to this manual fo
r
assistance or additional information. Consult a qualifie
d
installer or local distributor.
CHECK LOCAL CODES BEFORE
INSTALLING THIS FIREPLACE.
WARNING: Do not install a fireplace insert in this
box unless the manufacturers instructions with the inser
t
specifically state this fireplace has been tested for use
with the insert.
WARNING: Do not pack required air spaces wit
h
insulation or other materials.
WARNING: When processed wood fuel fire logs
are used, do not poke or stir the logs while they are
b
urning. Use only fire logs that have been evaluated fo
r
the application in fireplace and refer to fire log warnings
and caution markings on packaging prior to use.
This wood-burning fireplace complies with UL 127-
CAN/ULS-S610-M87 standard as a FACTORY BUILT
FIREPLACE.
FOR CANADA: The authority having jurisdiction (suc
h
as the municipal building department, fire department,
etc.) should be contacted before installation to determine
the need to obtain a permit.

- 3 - For more information, visit www.desatech.com
FRAMING AND INSTALLING THE FIREPLACE
STEP 1: Frame the opening for the fireplace using the
dimensions shown in figures 1 & 2.
STEP 2: If the fireplace is to be installed directly on carpeting,
tile (other than ceramic), or any combustible material other
than wood flooring, the fireplace must be installed upon a
metal or wood panel extending the full width and depth of the
fireplace.
STEP 3: Set the fireplace directly in front of this opening and
slide the unit back until the nailing flanges touch the side
framing.
STEP 4: Check the level of the fireplace and shim with sheet
metal if necessary. Make sure the unit is balanced on each
side.
STEP 5: Before securing fireplace to prepared framing, the
ember protector (provided), must be placed between the hearth
extension (not supplied), and under the bottom front edge of
the fireplace to protect against glowing embers falling
through. If the fireplace is to be installed on a raised platform,
a Z-type ember protector (not supplied) must be fabricated to
fit your required platform height. The ember protector should
extend under the fireplace a minimum of 1 - 1/2”. The ember
protector should be made of galvanized sheet metal (28-gage
minimum).
STEP 6: Using screws or nails, secure the fireplace to the
framing through flanges located on the sides of the fireplace.
HEARTH EXTENSION
A hearth extension projecting a minimum of 16” in front of
and a minimum of 8” beyond each side of the fireplace
opening is required to protect combustible floor construction
in front of the fireplace. Fabricate a hearth extension using a
material which meets the following specifications: a layer of
non-combustible, inorganic material having a thermal
conductivity of K = 0.84 BTU IN/FT. HR. F (or less) at 1”
thick. For example, if the material selected has a K factor of
0.25, such as glass fiber, the following formula would apply:
Thermal conductivity “K” of materials can be obtained from
the manufacturer or supplier of the non-combustible material.
If the hearth extension is to be covered, use non-combustible
material such as tile, slate, brick, concrete, metal, glass,
marble, stone etc. Provide a means to prevent the hearth
extension from shifting and seal gap between the fireplace
frame and hearth extension with a non-combustible material
(see figure 3).
OPTIONAL OUTSIDE AIR KIT (MODEL AK4 / AK4F)
The installation of an outside air kit should be performed
during the rough framing of the fireplace due to the nature of
its location. Outside combustion air is accessed through a
vented crawl space (AK4F) or through a sidewall (AK4). See
page 10, figure 23 for instructions on how to operate the air
kit.
WARNING Hearth extension is to be installed onl
y
as illustrated.
Figure 4 OUTSIDE AIR KIT
0.25 x 1.0” = 0.30 thickness required
0.84
Figure 2 CORNER INSTALLATION
Figure 3 HEARTH EXTENSION
Figure 1 FRAMING DIMENSION

- 4 - For more information, visit www.desatech.com
FAN/BLOWER KIT ASSEMBLY
Fan or blower kit is optional (for circulating models only) with
this fireplace. Use of blowers or fans other than manufactured
by DESA voids the warranty. Fan is operated by pressing the
rocker switch (see figure 5a) in the lower right hand corner of
the fireplace face. Blower is operated by turning the control
knob (not shown).
Fan/blower kit electrical connections are made through the
electrical cover plate on the side of the fireplace as shown in
figure 5a.
WIRING INSTRUCTIONS
i. Remove electrical cover plate (with electrical
bushing) from the fireplace by removing the two
sheet metal screws as shown in figure 5a.
ii. Slide power source wiring through the electrical
bushing opening and electrical cover plate and make
all the necessary connections.
iii. Slide all wiring connections in the electrical housing
as shown in figure 5b.
iv. Secure the electrical cover plate with screws
previously removed.
NOTE: Electrical housing and cover plate have sharp edges,
wear protective gloves.
CHIMNEY PIPE
The DESA chimney system consists of 12, 18, 24, 36 and 48
inch, snap-lock double-wall pipe segments, planned for
maximum adaptability to individual site requirements. Actual
lengths gained after fitting overlaps must be taken into
consideration (lineal gain) and are given in the lineal gain
chart (see figure 6).
ASSEMBLY AND INSTALLATION OF THE DOUBLE
WALL CHIMNEY SYSTEM
Each double wall chimney section is consist of a galvanized
outer pipe, a stainless steel inner flue pipe and a wire spacer.
The pipe sections must be assembled independently as the
chimney is installed. When connecting chimney directly to
the fireplace, the inner flue pipe section must be installed first
with the lanced side up. The outer pipe section can then be
installed over the flue pipe section with the hemmed end up.
Press down on each pipe section until the lances securely
engage the hem on the fireplace starter. The wire will assure
the proper spacing between the inner and outer pipe sections.
For Canada, use chimney parts designated “HT”
Continue to assemble chimney sections as outlined above,
making sure that both the inner and outer pipe sections are
locked together. When installing double wall “snap lock”
chimney together, it is important to assure the joint between
the chimney sections is locked. Check by pulling chimney
upward after locking. The chimney will not come apart if
properly locked. It is not necessary to add screws to keep the
chimney together (exception – see page 5 figure 9).
INSTRUCTIONS WHEN ELBOW OFFSET (30E-8DM)
OF CHIMNEY IS NEEDED
1. To achieve desired offset, you may install combinations of
12”, 18”, 24”, 36” and 48” length of double wall pipe (SEE
SINGLE OFFSET CHARTAND FIGURE 7).
2. Chimney weight above offset rests on return elbow.
Straps must be securely nailed to rafters or joists (see figure 8,
details a & b).
3. Maximum length of pipe between supports (return elbow
or 12S-8DM) is 6’ of angle run. Maximum of two (2) 6’ angle
run sections per chimney system (see figure 7).
WARNING: The opening in the collar around the
chimney at the top of the fireplace must not be obstructed.
N
ever use blown insulation to fill the chimne
y
enclosure.
Figure 6 LINEAL GAIN
Fi
g
ure 5b ELECTRICAL HOUSING
Figure 5a FAN SWITCH-ELECTRICAL BUSHING

- 5 - For more information, visit www.desatech.com
*For systems with two elbow sets, the minimum height is 22
feet. The maximum height for any system is 50 feet.
OFFSET CHART (22-50 FT. SYSTEM HEIGHT)
FIRESTOP SPACERS (FS-8DM)
Firestop spacers are required at each point where the chimney
penetrates a floor space. Their purpose is to establish and
maintain the required clearance between the chimney and the
combustible materials. When the pipe passes through a
framed opening into a living space above, the firestop must be
placed onto the ceiling from below as shown in figure 10.
They also provide complete separation from one floor space to
another or attic space as required by most codes. When the
double wall pipe passes through a framed opening into an attic
space, the firestop must be placed into an attic floor as shown
in figure 11.
PENETRATING THE ROOF
OFFSET RISE
A B 48" 36" 24" 18" 12"
4 - 3/8 16 -3/8
9 - 3/4 25 - 1/2 1
12 - 3/4 30 - 3/4 1
15 34 - 3/4 1
18 40 1 1
21 - 1/4 46 - 1/4 1
23 - 3/4 49 - 1/4 1 1
27 - 3/4 56 - 3/4 1
30 60 - 3/4 1 1
33 66 1 1
36 71 1 1
38 - 1/4 75 2
41 - 1/4 80 - 1/4 1 1 1
45 86 - 3/4 2
46 - 3/4 89 - 1/2 1 1 1
51 97 1 1
53 - 1/4 101 2 1
56 - 1/4 106 - 1/4 2
59 - 1/4 111 - 1/2 1 1 1
61 - 3/4 115 - 1/2 2 1
64 - 3/4 120 - 3/4 2 1
68 - 1/4 127 1 2
70 130 2 1 1
74 - 1/4 137 - 1/2 1 2 1
76 - 3/4 141 - 1/2 1 2 1
79 - 3/4 146 - 3/4 4
ELBOW SET ONLY
CHIMNEY LENGTH
Figure 8 CEILING SUPPORT PIPE
Figure 9 ELBOW OFFSET
All pipe connections between the offset and return
must be secured with two screws, only on the oute
r
pipe, and shall not penetrate the inner stainless.
Figure 7 *TYPICAL OFFSET INSTALLATION
Figure 10 FIRESTOP SPACER
Figure 11 FIRESTOP SPACER

- 6 - For more information, visit www.desatech.com
PENETRATING THE ROOF
To maintain a 2-inch clearance to the pipe on a roof with a
pitch, a rectangular opening must be cut.
STEP 1: Determine the center point through which the pipe
will penetrate the roof.
STEP 2: Determine the center point of the roof. Pitch is the
distance the roof drops over a given span, usually 12 inches.
A 6/12 pitch means that the roof drops 6 inches for each 12
inches one measure horizontally down from the roof rafters.
STEP 3: Use the roof opening chart (figure 12) to determine
the correct opening length and flashing required.
STEP 4: Remove the shingles around the opening measured
and cut out this section.
STEP 5: Add the next sections of the pipe until the end
penetrates the roofline. Check to see that the proper
clearances are maintained. Extend chimney by adding
sections of double wall pipe until pipe is a minimum of 30
inches above the highest point of the roof cutout. Termination
and chimney must extend a minimum of 36 inches above the
highest point where it passes through roof.
FLASHING INSTALLATION (V6F-8DM or V12F-8DM)
Determine the flashing to be used with the roof opening chart.
Slide flashing over pipe until base is flat against roof. Replace
as many shingles as needed to cover exposed area and flashing
base. Secure in position by nailing through shingles (see
figure 13).
DO NOT NAIL THROUGH FLASHING CONE.
INSTALLING FLASHING ON A METAL ROOF
When installing the flashing on a metal roof, it is required that
putty tape be used between the flashing and the roof. The
flashing must be secured to the roof using #8 x ¾” screws and
then sealed with roof coating to prevent leakage through the
screw holes. A roof coating must also be applied around the
perimeter of the flashing to provide a proper seal.
STORM COLLAR INSTALLATION (SC1 or SC2)
Place storm collar over pipe and slide down until it is snug
against the open edge of the flashing (see figure 14). Use SC1
for all round terminations and SC2 for all terminations with
slip sections. Apply waterproof caulk around the perimeter of
the collar to provide a proper seal.
Figure 13 FLASHING INSTALLATION
Figure 14 STORM COLLAR
Figure 12 ROOF OPENING CHART
PITCH SLOPE OPENING "A" MAX USE FLASHING
(degrees) (inches) MODEL NO.
FLAT 0 17 V6F-8DM
0 - 6/12 26.6 19 - 1/8 V6F-8DM
6/12 - 12/12 45.0 24 - 1/4 V12F-8DM

-7 - For more information, visit www.desatech.com
TERMINATIONS / SPARK ARRESTOR
The fireplace system must be terminated with the listed round
top or chase terminations. In any case, refer to the installation
instructions supplied with the termination. The terminations
approved for this fireplace are the RT-8DM and RTL-8DM
that can be used for flashing or chase and ET-8DM, ETO-
8DM, ETL-8DM and ETLO-8DM for chase style termination
only. Figure 15 shows an RTL-8DM round top termination.
Terminations with 16” slip pipe sections are available. The
RTT-8DM and RTTL-8DM are approved for flashing
installations. When needed, these adjustable terminations may
be used in combination with the pipe assembly to achieve the
correct chimney height.
NOTE: In the rare instance there is a problem with the side
driven rain or wind or the chimney is not drafting properly, an
ADS-8DM Anti Draft Shield can be used with round
terminations.
CHASE INSTALLATIONS
Instructions for chase installations are included with the chase
style termination chosen. In a multiple chase installation, be
sure to provide adequate distance between terminations to
prevent smoke spillage from one termination to another. We
suggest that terminations be separated at least 24 inches,
center to center and stacked at vertical height difference of 18
inches (see figure 16).
*NOTE: If a decorative shroud is to be installed, contact the
manufacturer for specifications.
10-FOOT RULE
All flue gas outlet of chimney termination must extend a
minimum of 3 feet in height above the highest point where it
passes through the roof and must be at least 2 feet above the
highest point of the roof that is within a horizontal distance of
10 feet (see figure 17).
FINISHING THE FIREPLACE
Combustible materials, such as wallboard, gypsum board,
sheet rock, drywall, plywood, etc. may make direct contact
with sides and top periphery of the fireplace face. It is
important that combustible materials do not overlap the face
itself. Brick, glass, tile or other non-combustible materials
may overlap the front face provided they do not obstruct
essential openings like louvered slots or any other opening.
When overlapping with a non-combustible facing material,
use only non-combustible mortar or adhesive.
Figure 16 MULTIPLE CHASE INSTALLATION
Figure 17 10-FOOT RULE
CAUTION: Do not seal openings on the rooftop flashing.
Follow the installation instructions provided with the
termination bein
g
used.
Figure 15 TERMINATION

- 8 - For more information, visit www.desatech.com
MANTELS
A mantel may be installed if desired (see figure 18 & 19),
Woodwork such as wood trims, mantels, or any other
combustible material projecting from the front face must not
be placed within 12 inches of the fireplace opening (and
within 9 inches of the top louver opening). Combustible
materials above 12 inches and projecting more than 1-1/2
inches from the fireplace must not be placed less than 12
inches from the top opening of the fireplace (NFPA STD 211,
Sec. 7-3.3.3).
OPERATING GUIDELINES AND MAINTENANCE
INSTRUCTIONS
GLASS DOORS
Glass doors are optional with the fireplace. When the
fireplace is in operation, doors must in FULLY OPENED or
FULLY CLOSED position only or a fire hazard may be
created (see figure 20).
A fireplace equipped with glass doors operates much
differently than a fireplace with an open front. A fireplace
with glass doors has a limited amount of air for combustion.
Excessive heat within the fireplace can result if too large a fire
is built or if the combustion air gate is not completely open.
The following tips should be followed to assure that both the
fireplace and the glass door retain their beauty and function
properly. Both the flue damper and the glass doors must be
fully opened before starting the fire. This will provide
sufficient combustion air and maintain safe temperatures in
the firebox.
IMPORTANT: The glass must be allowed to warm slowly
and evenly. The tempered glass will withstand a gradual
temperature rise to 550 degrees Fahrenheit, which is more
than a normal fire will generate. Such materials as pitch/wax
laden logs, very dry mill end lumber, and large amounts of
paper or cardboard boxes can create an excessively hot fire
and should not be burned in this fireplace. Always keep the
fire well back from the doors and never allow flames to
contact the glass.
CLEANING THE GLASS
Clean the glass with any commercial glass cleaner or soap and
water. Do not use any abrasive material to clean the glass. Do
not clean the glass with any cool water if the glass is still hot
from the fire and smoke.
Figure 20 GLASS DOORS
WARNING: Fireplaces equipped with glass doors
should be operated only with doors fully opened or doors
fully closed. Doors, if left partly open, may draw gas an
d
flame out of the fireplace opening creating risks of bot
h
fire and smoke.
Figure 18 MANTEL CLEARANCE
Figure 19 MANTEL CLEARANCE

- 9- For more information, visit www.desatech.com
A gas line or gas log lighter may be installed for the purpose
of installing a vented or vent-free decorative gas appliance
incorporating an automatic shutoff device and complying with
the Standard for Decorative Gas Appliances for Installation in
Vented Fireplaces, ANSI Z21.60 or American Gas
Association draft requirements for Gas-Fired Log Lighters for
Wood Burning Fireplaces, Draft No. 4 dated August, 1993.
IF YOU WISH TO INSTALL AN UNVENTED (VENT-
FREE) GAS LOG SET, ONLY UNVENTED GAS LOG
SETS, WHICH HAVE BEEN FOUND TO COMPLY WITH
THE STANDARD FOR UNVENTED ROOM HEATERS,
ANSI Z21.11.2, ARE TO BE INSTALLED IN THIS
FIREPLACE.
OPTIONAL GAS LINE INSTALLATION
Gas line hook up should be done by your supplier or a
qualified service person.
NOTE: Before you proceed, make sure your gas supply is
turned off.
Use only a ½ inch black iron pipe and appropriate fittings.
STEP 1: To install, remove the knockout indentation on the
refractory, (or firebrick), wall located above the refractory
hearth floor. The knockout indentation must be firmly tapped
with any solid object until it is released. Remove fragmented
portions of refractory (see figure 21).
STEP 2: Remove gas line cover plate located on either side of
fireplace and pull out insulation from gas line conduit sleeve.
Save insulation for reuse.
STEP 3: Run a ½ inch black iron gas line into the fireplace
through the rear at gas line conduit sleeve (if using a raised
platform, add height). Provide sufficient gas line into
fireplace chamber for fitting connection (see figure 22).
NOTE: Secure incoming gas line to wood framing to provide
rigidity for threaded end.
STEP 4: Repack insulation around gas line and into sleeve
opening. Seal any gaps between gas line and refractory
knockout hole with refractory cement or commercial furnace
cement. Install the gas appliance or cap-off gas line if desired.
NOTE: A DESA hood must be installed when using an
unvented gas log set (see accessories on page 12).
If you install a decorative gas appliance (vented gas log), the
decorative gas appliance must comply with the Standard for
Decorative Gas Appliance for Installation in Solid Fuel
burning Fireplaces, ANS Z21.60, Z21.84 or RGA 2-72, and
shall also be installed in accordance with the National Fuel
Gas Code, ANS Z223.1-NFPA 54 latest edition.
CAUTION: All gas piping and connections must be teste
d
for leaks after the installation is completed. After ensuring
that the gas valve is on, apply soap and water solution to
all connections and joints. Bubbles forming show a leak.
Correct all leaks at once. DO NOT USE AN OPEN
FLAME FOR LEAK TESTING AND DO NOT
OPERATE ANY APPLIANCE IF A LEAK IS
DETECTED. LEAK TESTING SHOULD BE DONE BY
A QUALIFIED SERVICE PERSON.
WARNING: Do not operate an unvented gas log set i
n
this fireplace with the chimney removed.
WARNING: If the fireplace has been used for woo
d
b
urning, the firebox and chimney must be cleaned of soot,
creosote and ashes by a qualified chimney cleaner.
Creosote will ignite if highly heated.
WARNING: When using a decorative vented gas log,
the damper must be removed or permanently locked in the
fully open position and the glass doors must be in the full
y
open position.
Figure 21 GAS LINE KNOCKOUT
Figure 22 GAS LINE INSTALLATION

- 10 - For more information, visit www.desatech.com
DAMPER OPERATION
The damper handle, which opens and closes the damper blade,
is located inside the firebox at the center towards the back wall
(see figure 23). Pushing the handle back in the keyway slot
will free the damper blade to automatically open. To close,
reach in and push the handle back into the keyhole slot then
pull down and forward to lock it in place (see figure 24).
FOR FURTHER OPERATING GUIDELINES,
INSTRUCTIONS AND WARRANTY INFORMATION,
PLEASE REFER TO YOUR HOMEOWNERS GUIDE
OR CONTACT YOUR AUTHORIZED DEALER.
TECHNICAL SERVICE
You may have questions about installation, operations, or
troubleshooting. If so, contact the Technical Service
Department at 1-866-672-6040. When calling, have the model
number of the fireplace ready.
WARNING: Risk of fire! Replace grate with DESA
model 107001-02 grate only. This grate has been designe
d
to keep the operation of your fireplace safe and efficient.
Figure 24 DAMPER ROD
Figure 23 OUTSIDE AIR AND DAMPER
HANDLE LOCATION

- 11 - For more information, visit www.desatech.com
ILLUSTRATED PARTS
ITEM # PART # DESCRIPTION QTY. ITEM # PART # DESCRIPTION QTY.
1 106625-01 WARRANTY, HOME OWNERS BOOK 1 31 20046 TIEDOWN, GRATE 2
2 108307-01 PAN, INSULATION 1 *32 106574-01 INSTALL INSTRUCTION AK-6 1
3 108305-01 TOP, WRAPPER 1 *33 106586-01 LABEL, CERT. WARNOCK-HERSEY 1
4 108304-01 ASM, OUTER WRAPPER/INSULATION 1 *34 107778-24 LABEL, CARTON 1
5 108301-01 FLOOR, FIREBOX 1 *35 107132-02 CARTON, TOP 1
6 108303-01 SEPARATOR, AIR 1 *36 107133-02 CARTON, BOTTOM 1
7 106971-01 LINER, LEFT SIDE BRICK 1 *37 107143-01 LABEL, "CAUTION MOVING PARTS…" 1
8 106970-01 LINER, RIGHT SIDE BRICK 1 *38 107264-01 BRACKET, SHIPPING 1
9 108310-01 LINER, REAR BRICK 1 *39 107277-02 PLATE, RATING 1
10 108312-01 LINER, BOTTOM BRICK 1 *40 11105 SCREW 10 x 1/2 HWH LGM AB 96
11 108311-01 LINER, FRONT BOTTOM BRICK 1 *41 11164 SCREW #8 x 1/2 PH TR HD LGM 2
12 20060 PLATE, CIRCULATION 1 *42 11165 SCREW #18 x 5/8 MD TR BLACK OX 8
13 108300-01 TOP, FIREBOX 1 *43 11301 RIVET POP SD42BS STEEL 11
14 106967-01 WELDMENT, SIDE DAMPER 1 *44 11308 RIVET, ALUMINUM 4
**15 108298-02 WELDMENT, FRONT FACE 1 *45 11412 COTTER PIN 1-1/2 x 1/16 2
***15a 108298-01 WELDMENT, FRONT FACE 1 *46 14607 SWITCH, ROCKER 1
16 108302-01 DEFLECTOR, AIR 1 *47 14608 PLUG, MALE POLARIZED 1/4" 1
17 21198 PLATE, BLOWER ACCESS 1 *48 15214 LABEL, OUTSIDE AIR 1
18 109036-01 MANUAL, OWNERS 1 *49 15244 LABEL-WARNING DO NOT BLOCK 1
19 107001-02 GRATE, WOOD BURNING 1 *50 15246 LABEL-WARNING 3/4" AIRSPACE 2
20 108424-01 ASSEMBLY, SCREEN 1 *51 15303 LABEL-PRODUCT ID/ACCESSORIES 1
21 21366 RETAINER, INSULATION 1 *52 15310 LABEL-PRODUCT ID/CBKIII 1
22 20023 COLLAR, CHIMNEY STARTER 1 *53 16401 INSULATION RA-24 FOIL 4
23 20027 RETAINER, REFRACTORY 2 *54 16405 INSWOOL, BOX 1 x 3 X 33.5 1
24 20088 STOP, DOOR 1 *55 16408 INSULATION HT-23 1-1/2 x 44 1
25 20089 CLIP, PIVOT 2 *56 16901 STRAPPING 7/16 1 COIL = 900 20.75
26 20090 CLIP, SPRING 2 *57 17207 DUCT, FLEX 6" x 37-1/2 TYPE 1
27 106959-01 STANDOFF, TOP 4 *58 27251 LABEL ASSEMBLY, WARNING ALL 1
28 107128-01 CONDUIT, GAS 4 *59 27253 NOTICE: INDENTATION 1
29 108306-01 BOTTOM, WRAPPER 1 *60 27440 ELECTRICAL DUCT ASSEMBLY 1
30 108299-01 WRAPPER, FIREBOX 1 *61 54199 LABEL-REMOVE GAS KNOCKOUT 2
* ITEMS NOT SHOWN FOR CLARITY **FOR MODELS (V)B42L, (V)B42LI ***FOR MODELS (V)B42, (V)B42I

- 11a - For more information, visit www.desatech.com
ILLUSTRATED PARTS

- 12- For more information, visit www.desatech.com
REPLACEMENT PARTS

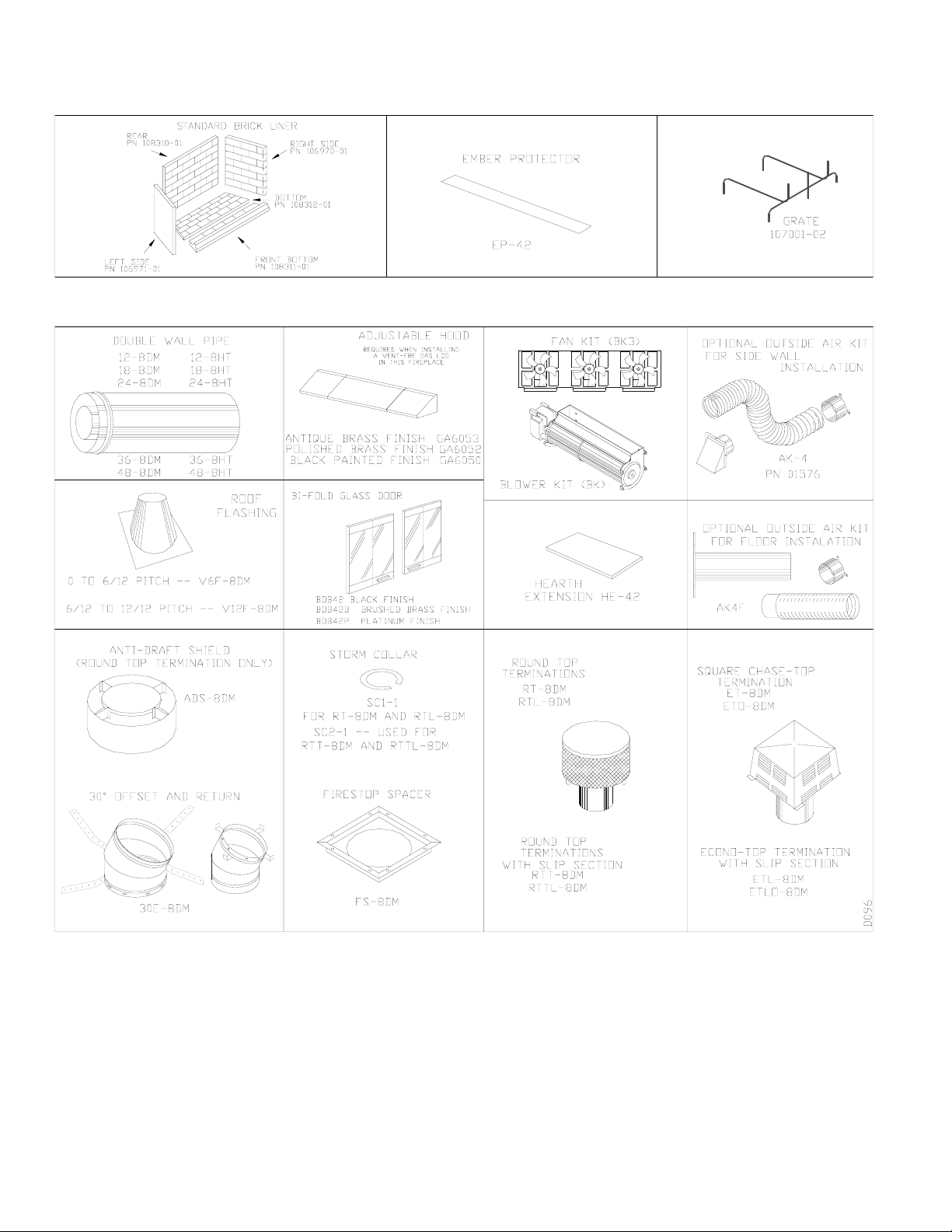

ACCESSORY PARTS
