Desa (V)DVF36 Quick start guide
For more information, visit www.desatech.com
WARNING: If the information in this manual is not fol-
— WHAT TO DO IF YOU SMELL GAS
• Do not touch any electrical switch; do not use any
-
DIRECT-VENT FIREPLACE
OWNER’S OPERATION AND INSTALLATION MANUAL
PENINSULA MODELS (V)DVF36
TPNA-A(-HA)/TPNPA-A/TPNEA-A/TPNPEA-A
SEE-THRU MODELS (V)DVF36
TSTA-A(-HA)/TSTPA-A/TSTEA-A/TSTPEA-A
Peninsula Model
Shown
www.desatech.com 56131-F2
TAbLE OF CONTENTS
Safety Information ............................................... 2
Dimensions.......................................................... 5
Pre-Installation Preparation................................. 6
General Venting................................................... 9
Venting Installation Instructions ..........................11
Installation ......................................................... 21
Pilot/Electrode Assembly Adjustment ................ 26
Burner Flame Adjustment.................................. 26
Operating Guidlines and
Maintenance Instructions.............................. 27
Operating Fireplace........................................... 28
Specications .................................................... 30
Service Hints ..................................................... 30
Technical Service............................................... 30
Troubleshooting................................................. 31
Wiring Diagrams................................................ 33
Service Hints ..................................................... 33
Technical Service............................................... 33
Replacement Parts and Accessories................. 34
Warranty Information ...........................Back Cover
SAFETy INFORMATION
-
-
teration, service or main-
tenance can cause in-
Refer to this manual for
correct installation and
For assistance or addi-
tional information con-
-
stalled in an aftermarket,*
-
This Direct-Vent Gas Fire-
intended for use with
State of Massachusetts:
The installation must
the Commonwealth of
-
known to the State of California
IMPORTANT: Check local codes
-
www.desatech.com
56131-F 3
Models (V)DVF36TPNEA/TPNPEA and
(V)DVF36STEA/TSTPEA use a direct spark
ignition with a 24 VAC control module. All
models have HI/LO valve that controls the ame
height. These units can be equipped with louvers
for circulating or with panels for noncirculating
operation.
Fan Kit models DVFFBK and DVFFBKT are
available for these units as an option. If you are
uncertain as to what gas your unit is equipped for,
please check the rating plate located in the interior
of the appliance opening or consult your local
distributor of DESA products.
Early signs of
carbon monoxide poisoning resemble the u, with
headaches, dizziness or nausea. If you have these
signs, the replace may not be working properly.
Get fresh air at once! Have replace serviced.
Some people are more affected by carbon monoxide
than others. These include pregnant women, people
with heart or lung disease or anemia, those under the
inuence of alcohol and those at high altitudes.
Natural and propane/LP
gas are odorless. An odor-making agent is added to
the gas. The odor helps you detect a gas leak. How-
ever, the odor added to the gas can fade. Gas may be
present even though no odor exists.
Make certain you read and understand all warnings.
Keep this manual for reference. It is your guide to
safe and proper operation of this replace.
-
-
Before beginning the installation of the replace,
read these instructions through completely.
• This DESA replace and its components are
safe when installed according to this installation
manual. Unless you use DESA components,
which have been designed and tested for the
replace system, you may cause a re hazard.
• The DESA warranty will be voided by and
DESA disclaims any responsibility for the
following actions:
a. Modication of the replace, components,
doors, air inlet system and damper control.
b. Use of any component part not manufac-
tured or approved by DESA in combina-
tion with a DESA replace system.
c) Installation and/or operation in a manner
other than instructed in this manual.
d) Burning of anything other than the type of
gas approved for use in this gas appliance.
This appliance, when installed, must be electrically
grounded in accordance with local codes, or in the
absence of local codes, with the National Electri-
cal Code, ANSI/NFPA 70 or CSA C22.1 Canadian
Electrical Code for Canada.
The installation must conform to local codes,
or in the absence of local codes, with the Na-
tional Fuel Gas Code ANSI Z223.1 (CAN B149.
in CANADA)
This appliance complies with ANSI Z21.50, and
CSA 2.22-2000 as a VENTED GAS FIREPLACE
and is listed and tested by the Canadian Standards
Association.
Proper installation is the most important step in
ensuring safe and continuous operation of the
replace. Consult the local building codes as to
the particular requirements concerned with the
installation of all factory built replaces.
This replace must be installed by a qualied (cer-
tied or licensed) service person. It has a sealed
gas combustion chamber that uses a millivolt gas
control valve with a millivolt ignition system.
Models (V)DVF36TPNA/TPNPA series are
three-sided direct-vent gas replaces and models
(V)DVF36TSTA/TSTPA are two-sided direct-
vent gas replace heaters with sealed combustion
chambers.
SAFETy INFORMATION
Continued
www.desatech.com 56131-F4
WARNING: Do not allow fans
-
-
adults away from hot surface to
-
-
dren when they are in the room
1. For propane/LP replace, do not place pro-
pane/LP supply tank(s) inside any structure.
Locate propane/LP supply tank(s) outdoors.
To prevent performance problems, do not
use propane/LP fuel tank of less than 100 lbs.
capacity.
SAFETy INFORMATION
Continued
2. If you smell gas
• shut off gas supply
• do not try to light any appliance
• do not touch any electrical switch; do not use
any phone in your building
• immediately call your gas supplier from a
neighbor’s phone. Follow the gas supplier's
instructions
• if you cannot reach you gas supplier, call the
re department.
3. Never install the replace
• in a recreational vehicle
• in windy or drafty areas where curtains or
other combustible (ammable) objects can
make contact with the replace front
• in high trafc areas
4. Turn replace off and let cool before servicing,
installing or repairing. Only a qualied service
person should install, service or repair this
replace. Have replace inspected annually
by a qualied service person.
5. You must keep control compartments, burn-
ers and circulating air passages clean. More
frequent cleaning may be needed due to ex-
cessive lint and dust from carpeting, bedding
material, etc. Turn off the gas valve and pilot
light before cleaning replace.
6. Have venting system inspected annually by
a qualied service person. If needed, have
venting system cleaned or repaired.
7. Do not use any solid fuels (wood, coal, paper,
cardboard, etc.) in this replace. Use only the
gas type indicated on replace nameplate.
8. Do not use replace if any part has been ex-
posed to or under water. Immediately call a
qualied service person to arrange for replace-
ment of the unit.
9. Do not operate replace if any log is broken.
10. Do not operate fireplace with glass door
removed, cracked or broken.
11. Provide adequate clearances around air
openings.
12. Fireplaces with the sufx of -HA have been
designed to operate at altitudes of 4000 feet
and above. For horizontal installations above
2,000 feet, it is recommened that a 12" exten-
sion pipe be added before starter elbow (see
High Altitude Installation, page 19).
www.desatech.com
56131-F 5
DIMENSIONS
FRONT VIEW
30"
(Opening)
25"
19
7
/
8
"
(Opening)
RIGHT SIDE
1
7
/
8
"
22
5
/
8
"
41
1
/
8
"
32"
(Opening) 1
7
/
8
"
39
3
/
4
"
26
3
/
8
"
3" 1" 3
1
/
2
"
22
5
/
8
"
34
3
/
4
"
3"
BACK VIEW
TOP VIEW
(Left Side)
(Right Side)
(Front)
(Back)
24"
11
15
/
16
10
1
/
2
"
1
1
/
2
"ø 1
1
/
2
"ø
10
1
/
2
"
FRONT VIEW
30"
(Opening)
24"
25"
RIGHT SIDE
22 5/8"
43 1/8"
32" (Opening) 1 7/8"
1 7/8"
BACK VIEW
39 3/4"
26 3/8"
3" 1" 2"
3"
22 5/8"
34 3/4"
TOP VIEW
(Left Side)
(Right Side)
(Front)
(Back)
24"
1115/16"
101/2"
ø11/2" ø11/2"
111/8"
Figure 1 - Peninsula Dimensions
Figure 2 - See-Thru Dimensions
www.desatech.com 56131-F6
PRE-INSTALLATION
PREPARATION
LOCATION AND SPACE
REQUIREMENTS
Determine the safest and most efcient location
for your DESA direct-vent replace. Make sure
that rafters and wall studs are not in the way of the
venting system. Choose a location where the heat
output is not affected by drafts, air conditioning
ducts, windows or doors. Be aware of all restric-
tions and precautions before deciding the exact
location for your replace and termination cap.
When deciding the location of your replace,
follow these rules:
• A projection may be ideal for a new addition
on an existing nished wall. Refer to horizontal
termination congurations on page 15 or verti-
cal congurations on page 18.
• Do not connect this replace venting to a chim-
ney ue serving a separate solid-fuel burning
replace or appliance.
• Due to high temperatures, do not locate this
replace in high trafc areas, windy or drafty
areas or near furniture or draperies.
• Never obstruct the front opening of the appli-
ance or ow of combustion and ventilation air.
Keep control compartments accessible.
• Do not locate close to where gasoline or other
ammable liquids may be stored. The appliance
must be kept clear and free from combustible
materials.
CLEARANCES
Minimum clearances to combustibles for the re-
place are as follows:
*Back and sides of surround 0"
Vent Surfaces (side and bottom) 1"
Top Vent Surface (horizontal run) 2"
Ceiling to Opening 36"
Floor 0"
Wall to Front of Glass 36"
Perpendicular Wall to Opening of Unit 2"
Top Spacer 0"
-
-
MANTEL CLEARANCES
Figure 3 - Direct-Vent Fireplace
Log Set
Upper
Louver
Panel
Lower
Louver
Panel
Figure 4 - Minimum Clearances
(Peninsula Shown)
CEILING
WALL
36" Min.
36" Min.
0" Floor
www.desatech.com
56131-F 7
0"
36"
2"
Wall In Front Of Glass
36" Min.
Perpendicular
Wall 2" Min.
From Opening
Right Side
Surround
(0" Min.)
Left Side
Surround
(0" Min.)
TOP VIEW
Figure 6 - Mantel Clearances for
Peninsula and See-Thru Fireplaces
(Peninsula Shown)
21" Min.
15" Min.
12" Min.
4"
Min.
7" Min.
1
1
/
2
" Max.
UNIT
Spacer
2 x 4
Combustible
Material May
Be Used
Drywall (Gypsum
Board, Sheetrock, Etc.)
Safe Zone for
Projection of
Combustible
Material
Woodwork, such as wood trims, mantels and other
combustible materials should not be placed within
7" of the opening of this replace (see Figure 6).
Combustible material above projecting more than
11/2" from the appliance’s front face must not be
placed less than 15" from the opening of the appli-
ance, (ref. NFPA Standard 211 Sec. 7-3.3.3)
PRE-INSTALLATION
PREPARATION
Continued
Figure 5 - Minimum Clearances
(See-Thru Shown)
Combustible Material Drywall
2 x 4
Stud
Minimum 1" Clearance from
Side (Only for See-Thru)
FRAMING
Once the nal location has been determined, ob-
serving clearances for the vent termination, you
may construct framing using dimensions shown
in Figures 7 to 13 depending on your particular
installation
If the appliance is to be installed directly on carpeting,
tile (other than ceramic), or any combustible mate-
rial other than wood ooring, the appliance must be
installed upon a metal or wood panel extending the
full width and depth of the appliance. There are three
holes on each side of the bottom of the unit where
screws can be used to secure the unit to the oor.
The gas supply line may be connected through the
side framing or alternately through the lower sub-
ooring or a platform base if provided (see Figures
10 and 11, page 8). Depending on installation, refer
to appropriate illustrations.

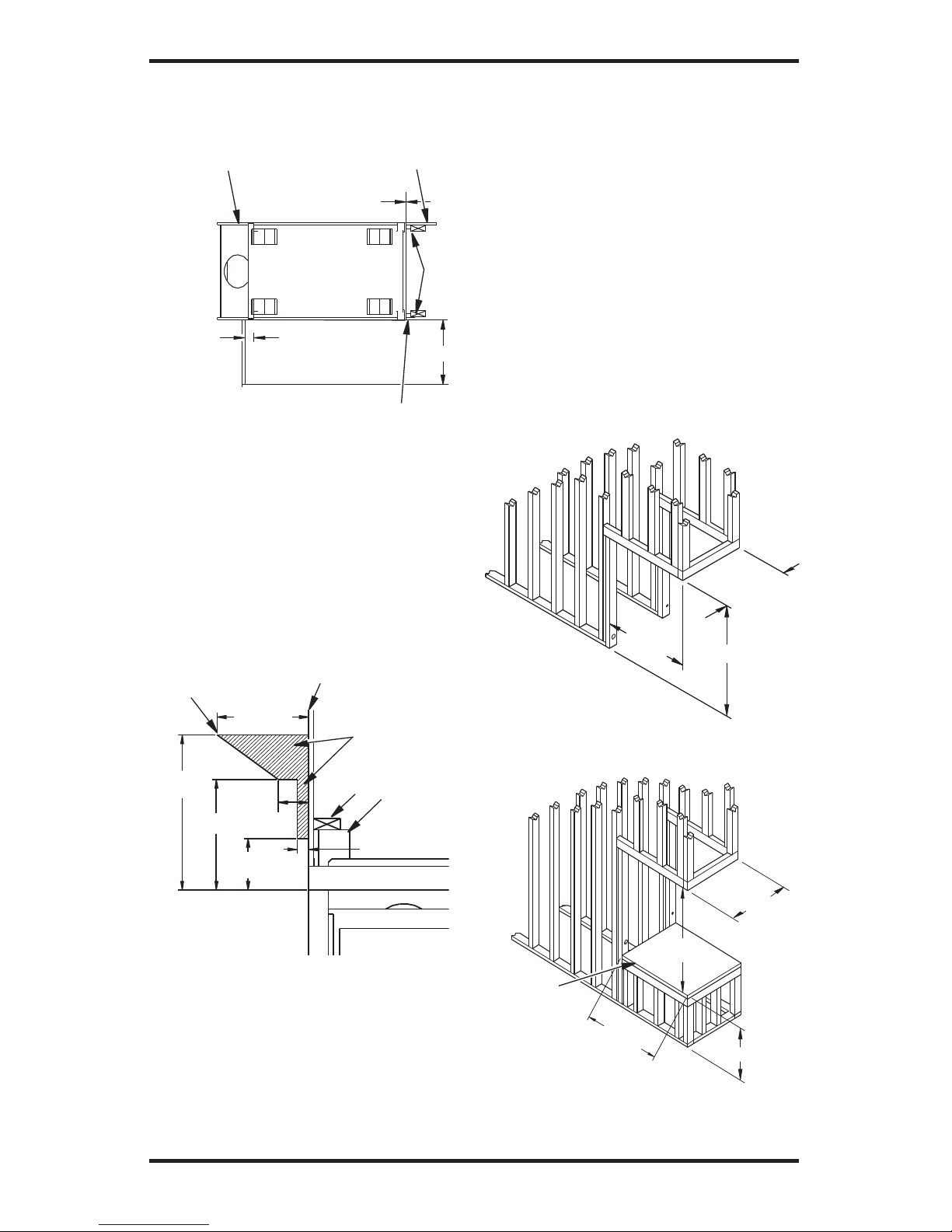

Figure 7 - Rough Opening for Installing
Peninsula Fireplace
39
3
/
4
" Min.
40
1
/
2
"
23
5
/
8
"
39
3
/
4
"
Min.
40
1
/
2
"
23
5
/
8
"
*
Figure 8 - Rough Opening for Installing
Peninsula Fireplace on Platform
* As required by design as long as
ceiling clearance is maintained.
Platform
Must Be
Solid, Flat,
and Fully
Supported
www.desatech.com 56131-F8
PRE-INSTALLATION
PREPARATION
Continued
39
3
/
4
"
Min.
43
1
/4"
24"
Figure 9 - Rough Opening for Installing
See-Thru Fireplace
3"
1" Dia. Hole
3"
2" Dia. Hole
1"
2"
Figure 10 - Hole Locations For Gas Line
and Electric Wires for Peninsula and
See-Thru Fireplaces
Height
Depends On
Installation
10"
Square Min.
Figure 12 - Rough Opening for Installing
Exterior Vent Terminal
Vertical
Height
Depends on
Installation
26
3
/
8
"
Horizontal
Length Depends
on Installation
90
o
Elbow
45
o
Elbow
Figure 13 - Vent Opening Height
Figure 11 - Alternate Gas Supply
Location
11
15
/
16
"
10
1
/
2
"
20
3
/
16
"
1
1
/
2
"
www.desatech.com
56131-F 9
GENERAL VENTING
These models are approved for use with DESA
58 Series, rigid type direct vent pipe as supplied
by DESA or with approved types of exible vent
pipe (not supplied) when appropriate sized for an
8" outer and 5" inner diameter application.
Your replace is approved to be vented either
through the side wall, or vertically using the fol-
lowing guidelines:
• Only use DESA supplied or approved types
of venting components or kits. Do not mix
different types of vent components, modify
vent components or custom fabricate vent
components for use in any one installation.
• Minimum clearance between vent pipes and
combustible materials is 1", except where stated
otherwise.
• Combustible material may be ush with the top
front of replace with a maximum thickness
of 3/4".
• Do not recess venting terminals into a wall
or siding.
• Do not install vent terminals below grade level.
Maintain a minimum height of 12" above snow
line.
• Do not terminate venting system into an attic
or garage.
• If using a venting conguration of only hori-
zontal venting with no vertical run, a 1/4" rise
for every 12" of run toward the termination is
required.
• There must not be any obstruction such as
bushes, garden sheds, fences, decks, or util-
ity buildings within 24" from the front of the
termination cap.
• Do not locate termination cap where excessive
snow or ice build up may occur. Be sure to clear
vent termination area after snow falls to prevent
accidental blockage of venting system. When
using snow blowers, do not direct snow towards
vent termination area.
VENT TERMINATION CLEARANCES
The nal position of your appliance depends on
the location of the vent termination in relation to
the clearances that must be observed as shown in
Figure 14, page 10.
You may avoid extra framing by positioning your
replace against an already existing framing mem-
ber. The back of the replace may be positioned
directly against a combustible wall.
*Check with local codes or with the CANCGA
B149 (.1 or .2) Installation Codes for Canada
for Installations. In the USA, follow the current
National Fuel Gas Fuel Gas Code, ANS Z223.1
also known as NFPA 54.
www.desatech.com 56131-F10
Fixed
Closed Openable Fixed
Closed
V
V
V
V
VV
V
V
X
X
VX
G
G
J
F
B
B
K
N
H
I
A
N
E
L
D
B
M
A
C
B
V
V
A
G
G
B
TERMINATION CAP AIR SUPPLY INLET GAS METER RESTRICTED AREA
(TERMINATION PROHIBITED)
A = clearance above grade, veranda, porch, deck, or
balcony [*12" (30.5 cm) minimum]
B = clearance to window or door that may be opened
[6" (15 cm) min. for 10,000 Btu or less; 9" (23 cm) in US
if between 10,000 and 50,000, 12" (30 cm) in Canada
if between 10,000 and 100,000; 12" (30 cm) in US if
greater than 50,000, 36" (91 cm) in Canada if greater
than 100,000]
C = clearance to permanently closed window
[minimum 12" (30.5 cm) recommended to prevent
condensation on window]
D = vertical clearance to ventilated soffit located above the
terminal within a horizontal distance of 24" (61 cm) from
the center-line of the terminal [18" (45.7 cm) minimum]
E = clearance to unventilated soffit [12" (30.5 cm) minimum]
F = clearance to outside corner (see below)
G = clearance to inside corner (see below)
H = *not to be installed above a meter/regulator assembly
within 36" (91.4 cm) horizontally from the center line
of the regulator
I = clearance to service regulator vent outlet [*72" (182.9 cm)
minimum]
J = clearance to non-mechanical air supply inlet to building
or the combustion air inlet to any other fireplace
[6" (15 cm) min. for 10,000 Btu or less; 9" (23 cm) in US
if between 10,000 and 50,000, 12" (30 cm) in Canada
if between 10,000 and 100,000; 12" (30 cm) in US if
greater than 50,000, 36" (91 cm) in Canada if greater
than 100,000]
K = clearance to a mechanical air supply inlet [*In Canada,
6 ft. (1.83m) minimum; In US 3 ft. (91 cm) above if within
10 ft. (3 m) horizontally]
L = † clearance above paved side-walk or a paved driveway
located on public property [*84" (213.3 cm) minimum]
M = clearance under veranda, porch, deck
[*12" (30.5 cm) minimum ‡]
N = clearance above a roof shall extend a minimum of
24" (61 cm) above the highest point when it passes
through the roof surface and any other obstruction within
a horizontal distance of 18" (45.7 cm)
† vent shall not terminate directly above a side-walk or paved driveway which is located between two
single family dwellings and serves both dwellings*
‡ only permitted if veranda, porch, deck or balconey is fully open on a minimum of 2 sides beneath the floor*
* as specified in CAN/CSA B149 (.1 or .2) Installation Codes (1991) for Canada and U.S.A.
Note: Local codes or regulations may require different clearances
A = 6" (15.2 cm)
Inside Corner
V
B
E
V
B = 6" (15.2 cm)
C = Maximum depth of 48" (121.9 cm)
for recessed location
D = Minimum width for back wall of
recessed location -
Combustible - 38" (965 mm)
Noncombustible - 24" (61 cm)
E = Clearance from corner in
recessed location-
Combustible - 6" (15.2 cm)
Noncombustible - 2" (5.1 cm)
Outside Corner Recessed Location
G
H
G = 12" (30.5 cm) minimum clearance
Balcony with No Side Wall
V
J
Combustible &
Noncombustible
H = 24" (61 cm)
J = 20" (50.8 cm)
Balcony with Perpendicular Side Wall
C
D
C
Termination Clearances for Buildings with Combustible and Noncombustible Exteriors
Openable
Figure 14 - Minimum Clearances for Vent Terminations
GENERAL VENTING
Continued
www.desatech.com
56131-F 11
VENTING INSTALLATION
INSTRUCTIONS
WARNING: Read all instruc-
Failure to do so could result in
WARNING: Seal all connec-
silicone every time a vent con-
sealant to the male end of the
-
seal any connections after main-
NOTICE:Failuretofollowthesein-
NOTICE: Do not seal termination
INSTALLATION PRECAUTIONS
Consult local building codes before beginning the
installation. The installer must make sure to select
the proper vent system for installation. Before
installing vent kit, the installer must read this
replace manual and vent kit instructions.
Only a qualied service person should install
venting system. The installer must follow these
safety rules:
• Wear gloves and safety glasses for protection
• Use extreme caution when using ladders or
when on roof tops
• Be aware of electrical wiring locations in walls
and ceilings
The following actions will void the warranty on
your venting system:
• Installation of any damaged venting component
• Unauthorized modication of the venting system
• Installation of any component part not manu-
factured or approved by DESA
• Installation other than as instructed by these
instructions
-
WARNING: Horizontal sec-
a minimum clearance of 2" from
-
Vertical sections of this system
-
INSTALLATION PLANNING
There are two basic types of direct-vent installation:
• Horizontal Termination
• Vertical Termination
It is important to select the proper length of vent
pipe for the type of termination you choose. It is
also important to note the wall thickness.

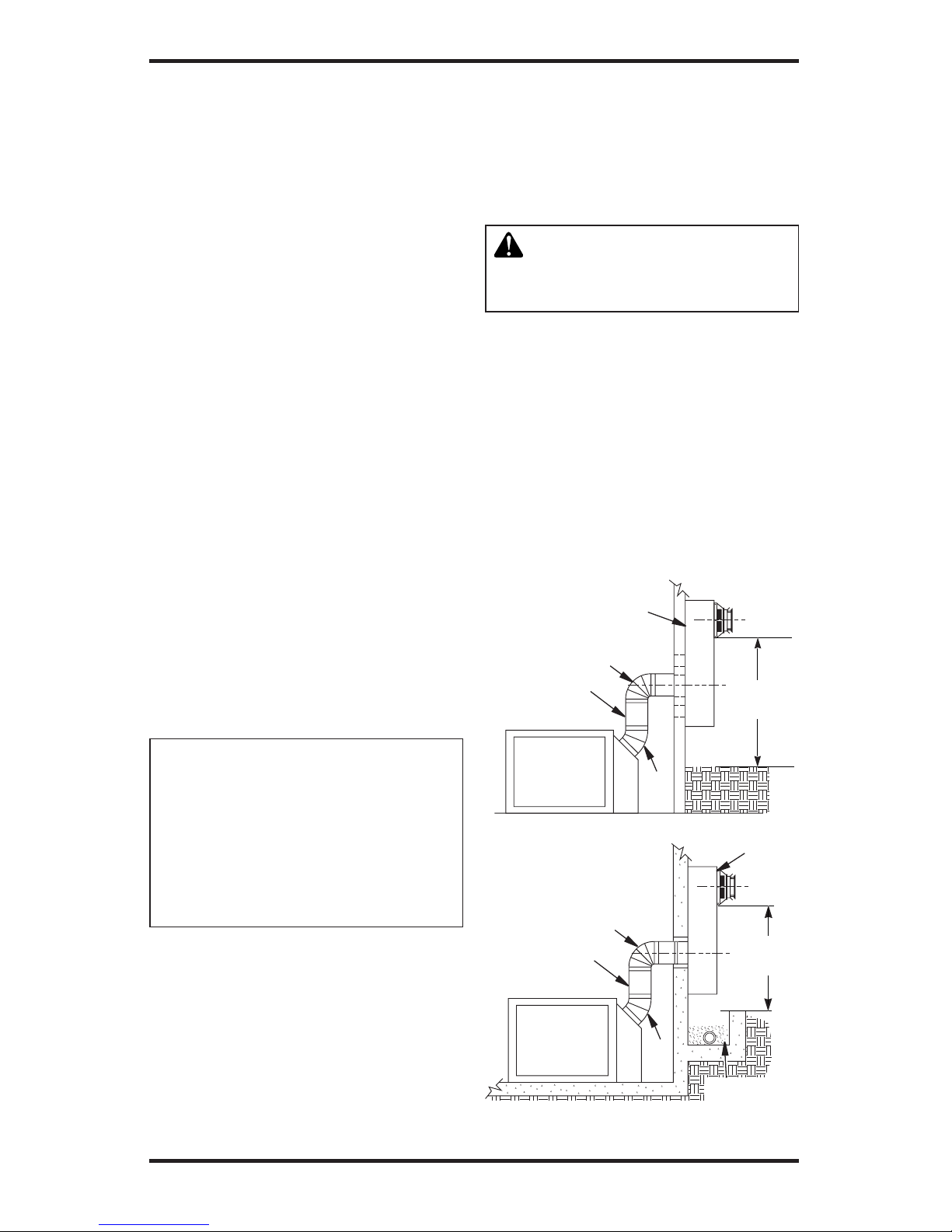

For Horizontal Termination: Select the amount
of vertical rise desired. The horizontal run of
venting must have 1/4" rise for every 12" of run
towards the termination.
WARNING: Never run the
vent downward as this may
You may use one or two 90° elbows in this vent
conguration. See Horizontal Termination Con-
gurations on page 15.
www.desatech.com 56131-F12
VENTING INSTALLATION
INSTRUCTIONS
Continued

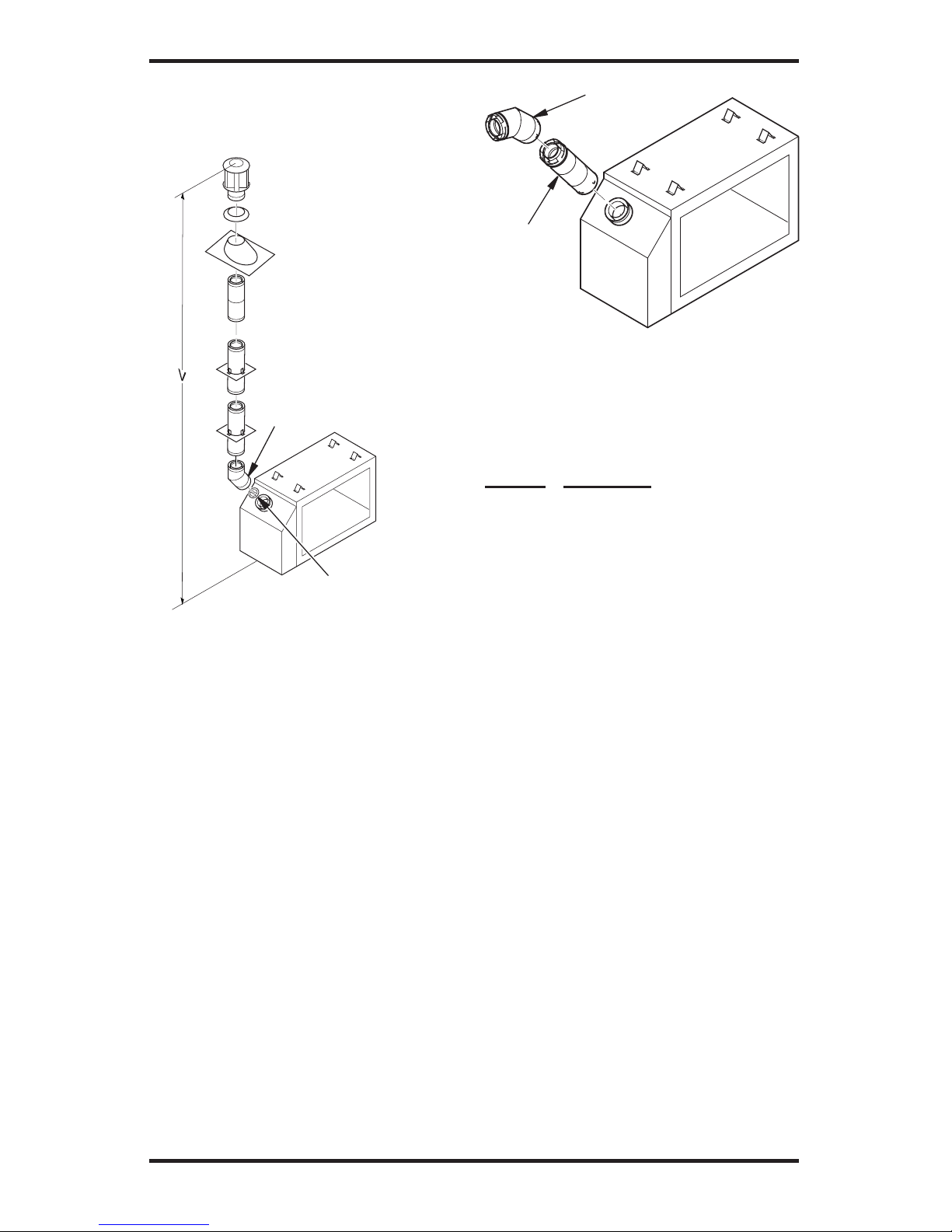

For Vertical Termination: Measure the distance
from the replace ue outlet to the ceiling. Add
the ceiling thickness, the vertical rise in an attic or
second story, and allow for sufcient vent height
above the roof line. You may use one or two 90°
elbows in this vent conguration. See Vertical
Termination Congurations on page 16.
Note: You may use two 45° elbows in place of a
90° elbow. You must follow rise to run ratios when
using 45° elbows.

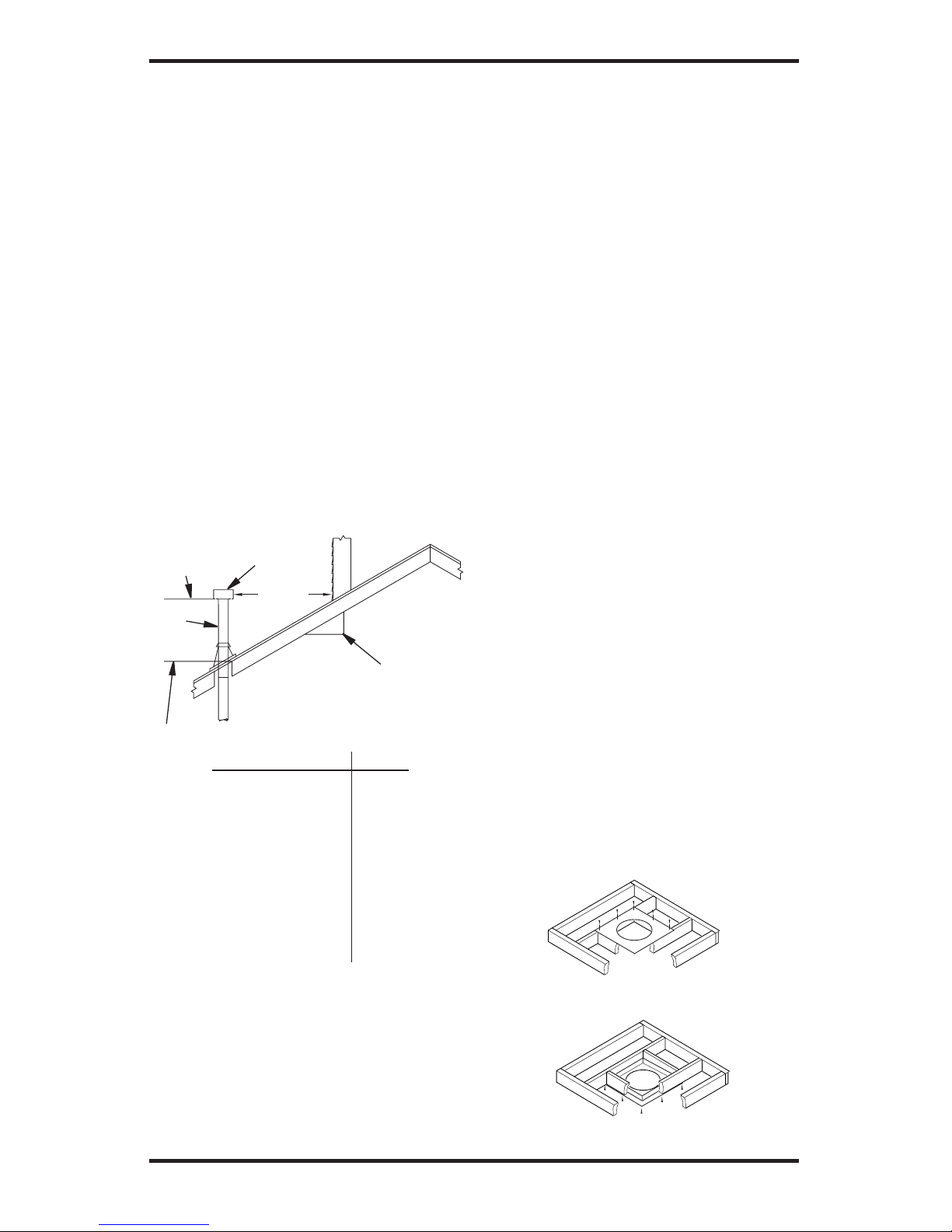

For two-story applications, restops are required at
each oor level. If an offset is needed in the attic,
additional pipe and elbows will be required.
You may use a chase with a vent termination with
exposed pipe on the exterior of the house. See
Installing Vent System in a Chase.
Your DESA direct-vent replace has been tested
for a minimum 3' rise with a maximum 11" wall
thickness. Any horizontal application longer than
12" must provide a minimum of one (1) foot of
vertical rise for every three (3) feet of horizontal run.
The maximum horizontal run is 20' with 8' vertical
rise (see Installation for Horizontal Termination).
The maximum vertical run is 30' (see Installation
for Vertical Termination, page 16).
A chase is a vertical box-like structure built to
enclose venting that runs along the outside of a
building.
and construction of the chase
-
Note: When installing in a chase, you should
insulate the chase as you would the outside walls
of your home. This is especially important in
cold climates. Minimum clearance between vent
pipes and combustible materials such as insula-
tion is 1".
After framing the chase (see Framing on page 7)
install the vent system by following the installa-
tion instructions.
Figure 16 - Snorkel Termination with
Drainage Pipe
Figure 15 - Snorkel Termination
Snorkel
1' Minimum
90º
45º
Adequate
Drainage
Snorkel
1' Minimum
90º
45°
12"
Minimum
12"
Minimum
INSTALLATION FOR HORIZONTAL
TERMINATION
1. Determine the route your horizontal venting
will take. Note: The location of the horizontal
vent termination on the exterior wall must
meet all local and national building codes and
must not be blocked or obstructed.
WARNING: Do not recess
vent terminal into a wall or sid-
Snorkel terminations are available for termina-
tions requiring a vertical rise on the exterior of
the building (see Figures 15 and 16). Snorkel
kits are available for rigid pipe applications
only to provide a 14" rise and a 36" rise (see
page 19). Follow the same installation proce-
dures used for standard horizontal terminations.
If installing the snorkel termination to raise the
vent termination from below grade level such
as in a basement installation, you must provide
proper drainage to prevent water from entering
the snorkel termination (see Figure 16). Do not
back ll around the snorkel termination.
www.desatech.com
56131-F 13
VENTING INSTALLATION
INSTRUCTIONS
Continued
2. Rigid vent pipes and ttings have special
twist-lock connections. Assemble the desired
combination of pipe and elbows to the appli-
ance adaptor with pipe seams oriented towards
the wall or oor.
Twist-lock Procedure: The female ends of the
pipes and ttings have four locking lugs (in-
dentations). These lugs will slide straight into
matching slots on the male ends of adjacent
pipes and ttings. (All connections must be
sealed with high temperature silicone sealant
as specied in the second warning statement
on page 11.) Push the pipe sections together
and twist one section clockwise approximately
one-quarter turn until the sections are fully
locked. See Figure 17. Note: Horizontal runs
of vent must be supported every three feet. Use
wall straps for this purpose.
3. Attach vent pipe assembly to the replace using
twist lock connections for rigid pipe or clamp
method for ex pipe. Set replace in front of
its permanent location to insure minimum
clearances. Mark the wall for a 10 3/4" square
hole (for noncombustible material such as
masonry block or concrete, a 8 1/2" diameter
hole is acceptable). See Figure 18. The center
of the hole should line up with the centerline of
the rigid vent pipe. Cut a 10 3/4" x 10 3/4" square
hole through combustible exterior wall (8 1/2"
diameter hole if noncombustible). Frame as
necessary.
Figure 17 - Vent Pipe Connections
Male
Slots
Female
Locking
Lugs
Rigid Vent
Pipe
4. Three types of vent caps are available for
horizontal terminations. Two square terminals
are available; one for rigid pipe applications
and one for ex pipe applications. A round
vent termination with a slip t connection is
also provided for rigid pipe applications to
be used when a wall thickness or off spac-
ing must be accommodated. Each may be
purchased as a kit that includes a 45° elbow
and a restop that accommodates a square or
round termination (see Parts List for Venting
Kits and Components, page 19).
Apply a bead
of non-hardening mastic around the outside
edge of the vent cap. Position the vent cap in
the center of the on the exterior wall with the
arrow on the vent cap pointing up. Attach the
vent cap with four wood screws provided (see
Figure 19). Note: Replace the wood screws
with appropriate fasteners for stucco, brick,
concrete, or other types of siding.
WARNING: Do not recess
Figure 18 - Vent Opening Requirements
(Framing
Detail)
10 3/4"
10 3/4" Inside Framing
10 3/4"
8 1/2"
Vent
O
pening
Combustible Wall
Vent Opening
Noncombustible Wall
Figure 19 - Installing Horizontal Vent
Cap (Noncombustible Exterior)
Wood Screw
Vent Cap
www.desatech.com 56131-F14
VENTING INSTALLATION
INSTRUCTIONS
Continued
For vinyl siding,
stucco, or wood exteriors, a siding standoff
must be installed between the vent cap and
exterior wall. The siding standoff prevents
excessive heat from damaging siding materials.
Siding materials must be cut to accommodate
standoff. Bolt the vent cap to the standoff.
Apply non-hardening mastic around outside
edge of the standoff. Position the standoff/cap
assembly in the center of the square hole and
attach to exterior wall with wood screws pro-
vided (see Figure 20). The siding standoff must
sit ush against the exterior fascia material.
5. Slide
interior wall restop over vent pipe before
connecting horizontal run to vent cap (see
Figure 21).
6. Make final connection to vent terminal.
Flush or recessed with short vent system:
Vent system may be pre-sized. Check for nal
t and slide unit into framing with restop in
place. This is helpful when using rigid pipe
and round vent termination. Vent may be
preconnected and slipped through restop.
Make sure the 45° connection at unit is tight
and does not come loose before unit is nailed
to framing.
Vent
pipe must be manipulated at outer end to make
nal connection. Manually secure pipe inside
open framing. If this is a retrot installation in
an inaccessible space, you may have to secure
the outer end of vent pipe with wall straps and
tap screws at outer end.
When using tap screws with rigid pipe, be sure
that screws do not penetrate inner pipe. These
procedures may also be followed by exible
pipe installations. To use exible pipe, vent
must be drawn through end restop, cut back
to 6"-8" to permit easy connection of ex
termination and connection must be slipped
back into and secured to installation. You
must use an adequate number of spring spac-
ers at ends and closest bend to termination to
prevent kinks or collapsing on the re. Do not
use screws with ex pipe. Vent system must
be code inspected and released before adding
dry wall or other surface treatments.
Figure 20 - Installing Vinyl Siding
Standoff (Combustible Exterior Wall)
Cut Vinyl Siding
Away to Fit Standoff
Wood
Screw
Bolt
Standoff
Vent
Cap
Apply Mastic
to All Four Sides
Vent Cap
(Horizontal Termination)
Interior Wall
Surface
Interior Wall Firestop
(Combustible
Exterior Wall Only)
Horizontal
Vent Pipe
Figure 21 - Connecting Vent Cap with
Horizontal Vent Pipe
Screw
www.desatech.com
56131-F 15
Figures 22 and 23 show different congurations for
venting with horizontal termination. Each gure
includes a chart with vertical minimum/maximum
and horizontal maximum dimensions which must
be met. All connections must be sealed with
high temperature silicone sealant as specied in
the second warning statement on page 11. All
horizontal terminations require 1/4" rise per 12"
of horizontal run. You must add 1/4" of vertical
height (V) in the following tables for each foot of
horizontal run (H).
Figure 22 - Horizontal Termination
Conguration for Rigid Venting Using
One 90° Elbow
Vertical (V) Horizontal (H)
49.5" min. 17" max.
(45° elbow, 1' vertical pipe, 90° elbow)
60" min. 77" max.
72" min. 101" max.
84" min. 125" max.
132" min. 149" max.
VENTING INSTALLATION
INSTRUCTIONS
Continued
Vertical (V) Horizontal (H1) +
Horizontal (H2)
5' min. 4' max.
6' min. 8' max.
7' min. 10' max.
8' min. 15' max.
20' max. 20' max.
Figure 23 - Horizontal Termination
Conguration for Rigid Venting Using
Two 90° Elbows with Termination at 90°
with Fireplace
INSTALLATION FOR VERTICAL
TERMINATION
1. Determine the route your vertical venting will
take. If ceiling joists, roof rafters, or other
framing will obstruct the venting system,
consider an offset (see Figure 24) to avoid
cutting load bearing members.
Figure 24 - Vertical Cent Pipe Offsets
Plumber’s
Tape
Connected
to Wall
Strap
Wall
Strap
Firestop
(2) 45°
Elbows
Firestop
(2) 45°
Elbows
Roof
Flashing
45° Starter
Elbow
45° Starter
Elbow
www.desatech.com 56131-F16
VENTING INSTALLATION
INSTRUCTIONS
Continued
Figure 26 - Installing Firestop
If area above is a living space, install
restop below framed hole.
If area above is an attic, install restop
above framed hole.
Note: Pay special attention to these installa-
tion instructions for required clearances (air
space) to combustibles when passing through
ceilings, walls, roofs, enclosures, attic rafters,
etc. Do not pack air spaces with insulation.
Also note maximum vertical rise of the vent-
ing system and any maximum horizontal
offset limitations. Offsets must fall within the
parameters shown in Figure 25.
2. Set the replace in desired location. Drop a
plumb line down from the ceiling to the posi-
tion of the replace exit ue. Mark the center
point where the vent will penetrate the ceiling.
Drill a small locating hole at this point.
Drop a plumb line from the inside of the roof
to the locating hole in the ceiling. Mark the
center point where the vent will penetrate the
roof. Drill a small locating hole at this point.
1. Cut a 12 1/2" square hole in the ceiling using
the locating hole as a center point. The open-
ing should be framed to 12 1/2"x12 1/2" inside
dimensions, as shown in Figure 18 on page
13 using framing lumber the same size as the
ceiling joists. If the area above the ceiling is
an insulated ceiling or an attic, nail restop
from the top side. This prevents loose insula-
tion from falling into the required clearance
space. If the area above the ceiling is a living
space, install restop below the framed hole.
The restop should be installed with no less
than three nails per side (see Figure 26).
2. Assemble the desired lengths of pipe and
elbows necessary to reach from the replace
ue up through the restop. All connections
must be sealed with high temperature silicone
sealant as specied in the second warning
statement on page 11. Be sure all pipe and
elbow connections are fully twist-locked (see
Figure 17, page 13).
3. Cut a hole in the roof using the locating hole
as a center point. (Cover any exposed open
vent pipes before cutting hole in roof.) The
12 1/2" x 12 1/2" hole must be measured on
the horizontal; actual length may be larger
depending on the pitch of the roof. There
must be a 1" clearance from the vent pipe to
combustible materials. Frame the opening as
shown in Figure 18 on page 13.
4. Connect a section of pipe and extend up
through the hole. If an offset is needed to avoid
obstructions, you must support the vent pipe
every 3 feet. Use wall straps for this purpose
(see Figure 24, page 15). Whenever possible,
use 45° elbows instead of 90° elbows. The 45°
elbow offers less restriction to the ow of the
ue gases and intake air.
X
12
Roof Pitch is
x 12 Listed
Clearance
8'
Minimum
Listed
Vent Cap
Lowest
Discharge
Opening
Listed
Gas
Vent
H (Min.) Height from Roof
Figure 25 - Vertical Vent Termination
Clearance
ROOF PITCH
Flat to 6/12 1.0'
6/12 to 7/12 1.25'
Over 7/12 to 8/12 1.5'
Over 8/12 to 9/12 2.0'
Over 9/12 to 10/12 2.5'
Over 10/12 to 11/12 3.25'
Over 11/12 to 12/12 4.0'
Over 12/12 to 14/12 5.0'
Over 14/12 to 16/12 6.0'
Over 16/12 to 18/12 7.0'
Over 18/12 to 20/12 7.5'
Over 20/12 to 21/12 8.0'
www.desatech.com
56131-F 17
VENTING INSTALLATION
INSTRUCTIONS
Continued
5. Place the ashing over the pipe section(s)
extending through the roof. Apply a bead of
silicone or roof sealer to the bottom ange of
ashing and secure the base of the ashing to
the roof and framing with roong nails. Be
sure roong material overlaps the top edge of
the ashing as shown in Figure 24, page 15.
There must be a 1" clearance from the vent
pipe to combustible materials.
6. Continue to add pipe sections until the height
of the vent cap meets the minimum building
code requirements described in Figure 14,
page 10. Note: You must increase vent height
for steep roof pitches. Nearby trees, adjoining
rooines, steep pitched roofs, and other simi-
lar factors may cause poor draft or down-draft
condition (see Figure 24, page 15). Increasing
the vent height may solve this problem.
7. Apply a bead of sealer to the upper edge of
ashing collar. Slide storm collar over pipe
and down to top edge of ashing. Apply a
second bead of silicone or roof sealer around
remaining seam of storm collar. Twist-lock
vent cap onto last section of vent pipe and
seal with high temperature silicone sealant as
specied in the second warning statement on
page 11. Finish sealing ange around roong
material with roong sealer.
Note: If the vent pipe passes through any occupied
areas above the rst oor, including storage spaces
and closets, you must enclose pipe. You may frame
and sheetrock the enclosure with standard construc-
tion material. Make sure and meet the minimum
allowable clearances to combustibles. Do not ll
any of the required air spaces with insulation.
Figure 27 - Cathedral Ceiling Support
Box Installation
Cut hole 1/8"
larger than
support box when
projected onto rooine
2" minimum below
nished ceiling
Cathedral
ceiling
support box
Level
1. Remove shingles or other roof covering as
necessary to cut the rectangular hole for the
support box. Mark the outline of the cathedral
ceiling support box on the roof sheathing using
the locating hole as a center point.
2. Cut the hole 1/8" larger than the support box
outline (see Figure 27).
3.
Lower the support box through the hole in the
roof until the bottom of the box extends at least 2"
below the ceiling (see Figure 27). Align the sup-
port box vertically and horizontally using a level.
Temporarily tack the support box in place through
the inside walls and into the roof sheathing.
4. Using tin snips, cut the support box from the
top corners down to the rooine and fold the
resulting aps over the roof sheathing (see
Figure 28). Apply a bead of non-hardening
mastic around the top edges of the support box
to make a seal between the box and the roof.
Nail in place with roong nails. Remove any
combustible material that might be inside of
the support box.
5. Complete the cathedral ceiling installation
by following the same procedures outlined in
steps 2 through 7 for Flat Ceiling Installation,
page 16.
Non-hardening
Mastic under all
edges of support
box before nailing
Figure 28 - Installed Cathedral Ceiling
Support Box
www.desatech.com 56131-F18
Vertical (V) Horizontal (H1) +
Horizontal (H2)
5' min. 2' max.
6' min. 4' max.
7' min. 6' max.
8' min. 8' max.
20' max. 8' max.
Figure 29 - Vertical Rigid Venting
Conguration Using Two 90° Elbows
with Two Horizontal Runs
Vertical (V) Horizontal (H)
5' min. 2' max.
6' min. 4' max.
7' min. 6' max.
8' min. 8' max.
20' max. 8' max.
Figure 30 - Vertical Rigid Venting
Conguration Using One 90° Elbow
Vertical (V1) Horizontal (H)
5' min. 6' max.
6' min. 12' max.
7' min. 18' max.
8' min. 20' max.
Figure 31 - Vertical Rigid Venting
Conguration Using Two 90° Elbows
VENTING INSTALLATION
INSTRUCTIONS
Continued
Figures 29 through 32 show four different congu-
rations for vertical termination. These minimum
vertical rises are based on horizontal runs with a
minimum of 1/4" upwards pitch per foot ad do
not reect constraints on a vertical system with
45° or greater offset.
Any offset pitch of 45° or less must be considered
horizontal and sized within the maximum allow-
able lengths listed in the following examples. All
connections must be sealed with high temperature
silicone sealant as specied in the second warning
statement on page 11.
45° Starter Elbow
Note: Install restrictor
into inner collar of
replace as shown.
45° Starter Elbow
Note: Install restrictor
into inner collar of
replace as shown.
45° Starter
Elbow
Note: Install restrictor
into inner collar of
replace as shown.
www.desatech.com
56131-F 19
VENTING INSTALLATION
INSTRUCTIONS
Continued
Figure 32 - Vertical Rigid Venting
Conguration With No Horizontal Run
V = 40' max.
PARTS LIST FOR DESA VENTING
VKR-58 Ro o f Ven t K i t, Galva n i z e d
(Includes: 45° Elbow, 7"-12"
Adjustable Pipe, Flue Restrictor,
Vertical High Wind Termination,
2' Pipe, 4' Pipe, Wall Firestop,
Storm Collar, Roof Flashing
[0/12 - 6/12], 26 Screws)
VKB-58 Basement Vent Kit, Galvanized
(Includes: 45° Elbow, 7"-12"
Adjustable Pipe, Wall Firestop,
Horizontal Square Termination,
4' Pipe, 90° Elbow, 20 Screws)
VKS-58 Snorkel Vent Kit, Galvanized
(Includes: 45° Elbow, 7"-12"
Adjustable Pipe, Wall Firestop,
36" Snorkel Termination, 4' Pipe,
1' Pipe, 90° Elbow, 26 Screws)
VKG-58 Ground Floor Vent Kit, Galvanized
(Includes: 45° Elbow, 7"-12"
Adjustable Pipe, Wall Firestop,
Horizontal Square Termination,
16 Screws)
P58-48 48" Section Double Wall Pipe,
Galvanized
P58-36 36" Section Double Wall Pipe,
Galvanized
P58-24 24" Section Double Wall Pipe,
Galvanized
P58-12 12" Section Double Wall Pipe,
Galvanized
P58-6 6" Section Double Wall Pipe,
Galvanized
HIGH ALTITUDE INSTALLATION
Your DESA direct-vent fireplace has been
tested and approved for elevations from 0-2,000
feet (USA) and elevations from 0-4,500 feet
(Canada)
Fireplaces for High Altitude (models ending in
-HA) are for installation above 4,000 feet only.
These replaces are equipped with parts specic
for higher altitudes. IMPORTANT: These re-
places can NOT be converted to propane/LP gas.
When installing a non-high altitude replace at an
elevation above 2,000 feet (USA), you may need to
decrease the input rating by changing the existing
burner orice to a smaller size. Reduce input 4%
for each 1,000 feet above sea level. Check with
your local gas company for proper orice size
identication.
When installing this fireplace at an elevation
above 4,500 feet (Canada), check with local
authorities.
IMPORTANT: For horizontal installations
above 2,000 feet, it is recommened that a 12"
extension pipe be added before starter elbow
(see Figure 33).
Figure 33 - Recommended 12" Extension
for High Altitude Installation
45° Starter
Elbow
Note: Install
restrictor into inner
collar of replace
as shown.
45° Starter
Elbow
12"
Extension
www.desatech.com 56131-F20
VENTING INSTALLATION
INSTRUCTIONS
Continued
PA58-712 Adjustable 7"-12" Section Double
Wall Pipe, Galvanized
FPA58-6 6" Dura Vent Collar to FMI Pipe
Adaptor
E58-45 45° Elbow, Galvanized
E58-90 90° Elbow, Galvanized
FSE58-45 45° Starter Elbow (Dura Vent to
FMI Pipe)
FP-58 Firestop Plate
WF-58 Wall Firestop, Galvanized
RF-58-6 Roof Flashing - 0 to 6/12 Pitch,
Galvanized
RF-58-12 Roof Flashing - 6/12 to 12/12 Pitch,
Galvanized
S-58 Vinyl Siding Standoff,
Galvanized
VT-58 Vertical Round Termination,
Galvanized
HHT-58 High WInd Round Horizontal
Termination Kit, Galvanized
HTS-58 Horizontal Square Termination,
Galvanized
HHTK-58 High Wind Round Horizontal
Termination Kit
(Includes Round Termination,
Wall Firestop, 45° Elbow)
ST-58-14 14" Snorkel Termination,
Galvanized
ST-58-36 36" Snorkel Termination,
Galvanized
SF-58 Stucco Flashing -
For use with HTS-58
VR-58 Vertical Restrictor, Galvanized
WS-58 Wall Strap
SC-58 Storm Collar, Galvanized
CS-58 Cathedral Ceiling Support
01493 Roof Vent Kit, Galvanized
(Includes: 45° Elbow, 7"-12"
Adjustable Pipe, Flue Restrictor,
Vertical High Wind Termination,
2' Pipe, 4' Pipe, Wall Firestop,
Storm Collar, Roof Flashing
[0/12 - 6/12], 26 Screws)
01492 Ground Floor Vent Kit, Galvanized
(Includes: 45° Elbow, 7"-12"
Adjustable Pipe, Wall Firestop,
Horizontal Square Termination,
16 Screws)
01501 48" Section Double Wall Pipe,
Galvanized
01500 36" Section Double Wall Pipe,
Galvanized
01499 24" Section Double Wall Pipe,
Galvanized
01498 18" Section Double Wall Pipe,
Galvanized
01497 12" Section Double Wall Pipe,
Galvanized
01513 6" Section Double Wall Pipe,
Galvanized
D1032 Adjustable 7"-12" Section Double
Wall Pipe, Galvanized
01502 45° Elbow, Galvanized
01503 90° Elbow, Galvanized
01504 Firestop Plate
01607 Wall Firestop, Galvanized
10505 Roof Flashing - 0 to 6/12 Pitch,
Galvanized
01506 Roof Flashing - 6/12 to 12/12 Pitch,
Galvanized
01514 Vinyl Siding Standoff,
Galvanized
01494 Vertical Round Termination,
Galvanized
01495 Round Horizontal Termination
Kit, Galvanized
01496 Horizontal Square Termination,
Galvanized
01801 14" Snorkel Termination,
Galvanized
01802 36" Snorkel Termination,
Galvanized
VR-58 Vertical Restrictor, Galvanized
01508 Wall Strap
01507 Storm Collar, Galvanized
01510 Twist Lock to Fleex Retro Connect
This manual suits for next models
26
Table of contents
Other Desa Indoor Fireplace manuals
Desa
Desa Vanguard BHDV37NC Quick start guide
Desa
Desa UNVENTED (VENT-FREE) PROPANE GAS FIREPLACE Quick start guide
Desa
Desa (V)KC42NE SERIE Quick start guide
Desa
Desa Vanguard VMH26PR Quick start guide
Desa
Desa GMC55FA Instruction manual
Desa
Desa G8001 SERIES User manual
Desa
Desa T32N, T36N, T32P, T36P Operation manual
Desa
Desa LGCFTN Quick start guide
Desa
Desa GM701U Instruction manual
Desa
Desa L32LHN User manual
Desa
Desa VM42P Quick start guide
Desa
Desa Victorian V42EN-A Series Quick start guide
Desa
Desa LMFP33NR(B) Quick start guide
Desa
Desa V)VC36P SERIES Quick start guide
Desa
Desa Comfort Glow CGCF26TP Quick start guide
Desa
Desa VT32EP Series Quick start guide
Desa
Desa Comfort Glow CGEFP33NR Quick start guide
Desa
Desa LMFP33NR(A) Quick start guide
Desa
Desa CDCFPR Quick start guide
Desa
Desa Comfort Glow CHDV37N Quick start guide
Popular Indoor Fireplace manuals by other brands
Quadra-Fire
Quadra-Fire 7100FP-BK-B owner's manual
Pacific energy
Pacific energy BRISTOL A Series Installation and operating instructions
bio chimenea
bio chimenea Pur Line Alseide installation instructions
Nordpeis
Nordpeis S-31A user manual
Defro Home
Defro Home IMPULS Series operating manual
Monessen Hearth
Monessen Hearth Premium KHLDV500 Covington Brochure & specs
Monessen Hearth
Monessen Hearth Direct Vent Gas Fireplace BDV300 Installation and operating instructions
Superior
Superior BC36MH installation instructions
Lamborghini Caloreclima
Lamborghini Caloreclima EM 18-E user manual
Tulikivi
Tulikivi P10 operating manual
Montigo
Montigo HP38DF PFC Information sheet
HearthStone
HearthStone AURORA 8906 Series Owner's manual installation and operating instructions
IronStrike
IronStrike BELLEVUE 27 Installation and operation
Wamsler
Wamsler KF 101 SERIES User instruction
Monessen Hearth
Monessen Hearth Unvented Vent-Free Fireboxes BUF400 Installation and operating instructions
Napoleon
Napoleon B36NT Installation and operation instructions
Verine
Verine Frontier 4 HE Installation, maintenance & user instructions
Golden Blount
Golden Blount SUPER-FIRE SF4224-TV Installation and operating instructions
