Desa PC3460NG Quick start guide

NATURAL GAS
WARNING:Iftheinformationinthismanualisnot
followed exactly, a fire or explosion may result
causing property damage, personal injury, or
loss of life.
— Donotstoreorusegasolineorotherflammable
vaporsandliquidsinthevicinityofthisorany
other appliance.
— WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Donottouchanyelectricalswitch;donotuse
any phone in your building.
• Immediately call your gas supplier from a
neighbor’s phone. Follow the gas supplier’s
instructions.
• If you cannot reach your gas supplier, call
the fire department.
— Installationandservicemustbeperformedby
a qualified installer, service agency, or the
gas supplier.
WARNING: Improper installa-
tion, adjustment, alteration,
service, or maintenance can
causeinjury or property dam-
age. Read the installation,
operating and maintenance,
instructions thoroughly be-
foreinstallingorservicingthis
equipment.
WARNING: For Outdoor Use
Only.
YourDecorativePatioFireisdesignedforinstallationinafully vented, open air patio
area which is constructed of noncombustible materials.
WARNING: Do not use this appliance indoors. It is for outdoor use only. This
appliance produces carbon monoxide (CO). Breathing enough carbon monoxide
(CO) could cause personal injury or death.
DECORATIVE PATIO FIRE
OWNER’S OPERATION AND INSTALLATION MANUAL
Save this manual for future reference.
Models
PC4670NG and
PC3460NG
®

For more information, visit www.desatech.com
2
107214
DECORATIVE PATIO FIRE
NATURAL GAS
SAFETY
INFORMATION
Carbon Monoxide Poisoning: Early signs
ofcarbonmonoxidepoisoningresemblethe
flu, with headaches, dizziness, or nausea. If
youhave these signs, the appliance maynot
beworkingproperly.Getfreshairatonce!
Have appliance serviced. Some people are
more affected by carbon monoxide than
others. These include pregnant women,
peoplewithheartorlungdiseaseor anemia,
those under the influence of alcohol, and
those at high altitudes.
Natural Gas: Natural gas is odorless. An
odor-making agent is added to the gas. The
odor helps you detect a gas leak. However,
theodoraddedtothegascanfade.Gasmay
be present even though no odor exists.
Make certain you read and understand all
warnings.Keepthismanualforreference.It
isyourguidetosafeandproperoperationof
this appliance.
WARNING ICON G 001 WARNINGS
IMPORTANT: Read this owner’s
manual carefully and completely
before trying to assemble, oper-
ate,orservicethisappliance.Im-
proper use of this appliance can
causeseriousinjuryordeathfrom
burns, fire, explosion, and car-
bon monoxide poisoning.
DANGER: Carbon monoxide
poisoning may lead to death!
WARNING:Anychangetothis
appliance or its controls can be
dangerous.
1. This appliance is only for use with the
typeofgas indicated on the rating plate.
2. The installation must conform with lo-
cal codes or, in the absence of local
codes, with the National Fuel Gas
Code, ANS Z223.1, NFPA 58.
3. If you smell gas
• shut off gas supply
• do not try to light any appliance
• do not touch any electrical switch
• immediately call your gas supplier
from a neighbor’s phone. Follow the
gas supplier’s instructions
• ifyoucannot reach your gas supplier,
call the fire department
4. Keep the area around the appliance
clear and free from combustible mate-
rials, gasoline, or other flammable va-
pors and liquids.
5. Do not place this appliance on grass or
dirt.This maypreventproper safetyvent-
ing. Only operate this appliance on a
level, outdoor, noncombustible surface.
6. Do not operate this appliance directly
on combustible surfaces such as a
wooden deck or grass lawn. This could
cause severe property damage.
7. Do not operate this appliance directly
under combustible materials such as
tree limbs. They could be damaged or
set on fire.
8. Maintain proper clearance from com-
bustible materials.
• Never place this appliance directly
on any combustible surface.
• Make sure combustible materials are
at least 20 feet above appliance. This
includes tree limbs.
• Make sure combustible materials are
atleast4 feet from sides of appliance.
9. Do not installthisproductin even a par-
tially enclosed area, such as a garage or
underneath a patio cover or gazebo.
They could be damaged or set on fire.
10. Do not operate near combustible ma-
terials such as vinyl or wood siding on
a home or other structure. They could
be damaged or set on fire.
11. Do not set combustibles on the edge of
theappliance.Items such as paper cups,
plates, and napkins could ignite.
WARNING: Do not attempt to
disconnect the gas or any gas
fitting while this appliance is in
operation.
WARNING:Donotplacecloth-
ing,paper products, oranyother
flammable materials on or near
this appliance.
WARNING: A qualified ser-
vice person should install and
repair this appliance. Inspect ap-
pliance before each use. Have a
qualified service person inspect
this appliance at least annually.
Thisappliancemayrequiremore
frequentcleaning.Youmustkeep
control compartment, burners,
and circulating air passageways
of appliance clean.
WARNING: Do not allow chil-
dren near this product when op-
erating.Especiallywatchfortod-
dlers. Children should be care-
fullysupervisedwhileintheappli-
ance area. They may not under-
stand the danger of fire or the
safety precautions of using this
product. They could be severely
injured due to burns.
WARNING:Logsandlavarock
become very hot when in use.
Keep children, adults, and ani-
mals away from hot surface to
avoid burns or clothing ignition.
Logsandlavarockwillremainhot
for a time after shutdown. Allow
surfacetocoolcompletelybefore
touching appliance or installing
cover.
WARNING: Do not use in-
doors. It is for outdoor use only.
This appliance produces carbon
monoxide (CO). Breathing
enough carbon monoxide (CO)
could cause personal injury or
death.
WARNING: Fuels used in gas
or oil-fired appliances, and the
products of combustion of such
fuels, contain chemicals known
to the State of California to cause
cancer,birthdefects,and/orother
reproductive harm. This warning
is issued pursuant to California
Health&SafetyCodeSec.25249.6.

For more information, visit www.desatech.com
3
107214
OWNER’S MANUAL
23. Do not allow water to contact the lava
rock or logs. Water from rain, sprin-
klers, toys, horseplay, etc. can damage
lava rock and logs. When heated, they
maycrack, break, or even explode.This
could cause severe injury.
24. Do not leave appliance unattended
while in operation.
25. Do not operate this product around in-
toxicated people. They could injure
themselves or others when using this
product.
26. Turn off gas at gas supply when this
appliance is not in use.
27. Use protective cover (included) when
appliance is not in use. Make sure ap-
pliance is cool before using cover.
PRODUCT IDENTIFICATION
Figure 1 - Product Identification
Note: Appearance of firepit may vary depending on models.
12. Do not operate this appliance where ex-
cessive wind or drafts are present. The
openflame may be blown outside ofthe
appliance area. This could burn adults
or children and cause clothing to ignite.
13. Locate gas hose away from areas where
peoplemay trip over it or whereitcould
be accidentally damaged.
14. Check gas hose before each use. If hose
shows excessive wear or damage, re-
place hose assembly before operating
appliance. See Cleaning and Mainte-
nance on page 10 for how to inspect
inlet hose. Use only the replacement
hose listed in this manual.
15. Check burner before each use. If dam-
aged, replace burner before operating
appliance. Use only the replacement
burner listed in this manual.
16. Do not block air inlets at the bottom
edge of appliance base.
17. Only use accessories approved for use
with this appliance.
18. Do not use charcoal startingfluid or any
other combustible fluid to “help” ignite
the fire. This could cause personal in-
jury or death.
19. Donot burn solid fuel in this appliance.
20. Do not cook anything with this product.
This includes hot dogs, marshmallows,
hamburgers, or any other food. Debris
fromfood could damage the burnersys-
temand affectitsoperation. Greasefrom
food could flame up and cause severe
burns or cause clothing to ignite.
21. Do not burn anything in this product.
Ashes from trash or other combustibles
could damage the burner system and
affectitsoperation.Airborneashescould
set fires elsewhere and could cause se-
vere burns or cause clothing to ignite.
22. Do not use appliance if any gas con-
trolshavebeenexposedto or under wa-
ter. Immediately call a qualified service
technician to inspect the appliance and
to replace any part of the control sys-
temandanygascontrol which has been
under water.
LOCAL CODES
Installand useappliance with care.Follow all
local codes. In the absence of local codes, use
the latest edition of The National Fuel Gas
Code,ANSZ223.1,alsoknownasNFPA54*.
*Available from:
American National Standards Institute, Inc.
1430 Broadway
New York, NY 10018
National Fire Protection Association, Inc.
Batterymarch Park
Quincy, MA 02269
SAFETY
INFORMATION
(Continued)
Burner Ignitor
Electrode
Gas Control Button
Ignitor Button
3/8" Female Flare Tube
Fitting (5/8"-18 Thread)
Gas Supply
Hose
Thermocouple
Firepit
ON/OFF Switch
28. Turn appliance off and let cool before
servicing or repairing.
29. Use only original replacement parts.
Thisappliance must use design-specific
parts. Do not substitute or use generic
parts.Improper replacement parts could
cause serious or fatal injuries.

For more information, visit www.desatech.com
4
107214
DECORATIVE PATIO FIRE
NATURAL GAS
WARNING: Only a qualified
service person must install gas
piping and connect appliance to
gassupply.Followalllocalcodes.
INSTALLATION
NOTICE:Installation,service,and
repair of this appliance must be
performedbyaqualifiedinstaller,
serviceagency,company,orgas
supplier experienced with this
type of gas appliance. Only fac-
tory authorized components
listed in these instructions may
be used in accordance with the
manufacturer’s instructions and
all codes and requirements of
theauthority having jurisdiction.
Any modifications to this appli-
ance,oruseofunauthorizedcom-
ponents or accessory items will
voidthemanufacturer’swarranty,
and may result in a hazardous
condition.
CHECK GAS TYPE
Useonlynaturalgas.Ifyourgassupplyisnot
natural gas. Call dealer where you bought
appliance.
If your gas supply line does not have a gas
supply shutoff valve, one must be installed.
WARNING: Do not remove
the metal data plates attached
tothisappliance.Thedataplates
contain important warningsand
instructions.
Figure 2 - Technical Information Chart
LOCATING APPLIANCE
When locating this appliance, follow all
safety information on pages 2 and 3.
Do not use this appliance indoors. It is for
outdooruse only.Do notlocatethis product
in even a partially enclosed area, such as a
garage or underneath a patio cover or ga-
zebo. They could be damaged or set on fire.
Locate this appliance on a level, noncom-
bustiblesurface.Donotplacethisappliance
on grass or dirt. This may prevent proper
safety venting. Do not operate where wind
or excessive drafts are present.
Maintain proper clearance from combus-
tible materials.
• Never place this appliance directly on
any combustible surface.
• Make sure combustible materials are at
least 20 feet above appliance. This in-
cludes tree limbs.
• Make sure combustible materials are at
least 4 feet from sides of appliance.
Make sure to locate appliance where gas
hose is out of traffic areas. This will help
prevent people from tripping over the hose.
This will also help prevent accidental dam-
age to the hose.
UNPACKING
WARNING: Do not remove
the metal data plates attached
tothisappliance.Thedataplates
contain important warningsand
instructions.
1. Remove lava rock and log pack from
carton.
2. Carefully lift firepit out of carton and
gently place at site of installation.
3. Check all items for any shipping dam-
age. If damaged, promptly inform
dealer where you bought the product.
Note: Deterioration or damage due to se-
vere weather conditions such as hail, hurri-
canes, earthquakes, or tornadoes, or discol-
oration due to exposure to chemicals either
directlyor inthe atmosphere,isnot covered
by the Limited Warranty on the back of this
manual. The warranty also does not cover
the following:
• weather damage caused by not using the
protective cover
• chips, cracks, or breakage caused from
dropping, dragging, or hitting firepit.
The surface of the firepit naturally contains
spaces,surface cracks, andvariations in color
and texture. The limited warranty does not
cover such surface imperfections.
HIGH ALTITUDE DERATE
In the U.S.A., input BTU shall be
derated 4% (1 orifice size) per 1,000
feet for altitudes above 2,000 feet. In
Canada, input BTU shall be derated
10% (2 orifice sizes) at altitudes from
2,000 to 4,500 feet.
DECORATIVE GAS PATIO FIRE
SPECIFICATIONS
NATURAL GAS:
RATED PRESSURE* 7.0" W.C.
MINIMUM GAS
PRESSURE* 5.0" W.C
MAXIMUM GAS
PRESSURE* 10.5" W.C.
ORIFICE DRILL
SIZE 24 (.151)"
BTU/HR
OUTPUT 70,000
SHIPPING WEIGHT 220 LBS.
*Measured at entry of flexible supply hose.

For more information, visit www.desatech.com
5
107214
OWNER’S MANUAL
CONNECTING TO GAS
SUPPLY
Installation Items Needed
Beforeinstalling appliance,make sureyour
installer has the items listed below.
• piping (check local codes)
• sealant (resistant to propane/LP gas)
(May be pipe dope or Teflon tape)
• equipment shutoff valve *
• test gauge connection *
• adjustable (crescent) wrench or pliers
• sediment trap
• tee joint
• pipe wrench
• brass fitting(s) (depending upon gas sup-
ply plumbing)
*AnCSA/AGAdesign-certifiedequipment
shutoff valve with 1/8" NPT tap is an ac-
ceptable alternative to test gauge connec-
tion. Purchase the optional CSA/AGA de-
sign-certifiedequipmentshutoffvalvefrom
your dealer. See Accessory, page 10.
CAUTION: Use only new,
black iron or steel pipe. Inter-
nally-tinned copper tubing may
be used in certain areas. Check
yourlocalcodes.Usepipeof1/2"
diameter or greater to allow
proper gas volume to appliance.
If pipe is too small, undue loss of
pressure will occur.
We recommend that you install a sediment
trap in supply line as shown in Figure 3.
Locate sediment trap where it is within
reach for cleaning. Install in piping system
between fuel supply and patio firepit. Lo-
cate sediment trap where trapped matter is
not likely to freeze. A sediment trap traps
moistureandcontaminants.Thiskeepsthem
from going into appliance controls. If sedi-
ment trap is not installed or is installed
wrong, appliance may not run properly.
Installation must include an equipment
shutoffvalve, union,and plugged 1/8"NPT
tap. Locate NPT tap within reach for test
gauge hook up. NPT tap must be upstream
from appliance (see Figure 3).
IMPORTANT: Install equipment shutoff
valve in an accessible location. The equip-
ment shutoff valve is for turning on and
shutting off the gas to the appliance.
Apply pipe joint sealant lightly to male
threads. This will prevent excess sealant
fromgoing into pipe. Excess sealant inpipe
could result in a clogged burner injector.
CAUTION:Usepipejointseal-
ant that is resistant to liquid pe-
troleum (LP) gas.

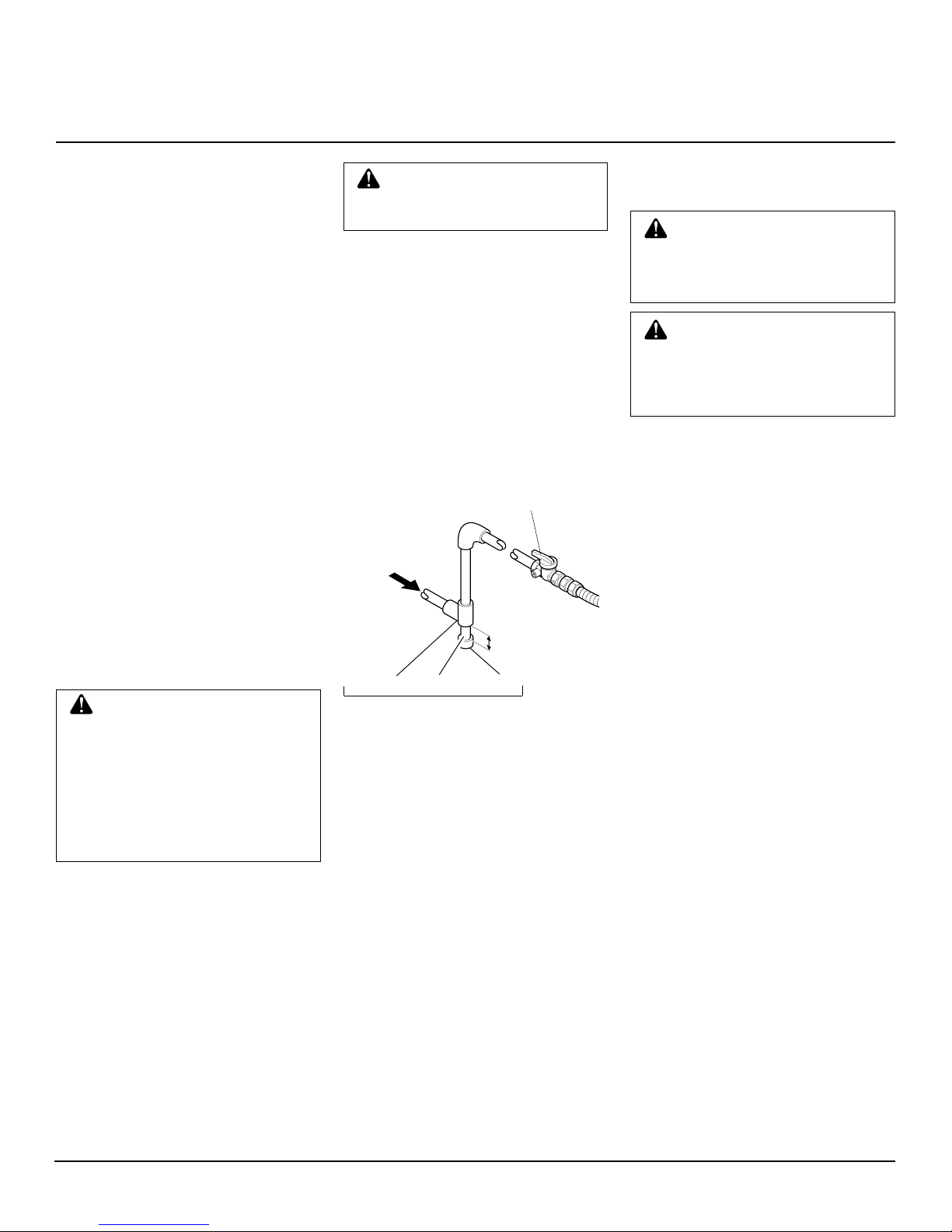

Figure 3 - Gas Connection
* Purchase the optional CSA/AGA design-
certifiedequipmentshutoffvalvefromyour
dealer. See Accessory, page 10.
** Minimum inlet pressure for purpose of
input adjustment.
INSTALLATION
(Continued)
Continued
3" Minimum
Sediment Trap
From Gas
Meter (5"
W.C.** to 10.5"
W.C. Pressure)
CSA/AGA Design-
Certified Equipment
Shutoff Valve With
1/8" NPT Tap*
Tee Joint Pipe Nipple Cap
To
Patio Firepit
WARNING:Neveruseanopen
flame to check for a leak. Apply a
mixture of liquid soap and water
toalljoints.Bubblesformingshow
a leak. Correct all leaks at once.
WARNING: Test all gas pip-
ing and connections for leaks
after installing or servicing. Cor-
rect all leaks at once.
CHECKING GAS
CONNECTIONS
Pressure Testing Gas Supply
Piping System
Test Pressures In Excess Of 1/2 PSIG
(3.5 kPa)
1. The appliance and itsindividualshutoff
valve must be disconnected from the
gas supply piping system during any
pressure testing of that system at test
pressures in excess of 1/2 psi (3.5 kPa).
2. Cap off open end of gas pipe where
equipmentshutoffvalve was connected.
3. Pressurize supply piping system by ei-
ther using compressed air or opening
main gas valve located on or near gas
meter.
4. Check all joints of gas supply piping
system. Apply mixture of liquid soap
and water to gas joints. Bubbles form-
ing show a leak.
5. Correct all leaks at once.
6. Reconnect unit and equipment shutoff
valveto gas supply. Check reconnected
fittings for leaks.

For more information, visit www.desatech.com
6
107214
DECORATIVE PATIO FIRE
NATURAL GAS
Test Pressures Equal To or Less Than
1/2 PSIG (3.5 kPa)
1. The appliancemustbe isolated from the
gas supply piping system by closing its
individual manual shutoff valve during
any pressure testing of the gas supply
piping system at test pressures equal to
or less than 1/2 psi (3.5 kPa).
2. Pressurize supply piping system by ei-
ther using compressed air or opening
main gas valve located on or near gas
meter.
3. Check all joints from gasmeterto equip-
ment shutoff valve (see Figure 5).Apply
mixture of liquid soap and water to gas
joints. Bubbles forming show a leak.
4. Correct all leaks at once.
Pressure Testing Heater Gas
Connections
1. Open equipment shutoff valve (see
Figure 4).
2. Open main gas valve located on or near
gas meter.
3. Check all jointsfromequipment shutoff
valve to supply hose.Apply mixture of
liquid soap and water to gas joints.
Bubbles forming show a leak.
4. Correct all leaks at once.
Figure 4 - Equipment Shutoff Valve
ON
POSITION
OFF
POSITION
Open
Closed
Equipment
Shutoff
Valve
Figure 5 - Checking Gas Joints
Gas Meter Equipment
Shutoff
Valve
Control Valve Location
SETUP
Your Comfort Glow Patio Fire is designed
tooperatewithlavarockpiledinandaround
theburner,andrefractorylogsplacedontop
of the lava rock.
Carefullypoursuppliedlavarockintobasin
to cover the burner. Be sure that the burner
and burner ports are covered completely by
lava rock to better disperse the flame and to
create a more natural looking fire.
Place the six refractory logs on top of the
lava rock. The arrangement is left to your
personal preference. Try different place-
mentstoachieveyourdesiredflamepattern.
Note: Sooting on the logs is natural. You
may clean with a soft bristle brush.
CAUTION: Place lava rock
carefully. Be careful not to dam-
agetheburner,ignitorelectrode,
orthermocouplewhenaddingthe
lava rock.
WARNING: Allow logs and
lava rock to cool completely be-
forehandlingorrearranginglogs.
INSTALLATION
Continued
Supply Hose
BATTERY INSTALLATION
YourComfortGlowPatioFireusesanelec-
tronic ignitor which requires one AA alka-
linebattery(notincluded).Thebatterycom-
partment is located in the ignitor module
behind the ignitor button.
To install the battery into the ignitor:
1. Locate the ignitor button on the con-
trol panel (see Figure 6).
2. Rotate the ignitor button counterclock-
wise to remove.
3. Install a fresh AA alkaline battery into
the ignitor module, positive terminal
first.
4. Replace button by rotating clockwise.
Tighten finger tight. Do not over-
tighten.
Note: Your fire pit may be lighted using a
match (see Lighting Instructions, page 7).
Ignitor Button
Figure 6 - Control Panel
WARNING: Solid fuels shall
notbeburnedinthisgasfireplace.

For more information, visit www.desatech.com
7
107214
OWNER’S MANUAL
LIGHTING
INSTRUCTIONS
OPERATING
APPLIANCE
FOR YOUR SAFETY
READ BEFORE
LIGHTING
WARNING: If you do not fol-
low these instructions exactly, a
fireorexplosionmayresultcaus-
ing property damage, personal
injury, or loss of life.
BEFORE LIGHTING smell all around
the appliance area for gas. Be sure to
smell next to the ground because some
gas is heavier than air and will settle on
the ground.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electric switch; do
not use any phone in your building.
• Immediately call your gas supplier
from a neighbor’s phone. Follow the
gas supplier’s instructions.
• If you cannot reach your gas supplier,
call the fire department. BATTERY CHECK
Lighting Using the Electronic
Spark Ignition System
1. Open equipment shutoff valve.
2. If you smell gas, STOP! Turn the
equipmentshutoffvalvetoOFF.Check
gas connections for leaks. Do not con-
tinue until gas leaks are corrected.
3. After correcting leaks, wait five (5)
minutes to clear out any gas. If you
then smell gas, STOP! Follow the
safetyinformationin column1.Ifyou
do not smell gas, go back to step 1.
4. Make sure shutoff switch on control
panel is in the ON position (see Fig-
ure 6).
5. Pushinandholdtheelectronicspark
ignitor button. Note: You should be
able to hear a rapid clicking sound
from the burner bowl when the igni-
torbuttonisdepressed.If you do not
hearanything,see BatteryCheck,this
page, and Troubleshooting, pages 8
and 9.
6. Push in and hold control valve button
(see Figure 7).
Lighting Manually with a Match
1. Open equipment shutoff valve.
2. If you smell gas, STOP! Turn the
equipmentshutoffvalvetoOFF.Check
gas connections for leaks. Do not con-
tinue until gas leaks are corrected.
3. Wait five(5) minutes to clear out any
gas.Ifyouthen smell gas,STOP!Fol-
lowthe safety informationincolumn
1. If you do not smell gas, go back to
step 1.
4. Push shutoff switch on control panel
to the ON position.
5. Light a match and lay it on top of
the lava rock just above the burner.
WARNING: Do not use this
applianceifanygascontrolparts
have been under water. Immedi-
ately call a qualified service per-
son to inspect the Patio Fire and
replace any part of the control
system and any gas control that
has been under water.
WARNING: All gas burning
appliances may produce smoke,
soot,orcarbonmonoxideduring
operation. These fumes can be
harmful if the appliance is used
anywhere other than in an open
air, fully-vented area.
WARNING: Close equipment
shutoff valve when appliance is
not in use.
WARNING: Close equipment
shutoff valve when appliance is
not in use.
The electronic spark ignitor operates on
one alkaline AA battery (not included).
The battery is located within the ignitor
module behind the ignitor button. See
Battery Installation, page 6, for replace-
ment instructions.
WARNING:Donotholdmatch.
Layburning matchon top oflava
rock.
6. Push in andhold controlvalvebutton.
Figure 7 - Shutoff Switch, Ignitor Button,
and Gas Control Valve Button
WARNING: Keep face and
hands away from burner area.
7. Whenburner lights, releasethe igni-
tor button. Keep control valve but-
ton pushed in. Release button after
30 seconds.
Note: Ifheaterfailstoignitewithin10
seconds, gas supply line may have air
in it. If so, repeat steps 1 through 7.
WARNING: Keep face and
hands away from burner area.
7. When burner lights, keep control
valve button pushed in. Release but-
ton after 30 seconds.
Note: Ifheaterfailstoignitewithin10
seconds, gas supply line may have air
in it. If so, repeat steps 1 through 7.
8. To shut off appliance, push shutoff
switch into the OFF position.
8. To shut off appliance, push shutoff
switch to the OFF position.
Shutoff Switch
Ignitor Button
Gas Control
Valve Button

For more information, visit www.desatech.com
8
107214
DECORATIVE PATIO FIRE
NATURAL GAS
TROUBLESHOOTING WARNING:Turnoffappliance
andletcoolbeforeservicing.Only
aqualifiedservicepersonshould
service and repair appliance.
POSSIBLE CAUSE REMEDY
OBSERVED PROBLEM
Note: For additional help, visit DESA
International’stechnicalservicewebsite
at www.desatech.com.
Note: Alltroubleshootingitemsarelistedin
order of operation.
www.desatech.com
1. Ignitor electrode not connected to igni-
tor cable
2. Ignitor cable pinched or wet
3. Broken ignitor cable
4. Bad electronic ignitor
5. Ignitor electrode broken
6. Ignitor electrode positioned wrong
7. Batteries dead or missing
8. Ground wire not attached
1. Gas supply turned off or equipment
shutoff valve closed
2. Control knob not pressed in
3. Air in gas lines when installed
4. Low gas pressure
1. Control knob not fully pressed in
2. Control knob not pressed in longenough
3. Shutoff switch not in ON position
4. Equipment shutoff valve not fully open
5. Burner flame not touching thermo-
couple, which allows thermocouple to
cool,causing burner to goout.Thisprob-
lem could be caused by one or both of
the following:
A) Low gas pressure
B)Dirty or partially clogged burnerports
6. Thermocouple connection loose at con-
trol valve
7. Thermocouple damaged
8. Control valve damaged
9. Shutoff switch damaged
1. Incorrect gas supply or pressure
2. Blocked burner orifice or burner mani-
fold ports
3. Improper burner orifice size
When ignitor button is pressed, there is no
spark at burner
When ignitor button is pressed, there is
spark at burner but no ignition
Burner lights but flame goes out when con-
trol knob is released
Burner flame is too low or too high
1. Reconnect ignitor cable
2. Free ignitor cable if pinched by any
metal or tubing. Keep ignitor cable dry
3. Replace ignitor cable
4. Replace electronic ignitor
5. Replace electrode
6. Reposition electrode
7. Replace batteries
8. Reattach ground wire to ignitor
1. Turn on gas supply or open equipment
shutoff valve
2. Press in control knob while lighting
3. Continue holding down controlknob.Re-
peatignitingoperation untilairis removed
4. Check for proper supply pressure
1. Press in control knob fully
2. After burner lights, keep control knob
pressed in 30 seconds
3. Turn switch to ON position
4. Fully open equipment shutoff valve
5. A) Contact local natural gas company
B) Clean burner ports (see Cleaning and
Maintenance, page 10) or replace burner
assembly
6. Hand tighten until snug, then tighten
1/4 turn more
7. Replace thermocouple
8. Replace control valve
9. Replace shutoff switch
1. Check for proper gas supply pressure
2. Free burner orifice and manifold ports
of any burrs, lava rock particles, or other
blockage
3. Verify proper burner orifice sizing (see
Figure 2, page 4)

For more information, visit www.desatech.com
9
107214
OWNER’S MANUAL
WARNING: If you smell gas
• Shut off gas supply.
• Do not try to light any appliance.
• Donottouchanyelectricalswitch;donotuseanyphonenear
fireplace
• Immediately call your gas supplier from a neighbor’s phone.
Follow the gas supplier’s instructions.
• Ifyoucannotreachyourgassupplier,callthefiredepartment.
TROUBLESHOOTING
Continued
www.desatech.com
POSSIBLE CAUSE
1. Manifold pressure is too low
2. Burner orifice or burner manifold ports
clogged
1. Burner orifice or burner manifold ports
clogged or damaged
2. Damaged burner
3. Gas control defective
1. Lava rock, refractory logs, or metal parts
expanding while heating or contracting
while cooling
1. Gas leak. SeeWarning statement at
bottom of page
1. Gas leak. SeeWarning statement at
bottom of page
2. Control valve defective
1. Gas leak. SeeWarning statement at
bottom of page
1. Sooting on the logs is natural
OBSERVED PROBLEM
Delayed ignition of burner
Burner backfiring during combustion
Fireplace produces a clicking/ticking noise
just after burner is lit or shut off
Fireplace produces unwanted odors
Gas odor even when control knob is in OFF
position
Gas odor during combustion
Soot on logs
REMEDY
1. Contact local natural gas company
2. Clean burner (see Cleaning and Mainte-
nance, page 10) or replace burner orifice
1. Clean burner (see Cleaning and Mainte-
nance, page 10) or replace burner orifice
2. Replace damaged burner
3. Replace gas control
1. This is common with most heaters. If
noise is excessive, contact qualified ser-
vice person
1. Locate and correct all leaks (see Check-
ing Gas Connections, pages 5 and 6)
1. Locate and correct all leaks (see Check-
ing Gas Connections, pages 5 and 6)
2. Replace control valve
1. Locate and correct all leaks (see Check-
ing Gas Connections, pages 5 and 6)
1. Clean soot with a soft bristle brush

For more information, visit www.desatech.com
10
107214
DECORATIVE PATIO FIRE
NATURAL GAS
ACCESSORY
Purchase these fireplace accessories from
your local dealer. If they can not supply
theseaccessories,callDESAInternational’s
Sales Department at 1-800-432-2382 for
information. You can also write to the ad-
dresslisted onthe backpageof thismanual.
EQUIPMENT SHUTOFF
VALVE - GA5010
For all models. Equipment shutoff valve
with 1/8" NPT tap. Fits 1/2" NPT pipe.
CLEANING AND
MAINTENANCE
Regularly check all burner ports for block-
age. Burner ports are the small holes on top
oftheburner.Alsochecktheignitorportfor
blockage. This port is on the inside curve of
the burner, pointed at the ignitor electrode.
Alsocheckthethermocoupleportforblock-
age. This port is on the inside curve of the
burner, pointed at the thermocouple. Clear
blocked ports by gently inserting a small
wire into the port.
Logs or lava rock may become coated with
soot. If so, clean them using a bristle brush.
Check rubber supply hose periodically for
signsofwearordamage.Checkentirelength
of hose, including the portion inside the
pedestal.Checkhosebycarefullyliftingthe
pedestal up to view the entire hose. If hose
is damaged or worn, replace hose before
next use. Use only original replacement
parts. See Parts List on page 13 for service
replacement parts.
REPLACEMENT
PARTS
Note: Use only original replacement parts.
Thiswillprotectyourwarrantycoveragefor
parts replaced under warranty.
PARTS UNDER WARRANTY
Contact authorized dealers of this product or
Parts Central (see page 11). If they can’t
supplyoriginalreplacementpart(s),callDESA
International’sTechnicalServiceDepartment
at 1-800-DESA LOG (1-800-337-2564).
WhencallingDESAInternational,haveready
• your name
• your address
• modelandserialnumbersofyourappliance
• how appliance was malfunctioning
• type of gas used (propane/LP or natural
gas)
• purchase date
Usually,wewillaskyoutoreturnthedefec-
tive part to the factory.
PARTS NOT UNDER
WARRANTY
Contact authorized dealers of this product
or Parts Central (see page 11). If they can’t
supply original replacement part(s), call
DESA International’s Parts Department at
1-800-972-7879 for referral information.
WhencallingDESAInternational,haveready
• model number of your fireplace
• the replacement part number
TECHNICAL
SERVICE
You may have further questions about in-
stallation, operation, or troubleshooting. If
so,contactDESAInternational’sTechnical
Service Department at 1-800-DESA LOG
(1-800-337-2564).
You can also visit DESA International’s
technical service web site at
www.desatech.com.
SERVICE HINTS
When Gas Pressure Is Too Low
• burner may have delayed ignition
When Gas Quality Is Bad
• burner may backfire when lit
Youmayfeelyourgaspressureistoolowor
gas quality is bad. If so, contact you local
natural gas supplier.

For more information, visit www.desatech.com
11
107214
OWNER’S MANUAL
PARTS CENTRALS These Parts Centrals are privately-owned businesses. They have agreed to support our
customer’s needs by providing original replacement parts and accessories.
Baltimore Electric
1348 Dixwell Avenue
Hamden, CT 06514-0322
1-800-397-7553
203-248-7553
Parts Department
Portable Heater Parts
342 N. County Rd. 400 East
Valparaiso, IN 46383-9704
All States
219-462-7441
1-800-362-6951
[email protected]
[email protected]
FBD
1349 Adams Street
Bowling Green, KY 42103-3414
270-846-1199
1-800-654-8534
Fax: [phone]
[email protected]
Master Parts Dist.
1251 Mound Ave NW
Grand Rapids, MI 49504-2672
616-791-0505
1-800-446-1446
Fax: [phone]
www.nbmc.com
Washer Equipment Co.
1715 Main Street
Kansas City, MO 64108-2195
KS, MO, AR
816-842-3911
www.washerparts.com
East Coast Energy Products
707 Broadway
W. Long Branch, NJ 07764-1542
732-870-8809
1-800-755-8809
www.njplaza.com/ecep
Tarantin Tank Co.
P.O. Box 6129
Freehold, NJ 07728-6129
908-780-9340
1-800-922-0724
www.tarantin.com
Heater & Fireplace Store
58 Halbe Lane
Cape May Court, NJ 08210-1110
609-390-9774
Parts Department
Dayton Hardware
P.O. Box 275
North Dayton Station
Dayton, OH 45404-0275
All States
937-258-3721
OH 1-800-762-3426
Halco Enterprises
208 Carter Drive, Unit 21
West Chester, PA 19382-4500
610-430-7717
1-800-368-0803
www.halcoenterprises.com
Laportes Parts & Service
2444 N. 5th Street
Hartsville, SC 29550-7704
803-332-0191
Parts Department
Cans Unlimited, Inc.
P.O. Box 645
Taylor, SC 29687-0013
All States
803-879-3009
1-800-845-5301
[email protected]

For more information, visit www.desatech.com
12
107214
DECORATIVE PATIO FIRE
NATURAL GAS
ILLUSTRATED
PARTS
BREAKDOWN
PATIO FIRE
PC4670NG
PC3460NG
( Note: Appearance of firepit may vary
depending on model.)
3
12
20
4
19
2
18
20
1
13 11
24
6
89
17 15
16 723 26
10
5
22 25
14
21

For more information, visit www.desatech.com
13
107214
OWNER’S MANUAL
PARTS LIST Thislistcontainsreplaceablepartsusedinyourappliance.Whenorderingparts,followtheinstructionslisted
under Replacement Parts on page 10 of this manual.
PATIO FIRE
PC4670NG
PC3460NG KEY PART NO. PART NO.
NO. FOR PC4679NG FOR PC3460NG DESCRIPTION QTY.
1 106116-01 106116-01 Burner Assembly 1
2 106117-01 106117-01 Burner Plate 1
3 106118-01 106118-01 Burner Plate Bracket 4
4 106119-01 106119-01 Injector, NG 1
5 106725-02 106725-02 Outlet Tube Assembly 1
6 106208-01 106208-01 Gas Valve 1
7 098835-01 099835-01 Nut, Valve Retention 2
8 106714-01 106714-01 Outlet Adapter 1
9 57413 57413 Street Elbow 1
10 099538-01 099538-01 Thermocouple 1
11 106195-01 106195-01 T-C Bracket, NG 1
12 106711-01 106711-01 T-C Cover 1
13 099237-01 099237-01 Retainer, T-Couple 1
14 106120-02 106120-02 Front Mounting Plate 1
15 106121-02 106121-02 Control Bracket 1
16 106130-01 106130-01 Spark Module 1
17 106715-01 106715-01 Grounding Wire 1
18 106134-01 106134-01 Electrode 1
19 107215-01 106123-01 Firepit 1
20 M10908-14 M10908-14 Screws, Sheet Metal 18
21 106716-01 106716-01 Inlet Adapter Pipe Fitting 1
22 106712-01 106712-01 Flex Supply Hose 1
23 106742-01 106742-01 Switch 1
24 079010-14 079010-14 Wire Harness, Switch 2
25 106718-01 106718-01 Hose Clamp 1
26 079919-01 079919-01 Dust Cover, Switch 1
PARTS AVAILABLE — NOT SHOWN
106204-01 106204-01 Lava Rock 1
106046-01 106046-01 Logs (Set of 6) 1
106717-02 106717-01 Protective Cover 1
107354-03 107354-03 Lighting Instructions Plate 1
107354-02 107354-02 Warning & Rating Plate 1

LIMITED WARRANTY
COMFORT GLOW VENTED GAS PATIO FIRE
DESA International warrants this product to be free from defects on the firepit forfive (5) years andall other partsfor three (3) years
from the date of first purchase, provided that the product has been properly installed, operated and maintained in accordance with
all applicable instructions. To make a claim under this warranty the Bill of Sale or cancelled check must be presented.
Thiswarranty is extended onlyto the originalretail purchaser. This warrantycovers the cost ofpart(s) required torestore this appliance
toproperoperatingconditionandanallowanceforlaborwhenprovidedbyaDESAAuthorizedServiceCenter.Warrantypart(s)MUST
be obtained through authorized dealers of this product and/or DESA International who will provide original factory replacement parts.
Failure to use original factory replacement parts voids this warranty. The appliance MUST be installed by a qualified installer in
accordance with all local codes and instructions furnished with the unit.
This warranty does not apply to parts that are not in original condition because of normal wear and tear, or parts that fail or become
damagedas aresultofmisuse,accidents, lackofpropermaintenanceor defectscausedbyimproperinstallation. Travel,diagnosticcost,
labor, transportation and any and all such other costs related to repairing a defective appliance will be the responsibility of the owner.
TOTHEFULLEXTENTALLOWEDBYTHELAWOFTHEJURISDICTIONTHATGOVERNSTHESALEOFTHEPRODUCT;
THIS EXPRESS WARRANTY EXCLUDES ANY AND ALL OTHER EXPRESSED WARRANTIES AND LIMITS THE DURA-
TION OF ANY AND ALL IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE TO FIVE (5) YEARS ON FIREPIT AND THREE (3) YEARS ON ALL OTHER PARTS FROM
THEDATEOFFIRST PURCHASE; AND DESA INTERNATIONAL’S LIABILITYISHEREBYLIMITEDTO THE PURCHASE
PRICE OF THE PRODUCT AND DESA INTERNATIONAL SHALL NOT BE LIABLE FOR ANY OTHER DAMAGES
WHATSOEVER INCLUDING INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES.
Some states do not allow a limitation on how long an implied warranty lasts or an exclusion or limitation of incidental or consequential
damages, so the above limitation on implied warranties, or exclusion or limitation on damages may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights that vary from state to state.
For information about this warranty write:
2701 Industrial Drive
P.O. Box 90004
Bowling Green, KY 42102-9004
www.desatech.com
KEEP THIS WARRANTY
WARRANTY INFORMATION
Model
Serial No.
Date Purchased
Always specify model and serial numbers when communicating with the factory.
We reserve the right to amend these specifications at any time without notice. The only warranty applicable is our standard written
warranty. We make no other warranty, expressed or implied.
107214-01
Rev. C
05/00
INTERNATIONAL
NOT A UPC
107214 01
