Desa SVYD18NRA/PRA SERIES Quick start guide

Save this manual for future reference.
For more information, visit www.desatech.com
WARNING: If the information in this manual is not
followedexactly,afireorexplosionmayresultcausing
property damage, personal injury, or loss of life.
— Do not store or use gasoline or other flammable
vaporsandliquidsinthevicinityofthisoranyother
appliance.
— WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any
phone in your building.
• Immediatelycallyourgassupplierfromaneighbor’s
phone. Follow the gas supplier’s instructions.
• If you cannot reach your gas supplier, call the fire
department.
— Installationandservicemustbeperformedbyaquali-
fied installer, service agency, or the gas supplier.
UNVENTED (VENT-FREE) GAS STOVE HEATER
OWNER’S OPERATION AND INSTALLATION MANUAL
MODEL SVYD18NRA/PRA SERIES REMOTE-READY CONTROL GAS
LOG HEATER (BURNER SYSTEM FOR CAST IRON STOVES)
Oxford™
Patent Pending
Victor Hearth®

www.desatech.com 113084-01A
2
WARNING: The SVYD18NRA/PRA series vent-free gas
log heater is only approved for use in the VCIS(*) series,
PVCIS(*) series, or VH(*)A series cast iron stove models.
(* Indicates Color Suffix Designation)
WARNING: Improper installation, adjustment, altera-
tion, service, or maintenance can cause injury or prop-
ertydamage.Refertothismanualforcorrectinstallation
and operational procedures. For assistance or addi-
tional information consult a qualified installer, service
agency, or the gas supplier.
WARNING: This is an unvented gas-fired heater. It uses
air (oxygen) from the room in which it is installed.
Provisions for adequate combustion and ventilation air
must be provided. Refer to Air for Combustion and
Ventilation section on page 5 of this manual.
This appliance may be installed in an aftermarket,*
permanently located, manufactured (mobile) home,
where not prohibited by local codes.
This appliance is only for use with the type of gas
indicated on the rating plate. This appliance is not
convertible for use with other gases.
* Aftermarket: Completion of sale, not for purpose of resale, from the
manufacturer
TABLE OF CONTENTS
Safety Information ............................................... 3
Product Identification .......................................... 4
Local Codes ........................................................ 5
Product Features ................................................ 5
Air For Combustion And Ventilation .................... 5
Installation ........................................................... 8
Operating Heater .............................................. 14
Inspecting Burners ............................................ 17
Cleaning and Maintenance ............................... 18
Troubleshooting ................................................ 19
Illustrated Parts Breakdown and Parts List ....... 22
Specifications .................................................... 26
Replacement Parts ........................................... 26
Wiring Diagram ................................................. 26
Service Hints ..................................................... 26
Technical Service .............................................. 26
Accessories....................................................... 27
Warranty Information.......................... Back Cover

www.desatech.com
113084-01A 3
SAFETY INFORMATION
WARNING:Thisproductcon-
tainsand/orgenerateschemicals
known to the state of California
to cause cancer or birth defects,
or other reproductive harm.
IMPORTANT: Read this owner’s
manualcarefullyandcompletely
before trying to assemble, oper-
ate, or service this heater. Im-
proper use of this heater can
cause serious injury or death
from burns, fire, explosion, elec-
trical shock, and carbon monox-
ide poisoning.
DANGER:Carbonmonoxide
poisoning may lead to death!
Carbon Monoxide Poisoning: Early signs of car-
bon monoxide poisoning resemble the flu, with
headaches, dizziness, or nausea. If you have these
signs, the heater may not be working properly. Get
fresh air at once! Have heater serviced. Some
people are more affected by carbon monoxide than
others.These include pregnant women,people with
heart or lung disease or anemia, those under the
influence of alcohol, and those at high altitudes.
Natural and Propane/LP Gas: Naturaland propane/
LP gases are odorless. An odor-making agent is
added to the gas. The odor helps you detect a gas
leak. However, the odor added to the gas can fade.
Gas may be present even though no odor exists.
Make certain you read and understand all warn-
ings. Keep this manual for reference. It is your
guide to safe and proper operation of this heater.
WARNING: Any change to
thisheateroritscontrolscanbe
dangerous.
WARNING:Donotallowfans
to blow directly into the heater.
Avoidanydraftsthatalterburner
flame patterns. Ceiling fans can
create drafts that alter burner
flame patterns. Altered burner
patterns can cause sooting.
WARNING: Do not use a
blower insert, heat exchanger
insert, or other accessory not
approved for use with this
heater.
Due to high temperatures, the
applianceshouldbelocatedout
of traffic and away from furni-
ture and draperies.
Do not place clothing or other
flammable material on or near
the appliance. Never place any
objects on the heater.
Stove becomes very hot when
running heater. Keep children
and adults away from hot sur-
face to avoid burns or clothing
ignition. Heater will remain hot
fora time aftershutdown. Allow
surfacetocoolbeforetouching.
Carefully supervise young chil-
dren when they are in the room
with stove. When using the op-
tional hand-held remote acces-
sory,keepselectorswitchinthe
OFFpositiontopreventchildren
from turning on burners with
remote.
Keep the appliance area clear
and free from combustible ma-
terials,gasoline,andotherflam-
mable vapors and liquids.
1. This appliance is only for use with the type of
gas indicated on the rating plate. This appli-
ance is not convertible for use with other
gases.
2. Do not place propane/LP supply tank(s) in-
side any structure. Locate propane/LP supply
tank(s) outdoors (propane/LP units only).

www.desatech.com 113084-01A
4
3. If you smell gas
• shut off gas supply
• do not try to light any appliance
• do not touch any electrical switch; do not
use any phone in your building
• immediately call your gas supplier from a
neighbor’s phone. Follow the gas supplier’s
instructions
• if you cannot reach your gas supplier, call
the fire department
4. This heater shall not be installed in a bedroom
or bathroom.
5. Do not use this stove as a wood burning fire-
place.Use only modelSVYD18PRA/NRA se-
ries vent-free gas log heater for VCIS(*),
PVCIS(*), and VH(*)Aseries cast iron stove
models.
6. Do not add extra logs or ornaments such as
pine cones, vermiculite, or rock wool. Using
these added items can cause sooting.
7. This log heater is designed to be smokeless.
If logs ever appear to smoke, turn off heater
andcall a qualified service person. Note: Dur-
ing initial operation, slight smoking could oc-
curdue to logcuring and heaterburning manu-
facturing residues.
8. To prevent the creation of soot, follow the
instructions in Cleaning and Maintenance,
page 18.
9. Before using furniture polish, wax, carpet
cleaners, or similar products, turn heater off.
If heated, the vapors from these products may
create a white powder residue within burner
box or on adjacent walls or furniture.
10. This heater needs fresh, outside air ventila-
tion to run properly. This heater has an Oxy-
gen Depletion Sensing (ODS) safety shutoff
system.The ODS shuts down the heater if not
enough fresh air is available. See Air for Com-
bustion and Ventilation, pages 5 through 7. If
heater keeps shutting off, see Troubleshoot-
ing, pages 19 through 21.
11. Do not run heater
• where flammable liquids or vapors are used
or stored
• under dusty conditions
12. Do not use this stove to cook food or burn
paper or other objects.
SAFETY INFORMATION
Continued
13. Do not use heater if any part has been exposed
to or under water. Immediately call a quali-
fied service technician to inspect the room
heater and to replace any part of the control
system and any gas control which has been
under water.
14. Do not operate heater if any log is broken. Do
not operate heater if a log is chipped (dime-
sized or larger).
15. Turn heater off and let cool before servicing.
Only a qualified service person should ser-
vice and repair heater.
16. Operating heater above elevations of 4,500
feet could cause pilot outage.
17. To prevent performance problems, the use of
a propane/LP tank of less than 100 lb. capac-
ity (propane/LP units only).
18. Provide adequate clearances around air
openings.
PRODUCT
IDENTIFICATION
ON
OFF
REMOTE
P
I
L
O
T
O
F
F
O
N
LO
HI
Figure 1 - Typical Stove Cabinet Model with
Gas Log Heater (Shown is Oxford™ Model
with Model SVYD18PRA/NRA Heater)
Stove
Body
Stove Door
(Shown in the
open position)
Piezo
Ignitor Control
Knob
One Piece
Log Set Inside
Stove Cavity
Gas Log Heater
Base Assembly
Flame
Adjustment
Knob
Optional
Remote
Selector
Switch

www.desatech.com
113084-01A 5
LOCAL CODES
Install and use heater with care. Follow all local
codes. In the absence of local codes, use the latest
edition of The National Fuel Gas Code, ANSI
Z223.1/NFPA 54*.
*Available from:
American National Standards Institute, Inc.
1430 Broadway
New York, NY 10018
National Fire Protection Association, Inc.
Batterymarch Park
Quincy, MA 02269
PRODUCT FEATURES
OPERATION
This heater is clean burning. It requires no outside
venting. There is no heat loss out a vent or up a
chimney. Heat is generated by realistic, dancing
yellow flames. This heater is designed for vent-
free operation. State and local codes in some ar-
eas prohibit the use of vent-free heaters.
SAFETY PILOT
This heater has a pilot with an Oxygen Depletion
Sensing (ODS) safety shutoff system. The ODS/
pilot is a required feature for vent-free room heat-
ers. The ODS/pilot shuts off the heater if there is
not enough fresh air.
PIEZO IGNITION SYSTEM
This heater has a piezo ignitor. This system re-
quires no matches, batteries, or other sources to
light heater.
AIR FOR COMBUSTION
AND VENTILATION
WARNING: This heater shall
notbeinstalledinaconfinedspace
or unusually tight construction
unless provisions are provided
foradequatecombustionandven-
tilation air. Read the following in-
structions to insure proper fresh
air for this and other fuel-burning
appliances in your home.
Today’s homes are built more energy efficient than
ever. New materials, increased insulation, and new
construction methods help reduce heat loss in
homes. Home owners weather strip and caulk
around windows and doors to keep the cold air out
and the warm air in. During heating months, home
owners want their homes as airtight as possible.
While it is good to make your home energy effi-
cient, your home needs to breathe. Fresh air must
enter your home.All fuel-burning appliances need
fresh air for proper combustion and ventilation.
Exhaust fans, fireplaces, clothes dryers, and fuel
burning appliances draw air from the house to
operate. You must provide adequate fresh air for
these appliances. This will insure proper venting
of vented fuel-burning appliances.
PROVIDING ADEQUATE
VENTILATION
The following are excerpts from National Fuel
Gas Code, ANSI Z223.1/NFPA 54, Section 5.3,Air
for Combustion and Ventilation.
All spaces in homes fall into one of the three fol-
lowing ventilation classifications:
1. Unusually Tight Construction
2. Unconfined Space
3. Confined Space
The information on pages 5 through 7 will help
you classify your space and provide adequate ven-
tilation.

www.desatech.com 113084-01A
6
Unusually Tight Construction
The air that leaks around doors and windows may
provide enough fresh air for combustion and ven-
tilation. However, in buildings of unusually tight
construction,you must provide additional freshair.
Unusually tight construction is defined as
construction where:
a. walls and ceilings exposed to the out-
side atmosphere have a continuous
water vapor retarder with a rating of
one perm (6 x 10-11 kg per pa-sec-m2)
or less with openings gasketed or
sealed and
b. weather stripping has been added on
openable windows and doors and
c. caulking or sealants are applied to ar-
eas such as joints around window and
door frames, between sole plates and
floors, between wall-ceiling joints, be-
tween wall panels, at penetrations for
plumbing, electrical, and gas lines, and
at other openings.
If your home meets all of these three crite-
ria, you must provide additional fresh air.
See Ventilation Air From Outdoors , page 7 .
If your home does not meet all of the three
criteria above, proceed to Determining
Fresh-Air Flow For Fireplace Location,
column 2.
Confined and Unconfined Space
The National Fuel Gas Code, ANSI Z223.1/NFPA
54 defines a confined space as a space whose vol-
ume is less than 50 cubic feet per 1,000 Btu per
hour (4.8 m3per kw) of the aggregate input rating
of all appliances installed in that space and an un-
confined space as a space whose volume is not less
than 50 cubic feet per 1,000 Btu per hour (4.8 m3
per kw) of the aggregate input rating of all appli-
ances installed in that space. Rooms communicat-
ing directly with the space in which the appliances
are installed*, through openings not furnished with
doors,areconsideredapartoftheunconfinedspace.
*Adjoiningrooms are communicatingonly if there
are doorless passageways or ventilation grills be-
tween them.
AIR FOR COMBUSTION
AND VENTILATION
Continued
DETERMINING FRESH-AIR FLOW
FOR HEATER LOCATION
Determining if You Have a Confined or
Unconfined Space
Use this work sheet to determine if you have a
confined or unconfined space.
Space: Includes the room in which you will install
fireplace plus any adjoining rooms with doorless pas-
sageways or ventilation grills between the rooms.
1. Determine the volume of the space (length x
width x height).
Length x Width x Height =__________cu. ft.
(volume of space)
Example: Space size 20 ft. (length) x 16 ft.
(width) x 8 ft. (ceiling height) = 2560 cu. ft. (vol-
ume of space)
If additional ventilation to adjoining room is sup-
plied with grills or openings, add the volume of
these rooms to the total volume of the space.
2. Multiply the space volume by 20 to determine
the maximum Btu/Hr the space can support.
__________ (volume of space) x 20 = (Maxi-
mum Btu/Hr the space can support)
Example: 2560 cu. ft. (volume of space) x 20 =
51,200 (maximum Btu/Hr the space can support)
3. Add the Btu/Hr of all fuel burning appliances in
the space.
Vent-free fireplace __________ Btu/Hr
Gas water heater* __________ Btu/Hr
Gas furnace __________ Btu/Hr
Vented gas heater __________ Btu/Hr
Gas fireplace logs __________ Btu/Hr
Other gas appliances* + __________ Btu/Hr
Total = __________ Btu/Hr
* Do not include direct-vent gas appliances. Di-
rect-ventdrawscombustion air from the outdoors
and vents to the outdoors.
Example:
Gas water heater ______________ Btu/Hr
Vent-free fireplace ______________ Btu/Hr
Total ______________ Btu/Hr
4. Compare the maximum Btu/Hr the space can
support with the actual amount of Btu/Hr used.
________ Btu/Hr(maximumthespacecansupport)
________ Btu/Hr(actual amount of Btu/Hr used)
Example: 51,200 Btu/Hr (maximum the space
can support)
70,000 Btu/Hr (actual amount of
Btu/Hr used)
The space in the above example is a confined space
because the actual Btu/Hr used is more than the maxi-
mum Btu/Hr the space can support. You must pro-
vide additional fresh air.Your options are as follows:
40,000
+ 30,000
= 70,000

www.desatech.com
113084-01A 7
A. Rework worksheet, adding the spaceofanadjoin-
ing room. If the extra space provides an uncon-
finedspace, remove door toadjoiningroom or add
ventilation grills between rooms. See Ventilation
Air From Inside Building.
B. Vent room directly to the outdoors. See Ventila-
tion Air From Outdoors.
C. Install a lower Btu/Hr fireplace, if lower Btu/Hr
size makes room unconfined.
If the actual Btu/Hr used is less than the maximum
Btu/Hr the space can support, the space is an uncon-
fined space.You will need no additional fresh air ven-
tilation.
WARNING: If the area in
which the heater may be oper-
atedissmallerthanthatdefined
asan unconfinedspace orifthe
building is of unusually tight
construction, provide adequate
combustion and ventilation air
byoneofthemethodsdescribed
in the National Fuel Gas Code,
ANSI Z223.1/NFPA 54 Section
5.3 or applicable local codes .
VENTILATION AIR
Ventilation Air From Inside Building
This fresh air would come from an adjoining un-
confined space. When ventilating to an adjoining
unconfined space, you must provide two perma-
nent openings: one within 12" of the ceiling and
one within 12" of the floor on the wall connecting
the two spaces (see options 1 and 2, Figure 2).
You canalso removedoor into adjoining room (see
option 3, Figure 2). Follow the National Fuel Gas
Code, ANSI Z223.1/NFPA 54, Section 5.3, Air for
Combustion and Ventilation for required size of
ventilation grills or ducts.
Ventilation Air From Outdoors
Provide extra fresh air by using ventilation grills
or ducts. You must provide two permanent open-
ings: one within 12" of the ceiling and one within
12" of the floor. Connect these items directly to
the outdoors or spaces open to the outdoors. These
spaces include attics and crawl spaces. Follow the
National Fuel Gas Code, ANSI Z223.1/NFPA 54,
Section 5.3, Air for Combustion and Ventilation
for required size of ventilation grills or ducts.
IMPORTANT: Do not provide openings for inlet
or outlet air into attic if attic has a thermostat-con-
trolled power vent. Heated air entering the attic
will activate the power vent.
AIR FOR COMBUSTION
AND VENTILATION
Continued

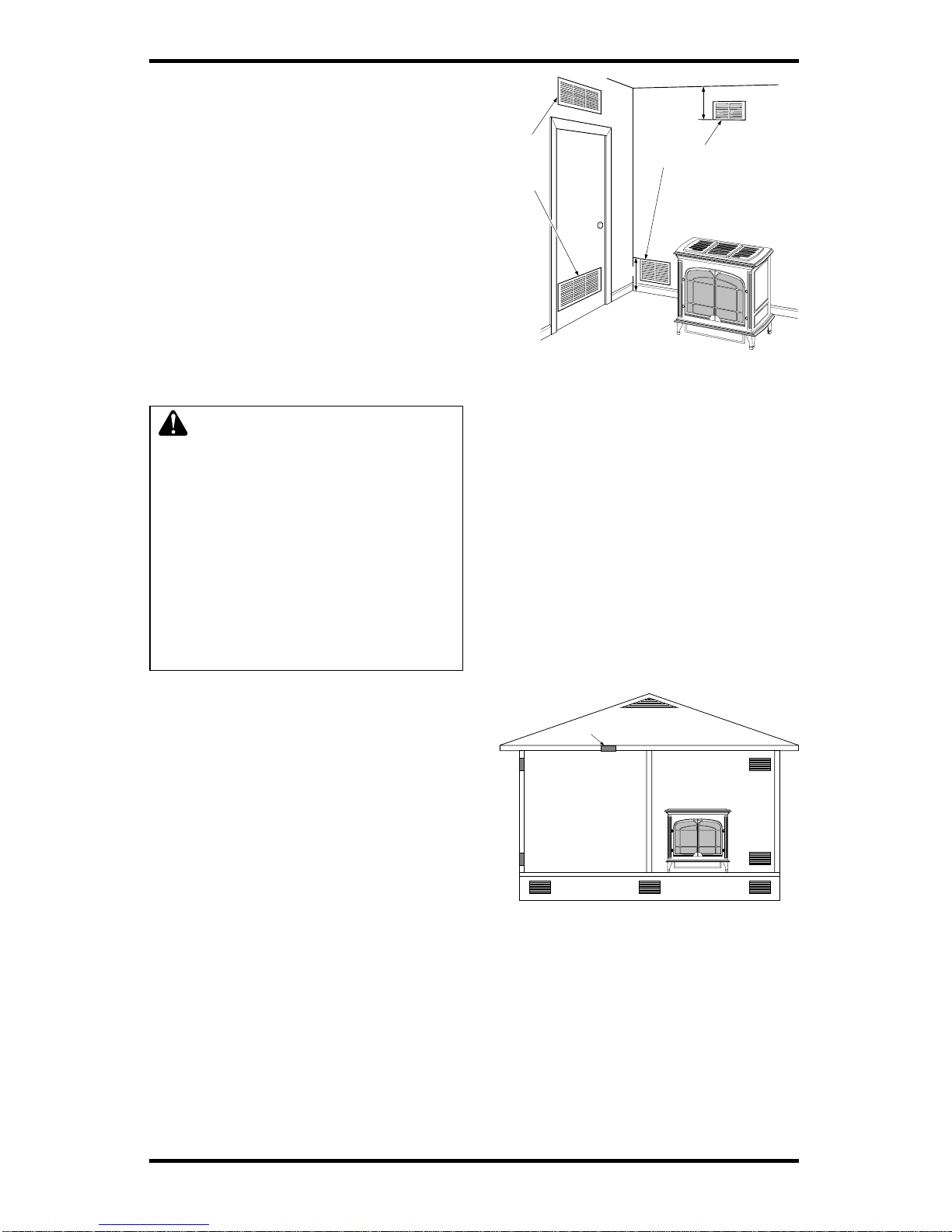

Figure 3 - Ventilation Air from Outdoors
(Oxford™ Stove Model Shown)
Figure 2 - Ventilation Air from Inside
Building (Oxford™ Stove Model Shown)
Outlet
Air Ventilated
Attic
Outlet
Air
Inlet
Air
Inlet Air Ventilated
Crawl Space
To
Crawl
Space
To Attic
Or
Remove
Door into
Adjoining
Room,
Option
3
Ventilation Grills
Into Adjoining Room,
Option 2
Ventilation
Grills
Into Adjoining
Room,
Option 1
12"
12"

www.desatech.com 113084-01A
8
INSTALLATION
NOTICE:Thisheaterisintended
for use as supplemental heat.
Use this heater along with your
primary heating system. Do not
install this heater as your pri-
mary heat source. If you have a
centralheatingsystem,youmay
run system’s circulating blower
whileusingheater.Thiswillhelp
circulatetheheatthroughoutthe
house. In the event of a power
outage, you can use this heater
as your primary heat source.
WARNING: A qualified ser-
vice person must install fire-
place. Follow all local codes.
WARNING: Never install the
heater
• in a bedroom or bathroom
• in a recreational vehicle
• where curtains, furniture,
clothing, or other flammable
objectsarelessthan42inches
from the front, top, or sides of
the heater
• in high traffic areas
• in windy or drafty areas
CAUTION: This heater cre-
ates warm air currents. These
currents move heat to wall sur-
faces next to heater. Installing
heater next to vinyl or cloth wall
coverings or operating heater
where impurities (such as, but
not limited to, tobacco smoke,
aromatic candles, cleaning flu-
ids, oil or kerosene lamps, etc.)
in the air exist, may discolor
walls or cause odors.
IMPORTANT: Vent-free heaters add moisture to
the air.Although this is beneficial, installing heater
in rooms without enough ventilation air may cause
mildew to form from too much moisture. See Air
forCombustion and Ventilation, pages 5 through 7.
CHECK GAS TYPE
Use only the correct type of gas (natural or pro-
pane/LP). If your gas supply is not the correct gas
type, do not install heater. Call dealer where you
bought heater for proper type heater.
WARNING: This appliance
is equipped for (natural or pro-
pane/LP) gas. Field conversion
is not permitted.
CLEARANCES TO COMBUSTIBLES
WARNING: Maintain the
minimumclearances.Ifyoucan,
providegreaterclearancesfrom
floor,ceiling,andadjoiningside
and back walls.
Carefullyfollow the instructions below. This stove
is a freestanding unit designed to set directly on
the floor. IMPORTANT: You must maintain mini-
mum wall and ceiling clearances during installa-
tion. The minimum clearances are shown in Fig-
ure 4, page 9. Measure from outermost point of
stove top.
Minimum Wall and Ceiling Clearances
(see Figure 4, page 9)
A. Clearances from outermost point of stove top
to any combustible side wall should not be
less than 12 inches.
B. Clearances from outermost point of stove top
to any combustible back wall should not be
less than 6 inches (includes corner installa-
tions).
C. Clearances from the stove top to the ceiling
should not be less than 48 inches.

www.desatech.com
113084-01A 9
6"
Minimum
48"
Minimum
Ceiling
Floor
Back
Wall
INSTALLATION
Continued
Figure 4 - Minimum Clearance to Walls
and Ceiling (Stove May Vary Depending
on Model)
Top View
Side
View
Front of
Stove Unit
12"
Minimum 12"
Minimum
48"
Minimum
Ceiling
Side
Wall Side Wall
Back Wall
Side Wall Side Wall
12 "
Minimum 12
"
Minimum
6
"
Minimum
Corner
Wall
Wall
6 "
Minimum
6
"
Minimum
Front of
Stove Unit
Front
View
STOVE CAVITY ASSEMBLY
1. Lift off corrugated box enclosing stove body
crating.
2. Remove all screws fastening the wood frame
enclosure. Spread wood frame open and lift
away from plastic-bagged stove body. The
bottom pieces of pallet wood will remain
bolted to the stove body.
3. Remove plastic bag from stove body.
4. Remove all contents from inside stove cavity.
Contents include:
(4) - Legs (include leg leveler bolts)
(1) - Bottom door
(3) - Top grates
(1) - Hardware kit bag with fasteners
5. Carefully lay stove body on back to attach
bottom components to stove body (see Fig-
ure 5). Rest stove on drop cloth or blanket to
avoid scratching stove edges.
6. Remove remaining pallet wood attached to bot-
tomof stovebody (see Figure 6). Use an adjust-
able wrench or 12mm socket to remove bolts.
7. Fasten each leg to stove with four (4) M8 x
1.25 - 20mm bolts. Use a flat washer and lock
washer with each bolt. Tighten bolts into
threaded holes on stove body (see Figures 7
and 8, page 10). Use an adjustable wrench or
a 12mm socket.
8. Attach stove door by inserting step bolt
through door hinge pivot hole and into
threaded hole in stove body (see Figure 7 and
Figure10, page 10). Use an adjustable wrench
or a 12mm socket to fasten step bolt. Tighten
step bolt until snug. Make sure door moves
freely.
Figure 5 - Laying Down Stove On Side
(Stove Style May Vary Depending on
Model)
Front of
Stove
Unit
Drop
Cloth/
Blanket
Pallet Wood Bolted to
Stove Body Bottom
Top of
Stove Unit Front of
Stove Unit
Top of
Stove
Unit
Figure 6 - Removing Pallet Wood From
The Bottom of The Stove
Pallet Wood
Bolt Pallet
Wood
Bottom
Of Stove
Unit
Front

www.desatech.com 113084-01A
10
INSTALLATION
Continued
10. Install door catch bolt (M8 x 1.25-55mm with
two M8 hex nuts) into threaded hole on stove
body (see Figure 7). Use an adjustable wrench
or a 12mm socket.The catch bolt has two hex
nuts attached to it (see Figure 11). The top nut
is a bolt stop and the bottom nut is for door
leveling adjustment.
11. Check general catch bolt alignment with door
claw. Make final adjustment and door level-
ing after stove is in normal standing position.
12. Carefully lift stove backup on itsfour attached
legs.
13. Remove gas log heater from carton. Note: Do
not pick up gas log heater by the burner itself.
This could damage heater.Always handle the
gas log heater by the heater base only.
14. Fasten stove pan to stove with two (2) M6
x 1 - 25mm bolts. Use a flat washer and lock
washer with each bolt. Tighten bolts into
threaded holes on stove body (see Figures
7 and 9). Use an adjustable wrench or a
10mm socket.
15. Set top grates into stove top.
Figure 7 - Locating Threaded Holes for
Stove Bottom, Legs, and Door
Attachment (Appearance May Vary
Depending on Model)
Leg
Hole
Leg Hole
Leg Hole
Leg Hole
Door Hinge
Step Bolt Hole
Door Catch Bolt
With Adjustable
Hex Nuts Hole
Holes for
Stove
Bottom
Front
Bottom Of
Stove Unit
Figure 8 - Attaching Stove Legs
(Oxford™ Model Shown)
Bottom Of
Stove Unit
Leg
Bolt
Washers
Figure 9 - Attaching Stove Pan
(Oxford™ Model Shown)
Threaded Holes
in Stove Body
Bolt
Washers
Stove Pan
Figure 10 - Attaching Stove Door
(Appearance May Vary Depending on Model)
Stove
Bottom
Step
Bolt
Door
Hinge
Threaded
Hole
Stove
Door
Bolt Shoulder
Figure 11 - Catch Bolt and Door Claw
Orientation
Adjusting
Nut
Bolt Stop
Catch
Bolt
Door
Claw
Door

www.desatech.com
113084-01A 11
INSTALLATION
Continued
CAUTION: Do not remove
the data plates attached to the
heater base assembly. The data
plates contain important war-
ranty and safety information.
WARNING:Failuretoposition
thepartsinaccordancewiththese
diagrams or failure to use only
parts specifically approved with
thisheatermayresultinproperty
damage or personal injury.
INSTALLING GAS LOG INTO STOVE
1. Remove log from carton.
2. Remove all protective packaging applied to
log for shipment.
3. Check log for any shipping damage. If dam-
aged (pieces larger than the size of a dime),
promptly inform dealer where you bought
heater.
4. Set one-piece log on heater base as shown in
Figure 12. Make sure middle section at bot-
tom of log is seated into "U" shaped cutout in
center of heater base. Log will fit securely on
base. IMPORTANT: Make sure log does not
cover any burner ports and does not touch the
stove cavity (see Figure 13).
5. Fasten back panel to stove with four (4)
M6 x 1bolts and washers.
6. Place freestanding stove in desired position
in room. Be sure to maintain clearances to
combustibles as outlined on page 8.
CAUTION: After installation
and periodically thereafter,
check to ensure that no flame
comes in contact with any log.
With the heater set to HI, check
to see if flames contact any log.
If so, reposition logs according
to the log installation instruc-
tionsinthismanual.Flamescon-
tacting logs will create soot.
H
I
L
O
O
F
F
P
I
L
O
T
O
N
Burner Porting Areas (double
slotted rectangular openings)
Figure 13 - Top View of One-Piece Log
Set on Gas Log Heater
Safety Pilot Location
One-Piece
Log Set
One-Piece
Log Set
"U" Shaped
Cutout in Chassis
Burner
Middle
Section at
Bottom of
Log Set
Figure 12 - Installing One-Piece Stove
Log Set
Heater Base
CONNECTING TO GAS SUPPLY
WARNING: This appliance
requires a 1/2" NPT (National
PipeThread)inletconnectionto
the pressure regulator.
WARNING:Aqualifiedservice
person must connect heater to
gassupply.Followalllocalcodes.
CAUTION: Never connect
propane/LPheaterdirectlytothe
propane/LP supply. This heater
requires an external regulator
(not supplied). Install the exter-
nalregulatorbetweentheheater
and propane/LP supply.

www.desatech.com 113084-01A
12
INSTALLATION
Continued
WARNING: Never connect
naturalgasheatertoprivate(non-
utility)gaswells.Thisgasiscom-
monly known as wellhead gas.
Installation Items Needed
Before installing heater, make sure you have the
items listed below.
• external regulator - propane/LP only (supplied
by installer)
• piping (check local codes)
• sealant (resistant to propane/LP gas)
• equipment shutoff valve *
• test gauge connection *
• sediment trap
• tee joint
• pipe wrench
* ACSAdesign-certified equipment shutoff valve
with 1/8" NPT tap is an acceptable alternative to
test gauge connection. Purchase the optional CSA
design-certifiedequipment shutoffvalve from your
dealer. See Accessories, page 27.
The gas inlet connection for the stove heater is
located on the lower right-hand side of the stove
when viewed from the front of the unit. The gas
connection can be made either through the bot-
tom right side or through the lower back opening
asillustrated in Figure14. Make suregas log heater
is secured to the stove cavity assembly.
For propane/LP units, installer must supply an
external regulator. The external regulator will re-
duce incoming gas pressure. You must reduce in-
coming gas pressure to between 11 and 14 inches
of water. If you do not reduce incoming gas pres-
sure, heater regulator damage could occur. Install
external regulator with the vent pointing down as
shown in Figure 15. Pointing the vent down pro-
tects it from freezing rain or sleet.
CAUTION:Useonlynew,black
ironorsteelpipe.Internally-tinned
copper tubing may be used in
certain areas. Check your local
codes. Use pipe of 1/2" diameter
or greater to allow proper gas
volume to heater. If pipe is too
small, undue loss of volume will
occur.
Figure 14 - Gas Regulator Location and
Gas Line Access Into Stove Cabinet
Gas Inlet
Connection
Access
Gas Log Heater
Back View
Side View
Figure 15 - External Regulator With Vent
Pointing Down
Back Stove
Panel
Stove Unit Front
Propane/LP
Supply Tank External
Regulator
Vent
Pointing
Down
Installation must include a equipment shutoff
valve, union, and plugged 1/8" NPT tap. Locate
NPT tap within reach for test gauge hook up. NPT
tap must be upstream from heater (see Figure 16
on page 13).
IMPORTANT: Install equipment shutoff valve in
an accessible location. The equipment shutoff
valve is for turning on or shutting off the gas to
the appliances.
Check your building codes for any special re-
quirements for locating equipment shutoff valve
to fireplaces.
Apply pipe joint sealant lightly to male threads.
This will prevent excess sealant from going into
pipe.Excess sealant in pipe could result in clogged
heater valves.
WARNING: Use pipe joint
sealantthatisresistanttoliquid
petroleum (LP) gas.
We recommend that you install a sediment trap in
supply line as shown in Figure 16, page 13. Lo-
cate sediment trap where it is within reach for
cleaning. Install in piping system between fuel
supply and heater. Locate sediment trap where
trapped matter is not likely to freeze. A sediment
trap traps moisture and contaminants. This keeps
them from going into heater controls. If sediment
trap is not installed or is installed wrong, heater
may not run properly.

www.desatech.com
113084-01A 13
INSTALLATION
Continued
CAUTION: Avoid damage to
regulator. Hold gas regulator
withwrench whenconnecting it
to gas piping and/or fittings.
* Purchase the optional CSA design-certified
equipment shutoff valve from your dealer. See
Accessories, page 27.
** Minimum inlet pressure for purpose of input
adjustment.
Figure 16 - Gas Connection
(SVYD18PRA/NRA Series)
3" Min
Sediment Trap
Gas Control
CSA Design-Certified
Equipment Shutoff Valve
With 1/8" NPT Tap*
Approved
Flexible Gas
Hose (if
allowed by
local codes)
Cap Pipe Tee
Nipple Joint
PROPANE/LP
From External
Regulator
(11" W.C. to 14"
W.C. Pressure)
NATURAL
From Gas
Meter (5" W.C.
to 10.5" W.C.
Pressure)
CHECKING GAS CONNECTIONS
WARNING: Test all gas pip-
ing and connections, internal
and external to unit, for leaks
afterinstallingorservicing.Cor-
rect all leaks at once.
WARNING: Never use an
open flame to check for a leak.
Apply a noncorrosive leak de-
tectionfluidtoalljoints.Bubbles
forming show a leak. Correct all
leaks at once.
CAUTION: Make sure exter-
nal regulator has been installed
between propane/LP supply and
heater.Seeguidelinesunder Con-
necting to Gas Supply , page 11.
Pressure Testing Gas Supply Piping
System
Test Pressures In Excess Of 1/2 PSIG (3.5 kPa)
1. Disconnect appliance with its appliance main
gas valve (control valve) and equipment
shutoff valve from gas supply piping system.
Pressures in excess of 1/2 psig will damage
heater regulator.
2. Cap off open end of gas pipe where equip-
ment shutoff valve was connected.
3. Pressurize supply piping system by either
opening propane/LP supply tank valve for
propane/LP gas or opening main gas valve lo-
cated on or near gas meter for natural gas, or
using compressed air.
4. Check all joints of gas supply piping system.
Apply a noncorrosive leak detection fluid to
gas joints. Bubbles forming show a leak.
5. Correct all leaks at once.
6. Reconnect heater and equipment shutoffvalve
to gas supply. Check reconnected fittings for
leaks.
Test Pressures EqualTo or Less Than 1/2 PSIG
(3.5 kPa)
1. Close equipment shutoffvalve (see Figure 17).
2. Pressurize supply piping system by either
opening propane/LP supply tank valve for
propane/LP gas or opening main gas valve lo-
cated on or near gas meter for natural gas, or
using compressed air.
3. Check all joints from gas meter for natural or
propane/LPsupply to equipment shutoff valve
(see Figure 18 or 19, page 14). Apply a non-
corrosive leak detection fluid to gas joints.
Bubbles forming show a leak.
4. Correct all leaks at once.
Figure 17 - Equipment Shutoff Valve
Equipment
Shutoff Valve
O
N
POSI
T
O
PO
S
Closed
Open

www.desatech.com 113084-01A
14
INSTALLATION
Continued
Pressure Testing Heater Gas
Connections
1. Open equipment shutoff valve (see Figure 17,
page 13).
2. Open main gas valve located on or near gas
meter for natural gas or open propane/LP sup-
ply tank valve.
3. Make sure control knob of heater is in the OFF
position.
4. Check all joints from equipment shutoff valve
to control valve (see Figure 18 or 19). Apply
a noncorrosive leak detection fluid to gas
joints. Bubbles forming show a leak.
5. Correct all leaks at once.
6. Light heater (see Operating Heater, pages 14
through 17). Check all other internal joints for
leaks.
7. Turn off heater (see To Turn Off Gas to Appli-
ance, page 15).
Figure 18 - Checking Gas Joints
(Oxford™ Stove Model Shown)
Control Valve Location
Propane/LP
Supply Tank
Equipment Shutoff Valve
Figure 19 - Checking Gas Joints
(Oxford™ Stove Model Shown)
Gas Meter
Equipment
Shutoff Valve
Control Valve Location
OPERATING HEATER
FOR YOUR SAFETY
READ BEFORE LIGHTING
WARNING: If you do not fol-
low these instructions exactly,
a fire or explosion may result
causing property damage, per-
sonal injury or loss of life.
A. This appliance has a pilot which must be
lighted by hand. When lighting the pilot,
follow these instructions exactly.
B. BEFORELIGHTING smell all aroundthe
applianceareafor gas.Be suretosmell next
tothefloor becausesomegas isheavierthan
air and will settle on the floor.
WHAT TO DO IFYOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electric switch; do not
use any phone in your building.
• Immediately call your gas supplier from
a neighbor’s phone. Follow the gas
supplier’s instructions.
• If youcannot reach yourgas supplier, call
the fire department.
C. Use only your hand to push in or turn the
gas control knob. Never use tools. If the
knobwillnot pushin orturn byhand, don’t
tryto repairit, call a qualifiedservice tech-
nician or gas supplier. Force or attempted
repair may result in a fire or explosion.
D. Do not use this appliance if any part has
beenunderwater. Immediatelycall a quali-
fied service technician to inspect the appli-
ance and to replace any part of the control
system and any gas control which has been
under water.
LIGHTING
INSTRUCTIONS
NOTICE:Duringinitialoperation
of new heater, burning logs will
give off a paper-burning smell.
Openwindowtoventsmell.This
will only last a few hours.
1. STOP! Read the safety information above.
2. Make sure equipment shutoff valve is fully
open.
3. Set switch to OFF position.

www.desatech.com
113084-01A 15
OPERATING HEATER
Continued
WARNING: Burners will
come on automatically within
oneminutewhentheremotese-
lector switch is in the ON posi-
tion after the pilot is lit.
4. Press in and turn control knob clockwise
to the OFF position.
5. Wait five (5) minutes to clear out any gas.
Thensmell forgas,including nearthefloor.
If you smell gas, STOP! Follow “B” in the
safety information in column 2, page 14. If
you don’t smell gas, go to the next step.
6. Press in and turn control knob counter-
clockwise to the PILOT position.
Press in control knob for five (5) seconds
(see step 5).
Note: You may be running this heater for
the first time after hooking up to gas sup-
ply. If so, the control knob may need to be
pressedin for30 seconds ormore.This will
allow air to bleed from the gas system.
7. Withcontrolknobpressed in,pressand re-
lease ignitor button. This will light pilot.
Thepilotis attachedto thefrontburner(see
Figure 13, page 11). If needed, keep press-
ing ignitor button until pilot lights.
Note: If pilot does not stay lit, contact a
qualified service person or gas supplier for
repairs. Until repairs are made, light pilot
with match. To light pilot with match, see
Manual Lighting Procedure, page 16.
8. Keep control knob pressed in for 30 sec-
onds after lighting pilot. After 30 seconds,
release control knob.
• If control knob does not pop out when re-
leased, contact a qualified service person
or gas supplier for repairs.
Note: If pilot goes out, repeat steps 4
through 8.
9. Slightlypush inandturncontrolknobcoun-
terclockwise to the ON position.
10. Wait oneminute and switchremoteselector
switch to the ON position to light burners.
Note: AUTO is only functional when using
GWMT1 or GWMS2 optional accessories.
11. Set flame adjustment knob to any level be-
tween HI and LO.
CAUTION: Do not try to ad-
just heating levels by using the
equipment shutoff valve.
WARNING: Make sure the
selector switch is in the OFF
positionwhenyouareawayfrom
home for long periods of time.
Heater will come on automati-
cally with selector switch in the
ON position.
O
F
F
P
I
L
O
T
O
N
L
O
I
H
AUTO
OFF
ON
Figure 20 - Control Knob and Ignitor
Button Location (Shown as Supplied, No
Control Options)
Ignitor Button
Selector Switch in OFF Position
(Optional Remote Control)
Flame Adjustment Knob
Ignitor
Electrode
Pilot Burner
Figure 21 - Pilot
Thermocouple
Control Knob
TO TURN OFF GAS
TO APPLIANCE
Shutting Off Heater
1. Turn control knob clockwise to the
OFF position.
2. Set selector switch in the OFF position to
keep from draining battery.
Shutting Off Burners Only (pilot stays lit)
You may shut off the burners and keep the pi-
lot lit by doing one of the following:
1. Turn control knob clockwise to the
PILOT position.
2. Use remote control manual OFF button.
3. Set remote selector switch in the OFF
position.

www.desatech.com 113084-01A
16
ON
OFF
REMOTE
O
F
F
P
I
L
O
T
O
N
L
O
I
H
OPERATING HEATER
Continued
MANUAL LIGHTING
PROCEDURE
1. Followsteps 1through6underLighting In-
structions, page 15.
2. Depress control knob and light pilot with
match.
3. Keep control knob pressed in for 30 sec-
onds after lighting pilot. After 30 seconds,
release control knob. Now follow steps 9
through 11 under Lighting Instructions,
page 15.
OPTIONAL HAND-HELD
REMOTE OPERATION
Note: All remote control accessories must be
purchasedseparately (seeAccessories, page27).
Follow instructions included with the remote
control.
NOTICE:Youmustlightthe pilot
before using the hand-held re-
mote control unit. See Lighting
Instructions onpages14and15.
1. Afterlighting,let pilotflameburn forabout
one minute.Turn control knob to ON posi-
tion. Adjust flame adjustment knob any-
where between HI and LO. Slide the selec-
tor switch to the REMOTE position (see
Figure 22). Note: The burner may light if
hand-held remote was on when selector
switchwaslastturned off.Youcannow turn
the burner on and off with the hand-held
remote control unit.
IMPORTANT: Do not leave the selector
switch in the REMOTE or ON position
when the pilot is not lit. This will drain the
battery.
ON/OFF SERIES (MODEL GHRCB)
Holdthecontrolbutton onthehand-heldremote
until burner turns on. Hold the control button
again until burner turns off (see Figure 23).
TO LOCK press both buttons on hand-held re-
mote control until light stops flashing. Hand-
held remote control is now locked. If the fire is
on it will be turned off automatically. In the
locked state, the light will not light up when
any button is pressed.
TO UNLOCK press both buttons together on
hand-held remote control until the light stops
flashing. The hand-held remote is now un-
locked.
Figure 22 - Setting the Remote Selector
Switch, Control Knob, and Flame
Adjustment Knob for Remote Operation
Remote Selector Switch in
REMOTE Position
(Optional Remote Control)
Flame Adjustment Knob
Control Knob
in ON Position
THERMOSTAT SERIES (MODEL
GHRCTB)
The hand-held remote can be operated using
either the manual mode (MANU) or thermo-
static mode (AUTO) (see Figure 24). To select
Fahrenheit/Centigrademodedisplay, carefully
press the ˚C/˚F mode button with the end of a
paper clip or similar blunt object.
Manual Mode
1. PressthePOWERandLOCKbuttonstogether
to turn on the hand-held remote control.
2. Press the MANU button to turn on the
heater.
Figure 23 - On/Off Hand-Held Remote
Control Unit (GHRCB)
Control Button
Turns Burners
On and Off
Figure 24 - Thermostat Hand-Held
Remote Control Unit (GHRCTB)
Turns
Remote On
or Off and
Allows You
to Choose
the Manual
Setting
Selects Auto
Setting
Increases
Room
Temperature
in AUTO
Mode
Digital Display
Shows
Temperature
and Settings
Turns Burners
On or Off
Decreases
Room
Temperature
in AUTO Mode
Locks System to
Prevent Accidental
Ignition

www.desatech.com
113084-01A 17
3. Press the POWER and LOCK buttons to-
gether to turn off the heater.
Auto (Thermostatic) Mode
1. PressthePOWERandLOCKbuttonstogether
to turn on the hand-held remote control.
2. PressAUTO button to select this mode.
3. Setthe desiredroomtemperaturebypress-
ing the TEMP+ or - buttons.
4. Press the POWER and LOCK buttons to-
gether to turn off the fireplace
Note: Do not leavethe hand-held remoteinthe
AUTO mode close to the fireplace. The radiant
heat from the fireplace will turn off the fire-
place.Ideally,placethe hand-heldremotein the
centerof the roomfacing towardsthe fireplace.
Note: Do not hold the hand-held remote for a
long time. Body temperature will affect its op-
eration in theAUTO mode.
Safety Features
When away from home foran extended period
of time or as a child safety feature to prevent
accidentalignition of the fireplace,the receiver
ON/OFF/REMOTE switch should be in the
OFF position.
Auto Shutoff Feature
1. If the average room temperature exceeds
82 degrees Fahrenheit (28 degrees Centi-
grade), the hand-held remote control will
performa safetyoverride and shutthe fire-
place off. This feature is not available in
the MANU mode.
2. The receiver continuously receives signals
from the hand-held remote to control the
roomtemperature.Ifthe hand-heldremote
is misplaced, obstructed, or for any reason
cannottransmit tothe receiver, thereceiver
will shut off the fireplace after 8 minutes.
Key Pad Lock Feature
This feature allows the user to lock/unlock the
keypad on the hand-held remote in the MANU
or AUTO mode to prevent inadvertent opera-
tion (i.e. children operating the hand-held re-
mote control, etc.). The keypad is locked in ei-
ther on or off. Press the POWER and LOCK
buttons together to turn the unit on or off.
OPERATING HEATER
Continued
INSPECTING BURNERS
Check pilot flame pattern and burner flame pat-
terns often.
PILOT FLAME PATTERN
Figure 25 showsa correct pilotflame pattern. Figure
26 shows anincorrect pilot flamepattern. Theincor-
rectpilotflame is not heating the thermocouple.This
will cause the thermocouple to cool. When the
thermocouple cools, the heater will shut down.
If pilot flame pattern is incorrect, as shown in Fig-
ure 26
• turn heater off (see To Turn Off Gas to Appli-
ance, page 15
• see Troubleshooting, pages 19 through 21
Note: The pilot flame on natural gas units will
have a slight curve, but flame should be blue and
have no yellow or orange color.
BURNER PRIMARY AIR HOLES
Air is drawn into the burner through the holes in
the fitting at the burner entrance. These holes may
become blocked with dust or lint. Periodically in-
spect these holes for any blockage and clean if
needed. Blocked air holes will create soot.
MAIN BURNER
Periodically inspect all burner flame holes with
the heater running.All slotted burner flame holes
should be open with yellow flame present. All
round burner flame holes should be open with a
smallblue flame present. Some burner flame holes
may become blocked by debris or rust, with no
flame present. If so, turn off heater and let cool.
Remove blockage. Blocked burner flame holes
will create soot.
Pilot Burner
Figure 25 - Correct Pilot Flame Pattern
(Propane/LP Shown)
Figure 26 - Incorrect Pilot Flame Pattern
(Propane/LP Shown)
Thermocouple
Pilot Burner
Thermocouple

www.desatech.com 113084-01A
18
CLEANING AND
MAINTENANCE
WARNING: Turn off heater
and let cool before cleaning.
CAUTION: You must keep
control areas, burner, and cir-
culating air passageways of
heater clean. Inspect these ar-
eas of heater before each use.
Haveheaterinspectedyearlyby
a qualified service person.
Heater may need more frequent
cleaning due to excessive lint
from carpeting, pet hair, bed-
ding material, etc.
WARNING: Failure to keep
theprimaryairopening(s)ofthe
burner(s) clean may result in
sooting and property damage.
BURNER INJECTOR HOLDER AND
PILOT AIR INLET HOLE
Theprimary air inlet holesallow the properamount
of air to mix with the gas. This provides a clean
burning flame. Keep these holes clear of dust, dirt,
lint, and pet hair. Clean these air inlet holes prior to
each heating season. Blocked air holes will create
soot. We recommend that you clean the unit every
three months during operation and have heater in-
spected yearly by a qualified service person.
We also recommend that you keep the burner tube
and pilot assembly clean and free of dust and dirt.
To clean these parts we recommend using com-
pressed air no greater than 30 PSI.Your local com-
puter store, hardware store, or home center may
carrycompressedairinacan.You can use avacuum
cleaner in the blow position. If using compressed
air in a can, please follow the directions on the can.
Ifyou don't followdirections on the can, you could
damagethepilotassembly. Note: Removing the rear
panel (Figure 5, page 8) and top grate(s) of your
stove will make cleaning easier.
1. Shut off the unit, including the pilot. Allow
the unit to cool for at least thirty minutes.
2. Inspect burner, pilot, and primary air inlet
holes on injector holder for dust and dirt (see
Figure 27).
3. Blow air through the ports/slots and holes in
the burner.
4. Check the injector holder located at the end
of the burner tube again. Remove any large
particles of dust, dirt, lint, or pet hair with a
soft cloth or vacuum cleaner nozzle.
5. Blow air into the primary air holes on the in-
jector holder.
6. In case anylargeclumps of dusthavenow been
pushed into the burner repeat steps 3 and 4.
Clean the pilot assembly also.Ayellow tip on the
pilot flame indicates dust and dirt in the pilot as-
sembly. There is a small pilot air inlet hole about
two inches from where the pilot flame comes out
of the pilot assembly (see Figure 28). With the
unit off, lightly blow air through the air inlet hole.
You may blow through a drinking straw if com-
pressed air is not available.
Burner Tube
Pilot
Assembly
Pilot Air
Inlet Hole
Ports/Slots
Figure 28 - Pilot Inlet Air Hole
Figure 27 - Injector Holder On Outlet
Burner Tube
Burner Tube
Injector
Holder
Primary Air
Inlet Holes

www.desatech.com
113084-01A 19
TROUBLESHOOTING
Note: All troubleshooting items are listed in order of operation.
WARNING: Turn off heater and let cool before servicing. Only a
qualified service person should service and repair heater.
CAUTION: Never use a wire, needle, or similar object to clean
ODS/pilot. This can damage ODS/pilot unit.
POSSIBLE CAUSE
1. Ignitor electrode not con-
nected to ignitor cable
2. Ignitor cable pinched or wet
3. Broken ignitor cable
4. Bad piezo ignitor
5. Ignitor electrode broken
6. Ignitor electrode positioned
wrong
1. Gassupplyturned offorequip-
ment shutoff valve closed
2. Control knob not in PILOT
position
3. Control knob not pressed in
while in PILOT position
4. Air in gas lines when installed
5. ODS/pilot is clogged
6. Gas regulator setting is not
correct
7. Depleted gas supply (propane/
LP only)
1. Controlknob not fullypressedin
2. Control knob not pressed in
long enough
3. Equipment shutoff valve not
fully open
4. Pilot flame not touching ther-
mocouple, which allows ther-
mocouple to cool, causing pi-
lot flame to go out. This prob-
lem could be caused by one or
both of the following:
A) Low gas pressure
B) Dirty or partially clogged
ODS/pilot
5. Thermocouple connection
loose at control valve
6. Thermocouple damaged
7. Control valve damaged
REMEDY
1. Reconnect ignitor cable
2. Free ignitor cable if pinched
by any metal or tubing. Keep
ignitor cable dry
3. Replace ignitor cable
4. Replace piezo ignitor
5. Replace pilot assembly
6. Replace pilot assembly
1. Turn on gas supply or open
equipment shutoff valve
2. Turn control knob to PILOT
position
3. Press in control knob while in
PILOT position
4. Continue holding down con-
trol knob. Repeat igniting op-
eration until air is removed
5. Clean ODS/pilot (see Cleaning
and Maintenance, page 18) or
replace ODS/pilot assembly
6. Replace gas control
7. Contact local propane/LP gas
company
1. Press in control knob fully
2. AfterODS/pilotlights,keepcon-
trol knob pressed in 30 seconds
3. Fully open equipment shutoff
valve
4. A) Contact local propane/LP
or natural gas company
B) Clean ODS/pilot (see
Cleaning and Maintenance,
page 18) or replace ODS/pi-
lot assembly
5. Hand tighten until snug, then
tighten 1/4 turn more
6. Replace pilot assembly
7. Replace control valve
OBSERVED PROBLEM
When ignitor button is pressed,
there is no spark at ODS/pilot
When ignitor button is pressed,
there is spark at ODS/pilot but
no ignition
ODS/pilotlights butflamegoes
out when control knob is re-
leased

www.desatech.com 113084-01A
20
POSSIBLE CAUSE
1. Burner orifice clogged
2. Inlet gas pressure is too low
3. Thermopile leads disconnected
or improperly connected
4. Burners will not come on in
remote position
1. Manifold pressure is too low
2. Burner orifice clogged
1. Burner orifice is clogged or
damaged
2. Damaged burner
3. Gas regulator defective
1. Not enough air
2. Gas regulator defective
3. Residues from manufacturing
processes and logs curing
1. Not enough combustion/ven-
tilation air
1. Turningcontrol knobto HI po-
sition when burner is cold
2. Air in gas line
3. Air passageways on heater
blocked
4. Dirty or partially clogged
burner orifice
1. Improper log placement
2. Drafts or other air currents af-
fecting flame pattern
3. Air holes at burner inlet
blocked
4. Burner flame holes blocked
REMEDY
1. Clean burner (see Cleaning
and Maintenance, page 18) or
replace burner orifice
2. Contact local propane/LP or
natural gas company
3. Reconnect leads (see Wiring
Diagram, page 26)
4. Replace battery in transmitter
and hand-held remote
1. Contact local propane/LP or
natural gas company
2. Clean burner (see Cleaning
and Maintenance, page 18) or
replace burner orifice
1. Clean burner (see Cleaning
and Maintenance, page 18) or
replace burner orifice
2. Replace damaged burner
3. Replace gas control
1. Check burner for dirt and debris.
Iffound,cleanburner(seeClean-
ing and Maintenance, page 18)
2. Replace gas control
3. Problem will stop after a few
hours of operation
1. Refer to Air for Combustion
and Ventilation requirements
(page 5)
1. Turn control knob to LO posi-
tionandletwarmupforaminute
2. Operate burner until air is re-
moved from line. Have gas
linechecked by local propane/
LP or natural gas company
3. Observe minimum installation
clearances (see page 8)
4. Clean burner (see Cleaning
and Maintenance, page 18) or
replace burner orifice
1. Properly locate logs (see In-
stalling Gas Log Into Stove,
page 11)
2. Eliminate source of drafts
around heater
3. Clean out air holes at burner in-
let.Periodicallyrepeatasneeded
4. Remove blockage or replace
burner
OBSERVED PROBLEM
BurnerdoesnotlightafterODS/
pilot is lit
Delayed ignition burner
Burner backfiring during com-
bustion
Slightsmokeorodorduringini-
tial operation
Moisture/condensation noticed
on windows
Heater produces a whistling
noise when burner is lit
Darkresidueonlogsorinsideof
fireplace
TROUBLESHOOTING
Continued
