Designplan FLAI User manual

79 Trenton Avenue, Frenchtown NJ 08825
© Copyright 2020 Designplan Lighting, Inc.
installation instructions
[email protected]
www.designplan.com
1 of 7
INSTRUCTIONS PERTAINING TO RISK OF FIRE OR INJURY TO
PERSONS. READALL INSTRUCTIONS. IMPORTANT SAFETY
INSTRUCTIONS. SAVE THESE INSTRUCTIONS.
DANGER - RISK OF SHOCK - DISCONNECT POWER BEFORE
INSTALLATION! Please read all instructions before installation.
FLAI
IP54
5VDC
• Keep these instructions for future reference.
• Designplan is not responsible for fixtures installed without regard to these
standards.
• Unauthorized alterations or tampering of product voids warranty.
•The main power connection must be in accordance with local electrical
codes.
• Suitable for INDOOR applications.
Maintenance
Scheduled maintenance must be carried out once a year on all lighting devices, regardless of appliance
class and type of use. It must include the following operations:
• Periodically clean fixtures to remove dirt from gratings and screw heads.
• Check tightness of screws on various parts of the device.
• Check that all cable glands and cables are intact and tight. Check that the glass or plastic lens is
intact, and replace it if broken or damaged.
• The internal components such as the ballast, driver, washers and screws must not show clear signs
of oxidation or rust. Clear traces of rust and oxidation will indicate the presence of water inside the
device.
• In the case of damage, the components must be replaced by original components or spare parts.
P: 908-996-7710
F: 908-996-7042

79 Trenton Avenue, Frenchtown NJ 08825
© Copyright 2020 Designplan Lighting, Inc.
installation instructions
[email protected]
www.designplan.com
2 of 7
FLAI
P: 908-996-7710
F: 908-996-7042
USER MANUAL
This product is for lighting purposes only and:
- must not be exposed to heavy mechanical loads or severe contamination.
- must only be installed after checking its condition if the product is dirty or if it has become dump during
storage.

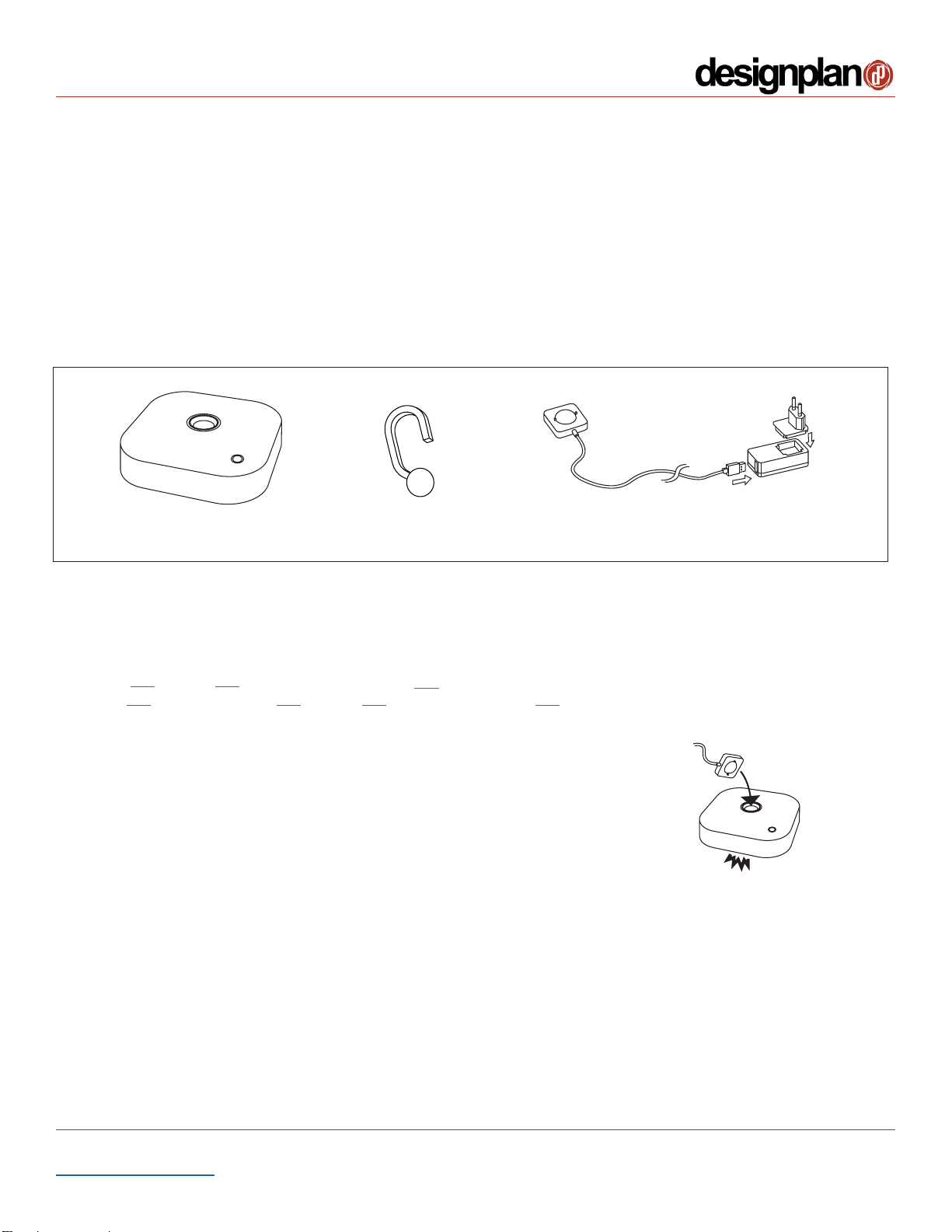

Contains:
1x FLAI lighting module 1x Hook Support 1x FLAI Charger 1x Transformer
red light - charging
green light - fully charged
Technical data (FLAI lighting module):
Volt: 5Volt: 5V
R ating voltage: 520 lumen Lithium non replaceable battery included 18650 2600mAh*2
Power: 4W
Charge: 5h h CBattery life: 5h-10he: 5h-10 lass: III
Pr otection rating: IP54 Net weight: 0.88 lbs
Color temperature: 2700K
CHARGE:
To correctly charge the product, place the charger on the magnetic concavity
of the lighting module. Both the pins must be connected with the golden
plates on the lighting module. If it is correctly charging, a red LED will turn on
on the module screen. Once fully recharged, the LED will turn green.

79 Trenton Avenue, Frenchtown NJ 08825
© Copyright 2020 Designplan Lighting, Inc.
installation instructions
[email protected]
www.designplan.com
3 of 7
FLAI
P: 908-996-7710
F: 908-996-7042

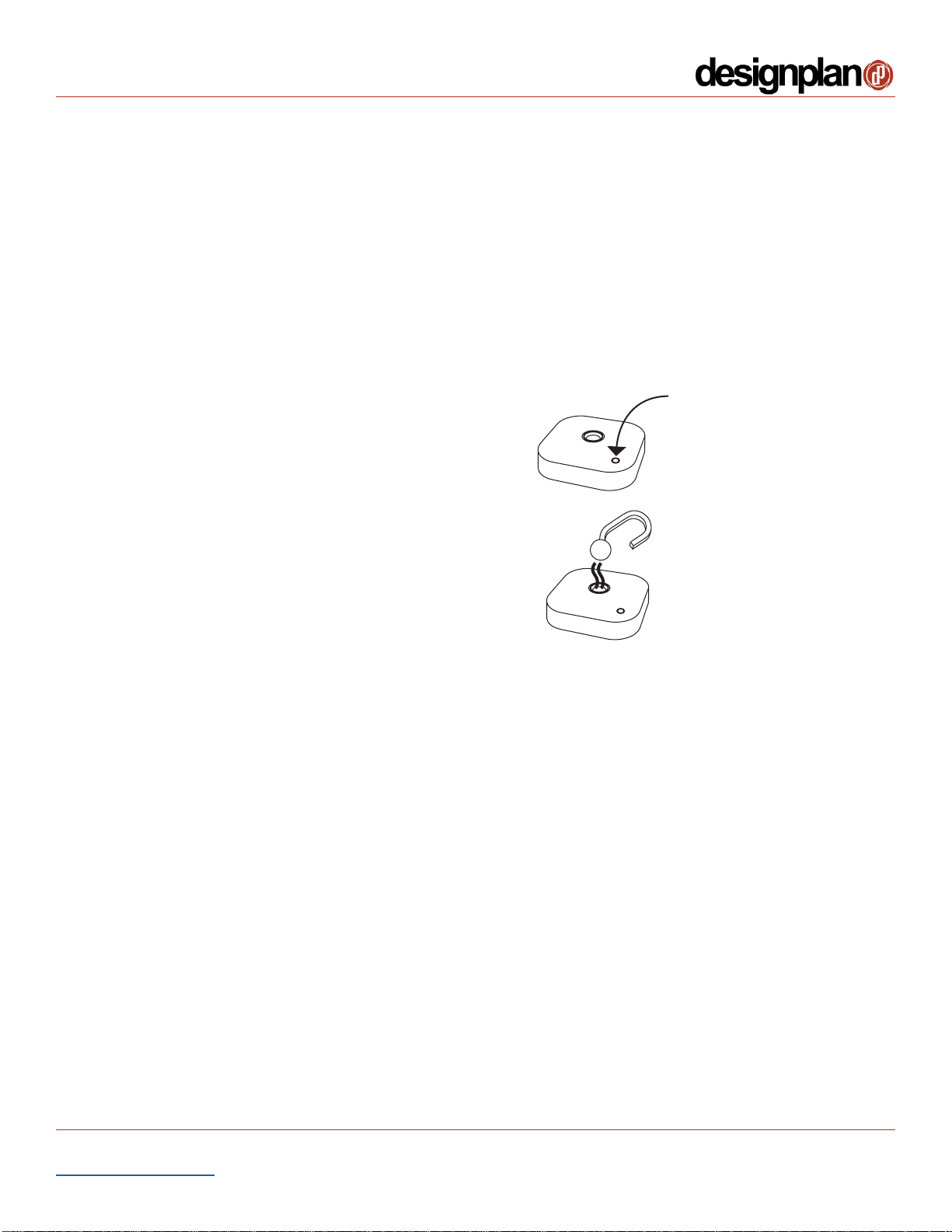

single touch - ON »dimmer 20% »50% »
»100% »50% »20% »OFF
long press - OFF
magnetic connection force
of attraction max 4.41 lbs
To correctly charge the lamp, we recommend that you:
INSTRUCTIONS:
Charge the battery before initial use. To turn the light ON
and OFF, touch the circular mark on the edge of the
module. The maximum load held by the magnetic joint is
equivalent to 2.20 lbs. The magnetic elements in this
product cannot be used for purposes other than the original
one. Do not approach the magnetic element to products
easily demagnetizable.
IMPORTANT:
The integrated battery has an overload protection function. Please refer to local laws for the proper disposal
and recycling of the battery. The light source for this fitting must only be replaced by the manufacturer or its
technical team.
MAINTENANCE:
Use a slightly-wet cotton cloth for cleaning. In case of defective charge, clean the golden plates with a soft
cloth (do not use hard or abrasive materials). In case of malfunction or damage, please contact you supplier
directlly.
1. Connect the USB to the adapter.
2. Magnetically attach the charger head to the concavity on the lighting module, placing the two pins on the
golden plates.
3. Put the plug into the electrical socket.
4. When fully charged, disconnect the plug from the electrical socket and remove the charger.
Included: INPUT AC110-240V 50/60Hz - OUTPUT 5V 2A

79 Trenton Avenue, Frenchtown NJ 08825
© Copyright 2020 Designplan Lighting, Inc.
installation instructions
[email protected]
www.designplan.com
4 of 7
FLAI
P: 908-996-7710
F: 908-996-7042

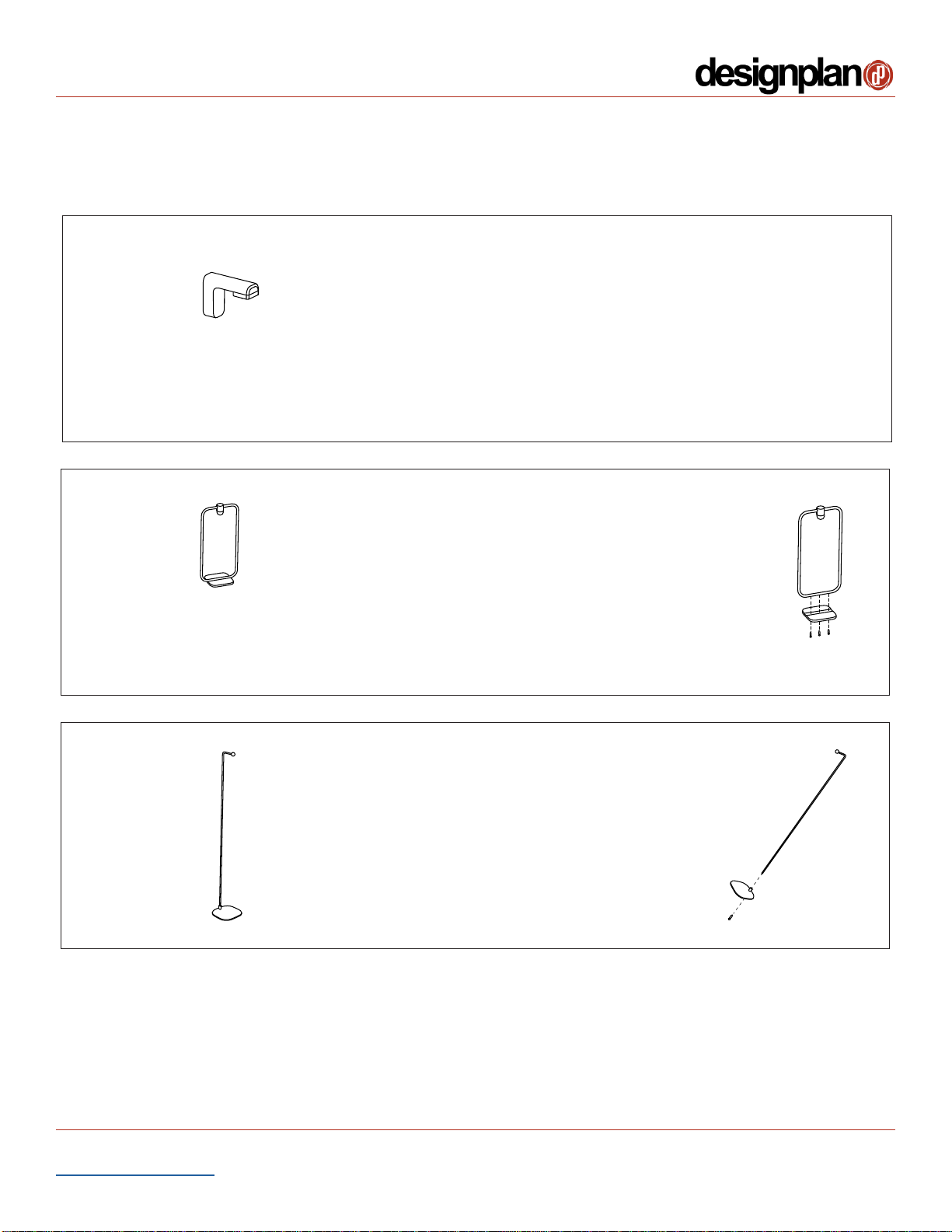

SUPPORTS:
Wall
Charging
cod. D9033
Floor
cod. D9029
Lantern
cod. D9032
Technical data: 110-240V, 5V, 2A max, Class II, IP54
The support is suitable for outdoor use.
Material: painted steel.
The support surface for the lamp must not exceed a 15°
tilt or it will fall.
Assembly instructions: fix the base with the supplied
screws.
The support is suitable for outdoor use.
Material: painted steel.
The support surface for the lamp must not exceed
a 15° tilt or it will fall.
Assembly instructions: insert the iron rod in
the base and fix it with the supplied screw.

79 Trenton Avenue, Frenchtown NJ 08825
© Copyright 2020 Designplan Lighting, Inc.
installation instructions
[email protected]
www.designplan.com
5 of 7
FLAI
P: 908-996-7710
F: 908-996-7042
SUPPORTS:
Multiple
cod. D9035
Table
cod. D9028
Central
cod. D9027
The support is suitable for outdoor use.
Material: painted steel.
The support surface for the lamp must not exceed a
15° tilt or it will fall.
Assembly instructions: insert the iron rod in the base
and fix it with the supplied screw. Check Rope Support
(cod. D9031) information to set them on the rod.
The support is suitable for outdoor use.
Material: painted steel.
The support surface for the lamp must not exceed a 15°
tilt or it will fall.
Assembly instructions: insert the iron rod in the base
and fix it with the supplied screw.
The support is suitable for outdoor use.
Material: painted steel.
The support surface for the lamp must not exceed a 15°
tilt or it will fall.
Assembly instructions: fix the rod to the base with the
supplied screw.

79 Trenton Avenue, Frenchtown NJ 08825
© Copyright 2020 Designplan Lighting, Inc.
installation instructions
[email protected]
www.designplan.com
6 of 7
FLAI
P: 908-996-7710
F: 908-996-7042
SUPPORTS:
Wall
cod. D9034
Pendant
cod. D9030 The support is suitable for outdoor use.
Designed for hanging lighting systems.
Material: painted steel.
Assembly: fix the canopy to the ceiling. Adjust cable length and
clip it. Cut the exceeding cable length and close the canopy.
Provided cable length: 59.06"
Rope
cod. D9031 Screw coupling system for ropes and rod
up to max 0.39" diameter.
Suitable for rigid and flexible structures.
Tighten and secure the grip before use.
Assembly: fix the metal plate on the wall,
apply the cover and screw the rod with the
magnetic sphere.
Caution: Do not use it to hang things other
than FLAI lighting module.

79 Trenton Avenue, Frenchtown NJ 08825
© Copyright 2020 Designplan Lighting, Inc.
installation instructions
[email protected]
www.designplan.com
7 of 7
FLAI
P: 908-996-7710
F: 908-996-7042
CAUTION:
We recommend reading the manual before using the product. Keep these instructions for future
reference. Do not disassemble, modify or try to repair this fitting. Any change or modification to the light
fitting can null the manufacturer’s guarantee. Do not place this fitting on warm or hot surfaces such as
ovens, microwaves, heaters or radiators. The battery can explode if overheated. Avoid exposure to either
very high or very low temperatures. Use the device between temperatures of -20°C and 40°C. Extreme
temperatures can cause deformations and reduce the charging capacity and life of the battery. Neither is it
recommended to expose the light fitting to direct sunlight for long periods. Avoid charging the battery for
periods of week or longer, over-charging can reduce its useful life. Over time an unused battery will loose
its charge and must be recharged to power the light fitting. Disconnect the charger from the mains when
not in use.
The symbol on the lighting module indicates that the product should not be placed in municipal waste. The
lighting source cannot be substituted by the customer.
