DeVillbiss Air Power Company 2by4 Contractor Series User manual

Nailer/Stapler
Operation Manual
MG-NS2X4A 7/16/99
This manual contains information that is important for you to know and
understand. This information relates to protecting YOUR SAFETY and
PREVENTING EQUIPMENT PROBLEMS. PLEASE READ THIS MANUAL.
DeVilbiss Air Power Company • 213 Industrial Drive • Jackson, TN 38301-9615
Specifications
MODEL NO.
Max. P.S.I.
Operating Pressure
Range
Air Inlet
Weight
Height
Length
Width
Type of Fastener
Fastener Lengths
Fastener Capacity
NF2502X4
120
70-120
1/4" NPT
4.66
10.25
11.75
3
Finish Nail
16 Gauge
See page 17
110 pcs.
SNC1002X4
120
70-120
1/4" NPT
2.3
7.5
11.3
2.25
Narrow Crown
Staple 18 Gauge
See page 18
150 pcs.
NB2002X4
120
70-120
1/4" NPT
2.6
8.1
9
2
Brad Nail
18 Gauge
See Page 19
110
NB1252X4
120
70-120
1/4" NPT
2.55
7.75
9.75
2.25
Brad Nail
18 Gauge
See page 20
110 pcs.
NBSNC2X4
120
57-110
1/4" NPT
3.3
9.68
9.72
2.44
Brad Nail 18 Gauge/
Narrow Crown
Staple 18 Gauge
1/2" - 1 1/2"
See page 21
100 pcs.

PAGE 2
Page
Tool Specifications ................................................................ Front Cover
Table of Contents ................................................................................... 2
Limited Warranty ..................................................................................... 3
Safety Guidelines & Warning Chart ....................................................... 4
Lubrication and Maintenance ................................................................. 7
Recommended Hook-up ......................................................................... 9
Contact Trip Safety Mechanism ............................................................. 9
A. Operating A Contact Trip Tool
B. Checking The Operation Of Contact Trip Safety Mechanism
Loading The Tool .................................................................................. 10
Operating the Tool ................................................................................ 12
Clearing A Jam From The Tool ............................................................. 13
Trouble Shooting Guide ........................................................................ 15
NF2502X4 ............................................................................................. 17
SNC1002X4 .......................................................................................... 18
NB2002X4 ............................................................................................. 19
NB1252X4 ............................................................................................. 20
NBSNC2X4 ........................................................................................... 21
Repair Kits Available ............................................................................. 22
Toll-Free 800 Number ............................................................ Back Cover
TABLE OF CONTENTS

PAGE 3
All merchandise manufactured by DeVilbiss Air Power Company/ExCell Manufacturing is warranted to be free of defects
in workmanship and material which occur during the first year from the date of purchase by the original purchaser (initial
user). Products covered under this warranty include: air compressors, *air tools, accessories, service parts, pressure
washers, and generators used in consumer applications (i.e., personal residential household usage only).
Air compressors, *air tools, accessories, service parts, pressure washers, and generators used in commercial
applications (income producing) are covered by a 90 day warranty.
DeVilbiss Air Power/ExCell Manufacturing will repair or replace, at DeVilbiss/ExCell’s option, products or components
which have failed within the warranty period. Repair or replacement, and service calls on 60 and 80 gallon air
compressors, will be handled by Authorized Warranty Service Centers and will be scheduled and serviced according to
the normal work flow and business hours at the service center location, and depending on the availability of replacement
parts.
All decisions of DeVilbiss Air Power Company/ExCell Manufacturing with regard to this policy shall be final.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
THIS WARRANTY DOES NOT COVER:
RESPONSIBILITY OF ORIGINAL PURCHASER (Initial User):
o Retain original cash register sales receipt as proof of purchase for warranty work.
o Use reasonable care in the operation and maintenance of the product as described in the Owners Manual(s).
o Deliver or ship the product to the nearest DeVilbiss Air Power/ExCell Manufacturing Authorized Warranty
Service Center. Freight costs, if any, must be paid by the purchaser.
o Air compressors with 60 and 80 gallon tanks only will be inspected at the site of installation. Contact the
nearest Authorized Warranty Service Center, that provides on-site service calls, for service call arrangement.
o If the purchaser does not receive satisfactory results from the Authorized Warranty Service Center, the
purchaser should contact DeVilbiss Air Power Company/ExCell Manufacturing.
o Merchandise sold as reconditioned, floor models and/or display models. Any damaged or incomplete equipment
sold "as is".
o Merchandise used as "rental" equipment.
o Merchandise that has become inoperative because of ordinary wear, misuse, freeze damage, use of improper
chemicals, negligence, accident, improper and/or unauthorized repair or alterations including failure to operate
the product in accordance with the instructions provided in the Owners Manual (s) supplied with the product.
*Air Tools: O-Rings and driver blades are considered ordinary wear parts, therefore, they are warranted for a
period of 45 days from the date of purchase.
o An air compressor that pumps air more than 50% during a one hour period is considered misuse because
the air compressor is undersized for the required air demand. Maximum compressor pumping time per hour is
30 minutes.
o Merchandise sold by DeVilbiss Air Power/ExCell Manufacturing which has been manufactured by and identified
as the product of another company. The product manufacturer's warranty will apply.
o Repair and transportation costs of merchandise determined not to be defective.
o Cost associated with assembly, required oil, adjustments or other installation and start-up cost.
o ANY INCIDENTAL, INDIRECT OR CONSEQUENTIAL LOSS, DAMAGE, OR EXPENSE THAT MAY RESULT
FROM ANY DEFECT, FAILURE OR MALFUNCTION OF THE PRODUCT. Some states do not allow the
exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply
to you.
o IMPLIED WARRANTIES, INCLUDING THOSE OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE, ARE LIMITED TO ONE YEAR FROM THE DATE OF ORIGINAL PURCHASE. Some states do not
allow limitations on how long an implied warranty lasts, so the above limitations may not apply to you.
LIMITED WARRANTY
ONE YEAR FROM DATE OF PURCHASE

PAGE 4
HAZARD TO LOOK FOR
Compressed Gas
Excessive Operating Pressure
Unsuitable Cleaning Solvents
WHAT COULD HAPPEN
Oxygen will react with oil in tool caus-
ing an explosion. Flammable gases
will ignite from sparking and cause the
tool to explode, resulting in serious
injury or death.
THE TOOL COULD EXPLODE re-
sulting in serious injury or death.
Flammable vapors in the tool will ignite
by a spark and could cause the tool to
explode!
HOW TO PREVENT IT
Do not use any type of flammable
gases or oxygen as a power source
for the tool.
Use only filtered, lubricated, regu-
lated compressed air .
Operate tool with clean dry air, regu-
lated to no more than the maximum
P.S.I. See specification label on tool
for the maximum P.S.I.
Never use gasoline or other flam-
mable liquids to clean the tool.
Risk of explosion.
IMPORTANT SAFETY INFORMATION - A
HAZARD THAT MIGHT CAUSE SERIOUS
INJURY OR LOSS OF LIFE.
Information that you should pay special
attention to.
URGENT SAFETY INFORMATION - A
HAZARD THAT WILL CAUSE SERIOUS
INJURY OR LOSS OF LIFE.
This manual contains information
that is important for you to know
and understand. This information
relates to protecting YOUR
SAFETY and PREVENTING
EQUIPMENT PROBLEMS. To
help you recognize this informa-
tion, we use symbols to the right.
Please read the manual and pay
attention to these sections.
Information for preventing damage to
equipment.

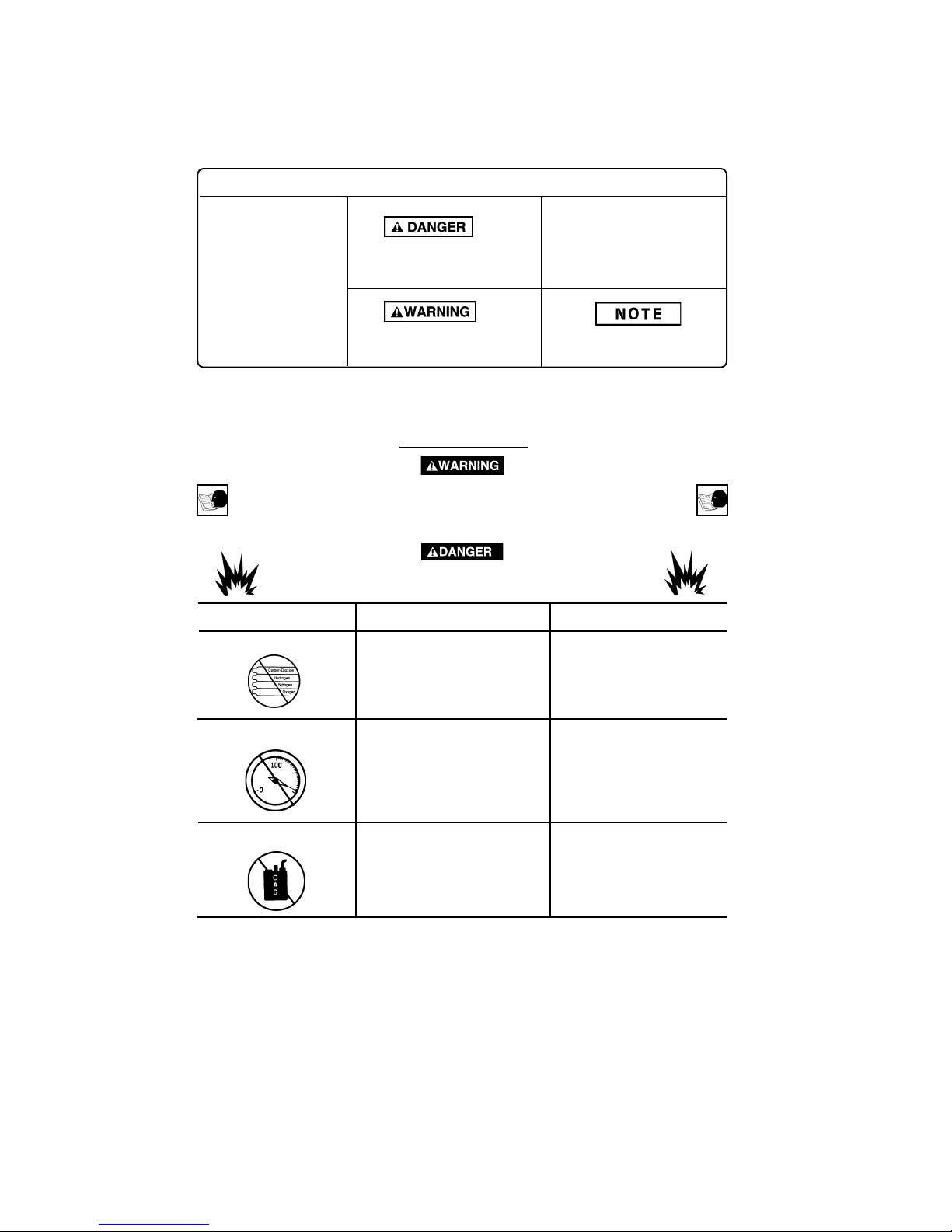

IMPORTANT SAFETY INSTRUCTIONS
• SAVE THESE INSTRUCTIONS •
SAFETY GUIDELINES - DEFINITIONS
IMPROPER OPERATION OR MAINTENANCE OF THIS PRODUCT COULD RESULT IN SERIOUS
INJURY AND PROPERTY DAMAGE. READ AND UNDERSTAND ALL WARNINGS AND OPERATING
INSTRUCTIONS BEFORE USING THIS EQUIPMENT.

PAGE 5
Risk of head injury.
WHAT COULD HAPPEN
Metal fragments, fasteners, or other
material could be projected against
head or into eyes resulting in serious
injury or property damage. Contin-
ued exposure to an operating tool
can result in permanent hearing dam-
age.
HOW TO PREVENT IT
Always wear ANSI approved Z87
safety glasses, Z89.1 head protec-
tion and S3.19 hearing protection.
HAZARD TO LOOK FOR
Injury to eyes, head and hearing
Risk of puncture injury.
WHAT COULD HAPPEN
A fastener could accidentally be
driven if the contact trip safety
mechanism is not working resulting
in serious injury or property damage.
If the contact trip bumps something
or someone while holding the tool
with the trigger depressed, serious
injury or property damage could oc-
cur.
Improper handling can result in dam-
age to the contact trip safety mecha-
nism resulting in unsafe operation.
Accidental discharge of a fastener
can occur, resulting in serious injury
or property damage.
HOW TO PREVENT IT
Do not remove, modify or bypass
contact safety device.
Do not use the tool if any shields or
guards are removed or altered.
Always check contact trip safety
mechanism of the tool before each
use.
Never carry the tool by the hose or
pull the hose to move the tool or a
compressor. Keep hoses away from
heat, oil and sharp edges. Replace
any damaged, weak or worn hoses.
Hold tool by the handle and keep
trigger and contact trip safety mecha-
nism from contacting objects or parts
of the body when connecting or dis-
connecting air supply.
Disconnect air hose before loading
fasteners, removing a jammed fas-
teners.
HAZARD TO LOOK FOR
Injury to eyes, head and hearing

PAGE 6
Risk from flying objects.
WHAT COULD HAPPEN
Fasteners could ricochet or be
propelled causing serious injury or
property damage.
When working along edges or next
to voids in work surface, the con-
tact trip safety mechanism could
be depressed and allow the tool
to discharge a fastener into the air
or through thin work materials re-
sulting in serious injury or property
damage.
HAZARD TO LOOK FOR
Injury to self or others in the work area.
HOW TO PREVENT IT
Pay attention to others in the work
area to assure that they are pro-
tected from possible accidental
discharge of fastener, or projected
fragments of work material, fas-
teners, etc.
Provide ANSI approved Z87 safety
glasses, Z89.1 head protection,
and S3.19 hearing protection to
self and others in the work area.
Never point discharge of tool at
self or others.
Do not pull trigger unless tool con-
tact safety device is against work
surface.
Never attempt to drive fasteners
into hard surfaces such as steel,
concrete, or tile.
Take care to avoid driving a fas-
tener on top of another fastener.
Before operating tool, be certain
that work surfaces are strong
enough and thick enough to con-
tain entire fastener.
Position tool carefully so that fas-
teners will be delivered to the
proper location.

PAGE 7

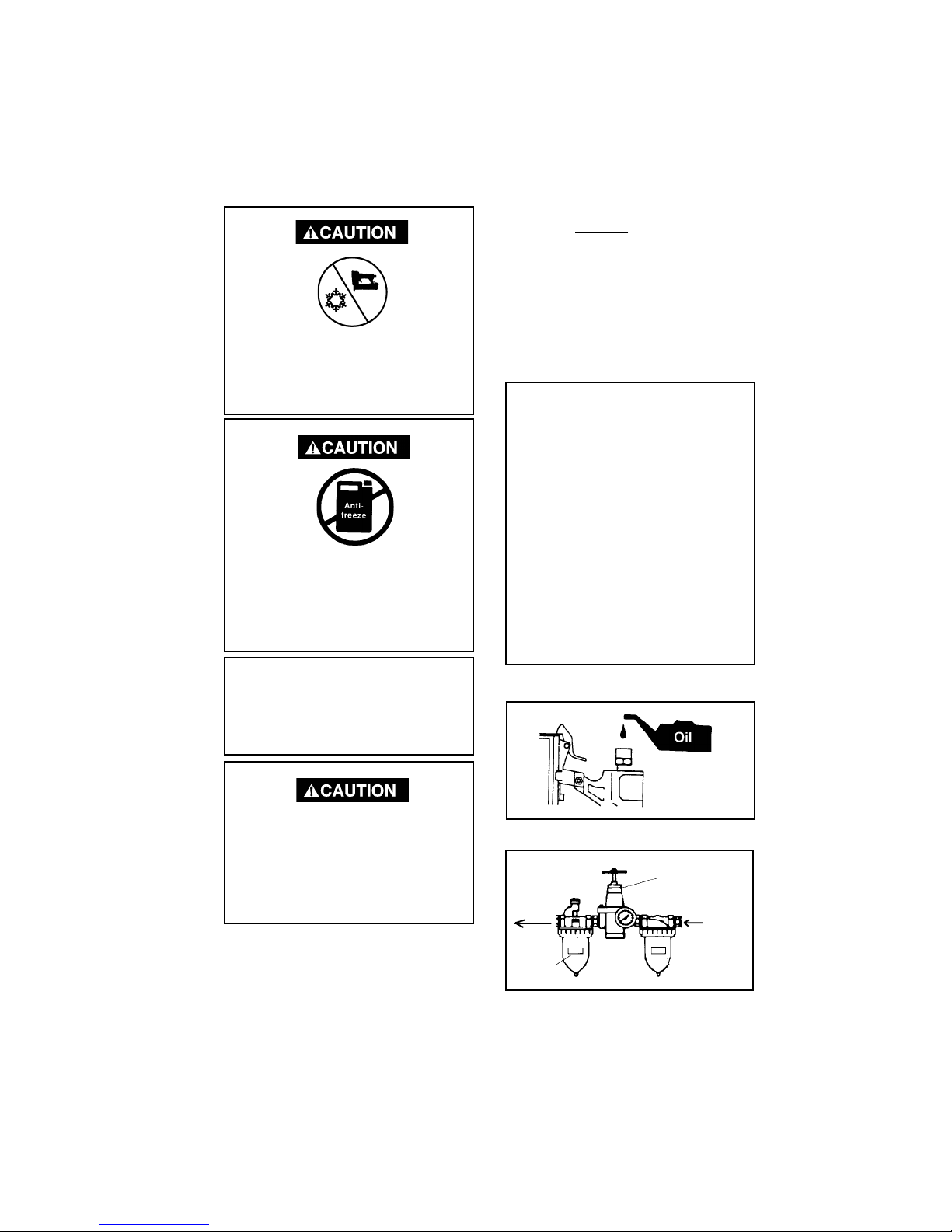

Do not store the tool in cold weather. Frost
or ice can form on the operating valves or
mechanisms and the tool may not operate
correctly.
In cold weather operation (near or below
freezing), DO NOT USE a permanent
antifreeze such as ethylene glycol for a
cold weather lubricant. This type of
anitfreeze will damage o-rings and seals
of the tool.
NOTE
Proper lubrication is the owner's re-
sponsibility. Failure to lubricate the tool
properly will dramatically shorten the life
of the tool and void your warranty.
1. Disconnect the air supply from the tool
before manually lubricating.
Your tool requires lubrication before
you use it for the first time and before
and after each additional use. If an Oiler
is used, manual lubrication through the air
inlet is not required on a daily basis.
Lubrication prevents wear and prevents
rust from forming.
LUBRICATION AND MAINTENANCE
2. Turn the tool so the air inlet is facing up
and put one drop of DeVilbiss AC230 Air
Tool Oil, high speed spindle oil, such as
Unocal RX22, or 3-in-1 oil into the air
inlet. DO NOT USE detergent oil or addi-
tives. Operate the tool briefly after add-
ing oil. (See Figure 1)
DO NOT OVER LUBRICATE AIR TOOL.
3. Wipe off excessive oil at the exhaust.
NOTE
Many air tool users find it convenient to use
an Oiler to help provide oil circulation
through tool. An Oiler also increases the
efficiency and useful life of the tool. An oiler
is recommended for tools that receive heavy
or constant use. Check oil level in the oiler
daily. (See Figure 2)
Many air tool users find it convenient to use
a Filter to remove liquid and solid impuri-
ties which can rust or "gum up" internal
parts of the tool. A Filter also increases the
efficiency and useful life of the tool. Drain
water from the filter periodically. (See
Figure 3)
Regulator
Oiler
Figure 1
Air Flow
Figure 2

PAGE 8
Always connect the Female Quick Cou-
pler to the air hose. Never connect the
Female Quick Coupler to the tool.
Never carry the tool by the hose or pull
the hose to move the tool or a com-
pressor. Keep hoses away from heat,
oil, and sharp edges. Replace any
damaged, weak or worn hoses.
Do not use any type of flammable gases
or oxygen as a power source for the tool.
Use filtered, lubricated, regulated com-
pressed air only. Use of compressed gas
instead of compressed air may cause
the tool to explode and cause death or
serious personal injury.
NOTE
For better performance, install a 3/8"
Quick Connector (1/4" NPT threads)
with an inside diameter of .315 (8 mm) on
your Tool and a 3/8" Quick Coupler on
the air hose. A minimum of 3/8" I.D. air
hose with a rated working pressure of
150 PSI or above should be used.
NOTE
Excessive oil will damage o-rings and
seal of tool. If in-line oiler is used,
manual lubrication through the air
inlet is not required on a daily basis.
Regulator
Oiler
Air Flow
Figure 3
The air compressor must be able to maintain
a minimum of 65 PSI when the tool is being
used. An inadequate air supply can cause a
loss of power or inconsistent operation.
Do not use a check valve or any other
fittings which will allow air to remain in
the tool. Serious personal injury or prop-
erty damage could occur.
Use a Pressure Regulator on your
compressor with an operating pressure
of 0-125 PSI. A Pressure Regulator is
required to control the operating pres-
sure of your tool. Refer to the label on
your nailer/stapler for the maximum
P.S.I.
Filter

PAGE 9
NAILER
FEMALE
QUICK
COUPLER
MALE
QUICK
CONNECTOR
OILER FILTER

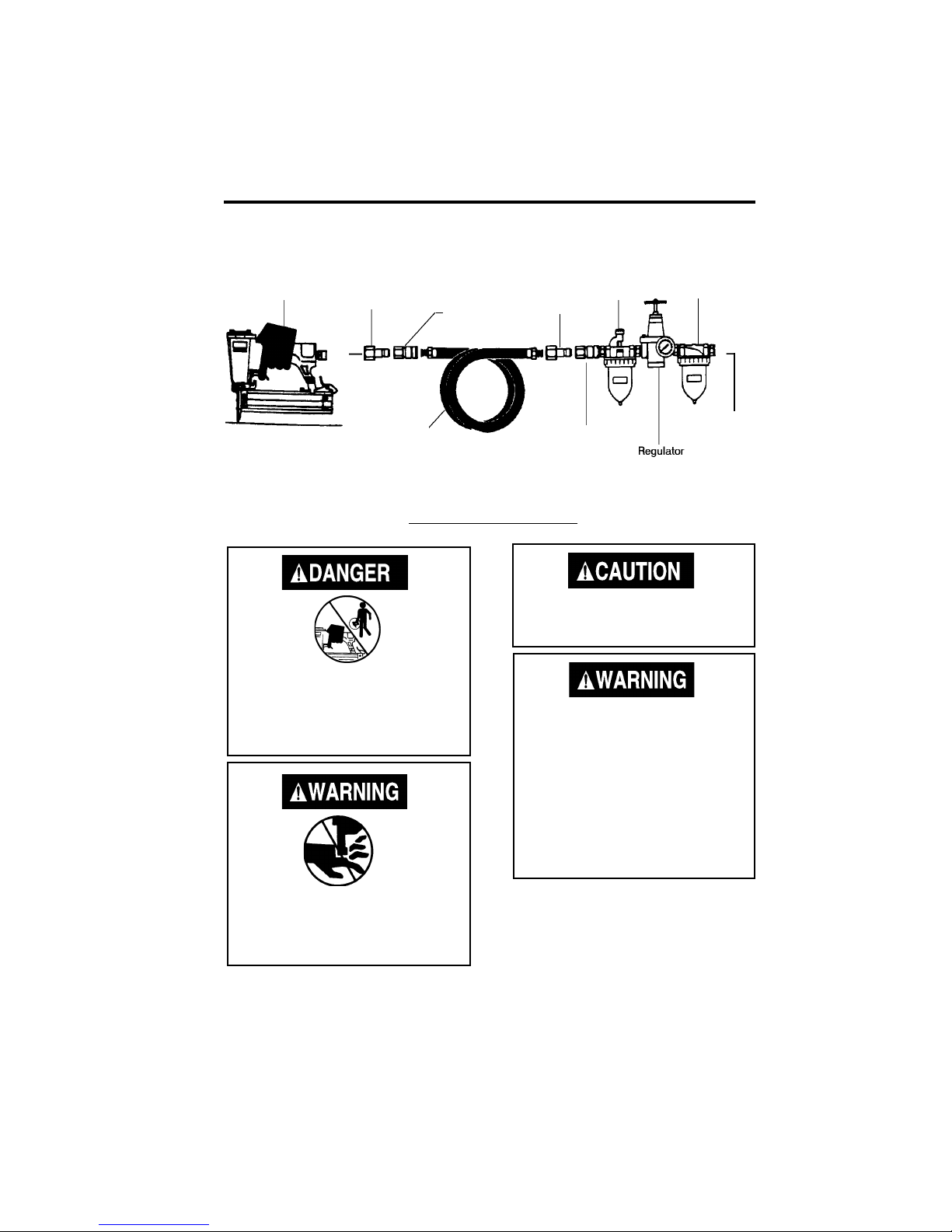

RECOMMENDED HOOK-UP
The following illustration shows the proper hook-up which will help
prolong the life of the Tool.
AIR
COMPRESSOR
AIR
HOSE
(3/8" I.D.) FEMALE
QUICK
COUPLER
MALE
QUICK
CONNECTOR
(Supplied with Tool)
Never keep the trigger pulled on contact
trip tools when carrying or holding the
tool. Death or a serious puncture wound
could occur if the contact trip bumps
something or someone.
Do not hold the tool against the work
surface with extra force. Allow the tool
to drive the fastener.
Do not use the contact trip mechanism
as a means of discharging a fastener
because:
1. It could result in personal injury
2. It could result in an accidential
release of a fastener.
3. It may cause damage to the
mechanism.
4. It could result in improper place-
ment of fastener in work piece.
Keep your hands and body away from
the fastener discharge area of the tool.
Serious personal injury or property dam-
age could occur.
CONTACT TRIP SAFETY
MECHANISM
Your Nailer/Stapler is a contact trip oper-
ated tool. When the operator depresses
the contact trip safety mechanism against
the work surface and then pulls the trigger,
a fastener will be driven.
CONTACT TRIP SAFETY MECHANISM
2X4 CONTRACTOR SERIES

PAGE 10
OPERATING A CONTACT TRIP
TOOL:
1. Requires finger to be off the trigger
and the nose of the Tool to be placed
on the work surface.
2. The contact trip safety mechanism is
then depressed against the work
surface and the trigger pulled to drive
a fastener.
3. The trigger is released after each
fastener is driven.
4. Move the tool to the next desired
fastener location and repeat the
procedure above.
CHECKING THE OPERATION OF
CONTACT TRIP SAFETY
MECHANISM
1. Disconnect the air supply from the tool.
2. Remove all fasteners from the
magazine.
Check the operation of the contact trip
safety mechanism often. Do not use the
tool if the contact trip safety mechanism
is not working correctly.
Make sure not to pull the trigger or
depress the contact trip safety mecha-
nism when connecting the tool to an
air compressor. Serious personal injury
or property damage can occur if the
tool cycles.
3. Make sure the trigger and contact trip
safety mechanism move up and down
without any sticking or binding.
4. Reconnect air supply to the tool.
5. Depress the contact trip safety mecha-
nism against the work surface without
pulling the trigger. The tool must not
cycle. Do not use the tool if a cycle
occurs.
6. Hold the tool clear of the work surface.
The contact trip safety mechanism
should return to its original down
position. Pull the trigger. The tool must
not cycle. Do not use the tool if a cycle
occurs.
7. Depress the contact trip safety
mechanism against the work surface.
Pull the trigger. The tool must cycle.
Disconnect tool from air supply before
adjusting, clearing jams, servicing, relo-
cating or during non-operation. Failure to
do so could result in serious injury or
property damage.
Never place your hand or any part of your
body in the fastener discharge area of the
tool when air supply is connected to the
tool. Serious personal injury may occur.
LOADING THE TOOL

PAGE 11
Handle the tool carefully. Respect the tool
as a working implement and always as-
sume the tool contains fasteners:
a. Never use the tool as a toy and
engage in horseplay.
b. Never aim or point the tool at any-
one. The tool may contain fasteners.
c. Always keep people and animals at
a safe distance from the work area
in case of accidental discharge of
fasteners.
d. Never pull the trigger unless the nose
of the tool is against the work
surface.
e. Do not pull the trigger or depress the
contact trip when loading the tool.
NOTE
Use DeVilbiss Air Power fasteners or
equivalent for proper performance of tool.
See page 17-20 for fastener information.
Loading the Tool
1. Disconnect air hose.
2. Pull feeder back into "locked" position.
3. Insert a stick of fasteners into the maga-
zine. Make sure the pointed ends of the
fasteners are loaded with thepoints
downward. Also make sure fasteners
are not dirty or damaged. Use DeVilbiss
fasteners or equivalent for proper
fastener performance.

PAGE 12
4. Push release button (if equipped) and
slide feeder shoe forward.
Protect your eyes and ears. Wear Z87
safety glasses with side shields. Wear
hearing protection. Employers and users
are responsible for ensuring the user or
anyone near the tool uses the prescribed
safety equipment.
READ THIS MANUAL AND UNDERSTAND
ALL SAFETY WARNINGS AND INSTRUC-
TIONS BEFORE OPERATING TOOL.
OPERATING THE TOOL
Disconnect tool from air compressor be-
fore adjusting, clearing jams, servicing,
relocating and during non-operation. Fail-
ure to do so could result in serious injury or
property damage.
NOTE
Check and replace any damaged or
worn components on the tool. The safety
warning labels on the tool must also be
replaced if they are not legible.
1. Add one drop of DeVilbiss AC230 Air
Tool Oil, high speed spindle oil, such
as Unocal RX22, or 3-in1 oil into the
air inlet.
2. Connect the Tool to the air supply.
3. Regulate the air pressure to obtain a
minimum of 75 PSI at the tool.
4. Set air pressure regulator to 75 PSI and
test for proper fastener penetration by
driving fasteners into a sample piece of
Release Button
Feeder
wood. If the fasteners do not achieve the
desired penetration, adjust the air
pressure to a lower or higher setting
until the desired penetration is achieved.
Do not exceed the maximum operating
PSI at the tool.
NOTE: When loaded with Brad Nails, the
NBSNC2x4 will leave a 1/4 inch indention.
Tilting the tool to the left 10° will eliminate
the indention.

PAGE 13
Disconnect tool from air compressor
before adjusting, clearing jams, servicing,
relocating and during non-operation.
FASTENER JAMMED IN FASTENER
DISCHARGE AREA:
1. Disconnect tool from air hose.
2. NF2502X4, NB1252X4, NB2002X4,
NBSNC2X4
Release the magazine latch to open the
magazine.
CLEARING A JAM FROM THE TOOL
Feeder
Magazine
Latch
Nose
Cover
Latch
SNC1002x4
Pull feeder shoe back into "locked" position.
3. Remove fasteners from magazine.
4. NF2502X4, SNC1002X4, NB2002X4, and
NB1252X4
Lift nose cover latch to unlatch and re-
move driver guide cover.
NBSNC2x4
Loosen the screws on the driver guide
cover and then remove the driver guide
cover.
5. Using pliers remove fasteners.
6. NF2502X4, NB1252X4, NB2002X4, and
SNC1002X4
Replace nose cover and latch into place.
NBSNC2X4
Replace nose cover.
7. Reload fasteners into magazine. Refer to
Loading the Tool section in this manual.

PAGE 14
FASTENER JAM INSIDE MAGAZINE:
1. Disconnect tool from air hose.
2. NF2502X4, NB1252X4, NB2002X4,
NBSNC2X4
Release the magazine latch to open the
magazine.
Feeder
Magazine
Latch
SNC1002x4
Pull feeder shoe back into "locked" position.
3. Remove jammed fasteners.
4. Reload fasteners into magazine. Refer to
Loading the Tool section in this manual.

PAGE 15
PROBLEM
Air leaking at trigger valve
area.
Air leaking through the
exhaust deflector.
Tool fails to drive fastener.
Tool runs slow or has loss
of power.
SOLUTION
Seals must be replaced &
operation of Contact trip must
be checked. On the NBSNC2x4
contact *AWSC for correct part.
All other nailers purchase
Trigger Repair Kit.
Spring needs to be replaced. On
the NBSNC2x4 contact *AWSC
for correct part. All other nailers
purchase Top Repair Kit.
Seals must be replaced.
Purchase Top Repair Kit on all
nailers.
Driver guide needs to be replaced.
Purchase Driver Blade Kit
Replace feed pawl. Contact a
*AWSC
Replace feed pawl spring. Con-
tact a *AWSC
Replace feed pawl pin. Contact a
*AWSC
Verify air flow or pressure to tool.
Replace or lubricate seal.
Purchase Bottom Repair Kit
Replace seal. Purchase Trigger
Repair Kit
Screws and fittings need to be
tightened.
Replace seal. Purchase Top Re-
pair Kit
Tools needs to be lubricated.
Verify air flow or pressure to tool.
Replace seal. Purchase Bottom
Repair Kit
Spring needs to be replaced.On
the NBSNC2x4 contact *AWSC
for correct part. All other nailers
purchase Top Repair Kit.
Replace seals. Contact a *AWSC
CAUSE
Seals in trigger valve housing
are damaged.
Broken /worn head valve spring.
Broken /worn head valve seals.
Worn or damaged driver guide.
Damaged feed pawl.
Worn feed pawl spring.
Damaged feed pawl pin.
Inadequate air flow or pressure
to Tool.
Worn seal on piston or lack of
lubrication.
Damaged seal on trigger valve.
Air leaks.
Cap seal leaking.
Tool not lubricated sufficiently.
Inadequate air flow or pressure
to tool.
Worn seal on piston.
Broken spring in cylinder cap.
Worn head valve seals.
Stop using the Tool immediately if any of the following occur.
Serious personal injury could occur.
Warranty repairs or replacements must be performed by a DeVilbiss Air Power
Authorized Service Center Only.
TROUBLESHOOTING GUIDE

PAGE 16
SOLUTION
Replace feed pawl. Contact an
*AWSC
Replace feed pawl spring.
Fasteners recommended for tool
must be used.
Replace with undamaged
fasteners.
Set platform to correct height.
Adjust air pressure to the correct
PSI for that particular model
nailer/stapler.
Repair trigger action. Purchase a
Trigger Repair Kit
Tighten screws.
Install head valve piston set.
Contact an *AWSC
Install head valve piston set.
Contact an *AWSC
Tighten screws.
Replace bumper or piston
assembly. Purchase a Bottom
Repair Kit
Check PSI and CFM.
Install head valve piston set.
Contact an *AWSC
Disassemble and clean cylinder.
Replace bumper. Purchase
Bottom Repair Kit
Replace piston assembly. On the
NBSNC2x4 contact an *AWSC
for correct part. All other nailers
purchase Bottom Repair Kit.
Check PSI and CFM.
Replace piston assembly. On the
NBSNC2x4 contact *AWSC for
correct part. All other nailers
purchase Bottom Repair Kit.
Tilting the tool to the left 10° will
eliminate the indention.
PROBLEM
Fasteners are jammed in
tool.
Nailer/Stapler misfires or
sinks two nails/staples at
the same time.
Air leak near top of tool.
Sluggish operation.
Air leak near bottom of
tool.
Tool does nothing.
Poor driver blade return.
Weak Drive.
NBSNC2X4 leaving a
1/4” indention.
CAUSE
Worn/damaged feed pawl.
Worn/damaged feed pawl spring.
Fasteners are not correct size.
Fasteners are bent.
Nail height setting incorrect.
Air pressure regulated too high.
Trigger action faulty.
Loose exhaust cover screws.
O-rings failed on head valve.
O-rings blown on head valve.
Loose driver guide screws.
Bumper or piston o-rings worn.
Air supply inadequate.
O-rings failed on head valve
piston set.
Dirty cylinder.
Worn Bumper.
O-rings worn in piston assembly.
Inadequate air supply.
Worn piston assembly.
Driver blade width is 1/4” making
it possible to use staples and
brad nails in the same tool
TROUBLESHOOTING GUIDE (cont'd)
*AWSC – Authorized Warranty Service Center: see back page for details

PAGE 17

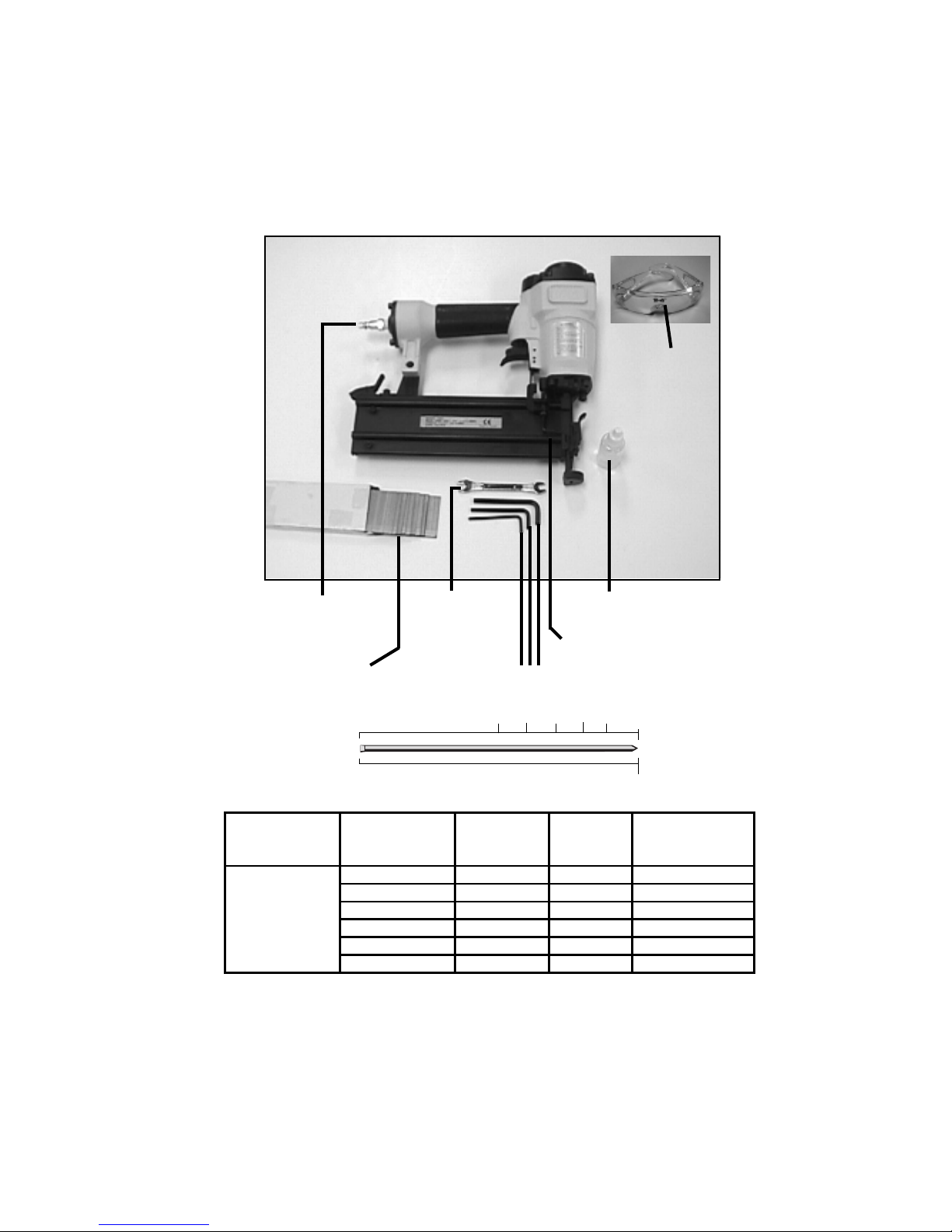

NF2502X4
1/4" NPT INLET
PLUG (AC100)
FINISH NAIL
FASTENERS
6 & 7MM
COMBINATION
CRESCENT
WRENCH
3 4 5mm
ALLEN WRENCHES
FINISH
NAILER
LUBRICATING OIL
SAFETY
GLASSES
1
1/2
”
1
”1
3/4
”2
1/4
”
2”
2
1/2
”
2
1/2
”
Tool Range
1
/4
Tool 2X4 Part Number Description Qty per Box Steel Driver Series
Comparable Part
NFF12525 1-1/4" Finish 2500 7T32
NFF15025 1-1/2" Finish 2500 7T38
NFF17525 1-3/4" Finish 2500 7T45
NFF20025 2" Finish 2500 7T50
NFF22525 2-1/4" Finish 2500
NFF25025 2-1/2" Finish 2500
NF2502X4

PAGE 18
SNC1002X4
NARROW
CROWN
STAPLE
FASTENER
1/4" NPT
INLET PLUG
(AC100) LUBRICATING
OIL
NARROW
CROWN
STAPLER
3 & 4
ALLEN
WRENCHES
SAFETY
GLASSES
Tool 2X4 Part Number Description Qty per Box Steel Driver Series
Comparable Part
SNCF06350 5/8" Staple 5000 2L16
SNCF07550 3/4" Staple 5000 2L19
SNCF10050 1" Staple 5000 2L25
SNC1002X4

PAGE 19
NB2002X4
LUBRICATING
OIL
1/4" NPT INLET
Plug
(AC100)
BRAD
NAILER
BRAD NAIL
FASTENERS
4 3
ALLEN
WRENCHES
5/8"
SAFETY
GLASSES
Tool 2X4 Part Number Description Qty per Box Steel Driver Series
Comparable Part
NBF07550 3/4" Brad 5000 4F20
NBF10050 1" Brad 5000 4F25
NBF12550 1-1/4" Brad 5000 4F32
NBF15050 1-1/2" Brad 5000
NBF17550 1-3/4" Brad 5000
NBF20050 2" Brad 5000
NB2002X4

PAGE 20
NB1252X4
LUBRICATING
OIL
1/4" NPT
INLET PLUG
(AC100)
BRAD NAIL
FASTENERS
BRAD NAILER
4MM 3MM
ALLEN
WRENCHES
SAFETY
GLASSES
Tool 2X4 Part Number Description Qty per Box Steel Driver Series
Comparable Part
NBF06350 5/8" Brad 5000 4F16
NBF07550 3/4" Brad 5000 4F20
NBF10050 1" Brad 5000 4F25
NBF12550 1-1/4" Brad 5000 4F32
NB1252X4
