Devine SND Series User manual

SND series
stage snake on reel
User manual
All information and illustrations shown in this user manual are subject to change without further notice.
User manual version: 1.0 Creation date + author initials: 02-06-2014 RV Revision date + author initials: 02-06-2014 RV

Safety instructions
This unit must be operated by, or under the supervision of an adult. This device is not suitable for children.
Every person involved with the installation, operation and maintenance of this device has to:
- Be qualified
- Follow the instructions of this manual
- Ma e sure there is no damage caused by transport. If the device appears to be damaged, do not use it and
contact your dealer for more information and consultation.
- To ma e sure the device remains in perfect condition and for safe operation, the user must follow the
instructions and warning notes of this user manual.
- Damage caused by improper use or modifications to the device are not covered by the warranty.
- This device does not have any user-serviceable parts inside. Servicing of this device needs to be
performed by qualified technicians.
Important notes regarding safety and health:
- Never remove warning or informative labels from the unit
- Never leave cables lying around
- Do not open the device and do not modify the hardware of this unit.
- Do not insert this object into air vents.
- Never exceed the input level that the fixture requires to operate at full performance.
- Only use this device indoors, avoid contact with water, moisture or other liquids. Do not place items filled
with liquids on top of the unit.
- Avoid flames or heat sources, do not place this device near flammable liquids, gas or flammable items.
- Always disconnect the device when it is not in use for a longer period of time, or when servicing or cleaning
is required.
- Only handle the cord by its connectors. Never pull the cable to remove a connector from its soc et, as this
could lead to permanent damage.
Guidelines and types of use:
- This device is intended to be used by professionals on stage, in theaters, clubs and similar venues.
- This device is not suitable for children and must always be operated by an adult.
- Only use the device when the environment is suitable and will not cause any damage. Do not use the
product in moist or dusty environments, or on locations where long-term damage may occur such as:
- indoor swimming pools where chlorine is used.
- beaches, where sand and salt are present.
- outdoor areas without roof protection
- indoor areas where intense heat sources are present or where the temperature exceeds levels
which are comfortable for humans.
- Avoid shoc s and collision during use and transport. Do not transport the device while it is in use. Avoid
excessive force during the installation and operation of this device.
- Familiarise yourself with the functions of the device before use. Do not allow operation of the device by
uns illed or unqualified people.
- Use of the device in other ways than described in this user manual may cause damage and injury. Devine
cannot be held responsible for any damage or injury caused by improper use.
Storage and transport:
- This device is intended for mobile use. During transport, use the original pac aging of the product, or a
fitting flight case, preferably equipped with a foam insert.
- This device is not intended for continuous use. Operation brea s ensure that the lifespan of the device is
not reduced.
- Store the device indoors, dry and do not expose the device to extreme temperature changes.
All information and illustrations shown in this user manual are subject to change without further notice.
User manual version: 1.0 Creation date + author initials: 02-06-2014 RV Revision date + author initials: 02-06-2014 RV

Housing:
- Inspect the housing of the device frequently. Severe dents, crac s and missing screws should be avoided
at all costs. Do not use the device when the housing is not in optimal condition. Contact your dealer or a
s illed technician when in doubt about the state of the device
- Chec the fixture and screws for corrosion. The fixture should not show any signs of corrosion. Contact
your dealer or a s illed technician when corrosion is found on the fixture.
- Every signal chassis/connector must be securely fixed. Do not use the device when connectors are loose.
- Do not use the device when the cores of cables are visible. Contact your dealer for help if needed.
- Avoid the buildup of dust and dirt. Clean the exterior of the fixture every month with a dry or damp cloth. If
the device is used intensively, the cleaning frequency must be increased.
Introduction
Than you for purchasing this Devine stage sna e. To ma e sure you use this product as intended and for
optimal performance and protection of this device, Devine recommends that you read this user manual
carefully.
Devine SND stage sna es are the perfect way of transmitting several audio signals by means of just one
multi-core cable, usually from a stage to the FOH PA mixer. This way, all audio signals from the stage can be
transferred safely and without losing any audio quality. Devine SND sna es are mounted on practical metal
cable reels with a bra e and are available in various editions.
Box contents:
1x SND stage sna e*
1x power cable
*Various models:
- 20/12/6
- 2 /16/8
- 30/16/4
- 30/24/8
All information and illustrations shown in this user manual are subject to change without further notice.
User manual version: 1.0 Creation date + author initials: 02-06-2014 RV Revision date + author initials: 02-06-2014 RV

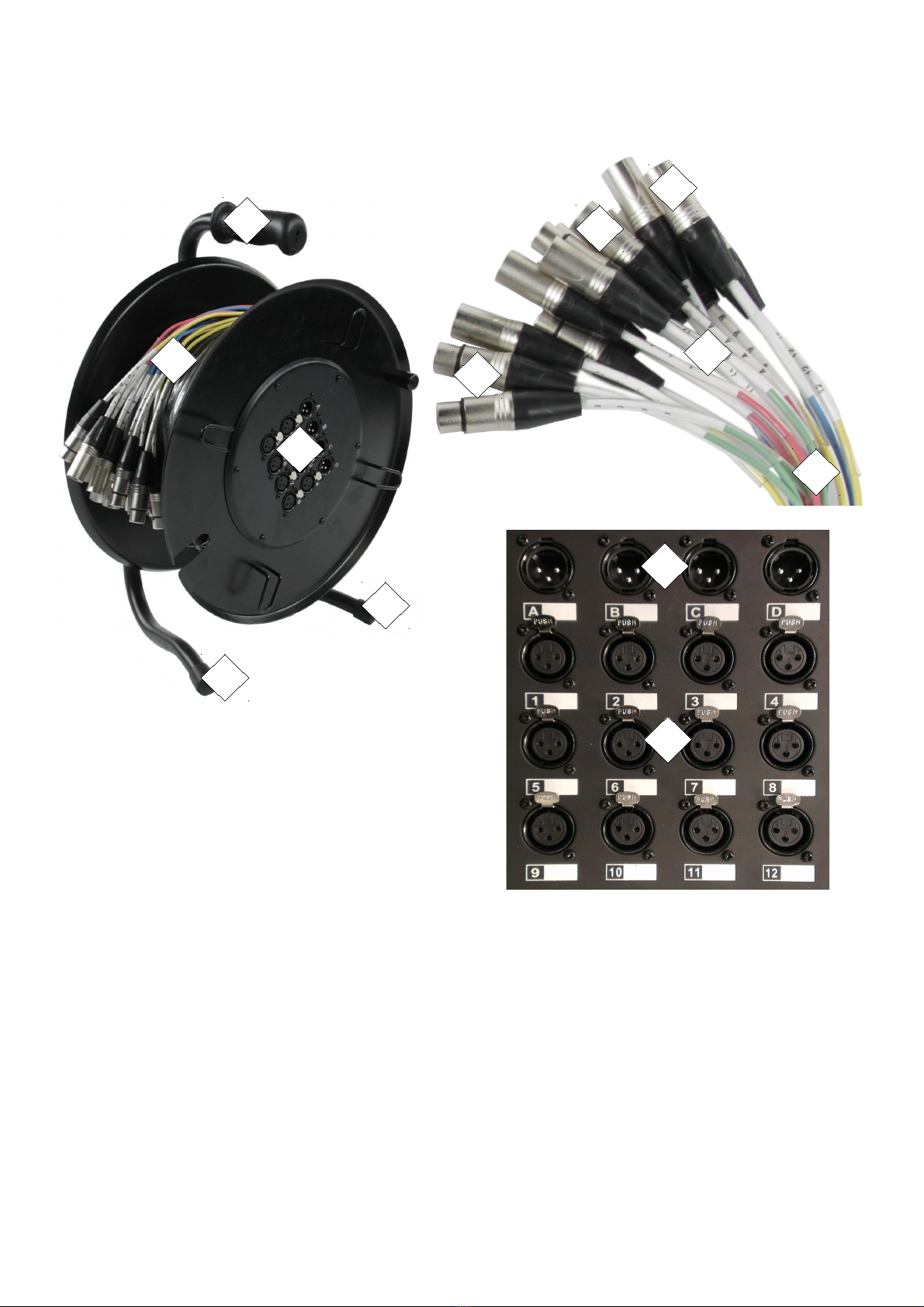

Device overvie
1. Sna e output connector (XLR M audio out – to PA mixer)
2. Sna e input connector (XLR F audio in – to stage bloc )
3. Cable strain relief and number labeling
4. Cable colour mar ing
5. Cable reel handle
6. Cable reel connection panel
7. Cable brea -out
8. Cable reel feet
9. Connection panel output connector ( XLR M audio out – to stage monitors)
10. Connection panel input connectors (XLR F audio in – to PA mixer)
All information and illustrations shown in this user manual are subject to change without further notice.
User manual version: 1.0 Creation date + author initials: 02-06-2014 RV Revision date + author initials: 02-06-2014 RV
1
1
2
3
4
5
6
7
8
9
10
8

Use of the stage snake
The Devine SND stage sna e series has been designed for professional use on stage. The SND sna es are
used to transmit groups of audio signals via one large multi-core cable, from the stage to a mixer and vice
versa. This way, you don't need a lot of separate cables to transmit all your audio signals from point A to B.
Labels
All connectors (cable connectors and panel chassis connectors) are equipped with their own cable colour
and a label which is used to distinguish the connectors from each other. This way, you always now which
connector is used for which channel.
Strain relief
All cable connectors are equipped with a transparent sleeve, which is also used as a strain relief for the
cable itself. This way, pulling a cable will never result in bro en cable contacts, thus preventing signal loss
and other problems. A large metal strain relief for the main cable has been provided to prevent the cable from
pulling connectors from your mixing des (the hoo sees to this)
Locking connectors
The inputs of the cables and the outputs of the connector panel
are equipped with loc ing XLR connectors. This means that
once a cable is connected to one of these connectors, it stays
in place until you unloc the mechanism. This prevents sudden
signal loss because of a disconnected cable. To unloc , press
the metal mechanism and pull the plug at the same time.
Cable reel
The cable reel on which the cable is mounted also serves as a convenient transport and storage device. The
reel is equipped with a practical handle and stable feet for positioning on the floor (or at the side of a stage).
Furthermore, the reel is equipped with a practical bra e, mounted on the rear of the drum. The bra e is used
to prevent the reel from turning during transport. To activate the bra e, turn the nob cloc wise and tighten it
properly by hand. To release the bra e, untighten the nob by turning it counter cloc wise.
Technical specifications
SND 20/12/6 SND/25/16/8 SND 30/16/4 SND 30/24/8
Input channels 12x XLR 16x XLR 16x XLR 24x XLR
Output channels 6x XLR 8x XLR 4x XLR 8x XLR
Cable length 20m 25m 30m 30m
Cable reel with bra e Yes
Cable reel with feet Yes
Protective bag for cable brea -out Yes
Metal strain relief for cable brea -out Yes
Shrin ing tube for cable brea -out Yes
