Devolo dLAN duo User manual

The Network Innovation
dLAN®
TV SAT Multituner

devolo dLAN®TV SAT

© 2013 devolo AG Aachen (Germany)
While the information in this manual has been compiled with great care, it may not be deemed an assurance of product characteristics. devolo shall be liable only
to the degree specified in the terms of sale and delivery.
The reproduction and distribution of the documentation and software supplied with this product and the use of its contents is subject to written authorization from
devolo. We reserve the right to make any alterations that arise as the result of technical development.
Trademarks
Android TM is a registered trademark of Open Handset Alliance.
HDMI®, the HDMI Logo and „High-Definition Multimedia Interface” are registered trademarks of HDMI Licensing LLC in USA and other countries.
HomePlug®is a registered trademark of HomePlug Powerline Alliance.
Mac®and Mac OS X®are registered trademarks of Apple Computer, Inc.
iPhone®,iPad® and iPod®are registered trademarks of Apple Computer, Inc.
SAT>IP is a trademark of SES S.A.
Windows®and Microsoft®are registered trademarks of Microsoft, Corp.
Wi-Fi®, Wi-Fi Protected AccessTM, WPATM, WPA2TM and Wi-Fi Protected SetupTM are registered trademarks of the Wi-Fi Alliance®.
devolo, dLAN®, Vianect®and the devolo logo are registered trademarks of devolo AG.
The firmware package from devolo contains files which are covered by different licenses, in particular under devolo proprietary license and under open source
license (GNU General Public License, GNU Lesser General Public License or FreeBSD License). The source code which is available for Open Source distribution
can be requested in writing from gp[email protected].
All other names mentioned may be trademarks or registered trademarks of their respective owners. Subject to change without notice. No liability for technical errors
or omissions.

devolo AG
Charlottenburger Allee 60
52068 Aachen
Germany
www.devolo.com
Aachen, February 2013

Contents
devolo dLAN TV SAT Multituner
Contents
1 Preface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
1.1 Thank you for placing your trust in this devolo product . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
1.1.1 About this manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2.1 What exactly is dLAN? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2.2 What does SAT>IP stand for? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2.3 The dLAN TV SAT Multituner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

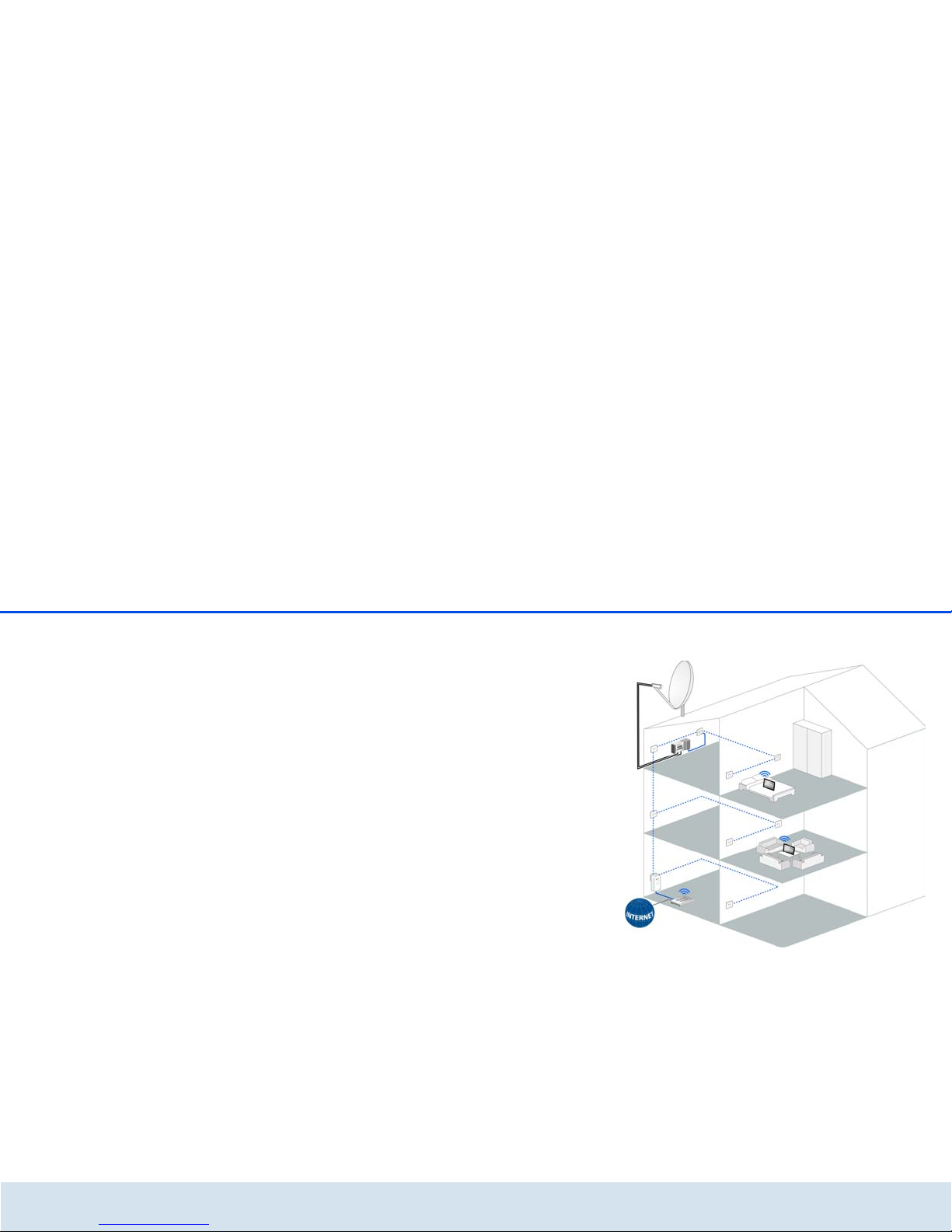

2.4 Sample applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
3 Initial use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
3.1 Package contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
3.2 System requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
3.3 The dLAN TV SAT Multituner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
3.3.1 Indicators and connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
3.3.2 Setup instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
3.3.3 Connecting the dLAN TV SAT Multituner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
4 Tuner configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
4.1 Calling up the built-in configuration interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
4.2 Menu description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

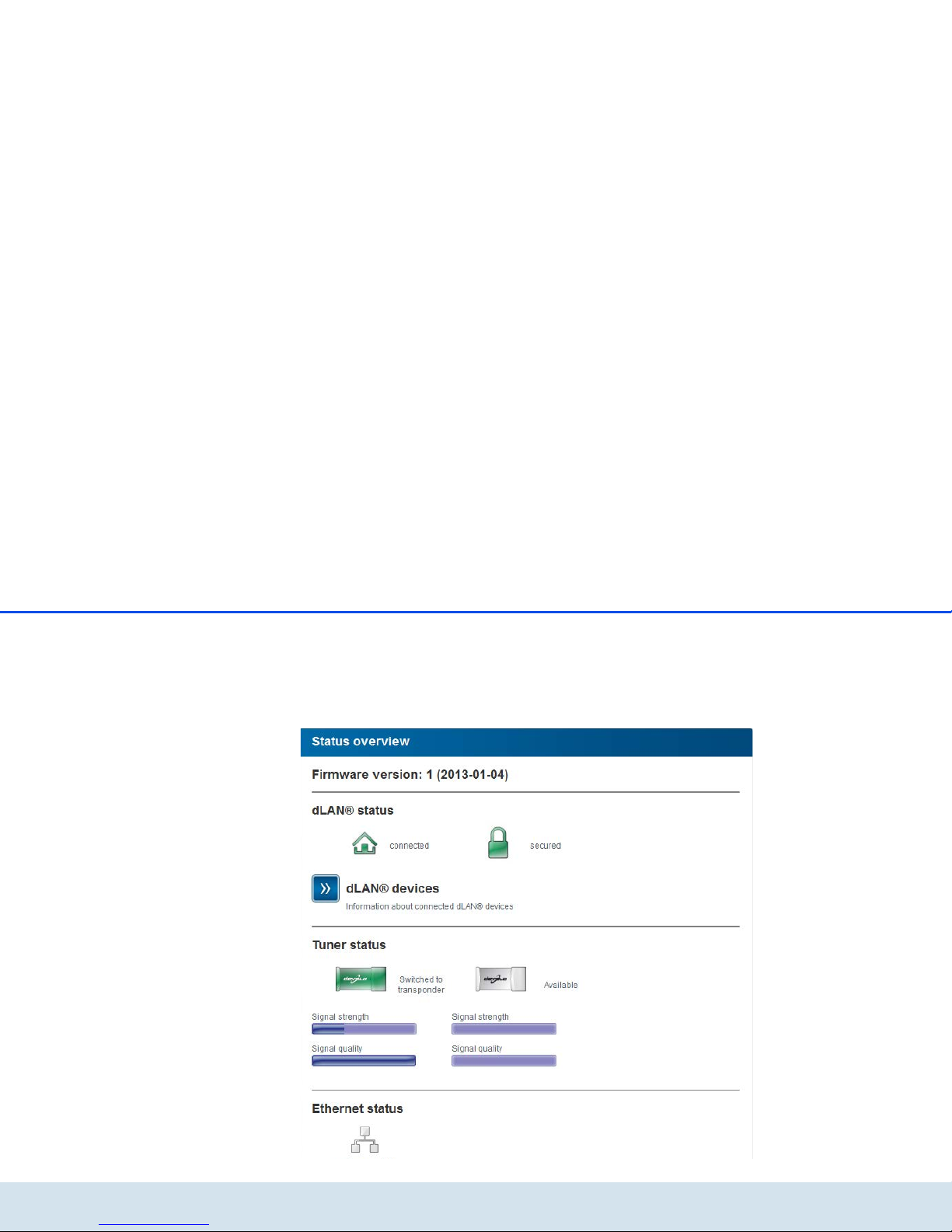

4.3 Status overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
4.3.1 dLAN status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
4.3.2 Tuner status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
4.3.3 Ethernet status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
4.4 Device configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
4.4.1 Network settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
4.4.2 dLAN settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
4.5 Tuner configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
4.6 Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
4.6.1 Resetting the configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Contents
devolo dLAN TV SAT Multituner
4.6.2 Saving a configuration file . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
4.6.3 Restoring a configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
4.6.4 Update firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
5 dLAN TV SAT App . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
5.1 System requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
5.2 Installing dLAN TV SAT App . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
5.3 Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
5.3.1 Live television . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
5.3.2 Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
6 dLAN network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
6.1 dLAN network encryption at the touch of a button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
6.2 dLAN Cockpit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
6.2.1 Encrypting a network with dLAN Cockpit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
7 Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
7.1 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
7.2 Important safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
7.3 Disposal of old devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44
7.4 Warranty conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44

Preface 7
devolo dLAN TV SAT Multituner
1Preface
1.1 Thank you for placing your
trust in this devolo product
The dLAN TV SAT Multituner lets you keep up with
the hot trend of mobile television and makes com-
plex satellite system cabling a thing of the past! The
devolo device not only uses a household's electrical
wiring to transmit TV signals, thereby changing any
power outlet into an antenna socket, it enables un-
encrypted satellite TV reception on your tablet and/
or smartphone together with the devolo dLAN TV
SAT App. Your Wi-Fi Internet access device just has
to be connected to the dLAN network with a dLAN
adapter.
You can add a devolo dLAN TV SAT to IP Receiver or
any other SAT>IP certified receiver at any time with
an additional dLAN adapter.
For more information on the topic of SAT>IP
and possible scenarios , see 7.1 Trouble-
shooting
. Additionally, the website
www.devolo.com contains a lot of SAT infor-
mation for you.
1.1.1 About this manual
After a brief introduction to the basics of dLAN and
SAT>IP as well as a short summary of the
dLAN TV SAT Multituner's functions in Chapter 2,
Chapter 3 shows you how to successfully start using
your device.
Chapter 4 provides a detailed description of the con-
figuration options for the integrated configuration in-
terface of the dLAN TV SAT Multituner. In Chapter 5
you learn how to watch satellite TV on your tablet or
smartphone using the devolo dLAN TV SAT App.
For more information on configuring your dLAN net-
work, see Chapter 6.
Information about product safety, the environmental
compatibility of the device and our warranty terms can
be found in Chapter 7 and conclude the manual.
The CE declaration for this product and the technical
data are on the included product CD.
Description of the symbols
Here we briefly describe the meaning of the symbols
used in this manual.
Very important note. Failure to ob-
serve this note may result in damage.
Important note that should be ob-
served.

8 Preface
devolo dLAN TV SAT Multituner
Additional information, background material
and configuration tips for your device.
If you have any further ideas or suggestions related to
our products, we would be delighted to hear from you
at [email protected]!
devolo on the Internet
For detailed information on our products or "dLAN",
visit www.devolo.com. The Service Centre area con-
tains downloadable product descriptions and docu-
mentation, as well as updates to devolo software and
device firmware.
To avoid damage to this or other devices, use
the enclosed components only for their intend-
ed purpose:
The dLAN TV SAT Multituner is intend-
ed for the reception of DVB-S/S2 satel-
lite signals and their transfer to the
connected SAT>IP receiver or to an In-
ternet-based terminal device (e. g.
smartphone or tablet).

Introduction 9
devolo dLAN TV SAT Multituner
2 Introduction
dLAN is an intelligent, secure technology that lets you
set up a home network easily, quickly and economical-
ly via your household electrical wiring, without the
need for complex and expensive dedicated cabling.
2.1 What exactly is dLAN?
dLAN (direct Local Area Network) uses the household
power grid to transfer data between computers
equipped with suitable adapters and other network
components. As a result, any power outlet can be used
as a network access point. The data is modulated prior
to transfer and sent as a signal via household power
lines. State-of-the-art technology ensures that the
power and data networks do not interfere with one an-
other. Networking via dLAN is fast and secure. The
data is encrypted using a key to prevent interception by
third parties.
With dLAN adapters, not only network signals can eas-
ily be transferred via the mains supply. Video signals in
HD standard and audio signals in digital CD quality can
be quickly and easily distributed everywhere in the
house this way.
2.2 What does SAT>IP stand for?
SAT>IP is a new communication protocol for receiving
and distributing satellite signals. It converts the televi-
sion signals (DVB-S/S2) into signals that Internet-based
terminal devices can read, so that satellite television is
possible even on IP devices having no integrated satel-
lite receiver (such as smartphones and tablets). The
satellite signals can be forwarded within the home net-
work either wirelessly or by cable.

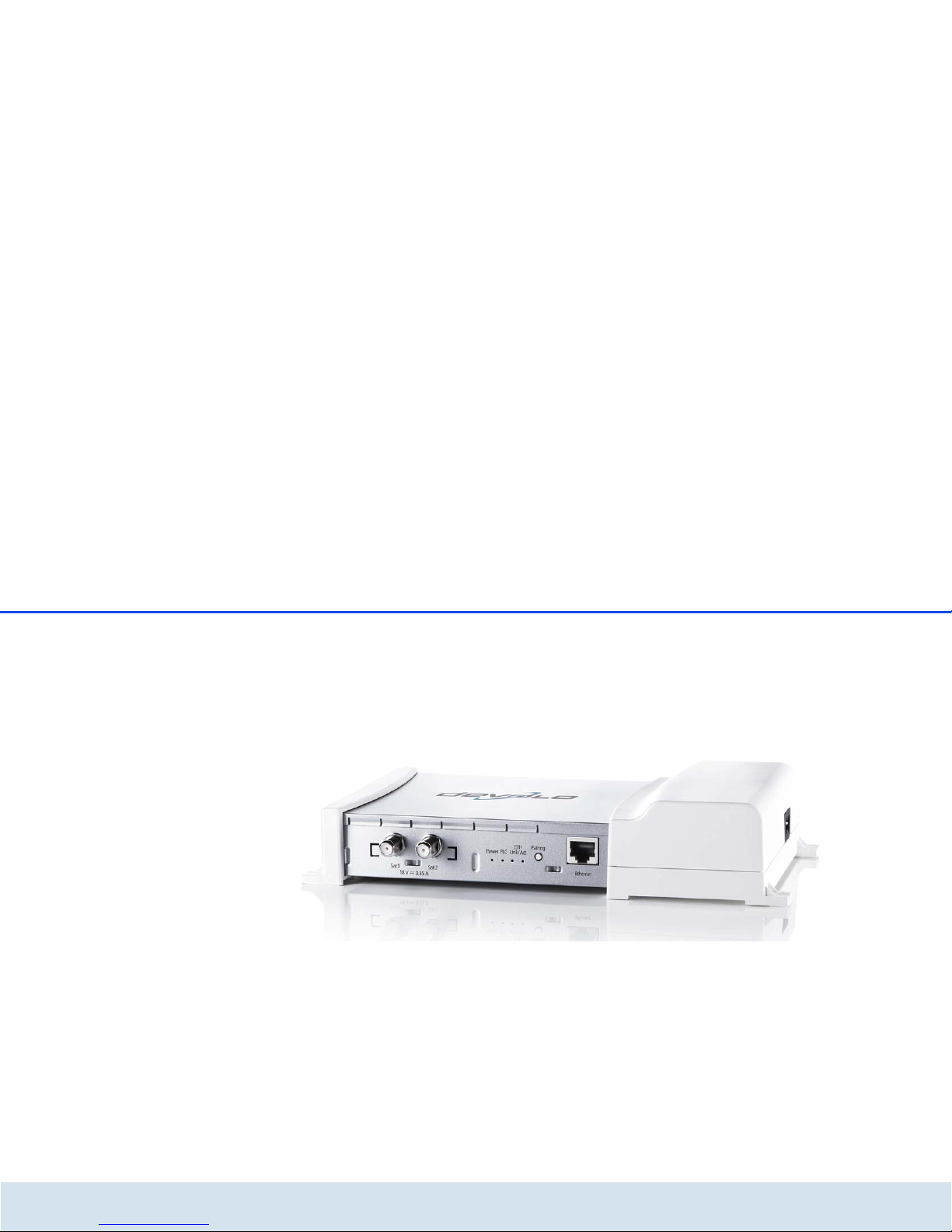

2.3 The dLAN TV SAT Multituner
쎲The twin tuner equipped with two satellite con-
nections, for example, lets you record and play
back different TV stations simultaneously on one
receiver or to operate two receivers in one home
simultaneously.
쎲Compatible with all common SAT>IP-certified set-
top boxes.
쎲Comprehensive support for devolo's
dLAN TV SAT to IP Receiver
쎲Simple configuration of the twin tuner via dLAN
Cockpit or web browser
쎲With the devolo dLAN TV SAT App, smartphones
and tablets become receiver devices for unen-
crypted satellite TV
