DFI LR100-N16 Series User manual

LR100-N16/N18
SERIES
System Board
User’s Manual
A12540350

Copyright
This publication contains information that is protected by copyright. No part of it
may be reproduced in any form or by any means or used to make any transfor-
mation/adaptation without the prior written permission from the copyright hold-
ers.
This publication is provided for informational purposes only. The manufacturer
makes no representations or warranties with respect to the contents or use
of this manual and specifically disclaims any express or implied warranties of
merchantability or fitness for any particular purpose. The user will assume the
entire risk of the use or the results of the use of this document. Further, the
manufacturer reserves the right to revise this publication and make changes to
its contents at any time, without obligation to notify any person or entity of such
revisions or changes.
Changes after the publication’s first release will be based on the product’s revi-
sion. The website will always provide the most updated information.
© 2013. All Rights Reserved.
Trademarks
All trademarks and registered trademarks of products appearing in this manual
are the properties of their respective holders.

FCC and DOC Statement on Class B
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment
is operated in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or televi-
sion reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
• Consult the dealer or an experienced radio TV technician for help.
Notice:
1. The changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
2. Shielded interface cables must be used in order to comply with the emission
limits.

1
4
Introduction
Table of Contents
Copyright...........................................................................................2
Trademarks........................................................................................2
FCC and DOC Statement on Class B..............................................3
About this Manual .............................................................................6
Warranty ..........................................................................................6
Static Electricity Precautions.............................................................7
Safety Measures.................................................................................7
About the Package ............................................................................8
Before Using the System Board........................................................8
Chapter 1 - Introduction ..................................................................9
Specifications..................................................................................9
Features ...................................................................................... 12
Chapter 2 - Hardware Installation.................................................. 14

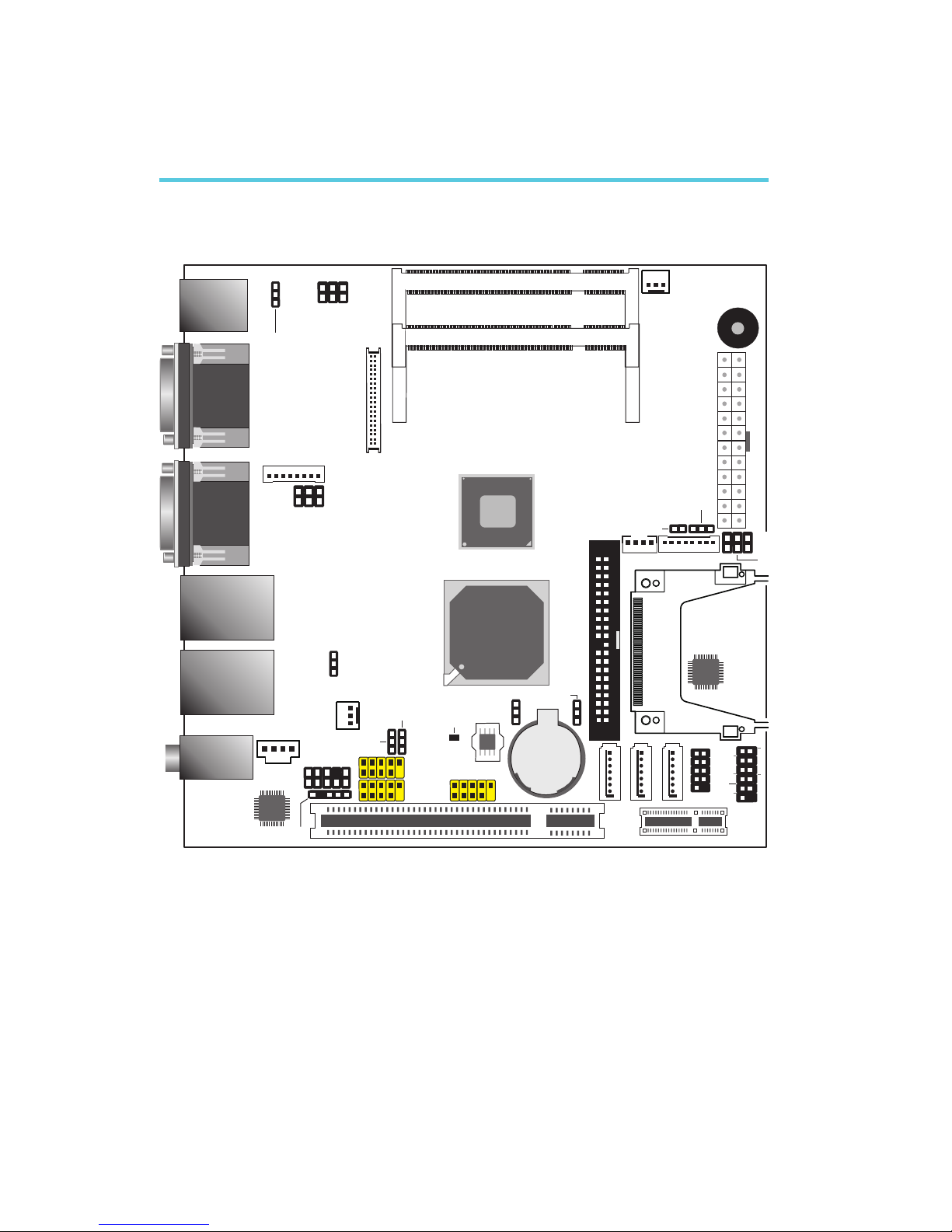

System Board Layout .................................................................... 14
System Memory ........................................................................... 15

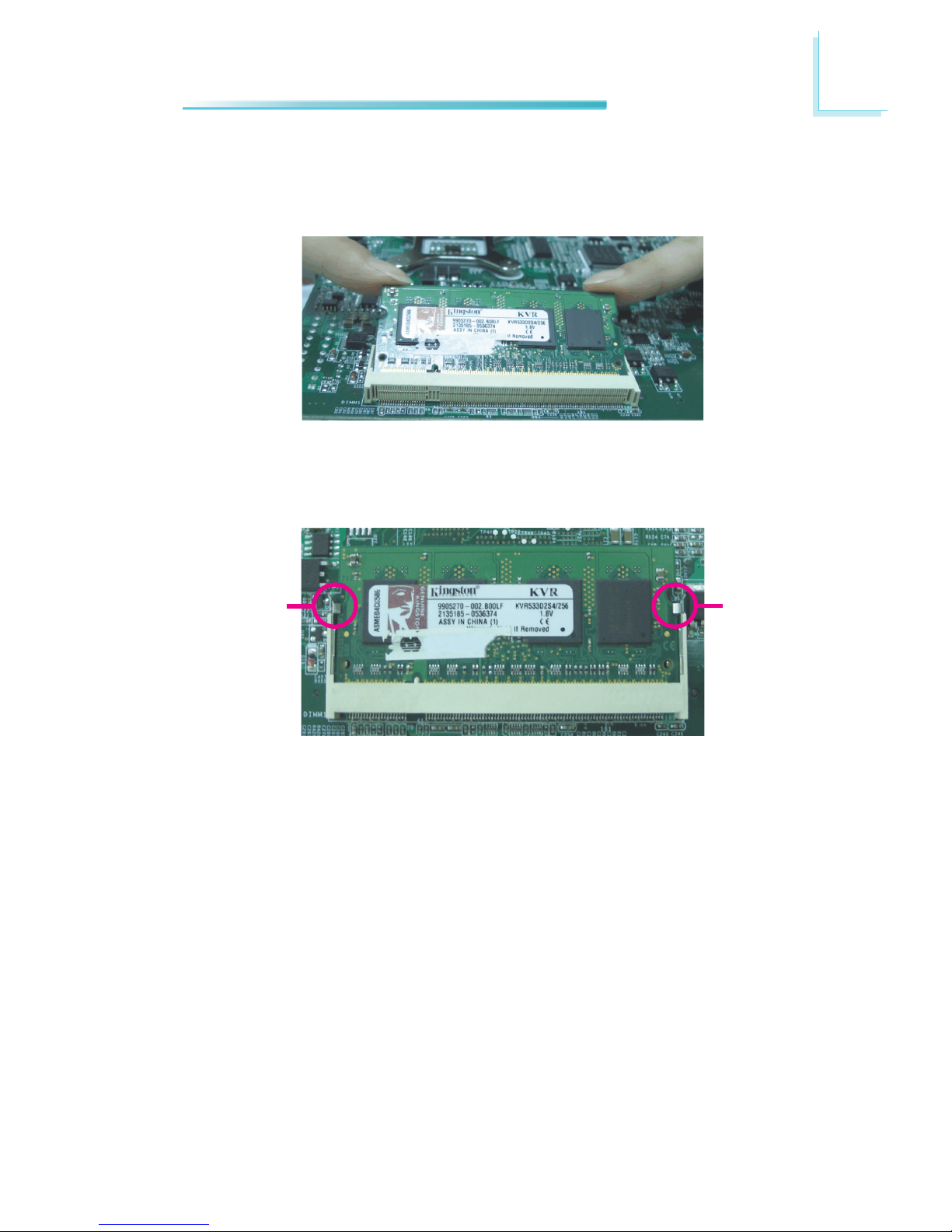

Installing the DIM Module ......................................................... 16

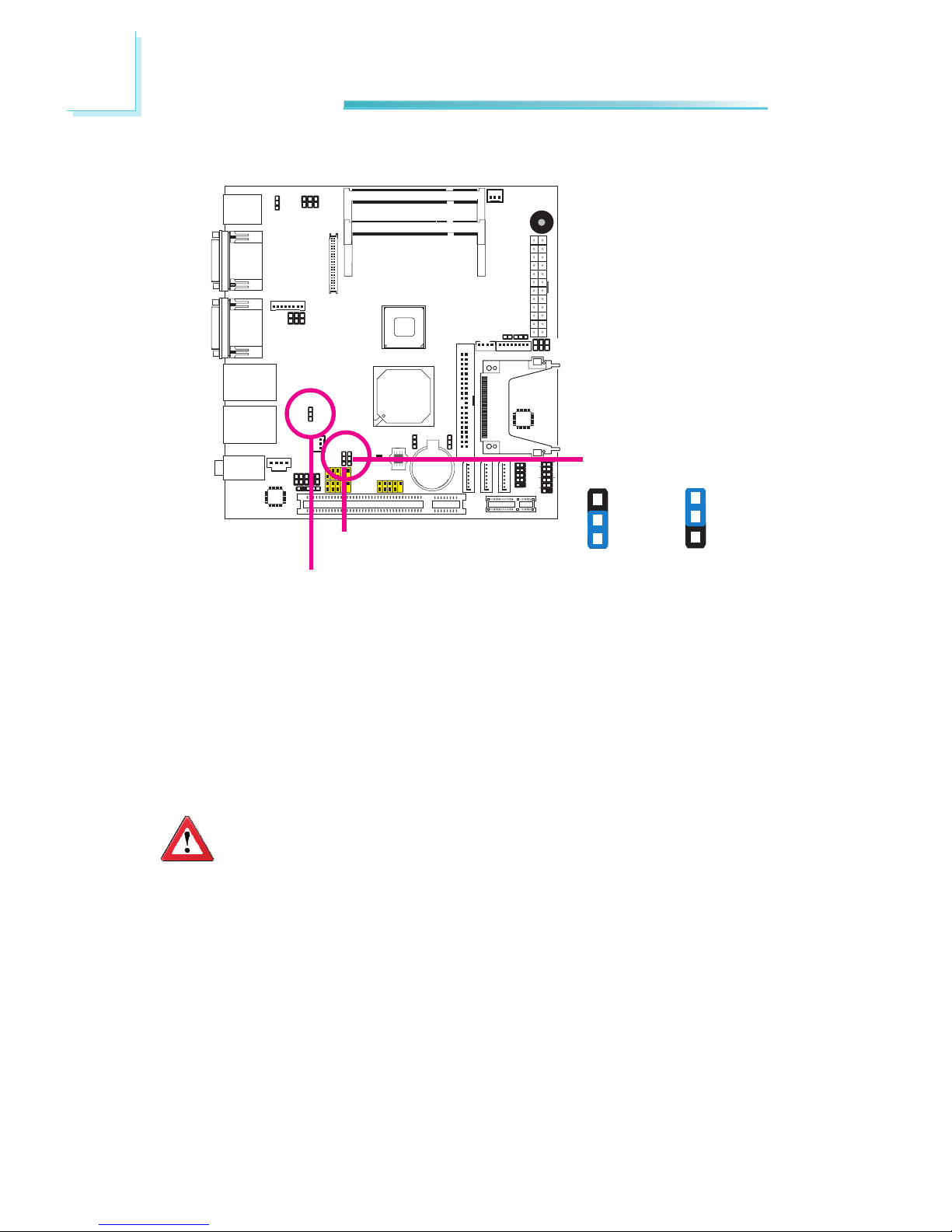

Jumper Settings............................................................................. 18
Clear CMOS Data ..................................................................... 18
PS/2 Power Select.................................................................... 19
USB Power Select..................................................................... 20
Panel Power Select................................................................... 21
CompactFlash Card Setting ....................................................... 22
COM 3 RS232/RS422/RS485 Select............................................ 23
COM 2 RS232/Power Select....................................................... 24
Power-on Select....................................................................... 25
Rear Panel I/O Ports..................................................................... 26
PS/2 Mouse and PS/2 Keyboard Ports......................................... 27
COM (Serial) Ports ................................................................... 28
VGA Port................................................................................. 30
RJ45 LAN Ports........................................................................ 31
USB Ports................................................................................ 32
Audio ..................................................................................... 34

1
5
Introduction
I/O Connectors............................................................................ 36
CD-in Internal Audio Connector ................................................. 36
S/PDIF Connector..................................................................... 37
LVDS LCD Panel Connector and LCD/Inverter Power Connector...... 38
Digital I/O Connector................................................................ 40
SATA (Serial ATA) Connectors.................................................... 41
IDE Connector ......................................................................... 42
Cooling Fan Connectors............................................................. 44
Chassis Instrusion Connector .................................................... 45
Power Connector...................................................................... 46
Standby LED ........................................................................... 47
Front Panel Connectors............................................................. 48
Expansion Slots ....................................................................... 49
Battery ................................................................................... 50
CompactFlash Socket................................................................ 51
Chapter 3 - BIOS Setup.................................................................. 52
Overview ..............................................................................................................52
AMI BIOS Setup Utility ................................................................. 54
Main....................................................................................... 54
Advanced................................................................................ 55
PCIPnP.................................................................................... 69
Boot....................................................................................... 70
Security.................................................................................. 73
Chipset ................................................................................... 77
Exit ........................................................................................ 82
Updating the BIOS........................................................................ 85
Chapter 4 - Supported Software ................................................... 86
Appendix A - NLITE and AHCI Installation Guide ....................... 107
Appendix B - Watchdog Timer...................................................... 119
Appendix C - System Error Message............................................ 122
Appendix D - Troubleshooting...................................................... 124

1
6
Introduction
About this Manual
An electronic file of this manual is included in the CD. To view the user’s manual
in the CD, insert the CD into a CD-ROM drive. The autorun screen (Main Board
Utility CD) will appear. Click “User’s Manual” on the main menu.
Warranty
1. Warranty does not cover damages or failures that arised from misuse of the
product, inability to use the product, unauthorized replacement or alteration
of components and product specifications.
2. The warranty is void if the product has been subjected to physical abuse,
improper installation, modification, accidents or unauthorized repair of the
product.
3. Unless otherwise instructed in this user’s manual, the user may not, under
any circumstances, attempt to perform service, adjustments or repairs on the
product, whether in or out of warranty. It must be returned to the purchase
point, factory or authorized service agency for all such work.
4. We will not be liable for any indirect, special, incidental or consequencial
damages to the product that has been modified or altered.

1
7
Introduction
Static Electricity Precautions
It is quite easy to inadvertently damage your PC, system board, components
or devices even before installing them in your system unit. Static electrical dis-
charge can damage computer components without causing any signs of physical
damage. You must take extra care in handling them to ensure against electro-
static build-up.
1. To prevent electrostatic build-up, leave the system board in its anti-static bag
until you are ready to install it.
2. Wear an antistatic wrist strap.
3. Do all preparation work on a static-free surface.
4. Hold the device only by its edges. Be careful not to touch any of the compo-
nents, contacts or connections.
5. Avoid touching the pins or contacts on all modules and connectors. Hold
modules or connectors by their ends.
Important:
Electrostatic discharge (ESD) can damage your processor, disk drive and
other components. Perform the upgrade instruction procedures described
at an ESD workstation only. If such a station is not available, you can
provide some ESD protection by wearing an antistatic wrist strap and
attaching it to a metal part of the system chassis. If a wrist strap is
unavailable, establish and maintain contact with the system chassis
throughout any procedures requiring ESD protection.
Safety Measures
To avoid damage to the system:
• Use the correct AC input voltage range.
To reduce the risk of electric shock:
• Unplug the power cord before removing the system chassis cover for instal-
lation or servicing. After installation or servicing, cover the system chassis
before plugging the power cord.
Battery:
• Danger of explosion if battery incorrectly replaced.
• Replace only with the same or equivalent type recommend by the manufac-
turer.
• Dispose of used batteries according to local ordinance.

1
8
Introduction
About the Package
The system board package contains the following items. If any of these items are
missing or damaged, please contact your dealer or sales representative for as-
sistance.
One system board
One IDE cable
One USB cable
One Serial ATA cable
One Serial ATA power cable
One bracket mounted with a COM port
One I/O shield
One CD
One QR (Quick Reference)
Optional Items
USB port cable
COM port cable
Serial ATA data cable
Serial ATA power cable
I/O shield
IDE cable
Heat sink
The system board and accessories in the package may not come similar to the
information listed above. This may differ in accordance to the sales region or
models in which it was sold. For more information about the standard package in
your region, please contact your dealer or sales representative.
Before Using the System Board
Before using the system board, prepare basic system components.
If you are installing the system board in a new system, you will need at least the
following internal components.
• Memory module
• Storage devices such as hard disk drive, CD-ROM, etc.
You will also need external system peripherals you intend to use which will nor-
mally include at least a keyboard, a mouse and a video display monitor.

1
9
Introduction
Processor
Southbridge
System Memory
Expansion Slots
Chapter 1 - Introduction
• Intel®AtomTM D510 (Dual Core) - LR100-N16D
Intel®AtomTM D410 (Single Core) - LR100-N16S
Intel®AtomTM N450 (Single Core) - LR100-N16M
Intel®AtomTM D525 (Dual Core) - LR100-N18D
Intel®AtomTM D425 (Single Core) - LR100-N18S
Intel®AtomTM N455 (Single Core) - LR100-N18M
• On die 2 x 512KB (LR100-N16D/N18D),
1 x 512KB (LR100-N16S/N16M/N18S/N18M);
8-way L2 cache
• C0 and C1 C-states - LR100-N16D/N16S/N18D/N18S
C0/C1(E)/C2(E)/C4(E) C-states - LR100-N16M/N18M
• 1.66GHz core frequency (LR100-N16D/N16S/N16M/N18M),
1.8GHz core frequency (LR100-N18D/N18S);
1.10V voltage
• IA 32-bit and Intel®64 architecture
• Micro-FCBGA8 packaging technologies
• Cooling option:
heat sink with cooling fan - LR100-N16D/N18D;
heat sink (fanless solution) - LR100-N16S/N16M/N18S/N18M
• Intel®ICH8M I/O Controller Hub
• Two 200-pin SODIMM sockets
• LR100-N16M/N18M - Supports DDR2 667MHz only
LR100-N16D/N16S/N18D/N18S - Supports DDR2
667/800MHz only
• LR100-N16M/N18M - Supports up to 2GB system memory
LR100-N16D/N16S/N18D/N18S - Supports up to 4GB sys-
tem memory
• Single channel memory interface
• Supports x16 devices
• 1 PCIE x1 slot
• 1 PCI slot
• 1 CompactFlash socket
Specifications

1
10
Introduction
Graphics
Audio
LAN
Serial ATA
Rear Panel I/O
Ports
Trusted Platform
Module-TPM
(optional)
LR100-N16D/N16S/N18D/N18S
• Intel®GMA 3150
- Contains a refresh of the 3rd generation graphics core
• 400MHz render clock frequency
• Display ports: LVDS and RGB
- Integrated single LVDS channel supports resolution up to
1366x768, 18bpp
- Analog RGB display output up to resolution 2048x1536 @ 60Hz
• DirectX 9 compliant Pixel Shader 2.0
LR100-N16M/N18M
• Intel®GMA 3150
- Contains a refresh of the 3rd generation graphics core
• 200MHz render clock frequency
• Display ports: LVDS and RGB
- Integrated single LVDS channel supports resolution up to
1280x800 or 1366x768
- Analog RGB display output up to resolution 1400x1050 @ 60Hz
• DirectX 9 compliant Pixel Shader 2.0
• Realtek ALC262 2-channel High Definition Audio
• High performance DACs with 100dB SNR
• ADCs with 90dB SNR
• Two stereo DACs support 24-bit PCM format for stereo au-
dio playback
• Three stereo ADCs support 20-bit PCM format for multiple
input streaming
• S/PDIF audio interface
• Intel 82567V Gigabit Ethernet Phy and Realtek RTL8111C
PCI Express Gigabit Ethernet controller
• Integrated 10/100/1000 transceiver
• Supports Full Duplex flow control (IEEE 802.3x)
• Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
• Supports power down / link down power saving
• 3 Serial ATA ports compliant with SATA 1.0 specification
• SATA speed up to 3Gb/s (SATA 2.0)
• Mini-DIN-6 ports: PS/2 mouse port and PS/2 keyboard port
• 3 DB-9 RS232 serial ports
- Pins 1 and 9 of COM2 functions as RS232 signal or power
(selectable via jumper)
• 1 DB-15 VGA port
• 2 RJ45 LAN ports
• 4 USB 2.0/1.1 ports
• Mic-in, Line-in and Line-out
• Provides a Trusted PC for secure transactions
• Provides software license protection, enforcement and pass-
word protection
