The 586TXD, equipped with a 321-pin Zero Insertion Force (ZIF) CPU
socket, is a Pentiumprocessor-class system board supporting Intel
Pentium processors with MMX™technology - 166/200/233MHz, Intel
Pentiumprocessors running at 90MHz, 100MHz, 120MHz, 133MHz,
150MHz, 166MHz and 200MHz frequencies, and future IntelPentium
OverDriveprocessors. The 586TXDalso supports AMDK5™PR90/
PR100/PR120/PR133/PR166, and AMDK6/166, K6/200 and K6/233.
The 586TXD system board can support 8MB to 256MB of system
memory. It is equipped with two DIMM sockets using x64 EDO, fast
page mode or SDRAM, and 4 SIMM sockets using EDO or fast page
mode x32 DRAM. This system board also supports 512KB pipeline
burst SRAM.
The 586TXD design is based on the Peripheral Component Interconnect
(PCI) local bus and Industry Standard Architecture (ISA) standards. It is
equipped with 3 dedicated PCI slots, 2 dedicated 16-bit ISA slots and 1
shared PCI/ISA slot.
The 586TXD is equipped with two NS16C550A-compatible serial con-
nectors, an SPP/ECP/EPP parallel connector, a shrouded floppy disk
header, and two shrouded PCI IDE headers with bus mastering capa-
bilities that highly reduce CPU use during disk transfer. This system
board is also equipped with one PS/2 mouse connector, one PS/2 or AT
keyboard port, two USB ports and one IrDA connector for wireless con-
nectivity between your computer and peripheral devices.
The 586TXD system board is a Baby AT form factor board designed to
fit into an ATX form factor case. Using an ATX power supply, you can
either shut down your computer by pressing the Power button located
on the front bezel of your computer or by executing the Shut Down
command under the Windows95 operating system if you have power
management in the BIOS setup correctly enabled. Your system will then
enter the “Soft Off” state. With a modem connected to your system, you
can power on your system to remotely transmit or access data. An ATX
Chapter 1
Introduction

5
power supply also provides adequate airflow throughout the chassis to
prevent overheating the processor.
With ATX power supply being used, the 586TXD system board can sup-
port ACPI Specification, Modem Wake-Up, PC 97 Compliance, and
Dual Function Power Button to enhance its performance.
ACPI (Advanced Configuration Power Interface) has energy saving fea-
tures which enable operating systems to reliably manage and coordi-
nate power planes, PnP (Plug-and-Play) peripherals, and cooling fans.
ACPI is the specification of Microsoft's PC 97 "OnNow" design allowing
continual "power on" with reduced energy consumption.
The Modem Wake-Up feature allows the sleeping (Suspend mode) PC
to wake-up to respond to incoming calls. The Modem Ring-on feature
allows the Soft Power Down (Soft-Off) PC to power on to respond to
incoming calls.
PC 97 Compliance defines the adherence to Plug-and-Play compatibil-
ity, hardware power management, and 32-bit device drivers for
Windows95 & WindowsNT specifications. PC 97 makes PCs easier
to use through maximum cooperation between the operating system
and hardware.
Dual Function Power Button allows two distinct OFF modes. In Sleep
mode, a PC powers down but not off. In Soft-Off, a PC shuts down but
requires a reboot to "awaken" it.

6
Features and Specifications
Processor
•Intel Pentiumprocessors with MMX™technology - 166/200/
233MHz
•Intel Pentium90/100/120/133/150/166/200MHz
•Future PentiumOverDriveprocessors
•AMDK5™PR90/PR100/PR120/PR133/PR166
•AMDK6/166, K6/200, K6/233
Chipset
•Intel82430TX PCIset
Cache Memory
•512KB pipeline burst, direct map write-back cache installed on the
system board
System Memory
•8MB to 256MB memory
•Two 168-pin DIMM sockets using x64 EDO (60/70ns), fast page
mode (60/70ns), or SDRAM (10/12/13ns), 3.3V
•Four 72-pin SIMM sockets using EDO or fast page mode x32
DRAM, 60/70ns, 5V
BIOS
•Award BIOS, Windows95 Plug and Play compatible
•Flash EPROM for easy BIOS upgrades
Energy Efficient Design
•Supports ACPI specification and OS Directed Power Management
(ATX power supply only)
•System power management supported
•CPU stopped clock control
•Hardware supports SMI green mode
•Microsoft/IntelAPM 1.2 compliant
•Soft Power supported - ACPI v1.0a specification (using ATX power
supply only)

7
PCI IDE Interface
•Ultra DMA/33 supported (Synchronous DMA mode - data transfer
rate up to 33MB/sec.)
•PIO Mode 3 and Mode 4 Enhanced IDE (data transfer rate up to
16.6MB/sec.)
•Bus mastering reduces CPU utilization during disk transfer
•ATAPI CD-ROM supported
Integrated I/O
•Ultra I/O controller
•Two NS16C550A-compatible high speed UARTs
•One SPP/ECP/EPP parallel port
•Supports 360KB, 720KB, 1.2MB, 1.44MB, and 2.88MB floppy drives
CPU Socket
•321-pin ZIF socket (IntelSocket 7)
•Equipped with a switching voltage regulator which can support 10A
current to the CPU core
Connectors
•2 connectors for external USB (Universal Serial Bus) ports
•1 connector for IrDA interface
•2 serial connectors
•1 parallel port
•2 IDE connectors
•1 floppy connector
•1 PS/2 mouse connector
•1 PS/2 or AT keyboard port
•1 20-pin ATX power supply connector
•1 12-pin standard AT power supply connector
Expansion Slots
•3 dedicated PCI slots
•2 dedicated 16-bit ISA slots
•1 shared PCI/ISA slot
PCB
•4 layers, Baby AT form factor
•25cm (9.84") x 22cm (8.66")

8
Package Checklist
The 586TXD package contains the following items:
•The 586TXD system board
•The 586TXD user’s manual
•Serial, mouse and printer port cables
Option 1:
-One card-edge bracket with a 9-pin and 25-pin serial port cables
-One card-edge bracket with a 25-pin printer port cable and a PS/2
mouse port cable
Option 2:
-One card-edge bracket with two 9-pin serial port cables and a
PS/2 mouse port cable
-One 25-pin printer port cable for chassis mounting
•One 40-pin IDE hard disk cable
•One 34-pin floppy disk drive cable
•One IDE driver diskette
•Five spare jumpers
•One card-edge bracket with two USB ports (optional)
If any of these items are missing or damaged, please contact your
dealer or sales representative for assistance.

9
Chapter 2
Hardware Installation
This chapter summarizes the steps to install the 586TXD system board
into your system unit. It also includes a description of the area in which
you must work and directions for memory installation. Before installing
the system board, obtain the memory you plan to install. Refer to the
System Memory section for the number and type of memory modules
needed for the amount of memory you require.
Preparing the Area
Before unpacking the system board, make sure the location you have
selected is relatively free of dust and static electricity. Excessive expo-
sure to dust, static electricity, direct sunlight, excessive humidity, ex-
treme cold, and water can damage the operational capabilities of your
system board. Avoid placing the unit on surfaces such as carpeted
floors. These areas also attract static electricity which can damage
some circuits on your system board.
Make sure the power source has a properly grounded, three-pronged
socket. It is essential that the power connection be properly grounded
for correct functioning of your system board. For further protection, we
recommend that you use a surge suppressor. This will protect the sys-
tem board from damage that may result from a power surge on the
electrical line.
Move items that generate magnetic fields away from your system board
since magnetic fields can also damage your system board. Once you
have selected the ideal location, unpack the 586TXD system board
carefully.
Handling the System Board
It is quite easy to inadvertently damage your system board even before
installing it in your system unit. Static electrical discharge can damage
computer components without causing any signs of physical damage.
You must take extra care in handling the system board to ensure
against electrostatic build-up.

10
Static Electricity Precautions
1.To prevent electrostatic build-up, leave the board in its anti-static
bag until you are ready to install it.
2.Wear an antistatic wrist strap.
3.Do all preparation work on a static-free surface with the system
board components facing up.
4.Hold the system board by its edges only. Be careful not to touch
any of the components, contacts or connections, especially gold
contacts, on the board.
5.Avoid touching the pins or contacts on all modules and connectors.
Hold modules and connectors by their ends.
Warning:
Electrostatic discharge (ESD) can damage your processor, disk drives,
add-in boards, and other components. Perform the upgrade instruction
procedures described at an ESD station only. If such a station is not
available, you can provide some ESD protection by wearing an anti-
static wrist strap and attaching it to a metal part of the system chassis.
If a wrist strap is unavailable, establish and maintain contact with the
system chassis throughout any procedures requiring ESD protection.
Installing the System Board
If you are installing the 586TXD system board, the following outlines the
basic installation steps. Before installing the system board into your sys-
tem unit, you should prepare the tools you will need.
You will need:
•One medium size, flat-bladed screwdriver
•One medium Phillips screwdriver
•One needle-nosed pliers
•One small nutdriver
1.Unlock your system unit. Turn off the power and disconnect all
power cords and cables.

11
2.Remove the system unit cover. Refer to the manufacturer’s instruc-
tions if necessary.
3.Detach all connectors from the old system board and remove ex-
pansion cards seated in any expansion slots.
4.Loosen the screws holding the original system board and remove
the board from the system. Save the screws.
5.Remove the 586TXD from its original packing box. Be careful to
avoid touching all connectors and pins on the board. Please refer to
the handling instructions on pages 9-10 for proper handling tech-
niques.
6.Insert the memory modules into the memory banks on the 586TXD.
The quantity and location of the memory modules depends on the
memory configuration and type of modules you intend to use.
7.Install the CPU. Be sure pin 1 of the CPU is aligned with pin 1 of
the socket.
8.Set the corresponding jumpers.
9.Install the prepared 586TXD system board into the case and re-
place the screws.
10.Reinstall all cards and connectors and replace the system unit
cover. Reconnect all power cords and cables.

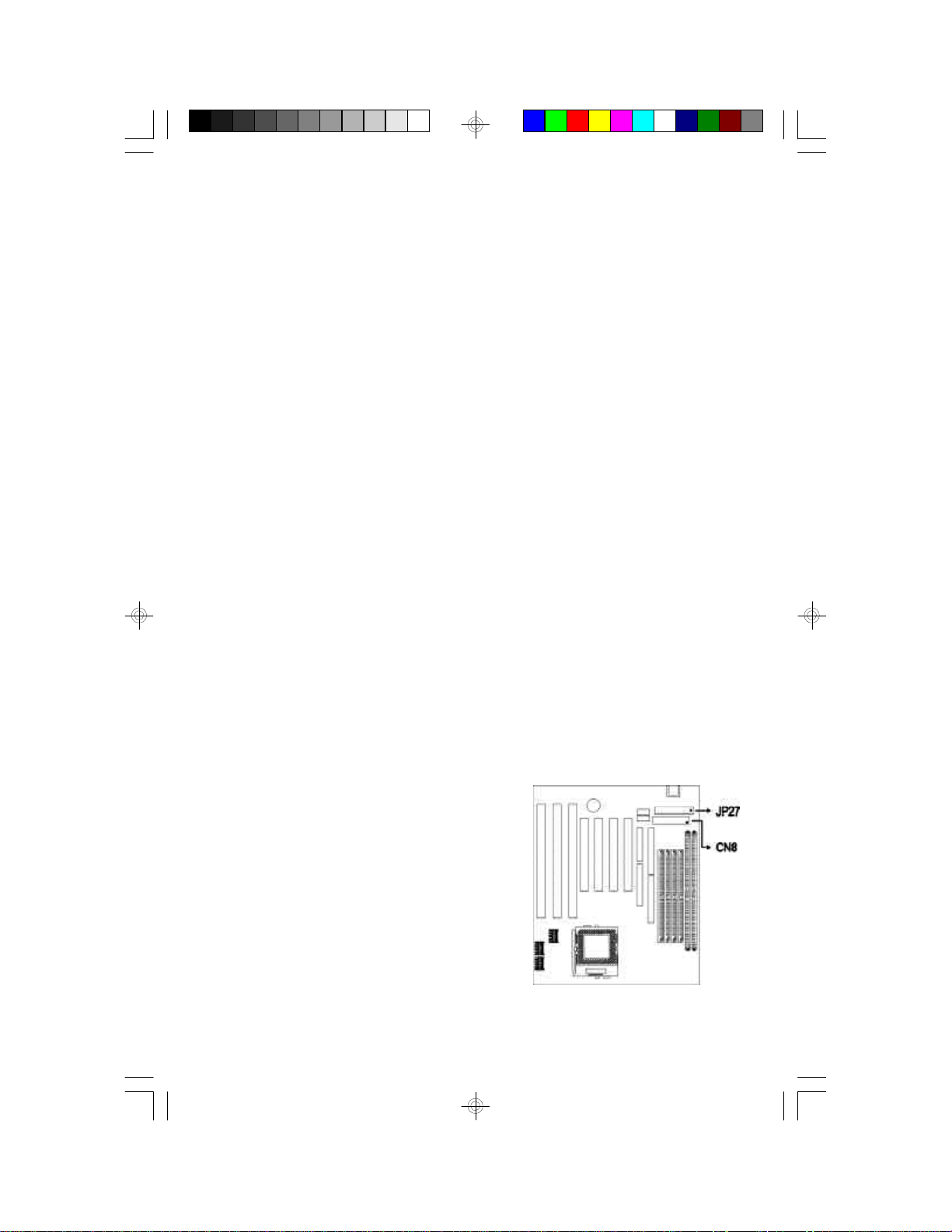

Use only the ATX (CN8) or AT
(JP27) power connector, not both. If
you are using an ATX power supply,
install the 20-pin ATX power cable
connector into location CN8 on the
system board. The 20-pin connector
can be inserted into CN8 only if pin
1 of the connector is aligned with
pin 1 of CN8.

12
Board Layout
square denotes pin 1

13
pages 18-21
pages 25-26
page 26
Refer to
Sockets
DM0 and DM1 - DIMM sockets
SM1 to SM4 - SIMM sockets
U1 - ZIF socket
pages 14-15
pages 15-17
pages 22-24
Refer to
Expansion slots
PCI Slots 0, 1, 2, 3 - 32-bit PCI slots
ISA Slots 1, 2, 3, 4 - 16-bit ISA slotspage 33
page 33
Refer to
J7-Primary IDE HDD connector
J8-Secondary IDE HDD connector
J14-PS/2 mouse port
J15-AT keyboard port
J16-PS/2 keyboard port
J10-Keylock connector
Speaker connector
Reset switch connector
SMI switch connector
Power switch connector
Green LED connector
HDD LED connector
ATX LED connector
Connectors - refer to pages 71-73
JP8-USB 1 connector
JP9-USB 2 connector
JP20-COM 1 serial port
JP22-COM 2 serial port
JP27-AT power connector
CN8-ATX power connector
U26-Parallel printer port
U28-Floppy disk drive connector
U32-IrDA connector
Jumpers
JP1, JP2, JP15, JP28 and JP29
Intel and AMD processors
JP26 - Modem Ring-on select
JP14 and JP30
Factory Testing Jumpers

14
System Memory
The 586TXD system board supports two kinds of memory modules:
DIMM and SIMM. DIMM, which uses SDRAM, performs better than
SIMM, which uses DRAM. Refer to page 12 for the locations of the DIM
and SIM sockets.
Important:
DIM and SIM modules cannot exist on the 586TXD system board at the
same time. Use either SIMM or DIMM only, and not both.
DIMM

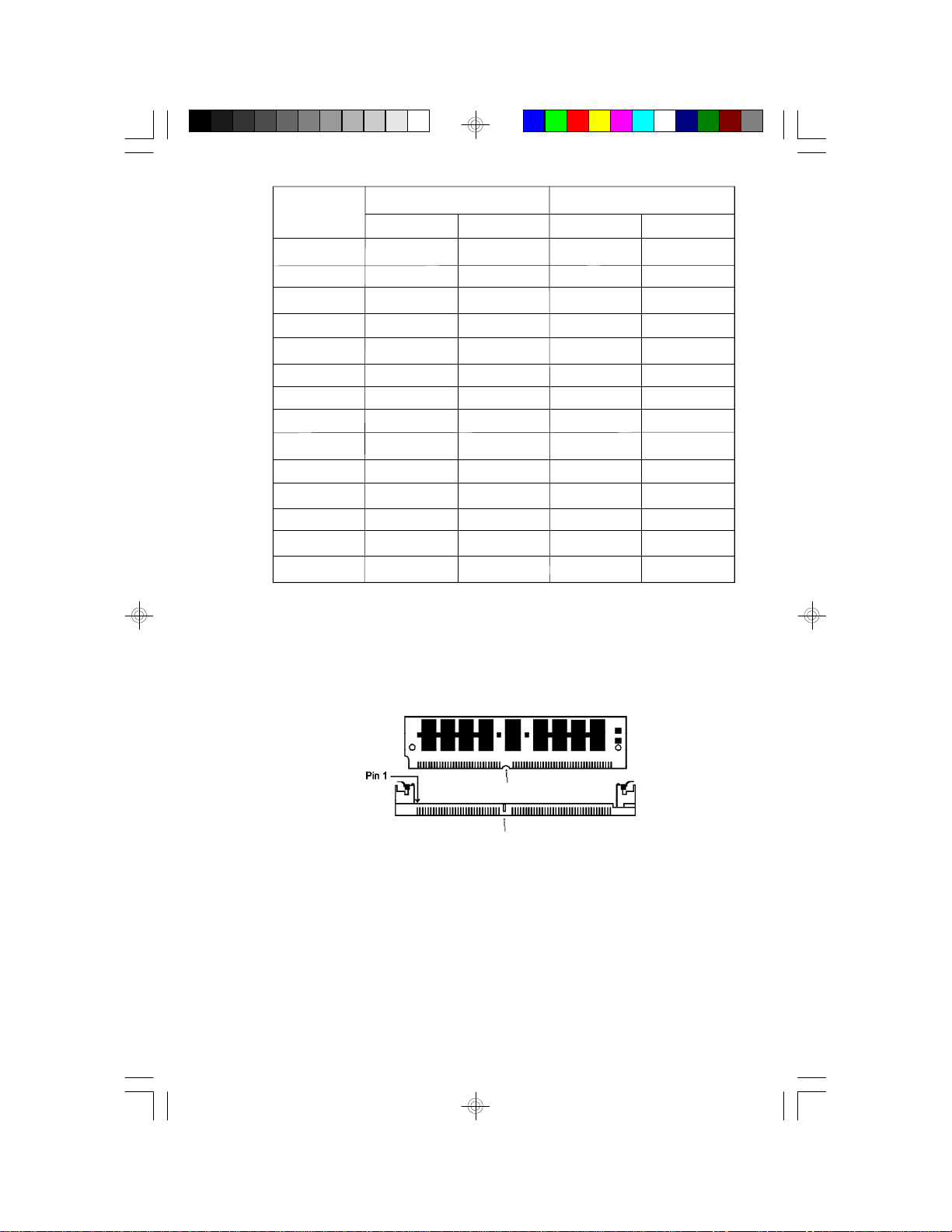

The two 168-pin DIMM (Dual In-line Memory Module) sockets use x64
EDO, FPM and SDRAM. The 586TXD system board can support 8MB
to 64MB memory using 1MBx64, 2MBx64 or 4MBx64 DIMM. The table
below shows the supported DIM modules and their corresponding
memory sizes.
DIMMs
1MBx64
2MBx64
4MBx64
Memory Size
8MB
16MB
32MB
The table below summarizes the DIMM sockets and modules needed
for the corresponding memory sizes.
Memory Size
8MB
8MB
16MB
16MB
16MB
24MB
24MB
32MB
DIM 0
1MBx64
none
2MBx64
none
1MBx64
1MBx64
2MBx64
4MBx64
DIM 1
none
1MBx64
none
2MBx64
1MBx64
2MBx64
1MBx64
none
Memory Size
32MB
32MB
40MB
40MB
48MB
48MB
64MB
DIM 0
none
2MBx64
1MBx64
4MBx64
2MBx64
4MBx64
4MBx64
DIM 1
4MBx64
2MBx64
4MBx64
1MBx64
4MBx64
2MBx64
4MBx64

15
SIMM
The SIMM (Single In-line Memory Module) sockets are divided into two
banks on the system board, Bank 0 and Bank 1. Each bank consists of
2 SIMM sockets.
You will need either 2 or 4 pieces of SIM modules, depending on the
amount of memory you intend to install. The system board will not work
if you install 1 or 3 pieces. Make sure you insert the same type of
SIMMs in one bank. You can install SIMMs in either of the banks, Bank
0 or Bank 1, but you must populate one bank first before going to the
next bank.
The 586TXD system board can support 8MB to 256MB of memory us-
ing 1MBx32, 2MBx32, 4MBx32, 8MBx32, or 16MBx32 72-pin SIMMs.
The table on the next page shows the supported SIM modules and their
corresponding memory sizes.

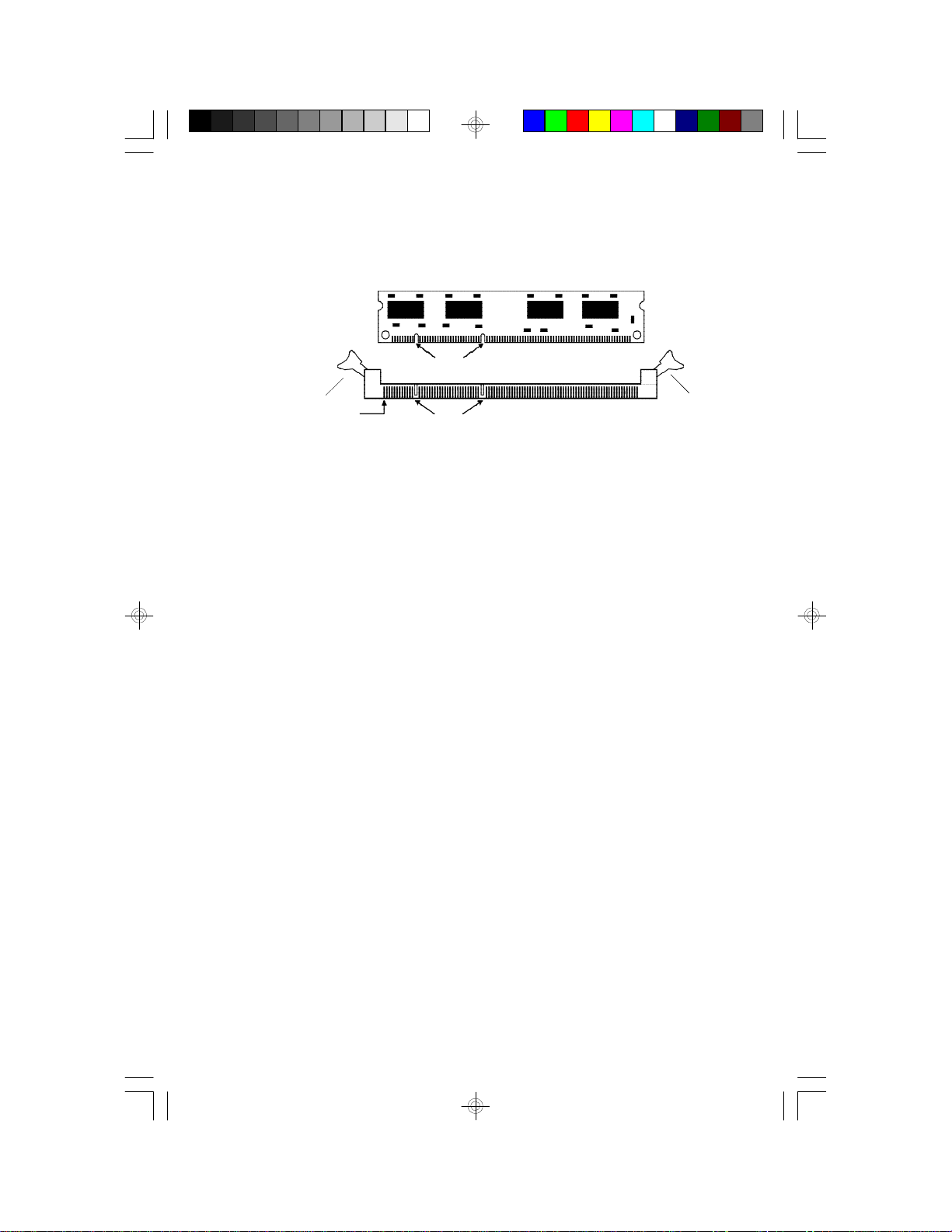

Installing the DIM Module
A DIM module simply snaps into a socket on the system board. Pin 1 of
the DIM module must correspond with pin 1 of the socket.
1.Pull the “tabs” which are at the ends of the socket to the side.
2.Position the DIMM above the socket with the “notches” in the mod-
ule aligned with the “keys” on the socket.
3.Seat the module vertically into the socket. Make sure it is com-
pletely seated. The tabs will hold the DIMM in place.
Pin 1
Notch
KeyTab
Tab

16
The table below summarizes the bank locations and modules needed
for the corresponding memory sizes.
SIMMs
1MBx32
2MBx32
4MBx32
8MBx32
16MBx32
Memory Size
4MB
8MB
16MB
32MB
64MB
SIMM3
—
1MBx32
—
2MBx32
1MBx32
2MBx32
1MBx32
—
4MBx32
2MBx32
4MBx32
1MBx32
4MBx32
2MBx32
—
8MBx32
4MBx32
8MBx32
1MBx32
8MBx32
2MBx32
SIMM2
1MBx32
—
2MBx32
—
1MBx32
1MBx32
2MBx32
4MBx32
—
2MBx32
1MBx32
4MBx32
2MBx32
4MBx32
8MBx32
—
4MBx32
1MBx32
8MBx32
2MBx32
8MBx32
MemorySize
8MB
8MB
16MB
16MB
16MB
24MB
24MB
32MB
32MB
32MB
40MB
40MB
48MB
48MB
64MB
64MB
64MB
72MB
72MB
80MB
80MB
Bank0
SIMM1
1MBx32
—
2MBx32
—
1MBx32
1MBx32
2MBx32
4MBx32
—
2MBx32
1MBx32
4MBx32
2MBx32
4MBx32
8MBx32
—
4MBx32
1MBx32
8MBx32
2MBx32
8MBx32
SIMM4
—
1MBx32
—
2MBx32
1MBx32
2MBx32
1MBx32
—
4MBx32
2MBx32
4MBx32
1MBx32
4MBx32
2MBx32
—
8MBx32
4MBx32
8MBx32
1MBx32
8MBx32
2MBx32
Bank1

17
SIMM1
4MBx32
8MBx32
16MBx32
—
8MBx32
1MBx32
16MBx32
2MBx32
16MBx32
4MBx32
16MBx32
8MBx32
16MBx32
16MBx32
MemorySize
Bank0
SIMM2SIMM4
Bank1
SIMM3
96MB
96MB
128MB
128MB
128MB
136MB
136MB
144MB
144MB
160MB
160MB
192MB
192MB
256MB
4MBx32
8MBx32
16MBx32
—
8MBx32
1MBx32
16MBx32
2MBx32
16MBx32
4MBx32
16MBx32
8MBx32
16MBx32
16MBx32
8MBx32
4MBx32
—
16MBx32
8MBx32
16MBx32
1MBx32
16MBx32
2MBx32
16MBx32
4MBx32
16MBx32
8MBx32
16MBx32
8MBx32
4MBx32
—
16MBx32
8MBx32
16MBx32
1MBx32
16MBx32
2MBx32
16MBx32
4MBx32
16MBx32
8MBx32
16MBx32
1.Position the SIMM above the socket with the “notch” in the module
aligned with the “key” on the socket.
2.Seat the module at a 45° angle into the bank. Make sure it is com-
pletely seated. Tilt the module upright until it locks in place in the
socket.
Installing a SIM Module
A SIM module simply snaps into a socket on the system board. Pin 1 of
the SIM module must correspond with Pin 1 of the socket.
notch
key

18

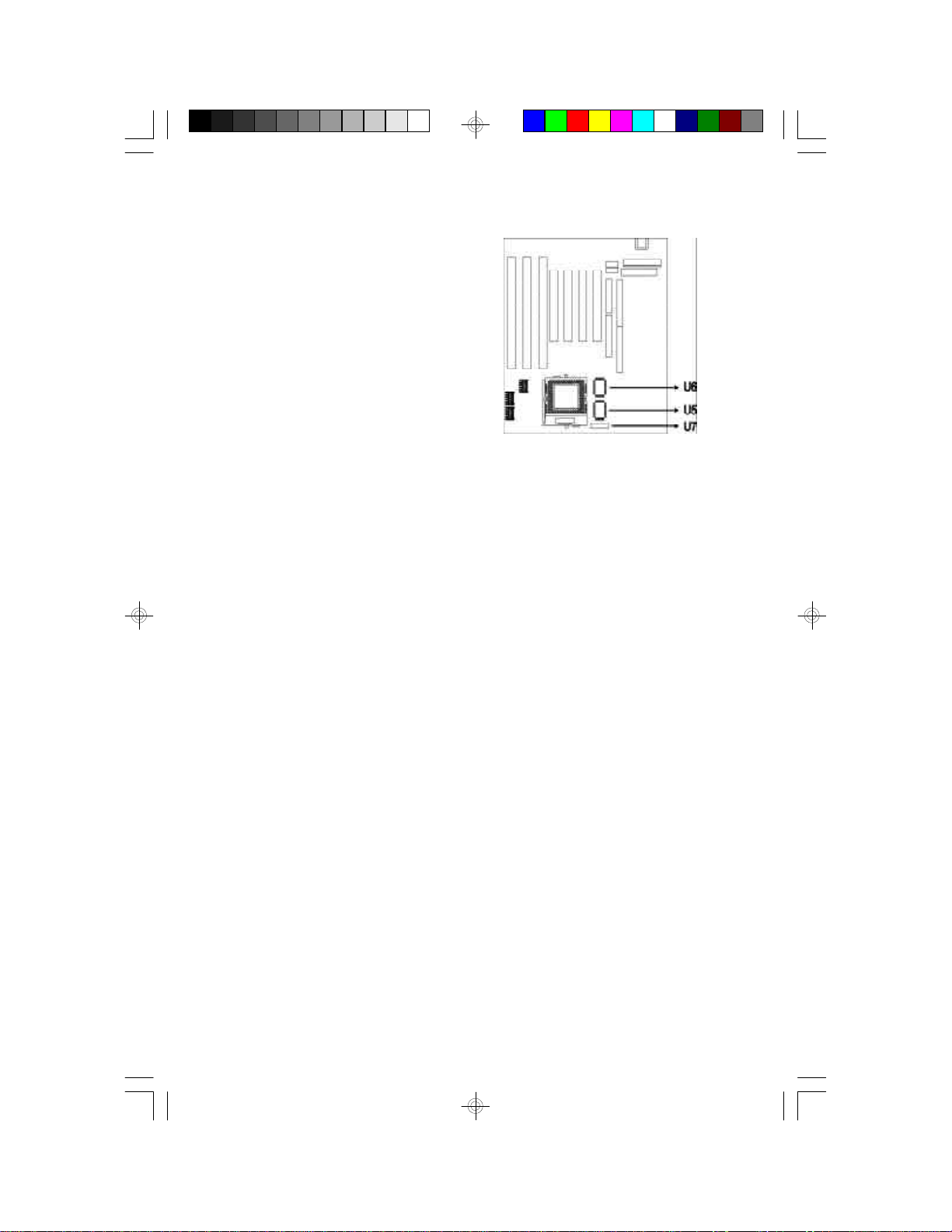

Cache Memory
The 586TXD system board can
support 512KB pipeline burst, direct
map write-back cache SRAM. Your
system board comes with a 512KB
cache, which is the maximum
cache memory supported by the
system board, mounted at locations
U5 and U6. One SRAM is mounted
on location U7 for tag SRAM to
store the cacheable addresses.
Processor Installation
The 586TXD allows for easy installation of processors. Make sure all jump-
ers are set correctly before applying power or you may damage the proces-
sor or system board. Use a needle-nosed plier to move the jumpers if nec-
essary.

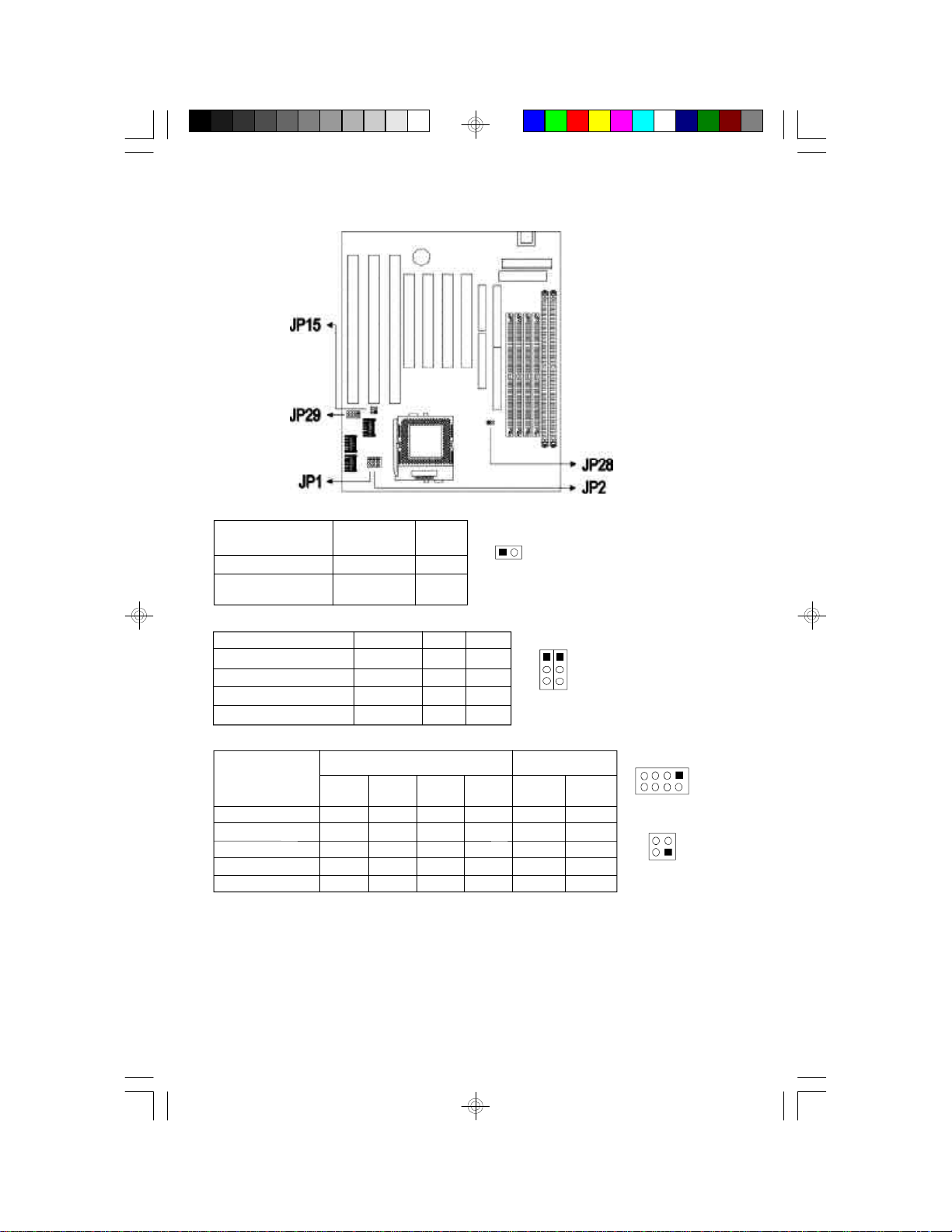

Jumper JP28 is used to set the external system bus clock of your proces-
sor. Refer to the following pages for the external system bus clock that
corresponds to your processor and set this jumper accordingly. The clock
generator will determine the external bus clock that must be sent to the
processor through this setting.
Jumper JP1 and JP2 are used to set the frequency ratio of your processor.
Refer to the following pages for the frequency ratio that corresponds to your
processor and set these jumpers accordingly.
After setting these jumpers, an Intel processor will multiply the external bus
clock by the frequency ratio to become the internal clock speed. Internal
clock speed is the commonly used speed of Intel processors in the market
and is the actual operating clock of the processor (external bus clock x
frequency ratio = internal clock speed).

19
AMD processors use the PR-rating system which is the overall processor
performance rating.
Jumpers JP15 and JP29 are used to set the voltage of your processor.
Make sure these jumpers are set correctly, otherwise your system will hang.
The table below shows the External System Bus Clock of the processors
supported by the system board and their corresponding PCI Clock and ISA
Bus Clock.
External System Bus Clock
60MHz
66MHz
PCI Clk
30MHz
33MHz
ISA Bus Clk
7.5MHz
8.25MHz

20
Jumper Settings for IntelProcessors
Intel®Processors
90/100MHz/MMX-233MHz
120/133MHz
150/166MHz/MMX-166MHz
200MHz/MMX-200MHz
Freq. Ratio
1.5x*
2x
2.5x
3x
JP2
1-2 On
1-2 On
2-3 On
2-3 On
JP1
1-2 On
2-3 On
2-3 On
1-2 On
Intel®Processors
90/120/150MHz
100/133/166/200MHz
MMX-166/200/233MHz
Ext. System
Bus Clk
60MHz
66MHz*
JP28
1-2 On
1-2 OffJP28
* Default
JP1JP2
* Default
CPU Voltages
2.8V
2.9V
3.2V
3.3V
3.5V*
Pins
7-8
On
On
On
On
On
Pins
5-6
Off
Off
On
On
On
Pins
3-4
Off
Off
Off
Off
On
Pins
1-2
Off
On
Off
On
On
JP15JP29
Pins
1-2
Off
Off
Off
Off
Off
Pins
3-4
On
On
On
On
On
* Default
JP29
1
2
7
8
4
23
1
JP15
