DFI NB80-EA User manual

NB80-EA
Rev. A+
System Board
User’s Manual
935-NB8001-000
63700243

Copyright
This publication contains information that is protected by copyright.
No part of it may be reproduced in any form or by any means or
used to make any transformation/adaptation without the prior
written permission from the copyright holders.
This publication is provided for informational purposes only. The
manufacturer makes no representations or warranties with respect to
the contents or use of this manual and specifically disclaims any
express or implied warranties of merchantability or fitness for any
particular purpose. The user will assume the entire risk of the use or
the results of the use of this document. Further, the manufacturer
reserves the right to revise this publication and make changes to its
contents at any time, without obligation to notify any person or
entity of such revisions or changes.
© 2002. All Rights Reserved.
Trademarks
Windows®98 SE, Windows®ME, Windows®2000, Windows NT®
4.0 and Windows®XP are registered trademarks of Microsoft
Corporation. Intel®and Pentium®4 are registered trademarks of
Intel Corporation. Award is a registered trademark of Award
Software, Inc. Other trademarks and registered trademarks of
products appearing in this manual are the properties of their
respective holders.
Caution
To avoid damage to the system:
• Use the correct AC input voltage range.....
To reduce the risk of electric shock:
• Unplug the power cord before removing the system chassis
cover for installation or servicing. After installation or servicing,
cover the system chassis before plugging the power cord.

Battery:
• Danger of explosion if battery incorrectly replaced.
• Replace only with the same or equivalent type recommend by
the manufacturer.
• Dispose of used batteries according to the battery
manufacturer’s instructions.
Joystick or MIDI port:
• Do not use any joystick or MIDI device that requires more than
10A current at 5V DC. There is a risk of fire for devices that
exceed this limit.
FCC and DOC Statement on Class B
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a residential
installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
• Consult the dealer or an experienced radio TV technician for
help.
Notice:
1. The changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority
to operate the equipment.
2. Shielded interface cables must be used in order to comply with
the emission limits.

Notice
This user’s manual contains detailed information about the system
board. If, in some cases, some information doesn’t match those
shown in the multilingual manual, the multilingual manual should
always be regarded as the most updated version. The multilingual
manual is included in the system board package.
To view the user’s manual, insert the CD into a CD-ROM drive. The
autorun screen (Mainboard Utility CD) will appear. Click the “Tools”
icon then click “Manual” on the main menu.

Table of Contents
Chapter 1 - Introduction
1.1 Features and Specifications..................................................................................
1.2 Hyper-Threading Technology Functionality Requirements..........
1.3 Package Checklist.........................................................................................................
Chapter 2 - Hardware Installation

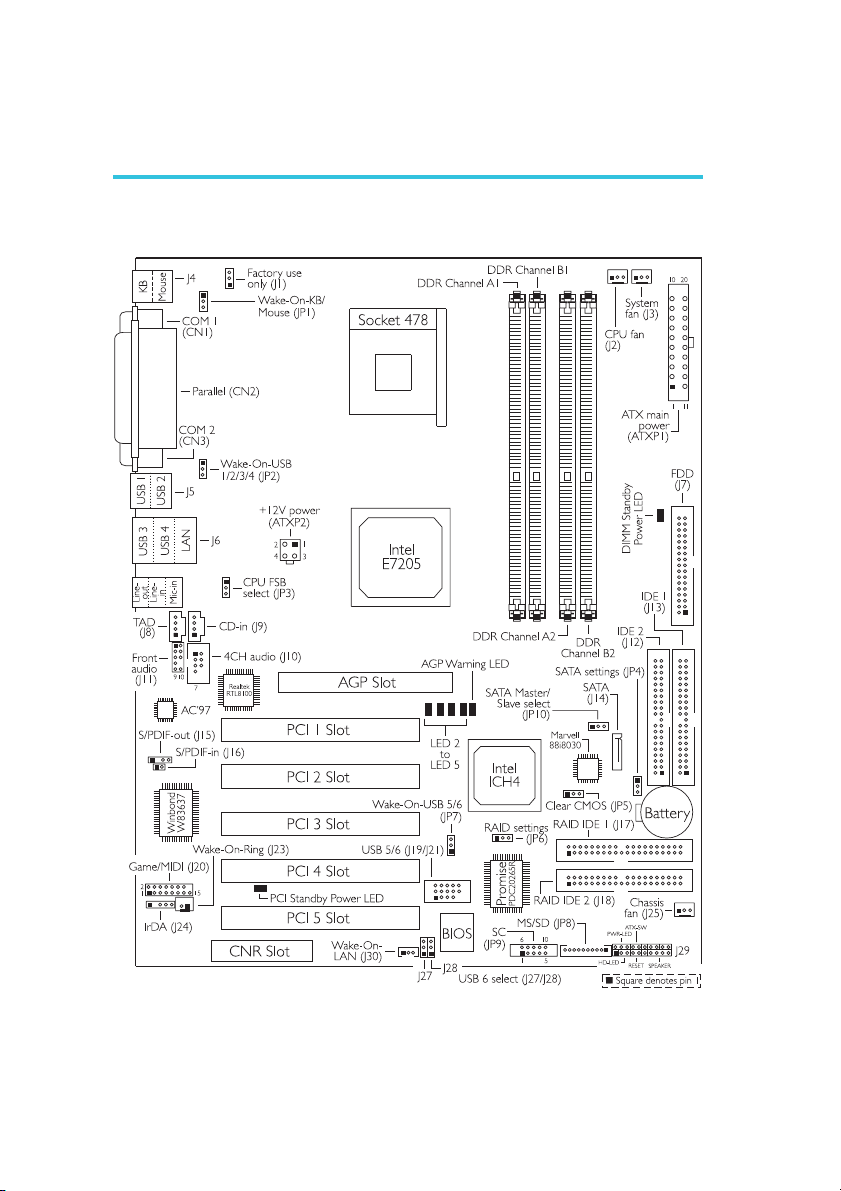

2.1 System Board Layout ..........................................................................................
2.2 System Memory...........................................................................................................
2.3 Jumper Settings for Clearing CMOS Data........................................
2.4 Jumper Settings for Wake-On-Keyboard/Mouse..................................
2.5 Jumper Settings for Wake-On-USB Keyboard.......................................
2.6 Jumper Settings for Selecting the CPU’s Front Side Bus......
2.7 Jumper Settings for USB 6................................................................................
2.8 Jumper Settings for Serial ATA......................................................................
2.9 Jumper Settings for Serial ATA’s Master/Slave Select...............
2.10 Jumper Settings for RAID...................................................................................
2.11 Factory Use Jumper.................................................................................................
2.12 Rear Panel I/O Ports..............................................................................................
2.13 I/O Connectors...........................................................................................................
Chapter 3 - Award BIOS Setup Utility
3.1 The Basic Input/Output System.....................................................................
3.1.1 Standard CMOS Features.............................................................
3.1.2 Advanced BIOS Features..............................................................
3.1.3 Advanced Chipset Features ......................................................
3.1.4 Integrated Peripherals.........................................................................
3.1.5 Power Management Setup............................................................
3.1.6 PnP/PCI Configurations....................................................................
3.1.7 PC Health Status...................................................................................
3.1.8 Frequency/Voltage Control............................................................
3.1.9 Load Fail-Safe Defaults.....................................................................
3.1.10 Load Optimized Defaults..............................................................
3.1.11 Set Supervisor Password...............................................................
3.1.12 Set User Password..............................................................................
7
15
15
16
17
21
23
25
27
28
29
30
31
32
33
42
66
66
72
77
80
90
94
96
98
100
100
101
101

Introduction
1
6
3.1.13 Save & Exit Setup.................................................................................
3.1.14 Exit Without Saving..............................................................................
3.2 Updating the BIOS.....................................................................................................
Chapter 4 - Supported Softwares
4.1 Desktop Management Interface......................................................................
4.2 Drivers, Utilities and Software Applications..........................................
4.3 Installation Notes...........................................................................................................
Appendix A - Enabling Hyper-Threading
Technology
A.1 Enabling Hyper-Threading Technology..........................................................
Appendix B - System Error Messages
B.1 POST Beep.......................................................................................................................
B.2 Error Messages..............................................................................................................
Appendix C - Troubleshooting
C.1 Troubleshooting Checklist....................................................................................
102
102
103
105
108
119
120
123
123
125

1
Introduction
7
1.1 Features and Specifications
1.1.1 Features
Chipset
• Intel®E7205 chipset
- Intel®E7205 Memory Controller Hub (MCH)
- Intel®82801DB I/O Controller Hub (ICH4)
Processor
The system board is equipped with Socket 478 for installing one of
the following supported processors.
• Intel®Pentium®4 Processor with Hyper-Threading Technology
(Refer to section 1.2 for the Hyper-Threading Technology
functionality requirements)
• Intel®Pentium®4 processor (478-pin)
- 533MHz system data bus
- 400MHz system data bus
• Intel®Celeron®processor (478-pin)
- 400MHz system data bus
System Memory
• Supports single and/or dual channel (144-bit wide) PC2100
(DDR266) memory interface
• Supports up to 4GB system memory
• Supports non-ECC (x64) or ECC (x72) PC2100 (DDR266)
DIMM using 128Mb, 256Mb or 512Mb
Chapter 1 - Introduction
Density Width
Single/Double
184-pin DDR
64 Mbit
X8
SS/DS
64/128MB
X16
SS/DS
32MB/NA
Density 128 Mbit
X8
SS/DS
128/256MB
X16
SS/DS
64MB/NA
256 Mbit
X8
SS/DS
256/512MB
X16
SS/DS
128MB/NA
512 Mbit
X8
SS/DS
512/1024MB
X16
SS/DS
256MB/NA

Introduction
1
8
Expansion Slots
The system board is equipped with 1 AGP slot, 5 PCI slots (1
shared with CNR slot) and 1 CNR slot.
Note:
PCI slot 5 supports Slave mode only.
AGP (Accelerated Graphics Port)
• Supports 1.5V AGP 8x (2.13GB/sec bandwidth) and AGP 4x
(1066MB/sec. bandwidth) add-in cards. 3.3V AGP card is not
supported.
• Supports AGP 3.0 and AGP 2.0 spec.
AGP is an interface designed to support high performance 3D
graphics cards for 3D graphics applications. It handles large
amounts of graphics data with the following features:
• Pipelined memory read and write operations that hide
memory access latency.
• Demultiplexing of address and data on the bus for nearly
100 percent efficiency.
CNR (Communication and Networking Riser)
CNR (Communication and Networking Riser) is an interface that
supports multi-channel audio, V.90 analog modem, phone-line based
networking or 10/100 Ethernet based networking riser board.
Onboard Audio Features
• 20-bit stereo full-duplex codec with independent variable
sampling rate
• High quality differential CD input
• True stereo line level outputs
• S/PDIF-in/out interface
• 6-channel audio output

1
Introduction
9
Onboard LAN Features
• Uses Realtek RTL8100 fast ethernet controller
• Integrated IEEE 802.3, 10BASE-T and 100BASE-TX compatible
PHY
• 32-bit PCI master interface
• Integrated power management functions
• Full duplex support at both 10 and 100 Mbps
• Supports IEEE 802.3u auto-negotiation
• Supports wire for management
Integrated Media Reader Interfaces - Smart I/O
• Supports Security Application Smart Card interface
• Supports two most promising compact storage - Memory Stick
interface and Secure Digital Memory Card interface
Compatibility
• PCI 2.2, CNR 1.0 “A” type and AC ’97 compliant
• Intel AGP version 3.0
ATA RAID
• RAID 0 (striping) or RAID 1 (mirroring) - RAID 0 and RAID 1
cannot coexist
• Two independent IDE channels support up to 4 drives (UDMA
modes 33/66/100 or EIDE)
• Supports PIO modes 0/1/2/3/4, DMA modes 0/1/2 and
UDMA modes 0/1/2/3/4/5
SATA (Serial ATA) IDE Interface
• Supports one SATA (Serial ATA) interface which is compliant with
SATA 1.0 specification
PCI Bus Master IDE Controller
• Two PCI IDE interfaces support up to four IDE devices
• Supports ATA/33, ATA/66 and ATA/100 hard drives
• PIO Mode 4 Enhanced IDE (data transfer rate up to 14MB/sec.)
• Bus mastering reduces CPU utilization during disk transfer
• Supports ATAPI CD-ROM, LS-120 and ZIP

Introduction
1
10
IrDA Interface
The system board is equipped with an IrDA connector for wireless
connectivity between your computer and peripheral devices.
USB Ports
The system board supports USB 2.0 and USB 1.1 ports. USB 1.1
supports 12Mb/second bandwidth while USB 2.0 supports 480Mb/
second bandwidth providing a marked improvement in device
transfer speeds between your computer and a wide range of
simultaneously accessible external Plug and Play peripherals.
BIOS
• Award BIOS, Windows®98SE/2000/ME/XP Plug and Play
compatible
• Supports SCSI sequential boot-up
• Flash EPROM for easy BIOS upgrades
• Supports DMI 2.0 function
Desktop Management Interface (DMI)
The system board comes with a DMI 2.0 built into the BIOS. The
DMI utility in the BIOS automatically records various information
about your system configuration and stores these information in the
DMI pool, which is a part of the system board's Plug and Play
BIOS. DMI, along with the appropriately networked software, is
designed to make inventory, maintenance and troubleshooting of
computer systems easier. Refer to chapter 4 for instructions on using
the DMI utility.
Rear Panel I/O Ports (PC 99 color-coded connectors)
• 4 USB 2.0/1.1 ports
• 1 RJ45 LAN port
• 2 NS16C550A-compatible DB-9 serial ports
• 1 DB-25 parallel port
• 1 mini-DIN-6 PS/2 mouse port
• 1 mini-DIN-6 PS/2 keyboard port
• 3 audio jacks: line-out, line-in and mic-in

1
Introduction
11
I/O Connectors
• 1 connector for 2 additional external USB 2.0/1.1 ports
• 1 connector for external line-out and mic-in jacks
• 1 connector for an external game/MIDI port
• 2 internal audio connectors (CD-in and TAD)
• 1 4-channel audio output connector
• 1 S/PDIF-in connector
• 1 S/PDIF-out connector
• 1 connector for IrDA interface
• 1 Serial ATA connector
• 2 RAID IDE connectors
• 2 IDE connectors
• 1 floppy drive interface supports up to two 2.88MB floppy
drives
• 2 ATX power supply connectors
• 1 Wake-On-LAN connector
• 1 Wake-On-Ring connector
• CPU fan, chassis fan and system fan fan connectors
• 1 Smart Card interface
• 1 Memory Stick / Secure Digital Memory Card interface
1.1.2 System Health Monitor Functions
The system board is capable of monitoring the following “system
health” conditions.
• Monitors CPU/system temperature and overheat alarm
• Monitors Vcore/5VSB/VBAT/3.3V/5V/12V voltages and failure
alarm
• Monitors the fan speed of CPU fan and system fan; and failure
alarm
• Automatic system fan on/off control
• Read back capability that displays temperature, voltage and fan
speed
Refer to the “PC Health Status” section in chapter 3 and the
“Hardware Monitor” section in chapter 4 for more information.

Introduction
1
12
1.1.3 Intelligence
Automatic System Fan Off
The system fan will automatically turn off once the system enters the
Suspend mode.
Dual Function Power Button
Depending on the setting in the “Soft-Off By PWR-BTTN” field of
the Power Management Setup, this switch will allow the system to
enter the Soft-Off or Suspend mode.
Wake-On-Ring
This feature allows the system that is in the Suspend mode or Soft
Power Off mode to wake-up/power-on to respond to calls coming
through an internal or external modem. Refer to “Wake-On-Ring
Connector” in chapter 2 and “Resume On Ring” in the Power
Management Setup section in chapter 3 for more information.
Important:
If you are using a modem add-in card, the 5VSB power source
of your power supply must support ≥ 720mA.
Wake-On-LAN
The Wake-On-LAN function is applicable only when you are using a
LAN add-in card that has the same function. It allows the network
to remotely wake up a Soft Power Down (Soft-Off) PC. Your LAN
card must support the remote wakeup function. Refer to “Wake-On-
LAN Connector” in chapter 2 and “Resume On LAN” in the Power
Management Setup section in chapter 3 for more information.
Important:
The 5VSB power source of your power supply must support
≥ 720mA.

1
Introduction
13
Wake-On-Keyboard/Wake-On-Mouse
This function allows you to use the keyboard or PS/2 mouse to
power-on the system. Refer to “Jumper Settings for Wake-On-
Keyboard/Wake-On-Mouse” in chapter 2 and “Keyboard/Mouse
Power On” (“Onboard Super IO Device” field) in the Integrated
Peripherals section in chapter 3 for more information.
Important:
• The power button will not function once a keyboard
password has been set in the “KB Power On Password”
field of the Integrated Peripherals submenu. You must type
the correct password to power-on the system. If you forgot
the password, power-off the system and remove the
battery. Wait for a few seconds and install it back before
powering-on the system.
• The 5VSB power source of your power supply must
support ≥ 720mA.
Wake-On-USB Keyboard
The Wake-On-USB Keyboard function allows you to use a USB
keyboard to wake up a system from the S3 (STR - Suspend To
RAM) state. Refer to “Jumper Settings for Wake-On-USB Keyboard”
in chapter 2 and “USB KB Wake-Up From S3” in the Power
Management Setup section in chapter 3 for more information.
Important:
• If you are using the Wake-On-USB Keyboard function for 2
USB ports, the 5VSB power source of your power supply
must support ≥ 1.5A.
• If you are using the Wake-On-USB Keyboard function for 3
or more USB ports, the 5VSB power source of your power
supply must support ≥ 2A.
RTC Timer to Power-on the System
The RTC installed on the system board allows your system to
automatically power-on on the set date and time. Refer to “Resume
By Alarm” in the Power Management Setup section in chapter 3 for
more information.

Introduction
1
14
ACPI STR
The system board is designed to meet the ACPI (Advanced
Configuration and Power Interface) specification. ACPI has energy
saving features that enables PCs to implement Power Management
and Plug-and-Play with operating systems that support OS Direct
Power Management. Currently, only Windows®®
®®
®98SE/2000/ME/XP
supports the ACPI function. ACPI when enabled in the Power
Management Setup will allow you to use the Suspend to RAM
function.
With the Suspend to RAM function enabled, you can power-off the
system at once by pressing the power button or selecting “Standby”
when you shut down Windows®®
®®
®98SE/2000/ME/XP without having
to go through the sometimes tiresome process of closing files,
applications and operating system. This is because the system is
capable of storing all programs and data files during the entire
operating session into RAM (Random Access Memory) when it
powers-off. The operating session will resume exactly where you left
off the next time you power-on the system.
Important:
The 5VSB power source of your power supply must support
≥ 1A.
AC Power Failure Recovery
When power returns after an AC power failure, you may choose to
either power-on the system manually, let the system power-on
automatically or return to the state where you left off before power
failure occurs. Refer to “PWR Lost Resume State” (“Onboard Super
IO Device”) in the Integrated Peripherals section in chapter 3 for
more information.
Virus Protection
Most viruses today destroy data stored in hard drives. The system
board is designed to protect the boot sector and partition table of
your hard disk drive.

1
Introduction
15
1.2 Hyper-Threading Technology Functionality
Requirements
Enabling the functionality of Hyper-Threading Technology for your
computer system requires ALL of the following platforms.
Components:
• CPU - an Intel®Pentium®4 Processor with HT Technology
• Chipset - an Intel®chipset that supports HT Technology
• BIOS - a BIOS that supports HT Technology and has it enabled
• OS - an operating system that includes optimizations for HT
Technology
Please refer to Appendix A for information about enabling the
functionality of the Hyper-Threading Technology. For more information
on Hyper-Threading Technology, go to: www.intel.com/info/
hyperthreading.
1.3 Package Checklist
The system board package contains the following items:
;The system board
;A user’s manual
;One card-edge bracket mounted with a game/MIDI port
;One card-edge bracket mounted with 1 S/PDIF-in connector
and 1 S/PDIF-out connector (optional)
;One IDE cable for ATA/33, ATA/66 or ATA/100 IDE drives
;One 34-pin floppy disk drive cable
;One “Main Board Utility” CD
If any of these items are missing or damaged, please contact your
dealer or sales representative for assistance.

2
16
Hardware Installation
2.1 System Board Layout
Chapter 2 - Hardware Installation

2
Hardware Installation
17
2.2 System Memory
Warning:
Electrostatic discharge (ESD) can damage your system board,
processor, disk drives, add-in boards, and other components. Perform
the upgrade instruction procedures described at an ESD workstation
only. If such a station is not available, you can provide some ESD
protection by wearing an antistatic wrist strap and attaching it to a
metal part of the system chassis. If a wrist strap is unavailable,
establish and maintain contact with the system chassis throughout
any procedures requiring ESD protection.
The system board supports DDR SDRAM DIMM. Double Data
Rate SDRAM (DDR SDRAM) is a type of SDRAM that doubles the
data rate through reading and writing at both the rising and falling
edge of each clock. This effectively doubles the speed of operation
therefore doubling the speed of data transfer.
The four DDR DIMM sockets on the system board are divided into 2
channels:
Channel A - sockets A1 and A2
Channel B - sockets B1 and B2
DDR
Channel A1
DDR
Channel A2
DDR
Channel B2
DDR
Channel B1

2
18
Hardware Installation
The system board supports single and/or dual channel DDR memory
interface. Inserting DIMMs on the same channel (e.g. A1 and A2 or
B1 and B2) provides single channel memory interface while DIMMs
inserted on different channels (e.g. A1 and B1 or A2 and B2) will
provide dual channel memory interface. Refer to the following tables
for the recommended configurations and their corresponding channel
type.
Sockets
A1
B1
A2
B2
A1
B1
A2
B2
A1
B1
A2
B2
A1
B1
A2
B2
A1
B1
A2
B2
DIMM
9
9
9
9
9
9
9
9
9
9
9
1
2
3
4
5
Channel
Single
Single
Dual
Dual
Dual

2
Hardware Installation
19
Sockets
A1
B1
A2
B2
A1
B1
A2
B2
A1
B1
A2
B2
A1
B1
A2
B2
A1
B1
A2
B2
DIMM
9
9
9
9
9
9
9
9
9
9
9
6
7
8
9
10
Channel
Single
NA
NA
Single
Single
This configuration will only
show A1 and A2’s DIMM
size.
This configuration will only
show B1 and B2’s DIMM
size.

2
20
Hardware Installation
2.2.1 Installing the DIM Module
A DIM module simply snaps into a DIMM socket on the system
board. Pin 1 of the DIM module must correspond with Pin 1 of the
socket.
1. Pull the “tabs” which are at the ends of the socket to the side.
2. Position the DIMM above the socket with the “notch” in the
module aligned with the “key” on the socket.
3. Seat the module vertically into the socket. Make sure it is
completely seated.The tabs will hold the DIMM in place.
Pin 1
Notch
Key
Tab Tab
