DFI CB60-BX User manual

CB60-BX/ZX
Rev. A+
System Board
Carte Mère Manuel
System-Platine
Users Manual
Pour Utilisateur
Benutzerhandbuch
37400903

Copyright
This publication contains information that is protected by copyright. No part of it may
be reproduced in any form or by any means or used to make any transformation/
adaptation without the prior written permission from the copyright holders.
This publication is provided for informational purposes only. The manufacturer makes
no representations or warranties with respect to the contents or use of this manual and
specifically disclaims any express or implied warranties of merchantability or fitness
for any particular purpose.The user will assume the entire risk of the use or the results
of the use of this document. Further, the manufacturer reserves the right to revise this
publication and make changes to its contents at any time, without obligation to notify
any person or entity of such revisions or changes.
© 1999. All Rights Reserved.
Trademarks
Microsoft®MS-DOS®, WindowsTM, Windows®95 and Windows®98 are registered
trademarks of Microsoft Corporation. Intel®, Pentium®II and CeleronTM are registered
trademarks of Intel Corporation. Award is a registered trademark of Award Software,
Inc. Other trademarks and registered trademarks of products appearing in this manual
are the properties of their respective holders.
Caution:
Danger of explosion if battery incorrectly replaced.
Replace only with the same or equivalent type recommended by the
manufacturer.
Dispose of used batteries according to the battery manufacturers instructions.
FCC and DOC Statement on Class B
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC rules. These limits are designed
to provide reasonable protection against harmful interference when the
equipment is operated in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
 Reorient or relocate the receiving antenna.
 Increase the separation between the equipment and the receiver.
 Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
 Consult the dealer or an experienced radio TV technician for help.
Notice:
1. The changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate the
equipment.
2. Shielded interface cables must be used in order to comply with the emission
limits.

Table of Contents / Sommaire / Inhaltsverzeichnis
4
7
20
21
22
23
24
27
28
29
31
34
38
38
8
10
11
12
13
14
40
41
41
Chapter 1 - Introduction
1.1 Features and Specifications...................................................................
1.2 Package Checklist ......................................................................................
Chapter 2 - Hardware Installation
2.1 System Board Layout ..............................................................................
2.2 DIP Switch Settings of the Processors .........................................
2.3 Jumper Settings for CPUs Front Side Bus .................................
2.4 Jumper Settings for Clearing CMOS Data.................................
2.5 Jumper Settings for Wake-On-Keyboard/Mouse.....................
2.6 Connectors ....................................................................................................
Chapter 3 - Award BIOS Setup Utility
3.1 Entering the Award BIOS Setup Utility ........................................
3.2 Setting the Date and Time...................................................................
3.3 Selecting the Hard Drive and Floppy Drive Type...................
3.4 Selecting the Drive to be Searched First for an
Operating System ......................................................................................
3.5 Setting the External System Bus Clock of the Processor ..
3.6 Selecting an IRQ for the External Modem .................................
3.7 Selecting the Method of Powering-off the System .................
3.8 Selecting the Power Lost Resume State ......................................
3.9 Using the System Health Monitor Function ...............................
3.10 Setting the Wake-On-Keyboard/Mouse Function ...................
3.11 Loading Fail-Safe Settings/Optimal Settings ...............................
3.12 Setting the Supervisor/User Password .........................................
Chapter 4 - Supported Softwares
4.1 Utility ................................................................................................................
Appendix A - System Error Messages
A.1 POST Beep ...................................................................................................
A.2 Error Messages ............................................................................................
Note:
The users manual in the provided CD contains detailed information
about the system board. If, in some cases, some information doesnt
match those shown in this manual, this manual should always be
regarded as the most updated version. To view the users manual,
insert the CD into a CD-ROM drive. The autorun screen (Main Board
Utility CD) will appear. Click Users Manual.

Introduction
1
4
1.1 Features and Specifications
Caractéristiques et Spécifications
Leistungsmerkmale und Technische Daten
1.1.1 Features / Caractéristiques / Leistungsmerkmale
Chipset
 Intel440BX AGPset (CB60-BX)
Intel440ZX-100 AGPset (CB60-ZX)
Processor
The system board is equipped with IntelSocket 370 and a
switching voltage regulator that automatically detects 1.30V to
2.05V.
 300A/333/366/400/433MHz and future 100MHz FSB CeleronTM
processor (PPGA for Socket 370)
System Memory
 CB60-BX
-16MB to 384MB memory using unbuffered DIMMs
- 32MB to 768MB memory using registered DIMMs
- Three 168-pin DIMM sockets
- Uses x64 or x72 PC SDRAM, 3.3V
: PC-66 SDRAM DIMM for 66MHz FSB processors
: PC-100 SDRAM DIMM for 100MHz FSB processors
- ECC supported (uses x72 PC SDRAM DIMM)
 CB60-ZX
-16MB to 256MB memory using unbuffered DIMMs
- Two 168-pin DIMM sockets
- Uses x64 PC SDRAM, 3.3V
: PC-66 SDRAM DIMM for 66MHz FSB processors
: PC-100 SDRAM DIMM for 100MHz FSB processors
Chapter 1 - Introduction / Introduction / Einleitung
DIMMs
2MBx64/x72
4MBx64/x72
8MBx64/x72
16MBx64/x72
32MBx64/x72
Memory Size
16MB
32MB
64MB
128MB
256MB*
*Supported only when CB60-BX
uses registered DIMMs.
DIMMs
2MBx64
4MBx64
8MBx64
16MBx64
Memory Size
16MB
32MB
64MB
128MB
CB60-ZX
CB60-BX

1
Introduction
5
Expansion Slots
The system board is equipped with 1 dedicated AGP slot, 3
dedicated PCI slots, 2 dedicated 16-bit ISA slot and 1 shared PCI/
ISA slot. All PCI and ISA slots are bus masters.
Desktop Management Interface (DMI)
The system board comes with a DMI 2.0 built into the BIOS. The
DMI utility in the BIOS automatically records various information
about your system configuration and stores these information in the
DMI pool, which is a part of the system board's Plug and Play
BIOS. DMI, along with the appropriately networked software, is
designed to make inventory, maintenance and troubleshooting of
computer systems easier.
ATX Double Deck Ports
 2 USB ports
 2 DB-9 serial ports
 1 DB-25 parallel port
 1 mini-DIN-6 PS/2 keyboard port
 1 mini-DIN-6 PS/2 mouse port
Connectors
 1 connector for IrDA interface
 2 IDE connectors
 1 floppy connector
 1 20-pin ATX power supply connector
 1 3-pin WOL (Wake-On-LAN) connector
 1 SB-LINK connector
 3 fan connectors for CPU, chassis and AGP fans
PCI Bus Master IDE Controller
 Two PCI IDE interfaces support up to four IDE devices
 Ultra DMA/33 supported (Synchronous Ultra DMA mode -
data transfer rate up to a maximum of 33MB/sec.)
 PIO Mode 3 and Mode 4 Enhanced IDE (data transfer rate up
to 16.6MB/sec.)
 Bus mastering reduces CPU utilization during disk transfer
 ATAPI CD-ROM, LS-120 and ZIP supported
IrDA Interface
The system board is equipped with an IrDA connector for wireless
connectivity between your computer and peripheral devices. It
supports peripheral devices that meet the IrDA or ASKIR standard.

Introduction
1
6
USB Ports
The system board is equipped with two USB ports. USB allows
data exchange between your computer and a wide range of
simultaneously accessible external Plug and Play peripherals.
BIOS
 Award BIOS,Windows95 Plug and Play compatible
 Flash EPROM for easy BIOS upgrades
1.1.2 Intelligence / Intelligence / Intelligente Ausstattungsteile
Automatic CPU/Chassis Fan Off
The CPU and chassis fans will automatically turn off once the system
enters the Suspend mode.
Dual Function Power Button
Depending on the setting in the BIOS setup, this switch will allow
your system to enter the Soft-Off or Suspend mode.
External Modem Ring-on
The Modem Ring-on feature allows the system that is in the
Suspend mode or Soft Power Off mode to wake-up/power-on to
respond to incoming calls. This feature supports external modem
only.
RTC Timer to Power-On the System
The RTC installed on the system board allows your system to
automatically power-on on the set date and time.
Wake-On-LAN Ready
The Wake-On-LAN function allows the network to remotely wake
up a Soft Power Down (Soft-Off) PC.Your LAN card must support
the remote wakeup function.
Important:
The 5VSB power source of your power supply must support
≥720mA (minimum).
Wake-On-Keyboard/Wake-On-Mouse
This function allows you to use the keyboard or mouse to power-on
the system. Refer to sections 2.5 (chapter 2) and 3.10 (chapter 3)
for more information.
Important:
 The power button will not function once a keyboard
password has been set in the KB Power On Password
field of the Integrated Peripherals setup. You must type the
correct password to power-on the system.

1
Introduction
7
 The 5VSB power source of your power supply must
support ≥720mA (minimum).
ACPI
The system board is designed to meet the ACPI (Advanced
Configuration and Power Interface) specification. ACPI has energy
saving features that enables PCs to implement Power Management
and Plug-and-Play with operating systems that support OS Direct
Power Management.
Virus Protection
Most viruses today destroy data stored in hard drives. The system
board is designed to protect the boot sector and partition table of
your hard disk drive.
1.2 Package Checklist
Liste de Vérification de lEmballage
Verpackungsliste
The system board package contains the following items:
 The system board
 A users manual
 One 40-pin IDE hard disk cable
 One 34-pin floppy disk drive cable
 One CD
If any of these items are missing or damaged, please contact your
dealer or sales representative for assistance.

2
8
Hardware Installation
2.1 System Board Layout
Position de la Carte Système
Aufbau der Hauptplatine
Chapter 2 - Hardware Installation
Installation du Matériel
Installation der Hardware

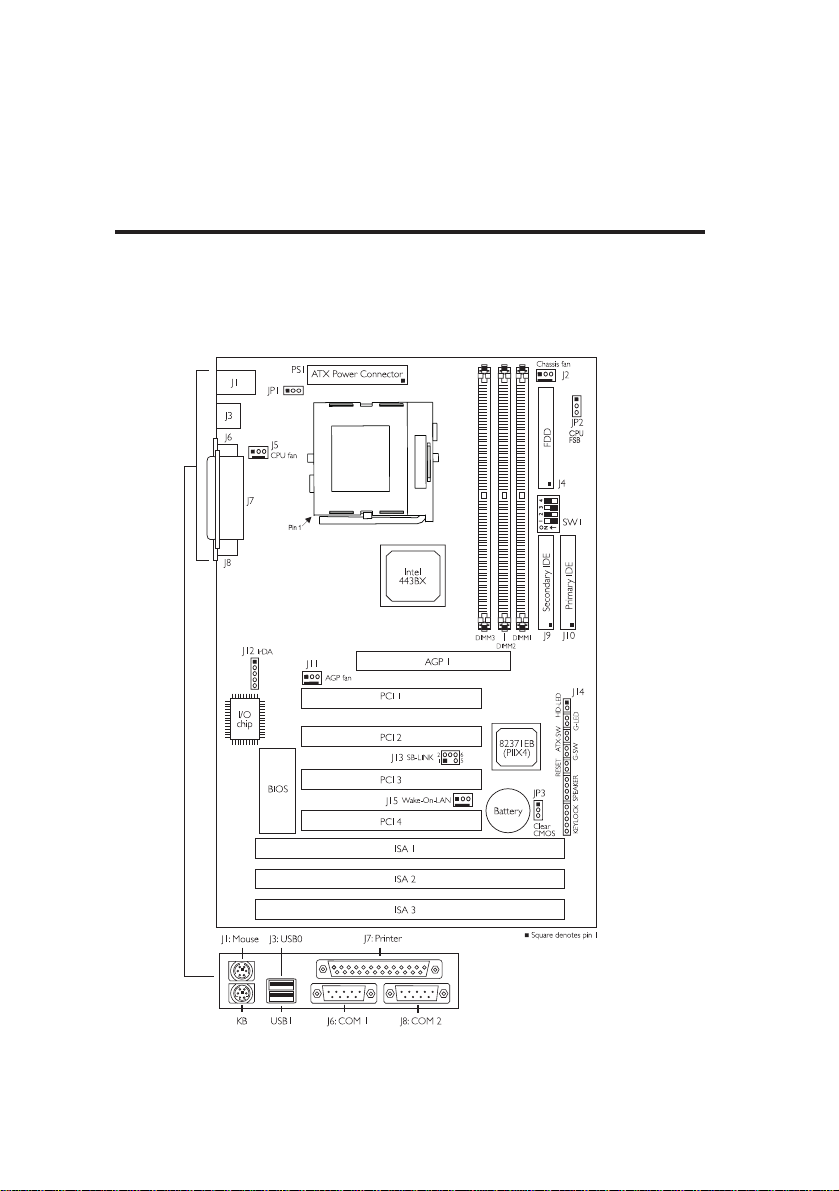

CB60-BX

2
Hardware Installation
9
CB60-ZX
Note:
The illustrations on the following pages are based on the CB60-BX
system board, which is the board equipped with three DIMM sockets.

2
10
Hardware Installation
2.2 DIP Switch Settings for Processors
Positionnement des Cavaliers des Processeurs
DIP Schaltereinstellungen für den Prozessor
Note:
SW1 is for factory use only.
Note:
1. Intel CeleronTM processors (PPGA) support VID (Voltage
Identification). The switching voltage regulator on the system board
will automatically set the voltage regulator according to the voltage
of the processor.
2. You cannot overclock an Intel CeleronTM processor (PPGA) because
its frequency ratio has been fixed by the manufacturer. The table
above is for factory use only.
In the example above:
Switch 1: Off
Switch 2: On
Switch 3: Off
Switch 4: On
300MHz 4.5x
333MHz 5x
Processor SW1
66MHz 100MHz
Frequency
Ratio
Future
processor 5.5x
Processor SW1
66MHz 100MHz
Frequency
Ratio
400MHz Future
processor
433MHz Future
processor
Future
processor Future processor
Future
processor Future processor
6x
6.5x
7x
7.5x
8x
Future
processor Future processor
366MHz
Future
processor
Future
processor

2
Hardware Installation
11
2.3 Jumper Settings for the CPUs Front Side Bus
Positionnement des Cavaliers pour le Bus Frontal du
Processeur
Jumpereinstellungen fuer CPU Vorderseitenbus

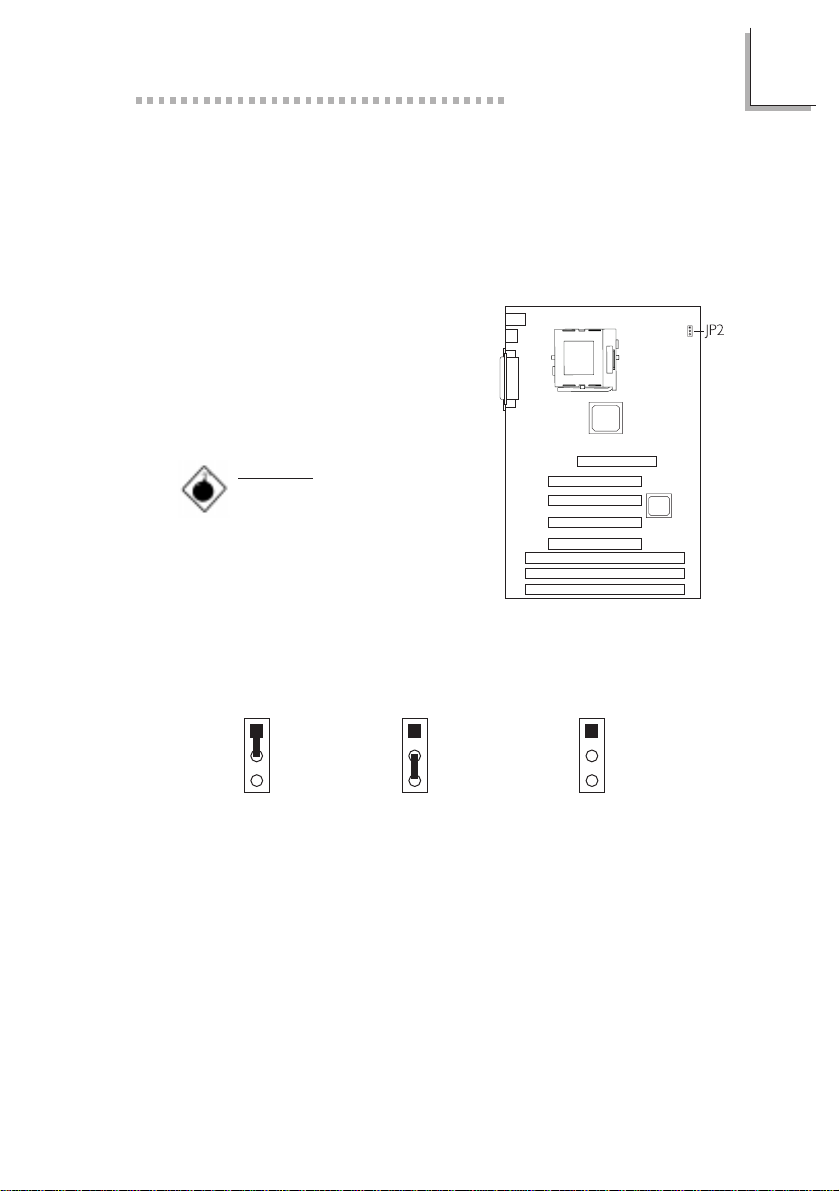

Jumper JP2 - CPUs Front Side Bus Select
The default setting of jumper JP2 is
Auto - the system will automatically
run according to the FSB of the
processor. The 100MHz setting (1-
2-3 Off) is reserved for future
100MHz FSB processors. Refer to
the figure below.
Warning:
If your system is installed with
a 66MHz FSB processor, do
not move the jumper cap
from its default setting which
is pins 1 and 2 On; otherwise
your system will not boot.
Jumper JP2s settings are shown below.
1
2
3
1
2
3
1
2
3
2-3 On: 66MHz
1-2 On: Auto
(default) 1-2-3 Off: 100MHz

2
12
Hardware Installation
2.4 Jumper Settings for Clearing CMOS Data
Positionnement des Cavaliers pour Effacer les Données
CMOS
Jumpereinstellungen zum Löschen der CMOS Daten
Jumper JP3 - CMOS Clear
To load the default values stored in the ROM BIOS, please follow
the steps below.
1. Power-off the system and unplug
the power cord.
2. Set JP3 pins 2 and 3 to On. Wait
for a few seconds and set JP3 back
to its default setting, pins 1 and 2
On.
3. Plug the power cord and power-on
the system.
2-3 On:
Clear CMOS Data
1-2 On: Normal
(default)
1
2
3
1
2
3

2
Hardware Installation
13
2.5 Jumper Settings for Wake-On-Keyboard/Mouse
Positionnement des Cavaliers pour Réveil-Sur-Clavier/
Souris
Jumpereinstellungen für die Wake-On Tastatur/Maus
Jumper JP1 - Wake-on-Keyboard/Mouse
To use the keyboard or mouse to
power-on the system, please follow the
steps below.
1. Set JP1 to 2-3 On, enable.
2. Keyboard/Mouse Power On in the
Integrated Peripherals setup of the
Award BIOS must be set accordingly.
Refer to section 3.10 (chapter 3) for
more information.
Warning:
1. If JP1 was previously enabled with a password set in the
KB Power On Password field, and now you wish to
disable the Wake-On-Keyboard (password) function, make
sure to set the Keyboard/Mouse Power On field to
Disabled prior to setting JP1 to disabled. You will not be
able to boot up the system if you fail to do so.
2. The power button will not function once a keyboard
password has been set in the KB Power On Password
field of the Integrated Peripherals setup. You must type
the password to power-on the system.
3. The 5VSB power source of your power supply must
support ≥ 720mA (minimum).
1-2 On: Disable
(default) 2-3 On: Enable
123 123

2
14
Hardware Installation
2.6 Connectors / Connecteurs / Anschlüsse

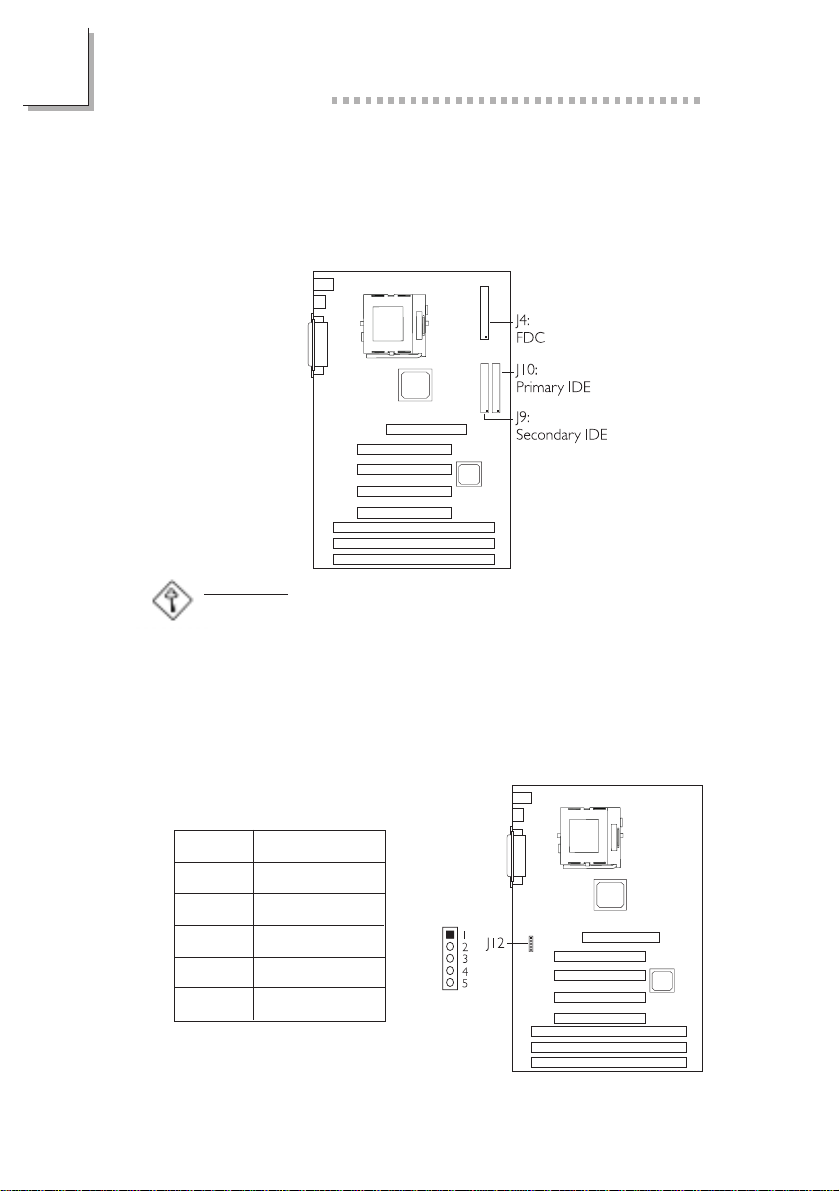

2.6.1 Floppy Disk Drive Controller and IDE Interface
Contrôleur de Lecteur de Disquette et Interface IDE
Diskettenlaufwerkcontroller und IDE Interface
2.6.2 IrDA Connector
Connecteur IrDA
IrDA Anschlüsse
Important:
If you encountered problems while using an ATAPI CD-ROM drive
that is set in Master mode, please set the CD-ROM drive to
Slave mode. Some ATAPI CD-ROMs may not be recognized and
cannot be used if incorrectly set in Master mode.
Pin
1
2
3
4
5
Function
IRTX
GND
IRRX
N. C.
VCC

2
Hardware Installation
15

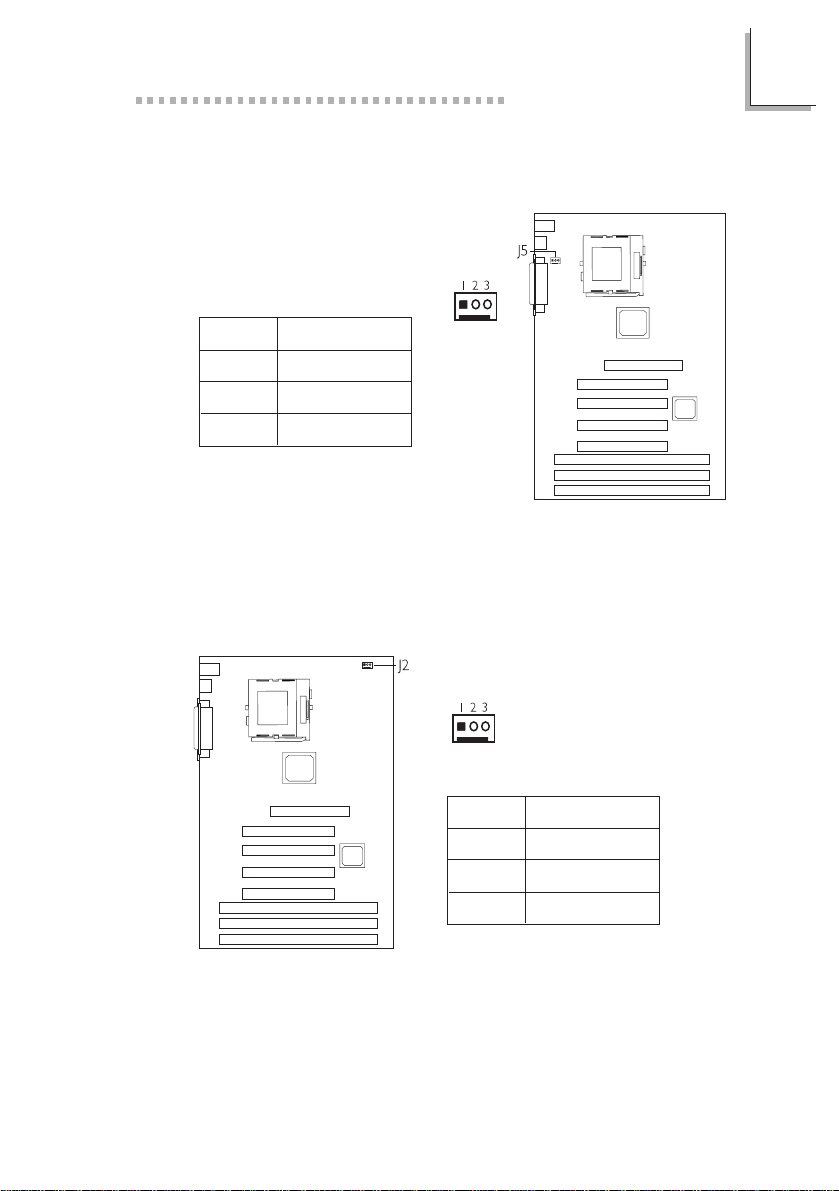

2.6.3 CPU Fan Connector
Connecteur du Ventilateur de CPU
CPU Kühlung Anschluß
2.6.4 Chassis Fan Connector
Connecteur de Châssis de Ventilateur
Anschluß Kühlungsgehäuse
Pin
1
2
3
Function
On/Off
+12V
Sense
Pin
1
2
3
Function
On/Off
+12V
Sense

2
16
Hardware Installation
2.6.5 AGP Fan Connector
Connecteur de Ventilateur AGP
Anschluß AGP Kühlung
2.6.6 Wake-On-LAN (WOL) Connector
Connecteur Réveil-Sur-LAN (WOL)
Wake-On-LAN (WOL) Anschluß
Pin
1
2
3
Function
Ground
+12V
N. C.
Pin
1
2
3
Function
+5VSB (720mA)
Ground
WOL
Important:
The 5VSB power source of your power supply must support
≥ 720mA (minimum).

2
Hardware Installation
17
2.6.8 LEDs and Switches
Commutateurs et LED
LEDs und Schalter
2.6.7 SB-LINK Connector
Connecteur de SB-LINK
Anschluß SB-LINK
Pin
1
2
3
4
5
6
Function
PC-PCI-GNTx
DGND
Key
PC-PCI-REQx
DGND
SERIRQ

2
18
Hardware Installation
Important:
ATX-SW (ATX Power Switch) - Depending on the setting in the BIOS
setup, this switch is a dual function power button that will allow
your system to enter the Soft-Off or Suspend mode. Refer to section
3.7 (chapter 3) for more information.
Pin Pin Assignment
HD-LED 1 HDD LED Power
(Primary/Secondary IDE LED) 2 HDD
3N.C.
G-LED 4 Green LED Power
(Green LED) 5 Green
6N.C.
ATX-SW 7 PWRBT
(ATX power switch) 8 Ground
9N.C.
G-SW 10 SMI
(Green switch) 11 Ground
12 N. C.
RESET 1 3 H/W Reset
(Reset switch) 14 Ground
15 N. C.
SPEAKER 16 Speaker Data
(Speaker connector) 17 N. C.
18 Ground
19 Speaker Power
20 N. C.
KEYLOCK 21 LED Power
(Keylock and Power LED 22 N. C.
connector) 23 Standby Signal
24 Keylock
25 Ground
Use pins 21 to 23
for the Power/
Standby LED.

2
Hardware Installation
19

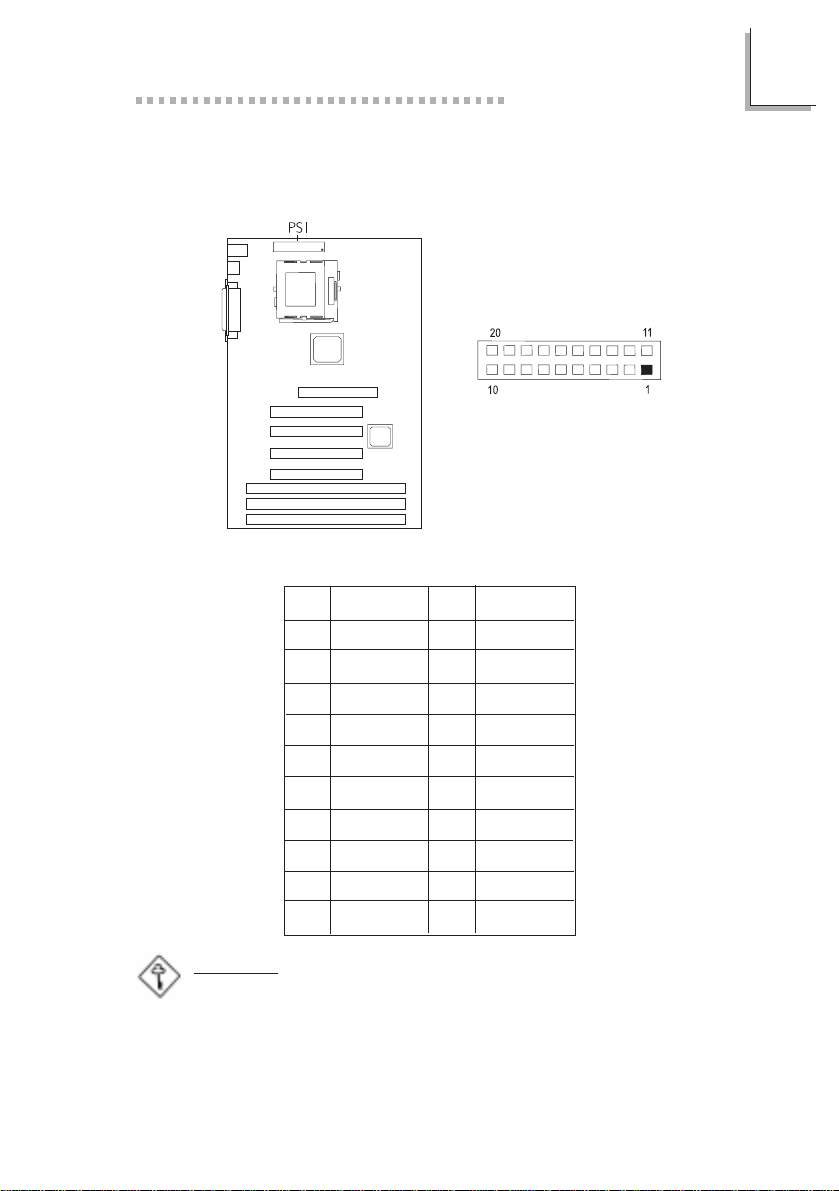

2.6.9 Power Connector
Connecteur dAlimentation
Netzanschluß
Important:
Your power supply must meet the ATX specification - supporting
3.3V/14A (minimum), otherwise your system will not boot properly.
Pin
1
2
3
4
5
6
7
8
9
10
Function
3.3V/14A
3.3V/14A
COM
+5V
COM
+5V
COM
PW-OK
5VSB
+12V
Pin
11
12
13
14
15
16
17
18
19
20
Function
3.3V/14A
-12V
COM
PS-ON
COM
COM
COM
-5V
+5V
+5V
PS1 connectors pin assignment.

20
3.1 Entering the Award BIOS Setup Utility
Entrer Dans lUtilitaire de Configuration du Award BIOS
Aufruf des AWARD BIOS Konfigurationsprogramms
Power-on the system and press <Del> to enter the utility.The main
program screen will appear.
Allumez le Système et appuyez sur <Del> pour entrer dans
lutilitaire. Lécran du programme principal apparaîtra.
Zum Aufrufen des Konfigurationsprogramms drücken Sie während
des Startvorgangs die Taste <Del>. Ein Bildschirm ähnlich dem
folgenden erscheint.
ROM PCI/ISA BIOS
CMOS SETUP UTILITY
AWARD SOFTWARE, INC.
STANDARD CMOS SETUP
BIOS FEATURES SETUP
CHIPSET FEATURES SETUP
POWER MANAGEMENT SETUP
PNP/PCI CONFIGURATION
LOAD FAIL-SAFE SETTINGS
LOAD OPTIMAL SETTINGS
INTEGRATED PERIPHERALS
SUPERVISORPASSWORD
USERPASSWORD
IDE HDD AUTO DETECTION
SAVE & EXIT SETUP
EXIT WITHOUT SAVING
Esc
F10 : Quit : Save & Exit Setup ↑↓→←
(Shift) F2 : Select Item
: Change Color
Chapter 3 - Award BIOS Setup Utility
Utilitaire de Configuration du Award BIOS
AWARD BIOS Konfigurationsprogramm
