DFI PE10-SA/RAMA User manual

PE10-SA/RAMA
PE10-LA/RAMA
Mainboard Users Manual
Carte Mère Manuel Pour Utilisateur
System-Platine Benut erhandbuch
Manual del Usuario de Placas Base
55400203

Copyright
This publication contains information that is protected by copyright.
No part of it may be reproduced in any form or by any means or
used to make any transformation/adaptation without the prior
written permission from the copyright holders.
This publication is provided for informational purposes only. The
manufacturer makes no representations or warranties with respect to
the contents or use of this manual and specifically disclaims any
express or implied warranties of merchantability or fitness for any
particular purpose. The user will assume the entire risk of the use or
the results of the use of this document. Further, the manufacturer
reserves the right to revise this publication and make changes to its
contents at any time, without obligation to notify any person or
entity of such revisions or changes.
© 00 . All Rights Reserved.
Trademarks
Windows® 98, Windows® 98 SE, Windows® ME, Windows® 000,
Windows NT® 4.0 and Windows® XP are registered trademarks of
Microsoft Corporation. Intel® and Pentium® 4 are registered
trademarks of Intel Corporation. VIA is a registered trademark of
VIA Technologies, Inc. Award is a registered trademark of Award
Software, Inc. Other trademarks and registered trademarks of
products appearing in this manual are the properties of their
respective holders.
Caution
To avoid damage to the system:
 Use the correct AC input voltage range.
To reduce the risk of electric shock:
 Unplug the power cord before removing the system chassis
cover for installation or servicing. After installation or servicing,
cover the system chassis before plugging the power cord.

Battery:
 Danger of explosion if battery incorrectly replaced.
 Replace only with the same or equivalent type recommend by
the manufacturer.
 Dispose of used batteries according to the battery
manufacturers instructions.
Joystick or MIDI port:
 Do not use any joystick or MIDI device that requires more than
10A current at 5V DC. There is a risk of fire for devices that
exceed this limit.
FCC and DOC Statement on Class B
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a residential
installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
 Reorient or relocate the receiving antenna.
 Increase the separation between the equipment and the receiver.
 Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
 Consult the dealer or an experienced radio TV technician for
help.
Notice:
1. The changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority
to operate the equipment.
. Shielded interface cables must be used in order to comply with
the emission limits.

4
Quick Setup Guide

Quick Setup
Guide
Table of Contents
Chapter 1
Quick Setup Guide.............................................
Chapter 2
En lish......................................................................
Chapter 3
Français (French).................................................
Chapter 4
Deutsch (German)................................................
Chapter 5
Español (Spanish)..................................................
5
23
41
60
79
Onboard audio
- AC97 codec
- Game/MIDI port
- Audio jacks
- AUX-in and CD-in
- Front audio (J9)
- CNR slot
Onboard LAN
- Realtek RTL8100
- RJ45 LAN port
ü
û
PE10-LA/RAMAPE10-SA/RAMA
ü
ü

5

Quick Setup Guide
Quick Setup
Guide
Chapter 1 - Quick Setup Guide
Table of Contents
1.1 Mainboard Layout...........................................................................................................
1. Jumpers.....................................................................................................................................
1.3 Ports and Connectors................................................................................................
1.4 Award BIOS Setup Utility.......................................................................................
6
8
9
18
Note:
The users manual in the provided CD contains detailed information
about the mainboard. If, in some cases, some information doesnt
match those shown in this manual, this manual should always be
regarded as the most updated version.

6
Quick Setup Guide

Quick Setup
Guide
1.1 Mainboard Layout
PE10-SA/RAMA
J3
KB
Mouse
CN1
USB 1
USB 2
COM 1
J1
Parallel
J4
COM 2
J2
Game/MIDI (J7)
J5 Speaker-out (J5)
Line-in (J6)
Mic-in (J8)
J6
J8
Wake-On-PS/2 KB
(JP2)
CPU fan
(J16)
CD-in
(J10)
AUX-in
(J11)
AC’97
2
1
10
9
BIOS
I/O
chip
Wake-On-LAN
J12 Wake-On-Ring (J14)
PCI standby
power LED
VIA
APOLLO
P4X266A
VIA
VT8233ACD
Chassis fan
(J15)
JP6
FDD
J23
HD-LED
RESET
SPEAKER
PWR-LED
G-SW
ATX-SW
G-LED
Secondary IDE
Primary IDE
J21
J22
DIMM1
DIMM2
DIMM3
ATX main
power (J25)
+12V power
(ATXP1)
J26
34
12
AGP Slot
PCI 1 Slot
PCI 2 Slot
PCI 3 Slot
PCI 4 Slot
PCI 5 Slot
CNR Slot
15
11
5
1
DIMM standby
power LED
USB 1
(Black)
Mouse
(Green)
KB
(Purple)
COM 1 COM 2
Parallel
(Burgundy)
Game/MIDI
(Gold)
Line-In
(Light Blue)
Speaker-Out
(Lime)
Mic-In
(Pink)
USB 2
(Black)
Square denotes pin 1
(Teal/Turquoise)
IR (J17)
USB 3, 4 (J20)
Front audio
(J9)
Battery
Speaker
Clear CMOS (JP6)
Socket 478

7

Quick Setup Guide
Quick Setup
Guide
PE10-LA/RAMA
(Supports onboard AN)
Note:
The illustrations on the following pages are based on the PE10- A/
RAMA mainboard, which is the board that supports onboard AN.
J3
KB
Mouse
LAN
CN1
USB 1
USB 2
COM 1
J1
Parallel
J4
COM 2
J2
Game/MIDI (J7)
J5 Speaker-out (J5)
Line-in (J6)
Mic-in (J8)
J6
J8
Wake-On-PS/2 KB
(JP2)
CPU fan
(J16)
CD-in
(J10)
AUX-in
(J11)
Realtek
RTL8100
AC’97
2
1
10
9
BIOS
I/O
chip
Wake-On-LAN
J12 Wake-On-Ring (J14)
PCI standby
power LED Chassis fan
(J15)
JP6
FDD
J23
HD-LED
RESET
SPEAKER
PWR-LED
G-SW
ATX-SW
G-LED
Secondary IDE
Primary IDE
J21
J22
DIMM1
DIMM2
DIMM3
ATX main
power (J25)
+12V power
(ATXP1)
J26
34
12
AGP Slot
PCI 1 Slot
PCI 2 Slot
PCI 3 Slot
PCI 4 Slot
PCI 5 Slot
CNR Slot
15
11
5
1
DIMM standby
power LED
USB 2/1
(Black)
Mouse
(Green)
KB
(Purple) COM 1
Parallel
(Burgundy) Game/MIDI
(Gold)
Line-In
(Light Blue)
Speaker-Out
(Lime)
Mic-In
(Pink)
RJ45
LAN
(Teal/Turquoise)
COM 2
Square denotes pin 1
IR (J17)
USB 3, 4 (J20)
Front audio
(J9)
Battery
Speaker
Clear CMOS (JP6)
VIA
APOLLO
P4X266A
VIA
VT8233ACD
Socket 478

8
Quick Setup Guide

Quick Setup
Guide

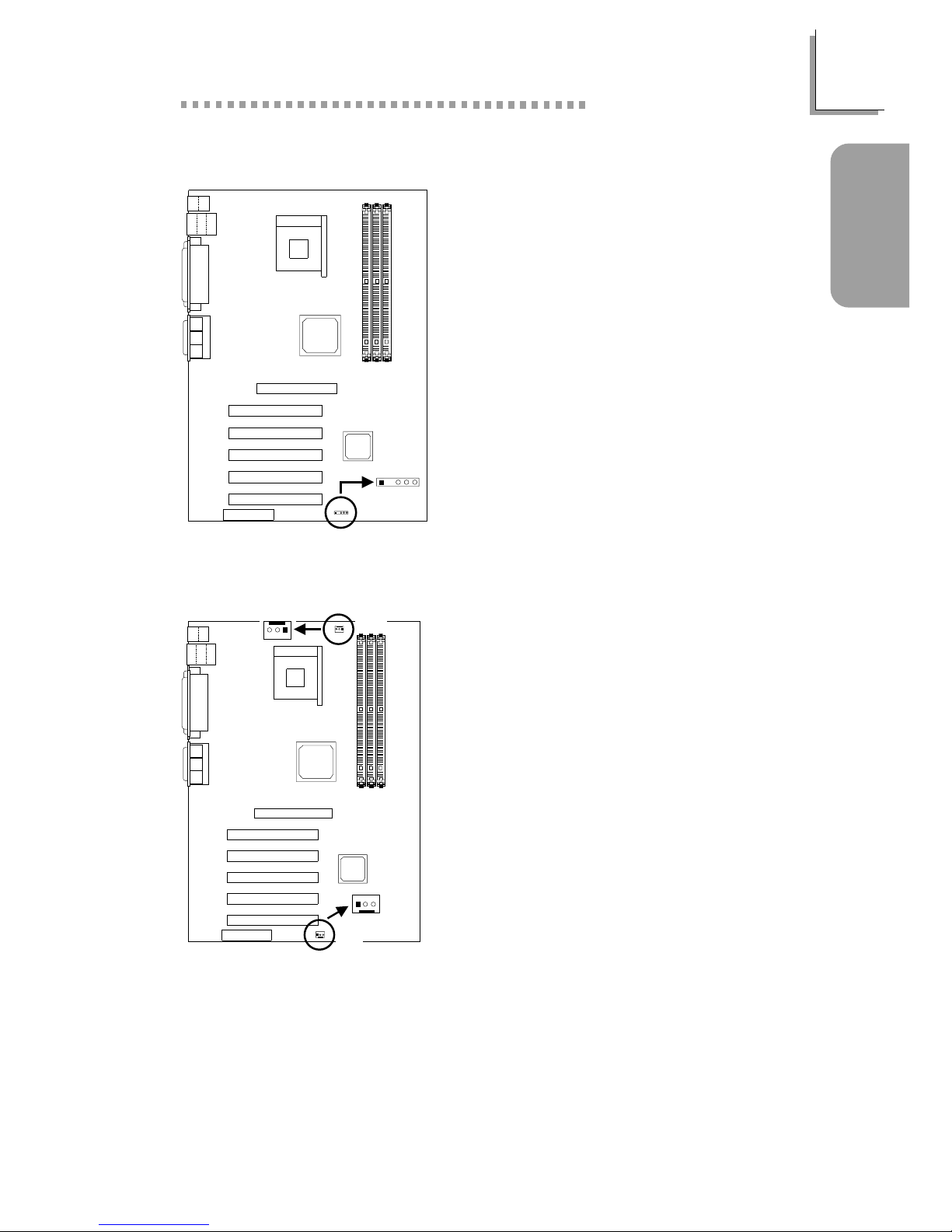

1.2.1 Clear CMOS Data - JP6
1.2 Jumpers
-3 On:
Clear CMOS Data
1- On:
Normal (default)
1.2.2 Wake-On-PS/2 Keyboard - JP2
-3 On:
Enable - 5VSB
1- On:
Disable - VCC
(default)
Important:
The 5VSB power source of your power supply must support
≥ 720mA.
3
1
3
1
1
3
1
3
Clear CMOS
(JP6)
1
2
3
1
2
3
Wake-On-PS/2 KB
(JP2)

9

Quick Setup Guide
Quick Setup
Guide
1.3 Ports and Connectors
1.3.1 PS/2 Mouse and PS/2 Keyboard Ports
Make sure to turn off your computer
prior to connecting or disconnecting a
mouse or keyboard. Failure to do so
may damage the mainboard.
PS/ Mouse
PS/ Keyboard
1.3.2 RJ45 Fast-Ethernet Port (PE10-LA/RAMA only)
RJ45 LAN
J3
Mouse
(Green)
KB
(Purple)
LAN
CN1
RJ45
LAN

10
Quick Setup Guide

Quick Setup
Guide
1.3.3 Universal Serial Bus Ports
1 VCC
UP -
3 UP +
4 Ground
5 Key
6 VCC
7 UP3-
8 UP3+
9 Ground
10 Ground
11 Ground
1 Ground
13 UP +
14 UP -
15 VCC
Onboard USB Ports (USB 1 & 2)
Additional USB Ports (USB 3 & 4)
1.3.4 Parallel Port
Parallel Port
Parallel
(Burgundy)
J4
CN1
USB 2
(Black)
USB 1
(Black)
15
11
5
1
5
15
11
1
USB 3, 4
(J20)
The Wake-On-USB function, when
enabled in the BIOS, allows you to
use a USB device to wake up a
system.

11

Quick Setup Guide
Quick Setup
Guide
1.3.5 Serial Ports
COM 1
Serial Port COM
Serial Port
1.3.6 Game/MIDI Port and Audio Jacks
Game/MIDI Port
Audio Jacks
Speaker-
out Line-in
Mic-in
Front Audio (J9)
1Mic+
Ground
3 Mic Power
4 AuD_Vcc (Avcc)
5 AuD_R-Out
6 AuD_R_Return (GND)
7N. C.
8 Key
9 AuD_L_Out
10 AuD_L_Return (GND)
Onboard Game/MIDI / Audio
COM 1 COM 2
(Teal/Turquoise)
J1
J2
Line-in
(Light Blue)
Speaker-out
(Lime)
Mic-in (Pink)
J5
J6
J8
2
1
10
9
Front audio
(J9)
2
1
10
9
J7
Game/MIDI
(Gold)

1
Quick Setup Guide

Quick Setup
Guide

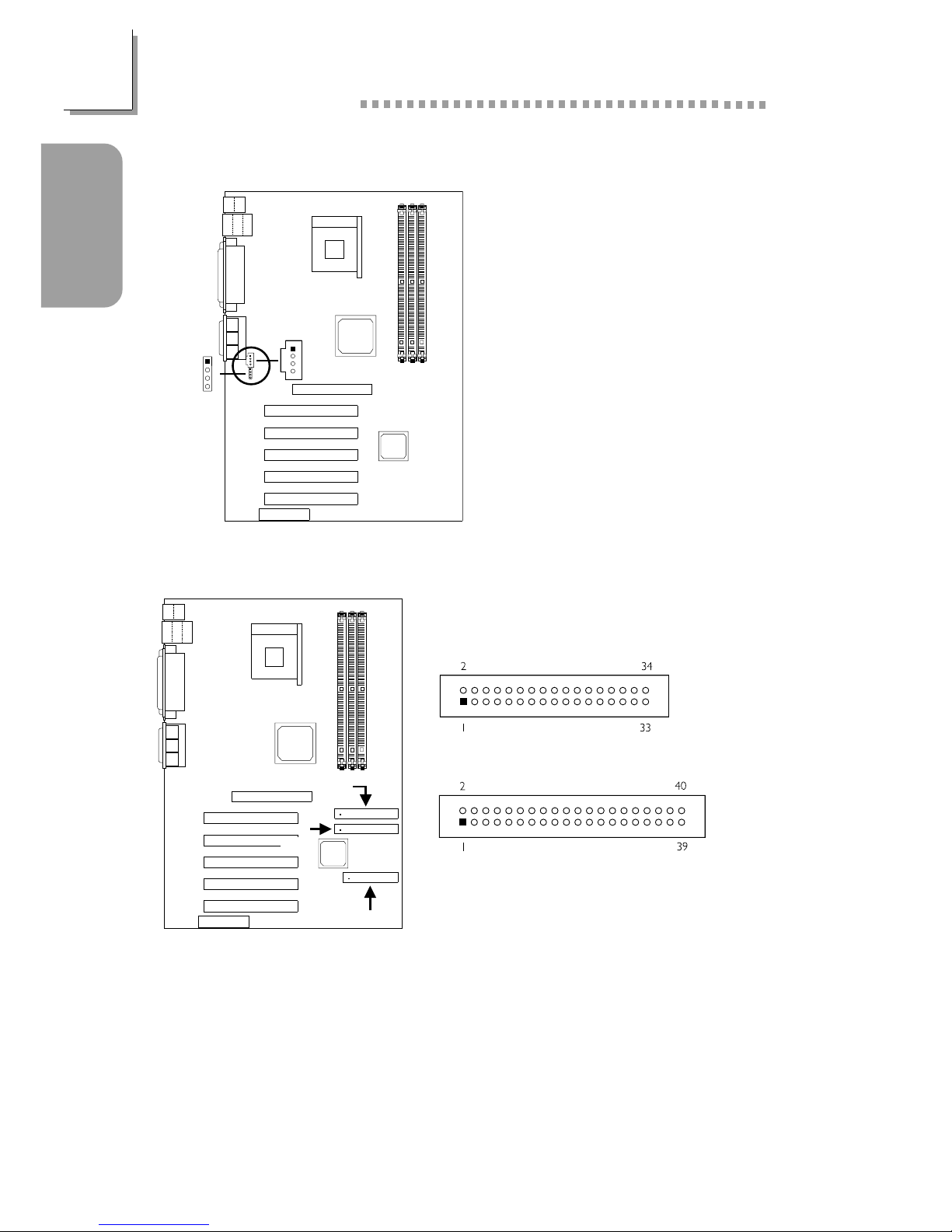

1.3.8 Floppy and IDE Disk Drive Connectors
If you encountered problems while using an ATAPI CD-ROM drive that is
set in Master mode, please set the CD-ROM drive to Slave mode. Some
ATAPI CD-ROMs may not be recognized and cannot be used if
incorrectly set in Master mode.
FDD
IDE
1.3.7 Internal Audio Connectors
1 Left audio channel
Ground
3 Ground
4 Right audio channel
AUX-in / CD-in
Primary IDE
(J21)
FDD (J23)
Secondary IDE
(J22)
CD-in (J10)
AUX-in
(J11)
4
3
2
1
1
2
3
4

13

Quick Setup Guide
Quick Setup
Guide
1.3.9 IrDA Connector
1 VCC
N. C.
3 IRRX
4 Ground
5 IRTX
The sequence of the pin functions on
some IrDA cable may be reversed
from the pin function defined on the
mainboard. Make sure to connect the
cable to the IrDA connector
according to their pin functions.
1.3.10 Fan Connectors
1 Ground
Power
3 Sense
1 On/Off
+1 V
3 Sense
CPU Fan
Chassis Fan
IR (J17)
12345
CPU fan
(J16)
321
Chassis fan
(J15)
123

14
Quick Setup Guide

Quick Setup
Guide

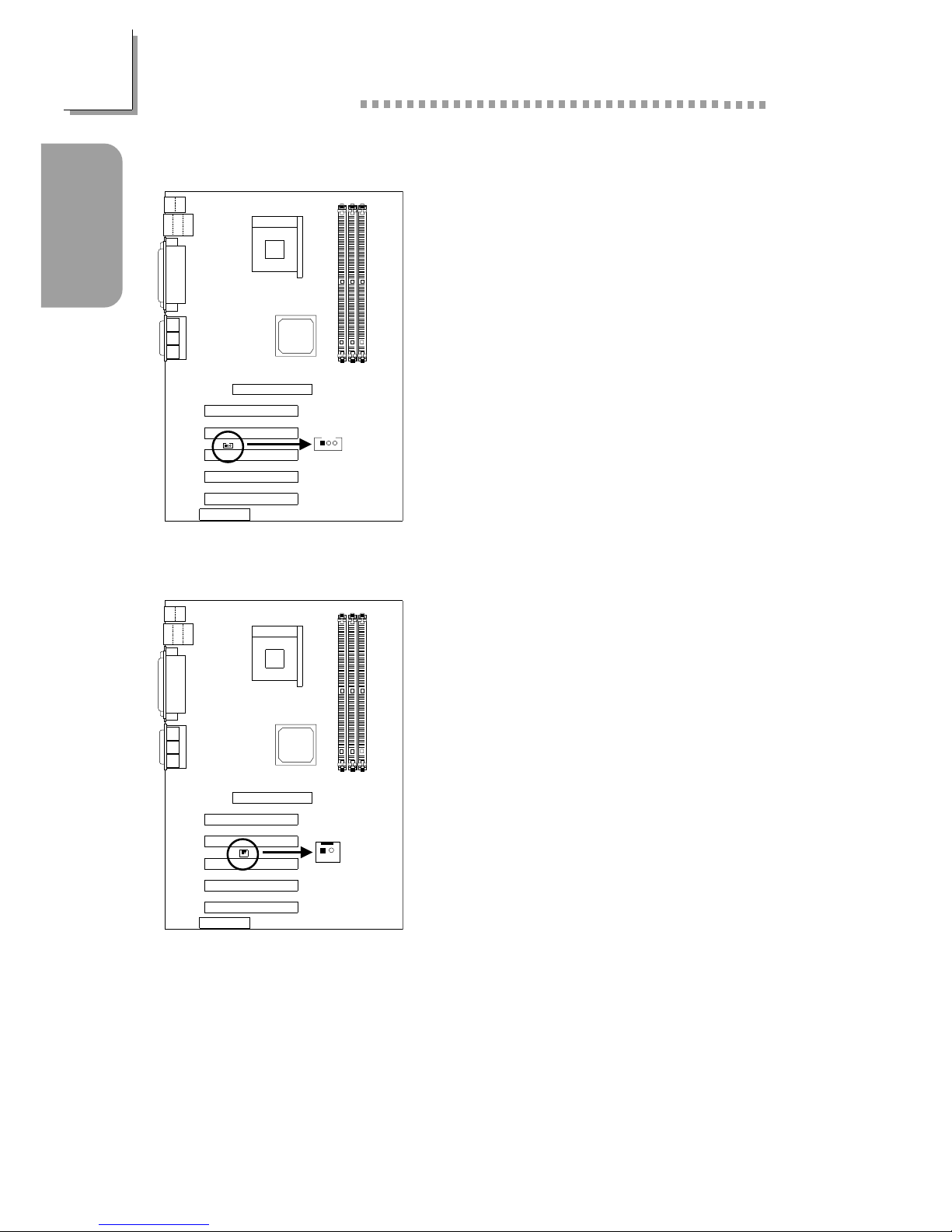

1.3.12 Wake-On-Rin Connector
1 Ground
RI#
If you are using a modem add-in card,
the 5VSB power source of your power
supply must support ≥7 0mA.
1.3.11 Wake-On-LAN Connector
The 5VSB power source of your power
supply must support ≥7 0mA.
1 +5VSB
Ground
3 WOL
Wake-On-Ring
(J14)
21
Wake-On-LAN
(J12)
123

15

Quick Setup Guide
Quick Setup
Guide
1 3.3V
3.3V
3 Ground
4 +5V
5 Ground
6 +5V
7 Ground
8 PW-OK
9 5VSB
10 +1 V
11 3.3V
1 -1 V
13 Ground
14 PS-ON
15 Ground
16 Ground
17 Ground
18 -5V
19 +5V
0 +5V
ATX Main Power
1 Ground
Ground
3 +1 V
4 +1 V
+12V Power
1.3.13 Power Connectors
We recommend that you use a power supply that complies with the
ATX1 V Power Supply Design Guide Version 1.1. Connect the ATX1 V
power supplys 0-pin ATX main power connector and 4-pin +1 V power
connector to J 5 and ATXP1 respectively.
The 4-pin +1 V power connector enables the delivery of more +1 VDC
current to the processors Voltage Regulator Module (VRM).
The mainboard requires a minimum of 50 Watt power supply to
operate. Your system configuration (amount of memory, add-in cards,
peripherals, etc.) may exceed the minimum power requirement. To ensure
that adequate power is provided, use a 300 Watt (or greater) power
supply.
+12V power
(ATXP1)
34
12
2
1
4
3
ATX main
power (J25)
1
10
11
20

16
Quick Setup Guide

Quick Setup
Guide
1.3.14 DIMM and PCI Standby Power LEDs
DIMM Standby Power LED
This LED will turn red when the systems power is on or when it is in the
Suspend state (Power On Suspend or Suspend to RAM). It will not light
when the system is in the Soft-Off state.
PCI Standby Power LED
This LED will turn red when the system is in the power-on, Soft-Off or
Suspend (Power On Suspend or Suspend to RAM) state.
Important:
ighted EDs serve as a reminder that you must power-off the
system then turn off the power supplys switch or unplug the power
cord prior to installing any memory modules or add-in cards.
PCI Standby
Power LED
DIMM standby
power LED

17

Quick Setup Guide
Quick Setup
Guide
1.3.15 Front Panel Connectors
Pin
3
5
14
16
8
10
18
0
7
9
13
15
17
19
4
6
HD-LED
(Primary/Secondary IDE LED)
G-LED
(Green LED)
ATX-SW
(ATX power switch)
G-SW
(Green switch)
RESET
(Reset switch)
SPEAKER
(Speaker connector)
PWR-LED
(Power/Standby LED)
Pin Assi nment
HDD LED Power
HDD
Green LED Power
Ground
PWRBT+
PWRBT-
Ground
SMI
Ground
H/W Reset
Speaker Data
N. C.
Ground
Speaker Power
LED Power (+)
LED Power (+)
LED Power (-) or Standby Signal
Note:
If your system did not boot-up and the Power/Standby ED did not
light after it was powered-on, it may indicate that the CPU or
memory module was not installed properly. Please make sure they
are properly inserted into their corresponding socket.
Front panel
connectors
(J26)

18
Quick Setup Guide

Quick Setup
Guide
1.4 Award BIOS Setup Utility
1.4.1 Main Menu
1.4.2 Standard CMOS Features
CMOS Setup Utility - Copyright (C) 1984-2001 Award Software
Standard CMOS Features
Advanced BIOS Features
Advanced Chipset Features
Integrated Peripherals
Power Management Setup
PnP/PCI Configurations
PC Health Status
Frequency/Voltage Control
Load Fail-Safe Defaults
Load Optimized Defaults
Set Supervisor Password
Set User Password
Save & Exit Setup
Exit Without Saving
Esc
F10 : Quit : Save & Exit Setup ↑↓→← : Select Item
Time, Date, Hard Disk Type...
The settings on the screen are for reference only. Your version may not be
identical to this one.
↑↓→← :Move
CMOS Setup Utility - Copyright (C) 1984-2001 Award Software
Standard CMOS Features
Date (mm:dd:yy)
Time (hh:mm:ss)
IDE Primary Master
IDE Primary Slave
IDE Secondary Master
IDE Secondary Slave
Drive A
Drive B
Video
Halt On
Base Memory
Extended Memory
Total Memory
F6:Fail-Safe Defaults F7:Optimized Defaults
F1:General Help
Wed, Jan 16 2002
4 : 35 : 5
Press Enter None
Press Enter None
Press Enter None
Press Enter None
1.44M, 3.5 in.
None
EGA/VGA
All, But Keyboard
640K
129024K
130048K
Item Help
Menu Level
Change the day, month,
year and century
Enter:Select
F5:Previous Values +/-/PU/PD:Value F10:Save ESC:Exit
K
K
K
K

19

Quick Setup Guide
Quick Setup
Guide
1.4.3 Advanced BIOS Features
1.4.4 Advanced Chipset Features
CMOS Setup Utility - Copyright (C) 1984-2001 Award Software
Advanced BIOS Features
Item Help
Menu Level
Allows you to choose
the VIRUS warning
feature for IDE Hard
Disk boot sector
protection. If this
function is enabled and
someone attempt to
write data into this
area, BIOS will show a
warning message on
screen and alarm beep
↑↓→← Move F1:General HelpEnter:Select +/-/PU/PD:Value F10:Save ESC:Exit
X
X
F6:Fail-Safe Defaults F7:Optimized DefaultsF5:Previous Values
The settings on the screen are for reference only. Your version may not be
identical to this one.
Virus Warning
CPU L1 & L2 Cache
CPU L2 Cache ECC Checking
Quick Power On Self Test
First Boot Device
Second Boot Device
Third Boot Device
Boot Other Device
Swap Floppy Drive
Boot Up Floppy Seek
Boot Up NumLock Status
Typematic Rate Setting
Typematic Rate (Chars/Sec)
Typematic Delay (Msec)
Security Option
OS Select For DRAM > 64MB
Video BIOS Shadow
Small Logo(EPA) Show
Disabled
Enabled
Enabled
Enabled
Floppy
HDD-0
LS120
Enabled
Disabled
Disabled
On
Disabled
6
250
Setup
Non-OS2
Enabled
Enabled
CMOS Setup Utility - Copyright (C) 1984-2001 Award Software
Advanced Chipset Features
The settings on the screen are for reference only. Your version may not be
identical to this one.
Item Help
Menu Level
↑↓→← Move F6:Fail-Safe Defaults F7:Optimized Defaults F1:General HelpEnter:Select
F5:Previous Values
+/-/PU/PD:Value F10:Save ESC:Exit
DRAM Clock/Drive Control
AGP & P2P Bridge Control
CPU & PCI Bus Control
Memory Hole
System BIOS Cacheable
Video RAM Cacheable
Press Enter
Press Enter
Press Enter
Disabled
Disabled
Disabled
K
K
K

0
Quick Setup Guide

Quick Setup
Guide
1.4.6 Power Mana ement Setup
1.4.5 Inte rated Peripherals
CMOS Setup Utility - Copyright (C) 1984-2001 Award Software
Integrated Peripherals
Item Help
Menu Level
↑↓→← Move F6:Fail-Safe Defaults F7:Optimized Defaults F1:General HelpEnter:Select
F5:Previous Values
+/-/PU/PD:Value F10:Save ESC:Exit
VIA OnChip IDE Device
VIA OnChip PCI Device
Super IO Device
Init Display First
OnChip USB Controller
USB Keyboard Support
IDE HDD Block Mode
Press Enter
Press Enter
Press Enter
PCI Slot
All Enabled
Disabled
Enabled
K
K
K
The settings on the screen are for reference only. Your version may not be
identical to this one.
The settings on the screen are for reference only. Your version may not be
identical to this one.
CMOS Setup Utility - Copyright (C) 1984-2001 Award Software
Power Management Setup
ACPI Function
ACPI Suspend Type
Power Management Option
HDD Power Down
Suspend Mode
Video Off Option
Video Off Method
MODEM Use IRQ
Soft-Off By PWRBTN
PWR Lost Resume State
Wake Up Events
Enabled
S1(POS)
User Define
Disabled
Disabled
Suspend -> Off
V/H SYNC+Blank
3
Instant-off
Keep Off
Press Enter
Item Help
Menu Level
↑↓→← Move F6:Fail-Safe Defaults F7:Optimized Defaults F1:General HelpEnter:Select
F5:Previous Values
+/-/PU/PD:Value F10:Save ESC:Exit
K
