Diagnosis Diagnostic nc300 User manual

Diagnostic NC300

NON-CONTACT INFRARED THERMOMETER

1. GENERAL DESCRIPTION OF THE PRODUCT

The infrared non-contact thermometer is intended for measurement body

temperature in children and adults and the environment in a non-contact

manner, which allows you to obtain a measurement result much faster. The

thermometer is used to measure body temperature when there is a suspicion of

the disease and during it, during the convalescence after surgery or exhaustion.

The thermometer is intended for home use or by medical personnel.

Product advantages:

lEasy to clean sensor

lFever alarm (only during body temperature measurement), when

measurement temperature is 37.8 °C or higher, a sound signal will

automatically appear, which indicates the occurrence of fever

lEnables quick and accurate temperature reading

lIlluminated display

lConvenient to use

lMemory of the last 12 measurements

lAfter switching on, the device automatically displays the last measured

temperature value

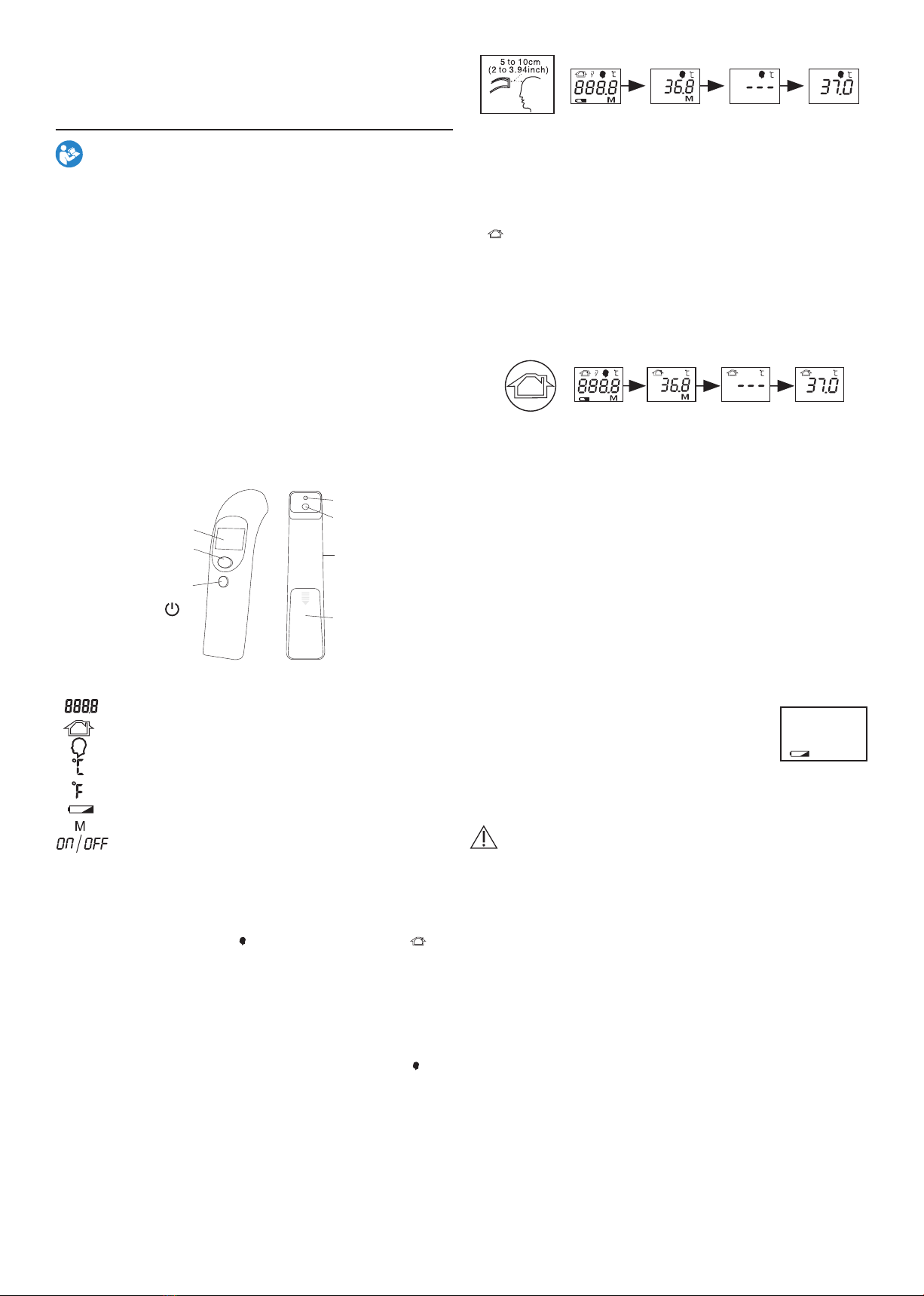

2. CONSTRUCTION OF THE DEVICE

3. SYMBOLS AT THE LCD

NOTE: In the case of difference between the storage and usage temperature the

device should be left for 2-4 hours in a room, in which the measurement will be

carried out. Perform the measurement, when the device is at ambient

temperature.

4. TAKING MEASUREMENT

Select the body measurement mode  or the ambient measuring mode  .

1) Non-contact temperature measurement on the forehead (Fig.5.1B)

NOTE: First, select the measurement mode manually using the ON/OFF button.

Before measuring, clean and dry the skin on the forehead and

move hair away from the measurement point.

lTurn on the device by pressing the "POWER" button, all symbols will be

displayed on the screen for a moment (Fig. 5.2B).

lThen the last measurement result will be displayed on the LCD temperature,

as shown in (Fig. 5.3B). After a few seconds the device will switch to the

forehead temperature measurement mode. On the display the symbol will 

appear and the temperature unit °C or °F will start flashing, it means that the

device is ready for taking measurement (Fig. 5.4B).

lDirect the thermometer to the forehead at a distance of 5-10 cm, press and

release "SCAN” button for 1 sec. The measurement is completed when a beep

sound appears. Read the result on the screen (Fig. 5.5B).

lWhen the temperature symbol flashes, wait 5 seconds to taken the °C or °F

next measurement. After 5 consecutive measurements, it is recommended to

make one minute break before the next measurement.

lIf there is no command for 60 seconds, the device will automatically switch off.

INSTRUCTION FOR USE

2) Ambient temperature measurement mode (Fig. 5.1C)

lFirst, select the ambient mode manually using the slide key button. Turn on

the device by pressing the "POWER" button and then on the screen all

symbols will be displayed for a moment (Fig. 5.2C). The display will show the

last temperature measurement result (Fig. 5.3C). After a few seconds, the

device switches to the ambient temperature measurement mode, the symbol

 will appear on the display and a temperature unit °C or °F will start

flashing. It means, that the device is ready for taking masurement (Fig. 5.4C).

lPoint the thermometer towards the object at a distance of 5-10 cm, then press

and release the "SCAN" button for about 1 sec. When a long beep sound

appears, the device will take measurement and the result will appear on the

screen (Fig. 5.5C).

lWhen the temperature symbol °C or °F flashes, wait 5 seconds to taken the

next measurement. After 5 consecutive measurements, it is recommended to

make one minute break before the next measurement.

lIf the device is not used again, it will switch off automatically after 60 seconds.

3) Setting the sound signal

lWith the device turned off, press the "SCAN" button while holding it down for

about 5 seconds until the "ON or OFF" symbol appears on the screen. Press

the "SCAN" button again to switch ON or OFF the sound signal.

4) Setting the temperature unit °C or °F

lWith the device switched off, press the "SCAN" button while holding it down

for about 10 seconds until the "---" symbol and unit temperature °C or °F

appears on the screen. Press the SCAN button to set the desired temperature

unit, the device will be properly set and ready for use.

5) Viewing the memory results

The last 12 measurement results.

When the device is switched off, press the "SCAN" button so that the symbol "---

M" appears on the screen, which will allow you to view the measurement results

saved in the memory. Pressing again the "SCAN" button will display subsequent

measurement results. Press the "POWER" button to exit the result viewing mode

and switch off the device.

5. INDICATION OF BATTERY LEVEL AND BATTERY

REPLACEMENT

LOW battery level: Low battery symbol will appear in the

bottom corner of the display, when the charge level of

the battery will drop to the minimum level. In this case, you

should replace the batteries as soon as possible.

However, the device can be still used for a short time (Fig. 6.1).

Battery change:

Remove the battery cover, take out the used batteries. Insert two new batteries,

paying attention to their polarity.

6. IMPORTANT SAFETY NOTES

In order to ensure the correct use of the product, you should always observe

safety rules for measurements.

lBefore using the infrared thermometer for the first time, place the batteries

in the battery compartment, paying attention to their polarity.

lClean the sensor every time after using the thermometer and keep it clean.

Use a swab, to clean the sensor, slightly moistened with 70-80% isopropyl

alcohol, then wipe the sensor.

lClean the device before and after use with a soft, clean and soaked cloth

with 70-80% isopropyl alcohol.

lStore the thermometer in a dry place, do not immerse it in water or in other

liquids.

lDo not expose the thermometer to high temperatures for a longer time and

avoid exposing it to sunlight, dust and impurities.

lDo not store the thermometer with pointed objects.

lDo not touch the sensor with your fingers.

lDo not disassemble the thermometer by yourself.

lDo not use a thermometer if the skin on the forehead is damaged.

lThe temperature measurement should be carried out in a rest state. Never

take measurements directly after physical exercises or after bathing. After

returning from the walk, wait at least 30 minutes.

lIf you have any problems with the product, its configuration, maintenance or

indicate accuracy, contact the distributor in your country.

lThe fall or shock of the product may cause changes in its operation. In this

case, please contact the distributor in your country.

lThe product should be used only with the accessories recommended by the

manufacturer.

lDo not take measurements if the product is exposed to a strong

electromagnetic field or static electricity.

Fig. 5.1C Fig. 5.2C Fig. 5.3C Fig. 5.4C Fig. 5.5C

Fig. 6.1

Please read carefully the instruction before using the device. Use the

product only in accordance with its purpose described in this instruction.

Individual measurement means control but not a diagnosis. Do not take

any action on medical nature without prior consultation with a physician.

Fig. 5.1B Fig. 5.2B Fig. 5.3B Fig. 5.4B Fig. 5.5B

SCA N

LCD

SCAN

Button

ON/OFF

Button

LED

Infrared Sensor

Slide Key

Battery Cover

Measurement Result

Ambient Temperature

Forehead Measuring Mode

Celsius Scale

Fahrenheit Scale

Low Battery

Last Memory Result

Sound Signal (ON/OFF)

Remember:

lUsing the cleaning methods others, than those specified in the instructions

may cause the failure of the infrared thermometer.

lContraindications: do not point the LED to the scar or the area of t he skin,

which is affected by diseases. Patients with injuries and those taking anti-

inflammatory medications for the treatment of skin should not take

measurement. Do not point the thermometer sensor against the exposed skin

directly to sunlight or heat from a heating device (eg a fireplace), a skin

treated with hilotherapy, or a skin that is on air flow from the air conditioner.

lDo not perform service / maintenance while using the device.

lThe user of the device is the patient or his guardian. Patient / guardian takes

measurement and cleans the thermometer and its accessories in accordance

with the instructions.

lRemove the batteries if the device will not be used for more than three

months. Failure to comply with this recommendation may lead to fluid leakage,

warming up or disintegration of the battery, and as a result, damage to the

device.

lThe device is not suitable for sterilization. The device is not intended for work

in the OXYGEN ONCENTRATION area.

lRemove the device, batteries, accessories and packaging after use in

accordance with the applicable regulations on waste disposal.

lCheck the condition of the device before each use. Do not use a damaged

product. Continuous use of a damaged device may result in injury, getting

incorrect results or serious danger.

lThe device should not be disassembled, repaired or modified by yourself.

NOTE: swallowing the battery may be fatal. If the battery is swallowed by a

child, immediately contact your doctor.

The measured temperature is higher than 43 °C (109.4 °F)

The measured temperature is lower than 33 °C (91.4 °F)

The environment is out of the operating temperature 10-40 °C

(50-104 °F)

Symbol Meaning

7. ERROR MESSAGES

9. TECHNICAL SPECIFICATION

Model

Diagnostic NC300

Measuring Range Forehead 34,0°C -43,0°C ( 93,2°F -109,4°F)

Ambient 0,0°C -100,0°C ( 32,0°F -212,0°F)

Accuracy ±0,2°C/0,4°F 34,0°C -34,9°C (93,2°F - 94,82°F)

±0,2°C /0,4°F 35,0°C -42,0°C (95,0°F -107,6°F)

±0,2°C /0,4°F 42,1°C -43,0°C (107,78°F -109,4°F )

Resolution

Automaic Power-off

Measurement time

0,1°C /0,2°F

after 60 sec

1 second;

The recommended time between the

measurements in the same place is 2 sec.

Memory

Operating conditions

Fever alarm

12 measurements

10.0 - 40.0 °C (50.0 - 104.0 °F)

Relative humidity ≤80%

Atmospheric pressure: 86 ~ 106 kPa

Yes (from 37.8 °C)

Storage Environment -25.0 - 55.0 °C (-13.0 - 131.0 °F)

Relative humidity ≤95%

Atmospheric pressure: 86 ~ 106 kPa

Battery

Protection against electric

shock

Classification Type BF

2 x AAA

Internally powered medical device

Dimensions device 138mm length x 35mm width x 38 mm height

Weight (with batteries)

Additional function

IP classification

Contents of a package

Expected product life

76 g

Backlit display

IP22: Protection against access to dangerous

parts. Finger test done (with a diameter of 12 mm

and 80 cm long). Protection against foreign solids

with a diameter of 12.5 mm and more. Protection

against vertical precipitation of a drop of water at

the device inclined to 15 °C. The vertical droplet

fall should not affect harmful to the device when

it tilts in both sides up to 15 °C.

infrared thermometer,

2 x AAA batteries,

carrying case,

instruction for use

5 years

Measurement distance 5-10 cm from the forehead

RANGE OF BODY TEMPERATURE

Body temperature means internal temperature of body. Normal temperature

means that of a healthy person and has little change within short range.

Temperature of a person measured in the evening is normally 0.5°C (16.9°F)

higher than in the early morning and is also affected by the environment, time

and activeness. The chart below shows the average of normal changes. Refer to

it to found out the personal normal temperature range.

Measurement

method

Normal temperature range Temperature range with fever

Forehead 35.0 ~ 38.0 °C (95.0 ~ 100.4

°F) NOTE: For some adult

people the measurement

temperature result can be

below 35.0 °C (95.0 °F).

Temperature is 0.6 ~ 0.8 °C (1.0 ~ 1.5

°F) higher than the normal range.

We recommend to use the infrared

thermometer to determine the

normal temperature range.

The temperature results depend on the method of measurement.

lKeep the thermometer away from children and household animals.

lThe temperature measurement should be carried out under the

care of adult. You must not allow your child to remove the battery

cover, remove and eventually, swallow the battery.

Normal temperature range by each part of body

Armpit 34.7-37.3°C (94.5-99.1°F)

Mouth 35.5-37.5°C (95.9-99.5°F)

Rectum 36.6-38°C (97.9-100.4°F)

Ear 35.8-38°C (96.4-100.4°F)

Normal temperature by age

0-2 age 36.4-38°C (97.5-100.4°F)

3-10 age 36.1-37.8°C (97-100°F)

11-65 age 35.9-37.6°C (96.6-99.7°F)

Above 65 age 35.8-37.5°C (96.4-99.5°F )

8. FREQUENTLY ASKED QUESTIONS CONCERNING

MEASURING TEMPERATURE ON THE FOREHEAD

1) What is the temperature measured on the forehead?

The temperature on the forehead corresponds to the temperature under the

skin (within the arteries). It is the best way to measure body temperature

because measurement errors and time delay does not influence on the result, as

in the case of the oral or rectal method.

2) How to measure the temperature on the forehead correctly?

The thermometer should be directed towards the center of the forehead at a

distance of 5-10 cm. Nothing should cover the measurement area (hair, wig, hat,

bandages). Otherwise the results can be incorrect. Press the button

"SCAN" to get a result.

3) Why the temperature measurement on the forehead is more accurate

than the measurement in ear?

In the case of measurement on the forehead, the forehead area is scanned at an

angle the temperature released by the flow of arterial blood under the skin, and

we do not need to worry about the correct position during the measurement.

The measurement is delicate and non-invasive. The measurement in the ear is

less accurate because the position of the probe in the wire the auditory

influence has an effect on the accuracy of the measurement.

If the following circumstances occur, it is recommended to make at least three

measurements, and the highest result should be considered as the most

reliable:

lInfants under 3 months old.

lChildren under 3 years old with weakened immune system.

lIf you use an infrared thermometer for the first time. If you do not obtain

accurate and permanent readings, repeat the measurements several times

Waste product and batteries should be taken to the waste collection

point. The product contains ingredients that hazardous the

environment. Correct utilization of the device allows you to save

valuable resources, to avoid negative impact on health and on the

environment, that can be endangered by inappropriate waste

handling. If you have doubts, where to return the used product,

contact the manufacturer.

LOT Number

Type BF

Year of production

Manufacturer

Last updated

Catalog number

Warnings

Read the instruction for use

Protect against the sun

Protect against humidity

Power supply

SYMBOLS

2xAAA

The information about the electromagnetic compatibility

can be found on the website: diagnosis.pl/normy/nc300

Manufacturer reserves the right to

make changes to specification.

1. Diagnosis S.A. grants a warranty:

l24 months for Diagnostic NC300 Thermometer

Hardware defects revealed during the warranty period will be rectified free of charge within 21 days. The term runs from the date of delivery of the equipment to the

service center.

2. The purchaser shall be entitled to replace the equipment for a new one, free of defects, when:

lthe repair has not been made within the time limit set in item 1 an authorized service center found

lan irreparable manufacturing defect

lduring the warranty period, 4 repairs were effected, and the equipment still shows defects that prevent its use in accordance with its intended purpose.

The concept of repair shall not include operations related to equipment check and cleaning.

3. The warranty shall not cover: batteries, products with illegible or damaged serial number, damage due to the operation and storage inconsistent with the user

manual, ingress of liquids or foreign bodies, overvoltage of mains, repairs by unauthorized persons and random events.

4. Faulty equipment should be delivered by the buyer to the address of the main service center or one of the Authorized Service Centers (listed in the appendix).

5. The warranty for the sold consumer goods shall not exclude, restrict, or suspend the powers of the buyer resulting from non-conformity of the goods with the

contract.

6. The only basis for the warranty rights shall be the warranty card with the date of sale, stamp and signature of the salesperson. If the card is not completed, filled

in wrongly, with traces of corrections and entries made by unauthorized persons, illegible as a result of damage - it shall be invalid.

WARRANTY CARD

WARRANTY TERMS

DEVICE NAME...............................................................................................................................

MODEL ....................................................................................................................................

SERIAL NUMBER ............................................................................................................................

DATE OF SALE...............................................................................................................................

Diagnosis S.A.

ul. Gen. W. Andersa 38A

15-113 Białystok, Poland

www.diagnosis.pl

Diagnosis S.A.
