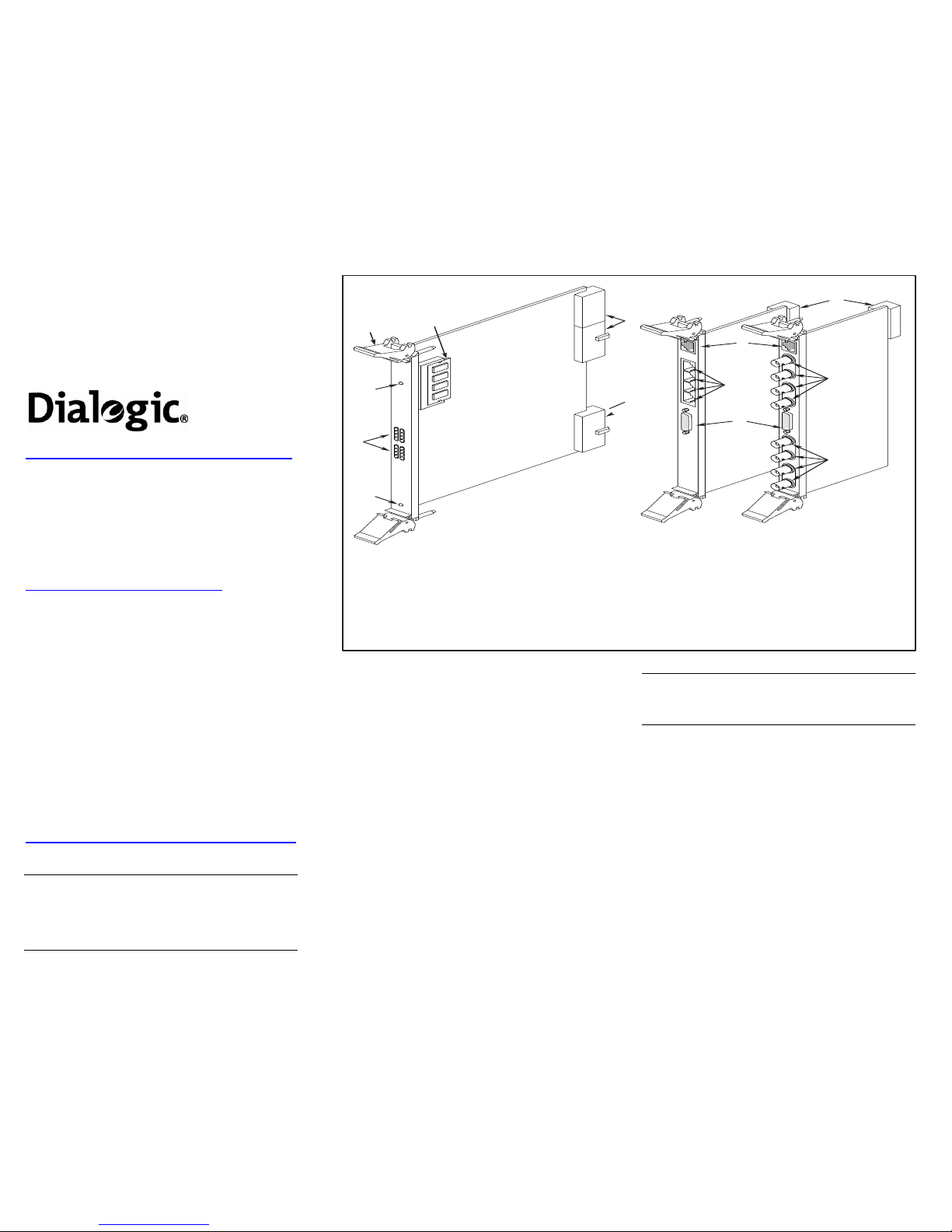

board extractors engage the guide holes in the
chassis card cage, then lock down the board
extractors until the red locking tabs snap shut.
CAUTION: CompactPCI backplane pins are bent
easily. Make sure that the board is seated with hand
pressure before fully seating board. If board extractors
are used to seat the board, make sure to seat evenly.
NOTE: If the power to the chassis is on, power is
automatically applied to the board, the Out of Service LED
lights briefly and then goes out, and the Power LED goes
on.
5. Tighten the retaining screws to secure the board
firmly in the chassis slot (optional).
6. If the power to the chassis is turned OFF, turn the
power to the chassis ON.
Connecting External Cables
For information about the pinouts for the network interface
cable, refer to the Pinouts for the RJ-48C figure.

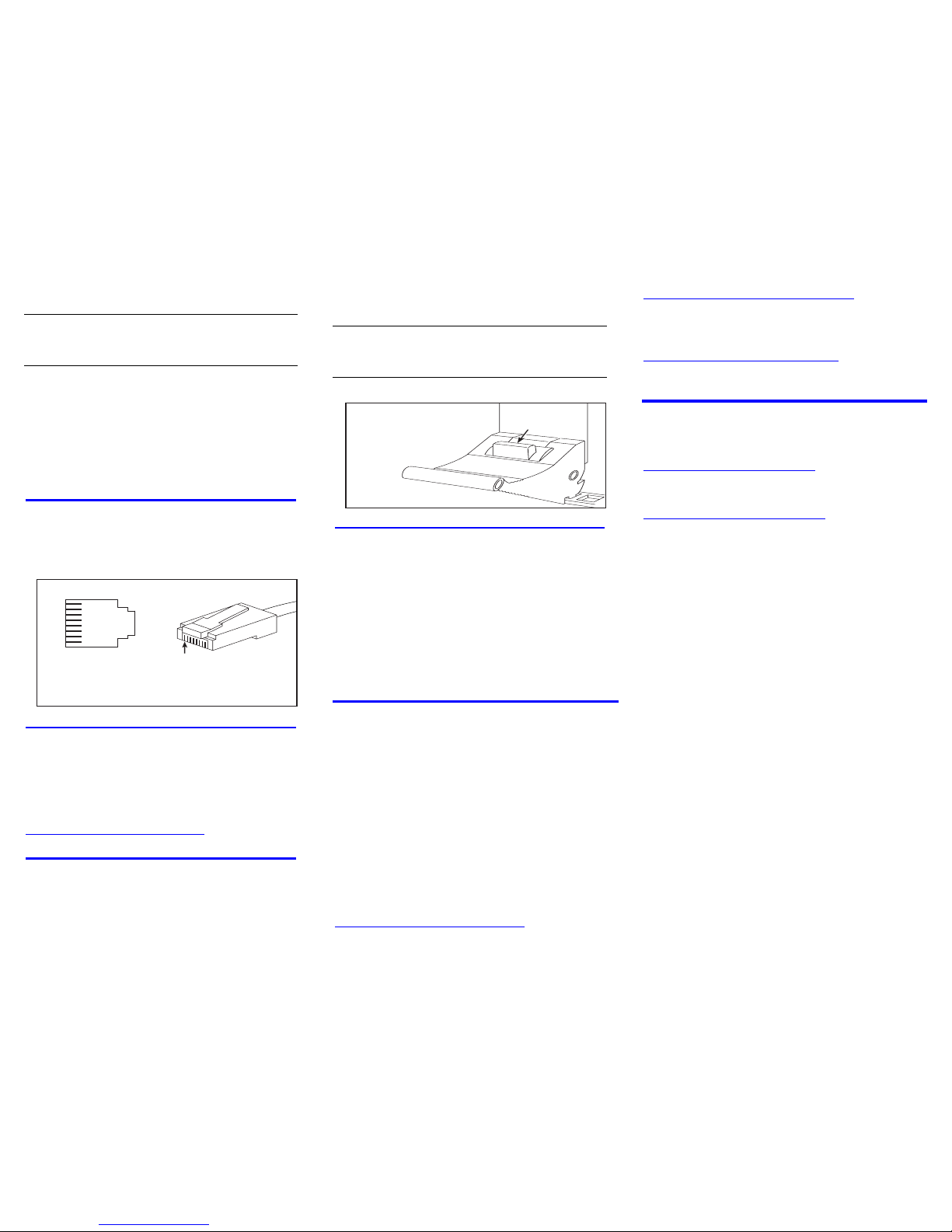

Pinouts for the RJ-48C
RJ-48C Network Interface
Cable Connector
CHASSIS GROUND
CHASSIS GROUND
UNUSED
XMIT_TIP
XMIT_RING
UNUSED
RCV_TIP
RVC_RING
8
7
6
5
4
3
2
1
8
7
6
5
4
3
2
1
Pinouts for the RJ–48C
Jack on Bracket
Pin 1
After Installing the Hardware
After installing the hardware, proceed with the Dialogic®
System Software installation as described in the system
software documentation (if applicable).
For technical specifications and product information, see
the Dialogic website at
http://www.dialogic.com/products.htm
Removing the Main Board
Exercise caution when removing the board from a
CompactPCI chassis. The board extractors are equipped
with red locking tabs that lock when the board is correctly
positioned in the chassis.
To remove the board from the chassis, simultaneously
press down both red locking tabs (see the CompactPCI
Extractor figure) on the extractors before applying
pressure away from the center of the board to disengage.
CAUTION: When removing the board, if the red locking
tabs on the extractors are not pressed while applying
pressure to the extractors, there is a risk of breaking the
tabs.
CompactPCI Extractor
Press and hold down the red
locking tabs on both board
extractors before applying
pressure to the board.
Removing the Rear I/O Module
NOTE: In a live insertion (powered-on) system, do not
remove and replace a Rear I/O module while the main
(front) board is in service. Remove the front board first,
then remove and replace the Rear I/O module, and then
reinsert the front board.
To remove the board from the chassis, simultaneously
press down both red locking tabs (see the CompactPCI
Extractor figure) on the extractors before applying
pressure away from the center of the board to disengage.
Warranty and Return Information
Warranty Period
For specific warranty information for this board, refer to the
Warranty section of the Products page, located at this
URL: http://www.dialogic.com/warranties/.
Contacting Technical Support
Dialogic provides technical support for its products through
a network of value added distributors who are trained to
answer technical questions on installing and configuring
Dialogic®products. If you are unsure how to contact your
support channel, please call Dialogic in the United States
at 973-967-6600 (9am-5pm EST) and we will assist in
obtaining the appropriate support channel.
Outside the United States please refer to
http://www.dialogic.com/support/contact to obtain
local contact information. Dialogic also provides direct
support via Dialogic®Pro™ Services agreements. For
more details of direct support from Dialogic please refer to:
http://www.dialogic.com/support/DialogicPro.
Returning a Product
To return a board for warranty repair or any other returns,
please refer to the following:
http://www.dialogic.com/support/hwfaults.
Sales Assistance
If you have a sales question, please contact your
local Sales Representative or the Regional Sales Office for
your area. Address, telephone and fax numbers, are
available at the Dialogic website located at:
http://www.dialogic.com/contact.htm.
To purchase Dialogic®products, please refer to the
following website to locate the appropriate supplier:
http://www.dialogic.com/purchase.htm.
