IMPORTANT: READ OPERATOR'S MANUAL CAREFULLY
Please fill out & return your warranty card!
OPERATOR'S MANUAL

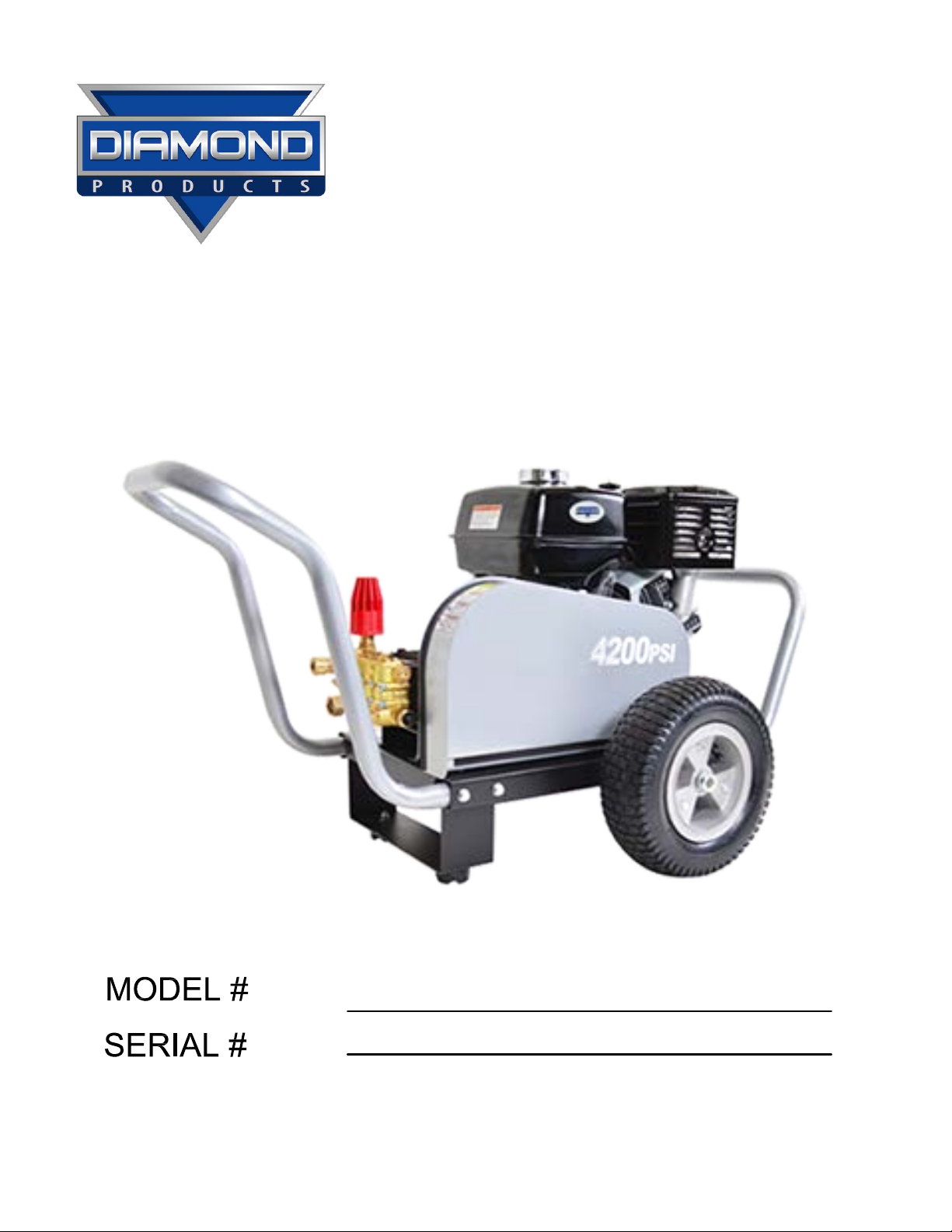

MAX 40 PRESSURE WASHER
4200 PSI
WP64200
Diamond Products www.diamondproductsus.com Printed in the U.S.A.

Warranty Information
Welcome…and congratulations on the purchase of yourDiamond Products US product. This instruction manual
is a guide for operating and servicing your unit. Read this manual completely before operating this unit.
Proper operation and service are essential to the efficient functioning of this unit. When maintained correctly,
this unit will have a long, trouble-free life. Any questions pertaining to operating or servicing this unit should be
directed to your nearest dealer.
Information in this document is subject to change without notice and does not represent a commitment on the
part of Diamond Products US.
Model:
Date of Purchase:
Serial Number:
Dealer:
Address:
Phone Number:
Sales Representative:
Warranty Information
Thank you for purchasing a Diamond Products US product. Warranty registration is quick and easy.
Your registration will allow us to serve you better over the lifetime of the product.
To register your product, email your warranty card information to:
[email protected]
Diamond Products
-2-
Operator's Manual

IMPORTANT SAFETY WARNINGS
TO THE OWNER:
This manual contains safety suggestions and important instructions regarding this equipment. The
basic machine and fuel systems are explained. Use the information applicable to your particular
machine. Read this manual thoroughly and retain for future reference.
IMPORTANT
Make certain that prior to operating the machine, the operator:
•Has been instructed in safe and proper use
•Reviews and understands the manual(s) pertaining to the machine
•Understands the hazards of using a high pressure washer
SYMBOLS
The following group of symbols are used in this manual to help convey the meaning defined below:
DANGER indicates a hazardous situation which, if not avoided, will result in death or
serious injury.
WARNING indicates a hazardous situation which, if not avoided, could result in death
or serious injury.
CAUTION, used with the safety alert symbol, indicates a hazardous situation which, if
not avoided, could result in minor or moderate injury.
NOTICE is used to address practices not related to personal injury.
!This is a safety alert symbol. It is used to alert you to potential personal injury hazards.
Obey all safety messages that follow this symbol ot avoid possble injury or death.
Diamond Products
-3-
Operator's Manual

IMPORTANT SAFETY WARNINGS (cont.)
FIRE & VENTILATION PRECAUTIONS
- Using a pressure washer indoors CAN KILL YOU IN MINUTES. Engine exhaust contains carbon monoxide.
This is a poison you cannot see or smell. Operate in well ventilated areas ONLY! If the machine is to be
used in an enclosed area, always provide approved vent stacks. Comply with all national, state, and local
codes for locating, venting, and using the machine in enclosed areas. Exhaust fumes contain odorless,
invisible gases which can kill without warning.
- DO NOT operate the machine where flammable vapors, combustible fumes, dust or other combustible
materials may be present.
- DO NOT spray flammable liquids.
- ALWAYS shut down the machine and cool the engine before adding fuel. Refuel in a ventilated area away
from open fires or sparks. DO NOT smoke while refueling. NEVER attempt to refuel while machine is in
operation. Failure to obey this warning can cause an explosion or fire.
- DO NOT overfill the fuel tank. If fuel spillage occurs, do not start the engine before cleaning up and
neutralizing any spilled fuel.
- After shutdown, DO NOT leave the machine unattended until completely cool.
- DO NOT store the unit near an open flame or near any devices that may possibly create sparks.
HIGH PRESSURE SPRAY
- WARNING: RISK OF INJECTION OR SEVERE INJURY TO PERSONS - KEEP CLEAR OF NOZZLE - DO
NOT DIRECT DISCHARGE STREAM AT PERSONS. THIS MACHINE IS TO BE USED ONLY BY
TRAINED OPERATORS.
- Fluids under high pressure spray can be nearly invisible, and can penetrate the skin and cause extremely
serious injury!
- DO NOT discharge spray at yourself, people, animals, machine, plants or any fragile material such as glass.
Personal injury or property damage will occur.
- NEVER allow children or adolescents to operate this equipment. DO NOT operate near children. Keep all
persons at a safe distance when operating the machine.
- ALWAYS wear safety goggles, face protection and protective clothing (including gloves and rubber boots)
when operating the machine to protect yourself from fluid injection, debris, and chemicals.
- NEVER put your hands or fingers over the spray nozzle.
- NEVER use your hands to stop or detect leaks.
- NEVER start the machine until the quick couplers are checked to make sure the sleeves are locked.
- ALWAYS shut off the unit and immediately trigger the gunvalve to relieve any pressure in the system before
removing the cleaning nozzle from the quick coupler uncoupling the pressure hose from the machine, or
before performing any machine service.
- Stay alert - watch what you are doing.
- Know how to stop the product and bleed pressures quickly. Be thoroughly familiar with the controls.
- Do not operate the unit when fatigued or under the influencce of alcohol or drugs.
- ALWAYS hold on firmly to the gun/wand assembly when starting and operating the unit. Failure to do so can
cause the wand to fall and whip dangerously. NEVER operate the gun with the trigger wired in the open
position. To prevent accidental discharge, the trigger gun should be securely locked when not in use.
- NEVER squeeze the trigger unless securely braced. The thrust from the water traveling through the nozzle
may be powerful enough to cause the operator to lost balance if not prepared. DO NOT overreach or stand
on unstable support. Wet surfaces can be slippery, wear protective foot gear and keep good footing and
balance at all times. NEVER trigger the gun while on a ladder or roof.
- DO NOT direct spray on or into electrical installations of any kind! This includes electrical outlets, light bulbs,
fuse boxes, transformers, etc. Severe electrical shock may occur.
- Even after you shut off the unit, there is high pressure water left in the pump, hose and gun until you release
it by triggering the gun. ALWAYS relieve the pressure in the system immediately after shutdown.
IMPORTANT SAFETY INSTRUCTIONS
WARNING - When using this product basic precautions should always be followed, including the following:
Diamond Products
-4-
Operator's Manual

IMPORTANT SAFETY WARNINGS (cont.)
- DO NOT use solvents or highly corrosive chemicals or acid type cleaners with this pressure washer.
NEVER spray toxic liquids or chemicals.
- DO NOT use detergents that are not compatible with the discharge hose. Read and follow the
instructions given by the detergent manufacturer.
- Keep all detergents out of reach of children and untrained adults. Proper safety precautions must be
taken before handling any chemicals.
- Read and follow all directions and instructions on the product label before using detergents.
- Wear eye protection and rubber gloves when handling or using detergents.
- Always have a clean supply of water available to wash off any contact with the skin or eyes. Should
any detergent product contact the eyes, immediately flood the eyes with clean water and seek medical
attention at once. If skin contact occurs, flood the affected area with plenty of water for 15 minutes.
If irritation persists, seek medical attention. If detergent is swallowed, follow the product label directions
and get immediate medical attentions.
- Read the material safety data sheets on all detergents before using.
- Avoid working on hot surfaces or in direct sunlight to minimize the chances of the detergent drying, which
may result in damaging painted surfaces. Be certain to clean a small section at a time.
DETERGENT CLEANING PRECAUTIONS
- Read all instructions and familiarize yourself with the unit before operating.
- Read engine manual instructions completely.
- NEVER let the pump run without water flowing through unit.
- NEVER let the unit run for more than two (2) minutes with the gun in the closed position.
- NEVER leave an operating machine unattended. Always shut off the machine and relieve pressure
before leaving.
- DO NOT allow any parts of your body, clothing, or high pressure hose to make contact with the muffler.
Avoid dragging the hose over an abrasive surface such as cement. This may cause premature wear to
the hose and eventual rupturing.
- ALWAYS respect and be alert to the potential hazards of electrical equipment, hot mufflers, moving
parts, and high pressure spray.
- ALWAYS be certain that the machine safety decals are kept clean and legible. Replace any decals that
become damaged, lost or painted over.
MISCELLANEOUS PRECAUTIONS
- Follow the maintenance instructions specified in the manual.
- NEVER alter or modify this equipment! Your personal safety as well as the safety of other persons is
at stake.
- NEVER exceed the factory pressure or temperature ratings of the system. Be sure all accessory
equipment and system components used will withstand the pressure developed.
- Use ONLY those parts and accessories recommended for these machines.
- DO NOT attempt repairs or modifications you do not understand.
- ALWAYS keep guards or shields in place. Replace any that must be removed for service or that may be
damaged.
- High pressure hoses should be inspected daily for signs of wear. If evidence of failure exists, promptly
replace all suspect hoses to prevent the possibility of injury from the high pressure spray. If a hose or
fitting is leaking, NEVER place your hand directly on the leak.
- DO NOT tamper with unloader valve adjustment or alter engine speed.
- DO NOT substitue any component parts on this machine. Use ONLY Diamond Products replacement
parts as originally installed. The use of incorrect parts could cause serious injury.
- Close fuel valve when transporting or storing unit.
- Check oil level in engine each time gas tank is filled.
- Keep air filter clean and engine in tune.
- Keep incoming water filter clean.
MAINTENANCE AND ADJUSTMENT PRECAUTIONS
Diamond Products
