Diamond HE-2000 User manual

Part No. 1902142 - Version 07.05.2019
FIBER OPTIC CONNECTORS
HE-2000
ASSEMBLY INSTRUCTION

HE-2000 Standard_e 1
0
Index
INDEX
Page
1 INTRODUCTION ______________________________________________________________________2
1.1 Equipment and material used ______________________________________________________________2
2 HE-2000 CONNECTOR SET _____________________________________________________________ 5
3 SAFETY REQUIREMENTS______________________________________________________________ 10
4 CABLE PREPARATION_________________________________________________________________11
5 MEASUREMENT METHOD IL____________________________________________________________27

HE-2000 Standard_e 2
P.N. Description Image
1049775 Jokari
1040186 Stripping pliers Jonard 3 holes
1020713 Kevlar Cutter
1020483 Side cutters
160 mm
1073457 T-Stripper
1073458 Kevlar scissors
1056892 FTTH Crimping Pliers
1075632 Crimpring Pliers HE-2000
1081071 Crimping pliers AF8 with
adapter (Positioner) UH2-5
1
Introduction
1 INTRODUCTION
This document describes the preparation of cable after splicing the alberino fusion.
Cables that can be spliced to the connectors must have the following characteristics:
- cables with ø 250μm primary coating and 900μm secondary coating
- cables with ø 1.6 to 8.0mm jacket.
1.1 EQUIPMENT AND MATERIAL USED

HE-2000 Standard_e 3
P.N. Description Image
000-002-194C000
Plastic tube mounting
device for stainless steel
and plastic tube
1069194 Ferrule holder for 2°
crimping machine
1041831 Service polishing arm E-2108.6
APC
000-002-193C000 HE-2000 Termini Service APC
polishing arm for cable version
Optional Accessory for polishing arm
000-002-214C000 Modified E-2000 body
1072556 E-2000 assembly tool
1075931 Crimping sleeve mounting device
1049773 Wrench 12mm
1072536 Wrench 19mm
---- Wrench 21mm
1
Introduction

HE-2000 Standard_e 4

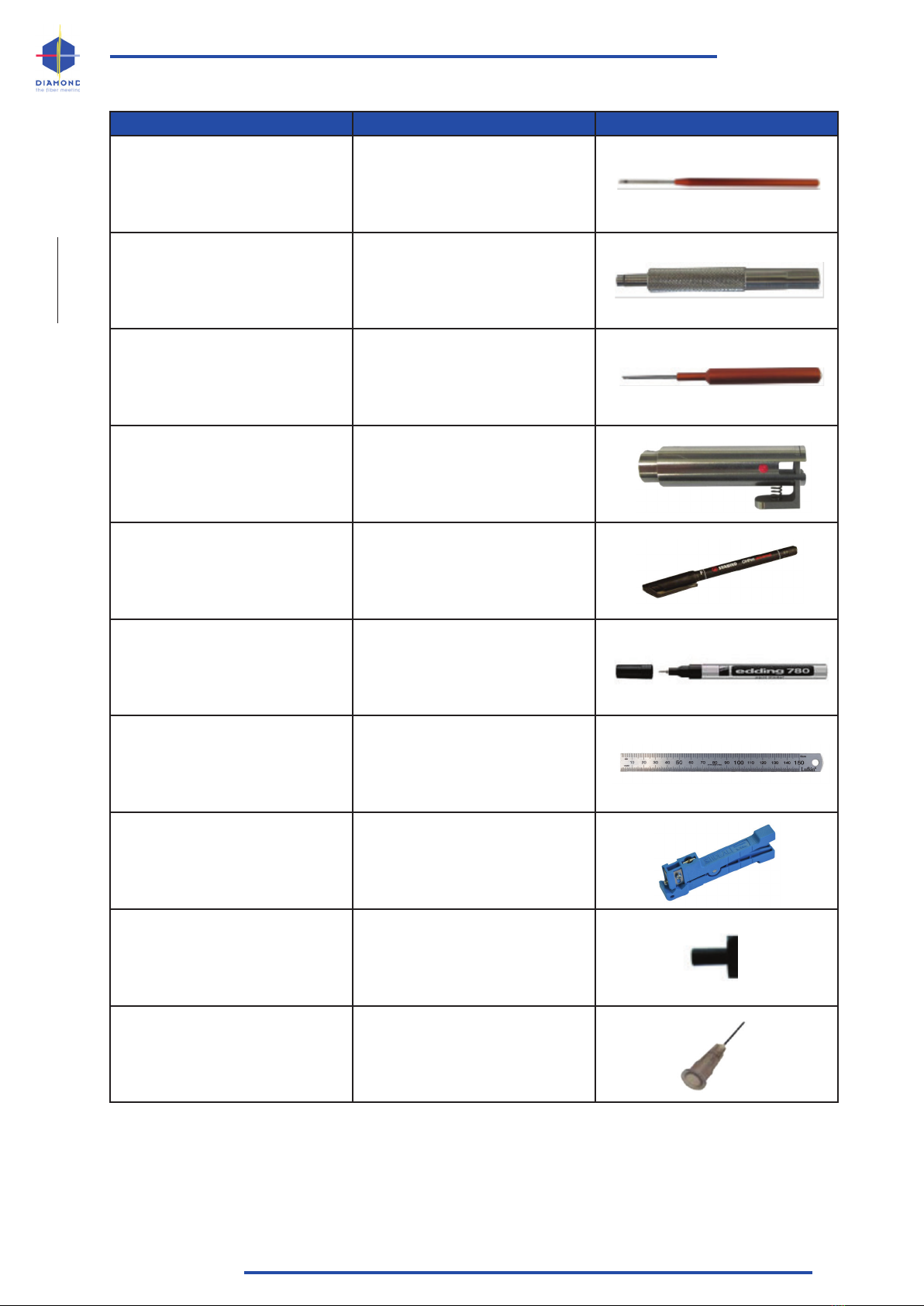

P.N. Description Image
1074651 Ferrule extractor
1074744 Hollow pin guide
mounting/demounting tool
1074654 Termini extractor
1074680 Termini assembler
1900109 Marker Pen
1900216 Marker Pen Edding 780
1020537 Ruler L=150mm
1071976 Tube Stripper
3-5.5 mm
1075858 Ferrule puncher for pushing
ferrule out of the body
1075624 Needle 6mm
1
Introduction

HE-2000 Standard_e 5

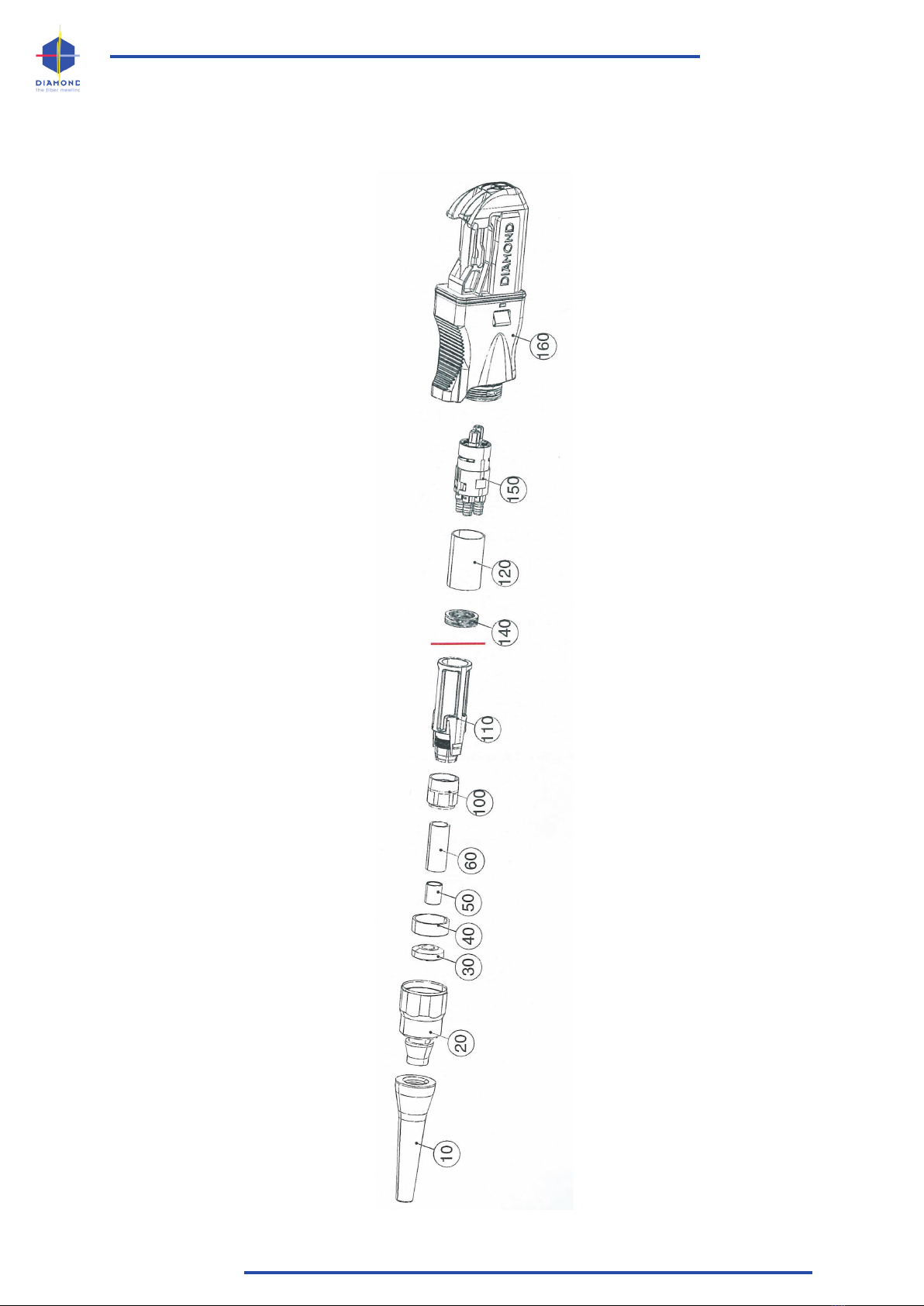

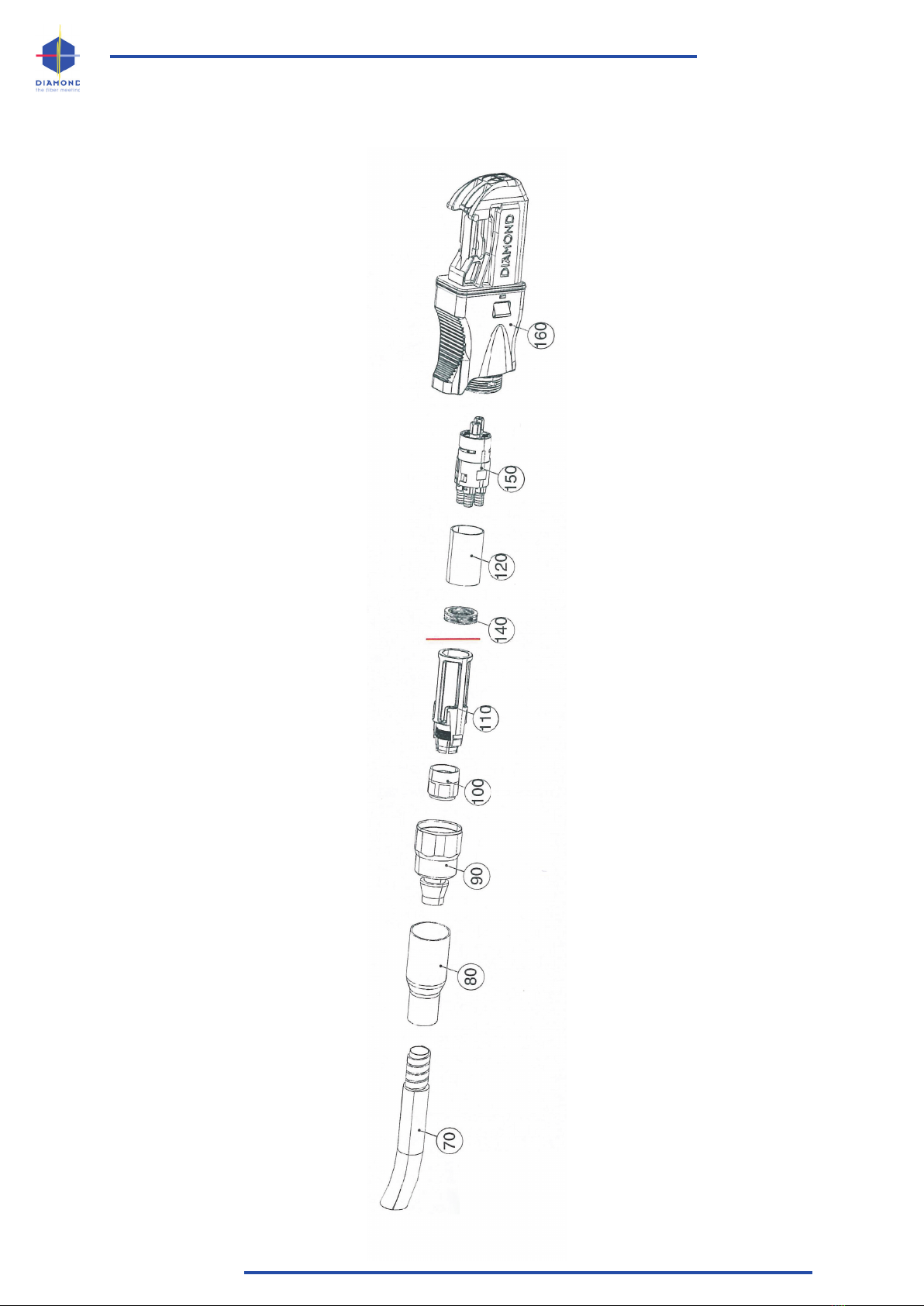

2. HE E-2000 CONNECTOR SET MINI BREAKOUT VERSION
2
Connector Set

HE-2000 Standard_e 6
2.1 HE E-2000 CONNECTOR SET METAL TUBE VERSION
2
Connector Set

HE-2000 Standard_e 7
Item Quantity Description
10 1 Cable boot
20 1 Protection sleeve
30 1 Crimping sleeve
40 1 Ring
50 1 Plastic tube
60 1 Inox tube
70 1 Antirotation
80 1 Ferrule
90 1 Termini crimp version
100 1 Termini fiber version
110 1 Protective cap
120 1 DM4 adapter
130 1 Hollow pin guide
140 1 Ceramic sleeve holder
150 1 Electrical contact protection
160 1 Female electrical contact
170 1 Male electrical contact
180 1 Heat-shrink sleeve
2.2 PLASTIC OR INOX TUBE VERSION
2
Connector Set

HE-2000 Standard_e 8
Item Quantity Description
10 Cable boot
20 Antirotation
30 Ferrule
40 Termini crimp version
50 Tremini fiber version
60 Protective cap
70 Assembled ceramic sleeve
80 Hollow pin guide
90 Ceramic sleeve holder
100 Electrical contact protection
110 Female electrical contact
120 Male electrical contact
130 Heat-shrink sleeve
2.3 PM VERSION
2
Connector Set

HE-2000 Standard_e 9

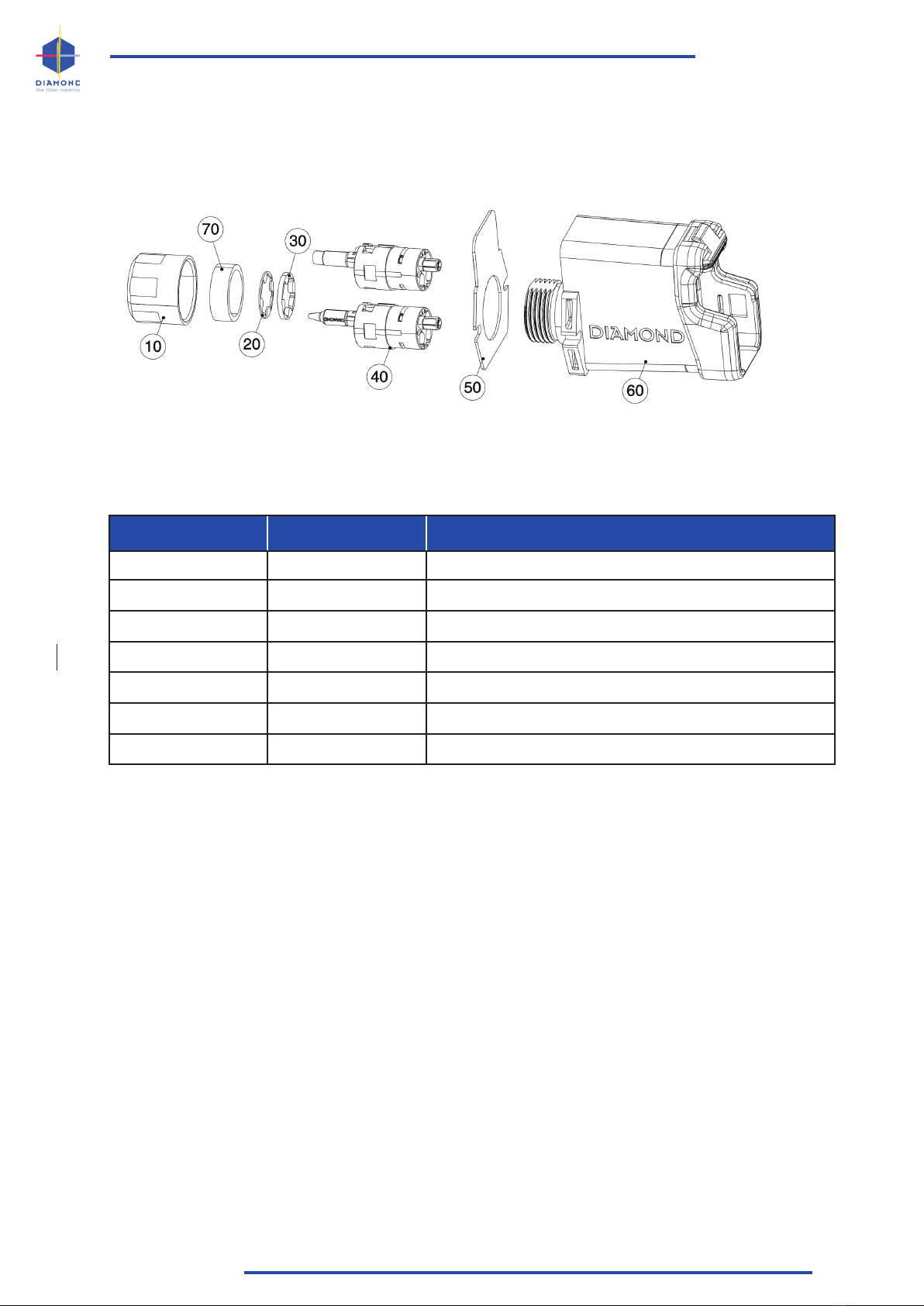

Item Quantity Description
10 1 Nut
20 1 Inox Washer
30 1 Plastic Washer
40 1 DM 4
50 1 O-Ring
60 1 HE-2000 Bulkhead
70 1 Bronz Ring
2.4 HE-2000 BULKHEAD
2
Connector Set
