1
Before attempting to connect, operate or adjust this product,
please save and read the User's Manual completely. The style
of the product shown in this User's Manual may be different
from the actual unit due to various models.
Safety Instructions
Always read the safety instructions carefully:
◆Keep this User’s Manual for future reference
◆Keep this equipment away from humidity
◆If any of the following situation arises, get the
equipment checked by a service technician:
- The equipment has been exposed to moisture.
- The equipment has been dropped and damaged.
- The equipment has obvious sign of breakage.
- The equipment has not been working well or
cannot get it to work according to the User’s
Manual.
Copyright
This document contains proprietary information
protected by copyright. All right is reserved. No part of
this manual may be reproduced by any mechanical,
electronic or other means, in any form, without prior
written permission of the manufacturer.
Trademarks
All trademarks and registered trademarks are the
property of their respective owners or companies.
2
Regulatory Compliance
FCC Conditions
This equipment has been tested and found to comply
with Part 15 Class B of the FCC Rules. Operation is
subject to the following two conditions: (1) This device
may not cause harmful interference. (2) This device
must accept any interference received and include
interference that may cause undesired operation.
CE
This equipment is in compliance with the requirements
of the following regulations: EN 55032/EN 55024: CLASS B
WEEE Information
For EU (European Union) member users: According to the
WEEE (Waste electrical and electronic equipment)
Directive, do not dispose of this product as household
waste or commercial waste. Waste electrical and electronic
equipment should be appropriately collected and recycled
as required by practices established for your country. For
information on recycling of this product, please contact
your local authorities, your household waste disposal
service or the shop where you purchased the product.
3
Introduction
The Diamond Thunderbolt 3 Titan Ridge Mini Dock is DPD
( Dual Powered Device ), designed for bus-powered or self-
powered dual-mode usage with extra connectivity demands
and supports one DP 1.4 and one HDMI 2.0 output with
HDR. With the Docking station, you can extend the
connection of a computer to more USB peripherals,
Ethernet network, the speaker and the microphone via
Thunderbolt 3 USB-C interface. Feel free to plug in upside
down for USB-C plug is reversible. Adopting PD Charging
technology, upstream charging function through USB-C
interface, you can charge the host up to 60W with USB-C PD
Power adapter plug-in. With the Thunderbolt ports, the
docking station enables you to enjoy the super speed data
transmission between USB peripherals.
The Adopted Trademarks
HDMI, HDMI High-Definition
Multimedia Interface, and
the HDMI Logo are
trademarks or registered trademarks of HDMI Licensing
Administrator, Inc. in the United States and other countries.
4
Features
◆Upstream Port
–USB-C Thunderbolt 3 x1
◆Downstream Port
–USB-A 3.1 Gen 2 x2 *
–USB-C x1 (PD power in only)
◆Video output
–DP1.4 x1 (8K@30Hz)
–HDMI 2.0 (4K@60Hz)
◆RJ45 Gigabit Ethernet
◆Upstream PD charging: Support 5 /9 /15 /20V from
PD 45W ( with power adapter 60W or higher ) up to
PD 60W
◆Combo audio jack
*When self-powered mode, it can support USB 3.1 Gen 2 x 2,
when bus-powered mode, it can support USB 3.1 Gen 2 x 1
and USB 2.0 x 1, 1st come 1st serve.
5
Package Contents
◆Diamond TB3MDS Thunderbolt 3 Mini Dock
x1
System Requirements
◆Supported Operating System
–Windows® 10
–Mac OS® ( macOS 10.15.3 above)
6

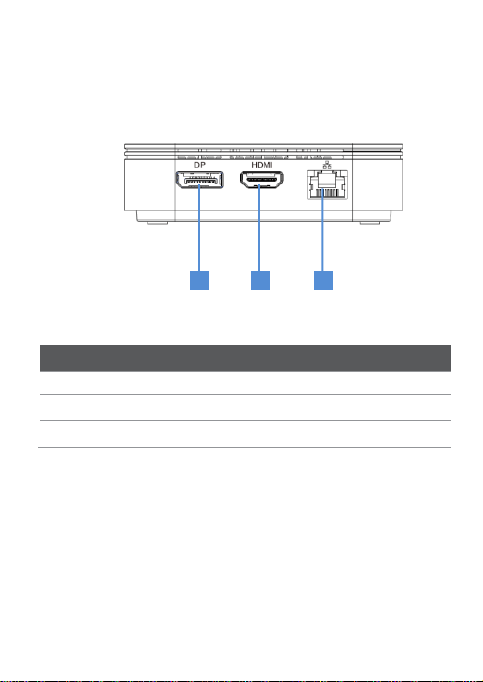

Product Overview
Front
Item
Description
1. DisplayPort 1.4
Connect to the DP monitor
2. HDMI 2.0 port
Connect to the HDMI monitor
3. RJ45 port
Connect to an Ethernet
3
2
1
7
Rear
Item
Description
4. Combo audio jack
Headset
5. USB-A 3.1 Gen 2 x2*
Connect to USB devices
*When self-powered mode, it can support USB 3.1 Gen 2 x 2,
when bus-powered mode, it can support USB 3.1 Gen 2 x 1
and USB 2.0 x 1, 1st come 1st serve.
5
4
8
Side
Item
Description
6. USB-C PD power in
Connect to the USB-C power adapter
(USB-C Power adapter should be 60W
or higher.)
6
9
Connection
To connect the USB peripherals, Ethernet, speaker, and
microphone, follow the illustrations below to connect
the corresponding connectors.
10
NOTE: The following strings and screenshots may vary
slightly from each operating system

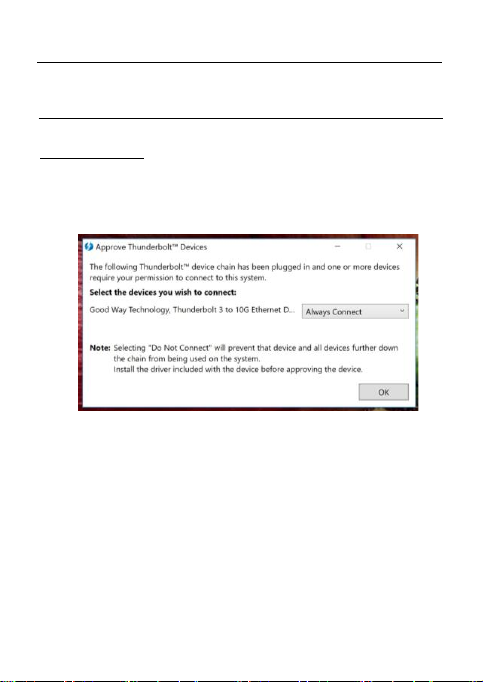

Windows® 10
1. Select Always Connect to approve the device
connecting, then click OK.
11

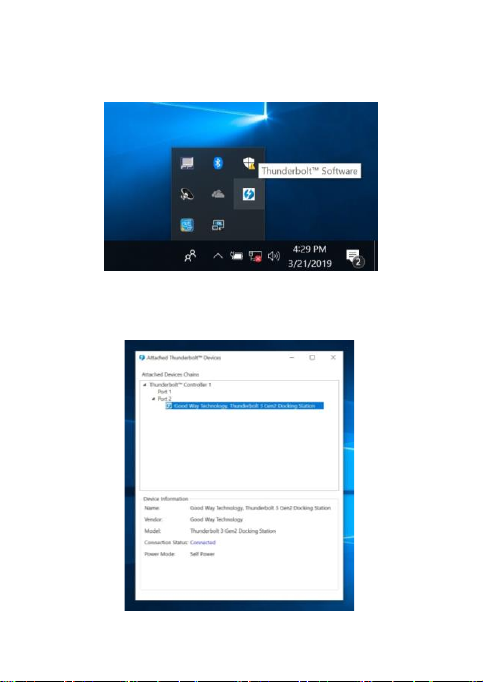

2. To make sure the devices have been connected.
Click on the desktop on the corner of the screen to
open Thunderbolt Software.
3. In the window that appears the device has been
connected.
12
Audio configuration
By default, when the docking station is connected to a
computer, the audio configuration may be changed to
USB (Multimedia) Audio Device automatically (this
setting depends on models). If it does not work, follow
the steps below to setup.
1. Open Control Panel and then select the hardware
and sound icon.
2. Click Sound > Manage audio devices and then select
USB Audio Device.
13
Specification
User
Interface
Upstream
USB-C Thunderbolt 3 x1
Downstream
DP1.4 connector x1
HDMI 2.0 connector x1
USB-C x1 (Power in only)
USB-A 3.1 Gen 2 x2*
RJ45 connector x1
Combo Audio Jack x1
Video
Resolution
Single 8K@30Hz or Dual
4k@60Hz
Ethernet
Type
10/100/1000 BASE-T
Power
Power Mode
Bus-powered/Self-powered
Max. PD
Charging
60W
Working
Environment
Operation
Temperature
0~35 degree
Storage
Temperature
-40~80 degree
Compliance
CE, FCC, VCCI, RCM
*When self-powered mode, it can support USB 3.1 Gen 2 x 2,
when bus-powered mode, it can support USB 3.1 Gen 2 x 1 and
USB 2.0 x 1, 1st come 1st serve.
Thunderbolt 3 Mini Dock
User's Manual
V1.2
