Shower stool / shower chair
User manual version 1.2 EN
TOMTAR DH / SC
TOMTAR DH TOMTAR DS

Record of product identication data
We recommend that you write down your product identication data (found on nameplate) below,
so that you have these on hand should you require any further information about your product.
(See "Product labelling" section)
Type / model
Item No. / REF:
Serial number (21):
Date of manufacture:
Other information/notes:

Many thanks for choosing a shower stool
made by DIETZ.
This product is a medical aid. In order to use it
properly and avoid possible risks due to unin-
tended use, you must become thoroughly famil-
iar with its operation.
Read this user manual carefully before you begin
using your product. It contains important in-
structions that will enable you to fully take ad-
vantage of the technical benets. In addition,
you will receive information that will aid with
maintaining operational safety and the preser-
vation of your investment in your product.
If you have any questions or require additional
information, please contact the specialist retail-
er which supplied the product to you.
You will always nd the latest information about
your product on our website. For information or
queries concerning product safety and on re-
calls, please contact DIETZ in writing or by tele-
phone. You will nd our contact information on
the back of this user manual.
NOTE
A large-print version of the
user manual is available for
visually impaired persons at
shop.dietz-group.de in PDF
format.
3
EN
EN
FR
IT
NL
FOREWORD

4
DIETZ GmbH // User manual shower stool, shower chair / TOMTAR DH / DS // Version 1.2 EN
CONTENTS
1 Important information
1.1 General information . . . . . . . . . . . . . . . . .5
1.2 Intended purpose . . . . . . . . . . . . . . . . . . .5
1.3 Indications . . . . . . . . . . . . . . . . . . . . . . . .5
1.4 Contraindications . . . . . . . . . . . . . . . . . . .5
1.5 Symbols . . . . . . . . . . . . . . . . . . . . . . . . . .6
2 Product description
2.1 Scope of delivery . . . . . . . . . . . . . . . . . . .7
2.2 Exemplary representation . . . . . . . . . . . . .7
2.3 Accessories . . . . . . . . . . . . . . . . . . . . . . . .7
3 Commissioning the product
3.1 Assembly instructions . . . . . . . . . . . . . . . .8
3.2 Tools. . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
3.3 Assembly TOMTAR DH . . . . . . . . . . . . . . . .8
3.4 Assembly TOMTAR DS . . . . . . . . . . . . . . . .9
4 Using the product
4.1 Adjusting seat height. . . . . . . . . . . . . . . .10
4.2 Raise product . . . . . . . . . . . . . . . . . . . . .10
4.3 Getting in and out. . . . . . . . . . . . . . . . . .11
4.4 Transport. . . . . . . . . . . . . . . . . . . . . . . . .11
4.5 Accessories and add-ons
from external suppliers . . . . . . . . . . . . . . . . .12
5 Technical data
5.1 DIETZ’s measurement system. . . . . . . . . .13
5.2 Specications . . . . . . . . . . . . . . . . . . . . .14
5.3 Product tests. . . . . . . . . . . . . . . . . . . . . .14
5.4 Further information . . . . . . . . . . . . . . . . .14
5.5 Materials . . . . . . . . . . . . . . . . . . . . . . . .15

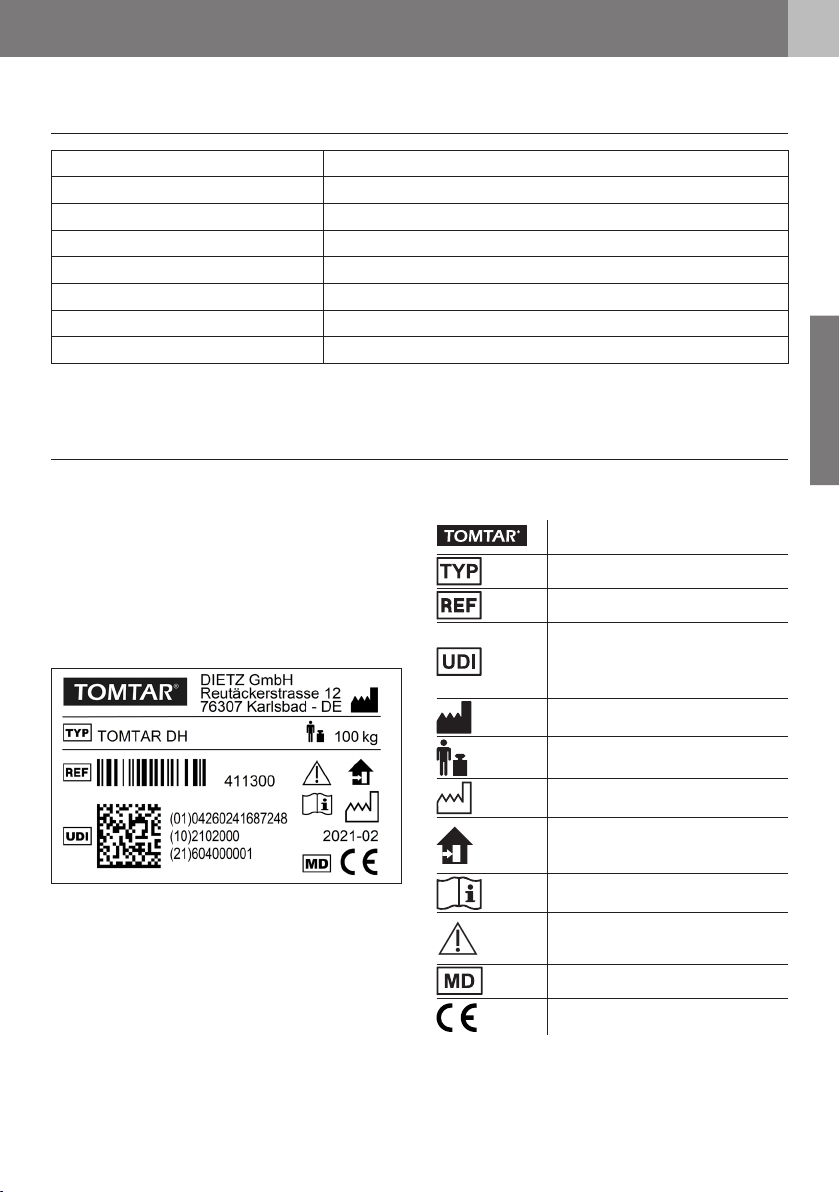

5.6 Product labelling . . . . . . . . . . . . . . . . . . .15
6 Safety instructions
6.1 Safety instructions. . . . . . . . . . . . . . . . . .16
7 Care and maintenance
7.1 Servicing/maintenance. . . . . . . . . . . . . . .17
7.2 Maintenance schedule . . . . . . . . . . . . . .18
7.3 Cleaning . . . . . . . . . . . . . . . . . . . . . . . . .19
7.4 Disinfection. . . . . . . . . . . . . . . . . . . . . . .19
7.5 Disposal . . . . . . . . . . . . . . . . . . . . . . . . .19
7.6 Forwarding/Reusing. . . . . . . . . . . . . . . . .20
7.7 Storage. . . . . . . . . . . . . . . . . . . . . . . . . .20
8 Manufacturer‘s declarations
8.1 Warranty . . . . . . . . . . . . . . . . . . . . . . . .21
8.2 Lifetime. . . . . . . . . . . . . . . . . . . . . . . . . .21
8.3 Liability. . . . . . . . . . . . . . . . . . . . . . . . . .21

5
EN
EN
FR
IT
NL
1 IMPORTANT INFORMATION
1.1 GENERAL INFORMATION
This user manual is included in the scope of de-
livery. The user should keep this manual on
hand at all times and it must remain with the
product if the product is passed on to a third
party. We reserve the right to make changes to
the versions shown in this user manual as a re-
sult of further technical development. Reprints,
translations and reproductions of this manual in
any form, in whole or in part, require the writ-
ten approval of DIETZ GmbH. The copyright is
owned by the manufacturer. You can obtain the
latest version of the user manual by contacting
DIETZ GmbH. Read the user manual before as-
sembling and using the product.
1.2 INTENDED PURPOSE
The shower chair is used to make it easier for
people with reduced mobility to take a shower
on rm, level and slip-resistant surfaces. The
product is designed for a maximum user weight
of 100 kg. The product is exclusively intended
for domestic use.
The product is not suitable for persons who are
smaller than 146 cm or weigh less than 40 kg
(BMI < 17) and must not be used by children.
The product is not suitable for use as permanent
seating. It is not to be used to transport persons
or loads.
1.3 INDICATIONS
This product is suitable for persons with physical
limitations who are unable to take a shower
while standing:
tStanding and inability to stand
tStanding and instability
tLoss of / defective / deformed limbs
1.4 CONTRAINDICATIONS
The product is unsuitable in the case of:
tPerception disorders
tSevere disequilibrium
tInability to sit
tA body weight exceeding 100 kg

6
DIETZ GmbH // User manual shower stool, shower chair / TOMTAR DH / DS // Version 1.2 EN
1.5 SYMBOLS
These symbols indicate passages of text that are
helpful for using and operating the product in
everyday life.
WARNING
It is mandatory to observe and comply with
warnings. They draw your attention to the fact
that failure to comply with them may result in
injury and/or damage to the product or the envi-
ronment.
NOTE
Tips and advice which make using the various
functions easier.
1 IMPORTANT INFORMATION

7
EN
EN
FR
IT
NL
2 PRODUCT DESCRIPTION
2.1 SCOPE OF DELIVERY
The product is wrapped in protective lm at the
factory and is supplied in a cardboard box.
Upon receipt of the goods, please immediately
check to make sure that the contents are com-
plete and undamaged. If the contents are no-
ticeably damaged, inform the freight company
immediately.
Scope of delivery TOMTAR DH:
t1 seat
t2 telescopic legs numbered (1, 2)
tFixing set: 5 × washers,
5 × screws 40 mm,
t1 user manual
WARNING
Risk of poisoning: When burnt, packaging
lms can release toxic gases.
Risk of suffocation: Keep the plastic bags out
of the reach of children.
Scope of delivery TOMTAR DS
t1 seat
t2 telescopic legs numbered (1, 2)
t1 backrest and 2 backrest frame tubes
tFixing set: 9 × washers,
4 × screws 60 mm, 1 × screws 40 mm,
4 × screw 35 mm
t1 user manual
2.2 EXEMPLARY REPRESENTATION
1. Recessed grip (with TOMTAR DS model)
2. Backrest (with TOMTAR DS model)
3. Backrest tube (with TOMTAR DS model)
4. Seat surface (with recessed grips on the out-
side)
5. Telescopic leg
6. Spring-mounted button
7. Suction foot
Abb. 1
2.3 ACCESSORIES
No accessories are provided for the product.
1
2
4
3
6
7
5

8
DIETZ GmbH // User manual shower stool, shower chair / TOMTAR DH / DS // Version 1.2 EN
3 COMMISSIONING THE PRODUCT
3.1 ASSEMBLY INSTRUCTIONS
The assembly and the functional check are to be
performed by the specialist dealer. The dealer's
technician adapts the product to the respective
user.
NOTE
Read the user manual before assembling and us-
ing the product.
3.2 TOOLS
The following tools are required for the assembly:
tCross tip screwdriver
3.3 Assembly TOMTAR DH
1. Place the seat with the underside pointing
upwards on a clean,  at and stable surface
( oor or table) (Fig. 2).
2. For mounting the telescopic legs, they are
arranged crossed on the underside of the
seat. The telescopic leg numbered 1 is placed
at the bottom (Fig. 2, 1) and the telescopic
leg numbered 2 (Fig. 2, 2) is placed above
it and  xed in the centre (Fig. 2, 3). Use the
following parts for this:
1 × washer, 1 × screw 40 mm.
3. Screw the telescopic legs to the seat surface
using the four remaining drill holes (Fig. 2, 4).
Use the following parts for this:
4 × washers, 4 × screws 40 mm.
WARNING
Risk of trapping: Take care of your hands/ n-
gers during the entire assembly.
1
2
3
4
Abb. 2

9
EN
EN
FR
IT
NL
3 COMMISSIONING THE PRODUCT
3 COMMISSIONING THE PRODUCT

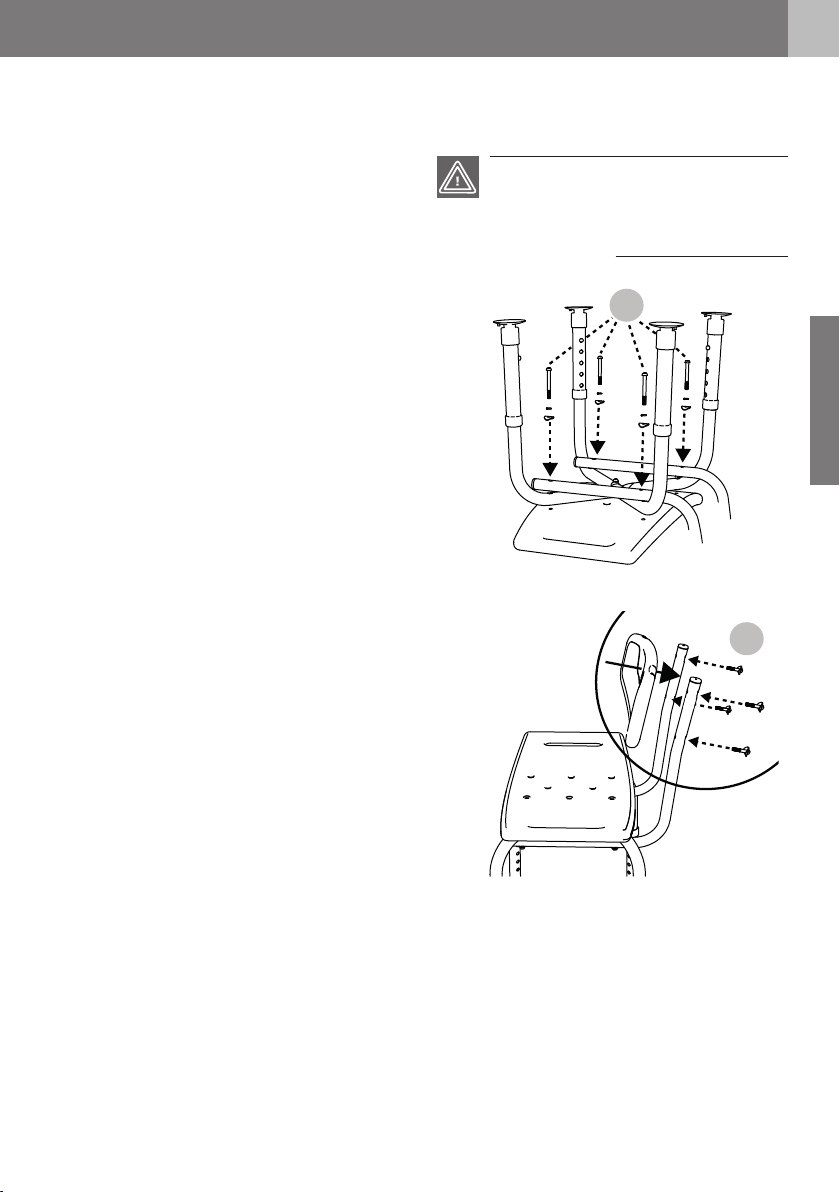

3.4 Assembly TOMTAR DS
1. Place the seat with the underside pointing
upwards on a clean,  at and stable surface
( oor or table) (Fig. 2).
2. For mounting the telescopic legs, they are
arranged crossed on the underside of the
seat. The telescopic leg numbered 1 is placed
at the bottom (Fig. 2, 1) and the telescopic
leg numbered 2 (Fig. 2, 2) is placed above
it and  xed in the centre (Fig. 2, 3). Use the
following parts for this:
1 × washer, 1 × screw 40 mm.
3. The next step is to bring the holes of the
telescopic legs and those of the backrest
tubes into alignment and screw all compo-
nents to the seat surface (Fig. 3, 1). Use the
following parts for this:
4 × washers, 4 × screws 60 mm.
4. For mounting the backrest, bring the holes
of the backrest and the backrest tubes
into alignment and screw the components
together (Fig. 4, 1).
Use the following parts for this:
4 × washers, 4 × screws 35 mm.
WARNING
Risk of trapping: Be careful with your hands/
 ngers during assembly.
1
Abb. 3
1
Abb. 4

10
DIETZ GmbH // User manual shower stool, shower chair / TOMTAR DH / DS // Version 1.2 EN

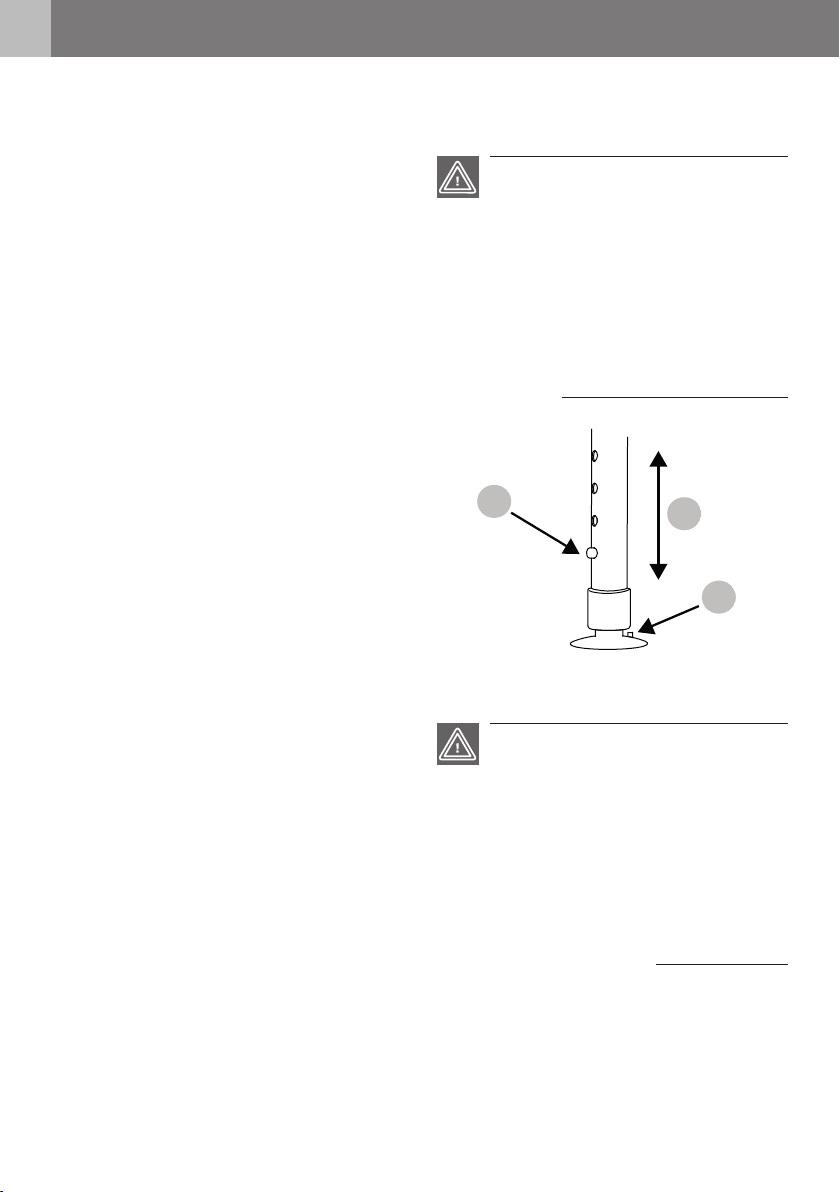

4.1 Adjusting seat height
1. The product can be adjusted in height. For
this purpose, press in the spring-mounted
buttons on the telescopic legs (Fig. 5, 1).
2. Adjust the telescopic legs to the desired
length (Fig. 5, 2) until the spring head
emerges from the hole again and locks in
place (Fig. 5, 1).
WARNING
Risk of trapping: Be careful of your  ngers
when adjusting the telescopic legs.
Risk of accident: Ensure that the spring-mount-
ed buttons on the telescopic legs emerge again
at a hole and lock in place after shifting.
Tipping danger: Adjust all 4 telescopic legs to
the same length.
12
3
4.2 Raise product
1. Before raising the product, all suction feet
must be detached from the  oor. To do this,
pull the nose of the suction foot (Fig. 5, 3).
2. Leave the loosened suction foot raised to
prevent it from sucking on the  oor again.
WARNING
Risk of accident: To prevent the spring button
and screws from coming loose during use, do not
attempt to lift the chair without  rst venting the
suction feet.
Risk of accident: The product may only be
raised unoccupied, using the two recessed grips
on the seat surface (left/right).
4 USING THE PRODUCT

11
EN
EN
FR
IT
NL
4 USING THE PRODUCT
4.3 Getting in and out
1. Ensure that there is enough room to move
when positioning the shower seat. Both legs
must stand securely and there must be no
obstacle to occupying the chair.
2. Sit in the middle (Fig. 6, 1) between the re-
cessed grips (left/right, Fig. 6, 2) on the seat
surface. If necessary, have someone help you
sit down or stand up.
WARNING
Tipping danger: Please note that body move-
ments shift the centre of gravity and can increase
the risk of the product tipping over.
Tipping danger: Do not stand with your feet
on the seat.
Risk of trapping: Never sit astride the seat.
Risk of accident: Do not allow any oily or
highly soapy substances to come into contact
with the suction feet.
The product might otherwise slip away.
1
2
2
Abb. 5
4.4 TRANSPORT
The product is not a device for frequent trans-
port. Should it be necessary to transport the
chair, we recommend disassembling it according
above assembly instructions in reverse. The
product should be packed such that it is in a
stable position and there is no danger of sudden
and dangerous movements in the means of
transport.

12
DIETZ GmbH // User manual shower stool, shower chair / TOMTAR DH / DS // Version 1.2 EN
4 USING THE PRODUCT
4.5 ACCESSORIES AND ADD-ONS FROM EXTERNAL SUPPLIERS
There are no accessories available from DIETZ
for this product. Generally, only original accesso-
ries from DIETZ GmbH are permitted to be used.
If third-party products are installed on the prod-
uct, responsibility for the safety of the product
passes to the person who installs the accesso-
ries or carries out the installation. A new decla-
ration of the compliance of the combination of
accessories or add-on and product is then to be
made by the person who attaches it. The compli-
ance declared by DIETZ according to MDR
2017/745, Annex I-III shall expire.
WARNING
Safety hazard: Should add-ons or accessories
that are not sold by DIETZ be used, the safety of
the product cannot be guaranteed.
If accessories or add-ons are added to the prod-
uct, then the safety instructions in the operating
instructions for the accessories or add-ons must
be observed.

13
EN
EN
FR
IT
NL
5 TECHNICAL DATA4 USING THE PRODUCT
NOTE
All dimensions taken on textile parts (e.g. back
upholstery) are to be understood with a toler-
ance of +/– 10 cm.
Abb. 6
Abb. 7
5.1 DIETZ’S MEASUREMENT SYSTEM
The dimensions given here refer to the standard conguration of the product.

14
DIETZ GmbH // User manual shower stool, shower chair / TOMTAR DH / DS // Version 1.2 EN
5 TECHNICAL DATA 5 TECHNICAL DATA
5.2 SPECIFICATIONS
Technical specifications TOMTAR DH TOMTAR DS
bSeat width mm 380 380
fSeat depth mm 295 295
cSeat height inside mm 355 - 505 355 - 505
dSeat height outside mm 385 - 535 385 - 535
eTotal length mm 400 475
aTotal width mm 490 490
hTotal height mm 385 - 535 680 - 830
Seat surface (W × D) mm 380 × 295 380 × 295
gBack height mm -335
Backrest (W × H) mm -405 × 175
Mass of the heaviest part1kg 1,25 1,65
Total weight kg 22,8
Maximum user weight2kg 100 100
¹ Product weight excluding removable parts (here without backrest and seat)
² Maximum user weight including load/The weight of the load reduces the maximum user weight
5.3 PRODUCT TESTS
DIN EN 12182 Tested in accordance with the requirements of technical
aids for disabled people
ISO 17966 Tested according to the requirements and test methods for
personal hygiene aids
ISO 10993-5 Tested for toxicity in the material
Test dummy weight 100 kg
5.4 FURTHER INFORMATION
Technical specifications
Colours White
Seat kg 0.75
Backrest kg 0.4
Ambient operation temperature 10 C° to +40 C°
Ambient storage conditions 0°C to 45°C // 20% to 75% relative humidity

15
EN
EN
FR
IT
NL
5 TECHNICAL DATA 5 TECHNICAL DATA
5.5 MATERIALS
Frame and telescopic legs Aluminium (painted)
Backrest / seating area Hard polyethylene / HDPE
Seat plugs Polypropylene / PP
Spring-mounted button Stainless steel
End caps back tube Polypropylene / PP
Rubber feet Polyvinyl chloride/PVC
Plastic cuff telescopic leg Polyethylene / PE
Screws, joints Stainless steel
Note: All metals used are corrosion-resistant
5.6 PRODUCT LABELLING
Type plates and warning signs on the product must remain legible. Immediately replace illegible or
missing stickers. The serial number sticker is very
important for identifying the product, it is placed
on the product label, which is placed below the
seat. It must not be removed.
Abb. 8
Trademark
TYPE/Model
REF = Item number
UDI = Unique Device Identier
(01) UDI-DI / GTIN
(10) Batch/lot number
(21) Serial number
Manufacturer/manufacturer's
trademark/contact address
Maximum load capacity/load
incl. payload
Date of manufacture
The product is only approved for
indoor use
Follow the user manual
Caution: Note the safety
information in the user manual!
Medical Device
CE marking
MDR 2017/745, Annex I-III

16
DIETZ GmbH // User manual shower stool, shower chair / TOMTAR DH / DS // Version 1.2 EN
6 SAFETY INSTRUCTIONS
6.1 SAFETY INSTRUCTIONS
When using the product, always observe the fol-
lowing safety instructions to prevent falls, haz-
ardous situations and damage to the product:
tThe product is only to be used indoors and
on a rm, level surface.
tDo not use the product as a climbing aid or
stand on it.
tDo not load the product unevenly.
tThere is a risk of slipping off when sitting
down and standing up in wet bathtubs or
shower areas, particularly when shower
additives (e.g. soap or shower gel) are
used.
tCheck the product for damage before each
use. Do not use a damaged product.
tEach time after the shower chair is
disassembled and reassembled, check its
stability and ensure that all telescopic legs
are set to the same length.
tIf your mobility is severely limited, use the
product with the aid of an accompanying
person.
tThe surface of the product may become hot
due to hot water or exposure to sunlight.
Risk of burns!
tAny severe incidents associated with the
product must be reported to the manufac-
turer and responsible authority.

17
EN
EN
FR
IT
NL
7 CARE AND MAINTENANCE6 SAFETY INSTRUCTIONS
7.1 SERVICING/MAINTENANCE
We recommend performing the inspections list-
ed in the maintenance schedule at regular inter-
vals to ensure that the product is always safe to
use.
Failure to ensure care and maintenance or insuf-
cient care and maintenance of the product
leads to a restriction of liability. The mainte-
nance schedule does not provide any informa-
tion on the amount of work that will actually
need to be performed on the product.
NOTE
As the user, you will be the rst to notice any
damage. If you notice a fault as described in the
maintenance schedule or further defects and
functional impairments, contact an authorised
specialist dealer immediately.
WARNING
Repairs on the product must only be performed
by specialist shops using DIETZ original spare
parts to maintain the operational safety of the
product. The relevant spare parts catalogue can
be found on our website in the information of
the product in question.
NOTE
The inspections and measures stipulated in the
maintenance schedule must be performed by the
user or assistant if not otherwise stated.
NOTE FOR SPECIALIST DEALERS:
If the user reports abnormalities on the product,
please check all the inspection points listed in
the maintenance schedule. The checks must also
be performed before putting the product back
into operation and after longer storage periods
(> 4 months). .

18
DIETZ GmbH // User manual shower stool, shower chair / TOMTAR DH / DS // Version 1.2 EN
7 CARE AND MAINTENANCE
7.2 MAINTENANCE SCHEDULE
What Description
Check frame
for damages
Check the frame for deformations or breaks.
The product must no longer be used if such
damage is found. Immediately contact your
specialist dealer for repairs.
x
Seat and backrest
Check for correct function and for
damage
• Check the correct t of the seat, the securing bolts and
the backrest x
• Check for breaks and material damage
The product must no longer be used if such damage
is found. Immediately contact your specialist dealer
for repairs.
x
Screw joints
Check that they are rmly seated
• All screw joints must be rmly tightened.
Repeated loosening and re-tightening causes
screws to lose their effectiveness. Therefore, they
must be replaced by an authorised specialist dealer.
x
Suction feet
Check for damages
Defective suction feet must be replaced
immediately. x
Visual inspection , check for
loose parts, breaks, corrosion or
other damage
If damage of this type is found, discontinue use of
the product, as safe use can no longer be
guaranteed. Please contact your specialist dealer
x
Entire product
for dirt
• Product parts that are in direct contact with the skin must
be cleaned or disinfected after every use. x
• The entire product must be cleaned/disinfected
depending on the degree of soiling, but at least monthly
(see "Cleaning and disinfection" Chapter).
x
Before use
Monthly

19
EN
EN
FR
IT
NL
7 CARE AND MAINTENANCE
7.3 CLEANING
To clean the product, use lukewarm water mixed
with a mild detergent (without solvents and
with a pH value of 5-9). After cleaning, wipe
with clear water and then dry the product with a
cloth.
WARNING
Material damages: Do not use high-pressure
cleaners, strong, corrosive chemicals or scouring
agents for cleaning purposes.
Risk of corrosion: To avoid corrosion, ensure
that all materials dry completely after cleaning.
7.4 DISINFECTION
Wipe down or spray all components thoroughly
with commercially available surface disinfectant.
Take particular care to disinfect surfaces that
come into frequent contact with hands/skin,
such as the seat surface, backrest and armrests.
Please only use the following disinfectants; use
of other chemicals might damage the product.
tAldehyde-free disinfectants based on
alcohol (max. 70% propyalcohol)
WARNING
Material damages: During disinfection, ob-
serve the use and application instructions issued
by the cleaning agent / disinfectant manufacturer.
Risk of infection: The product must be disin-
fected before each user change.
7.5 DISPOSAL
If you no longer need the product, please con-
tact your specialist dealer. They will then pick up
the product and either dispose of it properly or
make further use of it. Otherwise, please take
the product to your local waste disposal facility.

20
DIETZ GmbH // User manual shower stool, shower chair / TOMTAR DH / DS // Version 1.2 EN
7.6 FORWARDING/REUSING
Your product is suitable for transfer to/reuse by
others. The number of times it can be reused de-
pends on the material wear conditions and the
functional capabilities of the respective product.
When handing over the product or re-using it,
please remember to hand over to the new user
or the specialist dealer all the technical docu-
ments necessary for safe handling.
Before being re-used, the product must be
cleaned and disinfected, and must be checked
for damage and approved by a specialist retailer.
To do this, all test points listed in the mainte-
nance plan must be checked on the product.
7.7 STORAGE
To store the product, ensure that it is stored in a
dry place protected against direct, strong sun-
light and at a temperature of 0°C to +45°C.
When in storage, secure it against unwanted
movement or toppling over.
After longer periods of storage (> 4 months),
please check all the inspection points on the
product listed in the maintenance schedule be-
fore reusing/redeploying the product.
WARNING
Material damages: Do not store the product
near a heat source and do not place any objects
on the product during storage.
7 CARE AND MAINTENANCE
