Digga SKID HOE Programming manual

OPERATORS & PARTS MANUAL
SKID HOE

Product Manual: Skid Hoe - 2007

3
THANK YOU
Congratulations on the purchase of your new DIGGA Skid Hoe! This product was carefully designed and manufactured to give you
years of dependable service. Only minor maintenance (such as visual checking) is required to keep it in top working condition. Be
sure to observe all safety precautions and maintenance procedures as described in this manual.
Optional Extras are available for special applications or extreme conditions: these are noted throughout the manual.
Contact your DIGGA dealer for any further information pertaining to this product or for further information on other products available
in the DIGGA range.
1 To The Purchaser
SAFETY ALERT SYMBOL
This is the “Safety Alert Symbol” used by this industry. This symbol is used to warn
of possible injury. Be sure to read all warnings carefully. They are included for your
safety and for the safety of others working with you.
ABOUT THIS MANUAL
This manual has been designed to help you do a better,
safer job.
Read this manual carefully and
become familiar with its contents.
Remember; never let anyone operate this unit
without reading the “Safety Precautions” and
“Operating Instructions” sections of this manual.
Unless noted otherwise, right and left sides
are determined from the position of the
operator when behind the product facing forward.

4Product Manual: Skid Hoe - 2008
2 Table of conTenTs
PAGE
1 TO THE PURCHASER....................................................................... 3
2 TABLE OF CONTENTS..................................................................... 4
3 SERVICE & PREPARATION.............................................................. 5
4 SAFETY PRECAUTIONS.................................................................. 6
5 SAFETY - WORKING WITH THE ATTACHMENT............................. 8
6 SAFETY STICKER LOCATION......................................................... 11
8 INSTALLATION AND OPERATING INSTRUCTIONS........................ 12
9 OPERATING PROCEDURES........................................................... 14
10 MAINTENANCE.................................................................................. 16
11 SERVICE............................................................................................ 17
12 SPARE PARTS.................................................................................. 18
13 WARRANTY........................................................................................ 20

5
3 service and PreParaTion
All service and warranty must be performed by an authorised DIGGA service agent. Contact your local Digga dealer for details.To facilitate
warranty or service, record the model and serial number of your unit in the space provided on this page. This information may be obtained
from the identication plate located on the product.
The parts department needs this information
to insure accurate parts can be sent to the
authorised service agent.
MODEL
SERIAL NUMBER
DATE PURCHASED
IMPORTANT: WHEN SERVICING OR ASSEMBLING YOUR PRODUCT, REMEMBER TO USE ONLY
GENUINE DIGGA REPLACEMENT PARTS. SUBSTITUTE PARTS MAY NOT MEET THE
STANDARDS REQUIRED FOR SAFE, DEPENDABLE OPERATION. USE OF NON GENUINE
DIGGA PARTS WILL VOID WARRANTY AND DIGGA WILL ACCEPT NO LIABILITY WHAT SO
EVER FOR CONSEQUENTIAL OR SPECIAL DAMAGES.

6Product Manual: Skid Hoe - 2008
SIGNAL WORDS: Note the use of signal words DANGER, WARNING, and CAUTION with the safety
messages. The appropriate signal word for each has been selected using the following guidelines:
DANGER: Indicates an imminently hazardous situation, which if not avoided, will result in death or serious injury. This signal word is to be
limited to the most extreme situations, typically for machine components which, for functional purposes, cannot be guarded.
WARNING: Indicates a potentially hazardous situation, which if not avoided, could result in death or serious injury, and includes hazards
that are exposed when guards are removed. It may also be used to alert against unsafe practices.
CAUTION: Indicates a potentially hazardous situation, which if not avoided, may result in minor or moderate injury. It may also be used to
alert against unsafe practices.
TAKE NOTE! THIS SAFETY ALERT SYMBOL FOUND THROUGHOUT THIS MANUAL IS USED TO CALL YOUR ATTENTION TO
INSTRUCTIONS INVOLVING YOUR PERSONAL SAFETY OR OTHERS. FAILURE TO FOLLOW THESE INSTRUCTIONS CAN
RESULT IN INJURY OR DEATH.
ATTENTION!
BECOME ALERT!
YOUR SAFETY IS INVOLVED!
THIS SYMBOL MEANS:
This section is composed of various warnings and safety tips. Read and learn all the information in this section before you attempt
to use your attachment. Also read your vehicle owner’s manual before using your equipment. This knowledge will help you operate your
unit safely. Do not take this information lightly, it is presented for your benet and for the benet of others working around you.
The “Safety Alert Symbol” will be used throughout this manual. It will appear with the word DANGER, WARNING, or CAUTION, and
a safety message pertaining to the specic topic being covered. Take the time to read these messages as you come across them.
TO THE OPERATOR
The primary responsibility for safety with this equipment falls to the operator. Make sure that the equipment is operated only by trained
individuals that have read and understand this manual. Don’t hurry the learning process or take the unit for granted. It is the skill, care,
common sense, and good judgement of the operator that will determine how efciently and safely the job is performed. Know your
equipment before you start. Know its capabilities and how to operate all the controls. Visually inspect your equipment before you start,
ensure correct assembly and installation of the attachment and never operate equipment that is not in proper working order.
Practice the operation of your new attachment and become familiar with the controls and the way it handles on your machine.
If there is any portion of this manual or function you do not understand, contact your local authorized dealer or the manufacturer.
4 safeTY PrecauTions - General inforMaTion

7
4 safeTY PrecauTions - General inforMaTion
1. Never operate the Skid Hoe without rst reading and understanding the entire operator’s manual.
2. Do not paint over, remove or deface any safety signs or warning decals on your equipment.
3. Follow all safety decals. Keep them clean and replace them if they become worn, damaged or illegible.
4. Know your equipment inside and out. Know how to operate all controls and know emergency shut down procedures
5. Keep all stepping surfaces, pedals, and controls free from dirt, grease and oil. Keep equipment clean to help avoid injury from
slipping or falling when getting on or off equipment
6. Operate the attachment only in daylight or sufcient articial light.
7. Always carry loads close to the ground. Do not step off platform with load raised.
8. Turn off engine before performing maintenance. All maintenance can be performed with the machine arms lowered. If lift arms
must be left raised for any reason, use a positive lift arm lock to secure the arms in place. Serious damage or personal injury could
result from lift arms accidentally lowering.
9. To avoid overturning the machine. Reduce speed when driving over rough terrain, on a slope, or turning.
10. Check your work area and know where all utility lines are. Avoid hitting underground or overhead electrical wires, cables, pipes,
fence posts, gas lines, etc.
11. Never operate equipment while under the inuence of alcohol, prescription drugs or any other form of illegal recreational drugs
which could inhibit physical and/or mental capacity.
12. Do not exceed recomended safe operating load of machine, as machine may become unstable resulting in loss of control.
13. Slow down before turning. Sharp turns on any terrain may cause loss of control.
14. Always lower the loader arms to the ground, shut off the engine and remove the key before getting off the unit. v
15. Operators, helpers, and other personnel working near the equipment must wear steel-toe safety shoes, safety glasses, and hard
hats as a minimum. Hearing protection, respirators, and personnel protective clothing will be specied in the site-specic Health
and Safety Plan.
16. Do not smoke when refuelling. Allow room in the gas tank for expansion. Wipe up any spilt fuel. Secure cap tightly when done.
17. Be alert to others in the work area. Be sure others know when and where you will be working. Make sure no one is behind
equipment or within 6 metres of it operating.
18. Loose tting clothing, long hair, jewellery and equipment which might become entangled in moving equipment are prohibited while
working near the Skid Hoe.
19. The equipment must be shut down and properly locked-out and tagged before repairs or maintenance is performed. Only properly
trained and qualied individuals are permitted to perform
repairs and maintenance.
20. Site workers shall not be allowed on the attachment while it is in operation
21. Machinery must be shut down and the key removed before being left unattended.

8Product Manual: Skid Hoe - 2008
5 SAFETY - WORKING WITH THE ATTACHMENT
22. Controls must be engaged slowly until hydraulic uids and the unit are up to operating temperature. This is critical during cold
weather. Impact or shock loading of the Unit is prohibited.
23. The Skid Hoe shall be used only for its designed intent and shall not be loaded beyond its rated capacity. Overloading or exceeding
the manufacturers specications will void all warranty.
24. Sharp braking or hoisting is prohibited.
25. Riding the attachment is prohibited.
26. Only authorized, properly trained workers will be permitted to operate the Skid Hoe.
All unnecessary personnel will stand clear while it is in operation.
27. The operator shall verbally alert site workers and visually ensure all site workers are clear from dangerous parts of equipment
before starting or engaging equipment.
28. Digging/Trenching operations must be stopped in the event of local thunderstorm, or lightning activity. During operation, weather
conditions shall be monitored: operations shall cease during electrical storms or when electrical storms are imminent.
29. Open holes / trenches must be capped and agged.
WHEN DEALING WITH HYDRAULICS DURING ANY TYPE OF ASSEMBLY,
OPERATION, MAINTENANCE, OR OTHER WORK ON OR NEAR THIS PRODUCT
● Hydraulic uid under pressure can penetrate the skin and cause serious injury or death. Hydraulic leaks under pressure may not be
visible!
● If any uid penetrates the skin, GET IMMEDIATE MEDICAL ATTENTION!!
● Wear safety glasses, protective clothing, and use a sound piece of cardboard or wood when searching for hydraulic leaks. DO NOT
USE YOUR HANDS!
● Before connecting or disconnecting hydraulic hoses, read your tractor or power unit’s operator’s manual for detailed instructions on
connecting and disconnecting hydraulic attachments.
● Make certain that all parts meet the specications for this product when installing or replacing hydraulic hoses or ttings.
● After connecting hydraulic lines:
○ Slowly and carefully raise the loader and cycle the rollback / dump cylinders to check hose clearances and to check for any
interference.
○ Operate the hydraulics on this product to check hose clearances and to check for any interference.
○ Make certain that the hoses cannot interfere with or actuate the quick-attach mechanism.
○ Make certain that hoses will not be pinched, or get tangled, in any equipment.
4 safeTY PrecauTions - General inforMaTion

9
5 safeTY - WorKinG WiTh The aTTachMenT
● Do not lock the auxiliary hydraulics of your power unit in the “ON” position.
● Refer to your power unit’s operator’s manual and this manual for procedures and intervals, then
inspect and maintain the entire hydraulic system to insure that the uid remains clean, that all devices function properly, and that
there are no uid leaks.
WHEN MOUNTING THIS PRODUCT TO YOUR SKID STEER LOADER
● Refer to the operator’s manuals of your loader, and your quick-attach for special or detailed mounting instructions.
● This product should t onto the quick-attach Frame.
● If this product does not t properly, contact your Digga Dealer before operating.
● Never place any part of your body into the mounting plate or 3-point hitch or loader holes. A slight movement of
the power unit or this product could cause serious injury.
ENSURE LOCKING PINS ON YOUR QUICK ATTACH ARE FULLY ENGAGED
BEFORE EACH USE, THOROUGHLY INSPECT THIS PRODUCT AND
● Make certain that all safety signs are in place and legible. Refer to the safety sign page in this manual for the placement of safety
signs for this product.
● Replace all damaged or excessively worn parts and hardware only with genuine Digga parts or with properly rated fasteners,
hydraulic hoses, or ttings.
● Make certain that all locking pins, latches, and connection devices are properly installed and secured.
● Make certain that all protective guards, canopies, doors, etc., are in place and secure.

10 Product Manual: Skid Hoe - 2008
5 safeTY - WorKinG WiTh The aTTachMenT
WHEN OPERATING THIS PRODUCT IN ACCORDANCE WITH DESIGN INTENTIONS
● Contact utility companies ‘DIAL 1100’ before digging. Know your digging area! Avoid hitting under ground cables and pipes, over
head wires, and other hazards.
● Do not drive near the trench. Always back away from the trench before turning.
● Never use Skid Hoe on a Loader that is not equipped with a cab or ROPES, and operator restraints (seat belts or equivalent
devices).
● Do not use the Skid Hoe to dislodge overhead objects. Objects could fall and cause injury.
● Do not attach any other attachment or device to the Skid Hoe.
● Be careful when raising loaded bucket. Objects could fall from bucket toward bystanders or operator.
● Know your loader’s safe operating weight limit, and the weight of loaded attachment.
● Never dig close to loader’s wheels or under the loader; this can cause a cave in and vehicle overturn.
● Always dump loaded bucket on uphill side of Skid Hoe to minimize possibility of upset.
● Use caution when working close to fences and ditches, or on uneven ground.
WHEN ADJUSTING, SERVICING OR REPAIRING THIS PRODUCT
● Make no modications to your Skid Hoe.
● When making repairs, use only genuine Digga parts or, for fasteners, hydraulic hoses, or hydraulic ttings, use only properly rated
parts.
● Replacement parts, for parts with safety signs attached, must also have safety signs attached.
For additional safety information please see Risk Management booklet. To obtain a copy contact Digga Head Ofce on 07 3807 3330

11

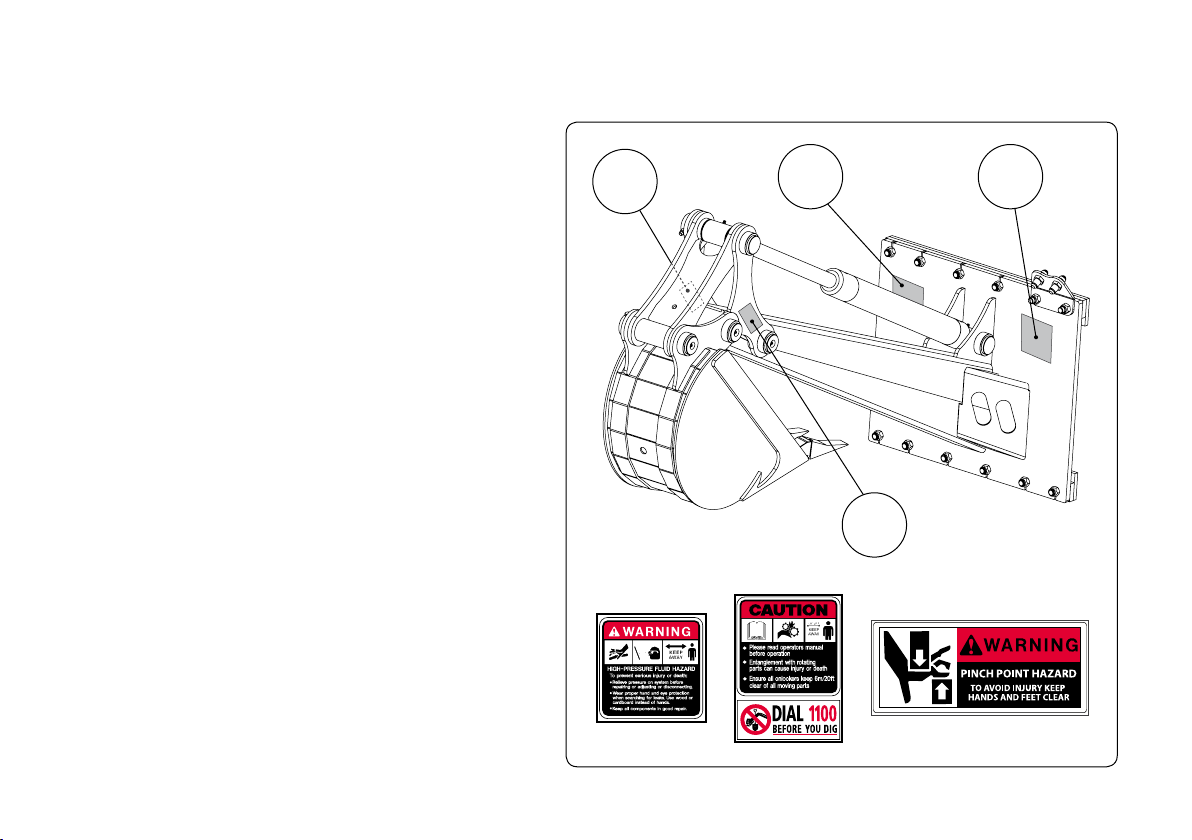

6 safeTY - sTicKer locaTion
PLACEMENT OR REPLACEMENT
OF SAFETY SIGNS
1. Clean the area of application with
non-ammable solvent, then wash
the same area with soap and water.
2. Allow the surface to fully dry.
3. Remove the backing from the safety
sign, exposing the adhesive surface.
4. Apply the safety sign to the position
shown in the diagram above and
smooth out any bubbles.
INSTRUCTIONS
● Keep all safety signs clean and legible.
● Replace all missing, illegible, or damaged
safety signs.
● Replacement parts for parts with
safety signs attached must also have
safety signs attached.
● Safety signs are available from your
dealer or from Digga Australia.
ITEM 1
ITEM 2
ITEM 3
12
3
3

12 Product Manual: Skid Hoe - 2008
The DIGGA Skid Hoe receives its power from the Parent Machine through the Auxiliary Valve circuit with Quick Release
Couplers normally located on the machine arms near the front. Attaching points on the Skid Hoe are the same as the
bucket attaching points on your machine. Hook up hoses to Auxiliary Hydraulics.
Engine must be shut off. Pressure may need to be released
Ensure your machines ow and pressures do not exceed the maximum rated ow and pressures of the Skid Hoe
(Refer To Page 3). Max. Flow and Pressure ratings are stated on your Skid Hoe serial tag. It is the responsibility of the
operator to ensure the unit’s maximum rated ow & pressure are never exceeded.
Exceeding these ratings will void Warranty.
IF YOU ARE IN ANY DOUBT CONTACT YOUR NEAREST DIGGA DEALER FOR ASSISTANCE.
8 insTallaTion and oPeraTinG insTrucTions

13
8 insTallaTion and oPeraTinG insTrucTions
1. Place this product on a rm, level surface that is large enough to safely accommodate this product, your Loader, and all workers
involved in the mounting process.
2. Be sure all connection points are properly secured.
3. Refer to the operator’s manual(s) for your Skid steer loader, and quick-attach and follow the mounting instructions contained therein.
4. Carefully raise the loader arms and cycle the tilt cylinders to check clearances and to verify that all mounting procedures have been
successfully completed.
5. All Skid steer loaders MUST have a port relief installed on its hydraulic tilt circuit.
SKID HOE INSTALLATION
SKID HOE HYDRAULIC CONNECTION
1. Disconnect the hydraulic hose quick couplers from one another and attach the quick couplers to your Skid steer loader as per the
instructions in your Skid steer loader operator’s manual.
2. Carefully raise the loader arm and cycle the tilt cylinders to check hose clearances and to check for any interference.
NOTE: IT IS IMPORTANT TO MAKE SURE THE LOCKING MECHANISM ON YOUR QUICK
ATTACH IS ENGAGED, THEREFORE LOCKING THE ATTACHMENT ONTO THE MACHINE.
DO NOT LOCK THE AUXILIARY HYDRAULICS OF YOUR SKID STEER LOADER IN THE “ON”
POSITION. FAILURE TO OBEY THIS WARNING COULD RESULT IN DEATH OR SERIOUS INJURY.
SAFETY FIRST!! READ AND UNDERSTAND THE SAFETY
INSTRUCTIONS BEFORE BEGINNING ANY SKID HOE MOUNTING

14 Product Manual: Skid Hoe - 2008
SKID HOE OPERATION
1. Be sure the loader is on solid ground before digging or lifting any load.
2. With the loader arms partially raised and the bucket cylinder partially extended, slowly curl the dipperstick toward the loader (using
the loader’s tilt control). The loader arms may need to be lowered or raised and/or the bucket cylinder extended to allow the bucket
to penetrate the soil.
3. As the bucket lls, extend the bucket cylinder and extend the dipper or raise the loader arms to lift the bucket clear of the hole.
4. The depth of the hole will be controlled by the amount the dipper is extended and the
height of the loader arms.
◦ Use extreme care when working on hillsides. Always dump loaded bucket on uphill side of Skid Hoe to minimize
possibility of upset.
◦ Exercise caution when working close to fences, ditches, or on uneven ground.
DO NOT:
◦ Dig close to the loader’s wheels or under the loader; this could cause a cave-in and vehicle overturn.
NOTICE: USE OF REAR COUNTERWEIGHTS IS REQUIRED!
Refer to your Skid steer loader operator’s manual for safe operating limit and use of counterweights.
TO DIG:
9 oPeraTinG Procedures
SAFETY FIRST!! READ AND UNDERSTAND THE SAFETY
INSTRUCTIONS BEFORE BEGINNING ANY SKID HOE OPERATING
FAILURE TO OBEY THE FOLLOWING PROCEDURES
COULD RESULT IN DEATH OR SERIOUS INJURY
Never lift this product:
● Above the operator’s eye level OR to a height where visibility is obstructed, which ever is lower.
● Use caution when raising loaded bucket. Objects could fall from bucket toward bystanders or operator.

15
TO DUMP ON GROUND:
1. With the bucket raised clear of the hole, slowly back up and pivot the loader rearward about the front wheels. This will swing the
loader away from the trench, and the bucket to the side to dump.
◦ Keep loads close to the ground while transporting.
9 oPeraTinG Procedures
1. With the loader arms partially raised and the bucket cylinder partially extended, slowly curl the dipperstick toward the loader (using
the loader’s tilt control). The loader arms may need to be lowered or raised to allow the bucket to penetrate the soil.
2. When the bucket is positioned at the desired depth, slowly back up the loader, keeping the bucket height constant to cut a shallow
amount of soil.
IMPORTANT: The tilt circuit of your power unit must be protected with a port relief; ignoring this
precaution CAN result in damage to your power unit and/or this product and WILL void your
Digga warranty
TO CUT A SHALLOW TRENCH:
1. With the loader arms partially raised, curl the dipperstick (attachment mainframe) forward with the bucket cylinder extended and the
bottom of the bucket at on the ground. The entire height of the bucket should be visible.
2. Use the loader’s tilt cylinder only to raise the bucket above the material pile.
3. Pivot the loader to reach over the pile and tilt the Skid Hoe downward so the bottom of the bucket is approximately 12” below the
top of the pile.
4. Pivot the loader toward the trench, using the side of the bucket to move the material into the trench. Repeat this process, lowering
the bucket 6” at a time.
5. Move your power unit forward and repeat the above steps to continue lling the trench.
IMPORTANT: Make sure the portion of the trench to be driven on is full before moving forward. Moving on an unstable surface CAN result
in damage to your Loader and/or this product and WILL void your Digga warranty
◦ Always lower the bucket to the ground, set the parking brake, stop engine, remove ignition key and wait for all moving parts to
stop before leaving the operator’s seat.
TO FILL A TRENCH:

16 Product Manual: Skid Hoe - 2008
10 MainTenance
● Make sure that all nuts and bolts are in place and properly tightened.
● Make sure that all other fasteners are in place and are performing their specied function.
● Make sure that all hydraulic ttings are tightened and that there are no leaks in any ttings or hoses.
● Make sure that all safety signs are in place, are clean, and are legible.
(SEE THE SAFETY SIGN SECTION)
● Replace any damaged parts and excessively worn parts.
● Grease all (5) lubrication points.
SAFETY FIRST!! READ AND UNDERSTAND THE SAFETY
INSTRUCTIONS BEFORE BEGINNING ANY SKID HOE MAINTENANCE
BEFORE FIRST USE
BEFORE EACH USE
AFTER EVERY 4 HOURS OF OPERATION
● Inspect the attachment for shipping damage. If damage does exist, do not operate until the damaged
parts have been replaced or repaired.
● Grease all (5) lubrication points.
Escaping uid under pressure can have
sufcient force to penetrate the skin causing
serious personal injury. Fluid escaping from
a very small hole can be almost invisible.
Use a piece of cardboard or wood, rather
than hands to search for suspected leaks.
Keep unprotected body parts, such as-
face, eyes, and arms as far away as pos-
sible from a suspected leak. Flesh in-
jected with hydraulic uid may develop
gangrene or other permanent disabilities.
If injured by injected fluid, see a
doctor at once. If your doctor is not
familiar with this type of injury,ask
him to research it immediately
to determine proper treatment.
WARNING! CARDBOARD
HYDRAULIC HOSE
OR FITTING
MAGNIFYING GLASS

17
11 service
● Shut off engine, set parking brake, and relieve hydraulic pressure before connecting or disconnecting hydraulic lines. Refer to your
power unit’s manual for instructions on how to relieve hydraulic pressure in lines.
● Before applying pressure to the system, be sure that all connections are tight and be sure there are no damaged hoses,
lines, or ttings.
● Wear safety glasses and use metal or wood or cardboard when searching for leaks. Do not use your hands.
● Steam clean the power unit before any installation is made to the hydraulic system. Remove any attachment from the power unit
and position on a level surface.
BEFORE SERVICING THE LOADER, REMOVE THE ATTACHMENT AND MAKE CERTAIN THE LIFT
ARMS ARE LOWERED TO THEIR LOWEST POSITION OR THAT THE ARMS ARE SUPPORTED BY
THE MECHANICAL LOCK UP DEVICES (IF THE MACHINE IS SO EQUIPPED).
18
18
18

18 Product Manual: Skid Hoe - 2008
12 sPare ParTs
18
6
3
12 18
18 19 11
15
13
16
20
817
14
2
1
5
10
9
47
REFER TO TABLE 9A

19
Skid Hoe
ReF No. deSCRiPTioN QTY oRdeR Code
1 BACkHoe BUCkeT - 300mm Wide BUCkeT 1 BH-000003
2 BUCkeT TooTH 3 BH-000023
3 BACkHoe CoMMoN - LiNkAGe PiN 3 BH-000029
4 BACkHoe CoMMoN - CYLiNdeR To FRAMe PiN 1 BH-000031
5 BACkHoe LiNkAGe ARM - WeLdMeNT 1 BH-000039
6 BACkHoe CoMMoN - CYLiNdeR To LiNkAGe PiN 1 BH-000042
7 BACkHoe PiVoT LiNkAGe - RiGHT WeLdMeNT 1 BH-000047
8 BACkHoe PiVoT LiNkAGe - LeFT WeLdMeNT 1 BH-000048
9 BACkHoe CoMMoN - FRAMe SPACeR PLATe 2 BH-000049
10 BACkHoe CoMMoN - FRAMe CLAMPiNG BAR 2 BH-000050
11 BACkHoe CoMMoN - HoSe BULkHeAd NiPPLe PLATe 1 BH-000051
12 HYdRAULiC CYLiNdeR 1 CY-000030
13 BoLT HeX 5/8 x 2.1/2 G8 UNC ZiNC PLATed 10 FA-000072
14 NUT NYLoC 3/8” ZiNC PLATed 5 FA-000093
15 NUT NYLoC 5/8” ZiNC PLATed 12 FA-000095
16 BoLT HeX 5/8 x 3 G8 UNC ZiNC PLATed 2 FA-000205
17 BoLT HeX 3/8 X 3 G8 UNC ZiNC PLATed 5 FA-000227
18 GReASe NiPPLe 1/4” UNF 5 FA-000401
19 NiPPLe BULkHeAd S10 - 1212 THReAd A 3/4 THReAd B 3/4 2 HA-000007
20 WASHeR SPRiNG 5/8” ZiNC PLATed 12 WA-000013
TABLE 9A

20
All new Digga products are warranted to be free from defects in materials or workmanship, for a period of
twelve (12) month from date of original purchase, which may cause failure under normal usage and service
when used for the purpose intended.
In the event of failure within twelve (12) months from initial retail sale, lease or rental date (excluding cable,
ground engaging parts such as sprockets, digging chain, bearings, teeth, tamping and demolition heads, blade
cutting edges, pilot bits, auger teeth, auger heads & broom
bristles), if after examination, Digga determines failure was due to defective material and/or workmanship,
parts only will be repaired or replaced.
Digga may request defective product or products be returned prepaid to them for inspection at their place of
business at 4 Octal Street Yatala, Queensland, or to a location specied by Digga. The warranty will be con-
sidered void if the product or any part of the product us modied or repaired in any way not expressly author-
ized by Digga, or if closed components are disassembled prior to return. Closed components include, but are
not limited to: gearboxes, hydraulic pumps, motors, cylinders and actuators. Any goods returned to Digga by
the customer under warranty or repair must have all freight charges prepaid for on the customers account.
Any claims under this warranty must be made within fteen (15) days after the Buyer learns of the facts upon
which such claim is based. All claims not made in writing and received by Digga outside the time period
specied above shall be deemed waived.
THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES EXPRESSED OR IMPLIED AND THERE
ARE NO WARRANTIES OF MERCHANTABILITY OR OF FITNESS FOR A PARTICULAR PURPOSE.
IN NO EVENT SHALL DIGGA BE LIABLE FOR CONSEQUENTIAL OR SPECIAL DAMAGE.
DIGGA’S LIABILITY FOR ANY AND ALL LOSSES AND DAMAGES TO BUYER, RESULTING FROM ANY
CAUSE WHATSOEVER, INCLUDING DIGGA’S NEGLIGENCE, IRRESPECTIVE OF WHETHER SUCH
DEFECTS ARE DISCOVERABLE OR LATENT, SHALL IN NO EVENT EXCEED THE PURCHASE PRICE OF
THE PARTICULAR PRODUCTS WITH RESPECT TO WHICH LOSSES OR DAMAGES ARE CLAIMED, OR, AT
THE ELECTION OF DIGGA, THE REPAIR OR REPLACEMENT OF DEFECTIVE OR DAMAGED PRODUCTS.
WARRANTY
