MK Martin LAND LEVELER Programming manual

MK Martin Enterprise Inc.
3950 Stef er Rd Elmira, ON, Canada N3B 2Z3
Tel: [phone]
Toll Free: 1-855-664-2752
Fax: [phone]
E-mail: [email protected]
www.mkmartin.ca
Land Leveler Operator’s / Parts Manual
REV: 18-1

Table of Contents
• Warranty -------------------------------------------------------------------------------------------
• Registration ---------------------------------------------------------------------------------------
• Safety -----------------------------------------------------------------------------------------------
• Decal Location ----------------------------------------------------------------------------------
• Assembly Instruction ----------------------------------------------------------------------------
• Operation ------------------------------------------------------------------------------------------
• Sign Off ---------------------------------------------------------------------------------------------

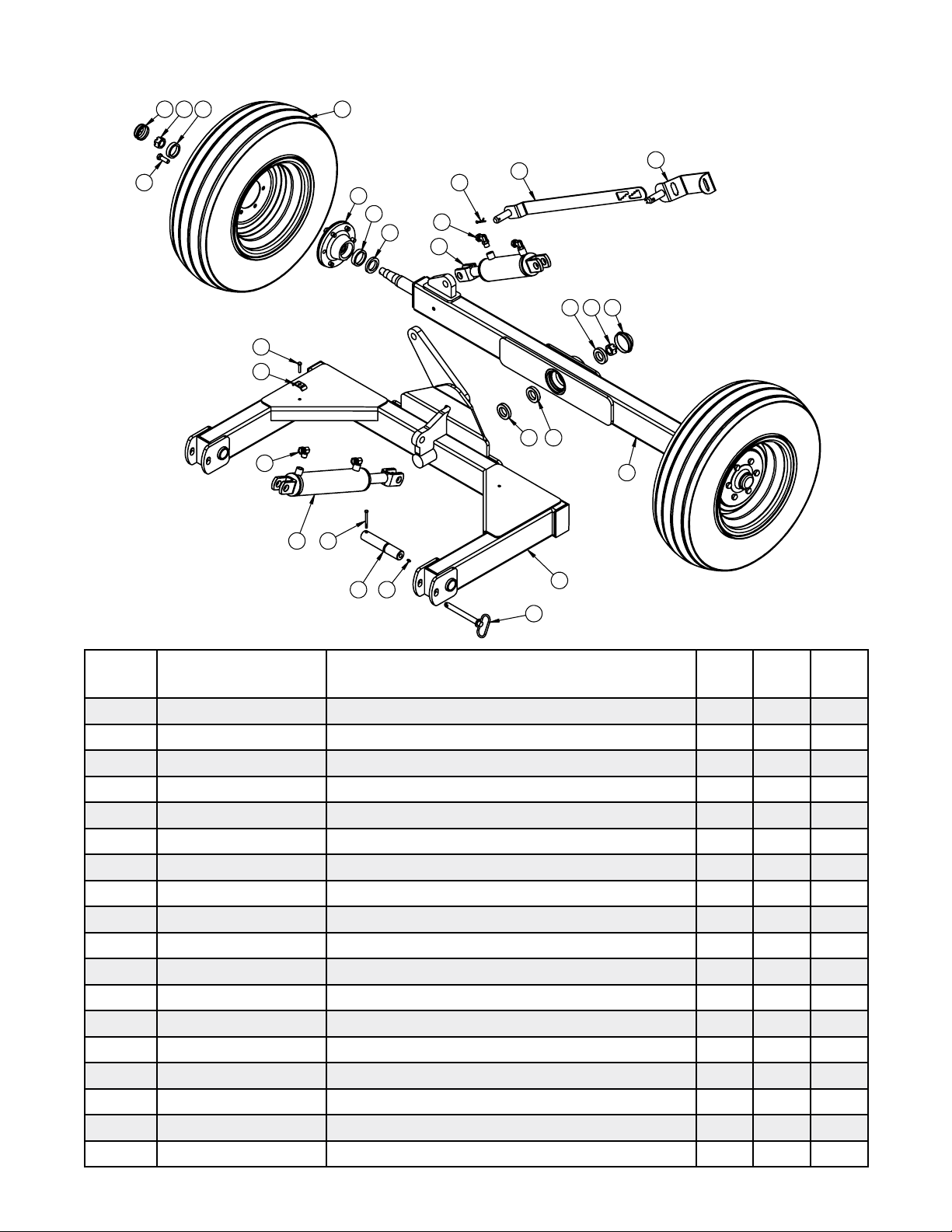

• Parts -------------------------------------------------------------------------------------------------
• Maintenance --------------------------------------------------------------------------------------

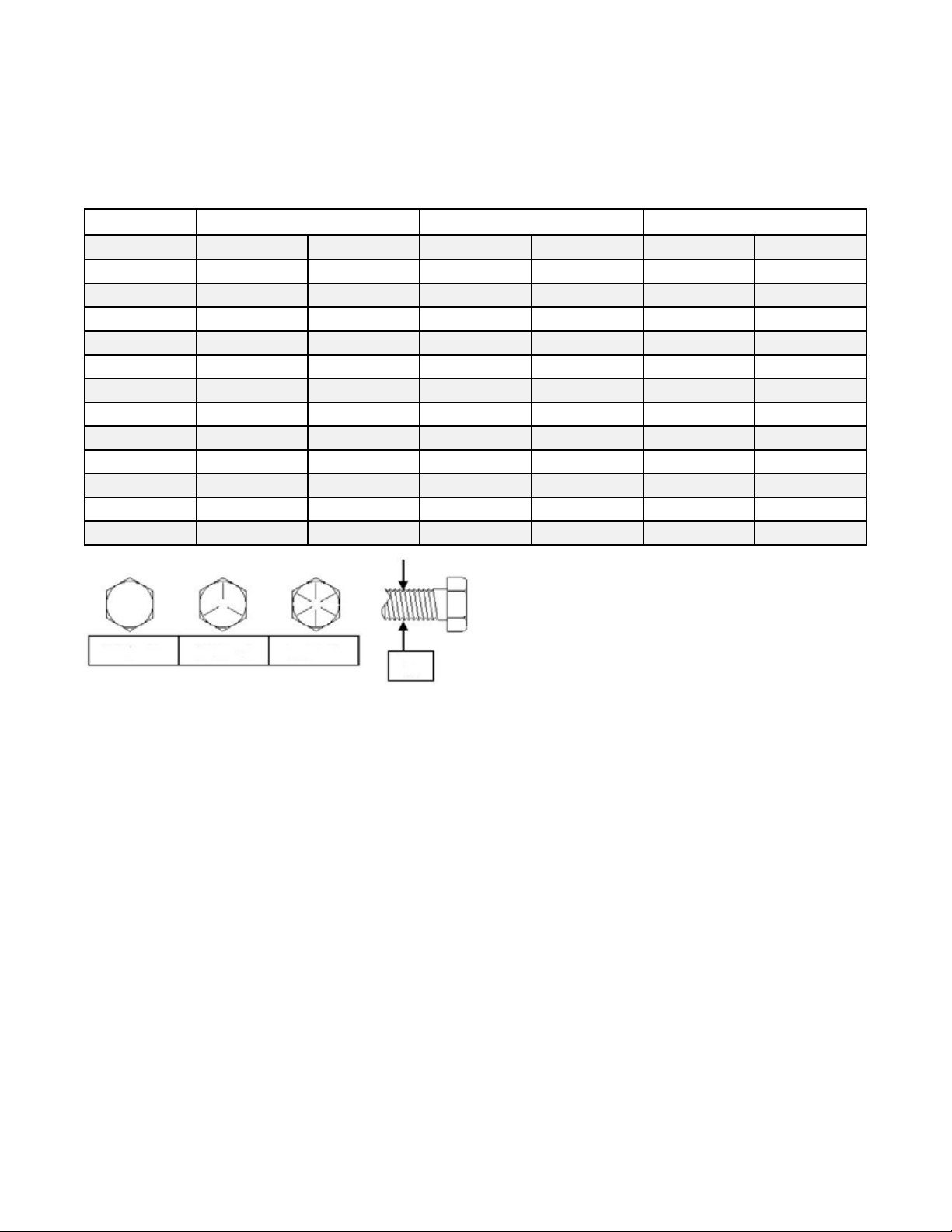

• Bolt Torque ----------------------------------------------------------------------------------------
2
3
5-7
8
9
10
11
12-15
16
17

2
Warranty
Effective on products retailed on or after November 1, 2017
Two Year Limited Consumer Warranty
Five Year Limited Consumer Warranty on Gearboxes
90 Day Limited Commercial Warranty including Gearboxes
Commercial includes rental and industrial applications.
Warranty begins at the time of customer delivery and is activated upon warranty registration receipt
at MK Martin Enterprise Inc.
Warranty coverage is null and void unless the Warranty Registration form has been completed
in full and is on  le at
MK Martin Enterprise Inc.
Keep your registration copy in a safe place, it is required as proof of warranty activation.
This new and unused product is warranted by MK Martin Enterprise Inc. to be free from defects in material and workmanship under
normal use and regular service as described in the owner’s manual, for a consumer period of 2 years and 5 years for gearboxes,
from the date of delivery, and commercial period of 90 days, including gearboxes, from the date of delivery. Warranty is limited to
the replacement of parts and / or repair of the product.
If issues develop within the warranty period with the product, contact the local dealer from which you purchased the unit. Only
MK
Martin
authorized dealers may make repairs to the product or affect the replacement of defective parts, unless otherwise approved
by
MK Martin . Repairs / replacement will be done at no charge within a reasonable time after the receipt of the product.
This warranty does not cover the following items:
1. Normal replacement of service items.
2. Normal maintenance or adjustments.
3. Machines or parts lost or damaged during shipment,
4. Accessory items / parts not supplied by
MK Martin
5. Damages resulting from:
 misuse, negligence, accident, theft or  re
 use of improper or insuf cient fuel,  uids or lubricants
 use of after market parts or accessories, unless approved by
MK Martin
 modi cations, alteration, tampering or improper repair
 any device or accessories installed by other than an authorized dealer.
6. Tires are covered by the manufacturer of the tire and the warranty period speci ed by that manufac-
turer. Please contact the tire manufacturer for warranty on these items.
MK Martin Enterprise Inc. shall not, in any event, be liable for any losses, damages or costs; to include pro ts, travel, transportation,
pick up, delivery, towing cost, tow vehicle, loss of use, whether special, incidental, consequential or otherwise, in any way. Unit or
parts are returned at the customer’s expense.
Include a copy of your completed Warranty Registration form with any claim as proof of warranty activation.
There are no warranties, expressed or implied, other than those speci ed herein. No agent, employee or other person has any
authority to vary any of the foregoing provisions.
Warranty coverage is null and void unless the Warranty Registration form has been completed in full and is on  le at MK Martin Enterprise Inc.
Warranty begins at the time of customer delivery and is activated upon Warranty Registration receipt at MK Martin Enterprise Inc.
3950 Stef er Rd.  Elmira  Ontario, Canada  N3B 2Z3  Email : [email protected]  Fax : [phone]  Tel : [phone]
230817

3
M K Martin Enterprise Inc
3950 Steffl er Rd
Elmira ON CA N3B 2Z3
---------------------------------------------------------------------------------------------------------------------
Purchaser’s warranty protection is valid only when this completed form or a copy of this form
is on fi le at M K Martin Enterprise Inc. By fi lling out this form the purchaser has acknowledged
delivery of equipment and owner’s / operator’s manual and has accepted the condition of the
equipment.
Date of delivery to purchaser -------------------------------------------------------
Type of Equipment -------------------------------------------------------------------
Model # ------------------------------- Serial # -------------------------------------
Retailer’s Signature Indicates
• Equipment was properly assembled as directed by manufacturer
• Equipment was tested for functionality and operates properly
• Purchaser was instructed in safe and proper operating procedures
• Warranty was explained to purchaser
• Purchaser was given the operators manual
Retailer
Signature ----------------------------------------------------------------
Company ---------------------------------------------------------------
Address ---------------------------------------------------------------
-------------------------------------------------------------
Purchaser’s signature indicates
• Acceptance of equipment fully assembled
• Received operator’s manual
• Clearly understands conditions of warranty
• Received instructions of safe and proper operation of equipment
Purchaser
Signature -----------------------------------------------------------
Company ---------------------------------------------------------
Mailing address -------------------------------------------------
City ------------------------------------------ Prov/State -------- Postal Code/Zip ---------------
Available phone number -----------------------------------------
Warranty is valid only when it has been received by manufacturer at address above

4
-------------------------------------------------------------------------------------------------------------------------
Postage
Stamp
M K Martin Enterprise Inc
3950 Steffl er Rd
Elmira ON CA N3B 2Z3
Fold Here
Please Cut and Return to M K Martin Enterprise Inc
Fold And Tape here Do not tape all edges or use staples
Warranty Registration

5
Safety
Take Note! This safety symbol is found throughout this manual to call your attention to instruc-
tions involving yourself and others working around the machine.
• Failure to follow these instructions can result in injury or death
This symbol means
-- Attention!
-- Become Alert!
-- Your Safety is involved!
Signal words are used in this manual.
Caution: Indicates a potentially hazardous situation that may result in injury.
Warning: Indicates a hazardous situation that could result in serious injury or death.
Danger: Indicates a hazardous situation that needs to be avoided. It is you the operator that
needs to be aware of these dangers.
If you have any questions not answered in this manual please contact your dealer or
M K Martin Enterprise Inc Tel: [phone]
3950 Stef er Rd 1-855-664-2752
Elmira On Ca N3B 2Z3 Fax: [phone]
e-mail [email protected]
www.mkmartin.ca

6
Be Safe! Stay Safe!
Remember you the operator are responsible for the safe operation of this equipment.
Before operating this equipment take lessons from an experienced operator, read through this
manual and understand each step of operation prior to doing any work with the equipment.
Understand you are the primary safety device.
When operating this equipment keep spectators at a distance to allow you to concentrate on
the job at hand.
Anybody who has not read and understood these operating and safety instructions is not
qualied to operate this equipment.
Do not modify or alter this equipment in any way.
Any unauthorized modications may impair the safety and function of this equipment.
Read and understand the Operator’s Manual
Wear appropriate protective gear, This list may include but is not limited to: a hard hat,
safety shoes, safety glasses or goggles, wet weather gear, hearing protection, respirator
or lter mask.
Do not allow riders
Lower blade to the ground, place all controls in neutral, set parking brake, stop the engine
and remove the key before servicing, adjusting or repairing this equipment.
Review safety related items with all operators annually.
Before transporting on a highway clean reectors and SMV signs
Obey all local highway laws when transporting this equipment on roads.
Always travel at safe speeds
Maintain and keep tires in good condition. Have a qualied serviceman perform the required
maintenance.
Ensure that all decals are legible. See your dealer parts department for replacements.
WARNING !
Always block Land Leveler securely before working on
or under Land Leveler.

7
Warning! Do not check for high pressure leaks with your hands or  ngers. Use a
piece of cardboard or a thin piece of wood to detect the leak.
A high pressure stream of  uid from a pin hole can penetrate the skin and inject hydraulic  uid
into your blood veins.
Hydraulic Leak Test
Hydraulic lines may have high pressure  uid in the lines, even when the lines are dis-
connected.
Remember a small leak at high pressure may be invisible yet can penetrate the skin. If this
happens get medical attention immediately, serious infection or toxic reaction can develop when
hydraulic  uid pierces the skin.
Use caution when working with hydraulic components. Ensure there are no leaks, all  ttings are
tight and all components are in good repair.
Use a piece of wood or cardboard as a backstop when searching for leaks, NEVER your
hand or  ngers.
Always relieve pressure before disconnecting or working on hydraulic system.
RIGHT
WRONG
DANGEROUS

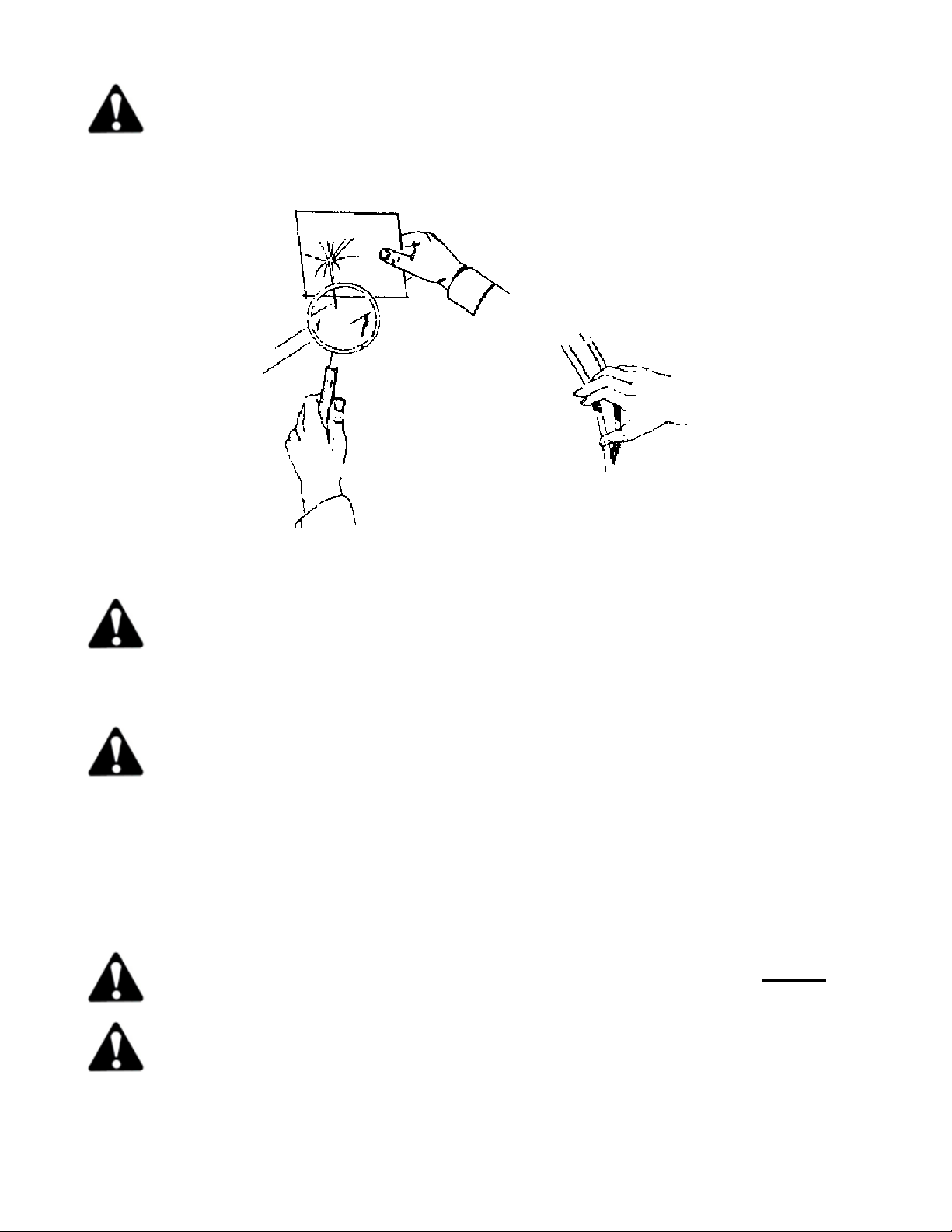

Figure 1. Detecting pinhole leaks in a hydraulic system.
IF THE SKIN HAS BEEN PENETRATED GET MEDICAL ATTENTION IMMEDIATELY!
Pin hole leaks are
often invisible

8
THIRD ANGLE PROJECTION
5
4 3 21
A
DETAIL A
SCALE 1 : 18
8
9
7
6
5
4
3
1
Folder
S:\Solidworks\Solidworks_Dennis\Land leveller\Levelers_updated\10FT Lift And Tilt.SLDASM
DWG. NO.
REV
Model
SCALE 1:64
SHEET 9 OF9
DATE DRAWN
MATERIAL
10FT Lift And Tilt
May-18-10 7:10:42 AM
DESCRIPTION
10 Ft Land Leveler
S:\Solidworks\Solidworks_Dennis\Land leveller\Levelers_updated\
Weight(lbs.)
0
Width Height Length
0 0 1771.17 0
Blank Size Unit of Measure
ITEM ID.
31219
Config ID 31219
DIMENSIONS ARE IN INCHES
TOLERANCES NON SPECIFIED:
FRACTIONAL 1/64
BEND 1.0
TWO PLACE DECIMAL 0.01"
THREE PLACE DECIMAL 0.002"
Notes
DO NOT SCALE DRAWING
# 2 - Before any operation
of maintenance a/o adjust-
ment, stop, brake the tractor on level ground, low-
er the machine to the ground and read the instruc-
tion manual.
# 3 - Before operating ma-
chine, carefully read the in-
struction manual.
Decal Location
THIRD ANGLE PROJECTION
5
4
3
1
Folder
S:\Solidworks\Solidworks_Elo\Decal\Red Reflector.SLDPRT
DWG. NO.
REV
Model
SCALE 1:2
SHEET 1 OF1
DATE DRAWN
MATERIAL
Red Reflector
March-09-16 5:52:37 PM
DESCRIPTION
Red reflective strip
S:\Solidworks\Solidworks_Elo\Decal\
Weight(lbs.)
1
Width Height Length
1 0
Red reflective strip
0.24 ea. 1
Blank Size Unit of Measure
ITEM ID.
24349
Config ID
24349
DIMENSIONS ARE IN INCHES
TOLERANCES NON SPECIFIED:
FRACTIONAL 1/64
BEND 1.0
TWO PLACE DECIMAL 0.01"
THREE PLACE DECIMAL 0.002"
Notes
DO NOT SCALE DRAWING
THIRD ANGLE PROJECTION
5
4
3
1
Folder
S:\Solidworks\Solidworks_Elo\Decal\Amber Reflector.SLDPRT
DWG. NO.
REV
Model
SCALE 1:2
SHEET 1 OF1
DATE DRAWN
MATERIAL
Amber Reflector
March-09-16 5:56:07 PM
DESCRIPTION
Amber reflective strip 2 x 9
S:\Solidworks\Solidworks_Elo\Decal\
Weight(lbs.)
1
Width Height Length
1 0
Amber reflective strip 2 x 9
0.24 ea. 1
Blank Size Unit of Measure
ITEM ID.
24350
Config ID
24350
DIMENSIONS ARE IN INCHES
TOLERANCES NON SPECIFIED:
FRACTIONAL 1/64
BEND 1.0
TWO PLACE DECIMAL 0.01"
THREE PLACE DECIMAL 0.002"
Notes
DO NOT SCALE DRAWING
THIRD ANGLE PROJECTION
5
4 3 21
A
DETAIL A
SCALE 1 : 18
8
9
7
6
5
4
3
1
Folder
S:\Solidworks\Solidworks_Dennis\Land leveller\Levelers_updated\10FT Lift And Tilt.SLDASM
DWG. NO.
REV
Model
SCALE 1:64
SHEET 9 OF9
DATE DRAWN
MATERIAL
10FT Lift And Tilt
May-18-10 7:10:42 AM
DESCRIPTION
10 Ft Land Leveler
S:\Solidworks\Solidworks_Dennis\Land leveller\Levelers_updated\
Weight(lbs.)
0
Width Height Length
0 0 1771.17 0
Blank Size Unit of Measure
ITEM ID.
31219
Config ID
31219
DIMENSIONS ARE IN INCHES
TOLERANCES NON SPECIFIED:
FRACTIONAL 1/64
BEND 1.0
TWO PLACE DECIMAL 0.01"
THREE PLACE DECIMAL 0.002"
Notes
DO NOT SCALE DRAWING
# 1 - Land Leveler Decal - x2
# 9 - MK Martin Made in Canada
#8 - DANGER of being
crushed. Insert safety lock
pins before getting in hazardous area.
# 4 - Before any operation
of maintenance, carefully
read the instruction manual. Avoid uid escaping
under pressure. Consult technical manual for ser-
vice procedures.
# 6 - Red Decal - x2
# 7- Grease Decal - x2
# 5- Amber Decal - x2

9
• The Land Leveler is shipped as a package that includes;
• Main Mouldboard Assembly
• Rear Axle Beam with Tilt.
• Tongue with Hitch
• Tongue Braces ( for 10 and 12 foot )
• Wheels
• Jack
• Lift Cylinder c/w Hydraulic lines Tilt Cylinder c/w Hydraulic hose.
To assemble
Please see preceding page (decal location) for component placement.
1. Remove all components from skid.
2. Attach Tongue to Mouldboard
3. Fasten the Tongue Braces ( if required )
4. Remove two pivot pins on the Mouldboard and attach axle beam with the gusset braces on
top.
5. Fasten the Wheels
6. Install Hydraulic Cylinder and route Hydraulic Lines along the clamps to the hitch
Assembly Information

10
Operating
The leveler will work better and easier if the soil is plowed and disked before leveling. The Land
Leveler blade is situated between the tractor wheels and the leveler wheels and will shave or
plane off the high areas and ll in low areas. For leveling purposes’ adjust the rear wheels with
the hydraulic cylinder so that the rear tractor wheels, the cutting edge and the rear leveler wheels
form a straight line as shown. If the rear wheels are lower the leveler will progressively add soil
and if the wheels are higher the leveler will progressively cut deeper.
It may be necessary to repeat the operation in cases of severe irregularity. After your eld is
leveled you may nd that the lled in areas have settled and need more leveling the following
year, this is normal.

11
Sign Off Form
M K Martin Enterprise Inc. follows the general Safety Standards speci ed by the American
Society of Agricultural Engineers (ASAE) and the Occupational Health and Safety Administration
(OSHA). Anyone who will be operating and/or maintaining the equipment must read and clearly
understand ALL Safety Operating and Maintenance instructions presented in this manual. Do not
operate or allow anyone else to operate this equipment until such information has been reviewed.
Annually review this information before the season start-up. Make these reviews of SAFETY and
OPERATION annually as a standard practice for all your equipment. We feel that an untrained op-
erator is unquali ed to operate this machine. A sign-off sheet is provided for your record keeping
to show that all personnel who will be working with the equipment have read and understood the
information in the operator’s manual and have been instructed in the operation of the equipment.
Date Employees Signature Employers Signature

12
Land Leveler Parts
Item # Part # Description 8 ft
Qty
10 ft
Qty
12 ft
Qty
110917 Wear Bar 2 2 2
210916 Wear Bar Clamp 2 2 2
3xzhcs6220nc Bolt 5/8 x 2 c/w ln 10 10 10
453918 8ft Cutting Edge 1
52787 10ft Cutting Edge 2
12ft Cutting Edge 2
5xbpb6215nc Plowbolts 5/8x1 1/2 c/w n 10 14 16
6xzhcs7540nc Bolt 3/4x4 c/w ln 4 4
730979 Brace 2 2
853642 Jack 1 1 1
9xzhcs10080nc Bolt 1x8 c/w ln 1 1 1
10 30982 Hitch 1 1 1
11 53913 3/16” Lynch Pin 1 1 1
12 53914 Hitch Pin 1” 1 1 1
13 xzhcs3115nc Bolt 5/16 x 1 1/2 c/w lw 2 2 2
14 10932 Hose Stand 1 1 1
15 10211 Hose clamp 333
16 xzhcs3115nc Bolt 5/16 x 1 1/2 c/w ln 333
1
2
3
4567
8
9
10
11
12 13
14
15
16 17
18
21
23
24
20
19
22

13
Item # Part # Description 8 ft
Qty
10 ft
Qty
12 ft
Qty
17 10191 8 Ft Tongue 1
30981 10 & 12 Ft Tongue 1 1
18 xzhcs7520nc Bolt 3/4x2 c/w ln 6 6 6
19 508-021 Self Drilling Screw 1/4 x 1 2 2 2
20 52649 Manual Tube 1 1 1
21 32502 Short Hydraulic Hose 1 1 1
22 32503 Long Hydraulic Hose 1 1 1
23 S71-4 Agri-ball nipple 4 4 4
24 32504 Hydraulic Tilt Hose 2 2 2
Land Leveler Parts
Note:
OL = Obtain Locally
c/w = complete with
fw = Flat Washer
lw = Lock Washer
ln = Locknut
n = Nut

14
Land Leveler Tilt Axle
Item # Part # Description 8 ft
Qty
10 ft
Qty
12 ft
Qty
153919 9/16 Wheel Stud 12 12 12
253920 Dust Cap 2 2 2
353921 Castle Nut 2 2 2
453922 Outer Bearing 2 2 2
553930 8 ply tire 2 2 2
653925 Hub 4000 2 2 2
753923 Inner Bearing 2 2 2
853924 Seal 2 2 2
953144 Cylinder 1 1 1
10 53926 Hyd. Fitting 2 2 2
11 pinco1820 3/16 x 2 Cotter Pin 2 2 2
12 10923 Bottom Tilt Indicator 1 1 1
13 10921 Upper Tilt indicator 1 1 1
14 53927 Dust Cap 1 1 1
15 53928 Castle Nut 1 1 1
16 53929 Outer Bearing 1 1 1
17 53931 Inner Bearing 1 1 1
18 53932 Seal 1 1 1
2 3 4 5
6
7
8
9
10
11
12
13
16 15 14
1718
19
20
21
2223
2425
26
27
28
1

15
Note:
OL = Obtain Locally
c/w = complete with
fw = Flat Washer
lw = Lock Washer
ln = Locknut
n = Nut
Item # Part # Description 8 ft
Qty
10 ft
Qty
12 ft
Qty
19 31790 Tilt Axle 8ft - 10ft 1 1
31792 Tilt Axle 12ft 1
20 31789 Tilt Frame 8ft - 10ft 1 1
31791 Tilt Frame 12ft 1
21 52657 3/4 x 6 1/4 Hitch pin 2 2 2
22 53933 Grease Nipple 2 2 2
23 30971 Pivot Pin 2 2 2
24 xzhcs2530nc Bolt 1/4 x 3 c/w ln 2 2 2
25 21914 Cylinder 1 1 1
26 53934 Hyd. Fitting 2 2 2
27 10179 Hose Clamp 1 1 1
28 xzhcs3115nc Bolt 5/16 x 1 1/2 c/w lw 1 1 1
Land Leveler Tilt Axle

16
Maintenance
Before using for the rst time
• Read Operator’s Manual
• Check all bolts for proper torque
• Grease Pivot Pins
After rst 2 hours
1. Re-torque all bolts including wheel bolts
2. Check for hydraulic leaks
After 10 hours
Repeat 2 hour step
Using after break-in period
1. Lubricate pivot pins
2. Use a tractor with enough power and weight to handle the Leveler.
3. Ensure the drawbar hitch pin has a mechanical retainer.
4. Ensure the safety chain is installed.
5. Check condition of Cutting Edge
6. Check Hydraulic Oil level in the tractor. Add if required.
7. Use a clean cloth to clean couplers before attaching to the tractor
8. Check tire pressure. 32 psi, (220 kPa)
Tractor
Fix drawbar in the center position to prevent it from swinging.
After the implement is attached, raise the jack and rotate it 90° to its stowed position.
Storage
1. After the seasons use, inspect the machine for wear and damage. This is a good time to re-
pair or replace worn and damaged parts. It is then ready at the beginning of the next season.
2. Wash the machine to remove all dirt and residue.
3. This is also a good time to inspect the hydraulic hoses for cuts and abrasions.
4. Touch-up all paint nicks and scratches to prevent rusting
5. Oil exposed hydraulic cylinder shafts to prevent rusting.
6. Repack wheel bearings
7. Store in an area that is dry, level and safe from activity, including children.
WARNING !
Always block Land Leveler securely before working on
or under Land Leveler.

17
Bolt Torque
As used on this machine
•Bolt torque table shown below gives torque values for various bolts used.
•This chart is for non-lubricated threads.
•Replace with same strength bolt.
Torque Speci cations. Torque values are identi ed by their head markings.
Diameter SAE 2 SAE 5 SAE 8
“A”ft-lb N.m ft-lb N.m ft-lb N.m
1/4 6 (8) 8 (11) 12 (16)
5/16 11 (15) 17 (24) 25 (33)
3/8 20 (27) 31 (42) 44 (59)
7/16 32 (43) 49 (67) 70 (95)
1/2 49 (66) 76 (105) 105 (145)
5/8 97 (130) 150 (205) 210 (285)
3/4 144 (195) 265 (360) 375 (510)
7/8 165 (225) 430 (585) 605 (820)
1250 (340) 645 (875) 910 (1230)
1 1/8 355 (480) 795 (1080) 1290 (1750)
1 1/4 500 (680) 1120 (1520) 1820 (2460)
1 1/2 870 (1180) 1950 (2640) 3160 (4290)
Allen head cap screw are similar to
SAE 8 quality
These torques are for reference only. Not all these sizes and grades are necessarily used in this
machine. Bolts that are used as a pivot or hinge have to be used with a locknut, therefore only
tighten enough to secure the bolt and still allowing the part to rotate freely.
SAE 2 SAE 8SAE 5 A

MK Martin Enterprise Inc.
3950 Stef er Rd Elmira, ON, Canada N3B 2Z3
Tel: [phone]
Toll Free: 1-855-664-2752
Fax: [phone]
E-mail: [email protected]
www.mkmartin.ca
