™Server 3220/3220R Series
Installation Guide
Installationshandbuch
Guía de instalación
Guide d’installation
Guida di installazione
™

DIGITAL Server 3220/3220R Series2
hank ou
... for purchasing a DIGITAL Server 3220/3220R.
The DIGITAL Server family represents DIGITAL’s
continued commitment to Uncompromising
Quality, backed by award-winning Customer
Service and Support. The following procedures
will help you easily set up your server’s
hardware and software.
Before You Begin
Select a suitable area for server and rack assembly and
use. Ensure that the location:
■ Is free from excessive heat, dust, and direct sunlight
■ Allows at least 30 inches of clearance at the rear of
the rack and 60 inches at the front of the rack for
rack models
■ Allows at least 7 inches of clearance on all sides for
proper air flow around pedestal models
■ Is in accordance with local and regional electrical
regulations governing the installation of Information
Technology Equipment by licensed electricians
See “Technical Specifications” in your System Reference
manual for temperature and humidity information.
If you do not wish to install the server yourself, contact
your DIGITAL authorized service provider. A Customer
Service Technician can install the server for you.
WARNING
Use extreme care when unpacking your server.
Due to its weight, two people are required to
unpack it. Failure to use two people might violate
certain safety regulations and can result in severe
personal injury or equipment damage.
YT
DIGITAL ServerWORKS Quick Launch
DIGITAL ServerWORKS Quick Launch delivers
unparalleled achievement in streamlining the instal-
lation and configuration of hardware components
and network operating system software on the
DIGITAL Server line of products. Quick Launch
combines an intuitive interface and versatile, time
saving features to produce a consistent and accurate
installation optimized for DIGITAL’s extremely pow-
erful and highly acclaimed DIGITAL Servers.
In addition to its automated yet extensible method
of express installations for Network Operating
Systems, Quick Launch provides a comprehensive
archive of server documentation, troubleshooting
assistance, configuration utilities, and diagnostics.

Installation Guide
3
ENGLISH
Unpack your server
Unpacking Instructions
Pedestal Model (shown above)
1. Tip the box on its side. Open the bottom of the box
and fold the bottom flap under the box.
2. While still in the box, set the server upright.
3. Open the top of the box and remove the country kit.
4. Close the top of the box. Using the handles on the box,
remove it from the top of the server.
5. Move the server to your desired location. Tip the
server slightly and rotate the four pedestal feet out-
ward until they lock into position.
Rackmount Model
Unpack your server following the diagrams on the box
top. Use a mechanical aid or get someone to help you lift
it from the carton base.
If you need to lift the server…
1. Get close to the server.
2. Squat down with your knees bent and your feet apart
for stable footing.
3. Lift with your legs, keeping your back straight.
4. Avoid twisting your upper body. Move your feet to turn.
5. Lower the server gently using your leg muscles to squat
while keeping your back straight.
After your server has been unpacked, please recycle the
packing materials or dispose of them properly.
WARNING
The server is heavy. Do not lift it alone.
1

DIGITAL Server 3220/3220R Series4
Check the parts
Unpack and identify your server’s components.
Pedestal Model
Power cord
Server keys
Optional 68-pin SCSI cable for connecting the
SCSI channel 2 to an exterior port and terminator
Server software and documentation kits including
printed manuals and the Quick Launch CD-ROM with
on-line documentation
Hot swap drive extraction tool
NOTE
A rack, monitor, and a country kit including a keyboard,
keyboard extension cable, and mouse must be ordered
separately for either server model.
A power cord is included in the country kit for the pedes-
tal model but must be ordered separately for the rack-
mount model.
Rackmount Model
Cable management arm and brackets
Slides (2) and mounting hardware
Optional 68-pin SCSI cable for connecting the
SCSI channel 2 to an exterior port
Server software and documentation kits including
printed manuals and the Quick Launch CD-ROM with
on-line documentation
The DIGITAL ServerWORKS software kit includes:
■ ServerWORKS Quick Launch: ServerWORKS Quick
Launch CD-ROM software and Getting Started guide.
■ ServerWORKS Manager kit: ServerWORKS Manager
software and documentation.
The DIGITAL Server Documentation kit includes:
■ This Installation Guide, System Reference manual,
Documentation Overview, Warranty and Service
Information, and Registration Card.
2

Installation Guide
5
ENGLISH
Install any internal options
If you have options to install, install them now. To install
internal options:
CAUTION
Before touching any circuit board or component,
wear an anti-static wrist strap, properly grounded
to the server chassis, or touch the metal frame to
discharge any static electricity.
Pedestal Model
1. Unlock the door and front bezel.
2. Open the front bezel and loosen the two
side panel thumbscrews.
3. Remove the side panel.
4. Install the options.
Rackmount Model
1. Remove the front bezel.
2. Remove the screw and then remove the top cover.
3. Install the options.
Refer to the System Reference manual for detailed infor-
mation. Also, refer to the documentation that came with
the option kit for specific installation instructions.
3

DIGITAL Server 3220/3220R Series6
Install your server in the rack (3220R only)
1. Mark the installation area. Allow 128 cm (50 in.) for
installation.
NOTE
On a DIGITAL rackmount, each 14U rail is marked at 1U
increments.
2. If needed, attach the mounting angles to the rack.
CAUTION
Mounting angles must be tightened to a torque
value of 4.2 N-m (3.1 ft-lbs).
4

Installation Guide 7
ENGLISH
Rack installation continued
3. Assemble the front of the slide mounting brackets
(front view).
4. Assemble the back of the slide mounting brackets.
5. Attach the slide mounting brackets to the rack.
NOTE
On a DIGITAL rackmount, the chassis slide must be fas-
tened 50.8 mm (2 in.) behind the front rail to ensure
proper door clearance.

DIGITAL Server 3220/3220R Series8
Rack installation continued
6. Attach the slide rails to the server.
7. Install the server into the rack.
WARNING
Use two people to lift the server.
8. Attach the cable management arm.
8

Installation Guide
9
ENGLISH
Connect the cables and power cord
1. Connect the keyboard.
2. Connect the mouse.
3. Connect the monitor.
4. Connect the 10/100Base-T network cable.
5. Connect ac power.
For more information on connecting server cables for the
model 3200R, refer to the DIGITAL Server Rackmount
Installation Guide.
CAUTION
The voltage selection switch must match the
voltage supplied by your power outlet. In North
America, 115 volts is common. In other countries,
230 volts is common. Ensure that the voltage
selection switch is set to the correct voltage. If it
is not set correctly, you can damage your server.
Do not attempt to modify or use an external
100 Vac (Japan only) or 115 Vac power cord for
240 Vac input power. Modifying either cord can
cause severe equipment damage.
5

DIGITAL Server 3220/3220R Series10

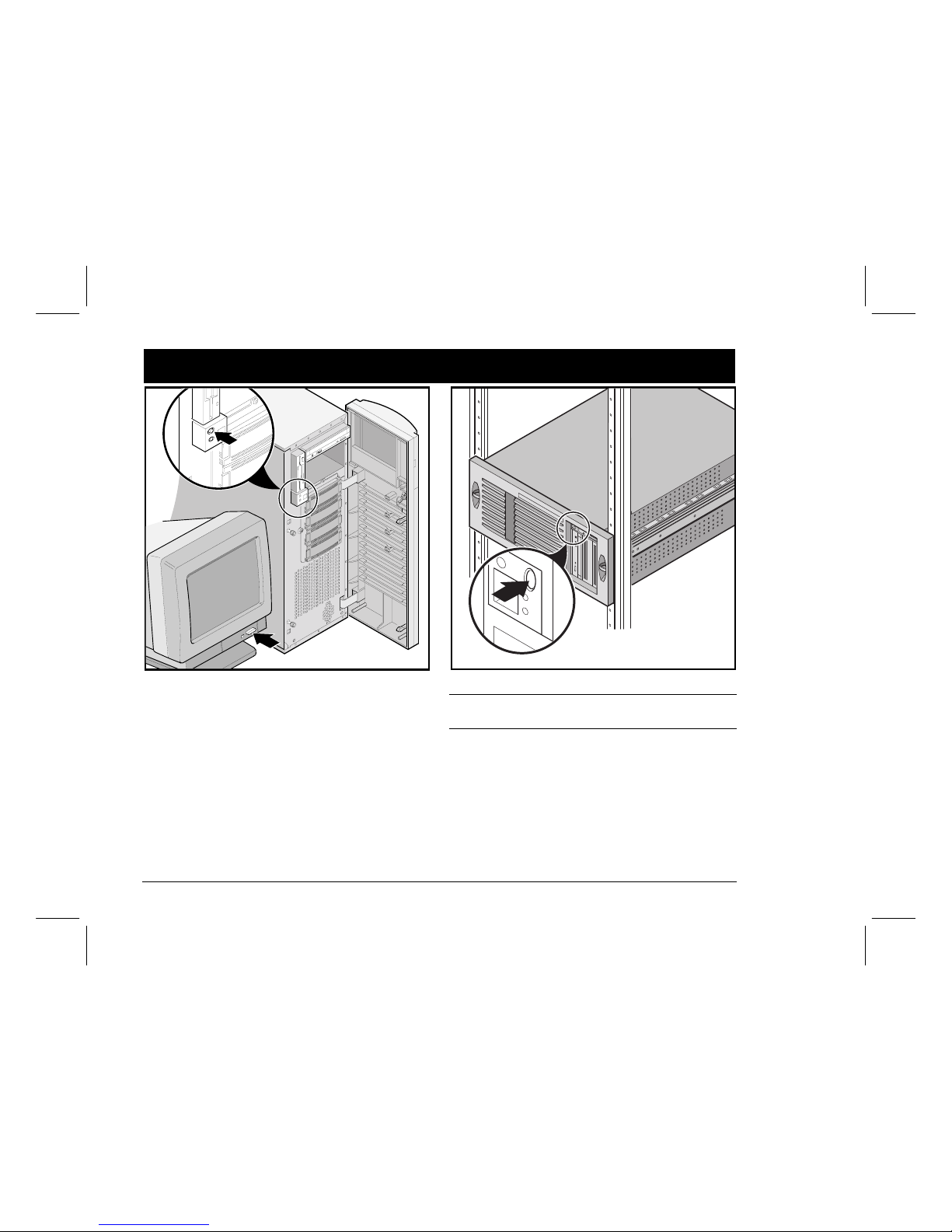

Turn on the monitor and then the server
1. Turn on the monitor.
2. Turn on the server.
3. Adjust the monitor’s contrast and brightness to obtain
a readable screen display.
NOTE
Refer to your System Reference manual for BIOS and
Power-On-Self-Test (POST) messages.
6
