Recorder Features
Congratulations on your purchase. Turn your PC into a full-
featured recorder. Record phone calls, conversations, and
meetings.
Universal Interface
Connect to phone lines, voicemail systems, handsets,
radios and microphones.
Digital Performance
DLI offers the best audio uality in the industry. Recordings
are perfect. Copies can be made without loss of uality.
Recording to disk is more reliable than recording to tape and
typically sounds much better than flash recorders.
Simple Operation
Recording is automatic. Calls are displayed at a glance. A
voice activated switch (VOX) system with adjustable trigger
level records each call in a separate file.
Instant Replay and Screen Capture
Calls can be replayed instantly, even while recording. Find
calls uickly. Play calls on any Windows PC. Recordings
can be copied, emailed, encrypted, and backed up. Screen
shots can be stored with calls. No proprietary software is
re uired.
Hard Disk or Network Storage
Select a local hard drive or a network file server to save
recordings. Use a shared directory for easy access over a
network. Listen in live from a remote workstation.
Included Play ack Utilities
Additional utilities are included for call sorting and indexing,
live remote playback, and call detail (SMDR) recording. Sort
calls and screen shots for uick retrieval.

Personal Logger III digital-loggers.com
3
Package Contents
1. Personal Logger recording module
This module converts telephone audio into a format
compatible with your PC microphone jack. Attach
one side to your phone, the other to the pink-
colored MIC jack on your PC.
2. RJ-11 outside line cord and connector kit
This cord and Y connector have larger jacks for
connection to telephone lines.
3. RJ-12 Handset cord and connector kit
This cord and Y connector have smaller jacks on
one end for connection to handsets. The Y
connector has a short “pigtail” cable.
4. So tware installation CD
Insert the CD in your Windows PC to start the
installation.
System Requirements
Operating System
Windows 7, Vista, XP, 2003, 2000, ME, or later.
Upgrading early systems to the latest version of Direct-
X from www.microsoft.com/directx is recommended.
Processor
1GHz, P-III or faster with CD drive for installation.
Ena led Microphone Jack
This jack is marked MIC and is colored pink on
most PCs. Check your Windows audio control panel
settings to select and enable your MIC jack.

Personal Logger III digital-loggers.com
4
Caller ID
Caller-ID is not re uired, but it’s useful for tracing and
Outlook Integration. An outside phone line is re uired to
decode caller-ID. In most areas, caller-ID is a paid
subscription service.
Outside Line or Handset Connection
Any analog outside line may be connected. A handset
connection may be used to record calls on a digital
telephone system. Radios or microphones may also be
connected.
Quick Setup
Use these shortcuts for uick installation. If you’re
unfamiliar with logging systems, please read the entire
manual before proceeding.
1. Select either the correct cable bag. Note that
handsets use smaller plugs than outside lines.
2. Connect the round microphone cable from the
logger to the pink MIC jack on your PC.
3. Install the software CD and follow the instructions
under Install Recording So tware.
4. Click the DLI Personal Logger icon.
5. Pick up the phone. Use the slider control on the
logger to adjust the volume to the middle of the
screen. Adjust the Voice Activation timeout and
level. The default timeout for telephone calls is 20
seconds. The logger automatically separates calls
into individual files with time stamps.
6. Calls may be replayed by opening the Instant
Replay Window, by installing separate playback
applications under “Install Playback Software” or
simply by clicking on the recording files.

Personal Logger III digital-loggers.com
5
Choosing a Connection Point
The recorder connects to either:
a phone line using larger RJ-11 connectors
-or-
a phone handset using smaller RJ-12 connectors
Other audio sources, such as radios or microphones
can also be connected.
To decode caller-ID and trace calls, you’ll need to
connect to an outside line. If you’re recording a digital
PBX extension, you’ll want the handset connection.
Outside Line Connection
To connect an outside line, insert the RJ-11 Y
connector (with larger plugs) in a wall jack or in a

Personal Logger III digital-loggers.com
telephone. Use the Y connector and cable to connect
to the recording module. Connect the microphone cable
to the pink jack on your PC.
If your phone company provides Caller-ID, it is often
available only on outside lines.
Handset Connection
A handset connection is most often used to connect to a
digital PBX, VoIP phone, or multi-line analog phone.

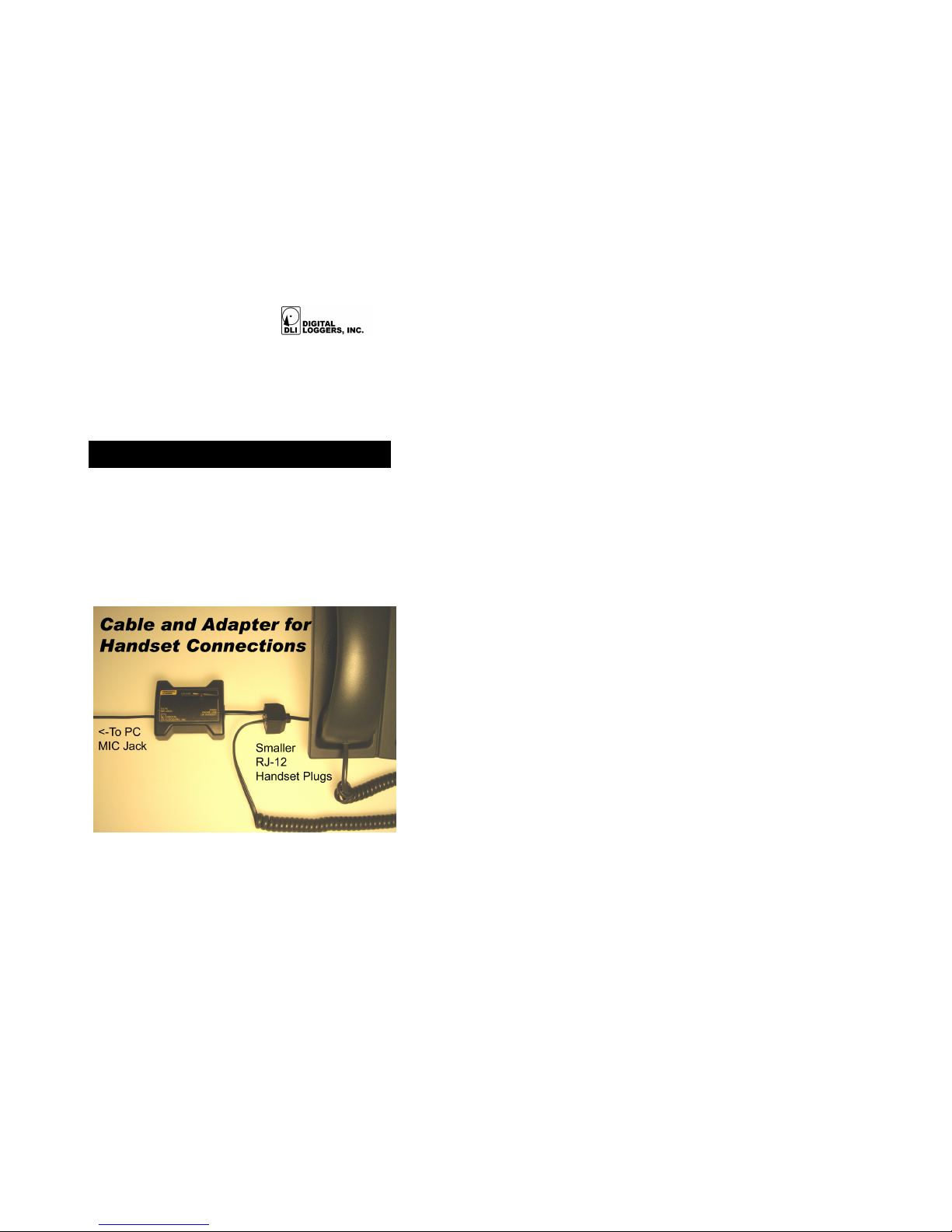

Handset plugs are smaller than outside line plugs, so a
special cable and Y adapter are provided. Use them to
connect from the handset to the recording module. Connect
the microphone cable to the pink jack on your PC.

Personal Logger III digital-loggers.com
7
Software Installation
Insert the disc DLI Personal Logger Setup in your drive.

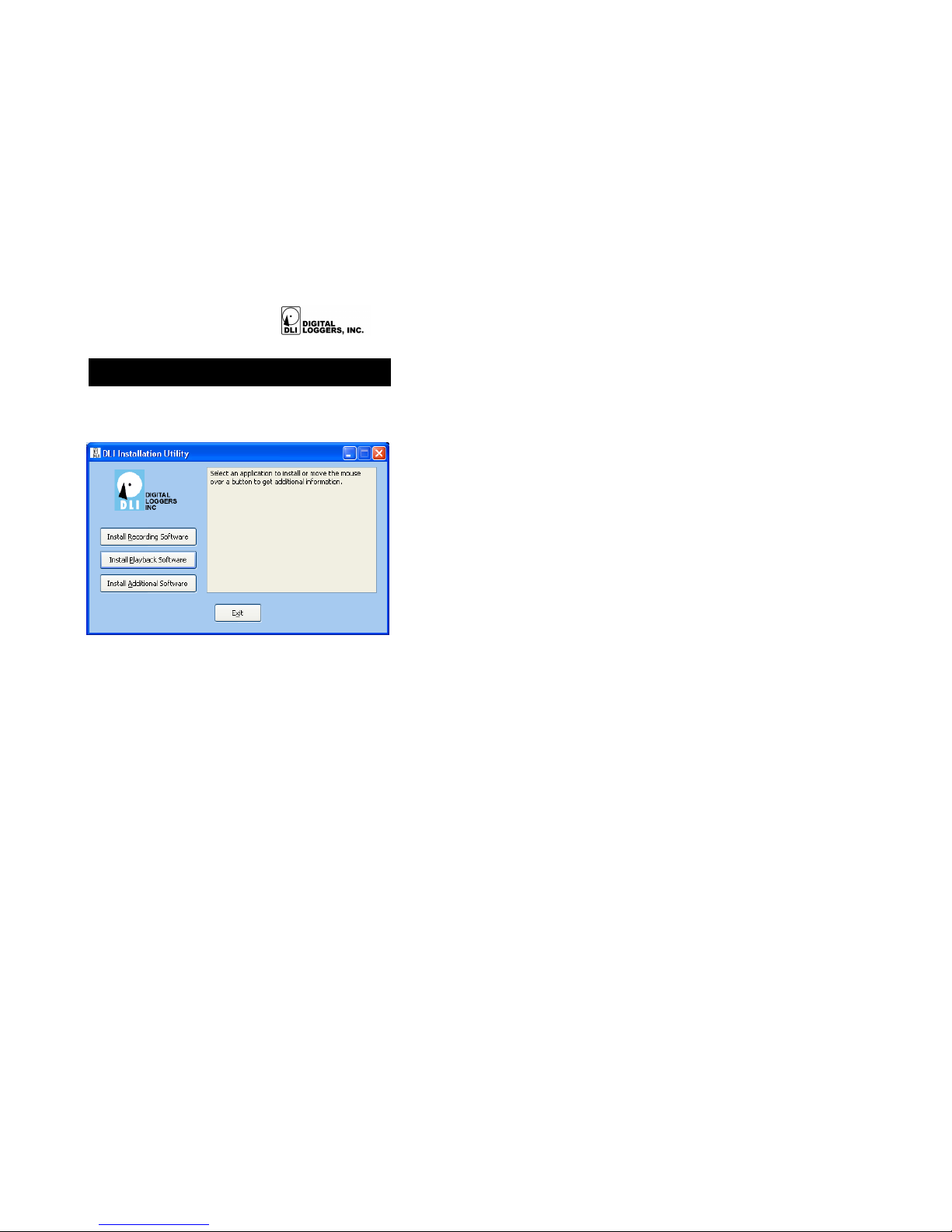

The installation window appears:
Click Install Recording So tware, then
Install Personal Logger
Select a destination folder for the program, and a location
for the recording files. For best streaming audio
performance, record to a local hard drive.
Most users will install the program in “standard” mode. The
“hidden” mode eliminates the user interface and records in
the background.
Some hard disk space will be used. Each second of
recording uses 8KB of disk space. A gigabyte stores 34
hours of continuous recording. Utilities are available to
compress recordings.

Personal Logger III digital-loggers.com
8
After installation, restart your PC. Then start the Personal
Call Recorder by clicking the DLI icon. The main screen
looks similar to this:
Take the phone off-hok, and press the red REC button to
Start recording and check the levels. It’s important to
adjust both the MIC level slider in the Windows Audio
Control Panel and the slider on the Personal Logger for
best audio uality. If either level is set too high, touch-tones
and caller-ID won’t decode properly.
Checking Sound Levels
With your phone off-hook and recording activated, the Level
Indicator should look like this:
If the Level Indicator doesn’t move, your MIC jack may not
be enabled. Use the Windows control panel to enable it.

Personal Logger III digital-loggers.com
9
Adjusting the Sound Activation Level
The recorder is a voice activated ('VOX') application. It
listens for sound, records a file, and stops recording after
detecting silence.
The sound activation trigger level is adjustable. The
small arrowhead under the level meter is the trigger level.
Recording starts whenever the sound level moves to the
right of the arrowhead. This trigger level can be adjusted
using the “sensitivity” slider bar in the lower right corner of
the program. With your phone on-hook, set this trigger
level slightly to the right of the level meter.
Recording continues until a specified period of silence is
detected. Adjust this period using the “Timeout” setting in
the lower-right corner.
An excessively short timeout will break a call into several
smaller files. An excessively long timeout will cause
subse uent calls to nest in the same file. Start with the
suggestions below, then adjust the timeout to your liking:
Application Typical Timeout Value
Phone Handset 20 seconds
Phone Outside Line 30 seconds
Radio Line 7 seconds
Security Microphone 120 seconds
Equalizing Call Volumes
The recorder can adjust calls to approximately the same
volume. This process is called “normalizing”. To enable this,
click Normalize Calls in the Pre erences menu. To
automatically adjust playback levels, check the ALC box in
the instant replay window.

Personal Logger III digital-loggers.com
10
On outside lines, a difference in volume between the calling
and called party is normal. If this is objectionable, switch to a
handset connection. Some phones (including most Cisco)
have an internal “sidetone” adjustment to set this balance.
Outlook Integration
Using Caller-ID, the recorder will automatically enter the
caller’s number in Microsoft Outlook. To enable this feature,
first stop recording, then click Preferences, under the
recording menu. Check both I have Caller-ID and Enable
Outlook Lookup in the preferences menu.
Saving Notes with Calls
Open the Instant Playback Window and highlight the current
call to save notes while recording. You may cut-and-paste
information (such as critical order information or contact
information) from other applications into the notes field.
Notes are stored safely inside the recording files.

Personal Logger III digital-loggers.com
11
Storing Recording Files
The recording storage location can be changed. To change
it, first click STOP. Then click Browse to select a directory:

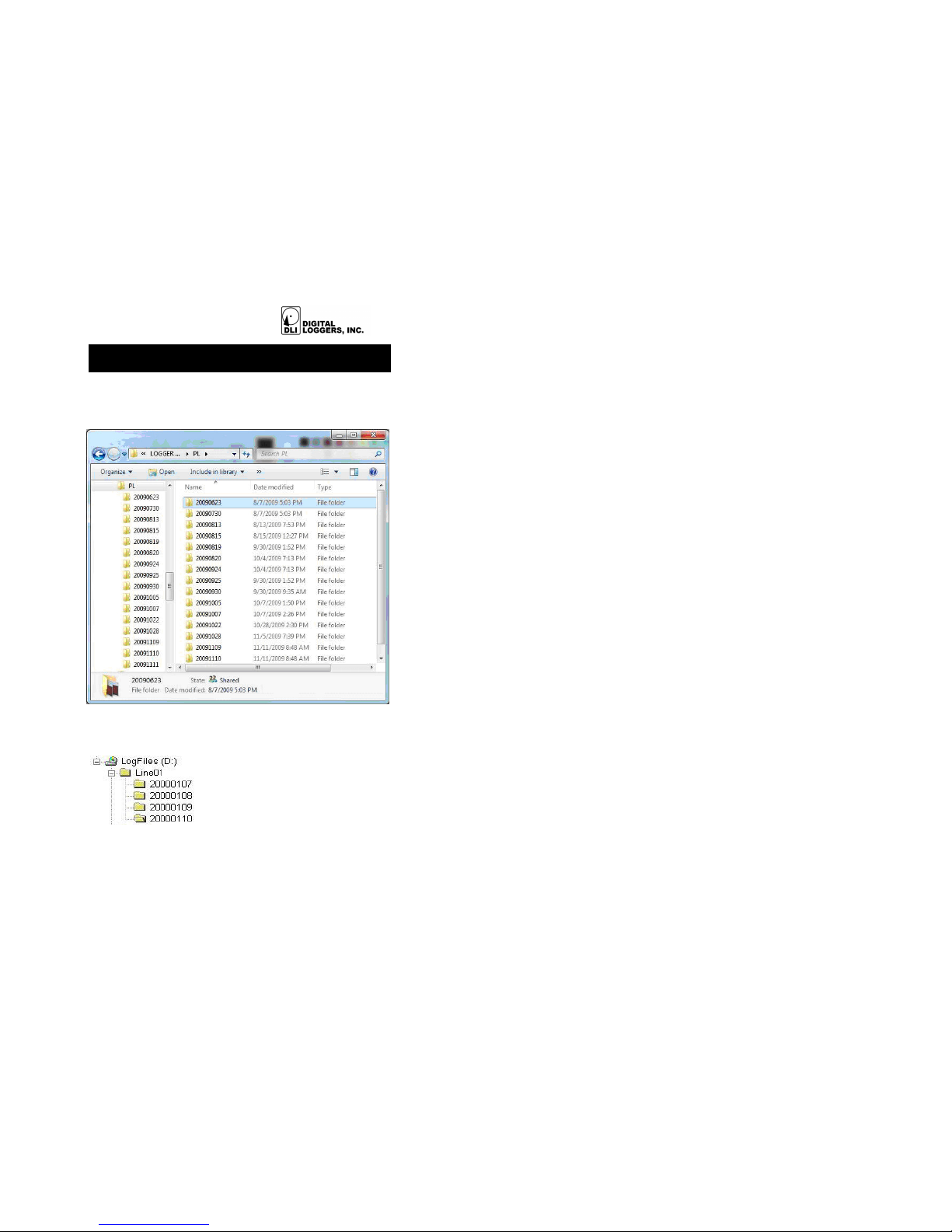

Select a new folder and click OK. Recordings are grouped
into daily sub-folders like this:

Personal Logger III digital-loggers.com
12
Instant Replay
Select Show the Instant Replay Window from the View
menu to play calls. Select a call first, then use the shortcut
buttons to control play, email, and export files.

Personal Logger III digital-loggers.com
13
Self-Help
I’m not getting any audio at all.
Check cabling first. Note that two different sets of
cables come with the recorder. The smaller plugs are
only for handsets, and the larger connectors are only for
outside lines. They aren’t interchangeable. Although the
smaller connector can be inserted in a larger jack, it
won’t make a reliable connection. After you’ve checked
the connections, check to see that your microphone
jack is enabled and selected for input. Most computers
have just recording device. If you have more, they will
appear in the Recording Device List. Select the device
attached to your MIC jack.
Cabling check OK? Adjust recording levels in the
Windows control panel –and- using the black slider
control. Make sure the MIC jack is not “muted” in the
Windows control panel.
Ca les are connected properly, ut I don’t get any
audio or indication on the level meter.
The most likely cause is that the MIC input is turned off
or muted. If you haven’t used your microphone before,
it’s probably not enabled. Use the control panel to
enable it. To open the control panel, double-click the
speaker icon, or use the shortcut below.

Personal Logger III digital-loggers.com
14
Slide the volume up on the MIC level, and uncheck
MUTE. If your control panel has a SELECT box, select
only the microphone, and de-select the others.
Windows Audio Control Panel Shortcuts
In XP, click Start then Run and enter sndvol32 –r
In Vista or Windows 7, click Start then Run then
mmsys.cpl ..1
I get a 'Device already in use' error message.
Another program, such as Windows Recorder or Real
Player is locking out microphone or speaker resources.
Close the application and start recording.
Tech Support
To save time and effort, please read this manual completely
before re uesting tech support. Email uestions to
[e-mail] or FAX us at [phone].
Legal Warnings
Most states re uire the consent of at least one party before telephone
recordings may legally be made. Federal wiretap regulations prohibit
recording without informing the parties being recorded, except under
specific circumstances, where there is “no legal expectation of privacy.”
Federal law 90-351 Title 18, Section 2511, Sub Section 2D re uires that at
least one participant in a recorded conversation be informed of the
recording. Police stations, 911 call centers, prisons, and public safety
facilities may be exempt from the need to notify parties that they are being
recorded. A recording or warning tone may provide appropriate notification.
Most states allow the recording of voicemail calls for evidentiary purposes
without a monitoring tone. The user assumes all risks as to legal operation
of this unit. If you are unclear as to the legality of recording, inform all
recorded parties before starting to record. Use of logging products may be
unlawful on party or pay-phone lines.
Contact your legal counsel to review state and federal laws before
recording.

Personal Logger III digital-loggers.com
15
Limited Five-Year Warranty
The terms of this warranty may be legally binding. If you do not agree to
the terms listed below, return the product immediately in its original
unopened condition for a full refund. Multiple, redundant logging units are
highly recommended for critical applications. PCs should be protected by
Uninterruptable Power Supplies for maximum reliability. The software,
firmware, and accompanying written materials are provided “AS–IS”
without warranty of any kind. The purchaser assumes the entire risk as to
the results and performance of the unit. DLI warrants this Personal Call
Recorder to be free from defects in materials and workmanship for a
period of five years from the date of the DLI original invoice. DLI’s entire
liability and exclusive remedy as to defective hardware shall be, at DLI’s
option, either (a) return of the purchase price or (b) replacement or repair
of the hardware that does not meet DLI’s uality control standards and
has been returned through proper RMA procedures. DLI’s liability for
repair or replacement is to DLI’s customer ONLY. No warranty service will
be provided without an original invoice from DLI and an RMA number
provided by technical support. RMA material must be shipped prepaid to
DLI. RMA numbers are valid for 15 days from date of issue. This warranty
does not cover products modified, subjected to rough handling, or used in
applications for which they were not originally intended. No oral advice or
verbal warranties made by DLI’s employees, dealers, or distributors shall
in any way increase the scope of this warranty. DLI makes no warranty as
to merchantability or fitness for any particular purpose. Due to the wide
range of signal sources available, DLI cannot guarantee compatibility with
all system configurations. DLI assumes no liability for incidental or
conse uential damages arising from the use or inability to use this
product. This warranty gives you specific legal rights. You may also have
other rights that vary from state to state. Since some states do not allow
the exclusion of liability for conse uential damages, some of the above
limitations may not apply to you. DLI makes no representation as to the
legality of recording conversations under any specific circumstances.
2695 Walsh Ave
Santa Clara, CA 95051
T408.330.5599
F408.541.8459
www.digital-loggers.com
[e-mail]
© 2000-2009 DLI - This product may be protected by US patents
#5,777,811 and #5,680,555. Additional patents pending.
Manual release Personal Call Logger 3.0.0.8 November 16, 2009

Personal Logger III digital-loggers.com
1
FCC Approval
FCC PART 68 INFORMATION
This logger may be connected to either an inside (handset), PBX (switch) or an
outside (network) connection. In the event that an outside line network
connection is made, the information below applies. This e uipment complies
with Part 68 of the FCC Rules and the re uirements adopted by ACTA. On the
bottom of this e uipment is a label that contains a product identifier in the format
US: DLI-RC-03A-PL3. If re uested, this information must be provided to your
telephone company. A plug and jack use to connect this e uipment to the
premises wiring and telephone network must comply with the applicable FCC
Part 68 rules and re uirements adopted by ACTA. A compliant telephone cord
and modular plug is provided with this product. It is designed to be connected to
a compatible modular jack that is also compliant. See installation instructions for
details. The REN is used to determine the number of devices that may connect
to a telephone line. Excessive RENs on a telephone line may result in the
devices not ringing in response to an incoming call. In most but not all areas, the
sum of the RENs should not exceed five (5.0). To be certain of the number of
devices that may be connected to a line, as determined by the total RENs,
contact your local telephone company. This product has a REN of 0.3.If this
e uipment (Personal Call Recorder) causes interference or harm to the
telephone network, the telephone company may notify you that temporary
discontinuance of service may be re uired. Also, you will be advised of your right
to file a complaint with the FCC if you believe it is necessary. The telephone
company may make changes in its facilities, e uipment, operations or
procedures that could affect the proper functioning of your e uipment. If they do,
you will be notified in advance in order for you to make necessary modifications
to maintain uninterrupted service. Federal and Sate Laws re uire that both
parties on the line consent to and be informed of recording prior to attaching and
starting any recording device. If trouble is experienced with this unit, for repair or
warranty information, please contact DLI customer service. If the e uipment is
causing harm to the network, the telephone company may re uest that you
disconnect the e uipment until the problem is resolved. DO NOT
DISASSEMBLE THIS EQUIPMENT. It does not contain any user serviceable
components. Telephone companies report that electrical surges, typically
lighting transients, are very destructive to customer terminal e uipment.
Digital Loggers, Inc.
Attn: Personal Logger Service
2695 Walsh Avenue
Santa Clara, CA 95051
