Digital Watchdog Blackjack Ai DW-BJAiARA2 User manual

Tel: [phone]
Technical Support Hours: 9:00AM – 8:00PM EST, Monday through Friday
digital-watchdog.com
Attention: This document is intended to serve as a quick reference for initial setup.
See the DW Spectrum® full manual for more information on features and functionality.
NOTE: Download all your support materials and tools in one place.
1. Go to: http://www.digital-watchdog.com/support-download/.
2. Search your product by entering the part number in the ‘Search by Product’ search bar. Results for applicable part
numbers will populate automatically based on the part number you enter.
3. Click ‘Search’. All supported materials, including manuals, Quick start guides (QSG), software and firmware will appear in
the results.
Quick Start Guide
Model Description
DW-BJAiARA2 2U rack mount workstation analytics appliance with dual sensor and NVIDIA RTX A2000 12GB card
DW-BJAiAR2PA2 2U rack mount workstation analytics appliance with dual sensor and dual NVIDIA RTX A2000 12GB cards
DW-BJAiARA4 2U rack mount workstation analytics appliance with dual sensor and NVIDIA RTX A4000 card
DW-BJAiAR2PA4 2U rack mount workstation analytics appliance with dual sensor and dual NVIDIA RTX A4000 cards
WHAT’S IN THE BOX
Rack™ Server 1Keyboard and
Mouse 1 set Rail Kit 1 set
Quick Start
Guide 1Power Cable 2
Mini-DP to
True HD
Adapter
1
Default login information for the server’s OS
Username: dwuser Password: Dw5pectrum

2
Default login information for the server’s OS
Username: dwuser Password: Dw5pectrum
BLACKJACK® RACK™ HARDWARE OVERVIEW
B1 AC PSU status indicator handle
B2 Power ports
B3 VGA port (not used)
B4 System identifier
B5 CMA power port
B6 Serial port
B7 USB ports
B8 iDRAC network port
B9 Network ports (cameras)
B10 Video output
F1 System health LED
F2 Lock
F3 LCD panel cursor left
F4 LCD panel menu item select
F5 LCD panel cursor right
F6 LCD display
F7 Power button
F8 VGA port (not used)
F9 USB 2.0 ports
F10 Micro-AB USB port
(maintenance only)
FRONT PANEL
F7
F1 F8
F9
F10
F4
F5F3
F2 F6
FRONT
BACK: DW-BJAiARA2 AND DW-BJAiAR2PA2 MODELS
BACK: DW-BJAiARA4 AND DW-BJAiAR2PA4 MODELS

Quick Start Guide
3
SPECIFICATIONS
* UPS recommended
** After remote diagnosis
Specifications and components mentioned are subject to change without notice.
SETTING UP THE APPLIANCE
STEP 1: Connect external devices, power and network.
1. Connect a monitor, USB keyboard, USB
mouse and network cable to one of the
Ethernet ports (B9 on the diagram).
Configure the camera’s network first,
then configure the server’s
local network.
NOTE The ports positions on the
diagram below may vary. See
page 2 for detailed back panel
breakdown for each model.
2. Connect the server to an appropriate power
source. A UPS system is recommended.
1500VA or higher is recommended (per PSU).
3. Power up the server if the server does not turn
on automatically by pressing the power button on the front of the server (F7 on the diagram).
Connecting the power cable to a live power source may turn on the server on automatically.
PART NUMBER DW-BJAiARA2 DW-BJAiAR2PA2 DW-BJAiARA4 DW-BJAiAR2PA4
Included DW Ai Server Licenses 4 channel(DW-DWAiSLSC004)
Form Factor 2U Rack mount
Operating
System
Windows® 10 Windows 10 IoT LTSC
OS on SSD 2x 512GB M.2 (RAID1)
CPU Intel XEON Silver
4215R
2 x Intel XEON Silver
4215R
Intel XEON Silver
4215R
2 x Intel XEON Silver
4215R
Memory 32GB 64GB 32GB 64GB
Ethernet Port 4 x 1Gb Ethernet ports
System Max # of analytic
streams(secondary) Up to 24 Up to 48 Up to 32 Up to 64
USB interface Yes Yes Yes Yes
Video-out
Outputs 1x mini Display Port, for system configuration 1x Display Port, for system configuration
Graphics Card NVIDIA RTX A2000
12GB
2 x NVIDIA RTX
A2000 12GB NVIDIA RTX A4000 2 x NVIDIA RTX A4000
Preloaded Analytic software DW Ai Server
Ai Configuration Tool Supported OS Cross-platform - Windows® and Linux Ubuntu®
Keyboard and mouse Included
Rail kit Included
Power supply 1100W Redundant**
Operating temperature (room) 41°F~104°F (5°C~40°C)
Operating humidity 20~90% RH 5~85% RH 20~90% RH 5~85% RH
Dimension (WxDxH) 3.41” x 17.0” x 28.37” (29.78” with bezel); 86.8mm x 482mm x 715.5mm (751.3mm with bezel)
Other certification NDAA, TAA, UL, FCC and CE
Warranty 5 year HW warranty with next day on-site repair after remote diagnosis

4
STEP 2: Configure date and time
Windows®
1. Double-click on the date and time icon on the desktop.
2. Change time zone if it is not correct
SETTING UP THE E-RACK
STEP 1: Connect Peripherals, power and network
1. Connect a monitor, USB keyboard, USB mouse and network cable to one of the ethernet ports (B8 on the diagram) Configure the camera network first
then will configure local network later.
2. Connect the server to an appropriate power source. Recommend to use UPS system
*recommend to use 3000VA or higher.
3. Turn on the server if the server does not turn on automatically.
(Press the Power Button on the front of the P-RACK. F2 on the diagram).
* Connecting the power cable to the live power source may turn on the serverautomatically
STEP 2: Configure Date and Time
Windows
1. Double click Date and Time icon on the Desktop.
2. Change Time zone if not correct (default is UTC-08:00 Pacific Time)
Press OK after selecting the correct Time zone.
Click Change date and time… to update the date and time if they are not correct.
* Verify the Time zone before updating the date and time. Time may show 2 or 3 hours off due to incorrect Time zone.
(default is UTC-08:00 Pacific Time).
SETTING UP THE E-RACK
STEP 1: Connect Peripherals, power and network
1. Connect a monitor, USB keyboard, USB mouse and network cable to one of the ethernet ports (B8 on the diagram) Configure the camera network first
then will configure local network later.
2. Connect the server to an appropriate power source. Recommend to use UPS system
*recommend to use 3000VA or higher.
3. Turn on the server if the server does not turn on automatically.
(Press the Power Button on the front of the P-RACK. F2 on the diagram).
* Connecting the power cable to the live power source may turn on the serverautomatically
STEP 2: Configure Date and Time
Windows
1. Double click Date and Time icon on the Desktop.
2. Change Time zone if not correct (default is UTC-08:00 Pacific Time)
Press OK after selecting the correct Time zone.
Click Change date and time… to update the date and time if they are not correct.
* Verify the Time zone before updating the date and time. Time may show 2 or 3 hours off due to incorrect Time zone.
3. Press OK after selecting the correct time zone.
4. Click “Change date and time…” to update the date and time if they are not correct.
SETTING UP THE E-RACK
STEP 1: Connect Peripherals, power and network
1. Connect a monitor, USB keyboard, USB mouse and network cable to one of the ethernet ports (B8 on the diagram) Configure the camera network first
then will configure local network later.
2. Connect the server to an appropriate power source. Recommend to use UPS system
*recommend to use 3000VA or higher.
3. Turn on the server if the server does not turn on automatically.
(Press the Power Button on the front of the P-RACK. F2 on the diagram).
* Connecting the power cable to the live power source may turn on the serverautomatically
STEP 2: Configure Date and Time
Windows
1. Double click Date and Time icon on the Desktop.
2. Change Time zone if not correct (default is UTC-08:00 Pacific Time)
Press OK after selecting the correct Time zone.
Click Change date and time… to update the date and time if they are not correct.
* Verify the Time zone before updating the date and time. Time may show 2 or 3 hours off due to incorrect Time zone.
• Verify the time zone before updating the date and time. Time may show 2 or 3 hours o due to an incorrect time zone.
Press OK after adjusting to the correct date and/or time.
4. Press OK to close Date and Time when done.
Linux
1. Update Date and Time by clicking on the time on the upper right-hand corner then click “Time & Date settings…”
2. If the server will be connected to the Internet, leave Set the Time to “Automatically from the Internet” and update the Location to the correct
Time Zone. Enter the nearest major city to select the correct Time Zone. If it shows multiple cities in the list, select the correct city. (e.g.,
New York for EST, Chicago for CST, Denver for MST, and Los Angeles for PST)
5. Press OK after adjusting to the correct date and/or time. Press OK to close the date and time when done.

5
Quick Start Guide
STEP 3: Configure network
Please have the following information ready before starting the network configuration.
* The camera network and local network cannot be on the same network.
Windows®
1. Double click on the “Network Connections” on the desktop.
2. Right-click on “Ethernet with cable connected” and click “Properties”.
3. Click Internet Protocol Version 4 (TCP/IPv4) and click Properties
4. Select Use the following IP address (Use the following DNS server addresses will be selected automatically)
5. Enter IP address and Subnet mask of the camera network. (do not enter anything for the Default gateway, Preferred DNS server and Alternate
DNS server.
NOTE It must be the same network as the cameras and must not be the same network as the local network.
Contact your network administrator for more information.
3. Select “Internet Protocol Version 4 (TCP/IPv4)” and click “Properties”.
3. Click Internet Protocol Version 4 (TCP/IPv4) and click Properties
4. Select Use the following IP address (Use the following DNS server addresses will be selected automatically)
5. Enter IP address and Subnet mask of the camera network. (do not enter anything for the Default gateway, Preferred DNS server and Alternate
DNS server.
NOTE It must be the same network as the cameras and must not be the same network as the local network.
Contact your network administrator for more information.
3. Click Internet Protocol Version 4 (TCP/IPv4) and click Properties
4. Select Use the following IP address (Use the following DNS server addresses will be selected automatically)
5. Enter IP address and Subnet mask of the camera network. (do not enter anything for the Default gateway, Preferred DNS server and Alternate
DNS server.
NOTE It must be the same network as the cameras and must not be the same network as the local network.
Contact your network administrator for more information.
Camera network Local network (LAN)
IP address
Subnet mask / Netmask
Default gateway / Gateway Not applicable
DNS servers Not applicable
NOTE The Blackjack® server’s network settings are set to DHCP as default.
NOTE If you are not sure what information to enter, contact your Network Administrator or Internet
Service Provider for the information.
4. Select “Use the following IP address” (Use the following DNS server
addresses will be selected automatically).
5. Enter the IP address and Subnet mask of the camera network. (Do not
enter anything for the default gateway, preferred DNS server and alternate
DNS server.
6. Click OK to close then click close to go back to network connections.
6. Click OK to close then click Close to go back to Network Connections.
Local Network
7. Right click on the other Ethernet, the one with network cable unplugged, and click Properties.
8. Click Internet Protocol Version 4 (TCP/IPv4) and click Properties
9. Select Use the following IP address (Use the following DNS server addresses will be selected automatically)
10. Enter IP address and Subnet mask of the camera network.

6
6. Click OK to close then click Close to go back to Network Connections.
Local Network
7. Right click on the other Ethernet, the one with network cable unplugged, and click Properties.
8. Click Internet Protocol Version 4 (TCP/IPv4) and click Properties
9. Select Use the following IP address (Use the following DNS server addresses will be selected automatically)
10. Enter IP address and Subnet mask of the camera network.
Local Network
7. Right-click on the other Ethernet, the one with network cable unplugged, and click “Properties”.
8. Select “Internet Protocol Version 4 (TCP/IPv4)” and click “Properties”.
9. Select “Use the following IP address” (Use the following DNS server addresses will be selected automatically).
10. Enter IP address and subnet mask of the camera network.
* Consult with your IT department if you do not know what IP address to use.
11. Click OK to close then click Close to go back to Network Connections.
12. Connect a network cable to the Ethernet port B8 on the diagram (page 2) to the switch on the local network.
13. Close the Network Connections by clicking X on the upper right corner of Network Connections.
Linux
1. Double-click the Network icon on the Desktop
2. Select ‘Wired’ that has arrows pointing up and down from the list (If neither of the “wired” are showing arrows up and downs, then make
sure the network cable is connected to the PoE switch on the camera network from STEP 1)
3. Click ‘Options’ at the bottom of the window.
4. Click on the ‘IPv4 Settings’ tab.
5. From the drop-down menu, select connection type (“Method”) as Manual.
6. Click ‘Add’ next to Addresses.
NOTE The Blackjack Cube’s network settings are set to DHCP as default.
* Consult with your IT department if you do not know what IP address to use.
11. Click OK to close then click Close to go back to Network Connections.
12. Connect a network cable to the Ethernet port B8 on the diagram (page 2) to the switch on the local network.
13. Close the Network Connections by clicking X on the upper right corner of Network Connections.
Linux
1. Double-click the Network icon on the Desktop
2. Select ‘Wired’ that has arrows pointing up and down from the list (If neither of the “wired” are showing arrows up and downs, then make
sure the network cable is connected to the PoE switch on the camera network from STEP 1)
3. Click ‘Options’ at the bottom of the window.
4. Click on the ‘IPv4 Settings’ tab.
5. From the drop-down menu, select connection type (“Method”) as Manual.
6. Click ‘Add’ next to Addresses.
NOTE The Blackjack Cube’s network settings are set to DHCP as default.
11. Click OK to close then click close to go back to network connections.
12. Connect a network cable to the Ethernet port B2 (1.5G) and B7 (2.5G) on the diagram (page 2) to the switch on the
local network.
13. Close the network connections dialog.

Quick Start Guide
7
Connecting to DW Ai Server from DW Spectrum
STEP 1: Download and copy plugin file to DW Spectrum’s plugin folder.
Windows: Download and copy dw_ai_server_plugin.dll to “C:\Program Files\Digital Watchdog\DW Spectrum\MediaServer\
plugins”.
Linux: Download and copy libdw_ai_server_plugin.so to “/opt/digitalwatchdog/mediaserver/bin/plugin/”.
1) Reboot the DW Spectrum Mediaserver
2) Go to Plugin tab from System Administrator then select DW Ai Server Plugin from the Plugin list on the left pane.
3) Enter the IP address of the Blackjack Ai Appliance.
4) Click OK or Apply to save the setting.
STEP 2: Enable DW Ai Plugin on cameras.
1) Open Camera Settings of the camera that the analytics will be processed by DW Ai server
2) Enable DW Ai Server Plugin (*must keep the Camera stream, License and DL Filter Type as default as shown)
3) Click Apply to save the configuration.
4) Create analytic rules.

8
Setting Up the DW Ai Server Configuration Tool
While some camera settings can be configured through the DW Spectrum IPVMS Client, the DW Ai Server Configuration Tool can
be used to provide a complete analytic user experience during the configuration process of the DW Ai Server.
STEP 1: Logging in with the DW Ai Server Configuration Tool
To begin setting up the DW Ai Server Configuration Tool:
1) Launch the DW Ai Server Configuration Tool. There is an application shortcut on the desktop.
Select the DW Ai Server that you want to connect with and log in with the local ‘admin’ user profile.
NOTE: If connecting the DW Ai Server Configuration Tool to the DW Spectrum Server is hindered
by the message “Unauthorized. Please check the access credentials and try again,” after
changing the user password, enable the Digest Authentication setting of the user profile in the
DW Spectrum Client.
1. DW Ai Server Configuration Tool
While some camera settings can be configured through the DW Spectrum IPVMS
Client, the DW Ai Server Configuration Tool can be used to provide a complete
analytic user experience during the configuration process of the DW Ai Server.
Logging in with the DW Ai Server Configuration Tool
To begin setting up the DW Ai Server Configuration Tool:
1) Launch the DW Ai Server Configuration Tool. There is an application
shortcut on the desktop.
Select the DW Ai Server that you want to connect with and log in with the
local ‘admin’ user profile.
**NOTE: If connecting the DW Ai Server Configuration Tool to the DW Spectrum
Server is hindered by the message “Unauthorized. Please check the access
credentials and try again,” after changing the user password, enable the Digest
Authentication setting of the user profile in the DW Spectrum Client.
Page 1
2) vpanel.
To view camera analytic rules and configuration, enable the DW Ai Server
Plugin toggle.
Once enabled, you will find the following features in the left-side panel:
•Search: This search box can be used to filter the camera list based on
the entered device name.
Page 2

Quick Start Guide
9
Once enabled, you will find the following features in the left-side panel:
• Search: This search box can be used to filter the camera list based on the entered device name.
• DW Ai (toggle): The DW Ai button toggles the camera list between showing all cameras on the DW Spectrum System or just the
cameras that have the plug-in enabled. This toggle appears at the top of the camera list beside the search bar. While enabled,
the toggle will appear in orange.
• Refresh: This button refreshes the list of cameras from DW Spectrum IPVMS when it is clicked.
• Device List: A list of DW MEGApix Ai and standard IP devices are listed in the Resource Tree organized by server. While the DW
Ai toggle is active, only Ai devices will be listed.
Select the Main Menu to display the menu options:
• Disconnect Server: Disconnects the current session with your DW Spectrum IPVMS Server.
• DW Ai Server List: Displays a list of the DW Ai Server(s) that your DW Spectrum system is configured to use.
• Licenses: Displays a list of the licenses available from the DW Ai Servers.
• Preference: Displays a list of the DW Ai Server Configuration Tool’s advanced options.
•DW Ai (toggle): The DW Ai button toggles the camera list between
showing all cameras on the DW Spectrum System or just the
cameras that have the plug-in enabled. This toggle appears at the
top of the camera list beside the search bar. While enabled, the
toggle will appear in orange.
•Refresh: This button refreshes the list of cameras from DW Spectrum
IPVMS when it is clicked.
•Device List: A list of DW MEGApix Ai and standard IP devices are
listed in the Resource Tree organized by server. While the DW Ai
toggle is active, only Ai devices will be listed.
Select the Main Menu to display the menu options:
•Disconnect Server: Disconnects the current session with your DW
Spectrum IPVMS Server.
•DW Ai Server List: Displays a list of the DW Ai Server(s) that your
DW Spectrum system is configured to use.
•Licenses: Displays a list of the licenses available from the DW Ai
Servers.
•Preference: Displays a list of the DW Ai Server Configuration Tool’s
advanced options.
Page 3
2) Once you are logged in and connected to the DW Ai Server through the DW Ai Server Configuration Tool, a list will show all
added cameras in the left-side panel.
To view camera analytic rules and configuration, enable the DW Ai Server Plugin toggle.
2) vpanel.
To view camera analytic rules and configuration, enable the DW Ai Server
Plugin toggle.
Once enabled, you will find the following features in the left-side panel:
•Search: This search box can be used to filter the camera list based on
the entered device name.
Page 2

10
Page 5
STEP 2: DW Ai Server List
If multiple DW Ai Servers will be used, the additional DW Ai Server will need to be added.
To add an additional DW Ai Server:
1. Open the DW Ai Server Configuration Tool and log in as the admin.
2. Click on the menu icon in the top left, then select DW Ai Server List.
3. Click Add.
4. Enter the IP address of the DW Ai Server.
5. Leave the port set to 3030.
6. Click OK to return to the previous menu.
7. Click Apply to save your changes.
8. Click Close to close and return to the previous menu.
NOTE: You can define up to four (4) DW Ai Servers at a time.
•DW Ai (toggle): The DW Ai button toggles the camera list between
showing all cameras on the DW Spectrum System or just the
cameras that have the plug-in enabled. This toggle appears at the
top of the camera list beside the search bar. While enabled, the
toggle will appear in orange.
•Refresh: This button refreshes the list of cameras from DW Spectrum
IPVMS when it is clicked.
•Device List: A list of DW MEGApix Ai and standard IP devices are
listed in the Resource Tree organized by server. While the DW Ai
toggle is active, only Ai devices will be listed.
Select the Main Menu to display the menu options:
•Disconnect Server: Disconnects the current session with your DW
Spectrum IPVMS Server.
•DW Ai Server List: Displays a list of the DW Ai Server(s) that your
DW Spectrum system is configured to use.
•Licenses: Displays a list of the licenses available from the DW Ai
Servers.
•Preference: Displays a list of the DW Ai Server Configuration Tool’s
advanced options.
Page 3

11
Quick Start Guide

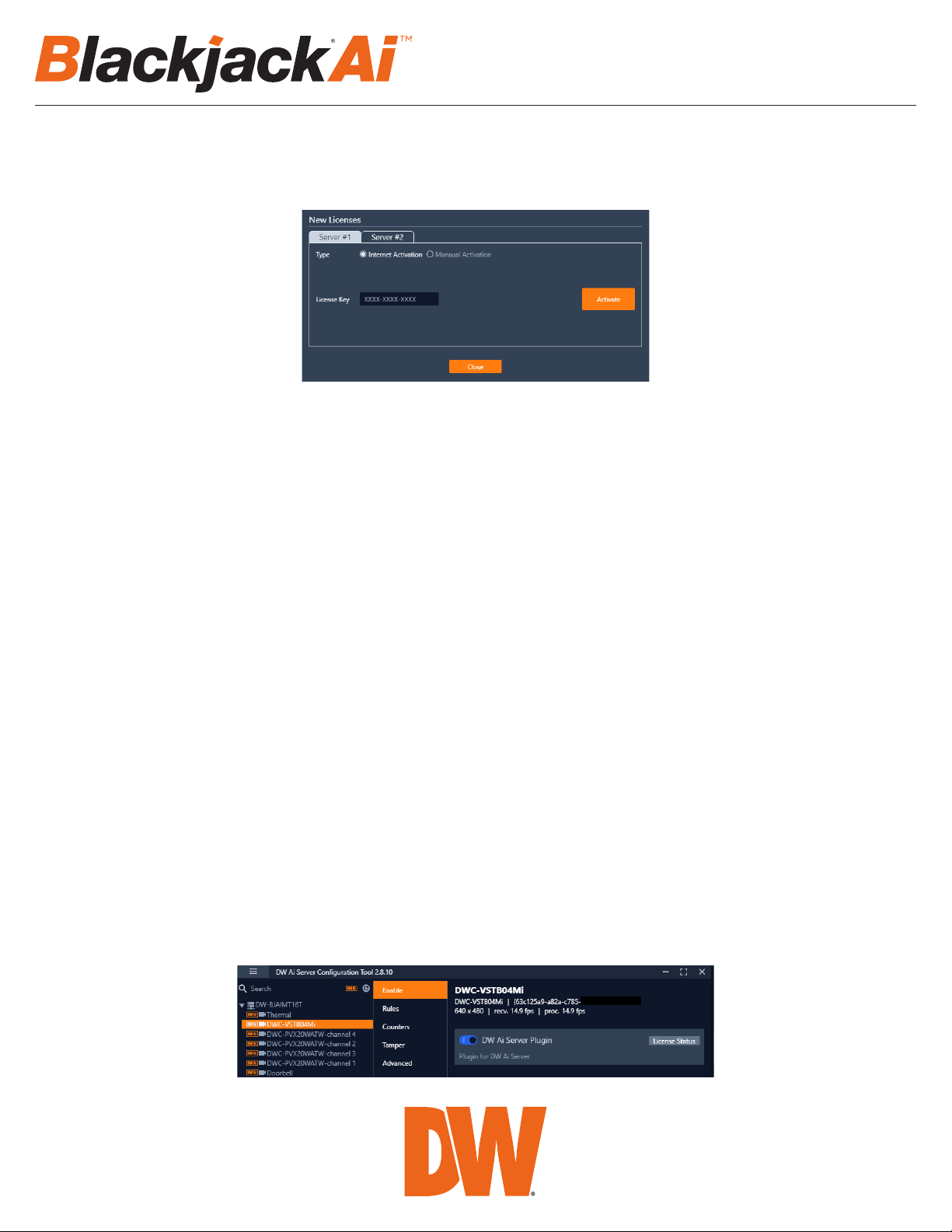

New Licenses
The New Licenses area of the menu, server tabs (Server #) are created for each DW Ai Server. Select a server tab to view the
license activation interface.
• Type Specifies the activation method that will be used for your license activation request.
o Internet Activation: Select to enter the license activation key to add additional DW Ai licenses.
• License Key: Enter the alphanumeric DW Ai license key then click “Activate” to add a license. An Internet
connection is needed for the DW Ai Server to use this feature.
o Manual Activation: Select to copy the server’s HW GUID and manually add a DW Ai license. This option is intended for
use if the DW Ai Server does not have access to the Internet.
• HWGUID: This is the unique code for the system. Copy the HWGUID and submit request for a manual activation
code to [e-mail]. The email should include the server’s HWGUID and the license key that you
are trying to activate.
• Copy to clipboard: Copies the HWGUID to the clipboard.
• License Key: Type or paste the activation code into the space provided then click “Activate”.
STEP 3: DW Ai Server Licenses
To use the analytic features of a DW Ai Server, a license is required. Licenses can be managed through the DW Ai Server
Configuration Tool program.
To view the licenses, select “Licenses” from the Main Menu in the DW Ai Server Configuration Tool.
Active Licenses
The Active Licenses list shows all licenses of the DW Ai Server and how the licenses are currently allocated.
3.DW Ai Server Licenses
To use the analytic features of a DW Ai Server, a license is required. Licenses can
be managed through the DW Ai Server Configuration Tool program.
To view the licenses, select “Licenses” from the Main Menu in the DW Ai Server
Configuration Tool.
Active Licenses
The Active Licenses list shows all licenses of the DW Ai Server and how the
licenses are currently allocated.
New Licenses
The New Licenses area of the menu, server tabs (Server #) are created for each
DW Ai Server. Select a server tab to view the license activation interface.
•Type Specifies the activation method that will be used for your license
activation request.
oInternet Activation: Select to enter the license activation key to add
additional DW Ai licenses.
Page 6
3.DW Ai Server Licenses
To use the analytic features of a DW Ai Server, a license is required. Licenses can
be managed through the DW Ai Server Configuration Tool program.
To view the licenses, select “Licenses” from the Main Menu in the DW Ai Server
Configuration Tool.
Active Licenses
The Active Licenses list shows all licenses of the DW Ai Server and how the
licenses are currently allocated.
New Licenses
The New Licenses area of the menu, server tabs (Server #) are created for each
DW Ai Server. Select a server tab to view the license activation interface.
•Type Specifies the activation method that will be used for your license
activation request.
oInternet Activation: Select to enter the license activation key to add
additional DW Ai licenses.
Page 6

www.digital-watchdog.com
[e-mail]
Rev: 09/23
Copyright © Digital Watchdog. All rights reserved.
Specifications and pricing are subject to change without notice.
Tel: [phone]
Fax: [phone]
STEP 4: Enable Tab – DW Ai Server Plugin
To set up analytics on the DW Ai Server, select a camera from the left-side panel. The Enable tab shows the status of the plug-in for
the selected camera. From here you can check license status and select the preferred deep-learning feature.
• DW Ai Server Plugin: Toggle to enable/disable the plug-in for the selected camera.
• Tracker Engine: Defines the tracking engine that will be used for analytics. The tracker engine will need to ‘learn the
scene’ to determine background from moving foreground objects. While initially learning the scene, a message will be displayed in
the live view, and no objects will be tracked during this time.
o DL Object Tracker: When selected, the analytic engine will use the GPU to detect, categorize and track objects as
they move through the camera’s detection areas.
• When set to use Object Tracker, the objects can be classified using either deep learning models or by using
properties extracted from an object in a calibrated scene. If the Deep Learning Filter is not used, camera calibration is required to
detect the object class.
o DL People Tracker: When selected, the tracker uses the GPU to detect and track people as they move through the
camera’s detection areas.
• Apply: Apply changes to the selected camera.
The calibration and classification features are not displayed when using the Deep Learning filter, DL Object Tracker, or DL People
Tracker. When first selected, the DL trackers will run a model generation process. This optimizes the DL models to run on the
available GPU hardware.
Regardless of which tracker is selected, the DL People tracker model, DL Object Tracker model and the DL Filter model will all be
optimized together. This process can take up to 10 minutes per model and may increase with dierent GPU configurations. The
process will not need to be run again unless the GPU hardware is changed. While optimization is performed a message will be
displayed in the live view, and no objects will be tracked during this time.
Page 9
▪License Key: Enter the alphanumeric DW Ai license key then
click “Activate” to add a license. An Internet connection is
needed for the DW Ai Server to use this feature.
oManual Activation: Select to copy the server’s HW GUID and
manually add a DW Ai license. This option is intended for use if the
DW Ai Server does not have access to the Internet.
▪HWGUID: This is the unique code for the system. Copy the
HWGUID and submit request for a manual activation code to
[e-mail]. The email should include the
server’s HWGUID and the license key that you are trying to
activate.
▪Copy to clipboard: Copies the HWGUID to the clipboard.
▪License Key: Type or paste the activation code into the space
provided then click “Activate”.
•Activate: Click this button to validate the entered Code. The license will
then be applied to the selected DW Ai Server.
•Close: Click this button to close the Licenses page and return to the
previous screen.
Page 7
• Activate: Click this button to validate the entered Code. The license will then be applied to the selected DW Ai Server.
• Close: Click this button to close the Licenses page and return to the previous screen.
