Quick Start Guide for GPS150USB V1.01
TEL + 44 1179 554474 www.digitalyacht.co.uk [e-mail]
1. Introduction
Congratulations on the purchase of your GPS150USB Smart GPS/GLONASS Sensor. This product is designed for simple
and easy “plug and play” operation and “Do It Yourself” installation. If you want to permanently mount the GPS150USB,
then you will need to purchase a suitable 1” x 14 TPI thread mounting bracket or some M3 Nuts and Bolts.
Knowing your position whilst at sea is key to safe navigation. What we now take for granted, was extremely difficult, time
consuming and inaccurate. Then, in the latter half of the 20th century, came the electronic positioning systems –Decca,
Loran, Transit and in the 1990s, the global positioning system, GPS. Over 20 years have passed since the first GPS
receivers were commercially available and in this time the whole world has come to rely on this US funded technology.
Now every boat, plane, car and train that we travel on has GPS navigation and even your smart phone can give a GPS
position accurate to within 10m, anywhere in the world, at the touch of a button.
Much political discussion has taken place over our reliance on GPS technology, to the point where both Europe (Galileo)
and China (Compass) are developing their own satellite based navigation systems, which are scheduled to be fully
operational by 2020. However, whilst GPS was being developed in the 1980s, there was another competitive system
developed in Russia called GLONASS. This system was very much over shadowed by the American GPS system and
due to the secrecy surrounding the technology and the difficulties for non-Russian companies to license this technology, it
never achieved wide spread commercial use outside of Russia and surrounding countries.
During Russia’s difficult financial period between 1989-1999, government spending on their space program was cut by
80% and launching of new GLONASS satellites stopped. With relatively short life spans the GLONASS satellites soon
started to fail and by 2001 there were only 6 satellites still operational and the GLONASS service effectively ceased.
Most observers at the time thought this would be the death of GLONASS but in 2000, with the Russian economy
recovering, President Vladimir Putin took a special interest in GLONASS and made the restoration of this service a high
priority. Between 2002-2011, a large investment was made and at the end of 2011 GLONASS was fully restored and now
offers worldwide coverage (with 24 operational satellites) and accuracy almost as good as GPS. In areas of high
Latitudes (North and South) GLONASS is more accurate than GPS due to the orbital position of the satellites.
Now with the GPS150USB DualNav™ technology, boat owners can have a single sensor that will automatically read
satellite data from both GPS and GLONASS constellations, choosing the best signals from over 50 satellites. Wherever
you are in the world you now have twice the satellites to choose from resulting in the GPS150USB receiver having much
better coverage, time to first fix and positional accuracy. Add to this the new high sensitivity receiver design, selectable
baud rate and 10Hz position update rate and you have a GPS receiver that is significantly better than every previous
marine GPS receiver on the market.
The new performance is particularly noticeable if the receiver is mounted below deck/inside the wheelhouse where the
high sensitivity receiver still gives a good position fix or when there are obstructions blocking the view of the sky, such as
a wet sail shadowing the antenna or when sailing in rivers or close to cliffs, plus DualNav™ technology with more
satellites to choose from, gives a much more accurate fix.
On larger boats, it is now possible to have two completely separate position sources, not just two GPS units but two
different positioning systems so that you can compare and validate your actual position. Set one GPS150USB to GPS
mode and another GPS150USB to GLONASS and you have dual redundancy and two independent positioning systems.
The GPS150USB also supports SBAS (Satellite-Based Augmentation System) which is the generic name given to the
differential signal transmitted by various local geo-stationary satellites. SBAS allows the GPS150USB receiver to remove
errors in the position due to environmental conditions and improves accuracy down to <1m. Using WAAS in the US and
EGNOS in Europe the GPS150USB will automatically switch to differential SBAS mode when available.
The GPS150USB will also be able to utilise, with a software update, the European funded Galileo positioning system
when it comes on line (IOC –Initial Operation Capability) in 2018.
Before operating the unit you should also familiarise yourself again with the user manual of the
Navigation Software that you will be using the GPS150USB with. Pay particular attention to the GPS
Interfacing section and any settings that need to be configured for correct operation.


Quick Start Guide for GPS150USB V1.01
TEL + 44 1179 554474 www.digitalyacht.co.uk [e-mail]
2. Before you start
The GPS150USB is a smart “all in one” GPS/GLONASS receiver solution for small boats featuring our DualNav™
technology that allows the unit to be set to use the GPS or GLONASS satellite constellations or a combination of the two
systems. Select the mode you want the GPS150USB to operate in (see Section 4), connect it via USB to a
Windows/Mac/LINUX PC and it will immediately start calculating your position and outputting this data in NMEA 0183
format (4,800, 38,400 or 115,200 baud).
Carefully consider where you wish to mount the GPS150USB and how you will feed the 5m USB cable through to the PC.
Specialist cable glands are available online, that will allow cables with USB connectors to fit through them and we would
definitely recommend using these, rather than cutting, joining or fitting other connectors to the USB cable.
The maximum length of standard USB cables is 5m but special powered extension cables are available if it is necessary
to extend the GPS150USB cable. Digital Yacht can supply a 5m Powered USB Extension cable if required.
IMPORTANT: The GPS150USB should be connected directly to the computer’s USB port and not via a USB Hub.
To display the GPS/GLONASS data you will need:
Suitable Windows/Mac/LINUX PC with a spare USB port.
The Digital Yacht Software and Drivers CD (supplied with the GPS150USB)
Suitable Navigation software running on the Windows/Mac/LINUX PC that can read GPS data.
3. Installation
Before starting installation select a suitable location for the GPS150USB Receiver. The unit features a very sensitive
GPS/GLONASS receiver and in many boats the GPS150USB will operate quite happily below deck or in a wheel house.
If you find that you are getting good performance with the GPS150USB mounted below deck, then installation is simple
and you just need to find a suitable location where the GPS150USB can be firmly fixed.
For absolute optimum performance, then on-deck
mounting is recommended and the unit is fully
water proof and designed for permanent mounting
outside. The GPS150USB antenna has the
popular 1” x 14 TPI thread mount, found in many
VHF antennas. A wide variety of different brackets
are available for this type of threaded mount,
consult your local marine electronics dealer or
chandlery for more information.
The 1” x 14 TPI thread mount can also be removed
by unscrewing the three hex bolts with a suitable
Allen Key, allowing the GPS150USB to be flush
mounted on a flat horizontal surface using M3 Nuts
and Bolts (not supplied). In this situation, the
antenna should be mounted on a layer of silicone
sealant to avoid standing water accumulating
under the antenna.
The GPS150USB is supplied with 5m of USB cable
and this should be routed through the vessel to a
suitable dry internal location where it can be
connected to the Windows/Mac/LINUX PC which
will provide power to the GPS150USB and receive
the GPS/GLONASS data from the GPS150USB.
Dimensions;

Quick Start Guide for GPS150USB V1.01
TEL + 44 1179 554474 www.digitalyacht.co.uk [e-mail]
Before connecting the GPS150USB to the PC, it is necessary to install the USB drivers. The exact procedure varies
between the different types of Operating Systems that exist for PCs, but the following section details the procedure for the
popular operating systems;
Windows XP
On the Digital Yacht Software and Drivers CD, there is a folder called “USB Drivers for AIS units” which contains the
drivers required for the GPS150USB. Double click on the “USB Driver Setup” program and make sure that a DOS
Command window opens and a series of commands are executed –normally takes 10-15secs to complete.
Once the program has finished, insert the cable of the GPS150USB in to a spare USB port and the Windows “Found New
Hardware” wizard should briefly appear while the PC completes the installation.
You may need to enter the Windows Device Manager to find out what COM Port the GPS has been allocated by
Windows. In the Device Manager, the GPS150USB should appear in the Ports COM & LPT section as a “USB Serial
Port (COMx)” where x = the COM Port number allocated by Windows to the GPS150USB. This is the COM port number
that you will need to enter in your Navigation Software to tell it where to get the GPS data from.
For more information on the Device Manager, visit our blog at www.digitalyacht.net and search for Device Manager. You
should then be able to see an article called “Managing the Device Manager” that explains this process.
Windows Vista/7/8
The easiest way to install the drivers on these operating systems, is to plug the GPS150USB in to your PC when you
have a good internet connection. Windows will see the new hardware and automatically search online for the latest
drivers, download them and then install them. The whole process takes about 2-3 minutes and is completely automatic.
If you are on the boat and do not have an internet connection, then insert the Digital Yacht Software and Drivers CD in
to your PC and browse to the folder called “USB Drivers for AIS units” which contains the drivers required for the
GPS150USB USB. Right click on the “USB Driver Setup” program and select the option “Run as administrator”. The
program should now open a DOS Command type window and execute a series of commands –normally takes 10-15secs
to complete.
Once the program has finished, insert the cable of the GPS150USB in to a spare USB port on the PC and the Windows
“Found New Hardware” wizard should briefly appear while the PC completes the installation.
You may need to enter the Windows Device Manager to find out what COM Port the GPS has been allocated by
Windows. In the Device Manager, the GPS150USB should appear in the Ports COM & LPT section as a “USB Serial
Port (COMx)” where x = the COM Port number allocated by Windows to the GPS150USB. This is the COM port number
that you will need to enter in your Navigation Software to tell it where to get the GPS data from.
For more information on the Device Manager, visit our blog at www.digitalyacht.net and search for “Device Manager”. You
should then be able to see an article called “Managing the Device Manager” that explains this process.
Mac Os X
If you are using the GPS150USB with a Mac, you will need to install the drivers before connecting the GPS150USB to a
spare USB port on the Mac.
On the Digital Yacht Software and Drivers CD, there is a folder called “USB Drivers for AIS units” which contains a sub-
folder called “Mac OSX” in here is one DMG file that you need to double click on to run. Follow the instructions that are
displayed and at the end of the installation the USB drivers for the GPS150USB should be installed.
For more information on installing the USB drivers on a Mac please download our Tech Note 00013-2010 which explains
the whole procedure in more details.

Quick Start Guide for GPS150USB V1.01
TEL + 44 1179 554474 www.digitalyacht.co.uk [e-mail]
LINUX
The good news for LINUX users is that the USB drivers for the GPS150USB are already included in the Kernel and it is
simply a case of plugging the GPS150USB in to a spare USB port on the PC.
However, recently we have received reports of changes to the way Ubuntu handles COM ports which has caused some
problems for our customers. Please visit our blog at www.digitalyacht.net and search for “Ubuntu”. You should see an
article that explains this issue and how to fix it.
4. Mode Selection
The GPS150USB has a number of operating modes that can be set by adjusting four DIP switches inside the unit. This
section explains how to select the different modes. By default the GPS150USB will output;
GLL, GGA, RMC, VTG, GSA, GSV and ZDA once per second at 4800 baud (using GPS Satellites only)
This default mode provides maximum compatibility with
all Navigation Software and will provide good basic GPS
positioning. If your Navigation software will support higher
baud and data rates, then you can start to utilise the
power of the GPS150USB and select one of the other
GPS, GLONASS or Combination modes.
For performance sailing software we even include a
“Turbo” mode which operates at 115K baud, with
combined GPS+GLONASS at a 10Hz update rate.
Selection of the operating mode is via four “DIP” switches
inside the unit. Changes to the switches will become
active when the GPS150USB is power cycled i.e. unplug,
wait 5-10 seconds and plug back in to the USB.

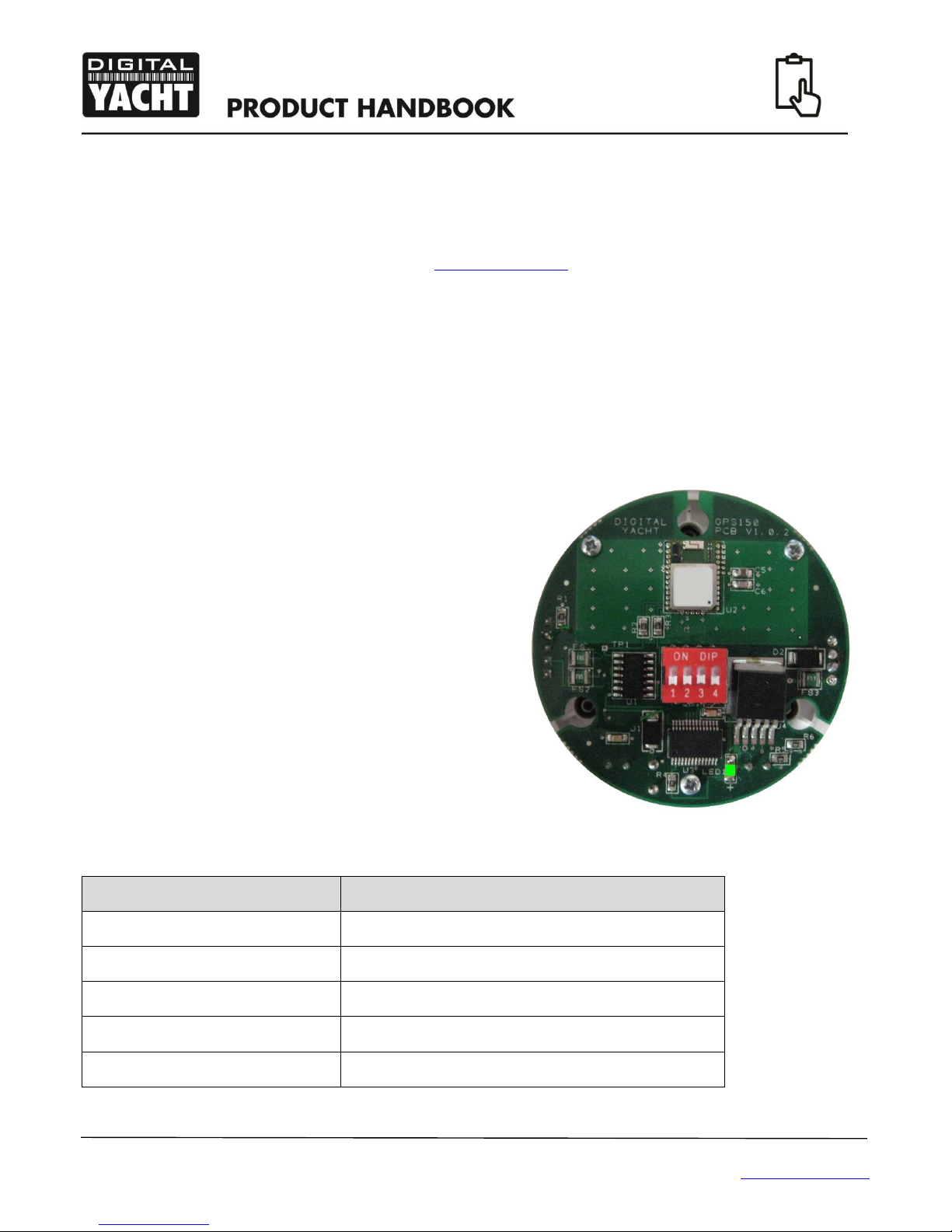

There is a green LED on the PCB that indicates if the
GPS is working correctly and the baud rate selected. The
photo of the PCB shows the location of the LED and
switches.
Within 2-3 seconds of applying power to the GPS150USB, the LED should illuminate as follows;
LED State
Description
LED ON
Configured correctly for 4800 baud
LED Slow Flash
Configured correctly for 38400 baud
LED Quick Flash
Configured correctly for 115K baud (Turbo Mode)
LED Flashes once every 2 seconds
Unused Mode Selected (check DIP switches)
LED Flashes twice every 2 seconds
Power Up Sequence Failed*

Quick Start Guide for GPS150USB V1.01
TEL + 44 1179 554474 www.digitalyacht.co.uk [e-mail]
* NOTE –In some situations, where the switching of the power to the GPS150USB is not cleanly made or it is made to
quickly (not giving the internal voltages time to dissipate), the GPS150USB Power Up Sequence may fail resulting in the
selected operating mode not being setup correctly. This situation is indicated by the LED flashing twice every 2 seconds.
Should this occur, simply unplug the GPS150USB wait 10 seconds and then plug it in again. If it continues to not power
up correctly then contact Digital Yacht for further advice,
To access the switch, it is necessary to open the GPS150USB. It is recommended that this operation is only carried out
by an approved Digital Yacht Dealer/Distributor, any physical damage to the PCB will not be covered by warranty.
Before opening the GPS150USB, turn off all DC power to the unit and then remove the threaded mount by unscrewing
the 3xM3 hex bolts using a suitable Allen Key. Then using a Torx T6 screwdriver, remove the three screws that hold the
GPS enclosure together. Gently pull the enclosure apart being careful not to lose the O-Ring seals (1 large outer and 3
small screw pillar O-Rings).

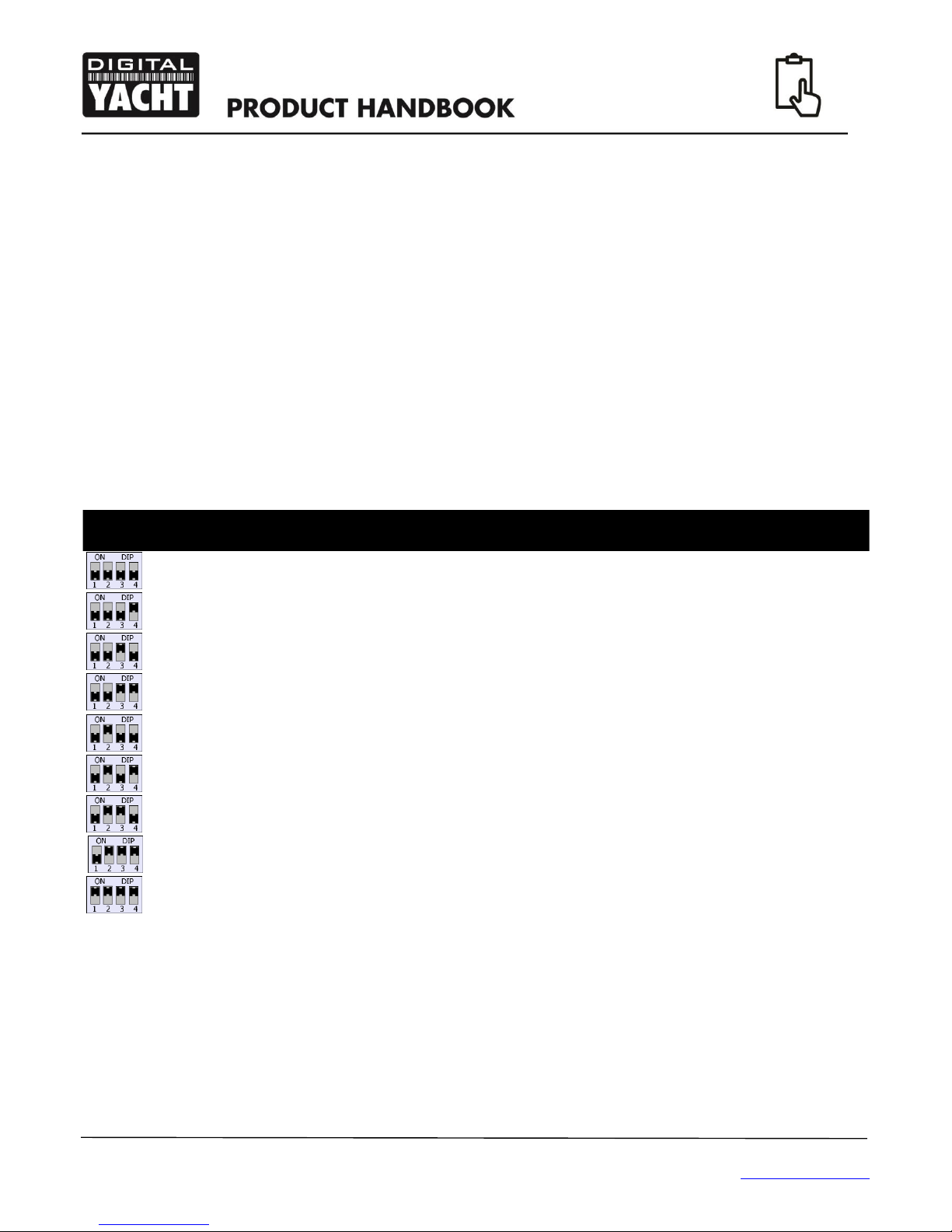

Once the GPS150USB PCB is exposed, set the four switches to the relevant positions for the required operating mode as
shown in the table below..
Operating Modes
After changing the DIP switches, it is necessary to power cycle the GPS150USB (unplug, wait 5-10secs and plug back in)
before the new operating mode becomes active. Check the LED to make sure that the expected baud rate is active.
Switches
1234
MODE SATELLITES BAUD RATE NMEA DATA
GPS 105 Mode (default) GPS 4800 1 HZ GGA/GLL/RMC/GSV/GSA/VTG/ZDA
GPS 6Hz Mode 4800 Baud GPS 4800 6 HZ RMC
GPS+GLONASS Minimum Sentences GPS+GLONASS 4800 1 HZ RMC/GSV/GSA
GPS+GLONASS All Sentences 1Hz GPS+GLONASS 38400 1 HZ GGA/GLL/RMC/GSV/GSA/VTG/ZDA
GPS+GLONASS All Sentences GPS+GLONASS 38400 6 HZ GGA/GLL/RMC/GSV*/GSA*/VTG/ZDA*
GPS+GLONASS Standard Sentences GPS+GLONASS 38400 10 HZ GGA/RMC/GSV*/GSA*
GLONASS 1Hz All Sentences GLONASS 4800 1 HZ GGA/GLL/RMC/GSV*/GSA*/VTG/ZDA*
GLONASS 6Hz Minimum Sentences GLONASS 4800 6 HZ RMC
Full "Turbo" Mode GPS+GLONASS 115000 10 HZ GGA/GLL/RMC/GSV*/GSA*/VTG/ZDA*
* These sentences output at 1HZ

Quick Start Guide for GPS150USB V1.01
TEL + 44 1179 554474 www.digitalyacht.co.uk [e-mail]
5. Technical Specification
Receiver GNSS L1 C/A-code, SPS of GPS + Glonass, Galileo or Beidou
Sensitivity -165 dBm typical
Update Rate 1Hz by default (configurable up to 10Hz)
Accuracy Position <1m with SBAS and 3.0-5.0m without SBAS typically (67%)
Accuracy Velocity 0.02m/sec typically (50%)
Time ± 1us
Differential GPS SBAS (WAAS, EGNOS, MSAS, GAGAN and QZSS)
Time to First Fix 23sec (typical)
Technology Supported GPS and GLONASS (Galileo and Beidou with firmware update)
Maximum Altitude 18,000m
Maximum Velocity 1000 knots
Operating Temperature -40°C to +85°C degrees Celsius
Maximum Current 30mA (@12Volts)
Dimensions 75mm diameter, 82.5mm high (with mount), 32mm high (no mount)
Weight 300g
Protocols NMEA-0183 Version 3.01
NMEA messages GGA, GLL, RMC, VTG, GSA, GSV, ZDA
Power Input VDC +9v to 34v
Cable White 10m Shielded Cable (4.5mm OD)
