Digitus DA-70781-B User manual

1
DIGITAL TV
MINI DVB-T RECEIVER
Quick Installation Guide

2
Table of Contents
A. Introduction...............................................................................................3
B. System Requirement ................................................................................3
C. Install TV Player Software and Device Driver ...........................................4
D. Equipment Connection .............................................................................9
E. Uninstall Device Driver............................................................................10
F. Channel Scan ......................................................................................... 11
G. Remote Control Function........................................................................13
H. Keyboard Shortcuts ................................................................................15
I. How to use Online Help ..........................................................................16
Appendix A:Software Update.......................................................................18

3
A. Introduction
The DVB-T PenType USB Receiver is fully compatible with DVB-T protocol for your desktop
PC or laptop use. Its tiny size design with high speed USB2.0 interface let you enjoy digital
TV programs anywhere!
It is also a Digital Video Recorder that you may record your favorite DVB TV programs on
your hard disc either real time or scheduling. Quick setup makes you easy to use. It provides
you an immediate personal access with lots useful functions such as Channel Auto Scan,
Teletext, Electronic Program Guide, Favorite List…etc. Yet, there is no need extra power
supply.
B. System Requirement
•Windows XP SP1 or above/Microsoft Windows Vista
•P4 1.7G MHz or above for SDTV(Note:P4 3G MHz or above for HTDV)
•256MB RAM
•Windows Media player 9.0/ Microsoft DirectX 9.0c or above
•Sound Card (AC97 compatible)
•Graphic Card 64MB or above (Support Microsoft DirectX 9.0b or above)

4
C. Install TV Player Software and Device Driver
IMPORTANT NOTICE!!
Please close all applications running before installation process.
1. Insert the software CD into the CD-ROM drive and the setup window will launch
automatically. Press “Install TV Player Software and Device Driver” button on
menu.
2. The warning message will pop out. Click "OK" to begin installation and click "Cancel"
to exit. (Please close all applications running before installation.)
3. Please read the license agreement carefully then select “I agree the agreement”.
Click “Next” to begin install Microsoft DirectX9.0c.
Note: If you are using Windows XP SP2, Microsoft DirctX9.0c is pre-installed. Please go
to step 6.

5
4. Click “Next” to continue.
5. Click “Finish” and system will reboot automatically.
6. After system reboot, pls install the driver, and click ”Next”.
7. Pls click “Next”.

6
8. Install driver, pls click “Next”.
9. Pls click ”Install”
10. Driver is installed completely. Please click “Finish” to begin TV Player Software installation.
11. Choose Setup Language then click “OK” to continue
12. Click “Next” to continue

7
13. Please read the license agreement carefully then click “Yes” to continue
14. Application will be saved to the default folder, C:\Program Files\ArcSoft\TotalMedia
You may change it by pressing “Browse” and choose where you would like to save
the application.
15. Default setting for Application shortcut folder name is ArcSoft TotalMedia
You may change it and type folder name in blank field. Click “Next” to continue.
16. Please check “Install Media Player 9” and click “Next” to continue.
Note: If you are using Windows XP SP2, Windows Media Player 9 is pre-installed.
Please click “Finish” and reboot your system to complete installation.

8

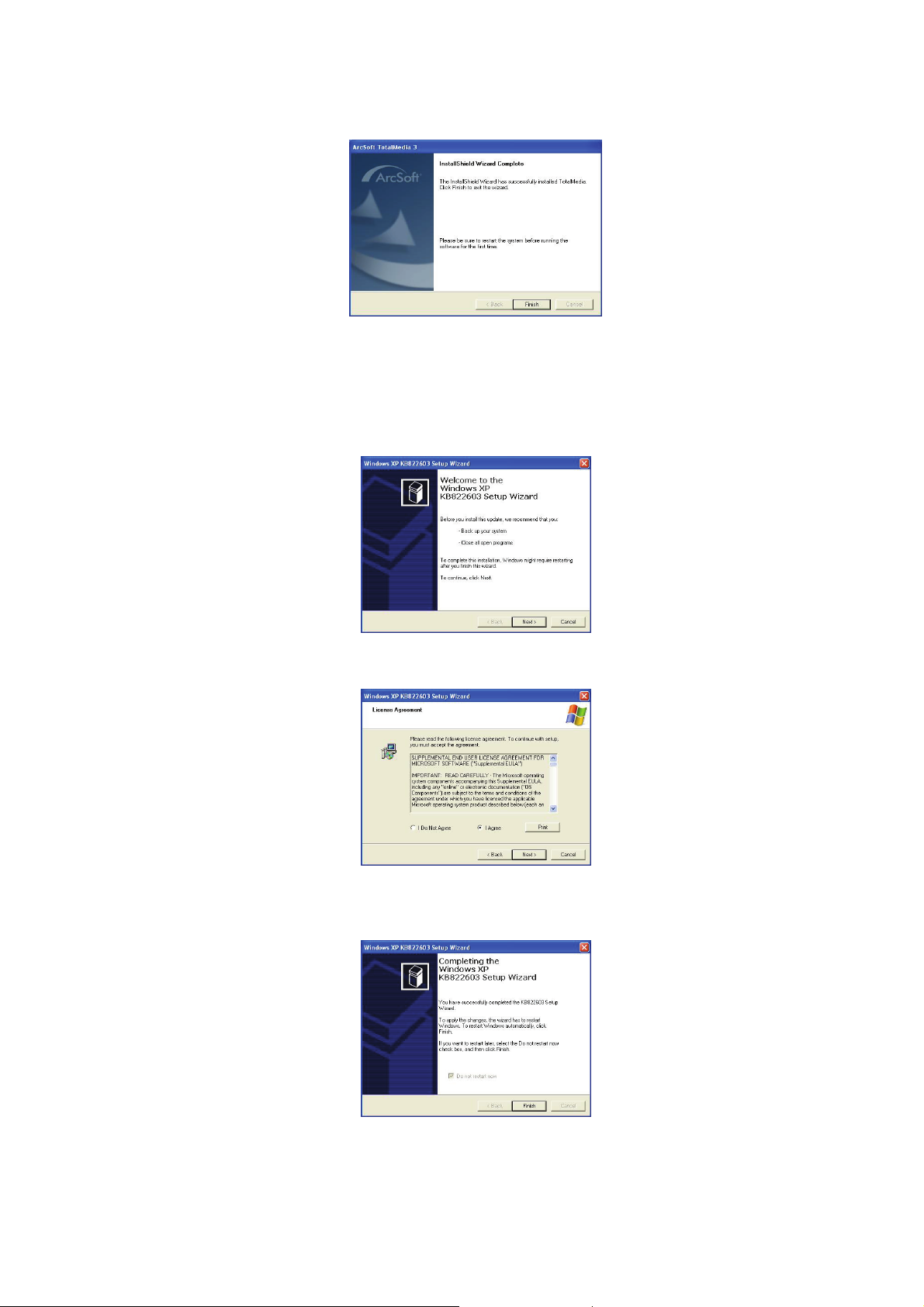

17. Please Click “Finish”, and reboot your system to complete installation
Note: If you are using the Windows XP SP2, the installation of ArcSoft has been
completed. If not, please continue to install below steps.
18. Install the Windows XP update program, please click “Next” to continue.
19. Please read the license agreement carefully then select “I Agree”. Click “Next” to
continue.
20. Please click “Finish” then reboot your system to complete the installation

9

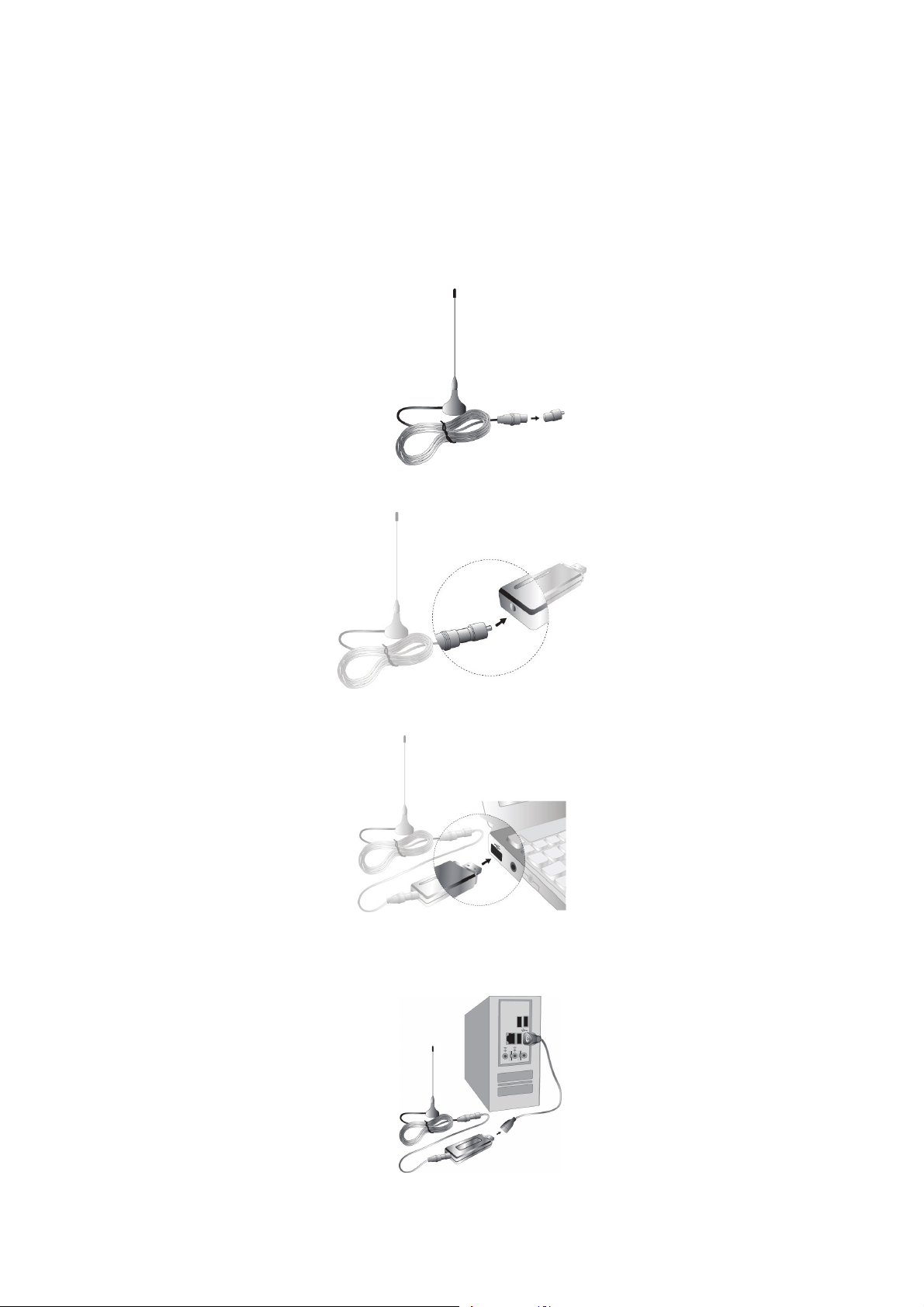

D. Equipment Connection
1. Connecting IEC connector to antenna.
2. Connecting antenna to PenType Receiver
3. Connecting PenType Receiver to USB interface on your computer.
4. (option) You may need longer USB cable for the connection between PenType Receiver
and USB interface on your computer.

10
5. You may check if driver installed completely. Please go to Device Manager and click
“Sound, video and game controllers” and you’ll see “REALTEK 2831U DEVICE” on
the list. If you don’t see it, please install driver again.
E. Uninstall Device Driver
If you would like to remove the driver, please press “Uninstall Device Driver” button on
menu. Click “Finish” to remove the driver installed on your computer.

11

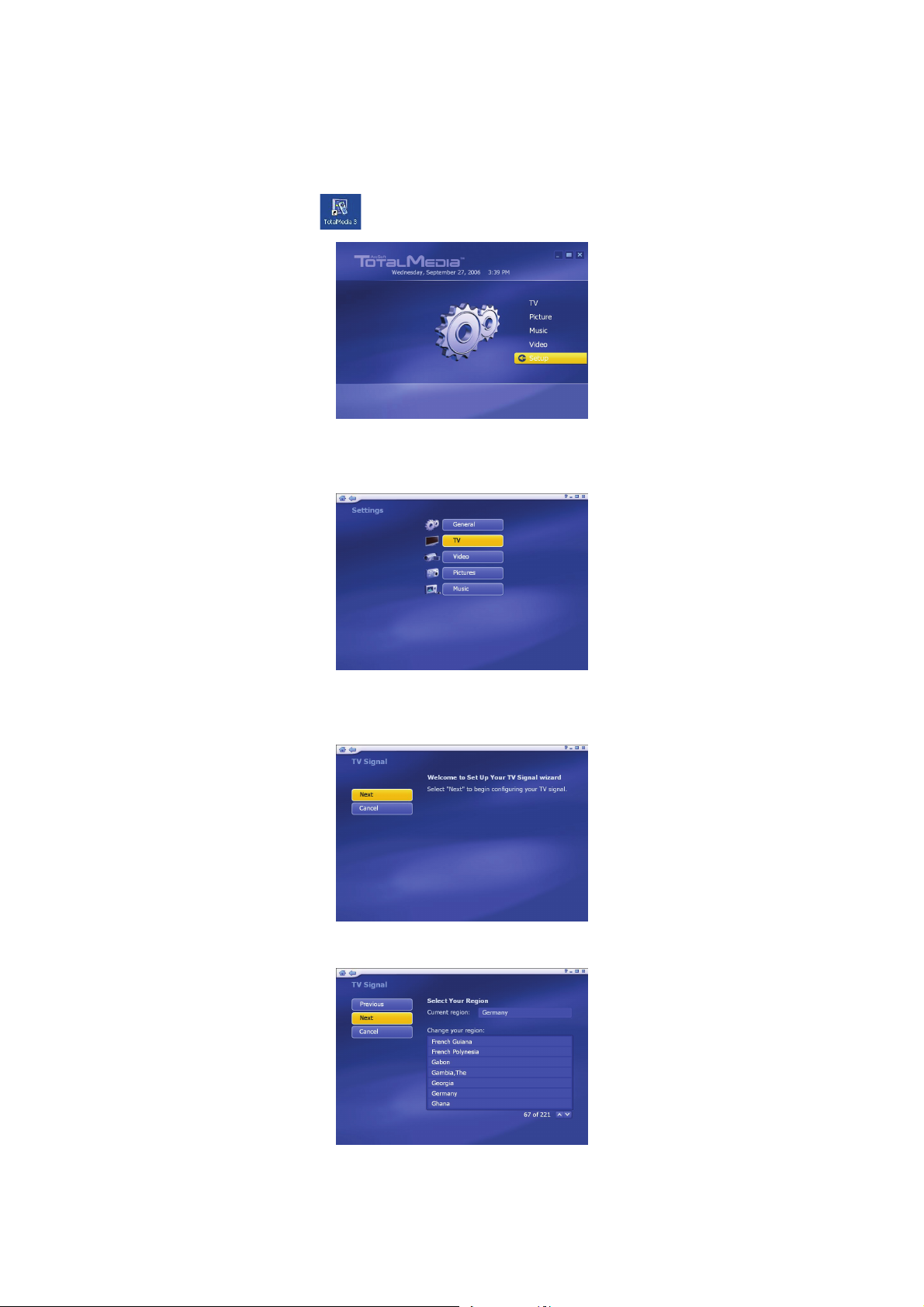

F. Channel Scan
You need to scan the channels when you use the Digital PenType USB Receiver at the first
time.
1. Double click the icon, then select “Setup” to continue.
2. Please select “TV” to continue.
3. Please click “Next” to continue.
4. You may choose the location where you are.

12
5. Please click “Start” to scan channels.
6. Select Digital EPG (Default setting is NO)
7. Please click “Finish” to exit.

13
G. Remote Control Function
Important Notice:
1. If your computer has installed the Intel® express chipset, the MobiDTV remote
control may not work properly, please follow the below instructions to solve this
problem.
2. Please click the right button of the mouse on the desktop. Then click “Properties” to
continue.

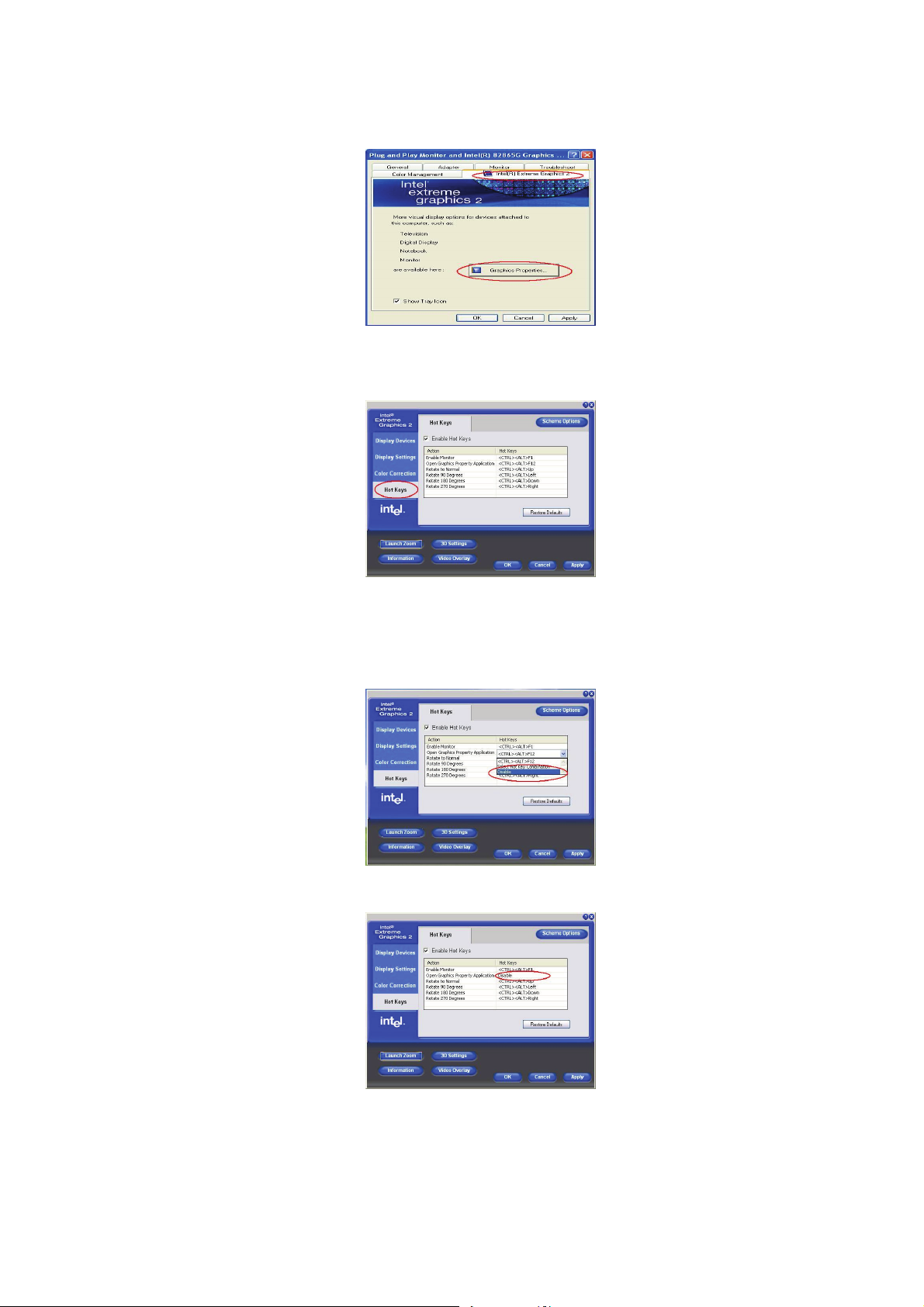

3. Please click “Advanced” from “Settings” tab.

14
4. Please click “Graphics Properties” from “Intel® Extreme Graphics 2” tab.
5. Please click “Hot Keys” to continue.
6. Please choose the “Disable” on the “Open Graphics Property Application”, then
click “OK” to finish. Please reboot your system to complete installation.

15
H. Keyboard Shortcuts
Keyboard Description
F1 Description
F2 Time Shift
F4 Source
F5 Snapshot
F6 Multichannel Television Sound
F8 Mute
F9 Volume -
F10 Volume +
F11 Jump
Ctrl+(+) Channel +
Ctrl+(-) Channel -
Ctrl+Alt+F12 Power
Ctrl+T Live TV
Ctrl+M Music
Ctrl+I Picture
Ctrl+A Radio
Ctrl+E Video
Alt+Enter Full Screen Display

16

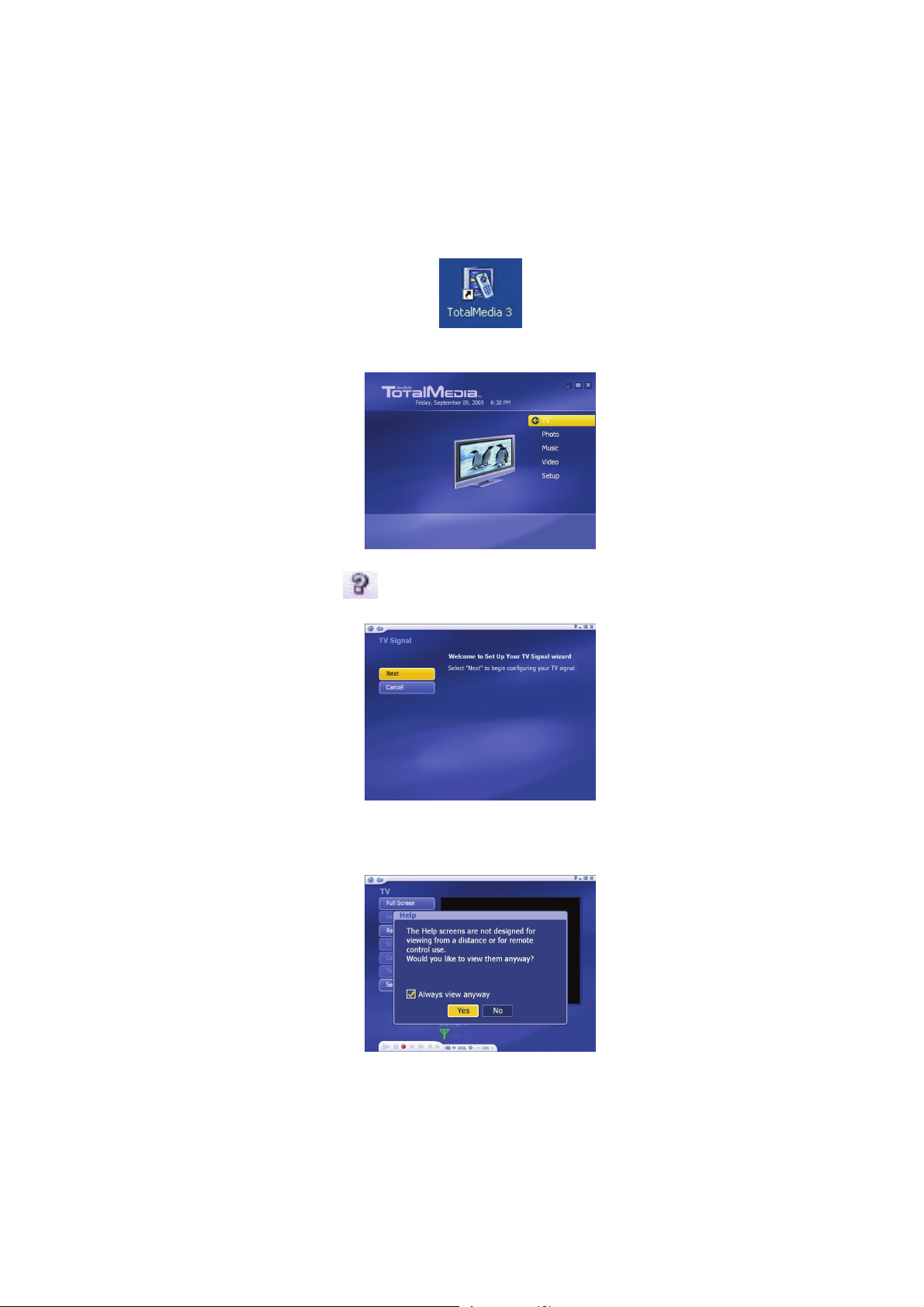

I. How to use Online Help
1. Double click the icon created on desktop.
2. Choose a category.
3. Please click on the “ ” on the right top corner.
4. Click “Yes” to continue.

17

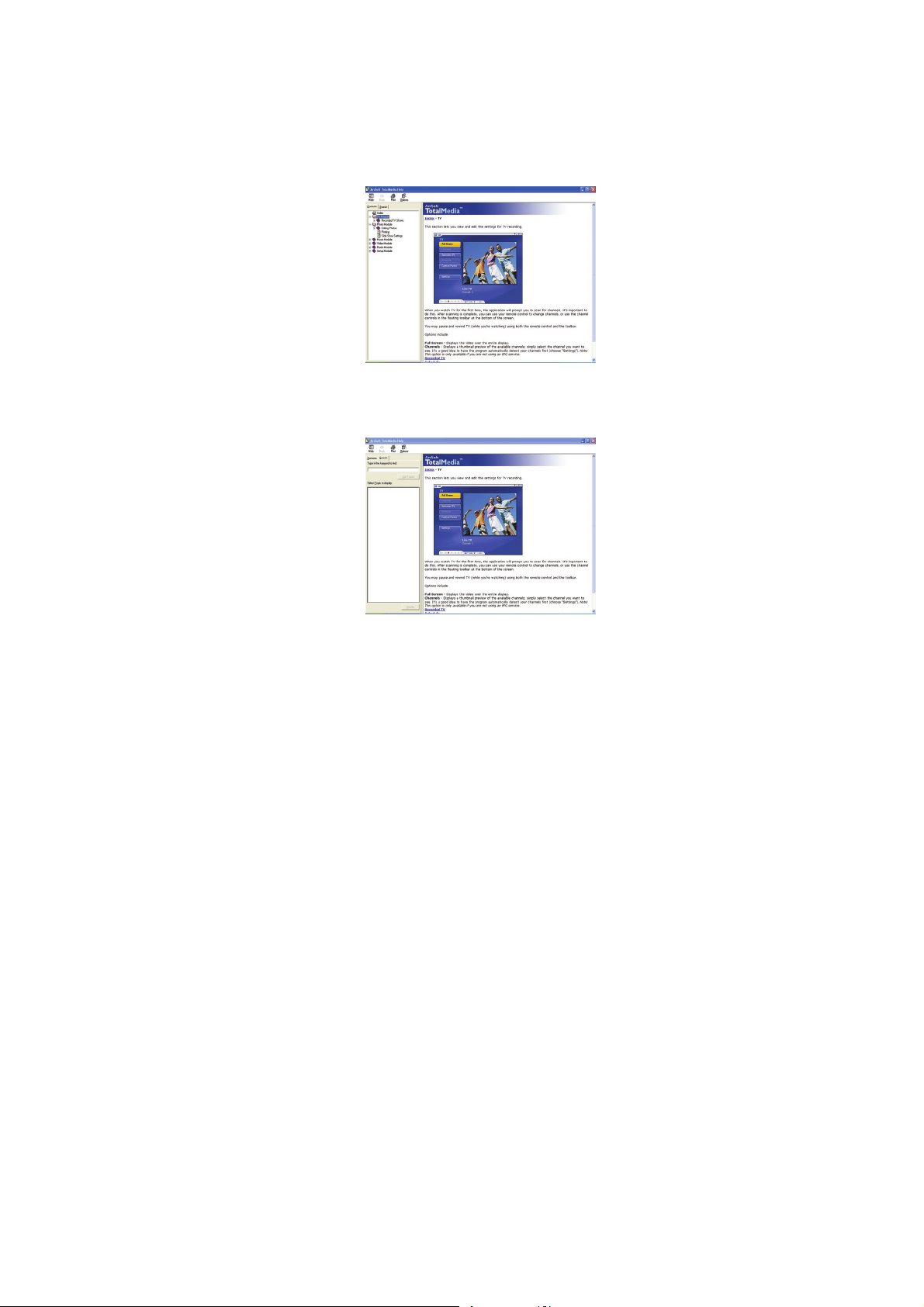

5. You may click on any topic you would like to learn more on the list. The detailed
instruction will show on right page.
6. You may also search by keyword.

18

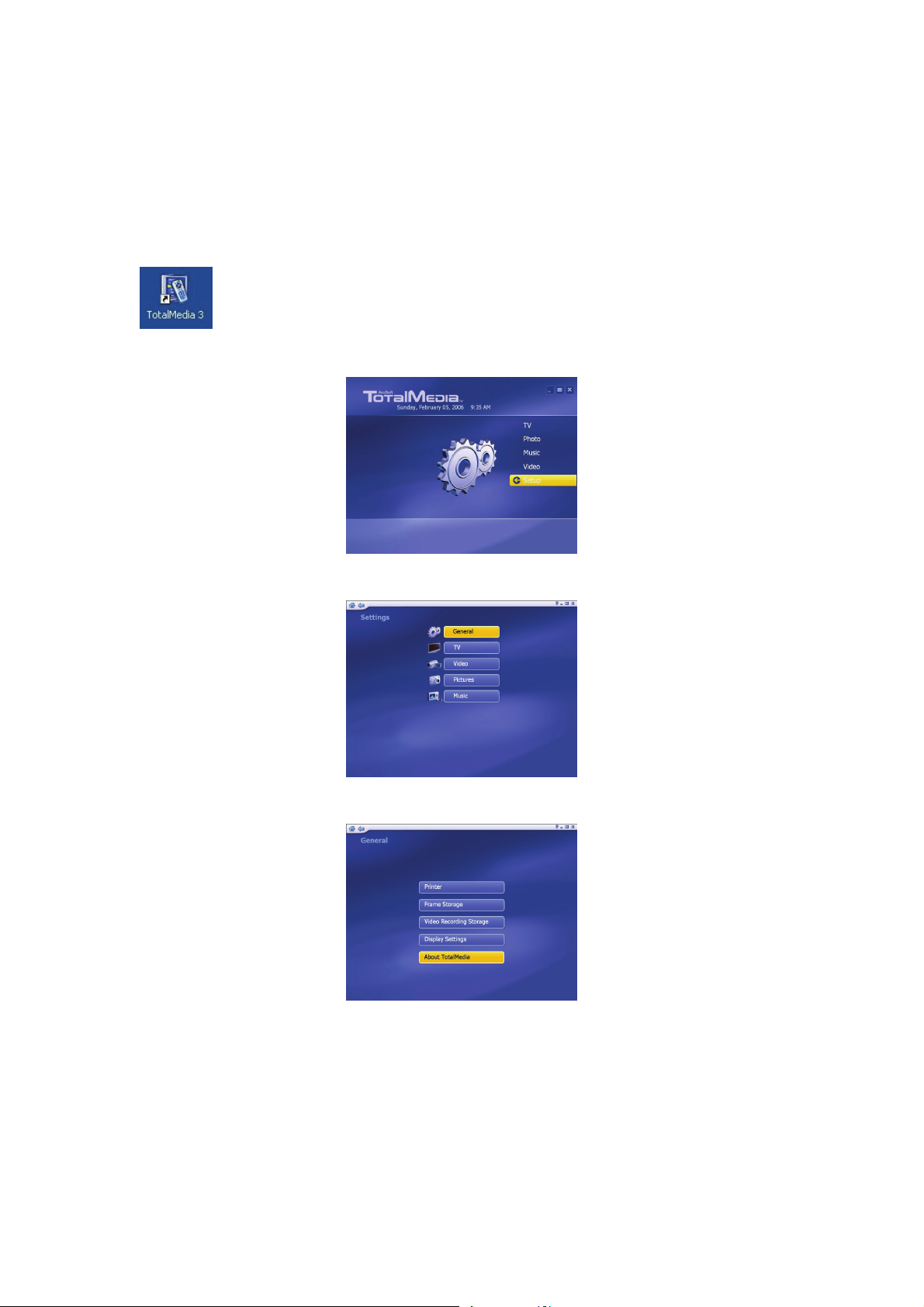

Appendix A:Software Update
Now you can easily and quickly update the most information software. Please follow below
steps to download.
Double click the icon on the desktop.
2. Please click “Setup” to continue.
3. Please click “General” to continue.
4. Please click “About TotalMedia” to continue.

19

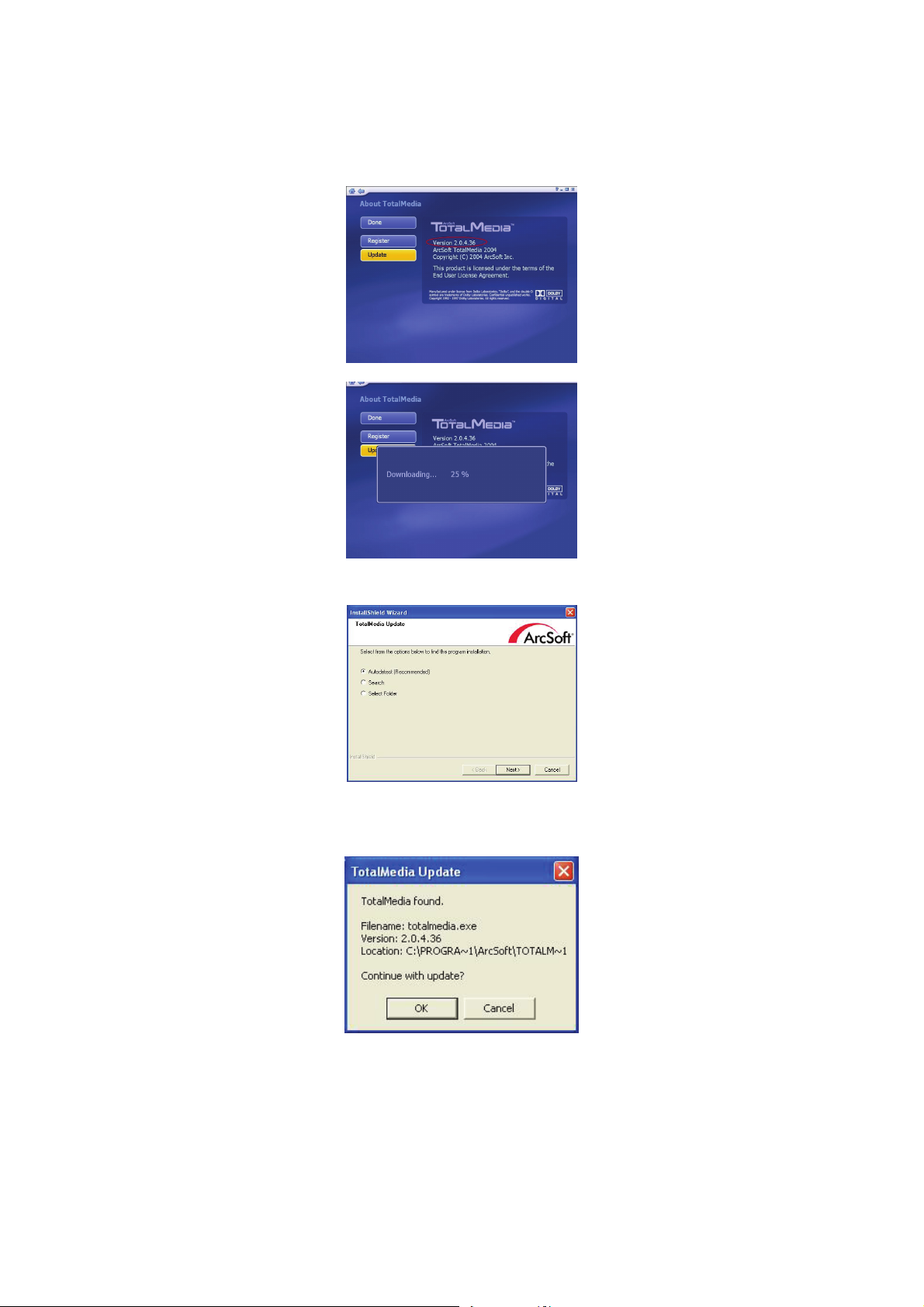

5. you can see the current version of Total Media software. Please click “Update” to
download.
6. Please click “Autodetect (Recommended)” to continue.
7. Please click “OK” to continue.

20

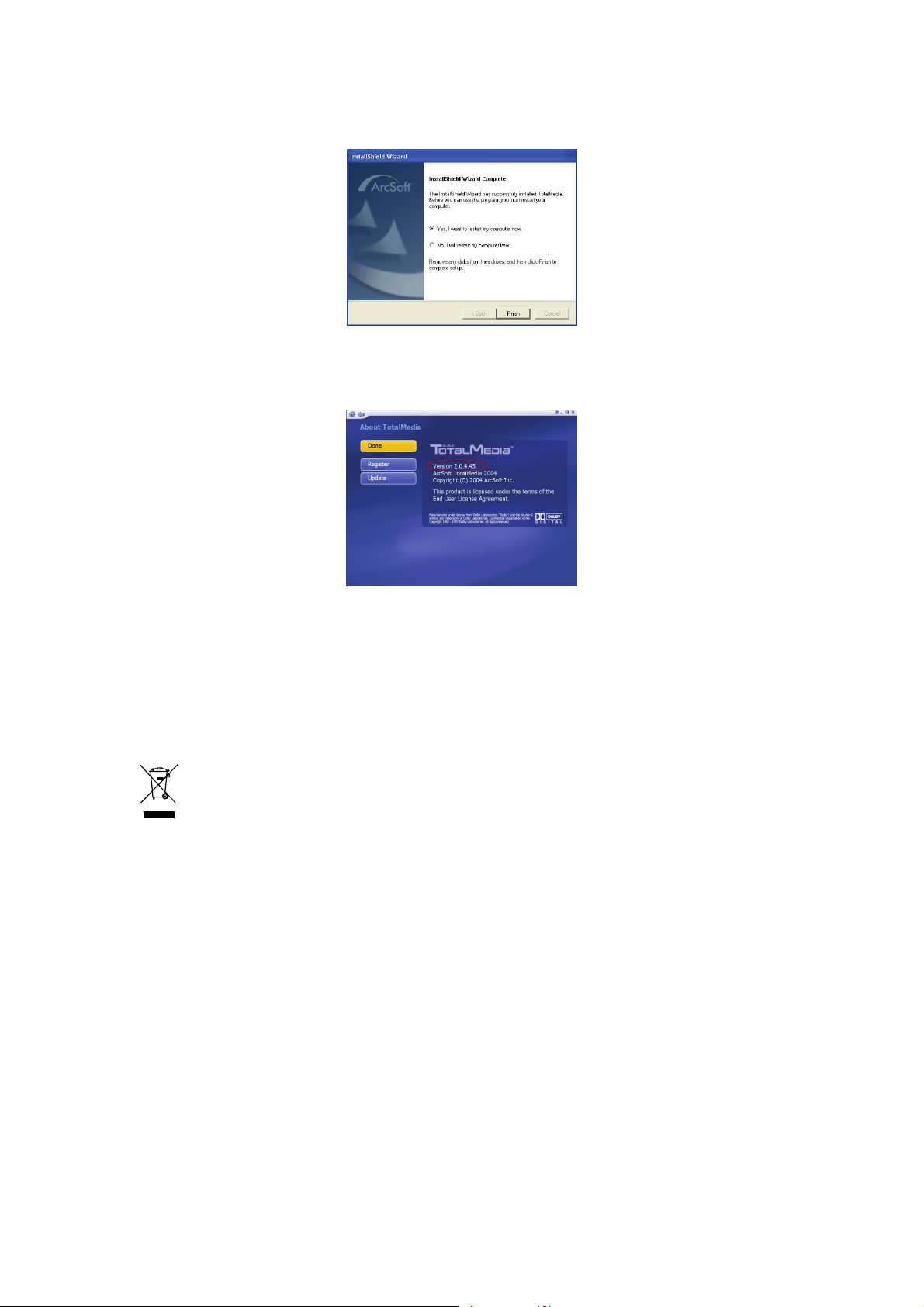

8. Please click “Yes, I want to restart my computer now” to continue.
9. Please repeat step1-step4, you can see the new version of the TotalMedia software,
please click “Done” to finish.
For batteries:
Please recycle only completely discharged batteries
