BLUETOOTH
"SOUNDBAR" WITH
SUBWOOFER
Quick Installation Guide
DA-10294

Thank you for purchasing DIGITUS DA-10294. Specially designed to play music through
Bluetooth from your mobile phone or computer (through Bluetooth or line-in cord), this
system provides high quality audio performance that brings out the best in your music!
Please read this instruction book carefully before operating the speaker, and keep it for
future reference.
Please note: When you turn your speaker on for the first time, you will need to reset it.
Because the speaker has an auto re-connect function, it will try to automatically connect to the
last synched device. Please press the play/pause button for 4 seconds to restart the speaker,
and then connect to your device.
What’s Included:
•DA-10294 Bluetooth 2.1 “Soundbar” with Subwoofer
•3.5mm mini jack cable
•AC Adapter
General Specifications
•Bluetooth v2.0 includes profiles: A2DP
•Ultra-compact, high performance Bluetooth speaker delivers best-in-class wireless stereo
sound.
•Rechargeable Lithium Ion batteries power up to 4 hours of play time at full volume on a single
charge (not included)
•Connects to iPod or any device with a 3.5 mm headphone port using a mini-jack cable
•Range up to 33FT (10M)
Features and Benefits
•Bluetooth 2.0 with audio and digital signal processing for clean, best-in-class wireless stereo
sound
•One 40 mm full range drivers deliver superb music fidelity
•Connects to iPod or any device with a 3.5 mm headphone port using a mini-jack cable
•Auto-search and auto-reconnect with compatible device
Compatibility
Wireless: Devices with Bluetooth 2.0 or above (See General Specifications for profiles), such as iPad,
iPhone (2nd Gen and newer with iPhone software 3.1), iPod touch (2nd Gen and newer with iPhone
software 3.1) and Bluetooth equipped Macs and most Bluetooth equipped smartphones or computers.
Wired: Devices with a standard 3.5 mm headphone output port such as iPod via 3.5 mm mini-jack cable

WARNING
1. Do not become distracted by this product while driving.
2. Do not leave the product exposed to a heat source or high temperatures.
3. Do not remove or attempt to remove the non-user-replaceable battery. When disposing the product,
take it to a waste electronics service.
4. Please remember that a loose object in a moving vehicle could become a deadly projectile in the
event of a collision.

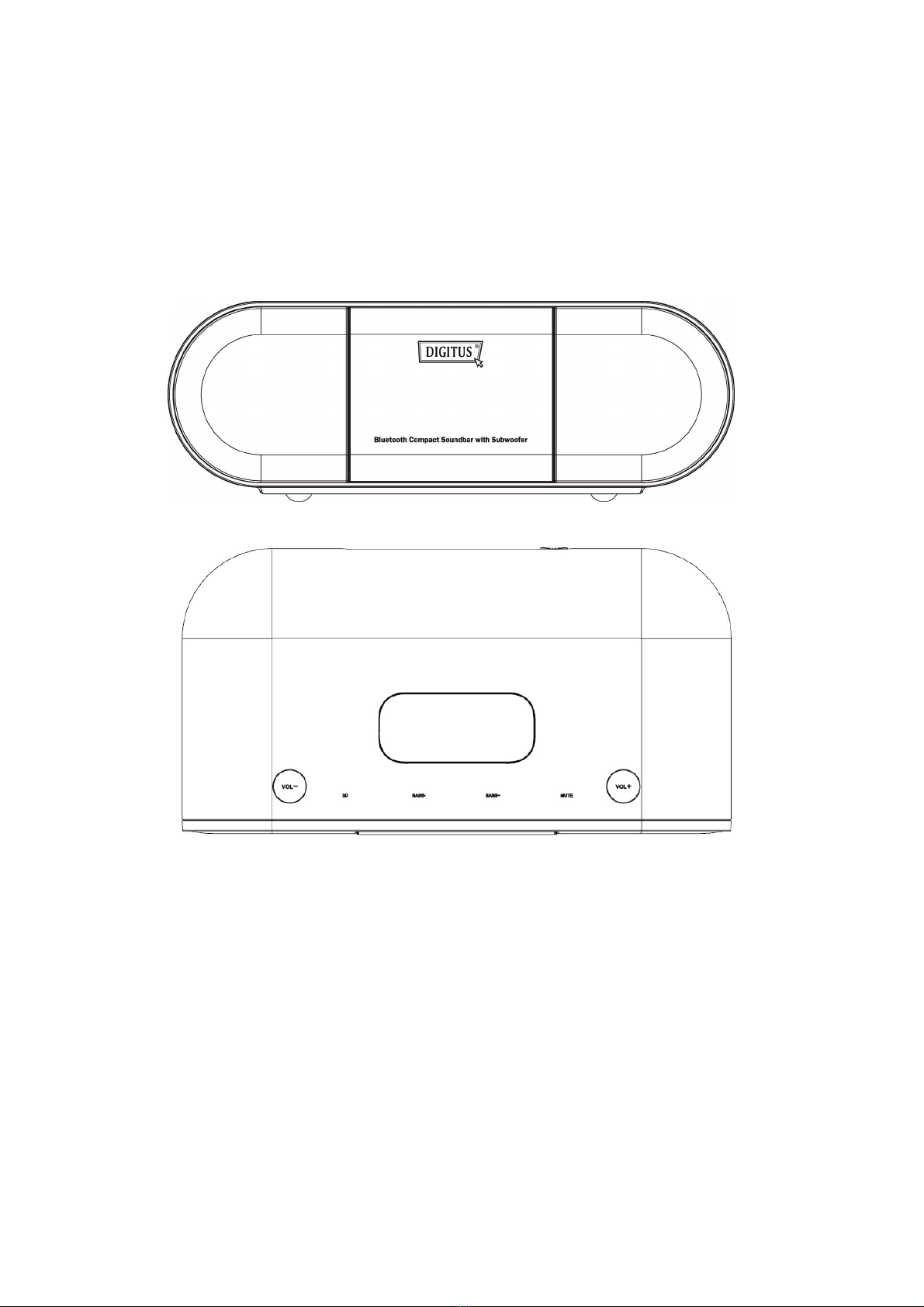

1. Power ON/OFF
This can be found at the back of the speaker.
2. Power supply
Attach AC adaptor cable to jack on back of the DA-10294 and plug the other end into a wall socket
3. Aux in
3.5 mm Audio Input Socket, allows connection to all PCs, laptops, Walkman, Discman, MP3 players,
iPod/iPhone/iPad, Smart-phones and phones with similar audio socket. Please use the 3.5mm
to .5mm cable supplied in package for connection

4. Operation of Key Buttons
VOL+ For increasing the volume of the speaker.
VOL- For reducing the volume of the speaker.
3D For different audio effect
BASS+ For increasing bass of the speaker
BASS- For reducing bass of the speaker
MUTE For control sound output
5. Light Indicator
•When plug the AC adapter, back light indicator will turn red, and flashing blue on the
performance
•When plug the line-in cable, will flashing red on the performance
•When touch the button on speaker if speaker is on, each button light indicator will flash blue
6. Bluetooth/Line in performance /Indicator
•When you turn on the speaker, the light indicator will turn blue; the speaker is ready for pairing
•When the speaker is in pairing mode, the light indicator will flash blue
•Re-start the speaker, it will connect to the last synched device, you will hear ”beep…” in two
times, one time is researching the device, second time is pairing the device automatically.
•When plug 3.5mm jack cable, it is in LINE-IN model, the light indicator will turn red
Set-up and Pairing via Bluetooth For Music Playback
The following instructions apply for a mobile phone but the procedure is the same for a music
player, except that you may not need to give the Bluetooth passcode.
1. Push the power key to “on”, you will hear “beep..….” Sound.
2. Ensure that the speaker and the phone is on, press the play/pause buttons in 4 seconds to re-start
the Bluetooth to connect to your device for first time use.
3. The Bluetooth speaker will reconnect in 30 seconds when restart after power off, it’s forbidden to
operate this time.
4. Activate the Bluetooth function on the phone, and set it to search for the phone, and set it to search
for Bluetooth devices.
5. Select the Bluetooth speakers”DA-10294” from the list of found device.
6. Enter the Bluetooth passcode 0000 to pair and connect the speaker to the phone. In some phones
you may need to make the connection separately after pairing.
If the pairing is successful and the speaker is in a Bluetooth connection with the music device, the
blue indicator light flashes about every 2 seconds, and you will hear ”beep..…”sound

Reconnection in Event of Bluetooth Disconnection
If by any reason your device and the Speaker are disconnected, such as out of connection distance or
powering off, the Speaker will “auto-connect” with compatible devices that auto-search and re-connect
with their last connecting device, the reconnection time is 30 seconds, pls don’t operate the speaker at
that time.
If want to disconnect the Bluetooth speaker after succeed in paring, can long press pause/play button.
Controlling Playback When Connected Via Bluetooth:
Volume: Using the volume controls on the side of the Speaker, press the (+) button to increase volume
and the (-) button to decrease volume.
Pause music: press the pause/play button to pause playback when the Bluetooth connection. Press
again to resume music.
Listening to other portable audio devices
You can play a MP3 player or other portable audio device through the DA-10294 via the Line in Jack.
1. Plug one end of an audio patch cord into the headphone or line-out jack on your device and the other
end of the patch cord into the DA-10294 Line in Jack, located on the back of the unit.
2. Turn on the DA-10294 speaker
3. Turn on and play your device.
4. Press the Button on the DA-10294 to adjust the system volume. You may need to adjust your device
volume, too.
Remember to turn off your device when you are done playing it.
