diLUSSO CE620HSS User manual

Version 1.3 June 2018












ConcealedRangeHood






InstallationandOperatingManual


CE620HSS/CE920HSS

Version 1.3 June 2018

CONTENTS


ImportantNotes ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐page 3
 Safety 

ProductSpecification ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐page 4

InstallationInstruction‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐page5
 EquipmentneededforInstallation
 PriortoProductInstallation 
 ProductInstallationLocation
 DuctedMode:DuctworkInstallation
 RecirculationMode 
 MountingtheRangeHood

OperatingInstruction‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐page8

CleaningandMaintenance‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐page8
 GeneralMaintenance
 FilterMaintenance
 ReplacementofLED 

Marking‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐page9



















Page 2

Version 1.3 June 2018
ImportantNotes

DearCustomer
Thankyouforchoosingourproduct.Toavoidtheriskofaccidentordamagetotheappliance,itisessentialtoreadthefollowing
instructionspriortoproductinstallationand/orfirsttimeusage. 



Safety! 

 Donotconnecttheapplianceifthereisanyobvioussignoftransportationdamage. 
 InstallationandrepairshouldONLYbedonebyqualifiedtechnicalpersonnel.
 Thisproductmustbeinstalledandelectricallyconnectedinaccordancewithcurrentregulations.Afixedwiringinstallationis
tobedoneonlybyanauthorisedelectrician.
 Beforemaintenanceorcleaningoftheproduct,disconnecttheappliancefromthemains. 
 Foranyrepairs,alwayscontacttheauthorisedCustomerServiceCentreandaskfororiginalspareparts.Repairsbyuntrained
peoplemayleadtodamageandvoidthewarranty. 
 Thisapplianceisnotintendedforusebypersons(includingchildren)withreducedphysical,sensoryormentalcapabilities,
orlackofexperienceandknowledge,unlesstheyaresupervisedbyapersonresponsiblefortheirsafety.
 Youngchildrenshouldbesupervisedtoensurethattheydonotplaywiththeappliance.
 Thereisbeadequateroomventilationwhiletherangehoodisinusetogetherwithotherappliances. 
 Userisrecommendedtoreadandfollowthemethodandfrequencyofcleaningandmaintenance. 
 Thereisariskofcatchingfireifcleaningisnotcarriedoutinaccordancewiththeinstructions.
 Exhaustairmustnotbedischargedtoanexistingfluewhichisusedforexhaustingfumesfromgasburningappliancesor
otherfuels.


PowerConnection:
THEAPPLIANCEMUSTBECONNECTEDINACCORDANCEWITHCURRENTELECTRICALRULESANDREGULATIONS.INSTALLATION
ISTOBEDONEONLYBYANAUTHORISEDELECTRICIAN.

WARNING:THISAPPLIANCEMUSTBEEARTHED

Meansfordisconnectionmustbeincorporatedinthefixedwiringinaccordancewiththewiringrules.

Themanufacturershallnotliableforanydirectorindirectdamagecausedbyfaultyinstallation.Theinstallermustensurethat
theproductinstallationandconnectioncomplieswiththelocalandgeneralregulationsinforce. 
Page 3

Version 1.3 June 2018
ProductSpecification: 

Voltage/Frequency :220–240Vac/50Hz
RatedMotorPower :250W
Filter:Aluminiumand/orCharcoal(optional) 
Lighting:GU10LED220‐240V2W
ExternalDimension  : 

Note:Alldimensionsareinmm 
(600)relatestorangehoodmodelCE620HSS  
(900)relatestorangehoodmodelCE920HSS



Completeproductcomeswiththefollowing
 1xrangehoodbody
 1xfrontpanel
 1x150mmductingadaptor
 1packetoffastenersandwallplugs
Page 4

Version 1.3 June 2018
InstallationInstruction

Equipmentneededforinstallation:

 Electricdrill
 Screwdriver
 Measuringtape
 Spiritlevel
 Ducttape(forductworkinstallation)
 Jigsaw(forductworkinstallation)


PriortoProductInstallation
 MakesurethattheproductpowerswitchisOFFpriortoinstallation.
 Stainless steel panel could be damaged during installation if beingknockedbytools.Protecttherangehoodwiththe
cardboardduringinstallation.
 Apoweroutletshouldbenotmorethan1500mmawayfromtherangehoodinstallationlocation.
 Thisrangehoodcanbeinstalledinductedorrecirculationmode.
 150mmand120mmductingadaptersaresupplied.Otherductingaccessoriesarenotprovidedbythemanufacturer. 
 Ductworkinstallationmustcomplywithlocalrequirementsandbuildingcodes.


InstallationLocation


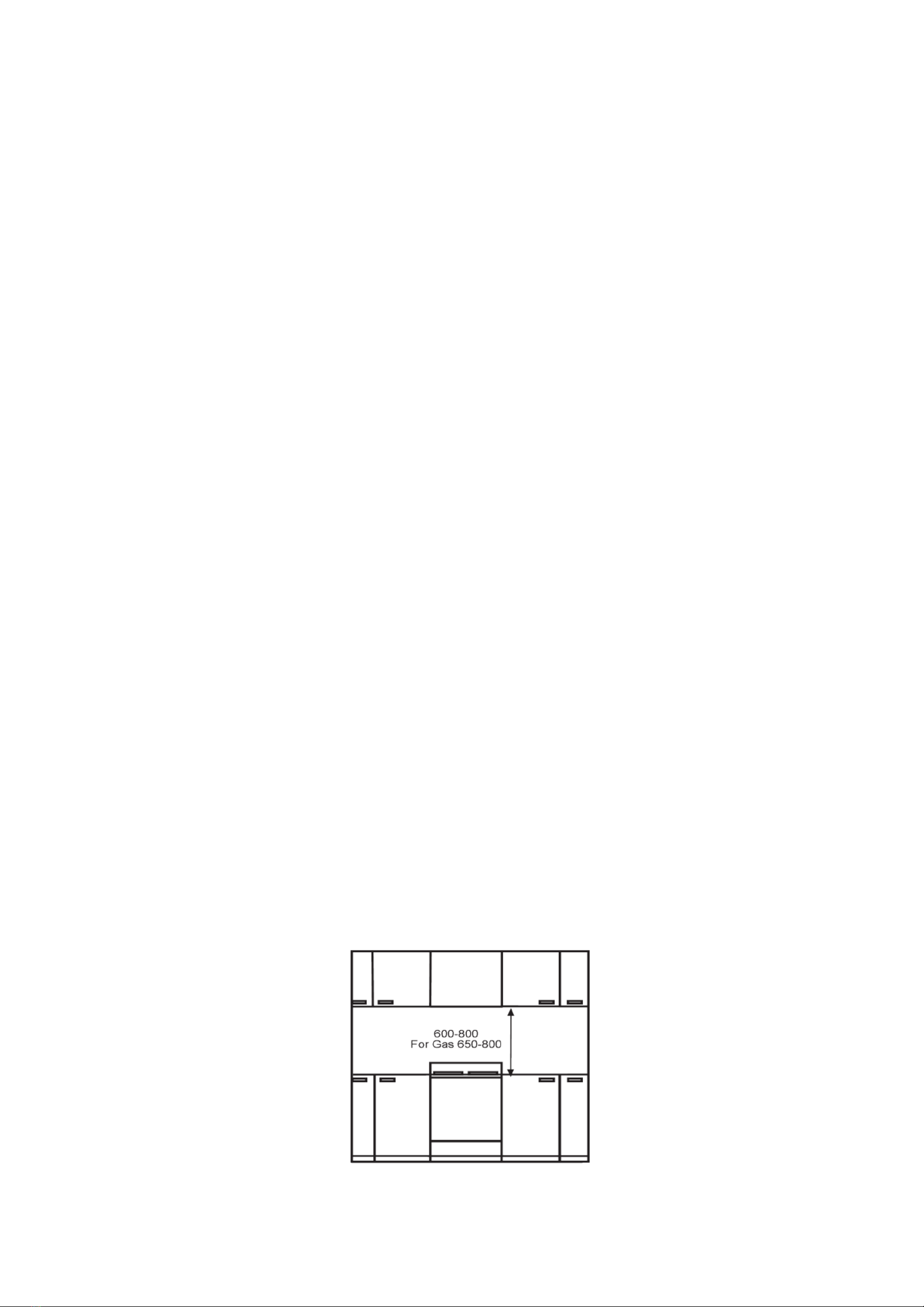

Wheninstallingrangehood,theloweredgeoftheunitmusthaveaminimumof600mm(650mmforgascooker)distance
abovethecookingrange.Therecommendedpositionforthehoodis650mmabovethehotplates.












Note:
Therangehoodinstallationshallcomplywiththeminimumdistancementionedaboveorthedistancespecifiedinthegashob
instructionmanual,whicheverishigher.Anyinstallationabove750mmwillcompromisetherangehoodperformance.
Page 5

Version 1.3 June 2018

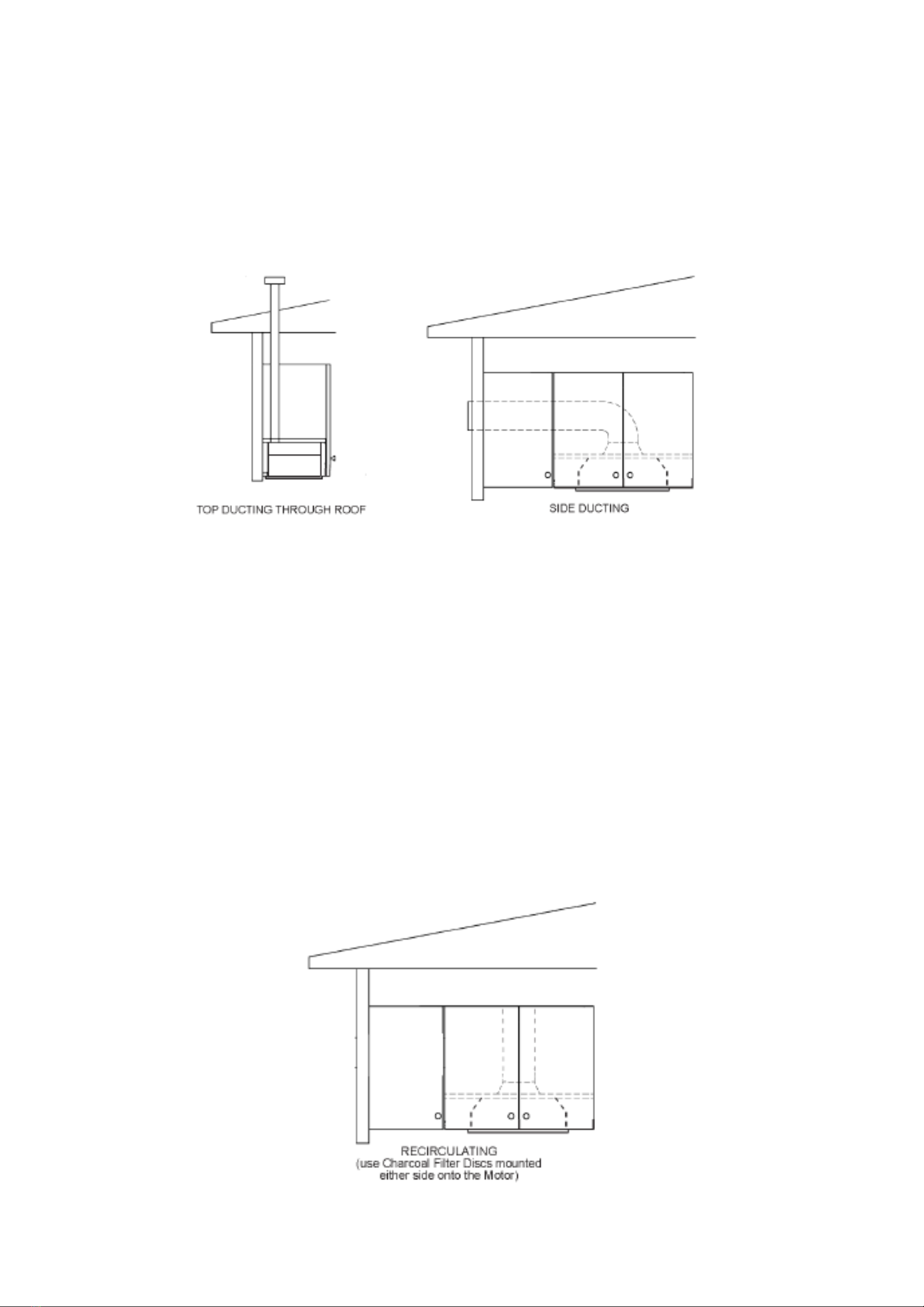

DuctedMode:DuctworkInstallation

Ductworkshould beplanned carefullybefore drillingand cutting theduct.Manufacturersuggests 150mmductpipeforall
commonductingconfigurations,whichis,ductintoaceilingcavityorroofspace.Incasethisisincontradictionwithanylocal
requirementsandbuildingcodes,theinstallermustensurethattheproductinstallationandconnectioncomplieswiththelocal
andgeneralregulationinforce. 















Ø150mmductpipeisrecommended,however,areducerfromØ150mmtoØ120mmisprovidedshouldØ120mmbe
required.
Extrapipeand/orbendsmaybeneeded,dependingonthelengthrequiredandifthereisanystructureintherune.g.rafters.


RecirculationMode

Thisunitcanbeinstalledtooperateinrecirculationmodewhenductingisnotchosen.Ensurethatthetopductingoutletisnot
obstructed.Evenapartialobstructionwillrestricttherangehoodefficiency.Wheninstalledasrecirculationmode,recommend
addingcharcoalfilterstorangehoodtooperateinrecirculationmode.

















Page 6

Version 1.3 June 2018
MountingtheRangehood

Fittheductingadaptortotherangehoodbyusingtheshortscrewssupplied.
Provideanappropriateopeningatthecupboardunderside. 

Model   OpeningDimension
CE620HSS    490mmx260mm 
CE920HSS     668mmx260mm 

Removethefrontpaneloftherangehoodbyundoingthetwovisiblescrewslocatedonbothside‐ends.Eightmountingholes
aroundtheunitthenareaccessible.

Lifttherangehoodandfitittothecupboardopeningmade.Securetheunitbyusinglongscrewssupplied.Afterthat,refitthe
frontpanel,thenfitthetwolights.




































Page 7

Version 1.3 June 2018

OperatingInstruction

ControlPanel

Light
ThelightingcanbeturnedON/OFFindependentlybypressingtheswitchbuttonwithoutrelyingontherangehoodfanstatus.


Fan
The fan is turned ON/OFF by pressing the fan switch button. The fan can run at three different speeds (Speed 1/ Speed 2
/Speed3).


CleaningandMaintenance

Caution:Priortocleaningormaintenance,alwaysdisconnectthepowersupply.
Donotuseasteamcleaner.

GeneralMaintenance
In order to have your range hood retain its new appearance; regular cleaning and care should be performed to protect the
stainlesssteelfinishes.
Never use gritty or abrasive sponges. Stainless steel cleaners and protectors are recommended. Stubborn stains can be
removed by soaking in hot water, standard stains can be removedbyapplyingacleanclothsoakedinsoapywaterbefore
spillagebecomescoldordriesup.Acidmaterialslikemilks,vinegar,citrusetccandamagethestainresistantsurfaces. 
Note:Useonlydampclothtocleanthestainlesssteelpanelwithprintedwordsandlabels.Stainlesssteelcleanersandsimilar
productsmayremovetheprint.  

Warning:abuild‐upofoilmayoccuriftherangehoodisnotcleanedregularly


FilterMaintenance
To maintain the range hood efficiency, filters should be cleaned regularly (approximately monthly), and washed using warm
soapywaterorinthedishwasher.

Note:  Framediscolourationmayoccurifthefilteriswashedinadishwasher.

Rangehoodsfittedwithcharcoalfiltersaredesignedtoremovegreaseandodoursfromcookingvapoursbeforethecleansed
airre‐enteringthe kitchen (rangehood inrecirculation mode).Charcoalfiltersshouldbereplacedeverytwotofourmonths
dependingonrangehoodusage.

Note: Fully saturated charcoal filters can become a barrier to air movement therefore limiting range hood performance
Page 8

Version 1.3 June 2018
efficiency. In any event, grease laden filters could be flammableandcatchfireeasily.Therefore regular replacement is
recommended.Inductedinstallation,conventionalAluminiumfilterisrecommended.


ReplacementofGU10LEDlight
ToreplacetheLEDbulb,firstdisconnecttherangehoodfromthepowersupply.RemovetheGU10lampfromsocketin
anti‐clockwiserotation.Replacethe2WLEDbulbwithnewone.






Marking
CE620HSS CE920HSS
Page 9
