diLUSSO CE528MP User manual
Undermount Rangehood
CE528MP
CE728MP
CE928MP
Installaon and Operaon Manual
To avoid the risk of accident or damage to the appliance, it is essential to read the
following instructions prior to product installation and / or first time usage.
V1.0
CONTENTS
ImportantNote————–‐———————————————————Page3
ProductSpecificaon———–——————————————————Page6
InstallaonInstrucon——————–—‐—————————————Page8
Ductedmode——————‐————–—————————————Page14
Recirculaonmode——–——————–‐————————————‐Page16
ElectricalConnecon———————————————–‐—————Page17
RangehoodOperaon&Control————————————————Page18
CleaningandMaintenance———–——–‐——————–‐—————Page19
Troubleshoong———————–——‐—————————————Page21
SchemacDiagram——————————————————————Page22
2
Important Notes
DearCustomer
Thankyouforchoosingourproduct.Thisapplianceiseasytouse;howeverplease
readthishandbookcarefullybeforeinstallingandoperangit.Herein,youwillfind
thecorrectmethodofinstallaonandpsforbestuseandmaintenanceofthe
product.
Thisapplianceisdesignedtobehandyforanyadulttouseathome.Donot
allowchildrentoplaywithit.Childrenneedtobesupervisedwhentheproduct
isinoperaonsothattheydonotgoneartherangehood.
Thisproductmustbeconnectedinaccordancewithcurrentelectrical
regulaons.Afixedwiringinstallaonistobedoneonlybyanauthorised
electrician.
WARNING:THISAPPLIANCEMUSTBEEARTHED.
Meansfordisconneconmustbeincorporatedinthefixedwiringin
accordancewiththewiringrules.
Electrical Connecon :
Green & yellow = EARTH
Blue = NEUTRAL
Brown = LIVE
Fixedwiringmustbeprotected.
Neverusereducons,shunts,adaptorsthatcancauseoverheangor
burning.
Itisstrictlyprohibitedtomodifyanypartofthisappliance.Modificaonistobe
doneatuserownrisk.
Beforemaintenanceorcleaningoftheproduct,disconnecttheappliancefrom
themains.
Foranyrepairs,alwayscontactauthorizedCustomerServiceCentreandaskfor
originalspareparts.Repairsbyuntrainedpeoplemayleadtodamageandvoid
thewarranty.
3
Packagingclingfilm,polystyreneandplascwrappingsmustbekeptoutof
reachofbabiesandyoungchildrentoavoidsuffocaon.
Donotconnecttheapplianceifthereareobvioussignsof
transportaondamage.Ifthesupplycordisdamage,itmustbereplacedbythe
manufacturer,oritsserviceagentasmenonedinClause7(60335‐2‐31)
Ensurethelocaoninwhichthisapplianceisinstalledhasgood,permanent
venlaon.
Thedistancebetweenthebenchtoptothelowerpartofthehoodmustnotbe
atlessthan65cmanditisnotrecommendedtobemorethan75cmforopmal
operaon.
Donotleavelitgasburnersexposedduetoriskoffire.
Theexhaustfromthecanopyrangehoodmustnotbedischargedintoany
heangflue.
Thisproductmustnotbedisposedwiththedomescwaste.Ithastobe
disposedatanauthorisedbinforrecyclingtheappliances.
4
650mm
Thisapplianceisnotintendedforusebyperson(includingchildren)with
reducedphysical,sensoryormentalcapabiliesorlackofexperienceand
knowledge.Unless,theyhavebeengivensupervisionorinstrucon
regardingtheuseofappliancebypersonnelwhoisresponsiblefortheirsafety.
Thereisriskofcatchingfireifcleaningisnotcarriedoutinaccordancewiththe
frequencysuggestedandinstrucons
Thefilterismadeofhighdensityaluminium.
Pleasedonotusecorrosivedetergentforcleaning.Therangehoodshouldbe
cleanedwithwarmwaterandnon‐corrosivedetergenteverytwomonths.
Theairmustnotbedischargedintoafluethatisusedforexhausngfumesfrom
appliancesburninggasorotherfuels.
Therangehoodisforhomeuseonly,notsuitableforbarbecue,roastshopand
othercommercialpurposes.
Therangehoodanditsfiltershouldbecleanedregularlyaccordingtothe
instrucons..
The manufacturer shall not be liable for any direct or indirect damage caused by faulty
installaon. The installer must ensure that the product installaon and
connecon complies with the local and general regulaon in force.
5
Product Specificaon
CE528MP CE728MP
Voltage/Frequency:220‐240Vac/50Hz 220‐240Vac/50Hz
RatedPower :293W293W
AirFlow :800m3/hr 800m3/hr
MotorPower :290W290W
Filter :Aluminiumor Aluminiumor
Charcoal(Oponal) Charcoal(Oponal)
Lighng :LEDlight1.5Wx2 LEDlight1.5Wx2
SpeedSengs :3speed 3speed
Ducng :Ducted or Ductedor
Recirculaon(Oponal) Recirculaon(Oponal)
Ducngsize :150mm 150mm
CE928MP
Voltage/Frequency:220‐240Vac/50Hz
RatedPower :293W
AirFlow :800m3/hr
MotorPower :290W
Filter :Aluminiumor
Charcoal(Oponal)
Lighng :LEDlight1.5Wx2
SpeedSengs :3speed
Ducng :Ducted or
Recirculaon(Oponal)
Ducngsize :150mm
6
ExternalDimension:
CE528MP
CE728MP
CE928MP
Completeproductcomeswiththefollowing:
1xrangehoodbody
1xusermanual&warrantycard
Fixingscrews
7
8
Installaon Instrucon
Mounttherangehoodtotheboompanelofakitchencabinet.Thelowerpartof
thehoodmustbelocatedataminimumheightof650mmaboveanycookerhob.
Therangehoodinstallaonshallcomplywith650mmorthedistancespecifiedin
thecookerhobinstruconmanual,whicheverishigher.Anyinstallaonabove
750mmwillcompromisetherangehoodperformance.
Whenthehoodisworkingatthesamemewithothernon‐electricalcooking
equipment,thenegavepressureoftheroommustnotexceed4Pa.
Therangehoodistobeinstalledhorizontallyandnotltedatoneside.
9
Cabinetcutoutdimensions:
Dimension
ModelL1
CE528MP497mm
CE728MP677mm
CE928MP 865mm
Installaon Steps

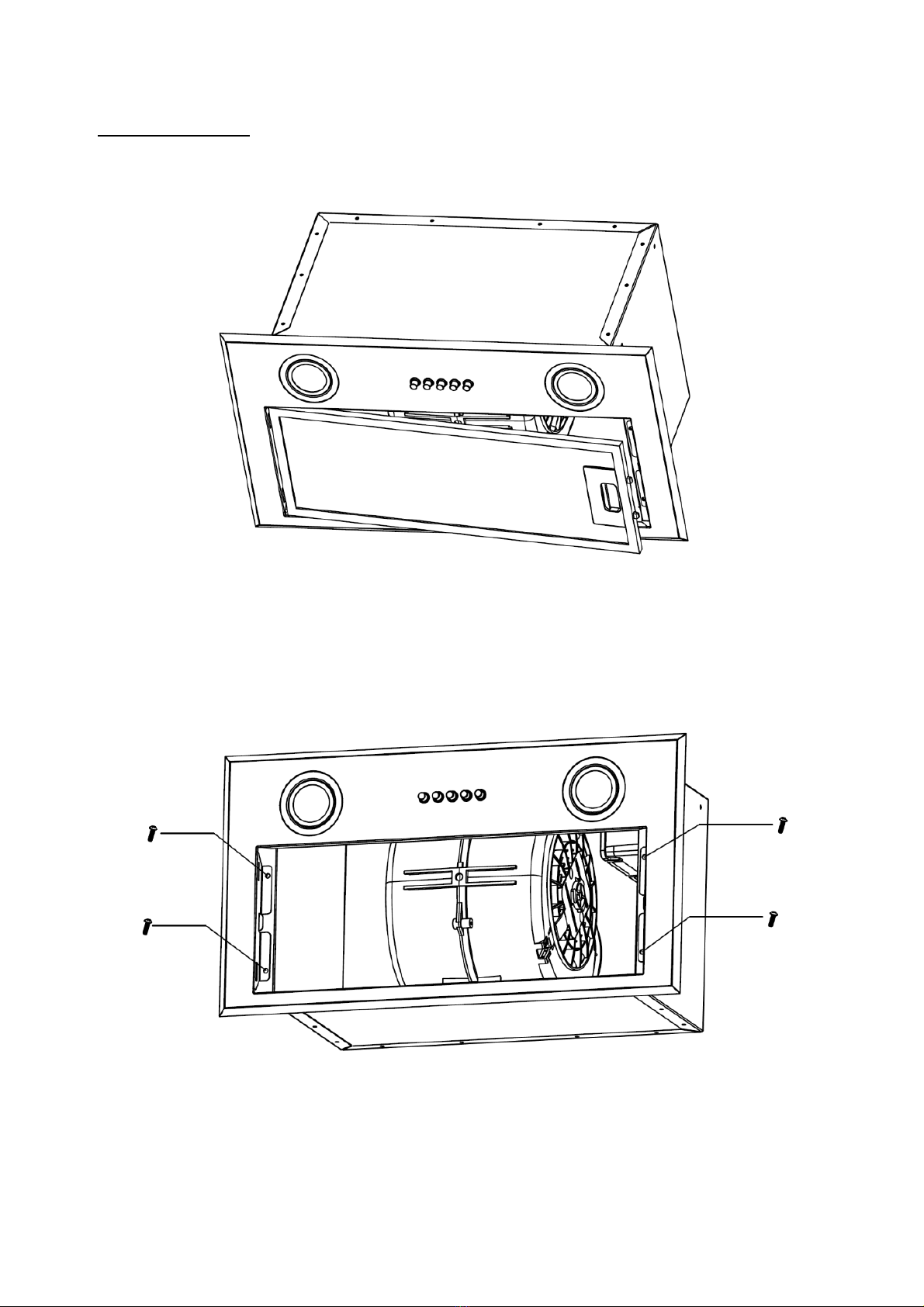

1.Removethemetalfilter.
2.Removethestainlesssteelframebyunfastening4pcsofM4*10screws.
10

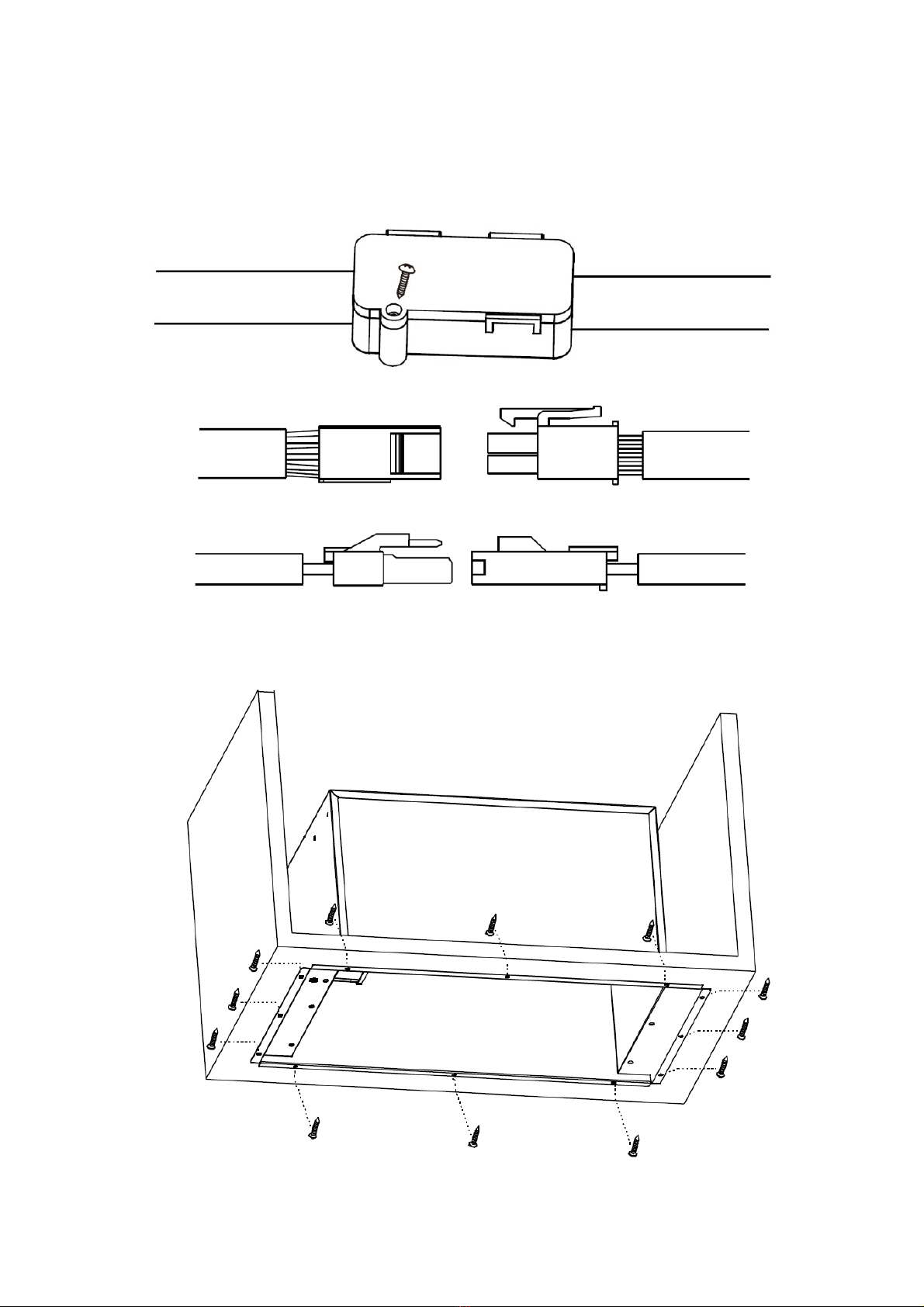

3.UnfasteningST4*10oftheterminalbox,removethelidoftheterminalbox,
disconnectthecontrolboardwires.DisconnecttheLEDlightwires.
4.Fixtherangehoodtothecabinetcutoutbyusing12pcsofST4*18screws.
11
5.Putthestainlesssteelframebackintoplaceandfastenthe4pcsofM4*10
screwsremovedjustnow.
6.ReconnectthecontrolboardandLEDlightswiresintheterminalbox.Closethe
terminalboxlidandsecureitwiththeST4*10screw.
12

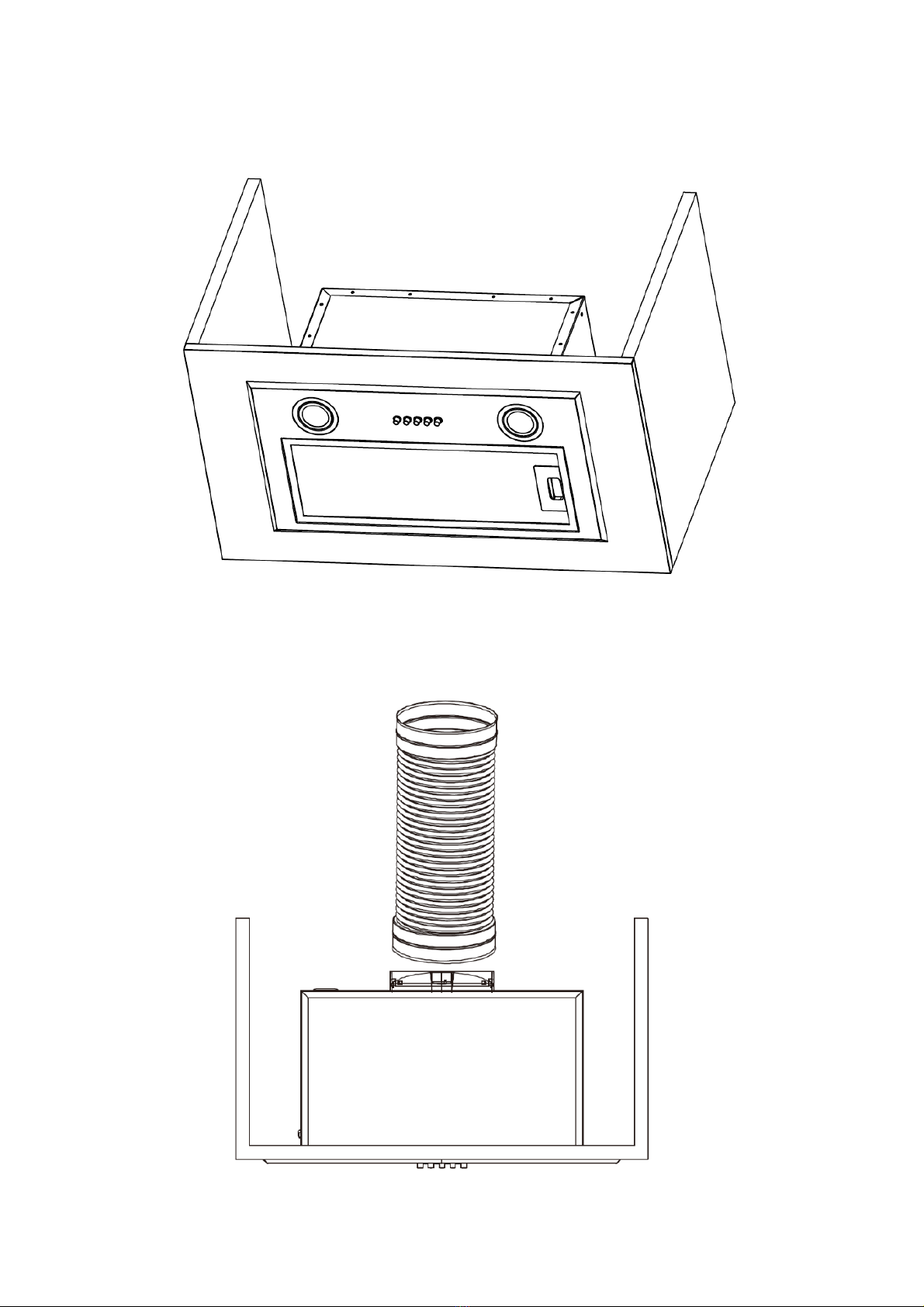

7.Putthemetalfilterbackintoplace.
8.Installthe150mmductpipe(oponal)
13
14
Ducted mode (Vented mode)
Intheductedmode,airisdrawnintothehood.Oilistrappedinthealuminiumfilter
whileodours,fumesandcondensaonarethendirectedandventedtotheoutside.
Only the aluminium filters is to be installed in the ducted mode.
Ductworkshouldbeplannedcarefullybeforedrillingandcungtheduct.
Installermustensurethattheproductinstallaonandconneconcomplieswiththe
localandgeneralducngregulaoninforce.Flexibleductworkisrecommended.
Extendducttoitsfulllength,andposion,cutanddiscardanyexcess.
15
Note:Keepductasstraightaspossibleformaximumairflowandatleast
restricons,whileprovidingforeasymaintenance.
Ventedsystemmustbeterminatedtotheoutside.Ductworkcanextendeither
throughthewallortheroof.Donotterminatetheventsysteminanacorother
enclosedarea.
Thelengthoftheductworkandthenumberofelbowsshouldbekeptto
minimumtoprovideefficientperformance.Thesizeoftheductworkshouldbe
uniform.Donotinstalltwoelbowstogether.Useducttapetosealalljointsinthe
ductworksystem.Usecaulkingtosealexteriorwallorflooropeningaroundthecap.
Whenthehoodisworkingatthesamemewithothernon‐electricalcooking
equipment,thenegavepressureoftheroommustnotexceed4Pa.
Makesurethereisproperclearancewithinthewallorfloorforexhaustductbefore
makingcutouts.Donotcutajoistorstudunlessabsolutelynecessary.Ifajoistor
studistobecut,thenasupporngframehavetobeconstructed.
Connectthe150mmductpipefromthehoodbodytotherangehoodmotor.Fix
theductpipeinposionbyringclamps(notprovidedbymanufacturer)
Fixtheductpipeinposionbyringclamps(notprovidedbymanufacturer)
Make sure the charcoal filter is removed (if any).

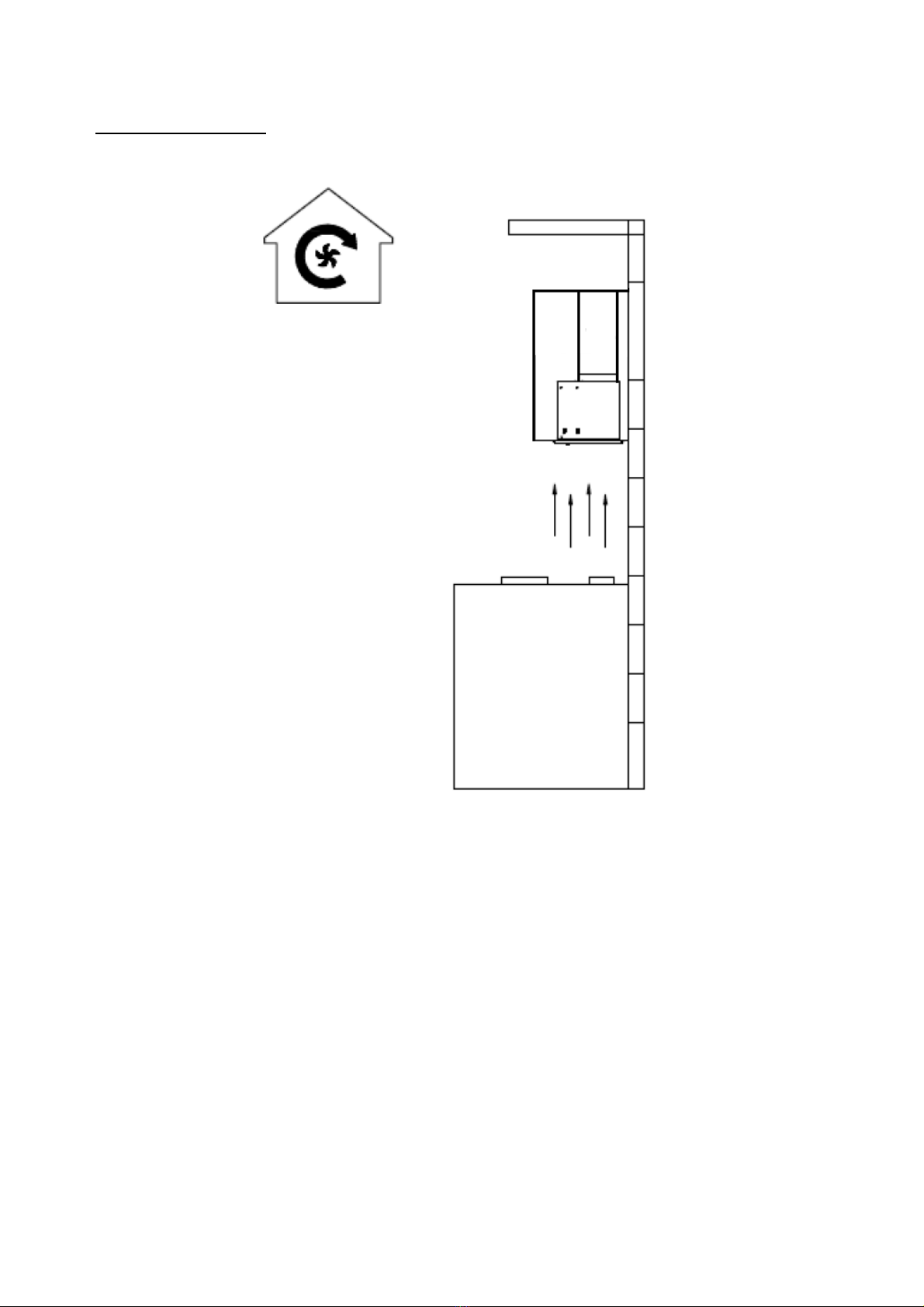

Recirculaon mode
Intherecirculaonmode,airisdrawnintothehood.Oilistrappedinthealuminium
filterswhilecookingodoursisremovedbythecharcoalfilter.Purifiedairthenis
directedbacktothekitchen.
Inthismode,charcoal filter is strongly recommended to be fied to the
rangehood.
16
Electrical Connecon
Beforeconnecngtothemains,makesurethat:
Theelectricmeter,fuse,feedinglineandsocketareadequateto
withstandthemaximumloadrequired(refertoproductdatalabelforrated
power)
Thesupplysystemisregularlyearthed,accordingtotheregulaonsinforce.
Theisolaonswitchcaneasilybereachedaertherangehoodisinstalled.
17
18

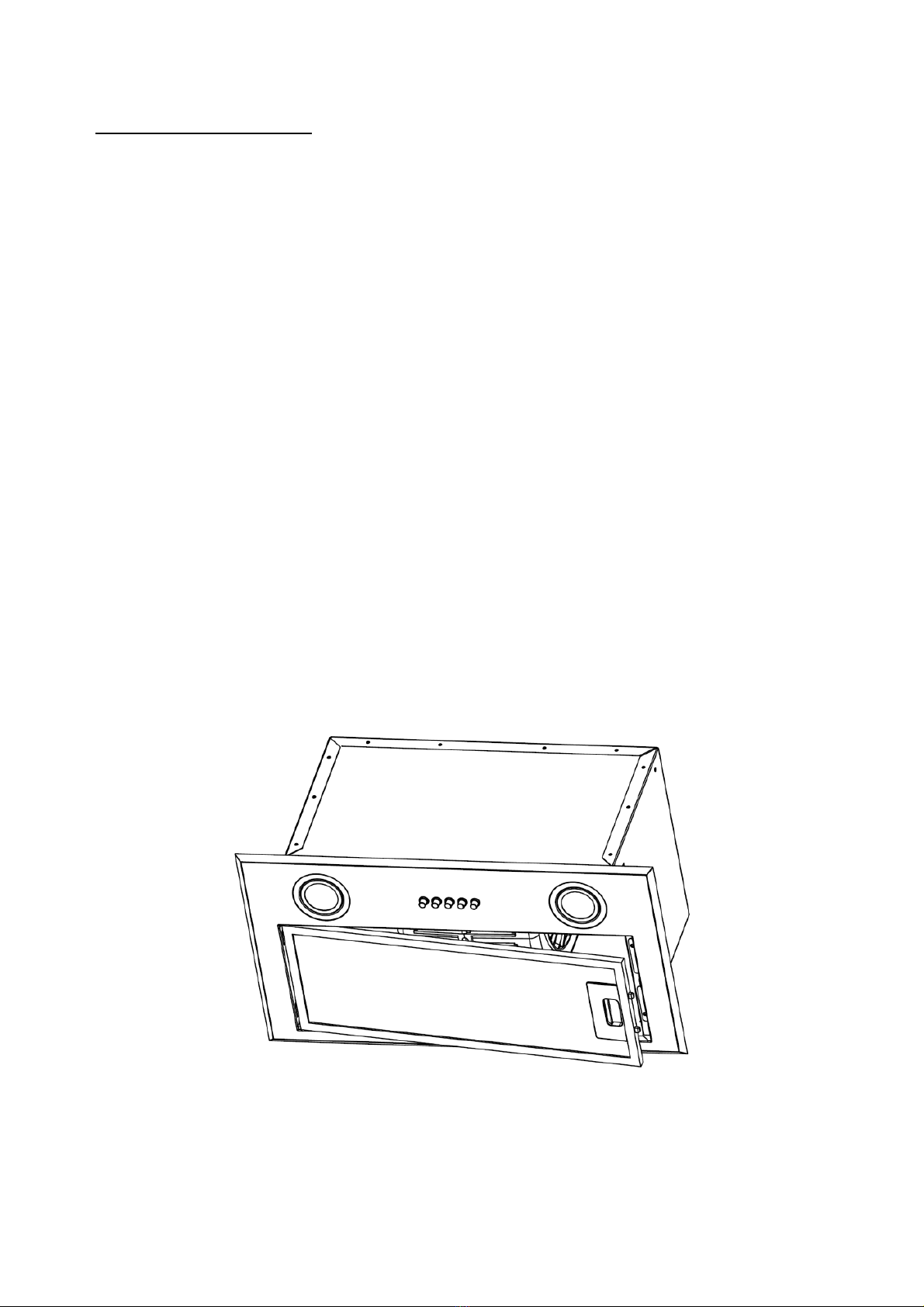

Rangehood Operaon & Control
Thehoodisequippedwitha3‐speedcontrolmotor.Electroniccontrolbuonsare
locatedatthefrontedgeofthehoodcanopy.
Toachievebeerresults,itisrecommendedtoswitchthehoodon3to5mins
beforecookingstarts.Likewise,letthehoodrunforafewminutesaer
cooking.
Light On / Off
Toturnthelighngsystemonandoff.
Fan at Low Speed
ToturntheextractormotorOnatlowspeed.Thismodeprovidesa
connuousandlowvolumeextraconinthepresenceoflightcooking
vapours.
Fan at Medium Speed
ToturntheextractormotorOnatmediumspeed.Suitableformost
operangcondions.Thismodeprovidestheopmumtreatedairflow
tonoiselevelrao.
Fan at High Speed
ToturntheextractormotorOnathighspeed.Suitableforeliminang
thehighlevelsofcookingvapoursandlongcookingperiod.
Power Off
ToturnextractormotorOff.
19
Cleaning & Maintenance
Cauon: Prior to cleaning or maintenance, always disconnect the power
supply.
Do not use a steam cleaner.
To ensure the range hood is funconing effecvely, regular maintenance is a must.
Surfaces :Cleanwithwarmsoapywaterandaso sponge.Neveruseabrasive
detergent,scouringpads,steelwoolorsolventsonanypartofthisapplianceasthis
willcauseirreparabledamage.Drytherangehoodbyusingacloththatdoesnotpro‐
ducefluff.
Metal Filter :Thiscouldbewashedinadishwasherwithsettemperaturebelow
60degreeC.Itisadvisabletostackthemvercallytoavoidfoodresiduesckingto
them.Orsoakthemetalfilterinadegreasingagentunlallgreaseisdissolved.Then
cleanitunderaflowingwatertap,andrinseitoff.
Note:Framediscolouraonmayoccurifthefilteriswashedinadishwasher.
Warning: a build‐up of oil may occur if the range hood is not cleaned regularly
20

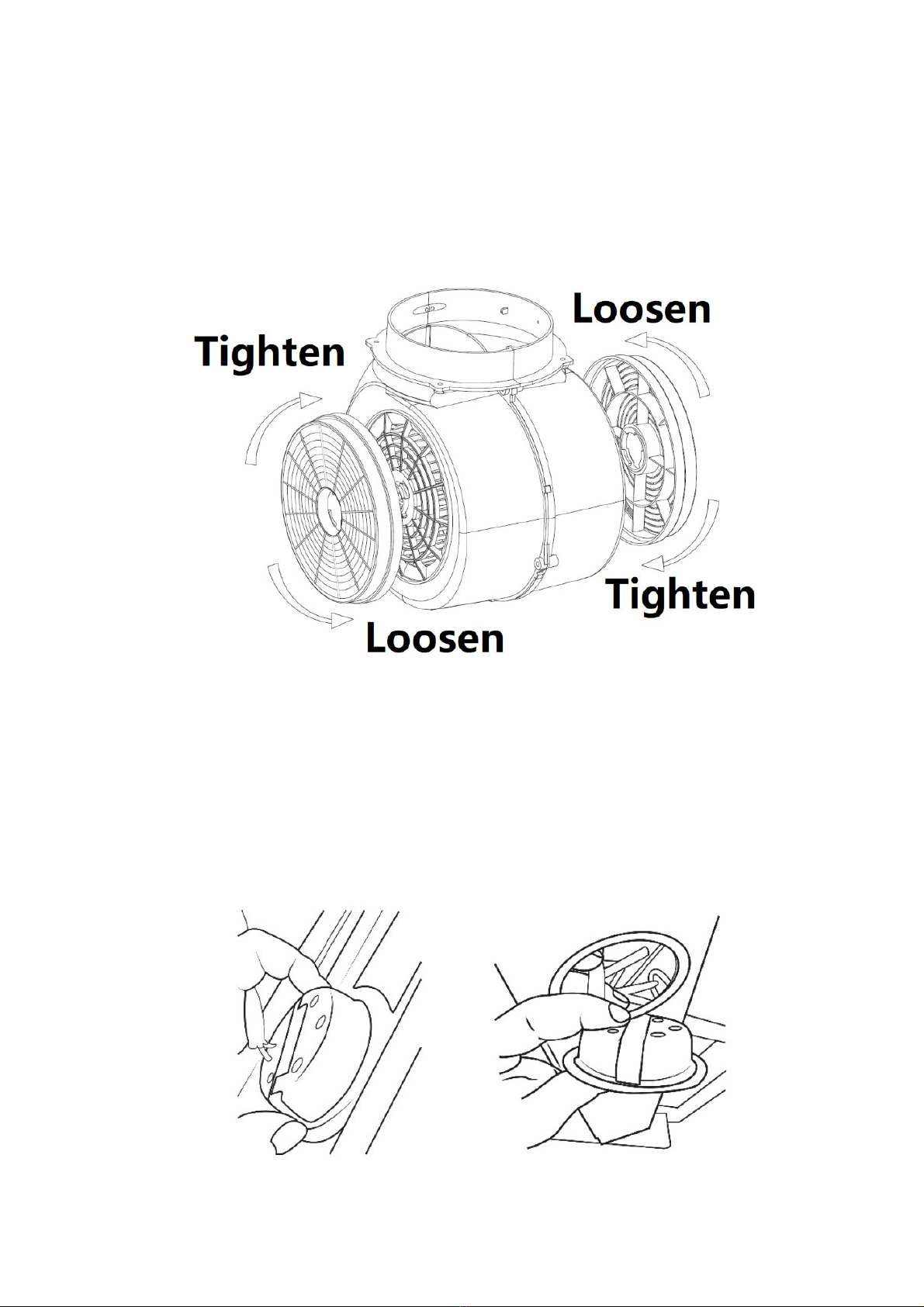

Charcoal Filter :Charcoalfilterisnotwashable.Tochangethecharcoalfilter,first
removethemetalfilter,thenloosenandremovethecharcoalfilterasindicatedin
diagrambelow.Getapairofnewcharcoalfilterandghtenthemtofittotheside
ofextractormotorintheoppositedirecon.
LED replacement:Contactauthorisedsellerforreplacementpart.Removethemet‐
alfilterandpushtheLEDfrominsidethehoodbodytoremovetheLED.Disconnect
theLEDwiresandreplacetheconneconwithanewLED.PushtheLEDfromoutside
therangehoodbodytofixittothelamphole.
