Dimplex DC10RC User manual

DC10RC / DC12RCBW / DC15RCBW
Reverse Cycle Portable Air
Conditioner with Dehumidier
www.dimplex.com.au
INSTRUCTION MANUAL
PLEASE READ THE INSTRUCTION MANUAL CAREFULLY BEFORE USING THE UNIT.

www.dimplex.com.au
CONTENTS
WARNINGS AND PRECAUTIONS 1
STRUCTURE 3
OPERATION 4
CLEANING AND MAINTENANCE 12
ERROR CODES 13
TROUBLESHOOTING 14
TECHNICAL REFERENCE DATA 15
WARRANTY 16

1
IMPORTANT INFORMATION
Carefully read this instruction manual before you install or use
your portable air conditioner. Please retain this manual for product
warranty and for future reference.
CAUTION
• Make sure the inlet and outlet vents are never blocked.
• Ensure the appliance is on a stable, even surface when operating to
avoid water leakage.
• Do not operate this unit in an explosive or corrosive atmosphere.
• When switched to cooling, only operate this unit in ambient
temperatures between 17°C and 43°C. For heating, only operate this
unit in ambient temperatures between 5°C and 23°C.
• Clean the air lter frequently to ensure efcient operation.
• To prevent compressor damage when the unit has been operating and
is turned off, please wait at least 3.5 minutes before restarting.
• This unit needs to be plugged into a 220-240V ~ 50Hz AC, 10 Amp
power outlet.
• Do not use any extension cords with this unit.
• This unit is for indoor operation only.
• Open the adjustable air vent and extend the exhaust pipe (and drain
pipe, if tted) to the closest window before using.
• After starting the unit, the fan will run rst and the cooling display light will
be ash for 3 minutes until then compressor starts working.
• Only professional technicians, manufacturers or service agents can
replace a damaged power cord.
• When the batteries no longer work, they must be removed from the
remote control and disposed of safely.
WARNINGS & PRECAUTIONS

2
• This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for
their safety.
• Children should be supervised to ensure that they do not play with the
appliance.
• The appliance can only be connected to power source less than
0.219Ω.
• Clear the water before move the unit.
IMPORTANT
The air conditioner must always be stored and transported
upright. In case of doubt we suggest you wait at least 24 hours
before operation. (Please keep the unit upright at all times)
PACKAGE CONTENTS
• Portable air conditioner
• Remote control
• Batteries for remote control
• Extendable window kit
• Water tray
WARNINGS & PRECAUTIONS

3
1. Controls
2. Remote receiver
3. Adjustable air vent
4. Window kit adaptor
5. Exhaust tube
6. Upper drain plug
7. Cool air inlet
8. Cool air lter
9. Hot air inlet
10. Hot air lter
11. Lower drain plug
STRUCTURE
Note: Make sure drain plugs (6 and 11) are tted before use.

4
OPERATION
BEFORE FIRST USE
•
Please read these instructions carefully before use and keep them for
future reference.
•
Check your local main voltage whether it is the same as stated on the
appliance.
•
Before using for the rst time, remove any protective lms or stickers
from the appliance and ensure the control knob is in the “OFF” position.
•
Make sure drain plugs (5 & 9) are tted before use.

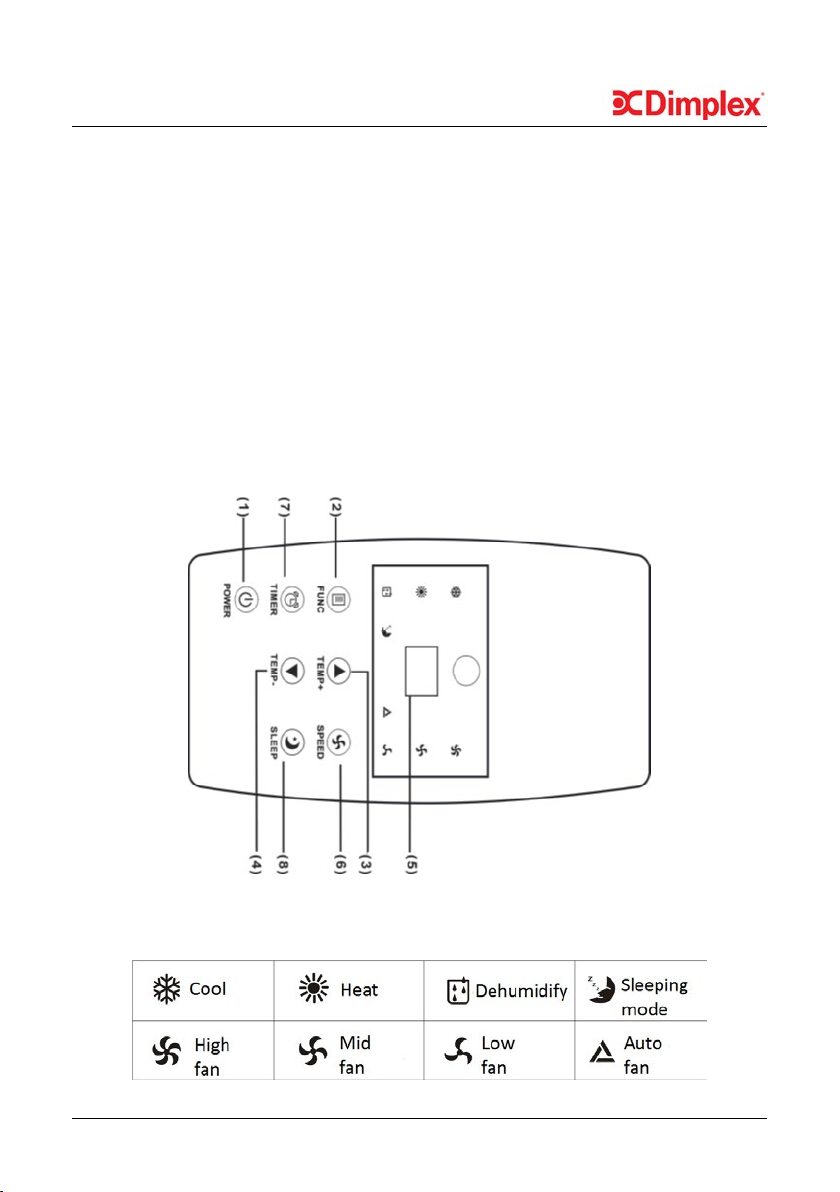

CONTROLS & DISPLAY
ICON DESCRIPTION

5
OPERATION
(1) POWER - Press the POWER button to turn the unit “ON” or “OFF”.
The portable air conditioner is tted with a compressor delay protection
circuit. This protects the unit from possible damage due to rapid starting
and stopping of its compressor. Compressor operation begins 3 minutes
after the unit is switched on or the mode is switched from dehumidify to air
conditioning.
(2) FUNCTION Press this button to select cooling, heating or
dehumidication. When the heating or dehumidication functions are
used the upper drain plug (6) must be removed and a drain hose must be
attached.
(3) TEMP+ In cooling function, this button raises the set temperature by
1°C each time it is pressed to a maximum of 30°C. In heating function,
this button raises the set temperature by 1°C each time it is pressed to a
maximum of 25°C.
(4) TEMP- In cooling function, this button lowers the set temperature by
1°C each time it is pressed, to a minimum of 17°C. In heating function,
this button lowers the set temperature by 1°C each time it is pressed to a
minimum of 15°C.
The time taken to reach the desired set temperature will depend on the
environment and the size of the space in which the unit is operating in. For
example, if the ambient temperature is too hot or the room is too large, the
rate at which the temperature descends will be slower and the cooling may
be less effective.

6
OPERATION
(5) DISPLAY The display indicates the current, the set temperature or the
timer setting. When the timer or temperature is adjusted, the new setting is
shown then the display returns to the current set temperature.
The display is also used to show error codes should a fault occur,
see ERROR CODES.
(6) SPEED Press SPEED to select LOW, MEDIUM, HIGH or AUTO fan
speed. If AUTO fan speed is selected, the unit operates at maximum
capacity and high fan speed while the room temperature is more than 2°C
from the set temperature. When the room temperature is within 2°C of
the set temperature, the unit operates at medium capacity and fan speed.
Once the room temperature equals the set temperature, the unit will operate
at minimum capacity and low fan speed to efciently maintain the desired
temperature. When HIGH, MEDIUM or LOW speed is selected, the unit
operates at maximum capacity until the set temperature is reached. The fan
operates at the selected speed.
Note: When the unit is in heating mode, only HIGH, LOW fan speed can be
selected.
(7) TIMER ON/OFF button for the programmable timer.
The timer can be used to turn the unit on automatically after a set
time delay is complete.
1. With the unit OFF, press the “TIMER” button to set the desired time
delay before the unit is to start.
2. Choose the function desired (cooling, heating or dehumidication.)
3. Once the set time delay is complete, the unit will turn on automatically.
4. If you press the “POWER” button before the time delay is complete, the
delay will be cancelled and the unit will turn on immediately.

7
OPERATION
The timer can be used to turn the unit off automatically after a set
time period is complete.
1. With the unit ON, press the “TIMER” button to set the desired time for
the unit to remain on.
2. Once the set time period is complete, the unit will turn off automatically.
3. If you press the “POWER” button before the time delay is complete, the
delay will be cancelled and the unit will turn off immediately.
(8) SLEEP Press the SLEEP button to select the sleep comfort mode.
When the unit is cooling and sleep mode is selected, the unit will raise
the set temperature 1°C each hour to a maximum of 2°C over two hours.
When the unit is heating and sleep mode is selected, the unit will lower
the set temperature 1°C each hour to a maximum of 2°C over two hours.
These temperatures will be maintained for the balance of the time set
and help maximize sleep comfort.
When setting the “sleep comfort” mode, please ensure that you set the
number of hours required by using the TIMER function. The hours set
will be shown on the display by pressing either the TEMP+ or TEMP
buttons.

8
OPERATION
REMOTE CONTROL

9
OPERATION

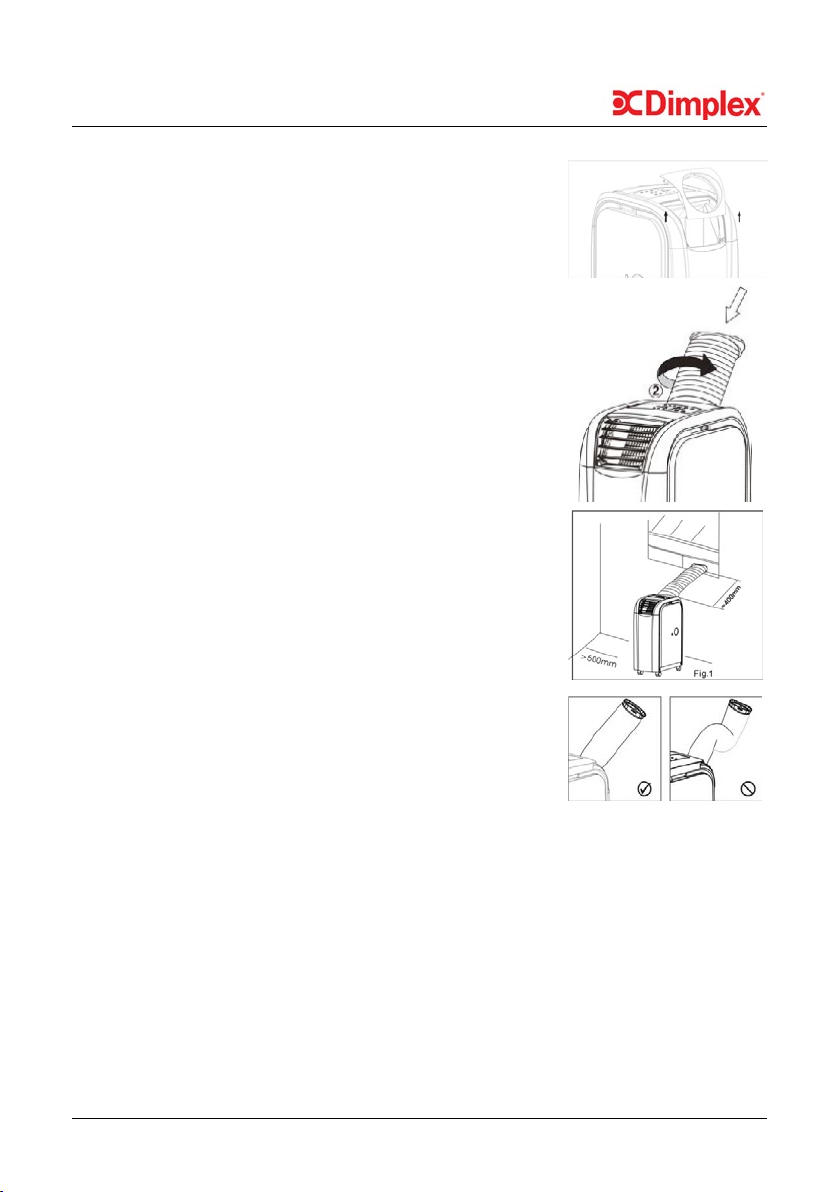

INSTALLATION
Unpacking the unit:
Remove the exhaust tube from its storage under
the rear air outlet. Replace the rear air outlet.
Install the exhaust tube by rotating it clockwise onto
the rear air outlet. Please ensure it is fully inserted
before use.
Locating the unit:
Install the portable air conditioner in a at location
with adequate space to ensure the air inlets and
outlets will not be blocked.
Keep a minimum clearance of 50cm from walls and
other objects. Locate the unit to allow the exhaust
pipe and drain hose to reach a suitable window, as
shown.
Avoid sharp bends or kinks in the exhaust pipe. The optional adjustable
window slider is included to ensure the exhaust pipe is held in place (in the
window) and prevents expelled hot air re-entering the room.
The appliance should not be used in damp areas such as a laundry or
bathroom.
Do not place the unit where it will be in direct sunlight as it may overheat
and turn off.

10
OPERATION
ADJUSTABLE WINDOW SLIDER KIT
The adjustable window slider kit is installed as shown below:
HEATING & DEHUMIDIFICATION
When the heating or dehumidication functions
are used the upper drain plug (6) must be
removed and a drain hose* must be attached.
*Drain hose is not supplied.
HEATING
When using the heating function move the rear air outlet with the exhaust
tube to the front of the unit as below:

11
OPERATION
NOTE: The outlet exhaust must still be attached to the window when using
the heating function. Return the outlet and tube to the rear of the unit for
cooling or dehumidication.
WATER DRAIN (Error Code E4)
When the air conditioner is used, excess water condensation may be
produced that cannot be removed via the exhaust hose. This water is
captured by an internal container. When this container is full, the unit
will stop working and display the E4 error code. When the error code is
displayed the water collected must be manually drained.
1. Switch off and unplug the unit.
2. Move the unit to a suitable place to drain the water. Consider placing
a tray or suitable container under the outlet pipe to catch the drained
water.
3. Remove the lower drain plug (11), refer to parts illustration.
4. Slightly tilt the unit to the rear to drain the water.
5. Replace the drain plug. Ensure the drain plug is re-tted to the drain
outlet before use.
NOTE: Extend the exhaust to the window before the unit is restarted.

12
CLEANING & MAINTENANCE
CLEANING THE FILTERS
WARNING: Always unplug the unit before moving or before any cleaning.
The air lters located on the rear of the unit can be removed simply by
pulling the lter frame slightly out and then across to the side.
CLEANING THE CABINET
Wipe with a damp cloth and polish with a soft cloth.
CARE TIPS
1. Only plug the unit into a suitable 220-240V~ 50Hz AC 10 AMP power
supply.
2. Hold the plug when unplugging the unit, never pull on the cord.
3. Do not place the unit in direct sunlight. This can fade the plastic case.
4. Do not operate the unit in a conned space.
5. Do not place objects on top of the unit. This blocks the air outlet.
6. Do not place the unit where the air inlets or outlets may be blocked by
curtains or furniture.
7. Keep the lters clean.

13
ERROR CODES
OVERHEAT PROTECTION
This unit is tted with an overheat prevention device. If the unit overheats it
will automatically turn off. The unit can be restarted after 30 minutes.
ERROR CODES
Error codes are shown on the display should a fault occur.
E1: Indicates open circuit or short circuit in the room temperature sensor.
E2: Indicates open circuit or short circuit in the pipe temperature sensor.
E4: Indicates the internal water container is full. Refer to WATER DRAIN.
If error code E4 persists, please contact an authorized service centre.
NOTE: Never try to repair or dismantle the air conditioner yourself.
Unauthorized repairs may result in the loss of warranty and can endanger
the user and their property.

14
TROUBLESHOOTING
Problem Cause Solution
The air conditioner
does not operate.
No power supply. Connect to a functioning
power supply socket &
switch on.
Error code E4 is shown,
indicating the internal
water container is full.
Empty the internal water
container. (Refer to ‘water
drain’ section)
The start timer function is
active.
Press the power button
to deactivate the timer
function.
The air conditioner
does not seem to
operate efciently.
The air conditioner is in
direct sunlight/
Close the curtains.
Windows or doors are
open.
Close the windows and
doors.
The lters are dirty. Clean the lters.
The air inlets or outlets
are blocked.
Remove the blockage.
The room temperature is
below the set tempera-
ture.
Lower set temperature.
The air conditioner is
noisy.
The air conditioner is not
level.
Place the air conditioner
The compressor does
not work.
The overheat protection
is activated.
Wait 30 minutes until the
temperature has de-
creased, then turn the air
conditioner on again.
Note: Compressor op-
eration begins 3 minutes
after the unit is switched
on.
The remote control
does not function.
The distance between
the remote control and
the air conditioner is too
great.
Move closer to the air
conditioner. Aim the
remote control directly at
the control panel.
The batteries are at. Replace the batteries.

15
TECHNICAL & REFERENCE DATA
MODEL NO. DC10RC DC12RCBW DC15RCBW
Power source 220-240V ~ 50Hz AC 220-240V ~ 50Hz AC 220-240V ~ 50Hz AC
Power consumptions (EN14511) 1245W / 1090W 1452W x 1246W 1826W / 1566W
Rated power (EN60335) 1280W / 1100W 1480W / 1300W 1700W / 1500W
Cooling / Heating capacity 3000W / 3000W 3500W / 3500W 4400W / 4400W
Air ow 300m3/h 380M3/H 550M3/H
Moisture removed
40L / Day 60L / Day 75L / Day
Refrigerant R410a R410a R410a
Min. room size 10m2 10m2 10m2
Max. room size 22m2 25m2 29m2
Dimensions (mm) W300 x D526 x H624 W300 x D550 x H760 W300 x D550 x H760
Net weight (kg) 28 29.5 31.5
DISPOSAL
• Do not dispose of electrical appliances as unsorted municipal waste.
Use separate collection facilities.
• Contact your local government for information regarding the collection
systems available.
• If electrical appliances are disposed of in landlls or dumps, hazardous
substances can leak into the ground water, polluting the food chain and
damaging health and well-being.
MAINTENANCE
If the unit fails to operate efciently, is broken or other problems arise,
unplug and do not operate. Ask for advice by calling your local after sales
service agent or the Customer Care Centre on 1300 556 816 (AU) / 0800
666 2824 (NZ).
SPECIFICATIONS

16
WARRANTY
The warranty period is 24 months from the date of purchase. For service
advice, please contact the Customer Care Centre on 1300 556 816 (AU) /
0800 666 2824 (NZ).
Glen Dimplex Australia Pty Ltd Glen Dimplex New Zealand Ltd
1340 Ferntree Gully Road, 38 Harris Road, East Tamaki,
Scoresby 3179, Victoria Auckland 2013
Australia New Zealand
Ph: 1300 556 816 Ph: 0800 666 2824
